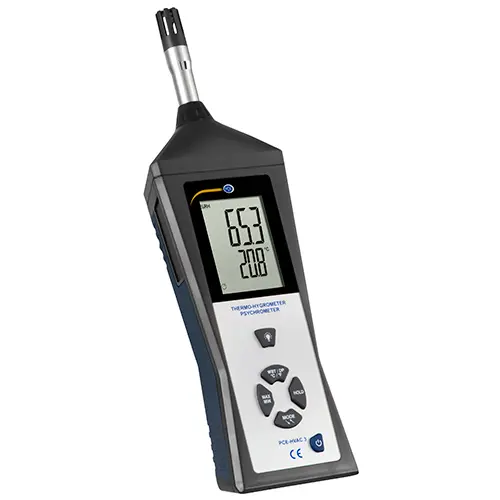

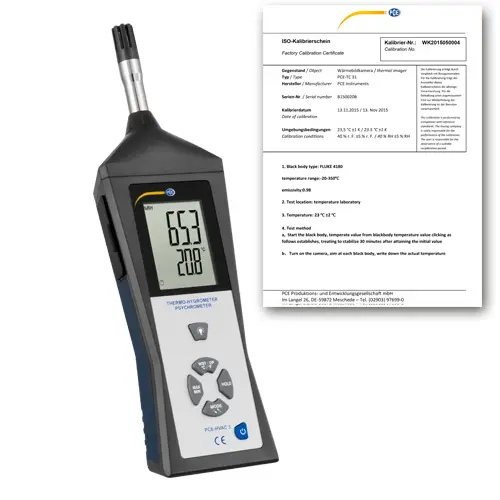

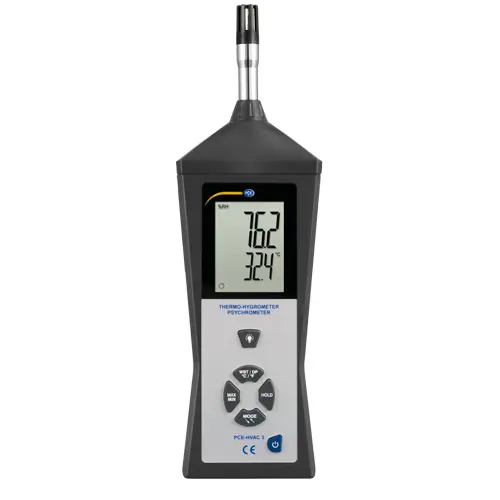

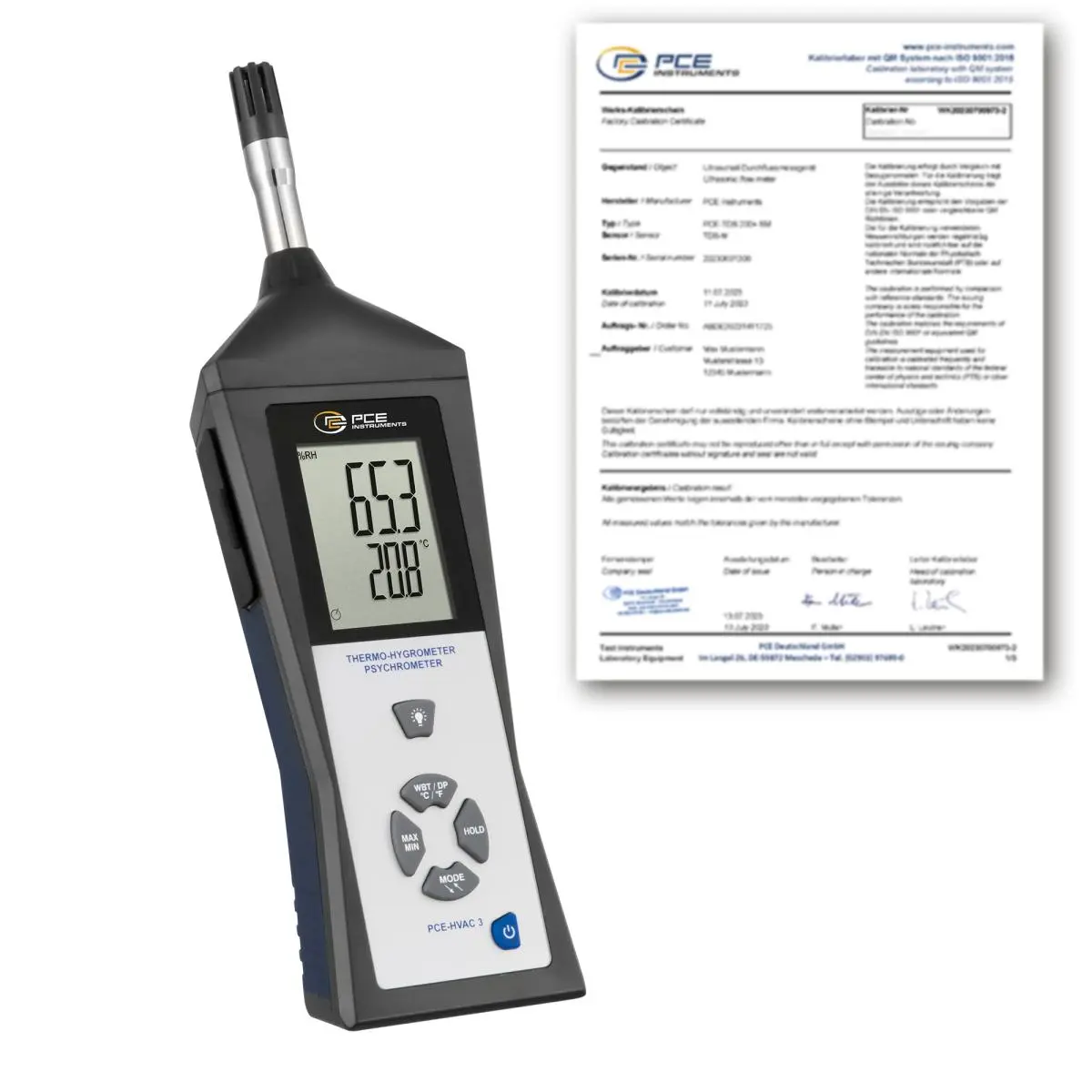

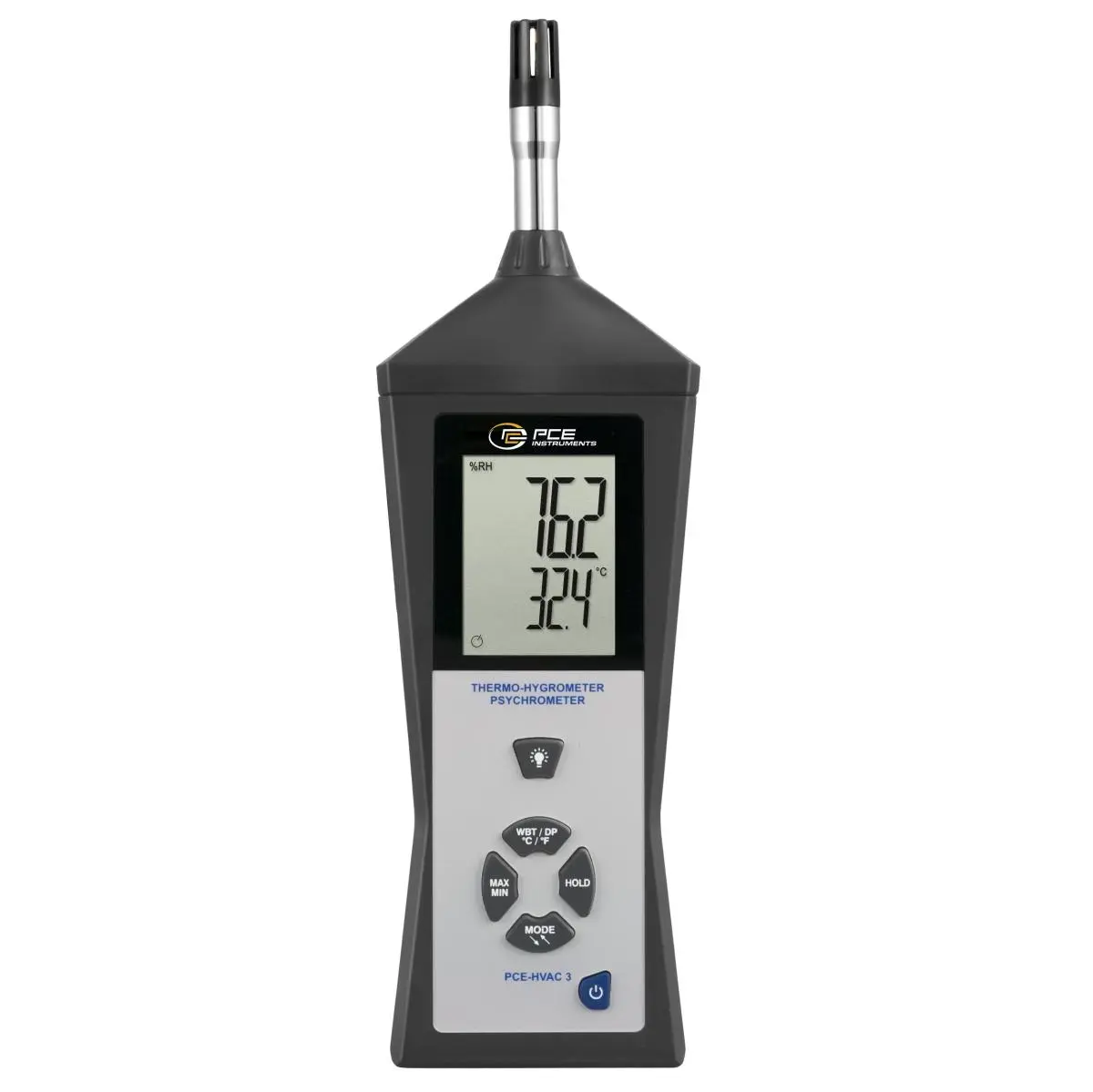

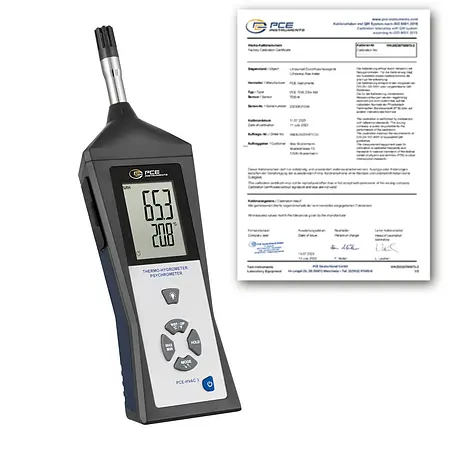

PCE-HVAC 3 Handheld Humidity Detector with ISO calibration certificate
Measures relative humidity (% RH) and ambient room temperature (°C / °F) / Calculates dew-point and wet-bulb temperatures (°C / °F) / Features hold and extreme value measurement functions

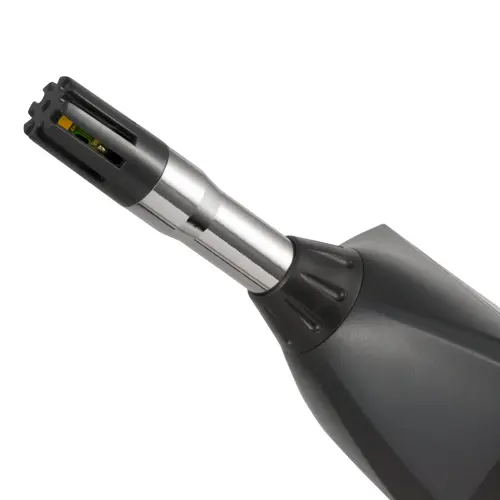

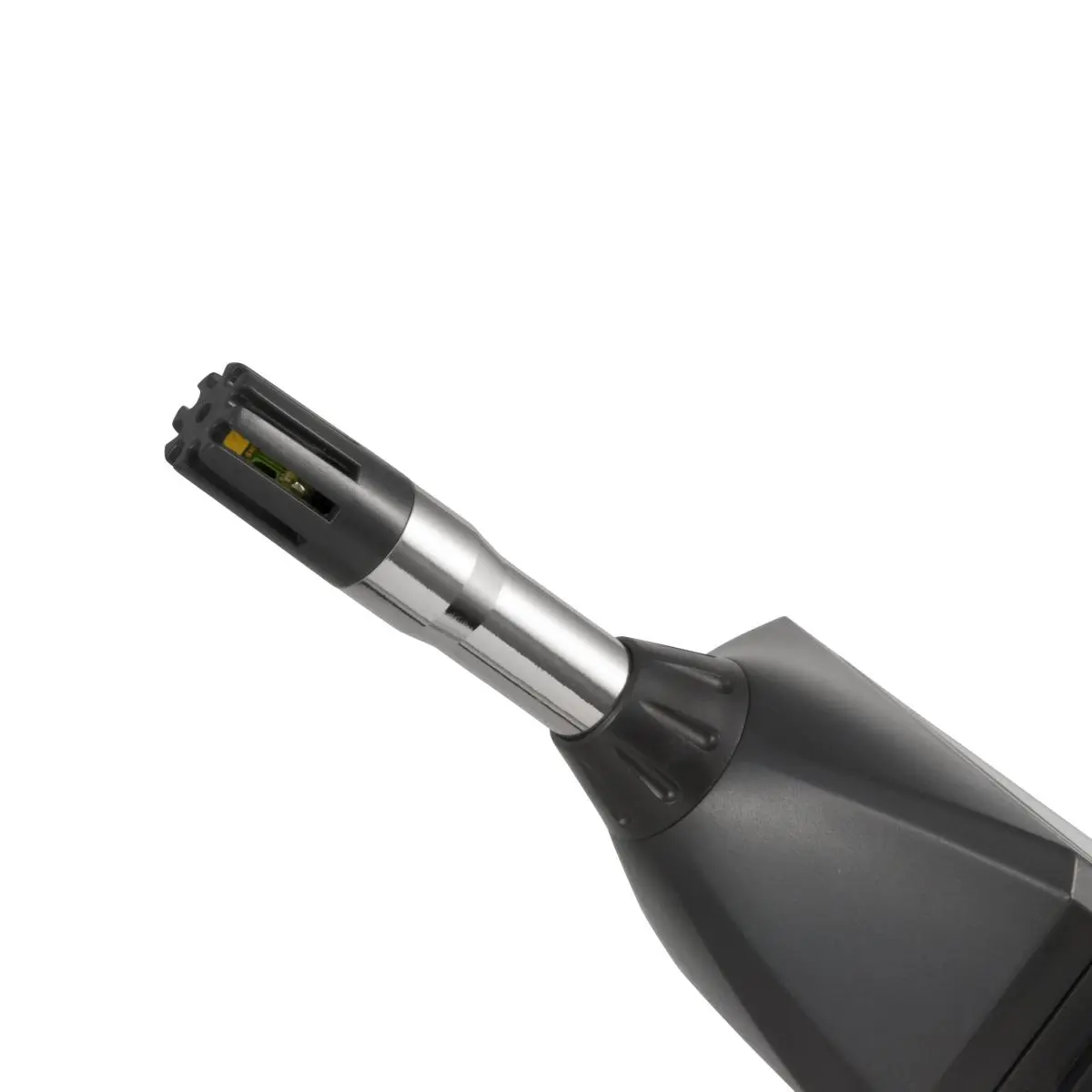

PCE-HVAC 3 is a humidity detector or diagnostic measuring device used for indoor climate and environmental monitoring. In addition to measuring relative humidity and ambient room / dry-bulb temperature, the meter calculates dew-point and wet-bulb temperatures in degrees Celsius (°C) and Fahrenheit (°F). Thus, heating, ventilation and air conditioning (HVAC) installations and HVAC system performance assessments are key applications of the PCE-HVAC 3 humidity detector. Measurements of relative humidity and ambient room / dry-bulb temperature are made directly by built-in sensors. Dew-point and wet-bulb temperatures are calculated based on the measurement values transmitted by the sensors.

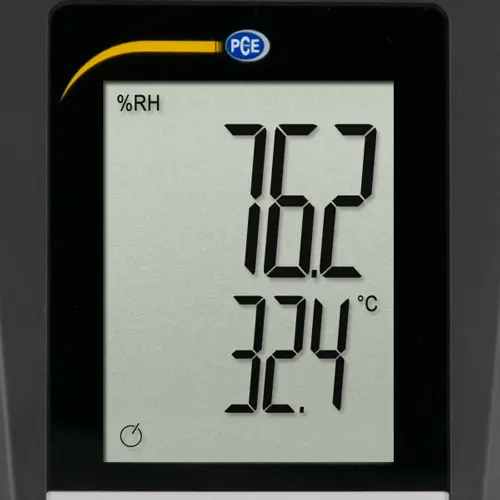

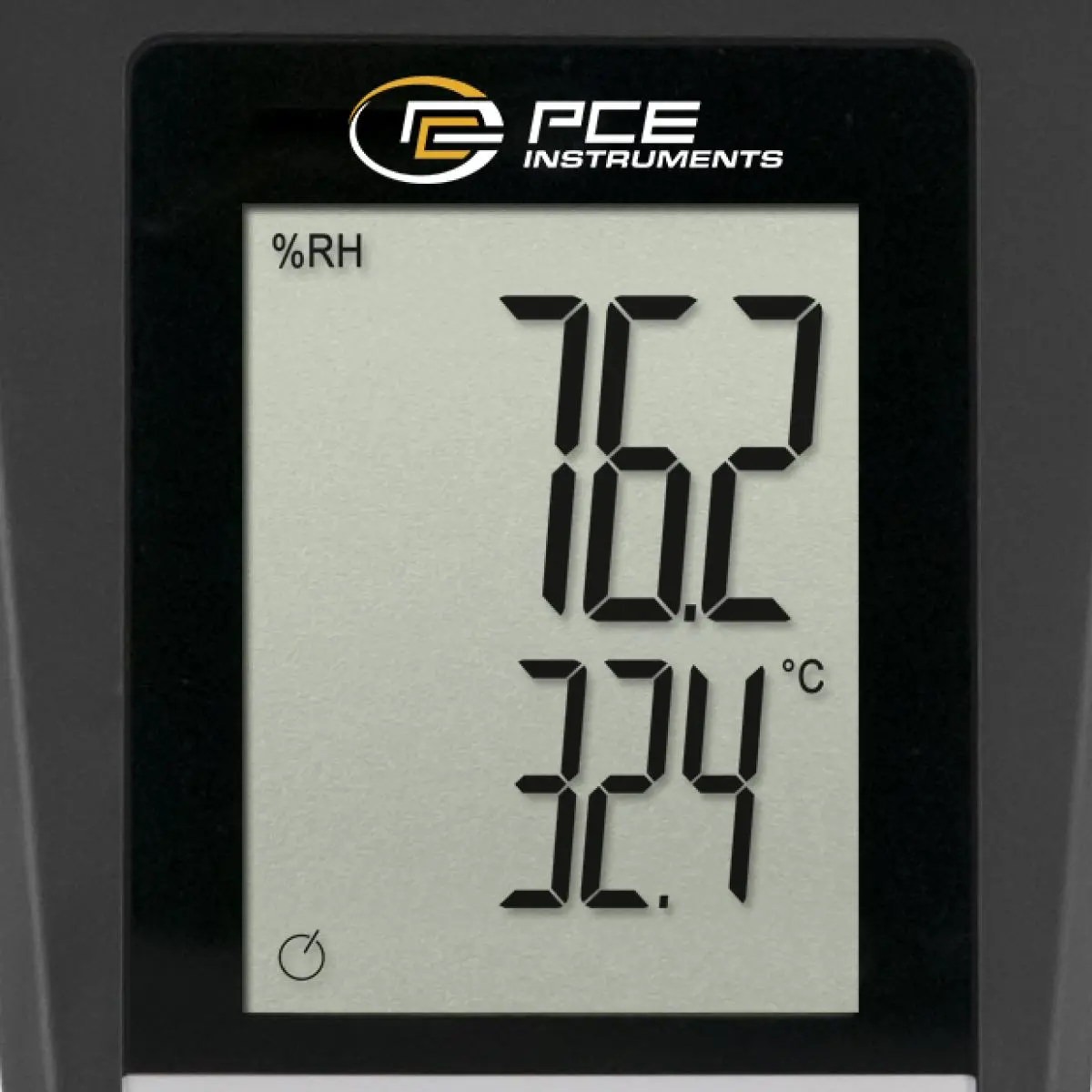

Featuring a large, backlit display and six-button operation, the humidity detector is both easy to read and easy to use. The humidity detector is equipped to take one-time measurements on the spot as well as to monitor climate changes over time. The automatic shutdown function can be disabled when taking long-term measurements. There is also a thread on the back of the humidity detector to allow the measuring instrument to be mounted on a tripod. The extreme value measurement function can be activated during long-term monitoring to determine the minimum or maximum values over a desired period of time.
| Absolute moisture | |
| Measuring range | 0 ... 500 g/m³ |
| Absolute moisture | |
| Measuring range | 0 ... 212,5 g/ft³ |
| Wet bulb temperature | |
| Measuring range | 0 ... 80 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1 °C |
| Wet bulb temperature | |
| Measuring range | 32 ... 176 °F |
| Resolution | 0,18 °F |
| Accuracy | ±1.8 °F |
| Dew point | |
| Measuring range | -30 ... +100 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1°C |
| Dew point | |
| Measuring range | -22 ... +212 °F |
| Resolution | 0,18 °F |
| Accuracy | ±1.8°F |
| Relative humidity | |
| Measuring range | 0 ... 20 % |
| Resolution | 0,1 % |
| Accuracy | ±4% |
| Relative humidity | |
| Measuring range | 20 ... 40 % |
| Resolution | 0,1 % |
| Accuracy | ±3% |
| Relative humidity | |
| Measuring range | 40 ... 60 % |
| Resolution | 0,1 % |
| Accuracy | ±2 % |
| Relative humidity | |
| Measuring range | 60 ... 80 % |
| Resolution | 0,1 % |
| Accuracy | ±3% |
| Relative humidity | |
| Measuring range | 80 ... 100 % |
| Resolution | 0,1 % |
| Accuracy | ±4% |
| Temperature | |
| Measuring range | -30 ... -19,9 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1 °C |
| Temperature | |
| Measuring range | -20 ... +60 °C |
| Resolution | 0,1 °C |
| Accuracy | ±0.5 °C |
| Temperature | |
| Measuring range | 60 ... 100 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1 °C |
| Temperature | |
| Measuring range | -22 ... +212 °F |
| Resolution | 0,18 °F |
| Accuracy | ±1.8 °F |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD |
| Display type | LCD with backlight |
| Display size | 2,8 in |
| Response time | 15 s |
| Operating time | 48 h |
| Automatic power-off | 10 min |
| Sensors | Capacitive, Thermistor |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 1 x 9 V 9V block , Alkali-manganese |
| Capacity | 640 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | -40 ... 85 °C , 0 ... 99 % RH |
| Dimensions ( L x W x H ) | 300 x 75 x 50 mm |
| Weight | 400 g |
