Order no.: PCE-MIR 20

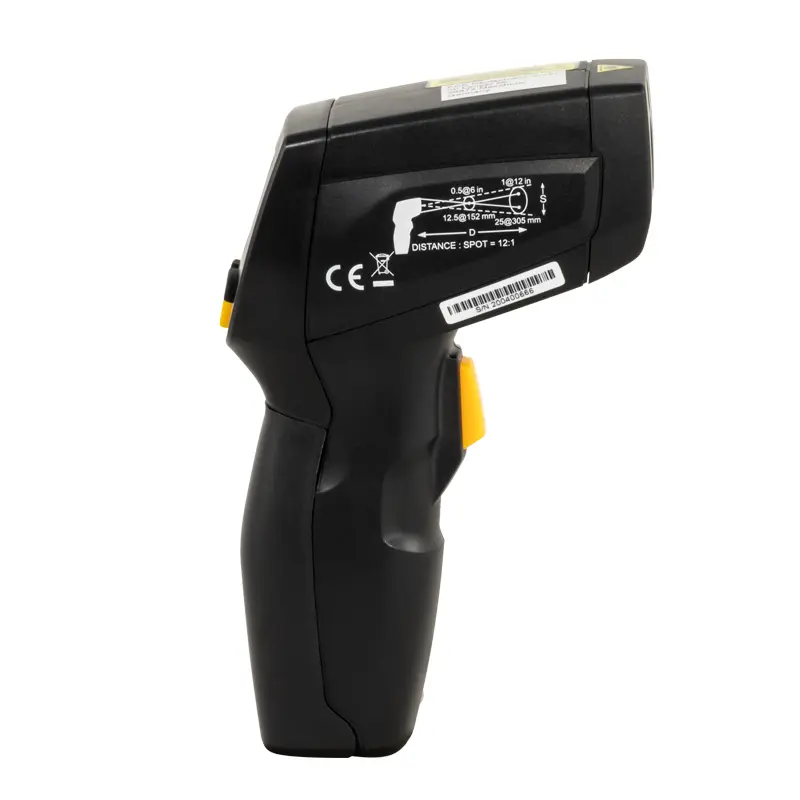

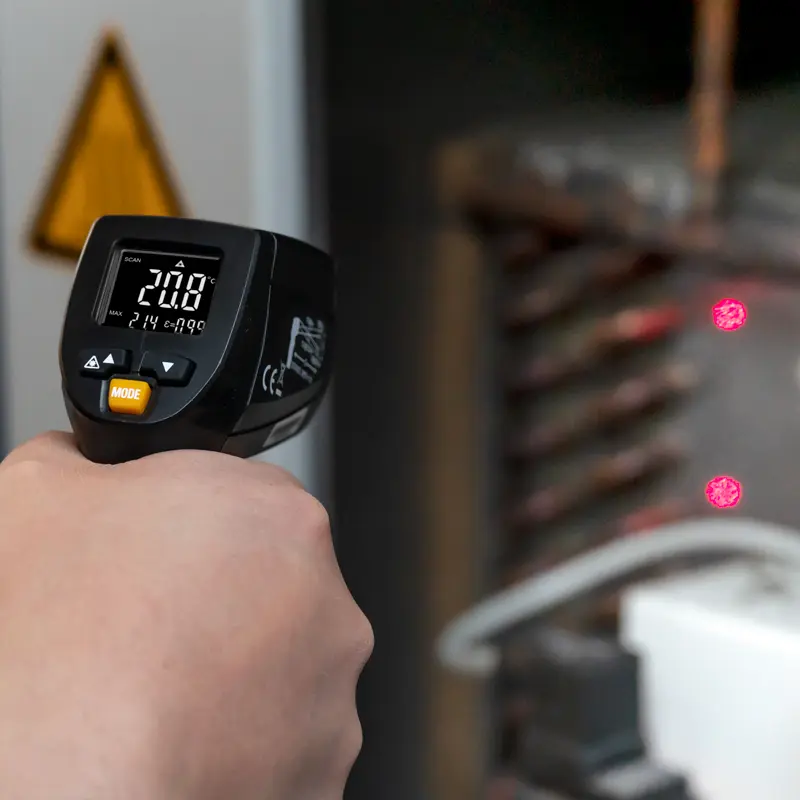

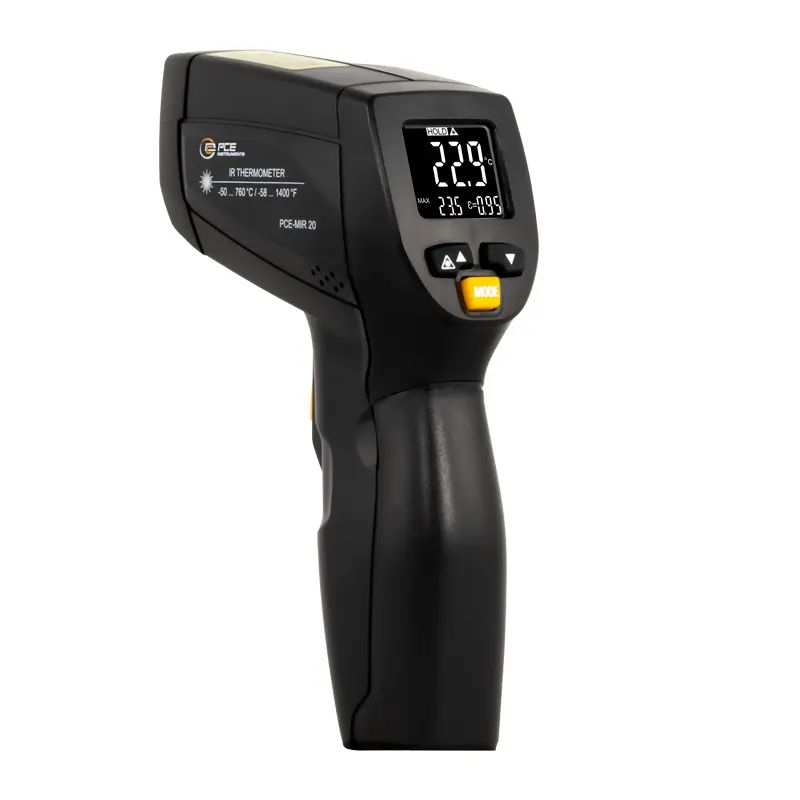

Infrared Thermometer PCE-MIR 20

£ 52.00
£ 62.40
:
4250348732156
PCE-MIR 20
price ex. (VAT / delivery)
Handheld
N/A
-20 ... 380 °C / -4 ... 716 °F
Yes (Micro SD)
Yes (USB)
Delivery time: 1-2 working days

Description

Infrared thermometer with double laser for better orientation /.
measuring range -50 ... +760 °C / display with backlight /emission value adjustable /
 individually adjustable limit value alarms MAX/MIN / optionally with ISO calibration certificate

The infrared thermometer has a measuring range of -50 ... +760 °C and thus covers a wide temperature range. With an accuracy of ±2 % ±2 °C at 20 ... 760 °C, the infrared thermometer is a very precise measuring device. For better orientation of the measuring spot, two lasers are built into the infrared thermometer. Both lasers have an output power of <1 mW. To determine different surfaces with the infrared thermometer, the emission value can be set between 0.10 ... 1.00.

With the limit value alarm function of the infrared thermometer, a minimum temperature and a maximum temperature can be set individually. If the set limit value is exceeded or undershot during a measurement with the infrared thermometer. This is immediately signalled acoustically and visually by the infrared thermometer.

To switch on the infrared thermometer, the measuring button must be pressed. The measurement is then immediately taken by the infrared thermometer. If the key is released, the last value remains on the display of the infrared thermometer until a new measurement is taken. The infrared thermometer can optionally be equipped with an ISO calibration certificate.

Highlights

- Measuring range -50 ... +760 °C

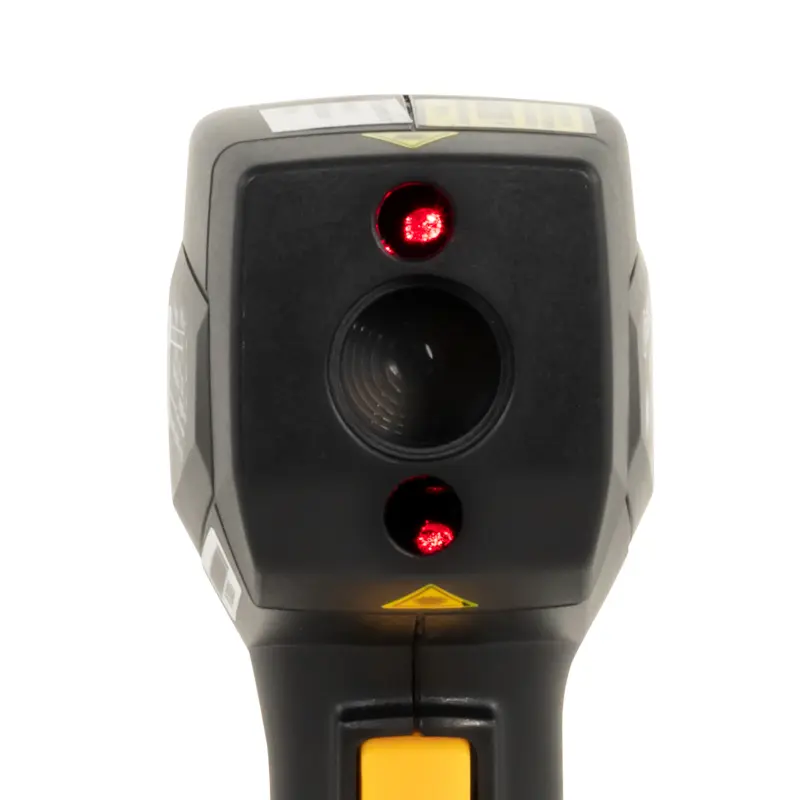

- Double laser for better orientation
- Limit value alarm MAX / MIN
- adjustable emission value
- backlit display
- optionally with ISO calibration certificate

Specification


Measuring range -50 … +760 °C / -58 … +1400 °F
Resolution 0.1 °C / 0.1 °F
Accuracy ±3 °C / 5.4 °F at -50 … +20 °C / -58 … +68 °F
  ±2 % ±2 °C / 3.6 °F at 20 … 760 °C / 68 …1400 °F
Repeatability ±1 °C / ±1.8 °F
Spot ratio 12:1
Emissivity value 0.10 … 1.00
Measuring rate 2 Hz
Spectral range 8 … 14 µm
Overload indication „ - - - - „
Laser Laser Double laser; output power: <1 mW;
Wavelength: 630 ... 670 mm; Laser class: 2
Power supply 9 V block battery
Operating conditions 0 ... 50 °C / 32 ... 122 °F, <90 % r. h.
Storage conditions -10 ... 60 °C / 14 ... 140 °F, <80 % r. h.
Dimensions 175 x 75 x 35 mm
Weight 114 g

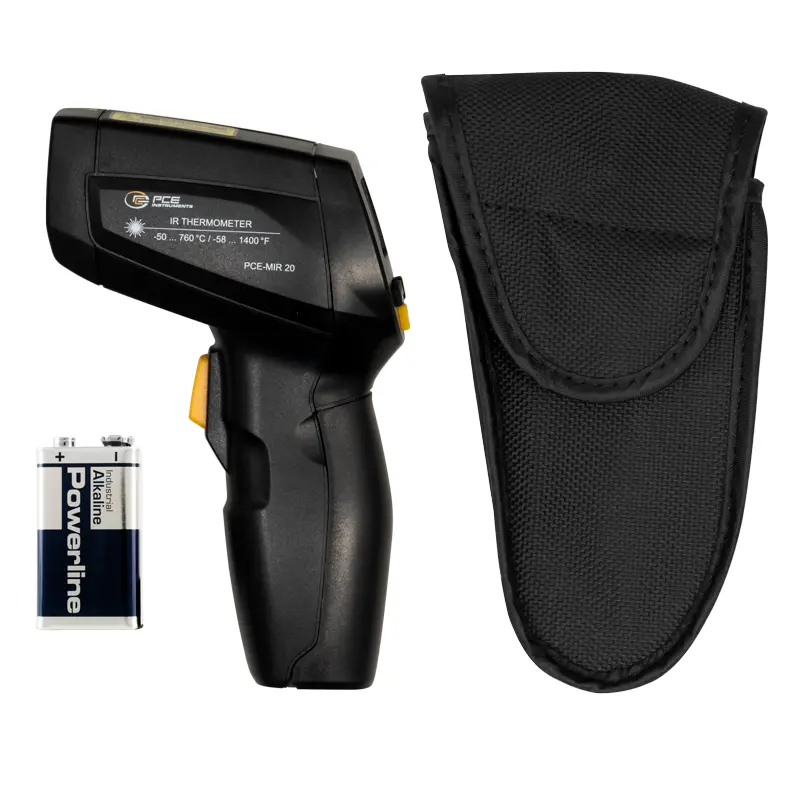

Delivery Scope

1 x Infrared thermometer PCE-MIR 20
1 x Carrying bag
1 x instruction manual
