Heat Pump Test Equipment

Heat pumps offer the possibility to utilize ambient heat from the air or the ground for heating purposes. To ensure the efficient operation of the heat pump and the associated components of the heating system, they must be carefully planned and correctly installed. Various measuring devices for heat pumps assist in design and installation. Temperature and pressure measuring devices, as well as multimeters with current clamps for electrical components, are commonly used as measuring instruments for the heat pump.

To ensure that the refrigerant required for the heat pump's operation remains in a closed circuit, refrigerant leak detectors are often used during installation as a measuring instrument for the heat pump. After installation, temperatures at the system components can be quickly and easily monitored using infrared thermometers and thermal imaging cameras. The use of these types of devices as measuring instruments for the heat pump is also recommended in case of malfunctions, failures, and during routine maintenance checks.

Knowledge video with Thomas Rudolph:

Thomas Rudolph explains how heat pumps work and how to do maintenance?

Knowledge video: How heat pumps work and how to do maintenance

HOW HEAT PUMPS WORK AND HOW TO DO MAINTENANCE?
Watch video

If you have any questions about the heat pump test equipment products found on this website, please contact the technical sales and support team at PCE Instruments at or +44 ( 0 ) 161 464902 0.

Pressure Gauge PCE-HVAC 10

£ 219.00

Price excl. VAT &. delivery

The pressure gauge is a robust measuring instrument designed for daily use in refrigeration systems and heat pumps to determine pressure and temperature. Measurement with the pressure gauge is carried out using supplied refrigerant hoses and 2 NTC clamp-on temperature sensors. The 83 preloaded refrigerants can be quickly selected and are visible on the measurement screen.

Measurement Range: -1 … +60 bar
Resolution: 0.01 bar
Accuracy: ±0.5% F.S. (Full Scale)
83 refrigerants stored in the device
2-way valve block with 3 connectors 7/16" – UNF
Includes 2 NTC clamp-on temperature sensors
Temperature measurement -10 … +200 °C

Pyrometer PCE-TC 30N

£ 674.00

Price excl. VAT &. delivery

The PCE-TC 30N pyrometer for preventive maintenance is the ideal tool for maintenance and servicing. This pyrometer is a must-have for electricians, fitters or general maintenance personnel for troubleshooting and fault prevention of electrical equipment, electromechanical devices, production process machinery, heating, ventilation and air conditioning systems, especially when working in harsh environments.

IR resolution: 160 x 120 pixels
Measuring range: -20 … 450°C / -4 … 842°F
Thermal sensitivity: 70 mK
Memory: 3 GB memory for more than 20,000 pictures
5 different color palettes
Hot and cold spot location
Picture in Picture function

Pyrometer PCE-TC 30N-ICA incl. ISO Calibration Certificate

£ 890.00

Price excl. VAT &. delivery

IR resolution: 160 x 120 pixels
Measuring range: -20 … 450°C / -4 … 842°F
Thermal sensitivity: 70 mK
Memory: 3 GB memory for more than 20,000 pictures
5 different color palettes
Hot and cold spot location
Picture in Picture function
incl. ISO Calibration Certificate

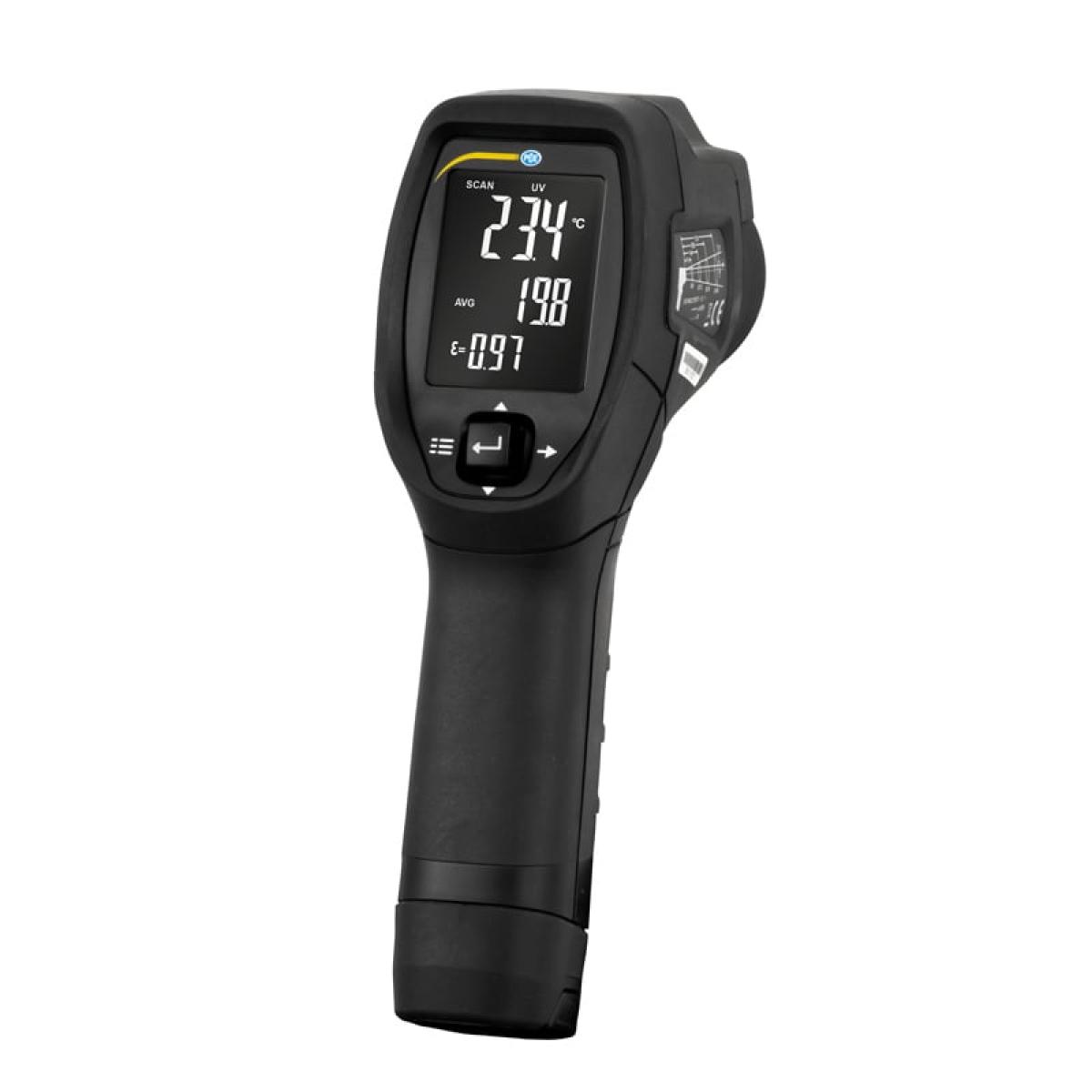

Pyrometer PCE-ILD 10

£ 127.00

Price excl. VAT &. delivery

The pyrometer has a measuring range of -50 … +500 °C and an adjustable emission value between 0.10 … 1.00. In addition to the current reading, the largest, smallest, average and differential reading can be displayed.

Measuring range: -50 … 500 °C / -58 … 932 °F
Resolution: 0.1°C
Accuracy: ±3 °C / ±5.4 °F at -50 … 20 °C / -58 … 68 °F
Spot ratio: 12:1
Multipoint laser

Digital Thermometer PCE-TC 33N

£ 691.00

Price excl. VAT &. delivery

In preventative maintenance, the high-resolution PCE-TC 33N digital thermometer is ideal for maintaining or repairing machinery or other equipment. The heart of the high-resolution digital thermometer PCE-TC 33N is an uncooled microbolometer (uncooled focal plane array) with a resolution of 220 x 160 pixels.

IR resolution: 220 x 160 pixels
Measuring range: -20 … 300°C / -4 … 572°F
Thermal sensitivity: 70 mK
Memory: 3 GB memory for more than 20,000 pictures
5 different color palettes
Hot and cold spot location
Picture in Picture function

Digital Thermometer PCE-TC 33N-ICA incl. ISO Calibration Certificate

£ 926.00

Price excl. VAT &. delivery

IR resolution: 220 x 160 pixels
Measuring range: -20 … 300°C / -4 … 572°F
Thermal sensitivity: 70 mK
Memory: 3 GB memory for more than 20,000 pictures
5 different color palettes
Hot and cold spot location
Picture in Picture function
incl. ISO Calibration Certificate

Ultrasonic Leak Detector PCE-LDC 8

£ 1,451.00

Price excl. VAT &. delivery

The Ultrasonic Leak Detector is used to locate leaks on compressed air lines. Furthermore, the Ultrasonic Leak Detector can also be used on coolant lines or gas lines for leak detection.

Measuring principle: ultrasound
Measuring principle: air, coolant, non-explosive gases
Working frequency of 40 kHz
up to 6 h battery operation
Leak detection via headphones and LCD display
Localize leaks up to 18m, 59 ft.

Infrared Imaging Camera PCE-TC 28

£ 548.00

Price excl. VAT &. delivery

The infrared imaging camera was designed for taking non-contact temperature measurements. To get accurate readings, the emissivity of the infrared imaging camera can be adjusted, depending on the operation purpose. Besides taking infrared images, the infrared imaging camera can also take normal pictures, as well as a mixture of both, due to the built-in digital camera.

Measurement range: -20 … +600°C / -4 … 1112°F
Accuracy: ± 2%, ± 2°C / 3.6°F
Frequency image recording: 9 Hz
Camera: 32 x 31 Pixel

Infrared Imaging Camera PCE-TC 28-ICA incl. ISO Calibration Certificate

£ 759.00

Price excl. VAT &. delivery

Measurement range: -20 … +600°C / -4 … 1112°F
Accuracy: ± 2%, ± 2°C / 3.6°F
Frequency image recording: 9 Hz
Camera: 32 x 31 Pixel- incl. ISO Calibration Certificate
