£ 107.00
PCE-T236 Handheld Tachometer
Digital rotation meter for both contact and non-contact measurement
PCE-T236 is a digital handheld tachometer or rotation meter for both contact and non-contact measurement. This tachometer measures rotation speed as well as linear or surface speed, displaying units in rpm, m/min or ft/min.

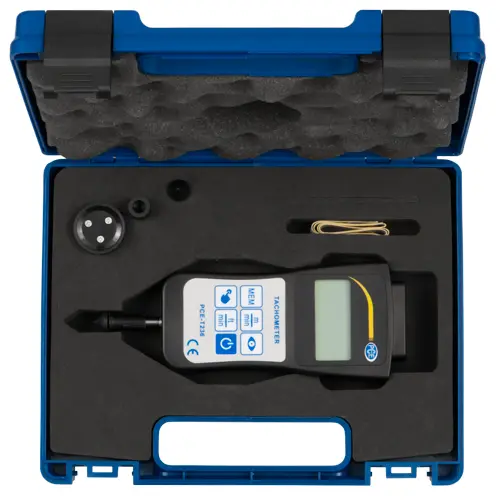

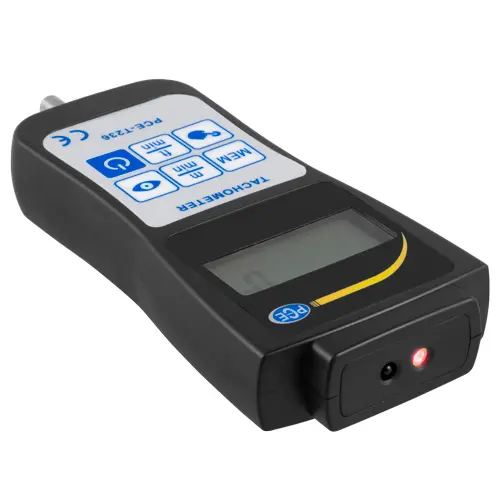

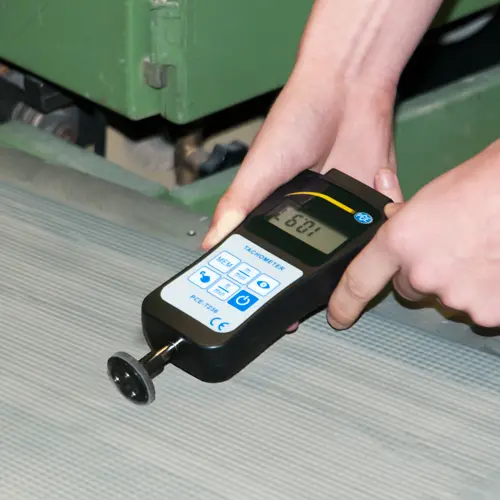

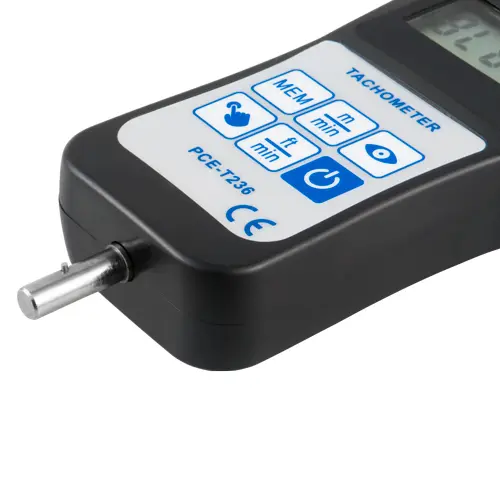

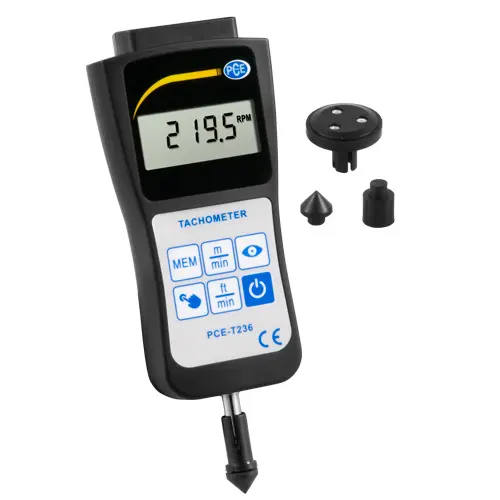

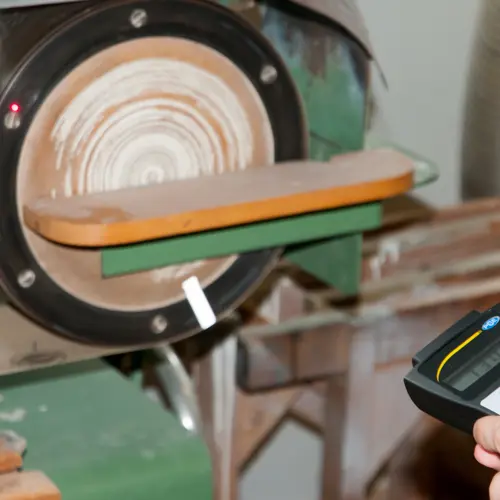

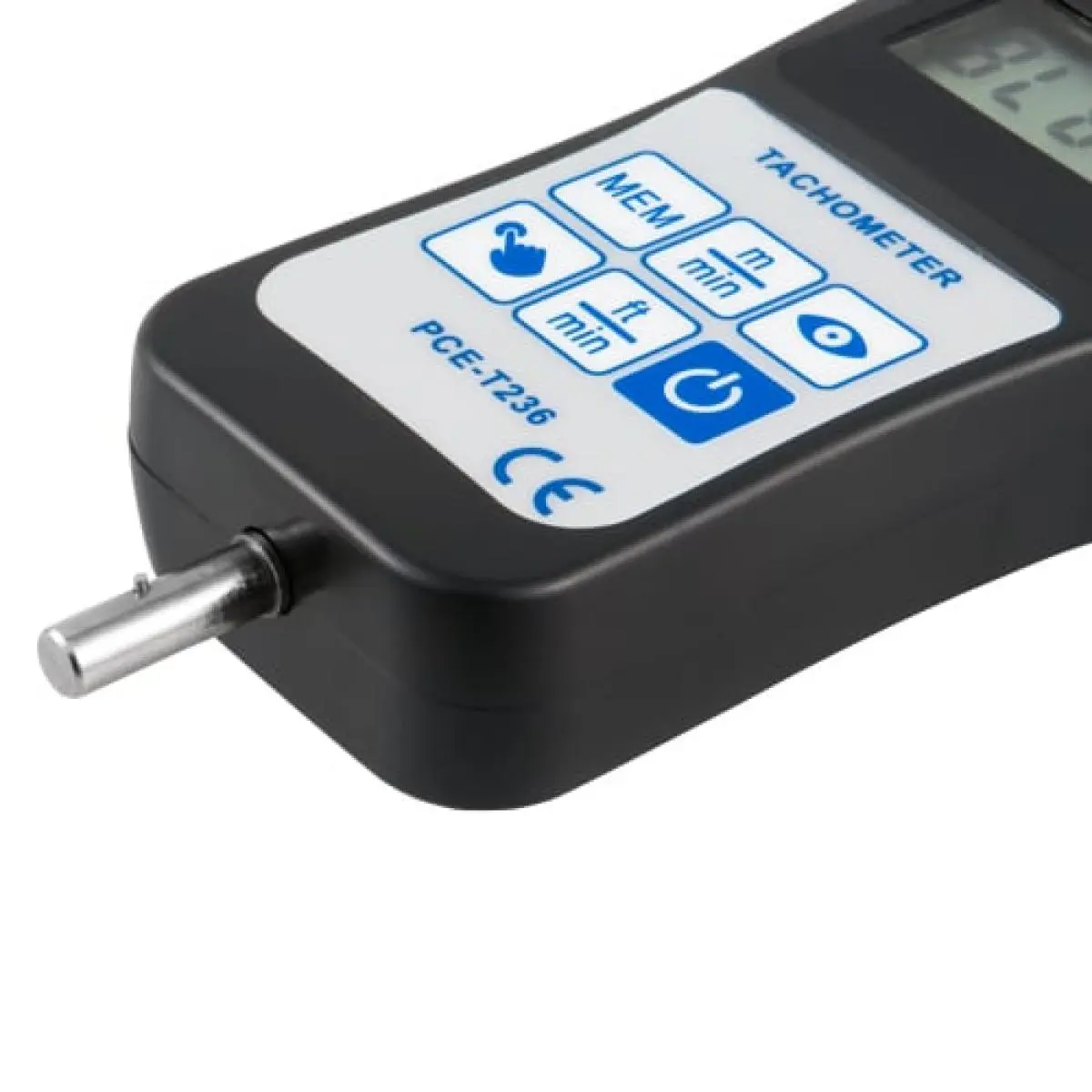

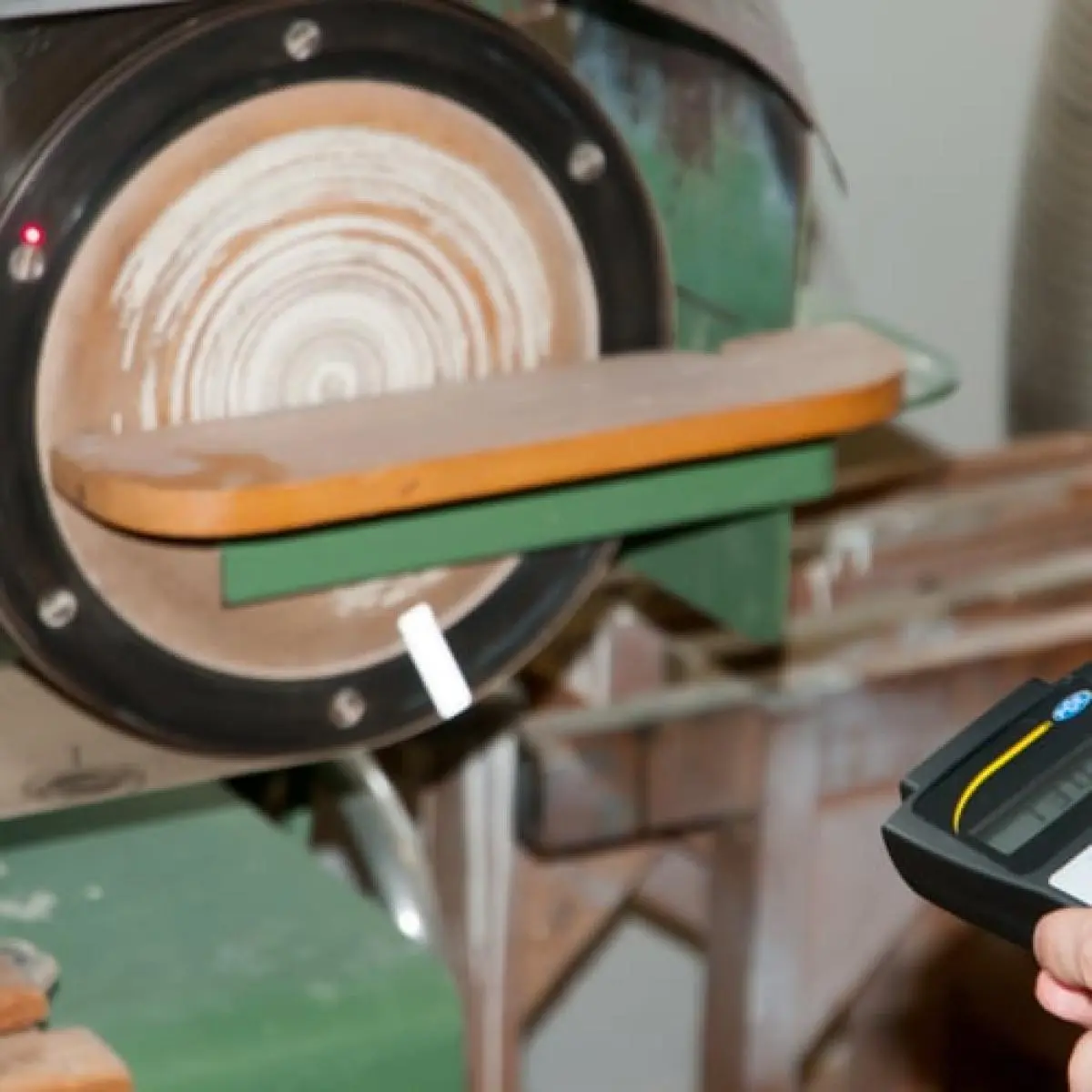

The tachometer features an integrated laser and includes a mechanical attachment with contact probes, making it the ideal measuring instrument for machines, motors, conveyor belts and other moving parts. Non-contact measurements are taken with the help of laser-reflective tape that is fixed on the moving part. Contact measurements are taken using the mechanical attachments.

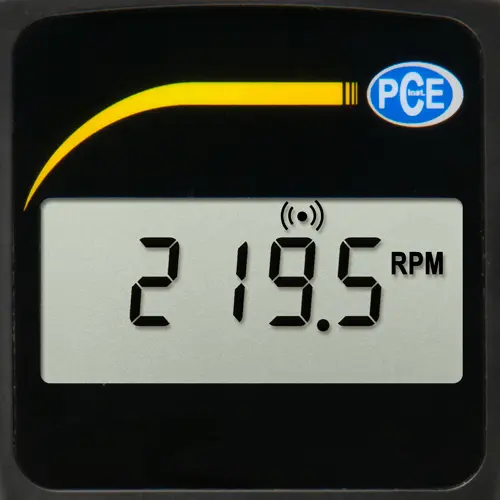

A unique feature of this tachometer is that the orientation of the 5-digit LCD screen automatically rotates 180° to accommodate either contact or non-contact measurement.
| Mechanical speed | |
| Measuring range | 0,5 ... 999,9 rpm |
| Resolution | 0,1 rpm |
| Accuracy | ±0.05% by weight |
| Mechanical speed | |
| Measuring range | 1000 ... 99999 rpm |
| Resolution | 1 rpm |
| Accuracy | < 60,000 rpm ± 0.05% of the mean value / > 60,000 rpm ±0.15% of the mean value |
| Optical speed | |
| Measuring range | 0,5 ... 999,9 rpm |
| Resolution | 0,1 rpm |
| Accuracy | ±0.05% by weight |
| Optical speed | |
| Measuring range | 1000 ... 99999 rpm |
| Resolution | 1 rpm |
| Accuracy | < 60,000 rpm ± 0.05% of the mean value / > 60,000 rpm ±0.15% of the mean value |
| Speed | |
| Measuring range | 0,05 ... 99,99 m/min |
| Resolution | 0.01 m/min |
| Accuracy | ±0.05% by weight |
| Speed | |
| Measuring range | 1000 ... 1999 m/min |
| Resolution | 0.1 m/min |
| Accuracy | ±0.05% by weight |
| Speed | |
| Measuring range | 0,2 ... 999,9 ft/min |
| Resolution | 0.1 ft/min |
| Accuracy | ±0.05% by weight |
| Speed | |
| Measuring range | 1000 ... 6560 ft/min |
| Resolution | 1 ft/min |
| Accuracy | < 60,000 rpm ± 0.05% of the mean value / > 60,000 rpm ±0.15% of the mean value |
| General technical data | |
| Display type | LCD |
| Memory information | Saves the last reading, the minimum and the maximum. |
| Housing | ABS (acrylonitrile-butadiene-styrene copolymers) |
| Measuring distance | 50 ... 300 mm |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | batteries |
| (Rechargeable) battery | 4 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | -10 ... 60 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 215 x 38 x 65 mm |
| Weight | 300 g |
