Order no.: PCE-EMF 40

Gauss Meter PCE-EMF 40

£ 444.00
£ 532.80
price ex. (VAT / delivery)
Delivery time: 1-2 working days

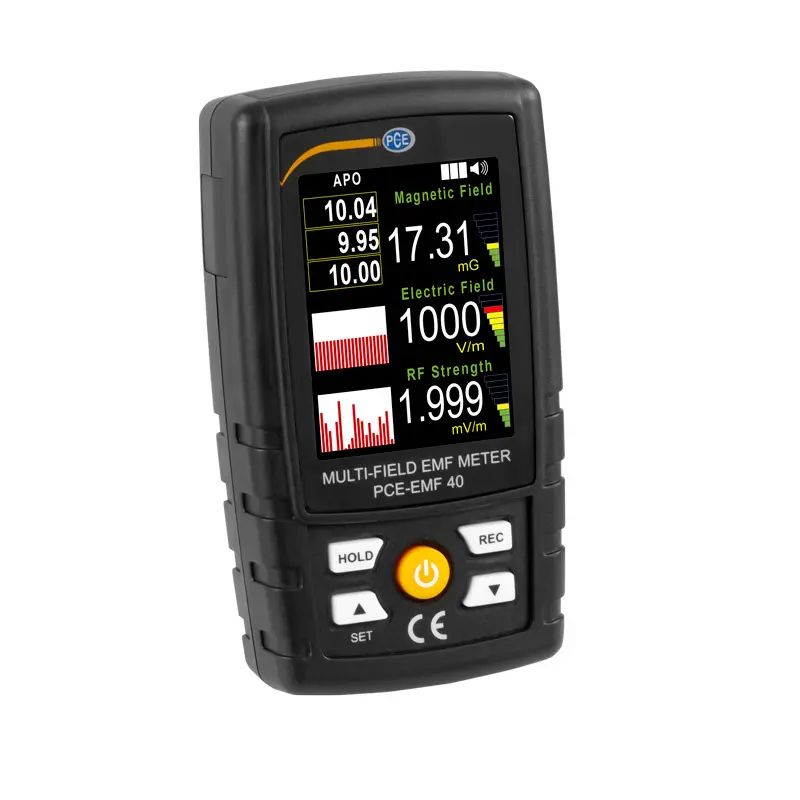

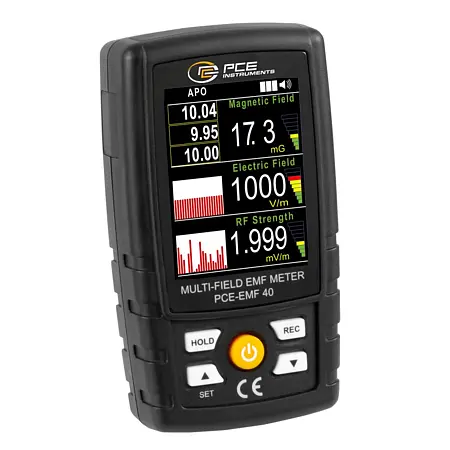

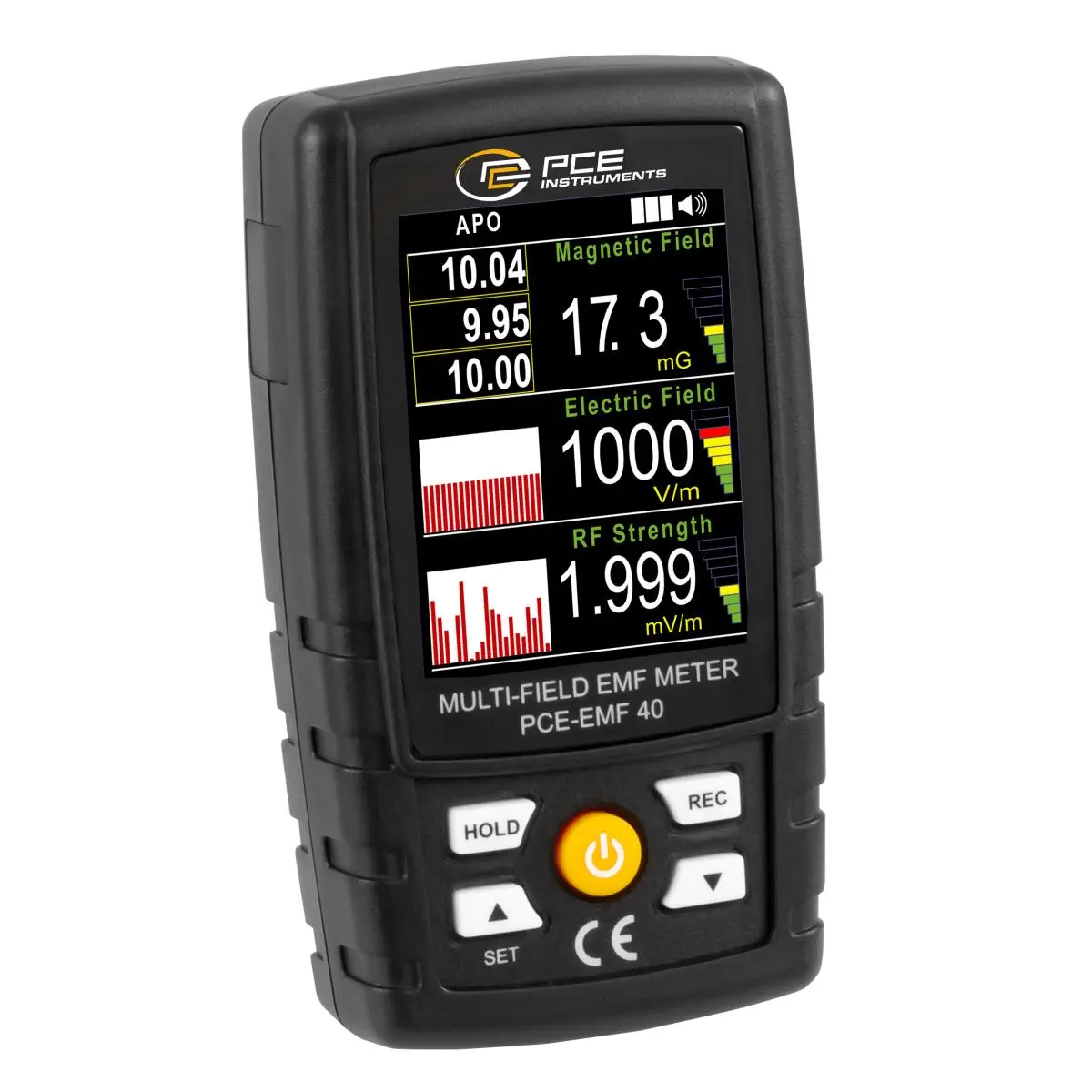

Gauss Meter PCE-EMF 40
Gauss meter with 2.4'' display / Background lighting adjustable in four levels / Measuring range up to 2000V / m / 3-axis measurement / For mobile and fast use

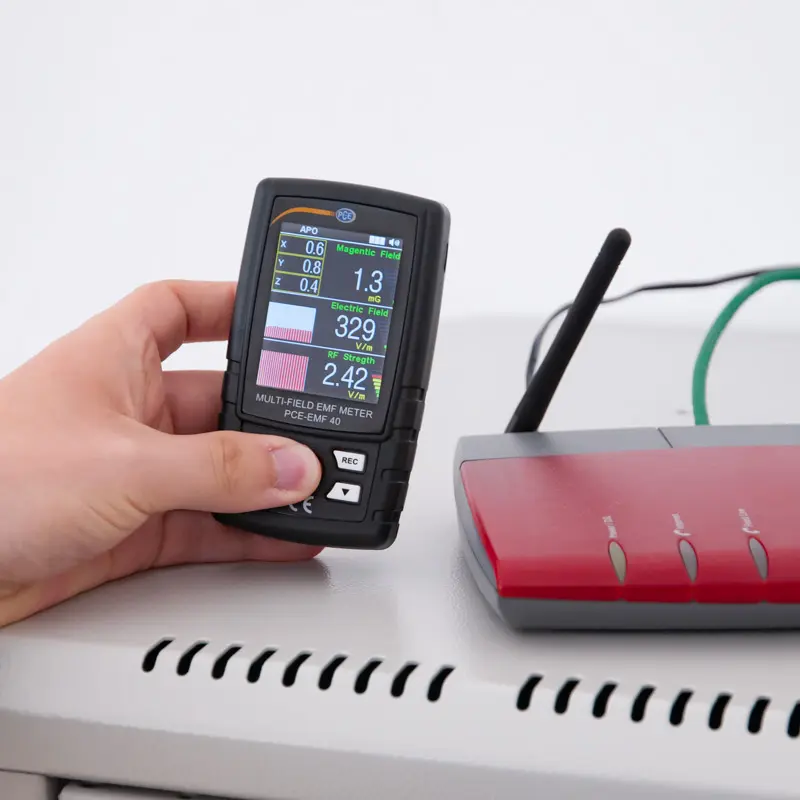

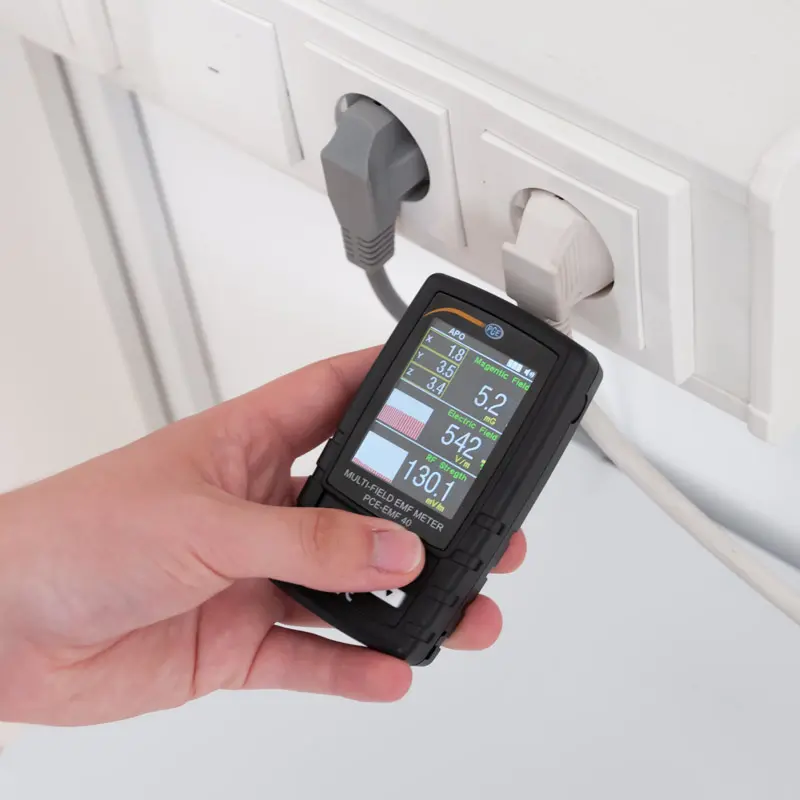

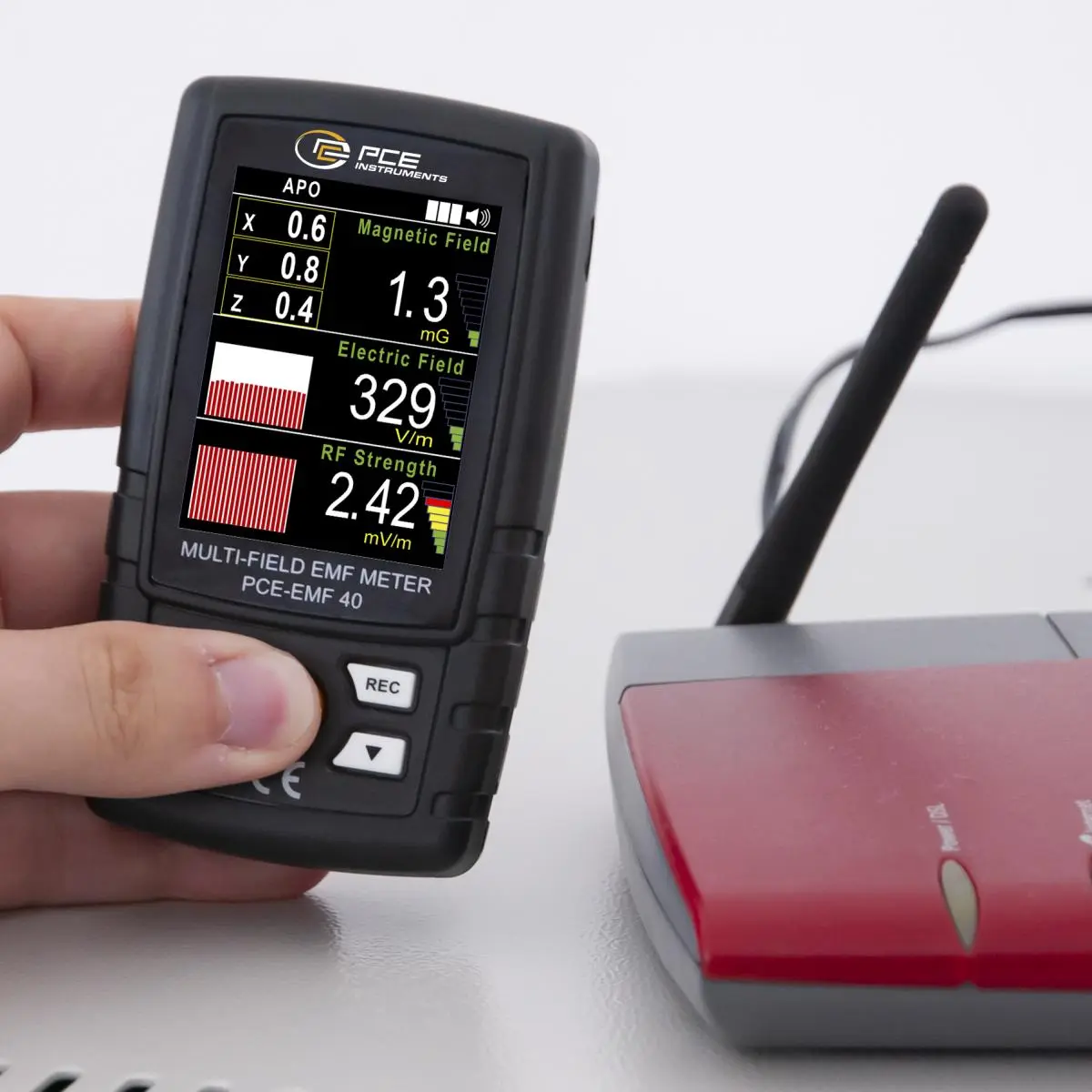

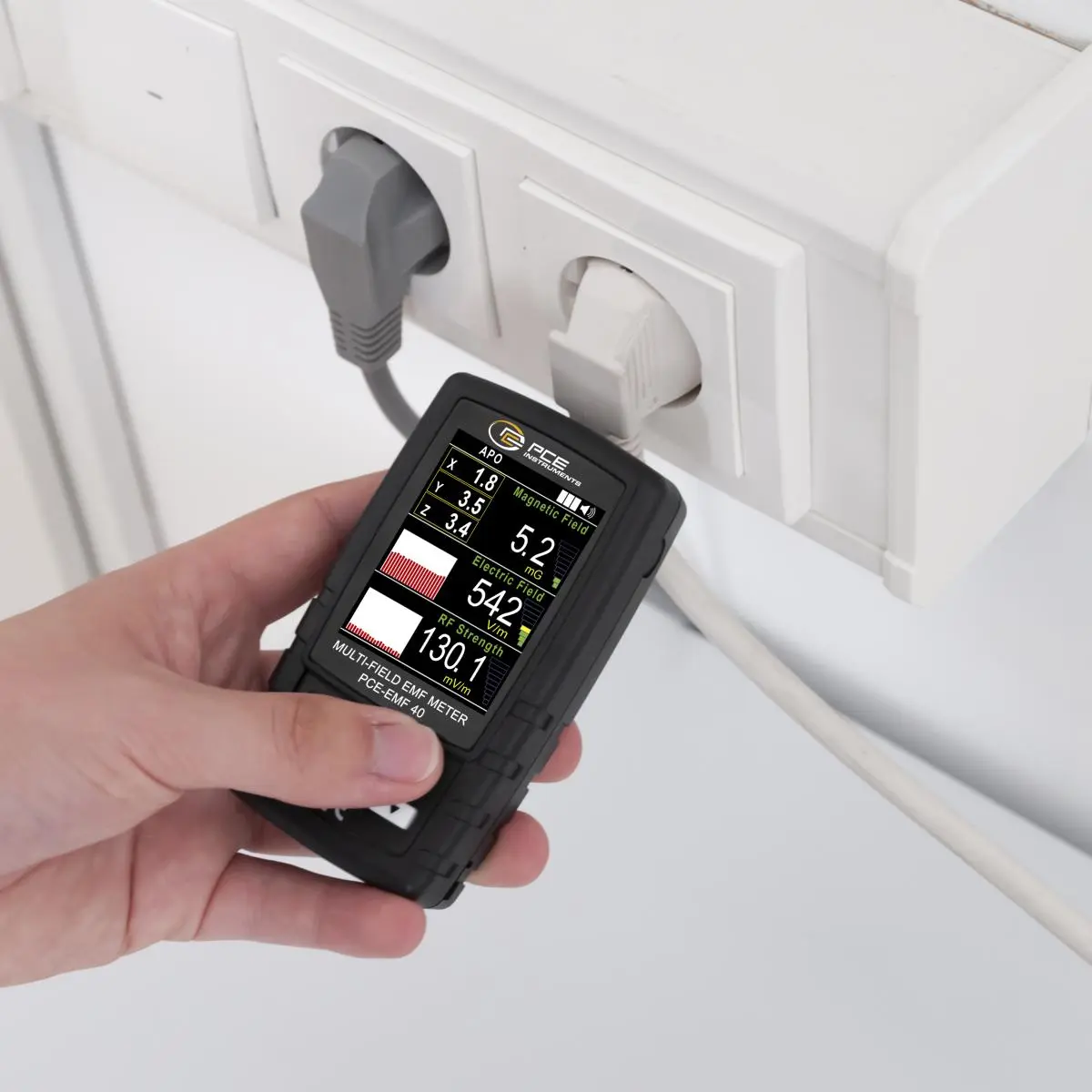

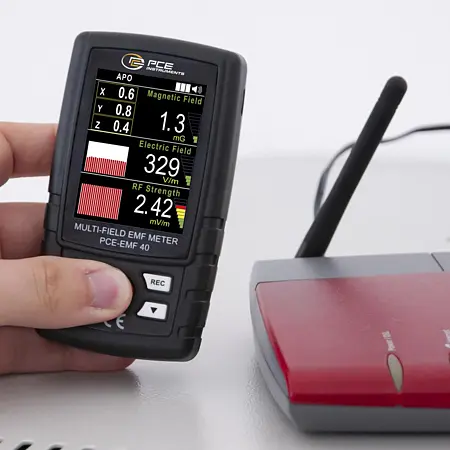

With this gauss meter it is possible to measure magnetic fields up to 2000 mG directly. At the same time, the gauss meter shows the strength of the magnetic field numerically using an X, Y and Z axis. Another measuring function of the gauss meter is the electromagnetic field strength measurement. With this measuring function in the gauss meter, the electromagnetic field strength on supply lines can be determined at a frequency of 50/60 Hz. It is also possible to carry out measurements in the high frequency range with the gauss meter. Thus, measurements can be carried out with the gauss meter on, for example, a WLAN router or a mobile phone. Because of its many measuring functions, the gauss meter is a compact and multifunctional measuring device.

In addition to the numerical display on the gauss meter, a graphical progression of the last 20 measured values ​​is also displayed. The measured value is also displayed as a bar diagram by the gauss meter. This bar chart on the gauss meter is divided into three traffic light colors. As soon as the measured value exceeds a fixed value, so that the bar chart on the gauss meter has reached the red area, an acoustic alarm is activated. This alarm on the gauss meter switches off automatically as soon as the measured value is below the fixed limit threshold.

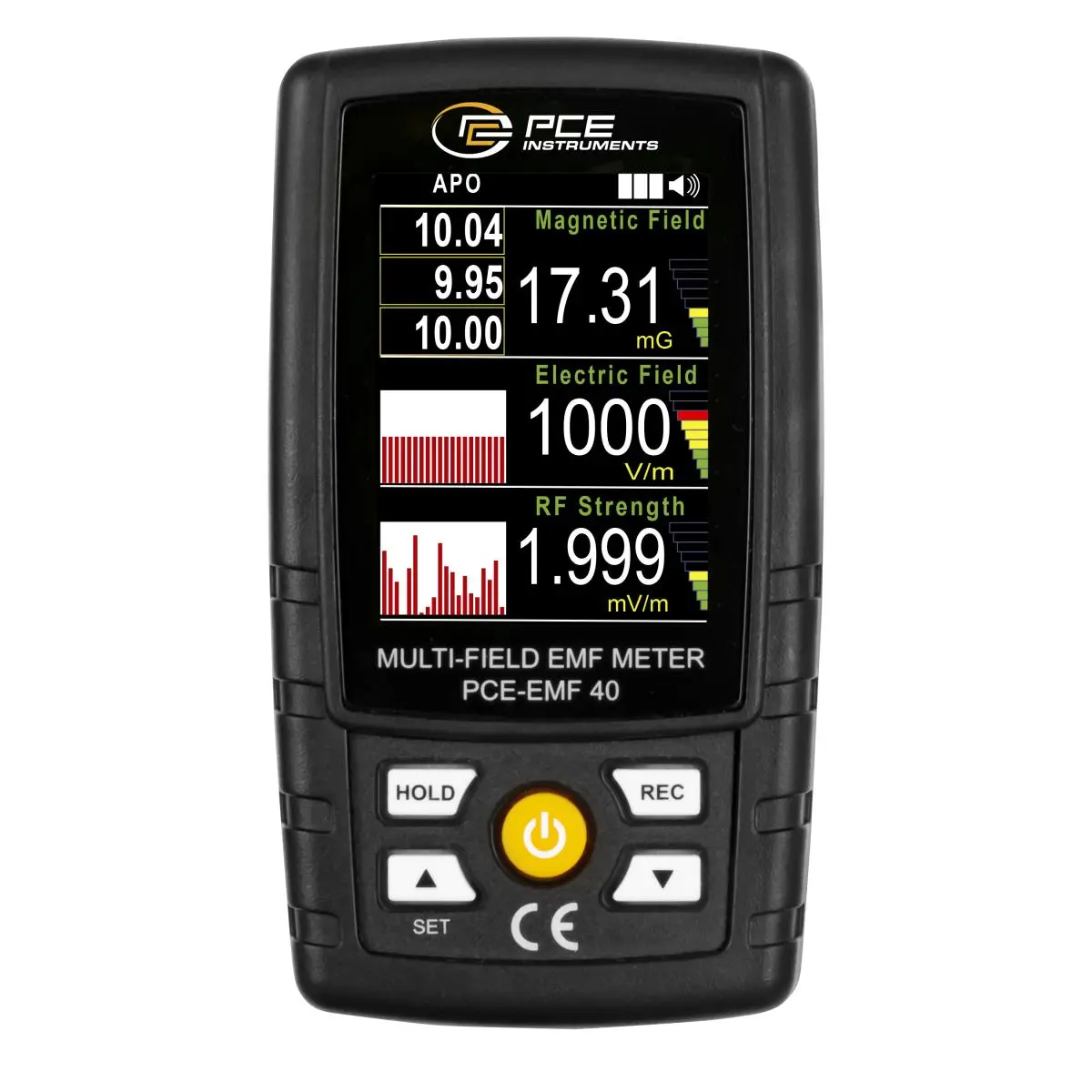

All three measurement modes can be read off simultaneously on the 2.4'' TFT display of the gauss meter. Switching between the individual measurement modes on the gauss meter is therefore not necessary. The background lighting of the gauss meter can be adjusted in 4 levels. Thus, the display of the gauss meter can be adapted to the most varied of environmental conditions at the touch of a button.


- Three different measuring function
- Many different units can be set
- Alarm when limit value is exceeded
- Automatic shutdown
- With three-axis measurement
- For low frequencies and high frequencies


Low frequency magnetic field
Unit µT
Measuring rangeResolutionAccuracy
20.00 ... 200.0 µT0.01 µT, 0.1 µT± 12% + 5 digits
  at 50/60 Hz
Unit mG
Measuring rangeResolutionAccuracy
200.0 ... 2000 mG0.1 mG, 1 mG± 12% + 5 digits
  at 50/60 Hz
Low frequency electromagnetic field
Unit V / m
Measuring rangeResolutionAccuracy
50V / m ... 2000V / m1V / m± 7% + 20 digits
  at 50/60 Hz
High frequency electromagnetic field
Unit mV / m, V / m
Measuring rangeResolutionAccuracy
30.0 mV / m ... 11.00V / m0.01, 0.1 mV / m1.0 dB at 1V / m
 0.01V / mand 900 MHz,
  > 1V / m are only used
  for reference
Unit µW / cm²
Measuring rangeResolution
0.02 ... 32.0 µW / cm²0.01, 0.1 µW / cm²
Unit µW / m², mW / m²
Measuring rangeResolution
2.3 µW / m² ... 320.9 µW / m²0.1, 1 µW / m²
 0.1 mW / m²
Unit mA / m
Measuring rangeResolution
0.07 ... 29.1-mA / m0.01, 0.1-mA / m
All specifications refer to an ambient temperature of 23 ± 5°C / 73.4 ± 9°F,
an ambient humidity of 25 ... 75% RH and an RF field strength of less
than 3V / m and 30 MHz.
BandwidthHigh frequency: 50 MHz ... 3.5 GHz
 Low frequency: 50/60 Hz
Number of sensorsMagnetic field: 3
 Electromagnetic field: 1
Measuring rate1 Hz
Display when the measured value is exceeded       "- - - -"
StorageMIN / MAX memory
Display2.4" TFT
Power supply3 x 1.5V AAA batteries
Power consumptionApprox. 24 ... 38-mA
Automatic shutdownAfter 10 minutes
 Function can be switched off
Operating conditions0 ... 50°C / 32 ... 122°F, < 80% RH
Dimensions107 x 60 x 25 mm / 4.2 x 2.4 x 1 in
WeightApprox. 106 g / < 1 lb (without batteries)

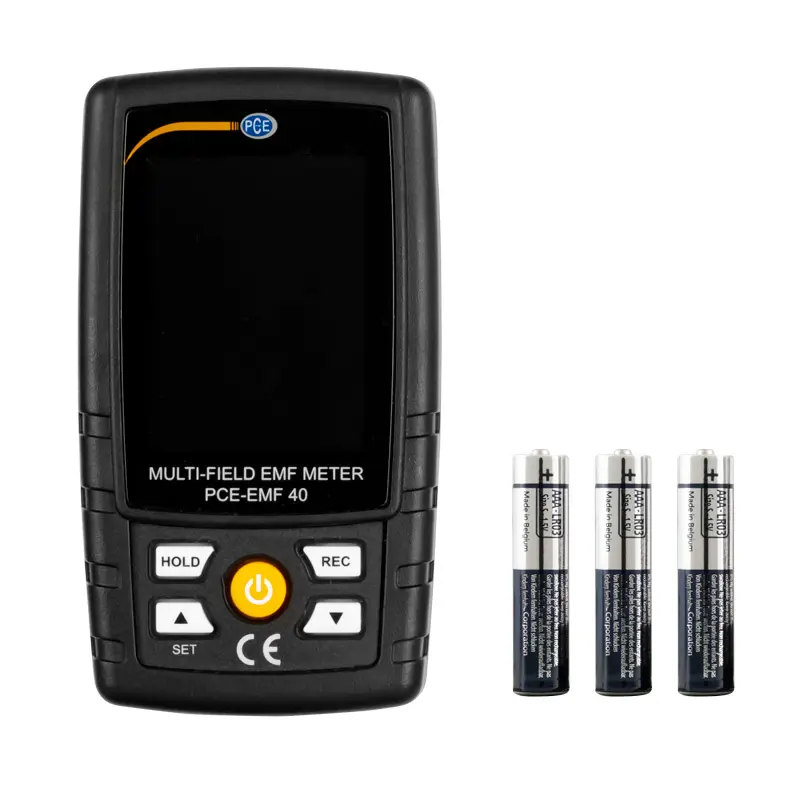

Delivery Scope

1 x Gauss meter PCE-EMF 40
3 x 1.5V AAA batteries
1 x Instruction manual
