  5. Carbon Dioxide Gas Leak Detector PCE-WMM 100-ICA incl. ISO Calibration Cert.
Order no.: PCE-WMM 100-ICA

Carbon Dioxide Gas Leak Detector PCE-WMM 100-ICA incl. ISO Calibration Cert.

ISO Calibration
£ 806.00
£ 967.20
:
4250348727091
PCE-WMM 100-ICA
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

Description

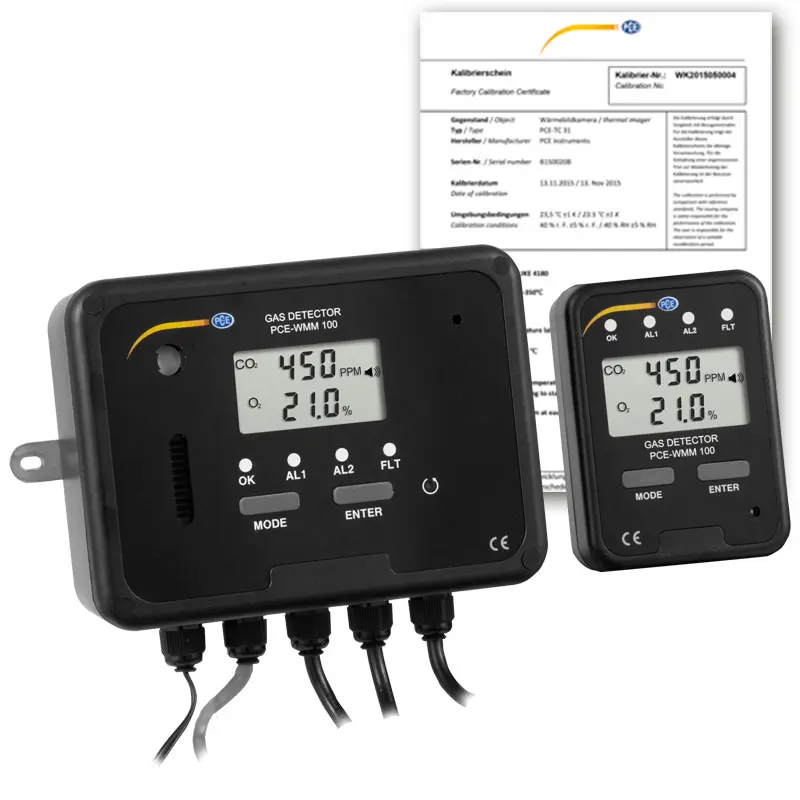

Carbon Dioxide Gas Leak Detector PCE-WMM 100-ICA incl. ISO Calibration Certificate
CO2 warning device for carbon dioxide and oxygen / Adjustable alarms / 4-digit LC display / Consisting of main and remote unit / Relay contacts / Analog output

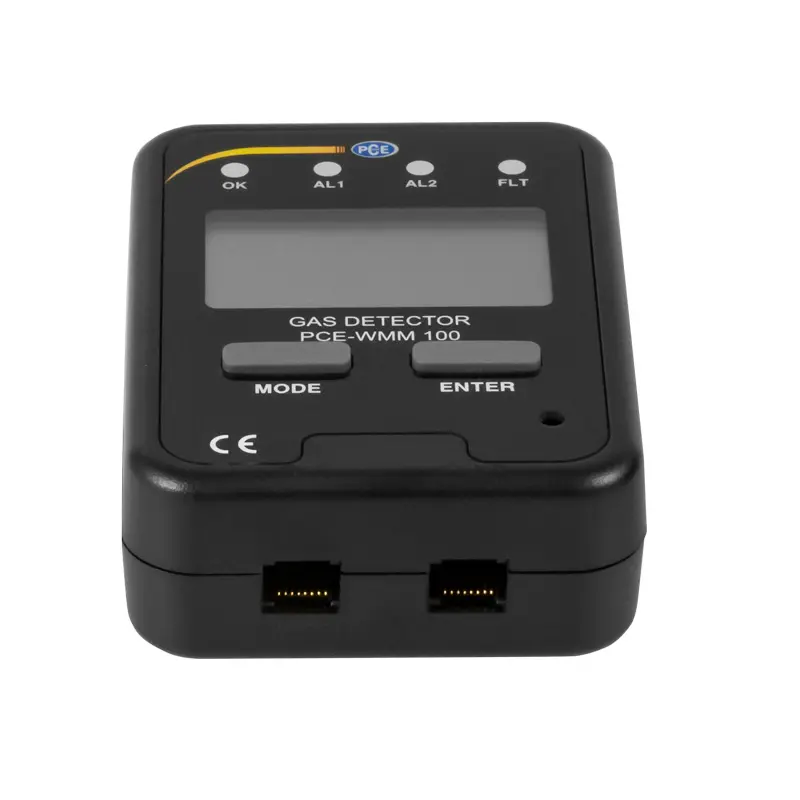

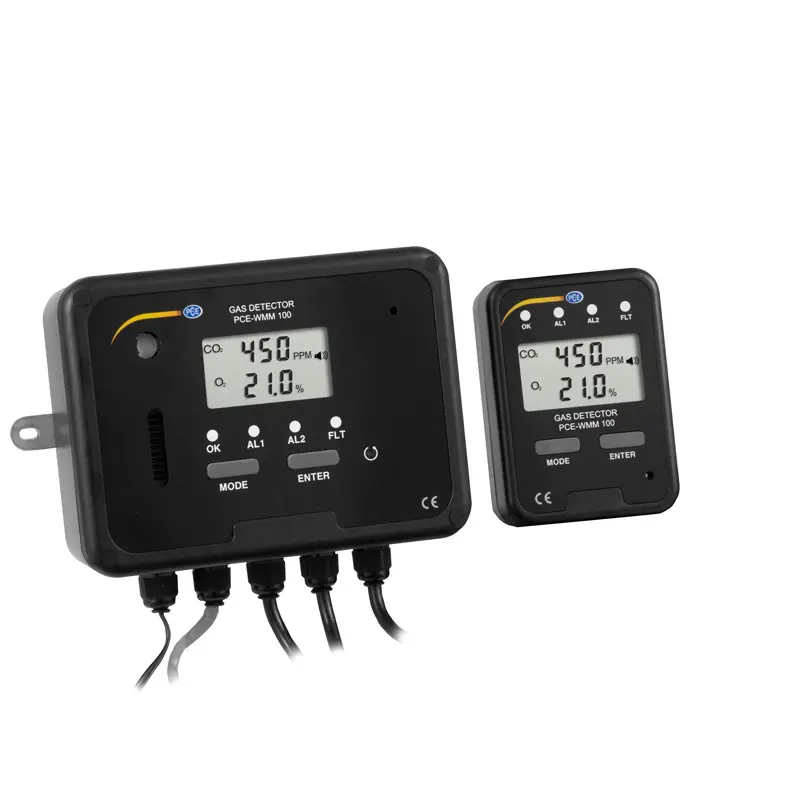

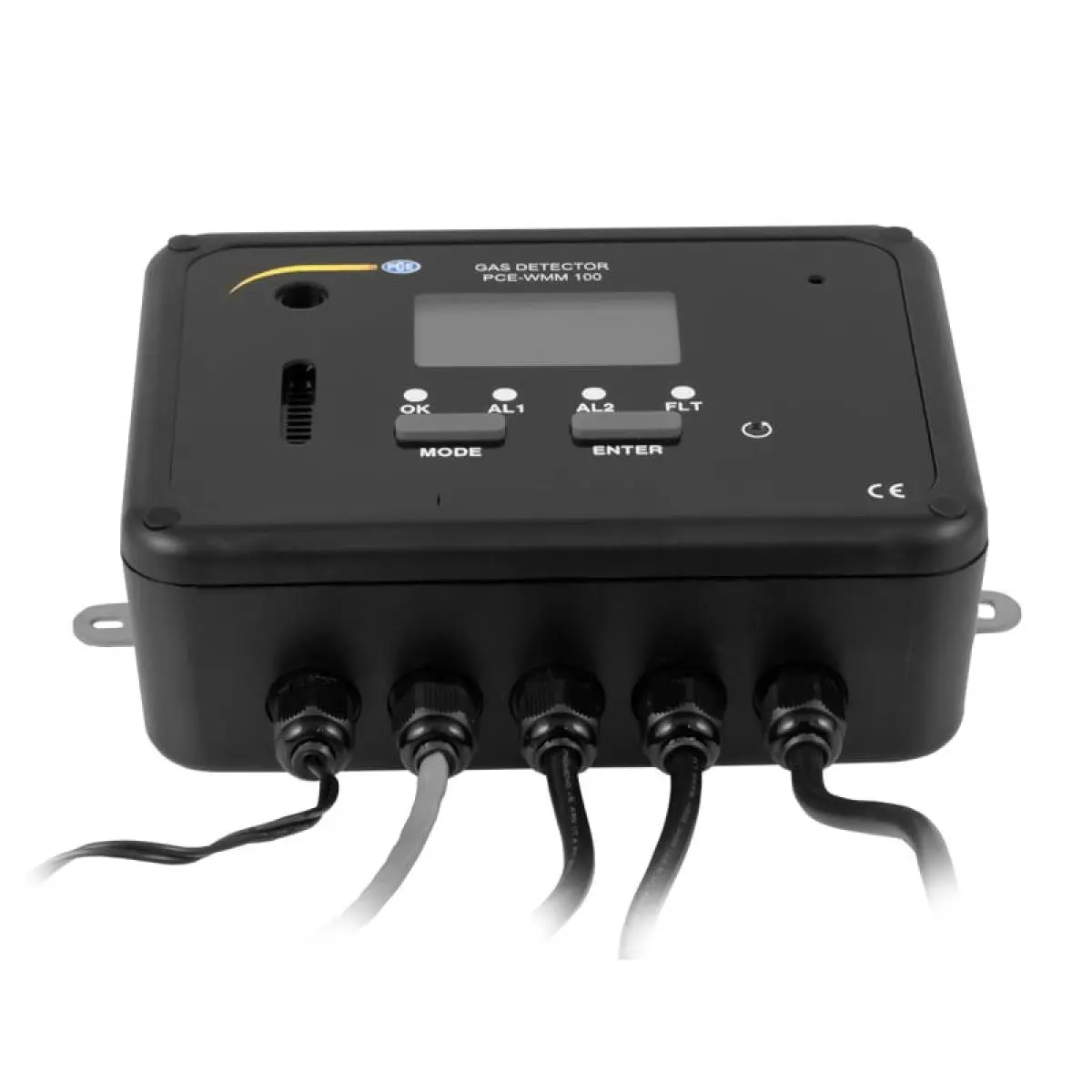

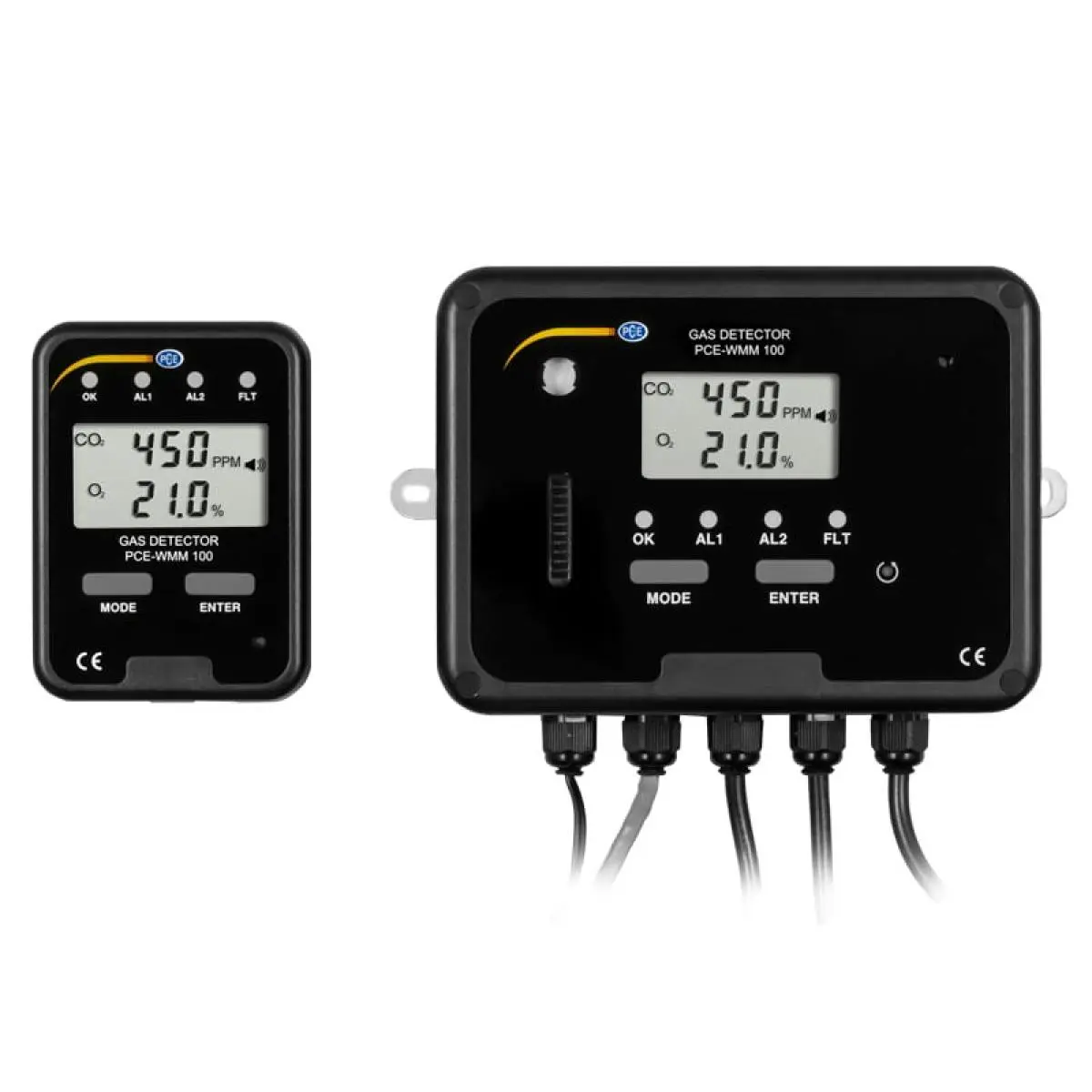

The CO2 warning device PCE-WMM 100 consists of a main unit and a remote display. The CO2 gas detector PCE-WMM 100 is used to measure carbon dioxide and oxygen in a fixed location. The CO2 warning device protects people from the odourless gas CO2 and also warns of low oxygen content in the air. The gas warning system displays the measured values on an LCD. The PCE-WMM 100 CO2 warning device has two relays that can be used to control alarm lights or sounders. Furthermore, the CO2 warning device has an integrated, acoustic alarm, which emits an audio signal of 80 db in the event of an alarm.

The warning device is used wherever CO2 can be released. This can be in warehouses, breweries, wine cellars or restaurants. The main unit is protected to IP54. 4 LEDs on the front provide information about the system status.

Highlights

- CO2 and O2 sensor
- Main and remote unit
- Alarm relay
- 4 ... 20 mA analog output
- Acoustic alarm
- Integrated temperature measurement
- incl. ISO Calibration Certificate


Specification

Measuring function CO2
Measuring range 0 .... 50000 ppm
Resolution
 <10000 ppm: 10 ppm
  >10001 ppm: 100 ppm
Accuracy ± 100 ppm / 5 % of measured value

Measuring function O2
Measuring range O2: 0 ... 30 %
Resolution
 0.1 %
Accuracy < 3 % of measured value

Measuring function Temperature
Measuring range 0 ... 50 °C / 32 ... 122 °F
Resolution
 0.1 °C
Accuracy ± 1 °C

Repeatability CO2: ±20 ppm at 400 ppm
  O2: < ±1 %
Temperature dependence
 ± 0.3 % of measured value / °C
(at 25 °C) ± 2 ppm / °C
  (the larger value applies)
Pressure dependence 0.13 % of measured value / mmHg
Response time CO2: T90 < 60s
  O2: T90 < 30s
  Temperature: 20 ... 30 m

Alarm 1 CO2: 5000 ppm, 1 %, 1.5 %, 2 %
  O2: 18 %, 18.5 %, 19 %, 19.5 %, 20 %

Alarm 2 CO2: 1.5 %, 2 %, 2.5 %, 3 %, 3.5 %, 4 %
  O2: 16 %, 16.5 %, 17 %, 17.5 %, 18 %

Alarm sound volume 80 db / 0.1 m
Heating time < 60 s at 22 °C ambient temperature
Power supply
 Power adapter 100 ... 240 V AC / 6 V DC / 0.5 A
Analog output 2 x 4 ... 20 mA
Load <150 Ohm
Relay max. 2 A / 30 V DC / 250 V AC
Operating conditions
 0 ... 40 °C / 32 ... 104 °F / max 95 % r.H.
Storage conditions -20 ... 60 °C / -4 ... 140 °F / max. 95 % r.H.
Degree of protection Main unit: IP54
  Remote unit: -
Dimensions Main unit: 170 x 63 x 26 mm / 6.6 x 2.4 x 1.0"
  Remote unit: 80 x 35.7 x 10 mm / 3.1 x 1.4 x 0.3"
Weight Main unit: 1200 g incl cable
  Remote unit: 120 g / 4.2 oz

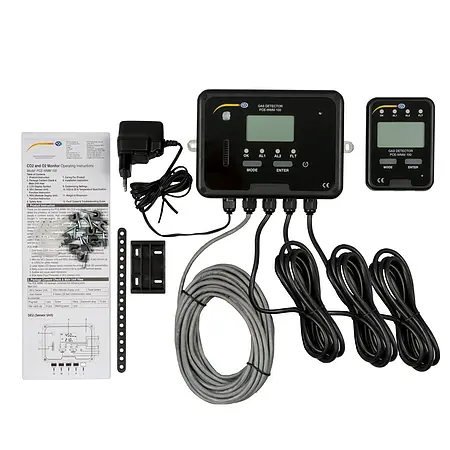

Delivery Scope

1 x Carbon Dioxide Gas Leak Detector PCE-WMM 100-ICA
1 x Remote unit
1 x 8m connection cable
1 x Power adapter
1 x Mounting kit
1 x User manual
1 x ISO Calibration Certificate

Downloads

Accessories

Accessories

ISO Calibration Certificate CAL-CO2
£ 108.00

Price excl. VAT &. delivery
2 year Warranty

  • ISO calibration certificate for CO2 measuring devices, often required in companies to comply with DIN ISO 9000.for the parameter CO2N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
