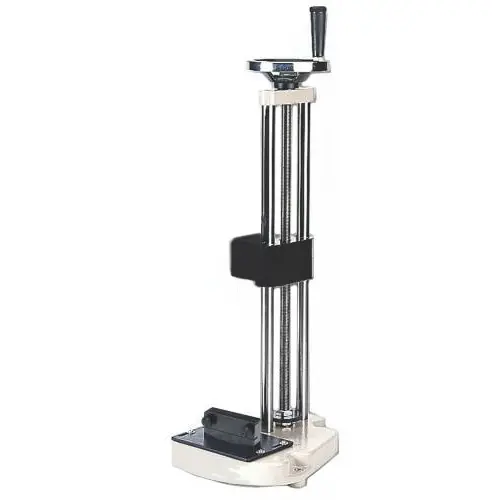

Force gauge test stand LTS-20

Order no.: LTS-20
£ 529.00
£ 634.80
4250348706522
LTS-20
price ex. (VAT / delivery)
–
–
–
–
Delivery time: 1-2 working days
Mechanical force gauge test stand up to 1000N, various force measuring devices adaptable, large travel, for devices with internal force measuring cell

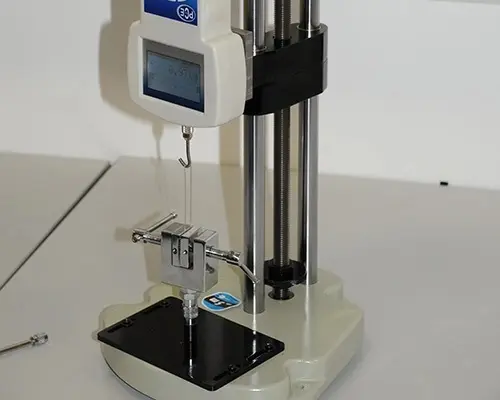

The force gauge test stand is used in various combinations with the force measuring devices of the PCE series. The force test stand offers an ideal solution for many of your manual pressure and tensile force measurements. The use of the force test bench guarantees a precise match between the test matrix and the test device.

In this way you can always achieve reproducible results of the force measurement with the force gauge test stand. The tensile or compression range in which this force test stand can be used is a maximum of 100 kg. The force test stand is operated using a crank. The force test stand is often used for other purposes for other tests on materials.

Attention: A force measuring device must always be ordered as an option for the force gauge test stand!

*** The mounting plate ADP-UNI must be ordered at the same time!

- Minimal maintenance
- High quality steel and stainless steel construction
- Easiest handling
- Robust construction
- Round ground guide pins
- Large travel
Force rangemax. 1000 N / 100 kg / 220 lbs
Travel distance  max. 345 mm / 13.6"
Spindle pitch2 mm / 0.07"
Hand wheelØ 120 mm / 4.7"
Base plate145 x 100 mm / 5.7 x 3.9"
Dimensions530 x 250 x 230 mm / 20.9 x 9.8 x 9.1"
Weightca. 7 kg / 15 lbs

1 x Test Stand LTS-20
2 x Adapter plates
1 x Instruction manual

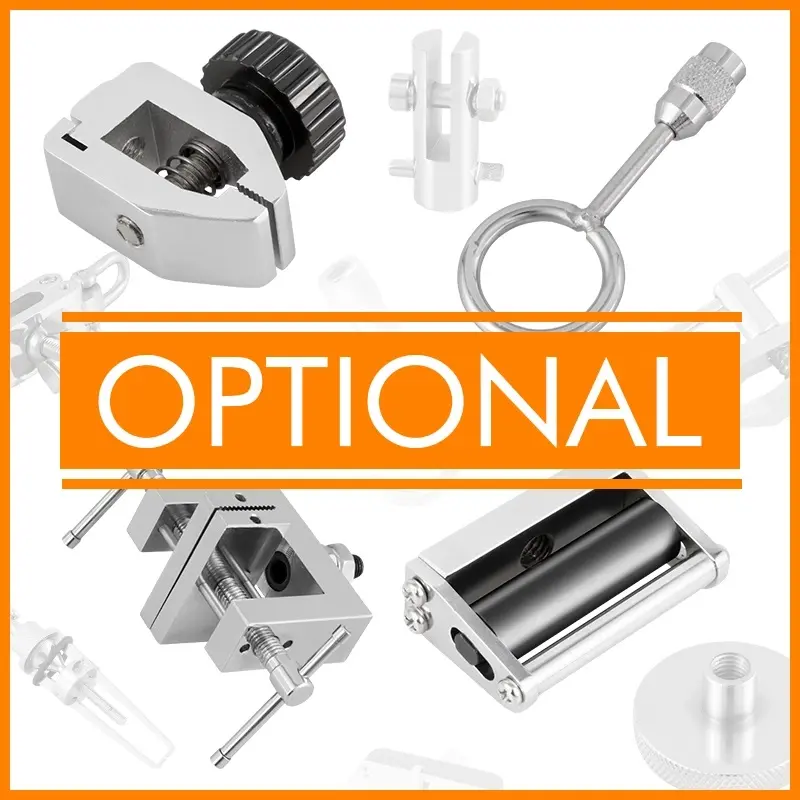

Accessories

Order no.: PCE-SJJ010
Adapter Clamp For Tensile Tests PCE-SJJ010
Adapter clamp for tensile tests.

- Max. Capacity: 500 N / 112 lbs
- Opening max: 8 mm
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ07
Clamping Device for Tensile Tests PCE-SJJ07

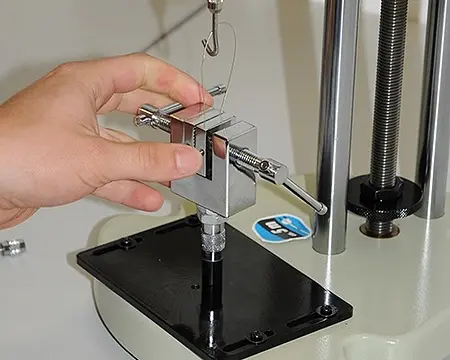

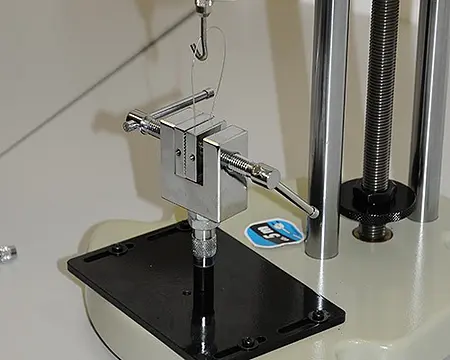

Use clamping device for tensile testing of electronic parts, wires, etc.

- Max. Capacity: 500 N / 112 lbs
- Opening max: 2.5 mm
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 123.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ08
Clamping Tool for Tensile Tests PCE-SJJ08
Use clamping pliers for tensile tests of electronic components, wires, etc.

- Max. Capacity: 1000 N / 225 lbs
- Opening max: 20 mm
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 123.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ020
Clamping Device for Testing Bristles PCE-SJJ020
Clamping device for testing bristles.

- Max. Capacity: 500 N / 112 lbs
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ029
Clamping Device for Testing Bristles PCE-SJJ029
Clamping device for testing bristles.

- Max. Capacity: 500 N / 112 lbs
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ032
Holder for Button and Rivet Testing PCE-SJJ032
Holder for knob and rivet test.

- Max. Capacity: 500 N / 112 lbs
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ035
Pliers for Trigger Tests PCE-SJJ035
Pliers for trigger tests.

- Max. Capacity: 500 N / 112 lbs
- Opening max: 37 mm
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 123.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ01
PCE-SJJ01 Adapters for Pressure Tests
Adapter for pressure force testing of sponge, foam glass, rock material, etc.

- Max. capacity: 5 kN / 5,000 N / 1,124 lbs
- Diameter: 16 mm
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 72.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ04
PCE-SJJ04 Adapter Stamp Round for Pressure Tests
Adapter-stamp for pressure force test of spring and sponge etc.

- Max. Capacity: 3 kN / 3,000 N / 674 lbs
- Diameter: 50 mm
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 72.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ06
PCE-SJJ06 Adapter Clamps for Tensile Tests
Adapter clamps for tensile testing of wire and filaments.

- Max. capacity: 5 kN / 5,000 N / 1,124 lbs
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ09
PCE-SJJ09 Fork Holder for Tensile and Compression Tests
Fork holder for tensile and pressure tests.

- Max. capacity: 5 kN / 5,000 N / 1124 lbs
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ012
PCE-SJJ012 Tensioning Device for Tensile Tests
Tensioning device for tensile tests.

- Max. capacity: 0.2 kN / 200 N / 45 lbs
- Max. opening: 3 mm
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 139.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ017
PCE-SJJ017 Universal Clamping Device
Universal clamping device for tensile tests of rubber, sheet metal, bales, etc.

- Max. capacity: 5 kN / 5,000 N / 1,124 lbs
- Opening max: 4 mm
- Threaded connection: M10
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 472.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ02
PCE-SJJ02 Adapter Ring for Tensile Tests
Adapter ring for tensile tests. Diameter is 20 mm and capacity is 0.5 kN / 500 N / 112.4 lbs.

- Useful for tension test of springs or wires
- M6 threaded connection
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 72.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ03
PCE-SJJ03 Clamping Device for Test Stand
Clamping device for tensile tests of rubber, wires and cables, paper, plastic film, etc.

- Capacity 500 N / 112.4 lbs
- Max. opening size 3 mm
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 61.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ024
PCE-SJJ024 Clamping Device for Test Stand
Clamping device with soft jaws for tension testing of paper, film etc.

- Capacity 500 N / 112.4 lbs
- Diameter: 6 mm
- Aluminum material
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 205.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SJJ015
PCE-SJJ015 Clamping Device for Test Stand
Clamping device with large opening width for peel test of block, glass and cardboard.

- Capacity 5000 N / 1,124 lbs
- Max. opening 33 mm / 1.29 in
- M10 threaded connection
Catalogue: Measuring Instruments / Test Meters / Force Gauge / Digital Force Gauge
Manufacturer: PCE Instruments
£ 149.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: KG-LTS-20
Hand grip KG-LTS-20
Hand grip as a wedge for the PCE-FM 50/200 device. The hand grip can be fixed at the top of the device. [more]
Manufacturer: PCE Instruments
£ 35.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: ADP-UNI
Adapter Plate for Force Test Stand ADP-UNI
Adapter plate for mounting the PCE-FM50, PCE-FM200, PCE-SH 500 and PCE-SH 2K force gauge transducers to the PCE-FTS50, PCE-MTS50 and PCE-MTS 500 motorized test stand.
Manufacturer: WEVO GmbH
£ 62.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
