  5. Force Gauge PCE-DFG N 5TW

Force Gauge PCE-DFG N 5TW

Order no.: PCE-DFG N 5TW
£ 1,468.00
£ 1,761.60
4250348723017
PCE-DFG N 5TW
price ex. (VAT / delivery)
digital
external
yes
yes
Delivery time: 10 - 14 days
Force Gauge PCE-DFG N 5TW
Force Gauge up to 5 Nm / External torque transducer 1/2 "square socket / Graphic display / PEAK function / Sampling rate max. 1600 Hz / Incl. Software

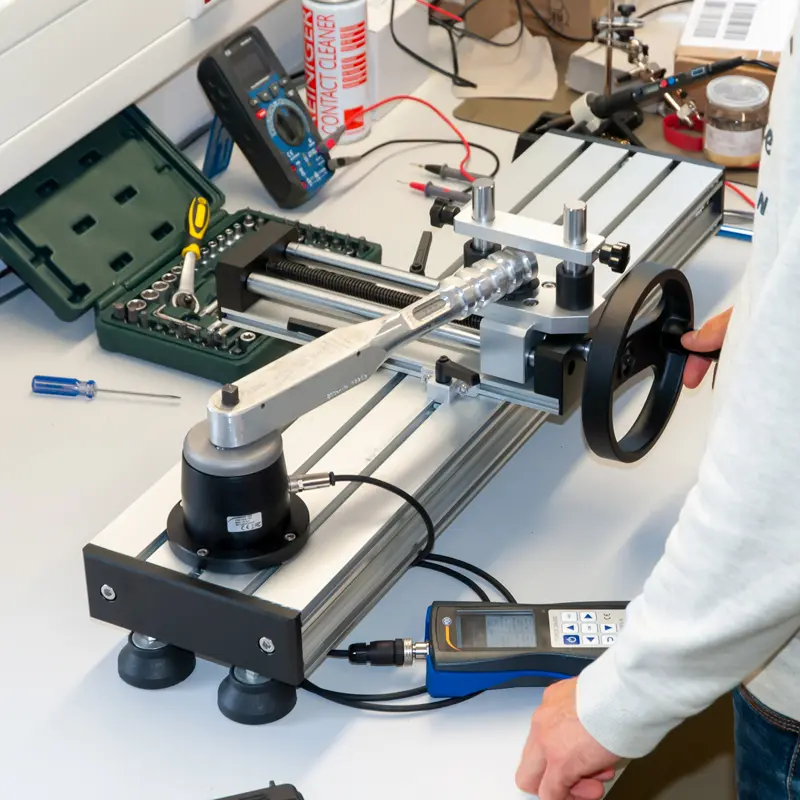

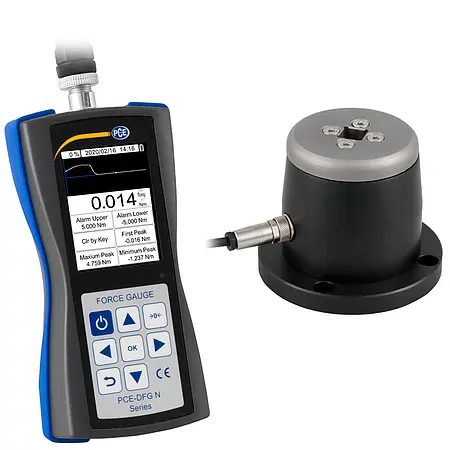

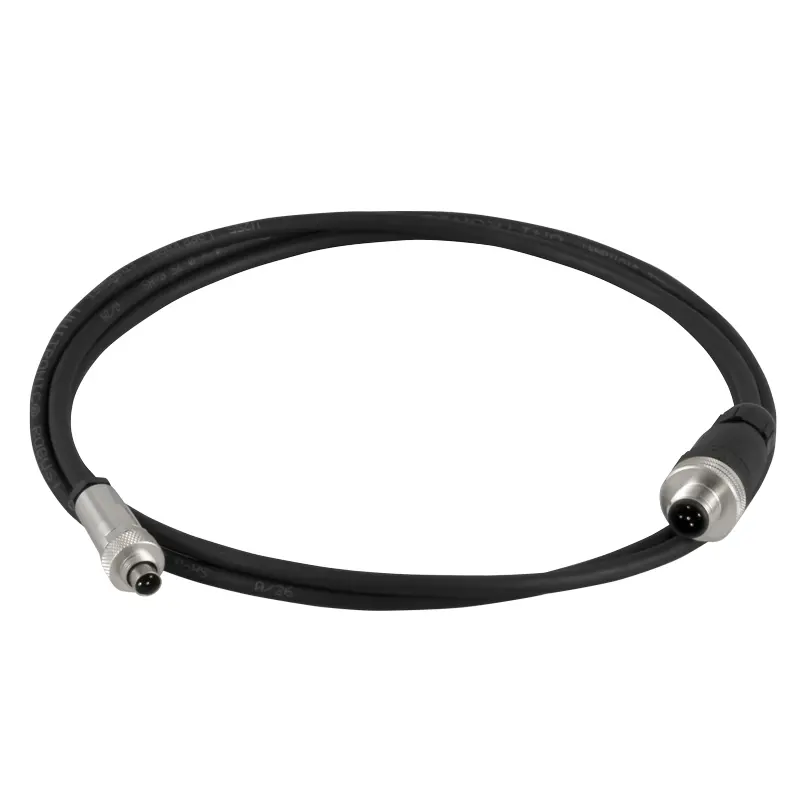

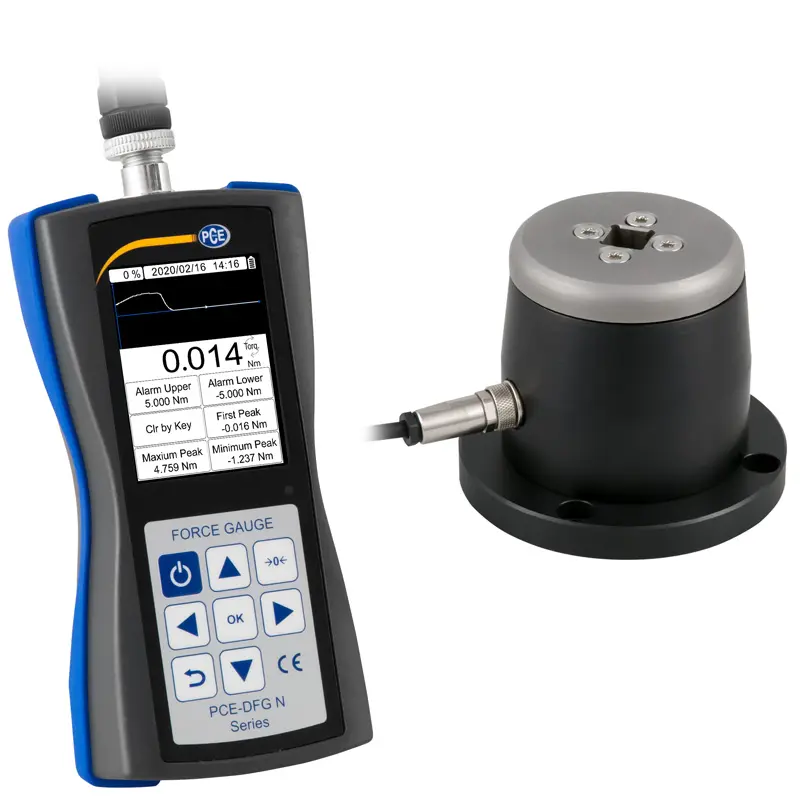

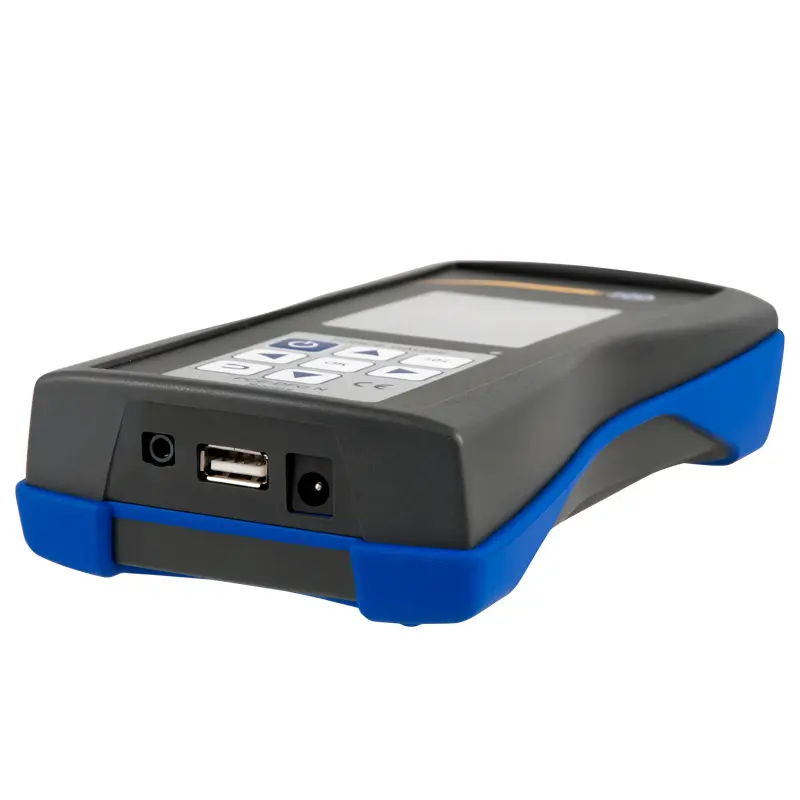

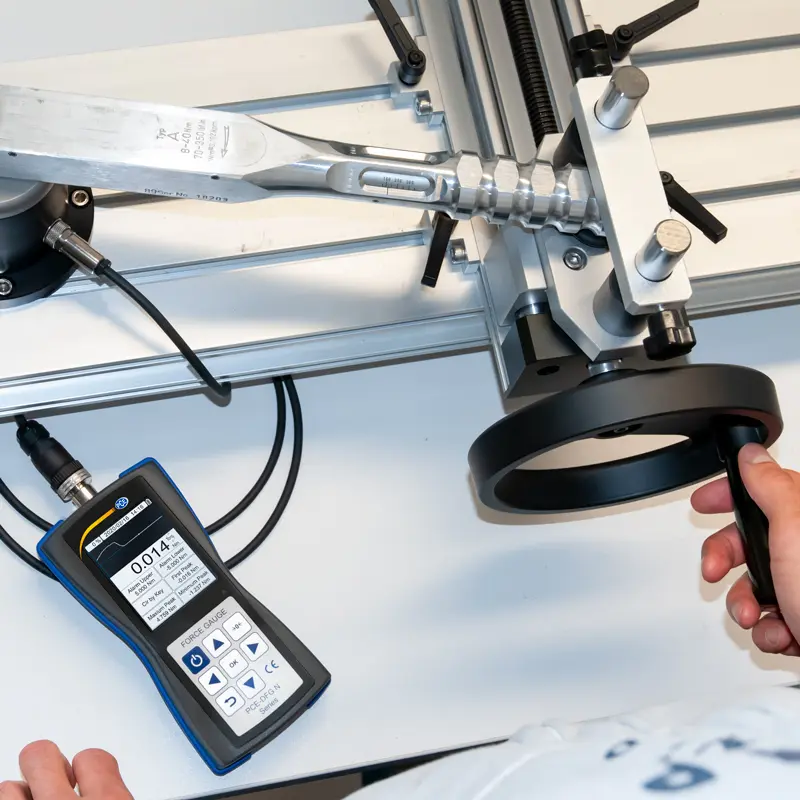

The force gauge consists of a handheld measuring device and an external torque transducer. The force gauge is connected to the hand-held device via a 1.5 m / 4.9 ft long cable and thus enables installation in a test stand or direct assembly on a test bench.

The force gauge is delivered adjusted so that the control measurements can be started immediately. A calibration certificate is optionally available for the force gauge. This certificate is a target / actual comparison on a traceable reference standard and thus serves as proof of the measurement accuracy. The measurement uncertainty of the force gauge is only 0.5% of the measuring range. The force gauge is therefore used as a reference device for testing and adjusting static torque tools. A screw latch is essential for dynamic torques.

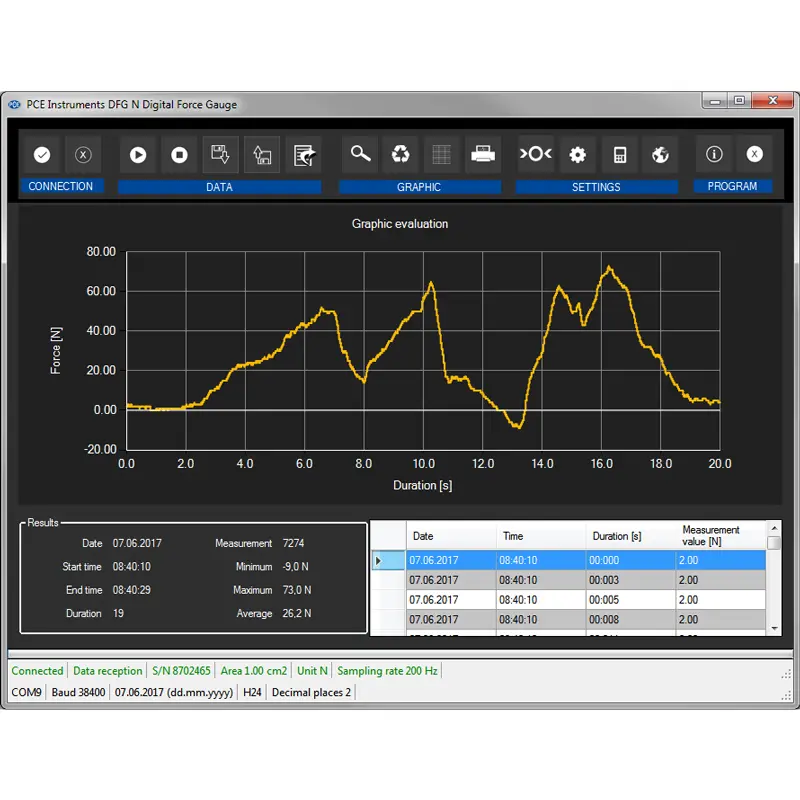

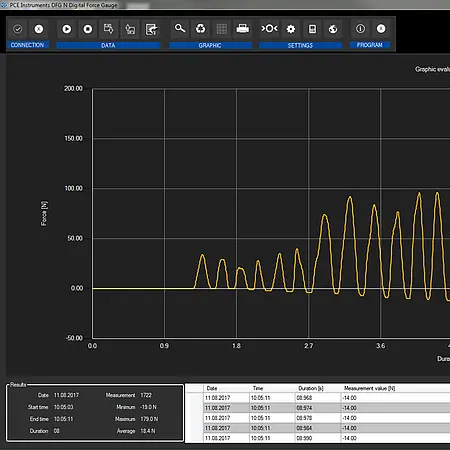

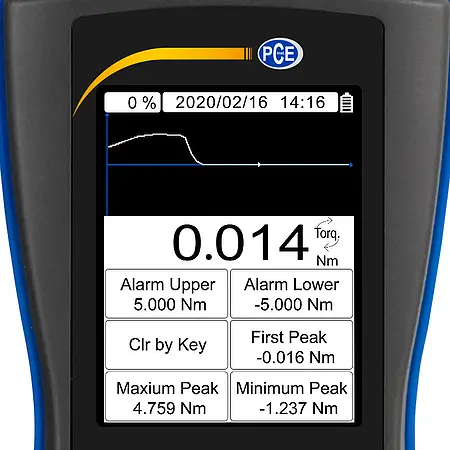

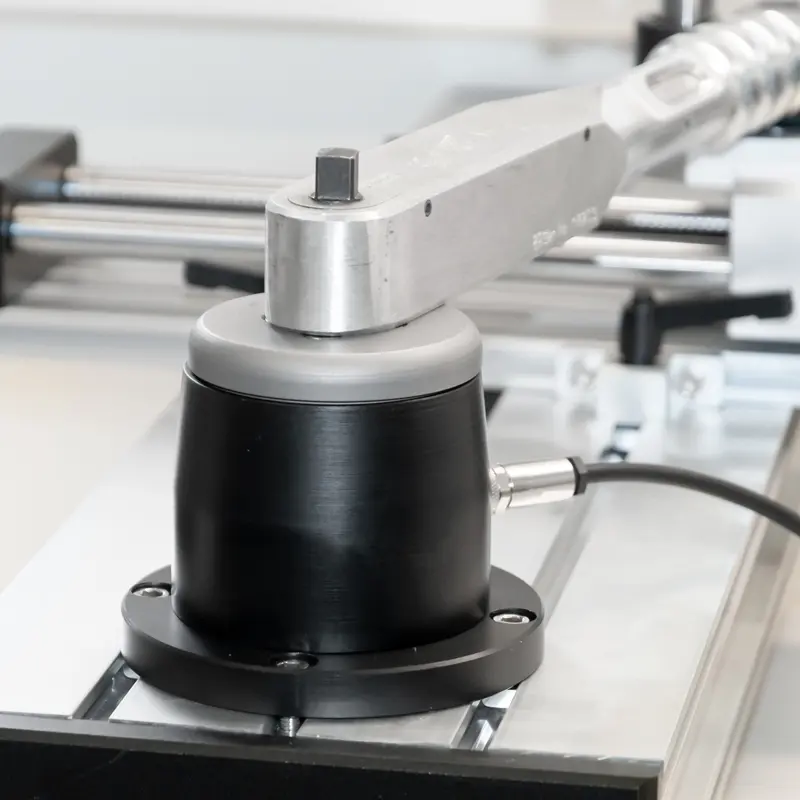

The force gauge has a 1/2" square socket and can perform the torsion measurements in both directions of rotation. With a sampling rate of 1600 Hz, the force gauge reliably detects the first and the maximum torsional moment peak (PEAK). The release moment (" click ") is shown separately in the display and can be deleted either manually or automatically after a set time has elapsed. Thanks to freely adjustable alarm values, the force gauge can warn the tester of overload of the torque tool if it does not trigger itself. For a more detailed analysis of the torsional forces, the PC software included in the scope of delivery can be used.

- Left / right torsion measurement
- 1600 Hz sampling rate
- Error limit 0.5% of the measuring range
- PEAK / Hold function

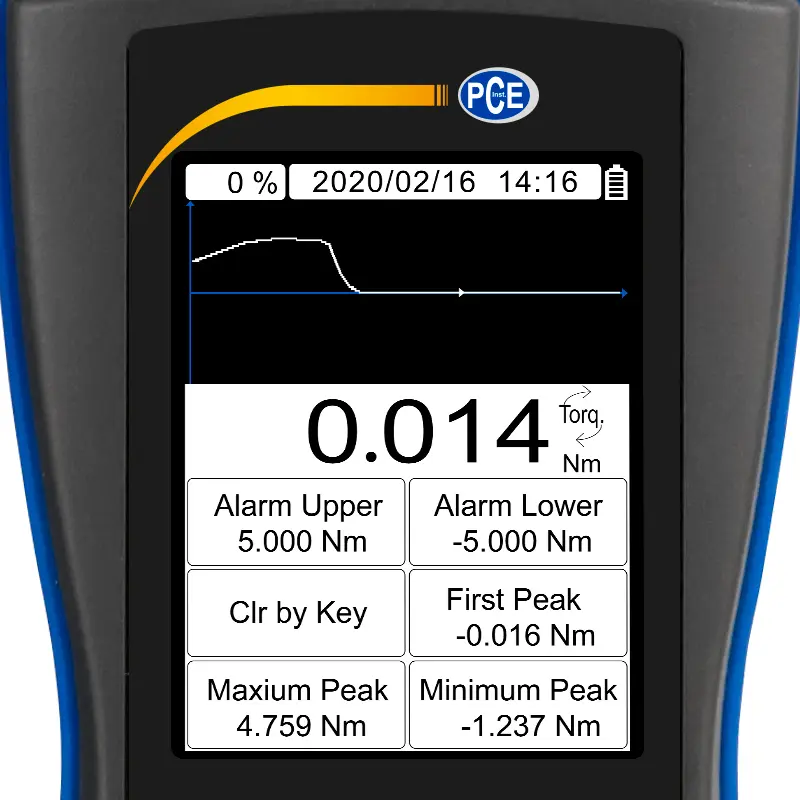

- Graphic display

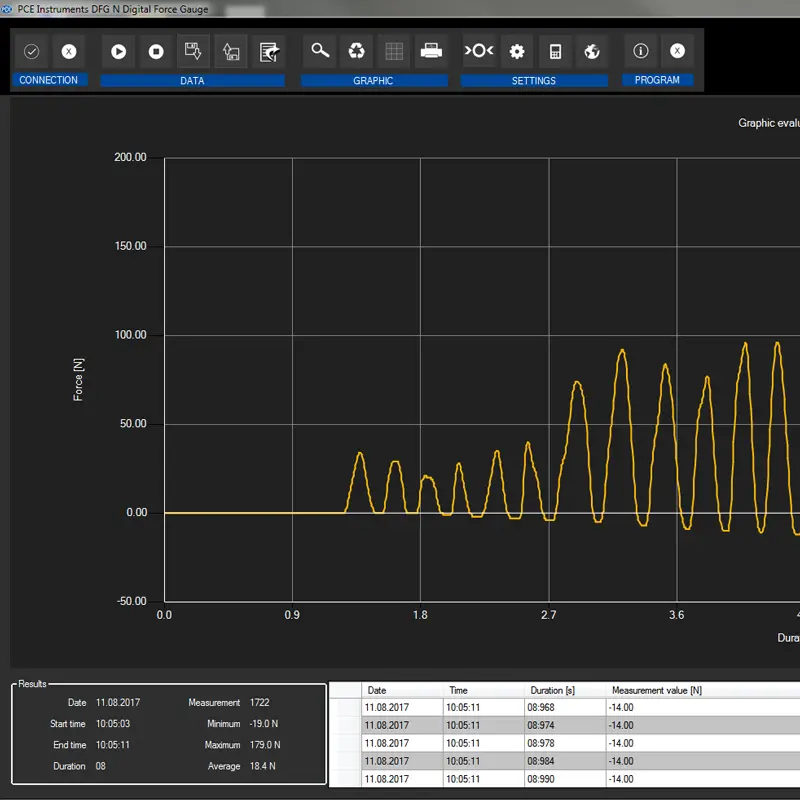

- PC software
- Power adapter and battery operation possible
Measuring range 0 ... 5 Nm / 3.69 ft-lb
Resolution 0.001 Nm / 0.00074 ft-lb
Accuracy ± 0.5% of the measuring range
Units of measurement Nm, lbfft, kgfm
Torque sensor mount 1/2" (12.5 x 12.5 mm) internal square
Torsion measurement Left Right
Display 2.8" TFT graphic display
Alarm modes Inside Outside
Sampling rate 6 ... 1600 Hz
Storage For 100 measurement series with 8,000 measurement points each
Power supply NiMh battery, 6V / 1600-mAh
Battery life About 10 hours
Power supply / charging adapter 12V / 1 A
Outputs Interface: USB
Switching output: 12V / 50-mA
Protection class IP 54
Operating and storage conditions                            -10 ... 50°C / 14 ... 122°F
5 ... 95% RH non-condensing
Torque transducer dimensions H 85 mm / Ø 72 mm / Ø 104 mm (H 3.3 in / Ø 2.8 in / Ø 4.1 in)
 (see technical drawing)
Sensor cable length / td> Approx. 1.5 m / 4.9 ft
Dimensions handset 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in
Weight handset 540 g / 1.2 lbs
Weight of the torsion transducer 985 g / 2.2 lbs

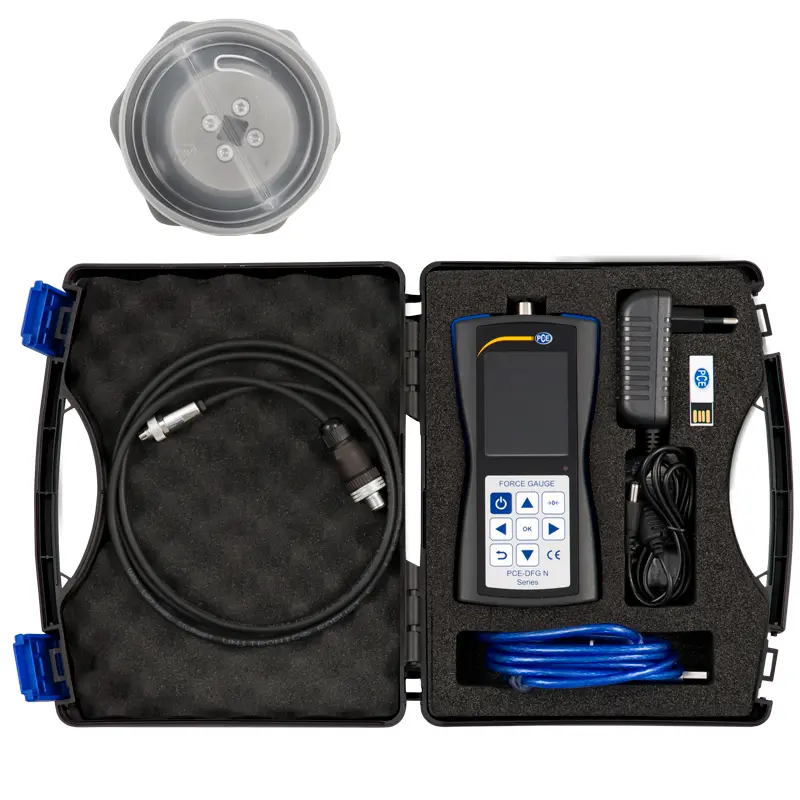

1 x Force Gauge PCE-DFG N 5TW

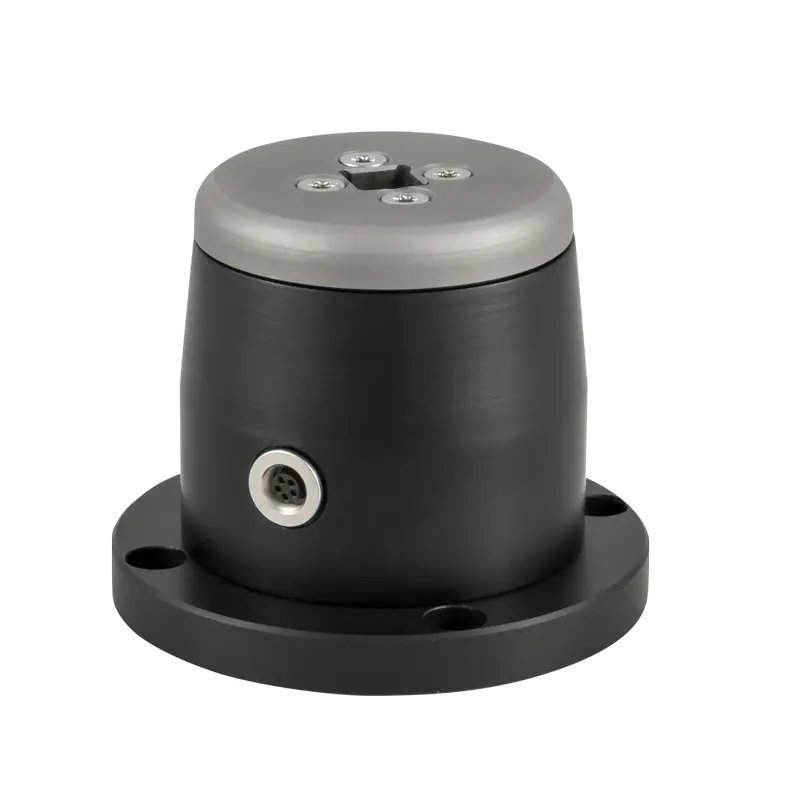

1 x Torque transducer 5 Nm
1 x 1.5 m / 4.9 ft sensor cable
1 x PC software
1 x USB data cable
1 x Power supply
1 x Carrying case

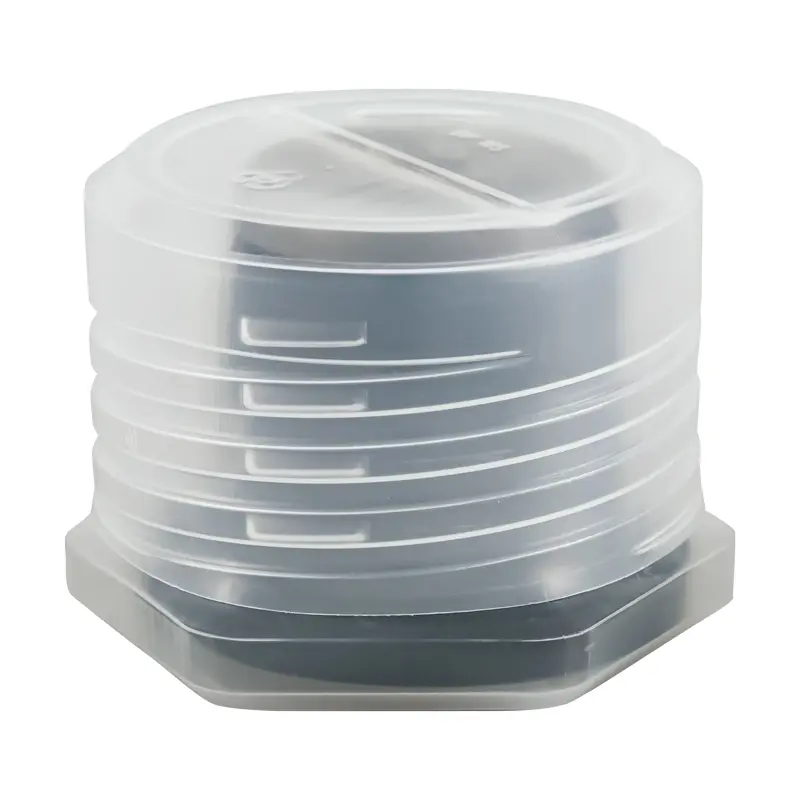

1 x Sensor screw socket
1 x Instruction manual
