Force Gage PCE-DFG NF 1K-ICA incl. ISO Calibration Certificate

Order no.: PCE-DFG NF 1K-ICA
ISO Calibration

£ 1,193.00
£ 1,431.60
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

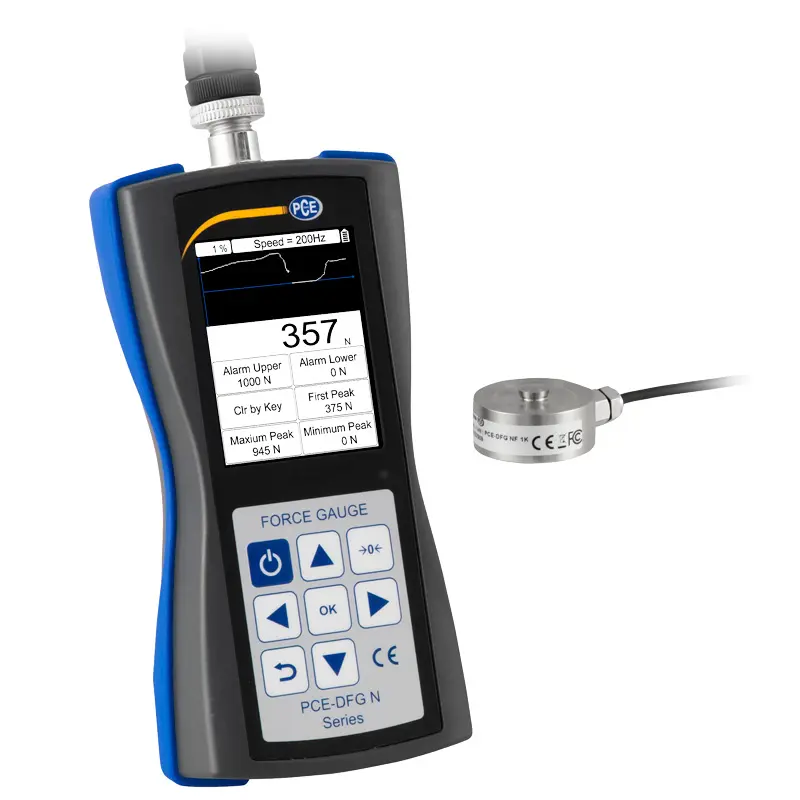

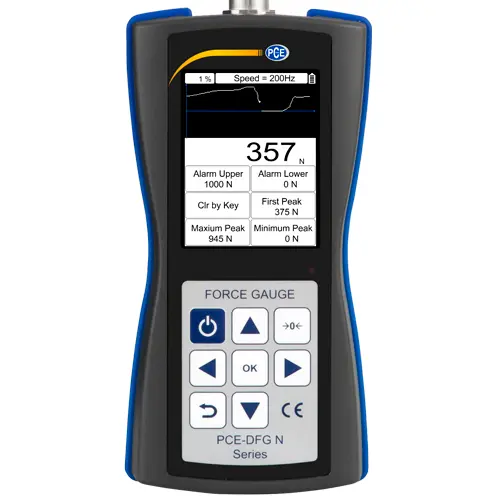

Force Gage PCE-DFG NF 1K-ICA incl. ISO Calibration Certificate
With external load cell, USB interface and PC software

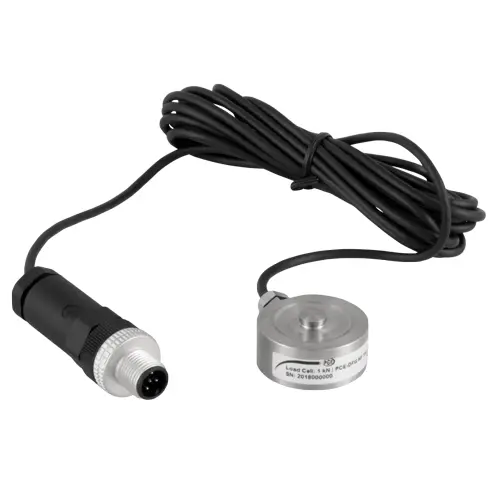

The force gage with an external load cell is designed for the measurement of compressive forces at hard-to-reach measuring points. The load cell is connected to the force gage by a sensor cable of approx. 3 m length and thanks to the small cell dimensions it ensures a versatile application. The force gage load cell has several threaded holes on the underside, which allow a fixed installation.

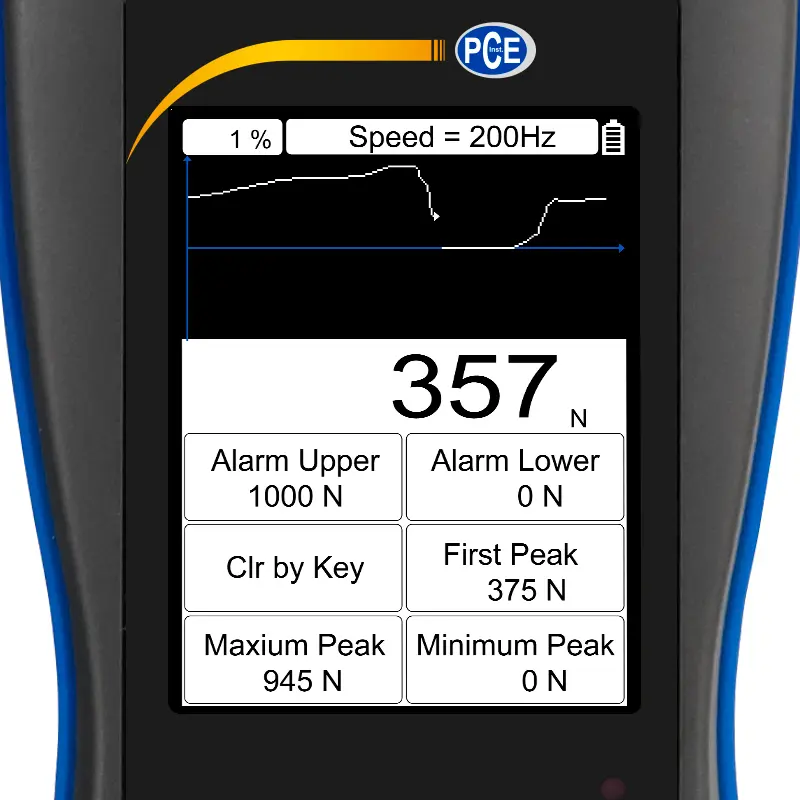

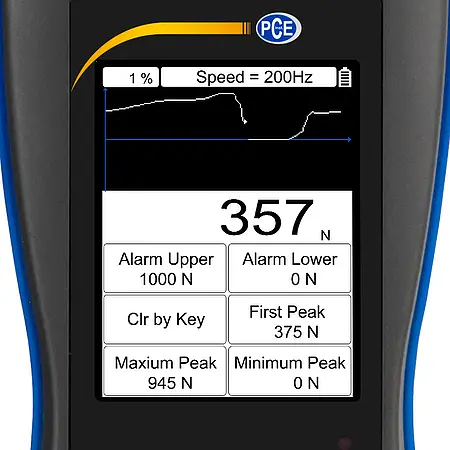

The force gage can operate at a sampling rate of up to 1600 Hz. The sampled measured values are displayed as an instantaneous value, as well as in a graph trace directly in the force gage.

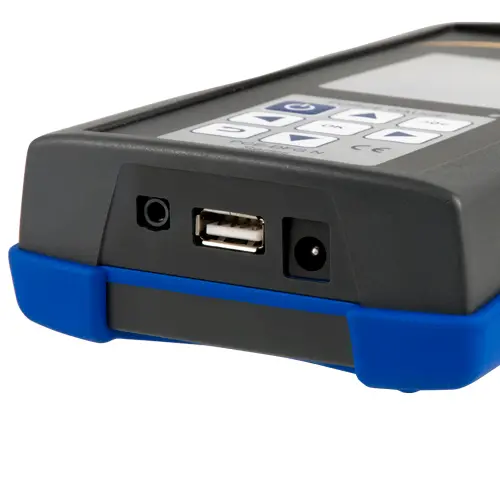

The measurements can be stored in the internal memory or transmitted via USB interface with the included software with a maximum of 800 Hz as a live measurement.

The PEAK Hold function allows freezing of the highest measured value in the force gage until this value is exceeded or cleared.

The force gage offers the option of storing two limit values, which are continuously compared with the instantaneous value. When exceeding or falling below these limits, a signal is displayed in the display of the force gage, as well as a response via external interfaces, e.g. this can be used for the control of a testing machine.

- USB interface
- Graphic display
- Fast response time
- PC software
- Memory for 100 measurements

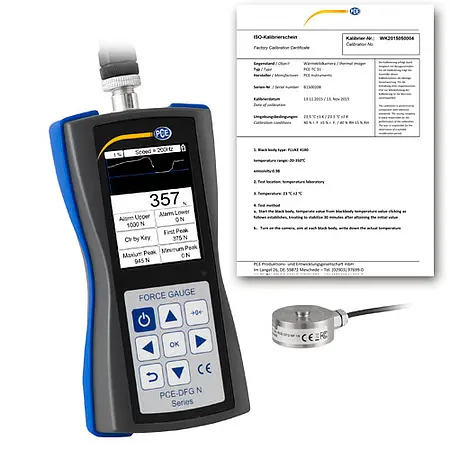

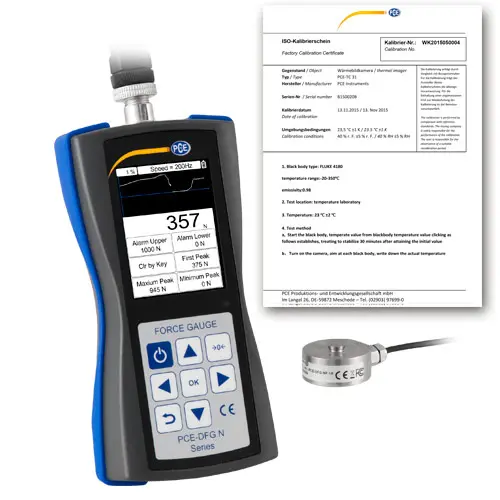

- Incl. ISO calibration certificate
Measuring range 0 ... 1 kN / 1,000 N / 102 kg / 225 lbs
Resolution0.1 N / 0.02 lbs
Accuracy ± 0.5% of the measuring range
Measurement units N, kg, lb, kPa

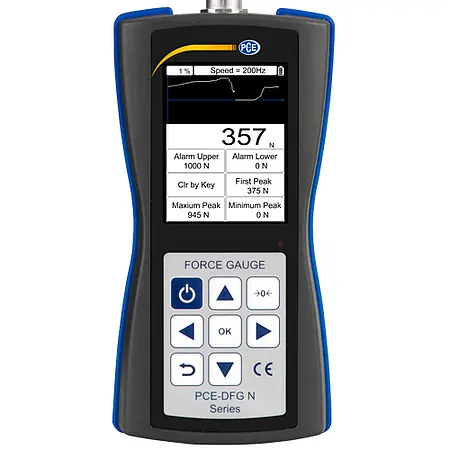

Display 2.8" TFT graphic display
Alarm Modes Inside, Outside, Crack, Shutdown
Sampling rate 6 ... 1600 Hz
Storage 100 measurements
Power supply NiMH battery, 6V / 1600-mAh
Battery life About 10 hours
Power adapter / charging adapter       12V / 1A
Outputs Interface: USB switching output: 12V / 50-mA
Protection class IP 54
Operating and storage conditions    -10 ... 50°C / -14 ... 122°F
5 ... 95% rh non-condensing

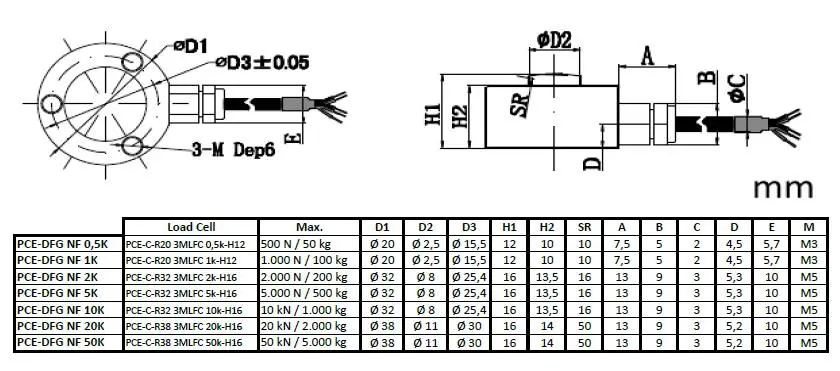

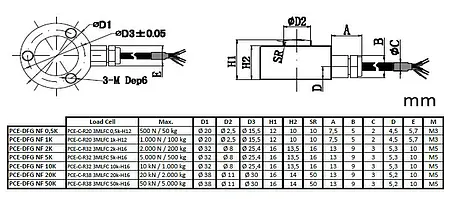

Dimensions load cell Ø 20 mm / H 12 mm / M3 thread
(see technical drawing)
Cable length load cell About 3 m / 9.8 ft
Dimensions 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in
Weight 540 g / 1.2 lbs

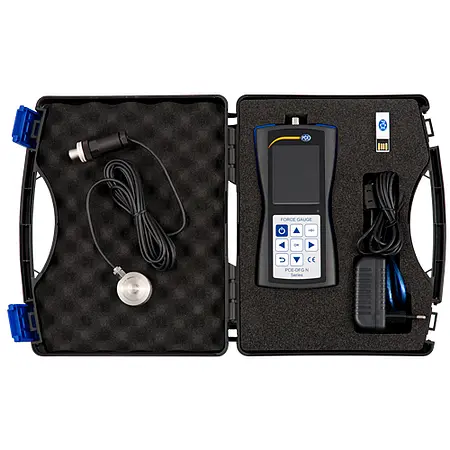

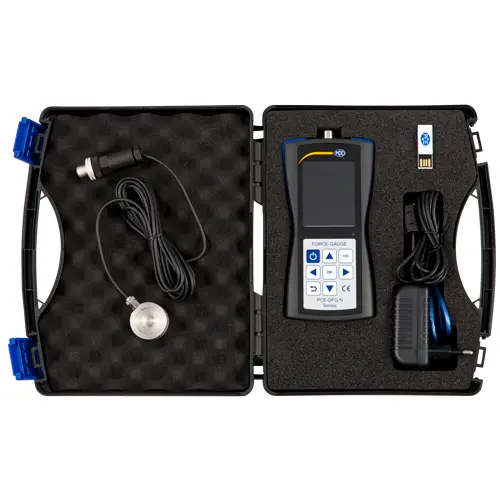

1 x Force Gage PCE-DFG NF 1K-ICA
1 x Load cell (depending on model)
1 x USB cable
1 x Charger
1 x PC software
1 x User manual
1 x ISO calibration certificate
