Environmental Tester PCE-MSL 1

Order no.: PCE-MSL 1

GTIN (EAN): 4250348717177

Description

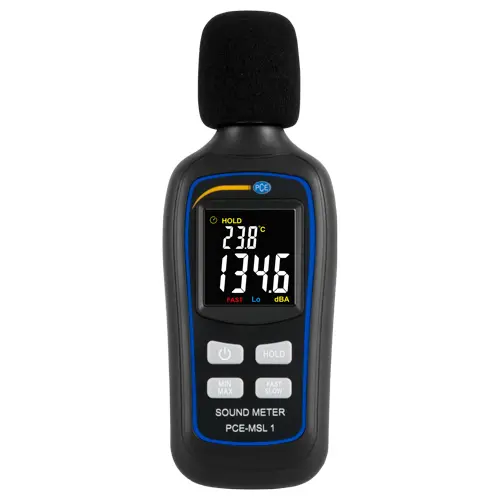

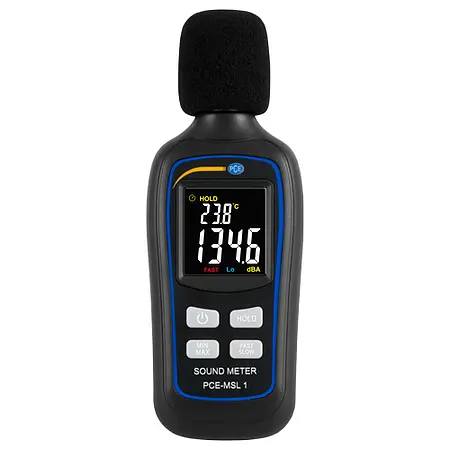

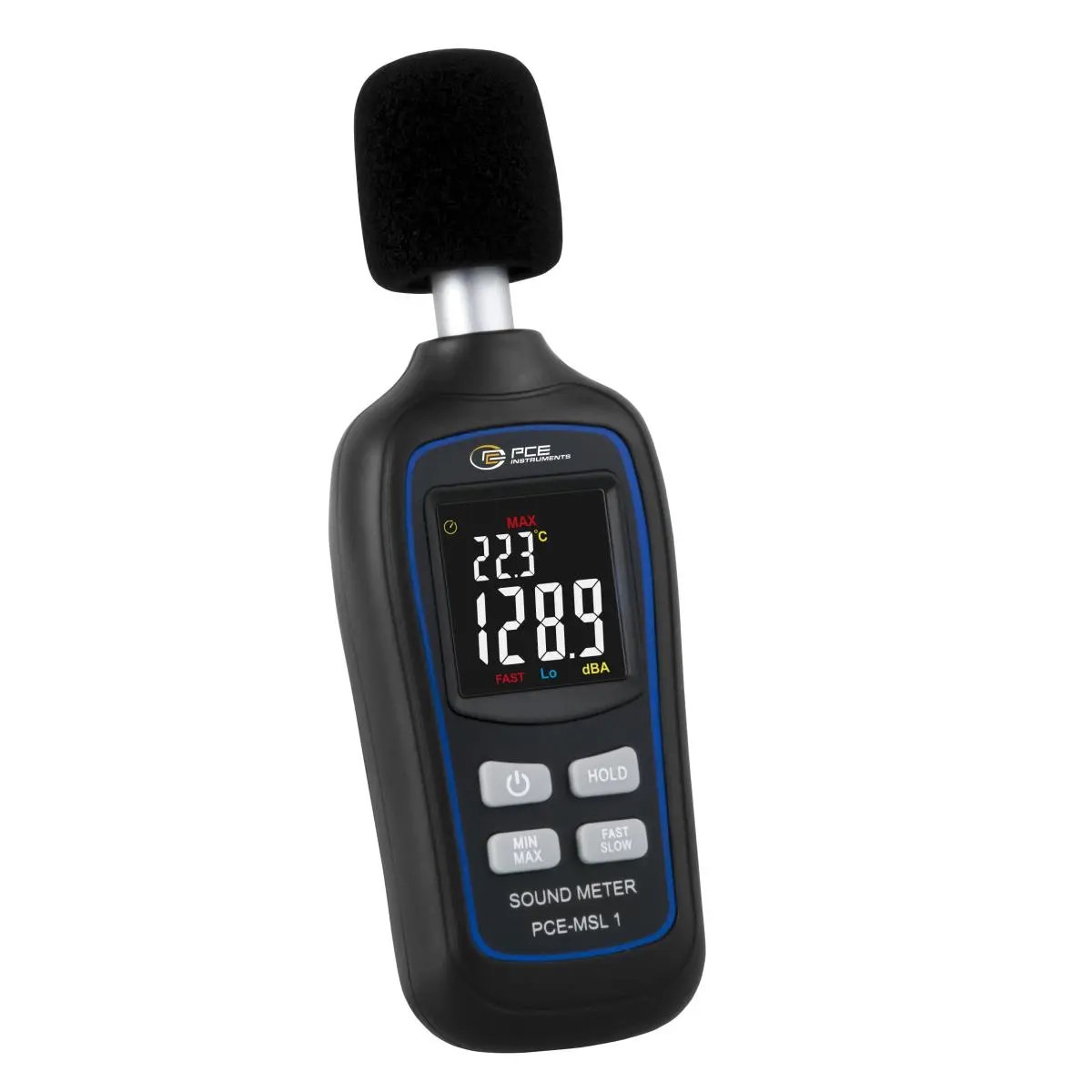

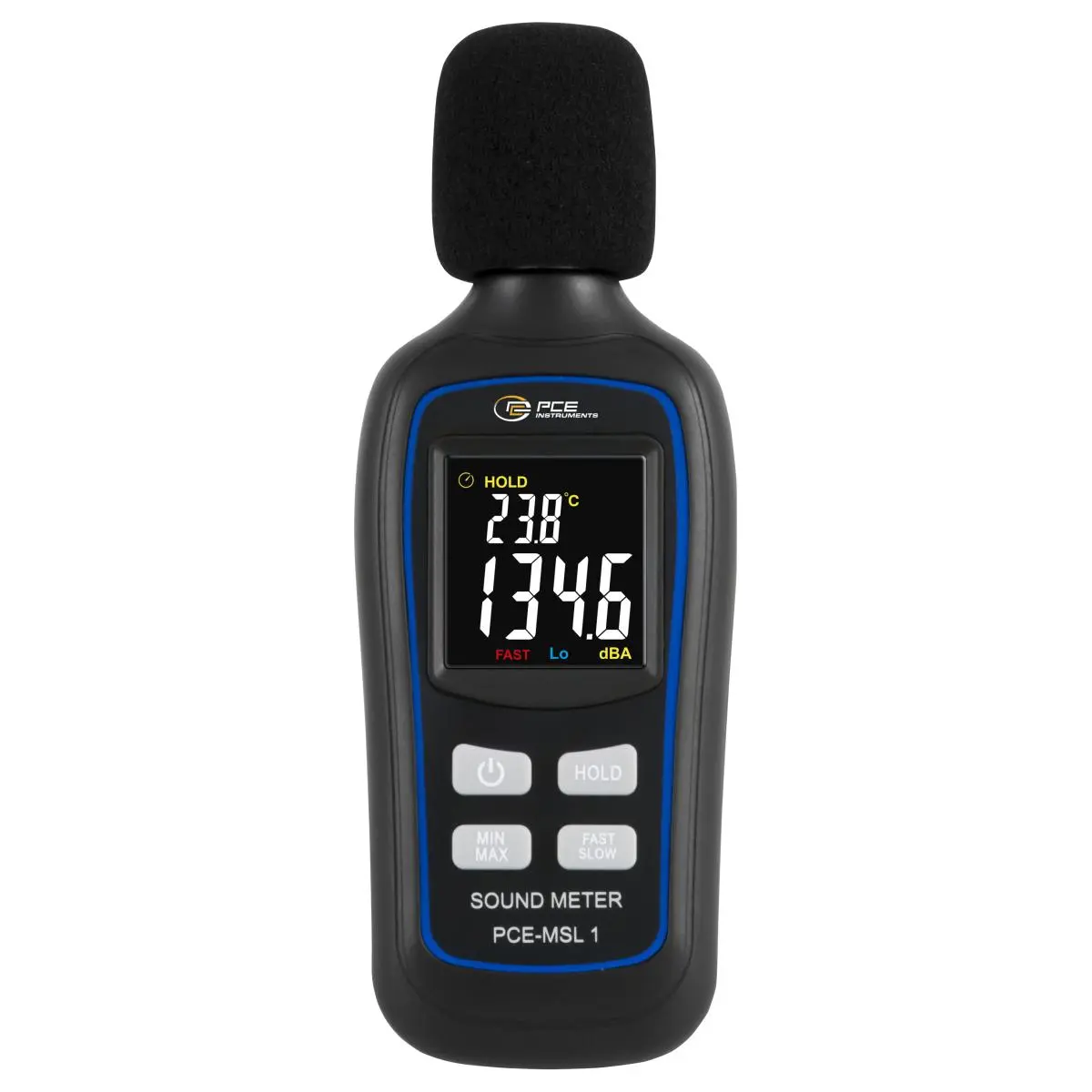

Environmental Tester PCE-MSL 1

Sound level meter with A-frequency weighting / simultaneous temperature measurement / 0.1 dB resolution / HOLD function / extreme value measurement / large frequency range / backlit colour LCD

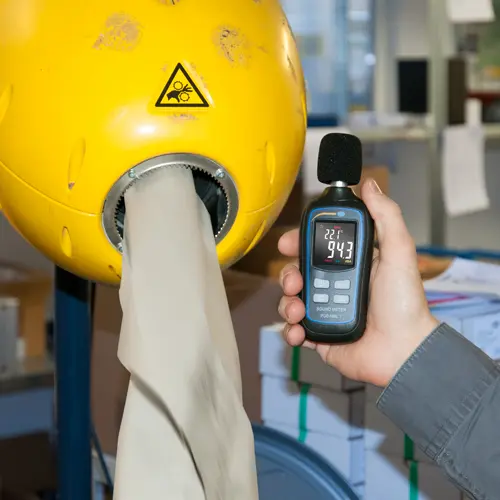

The environmental tester is a simple sound measuring device. The environmental tester is used to quickly determine the ambient volume. In addition to the volume measurement, the environmental tester also has the facility to determine the ambient temperature. The measurement of background noise is important in almost every situation today. For this purpose it is helpful to use a simple environmental tester that gives the user an initial idea about the possible noise level.

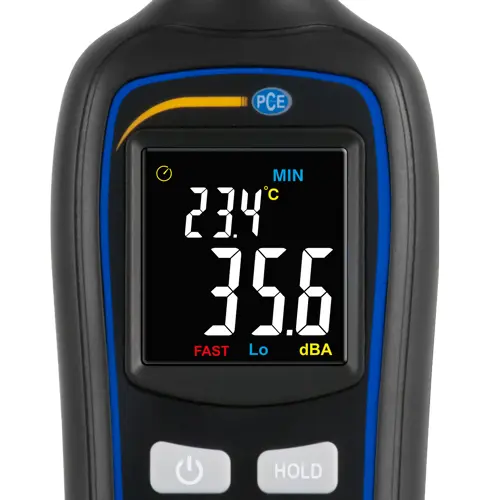

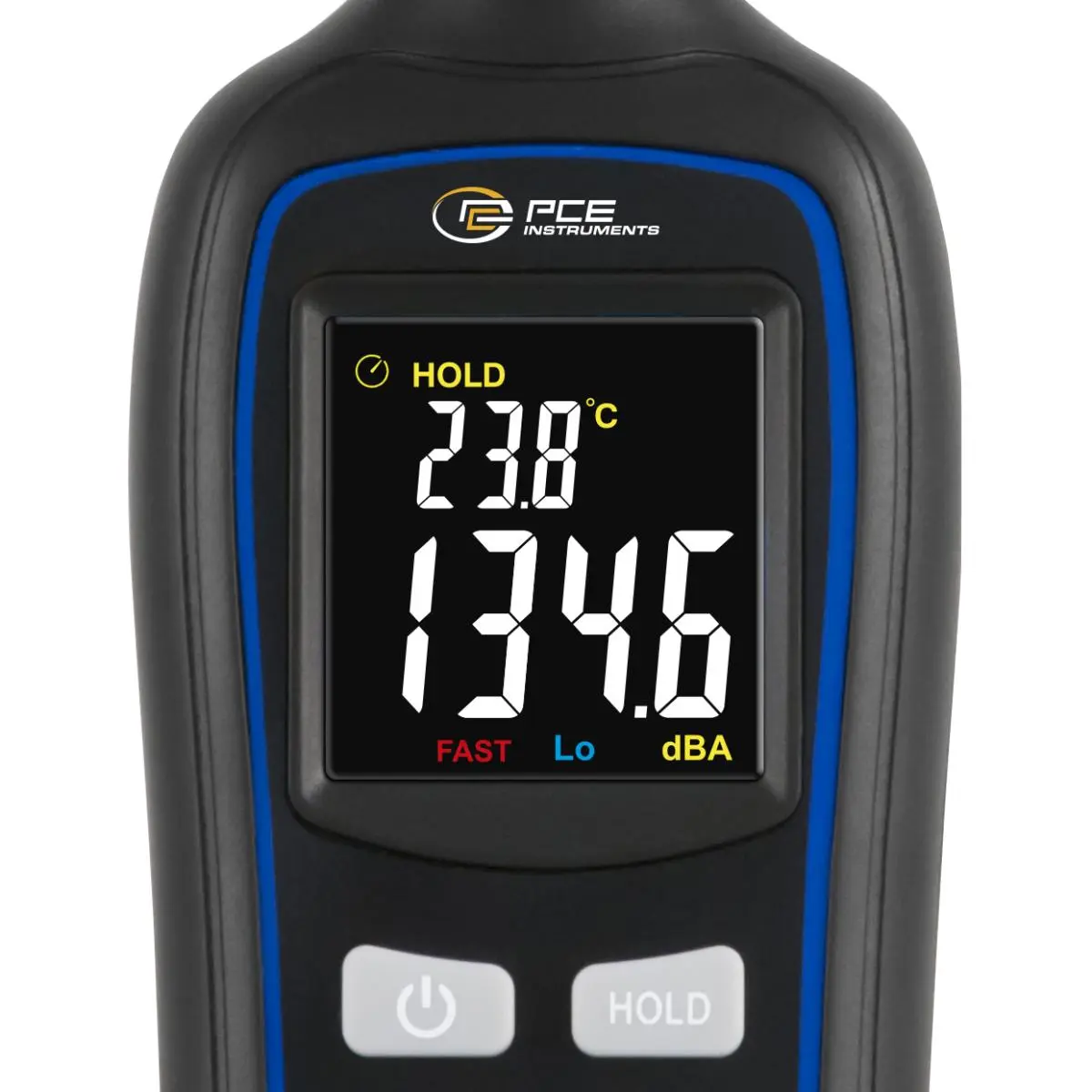

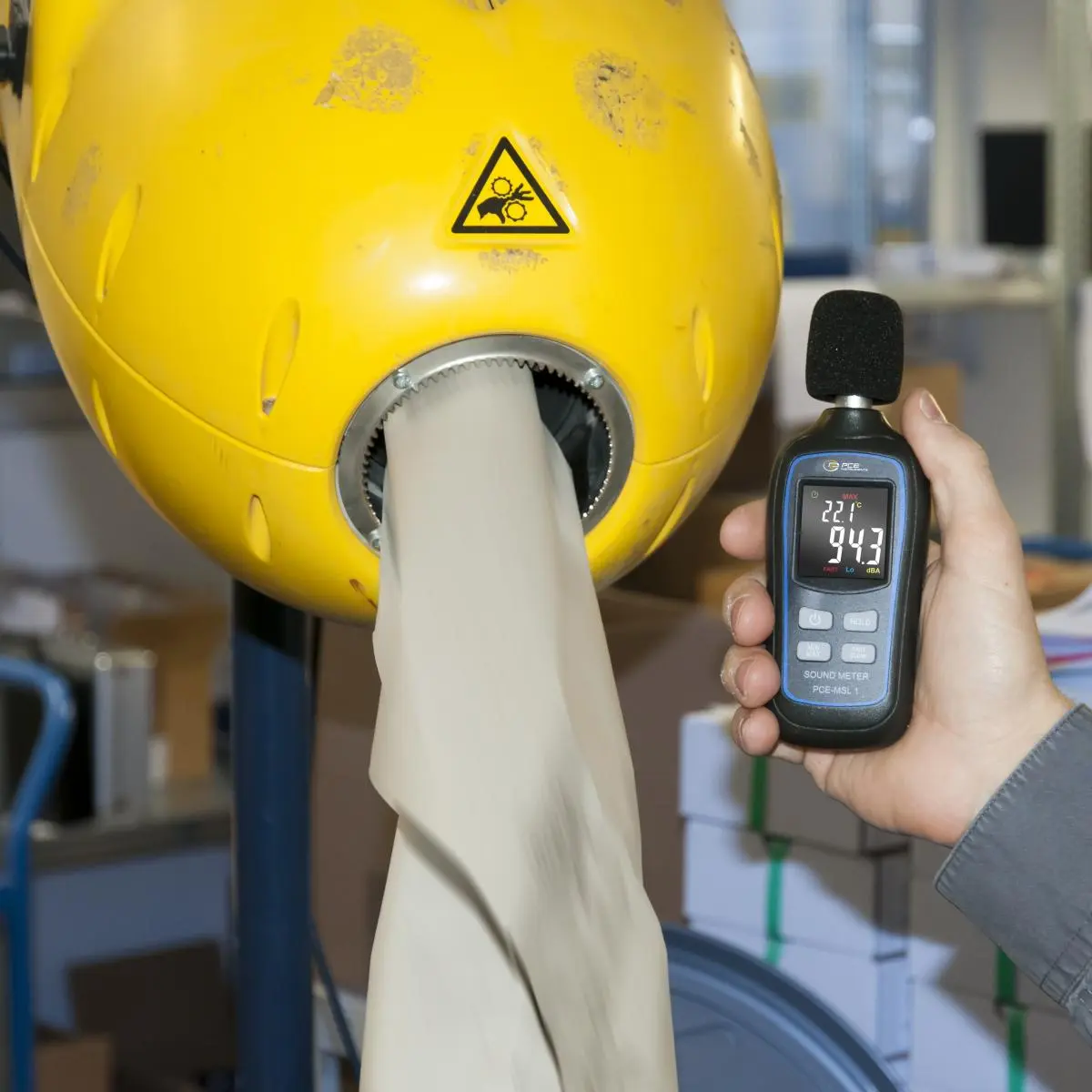

The LC display gives clear results of the measurements made by the environmental tester. A backlight is also integrated into the display. The environmental tester is especially ideal for measurements that need to be non-stationary.

Highlights

- extreme value measurement

- high precision

- fast volume measurements

- backlit colour LCD

- simultaneous temperature measurement

- HOLD function

- large frequency range

- A-frequency weighting

- robust ABS plastic housing

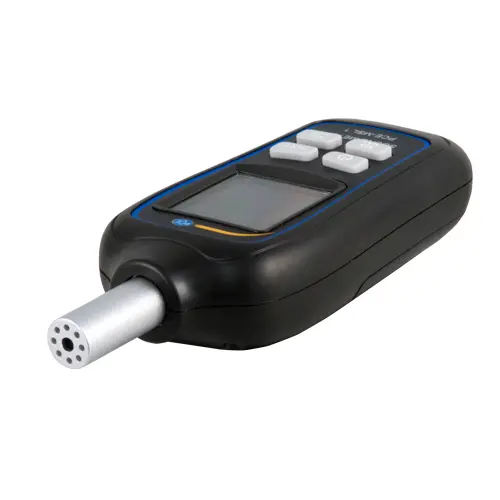

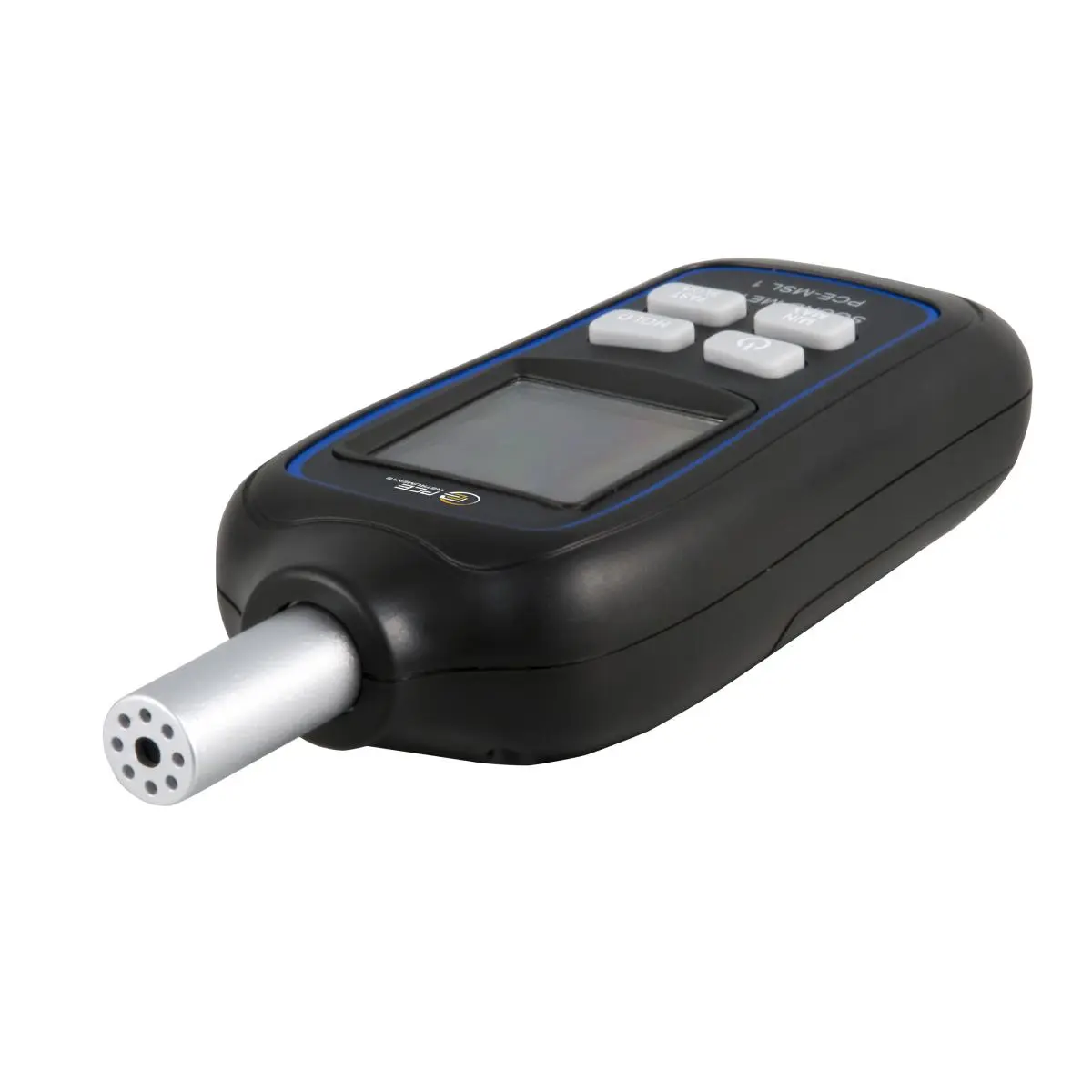

- 1/2" electret condenser microphone

- slow/fast time rating

- alarm at frequency exceeded

- resolution 0.1dB

- display update every 300 ms

Specification

Sound level
Measuring range	35 ... 135 dB
Resolution	0,1 dB
Accuracy	±2 dB

Temperature
Measuring range	-20 ... +70 °C
Resolution	0,1 °C
Accuracy	±1.5 °C

General technical data
Measuring functions	HOLD, MAX, MIN
Time weighting	slow (1 s), fast (125 ms)
Frequency weighting	A
Frequency	31.5 ... 8000 Hz
Display type	LCD with backlight
Measuring rate	3,33 Hz
Microphone type	Electret capacitor
Operating time	60 h
Automatic power-off	15 min
Dimensions	Microphone diameter 1/2 inch
Menu language	English, English (GB)
Protection class (device)	IP20
(Rechargeable) battery	3 x 1,5 V AAA battery , Zinc-manganese dioxide
Capacity	1200 mAh
Operating conditions	-20 ... 60 °C , 10 ... 90 % RH
Storage conditions	-20 ... 60 °C , 10 ... 75 % RH
Dimensions ( L x W x H )	144 x 56 x 31 mm
Weight	75 g
