£ 142.00
| Measured variable | Air humidity |
| Measuring range | 0 ... 95% r.H. |
| Accuracy | ± 3 % of reading (10 .. 90 %) |
| ± 5 % of other |
|
| Resolution |
- |
| Measured variable | Temperature |
| Measuring range | -20 ... 60 °C |
| Accuracy |
± 0.6 °C (10 ... 40 °C) |
| ± 1 °C of other | |
| Resolution |
- |
| Measured variable | Illuminance |
| Measuring range | 0 ... 60000 lx |
| Accuracy |
- |
| Resolution |
- |
| Measured variable | TVOC |
| Measuring range | 0 ... 60000 ppb |
| Accuracy |
- |
| Resolution |
1 ppb (0 ... 2008 ppb) |
| 6 ppb (... 11110 ppb) | |
| 32 ppb (... 60000 ppb) | |
| Measured variable | CO2 |
| Measuring range | 400... 60000 ppm |
| Accuracy |
- |
| Resolution |
1 ppm (400 ..1479ppm) |
| 3 ppm (... 5144 ppm) | |
| 9 ( ...17597 ppm) | |
| 31 ppm ( .. 60000 ppm) | |
| Measured variables | dew point absolute humidity |
| saturated steam pressure, enthalpy | |

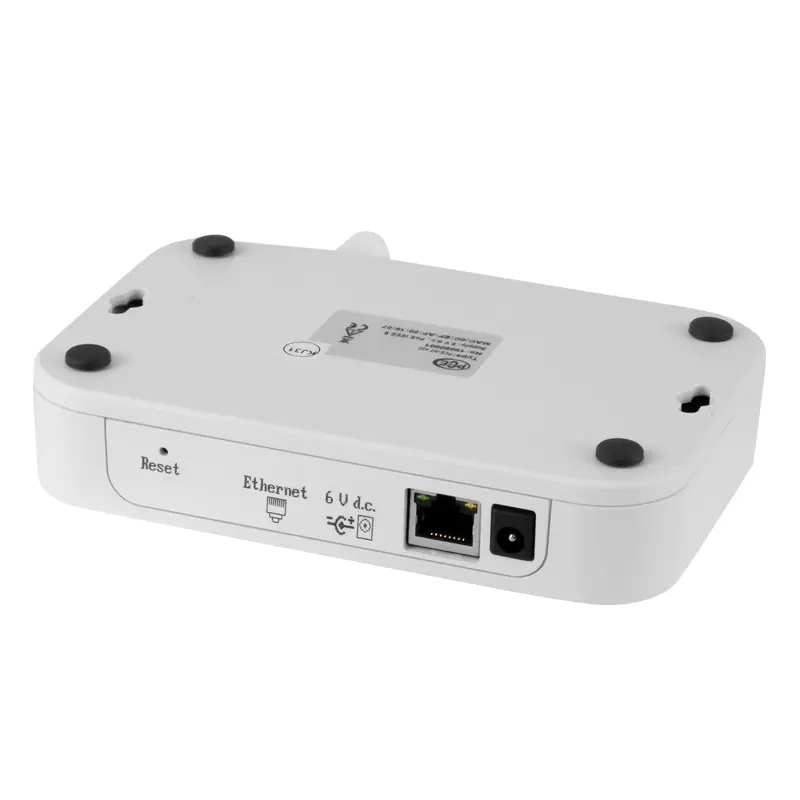

| Interface |
RS485 (Modbus RTU) |
| Ethernet | Modbus TCP, HTTP, FTP, MQTT |
| Memory | 4 GB |
| Power supply | DC power pack 6 V / 1 A |
| PoE IEEE 802.3af | |
| Power consumption | < 2 VA |
| Warm-up time | 15 minutes |
| Operating conditions | -20 ... 60°/ 95% r.H |
| Degree of protection | IP20 |
| Mounting | Rear mounting hole for |
| Wall mounting, sensor facing down | |
| Dimensions |
120 x 80 x 25 mm |
| Weight |
300 g |
