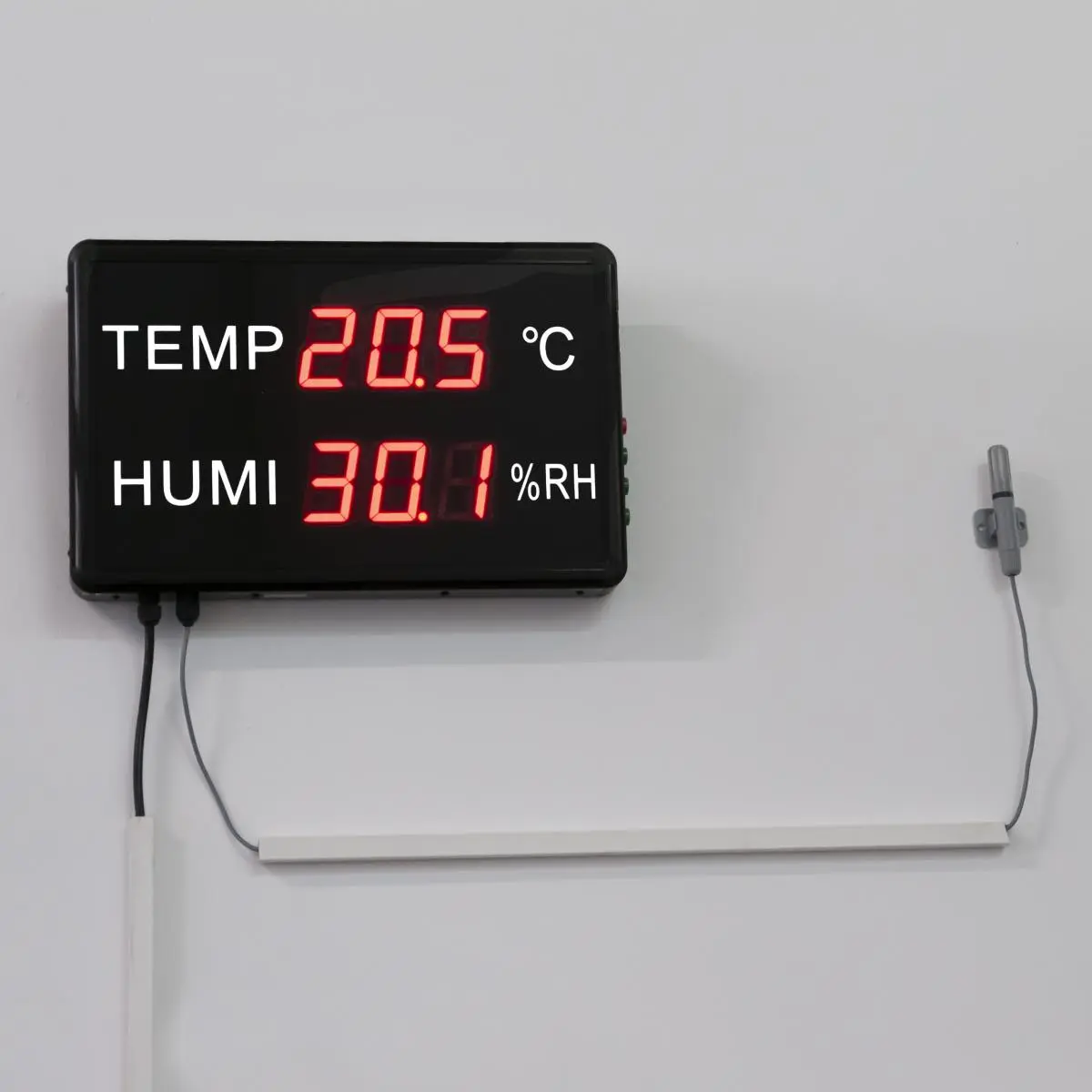

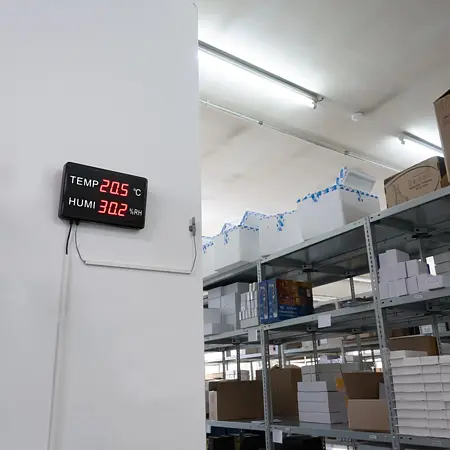

The Environmental Tester is used to measure the environmental parameters of temperature and humidity. The Environmental Tester finds its application in warehouses, open-plan offices, schools, etc. The Environmental Tester has 55 mm high digits that indicate the temperature and humidity.

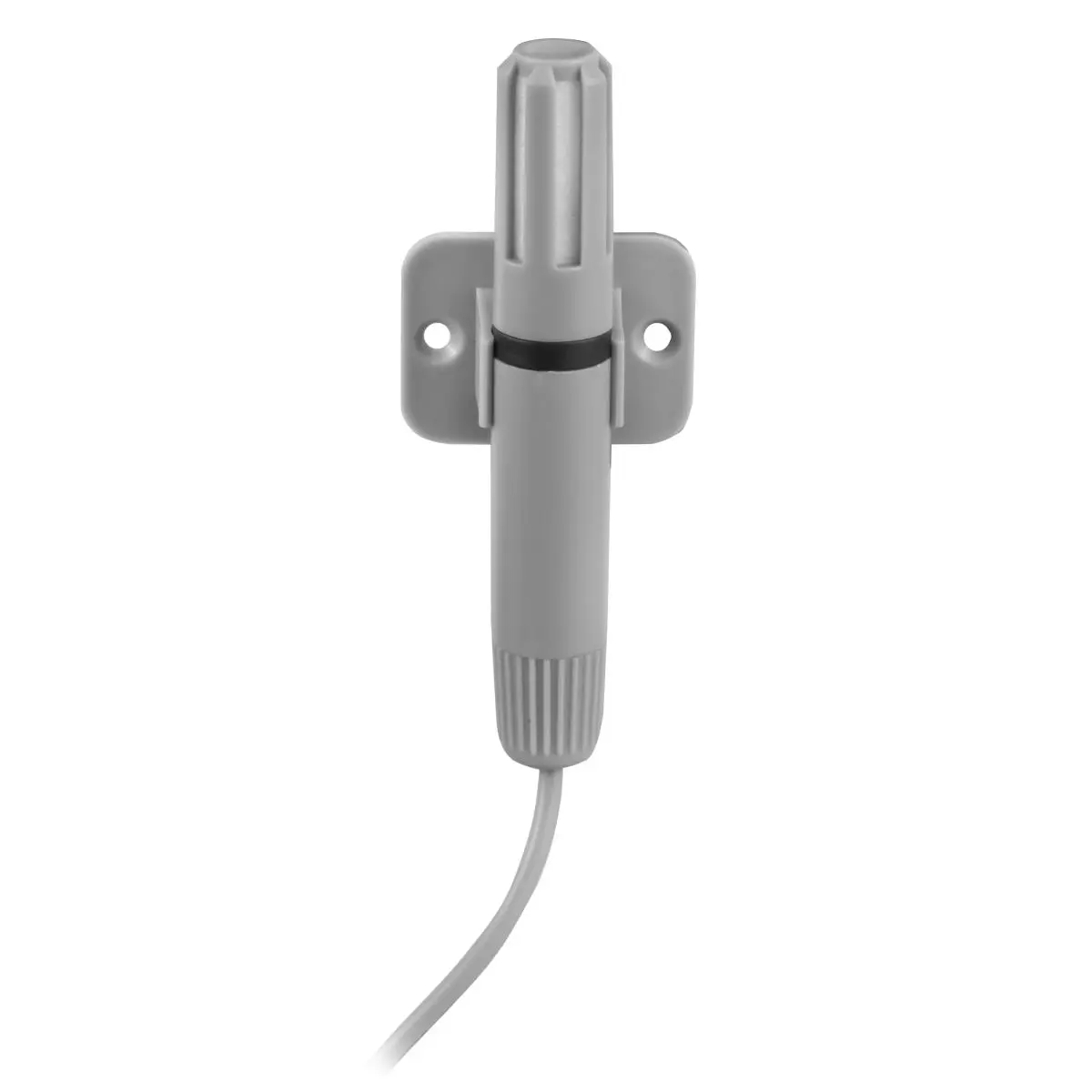

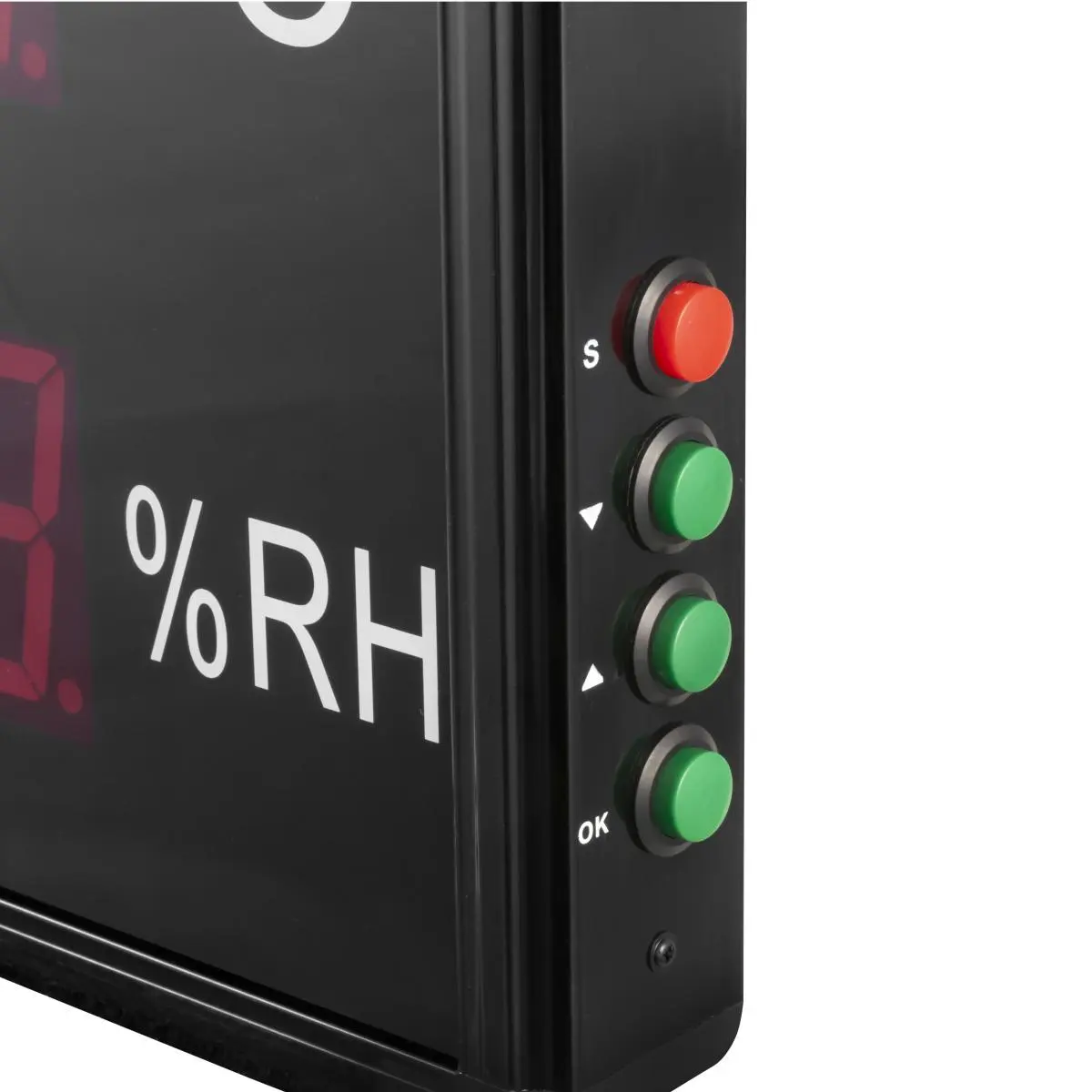

Due to the large size of the digits, the Environmental Tester display can be read from distances up to 30 m. The temperature and humidity sensor of the Environmental Tester is connected by a 2 m long cable. The Environmental Tester is operated by 230 V AC mains voltage. Via the side-mounted buttons, alarm levels can be set on the Environmental Tester.
| Relative humidity | |
| Measuring range | 0 ... 99 % RH |
| Resolution | 0,1 % RH |
| Accuracy | ±3 % RH |
| Temperature | |
| Measuring range | -40 ... -10 °C |
| Resolution | 1 °C |
| Accuracy | ±0.3 °C |
| General technical data | |
| Display type | LCD |
| Alarm | Acoustic |
| Dimensions | Sensor cable: approx. 2 m Power supply cable: approx. 1 metre |
| Visibility | 30 m |
| Protection class (device) | IP54 |
| Power supply | Primary: 100 ... 240 V AC 50/60 Hz Secondary: 12 V DC, 0.5 A |
| Connector type | Schuko plug |
| Operating conditions | -20 ... 70 °C , 0 ... 85 % RH |
| Storage conditions | -20 ... 70 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 395 x 255 x 50 mm |
| Weight | 2500 g |
