Environmental Tester PCE-323-ICA incl. ISO Calibration Certificate

Order no.: PCE-323-ICA
ISO Calibration Wireless
£ 289.00
£ 346.80
4250348729842
PCE-323-ICA
price ex. (VAT / delivery)
A / C
Sound
0.1 dB
Yes
Handheld
Internal
Fast / Slow
No
Yes (integrated)
Yes (USB, Bluetooth)
Delivery time: 10 - 14 days
Bluetooth data logging environmental tester for Android and iOS / Accuracy class 2 / Live view / Battery and power adapter / PC connection with software / Frequency weighting A and C / Tripod mount / Measuring range 30 ... 130 dB / Incl. ISO calibration certificate

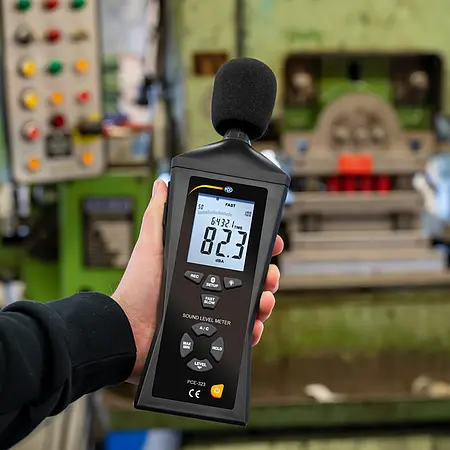

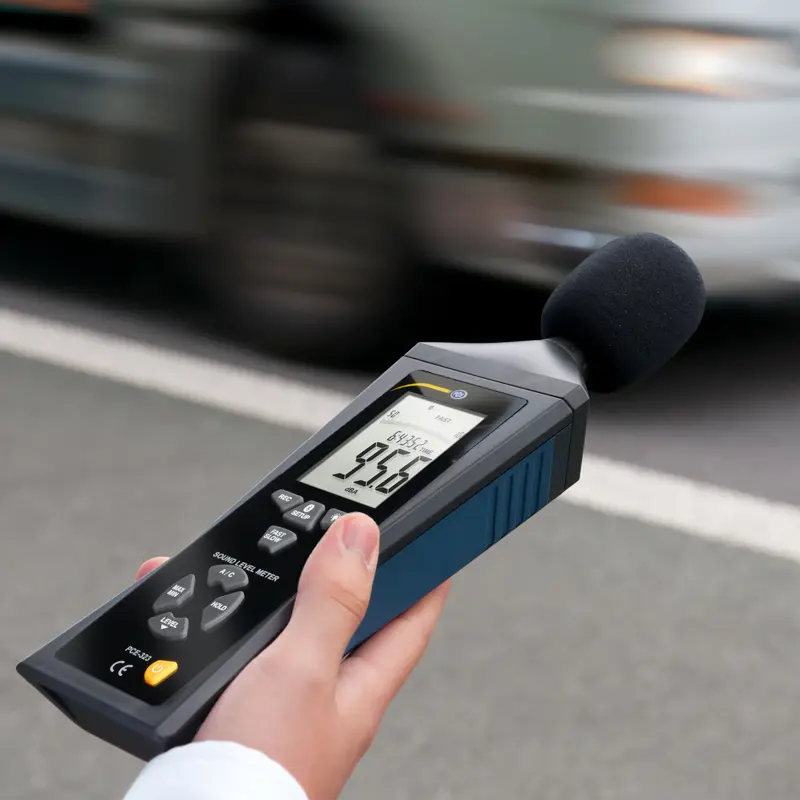

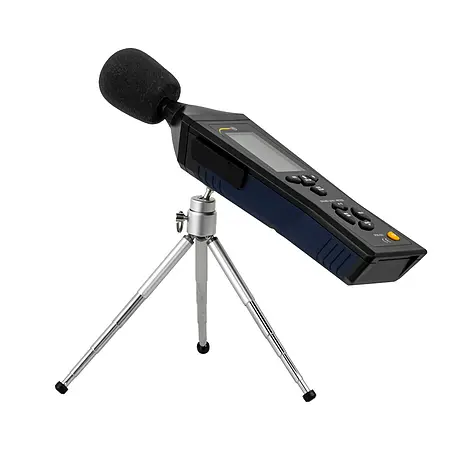

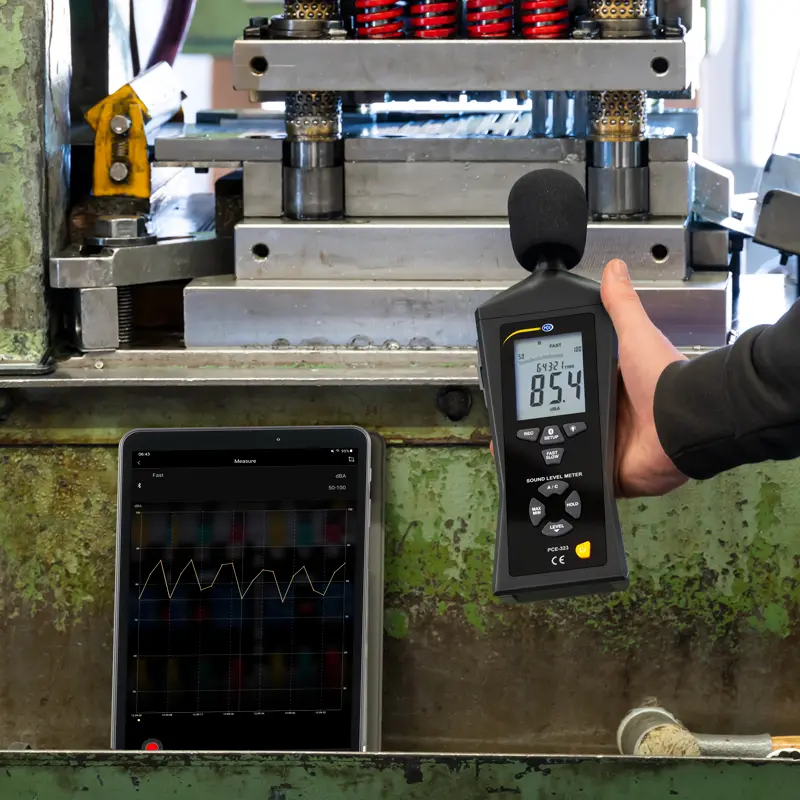

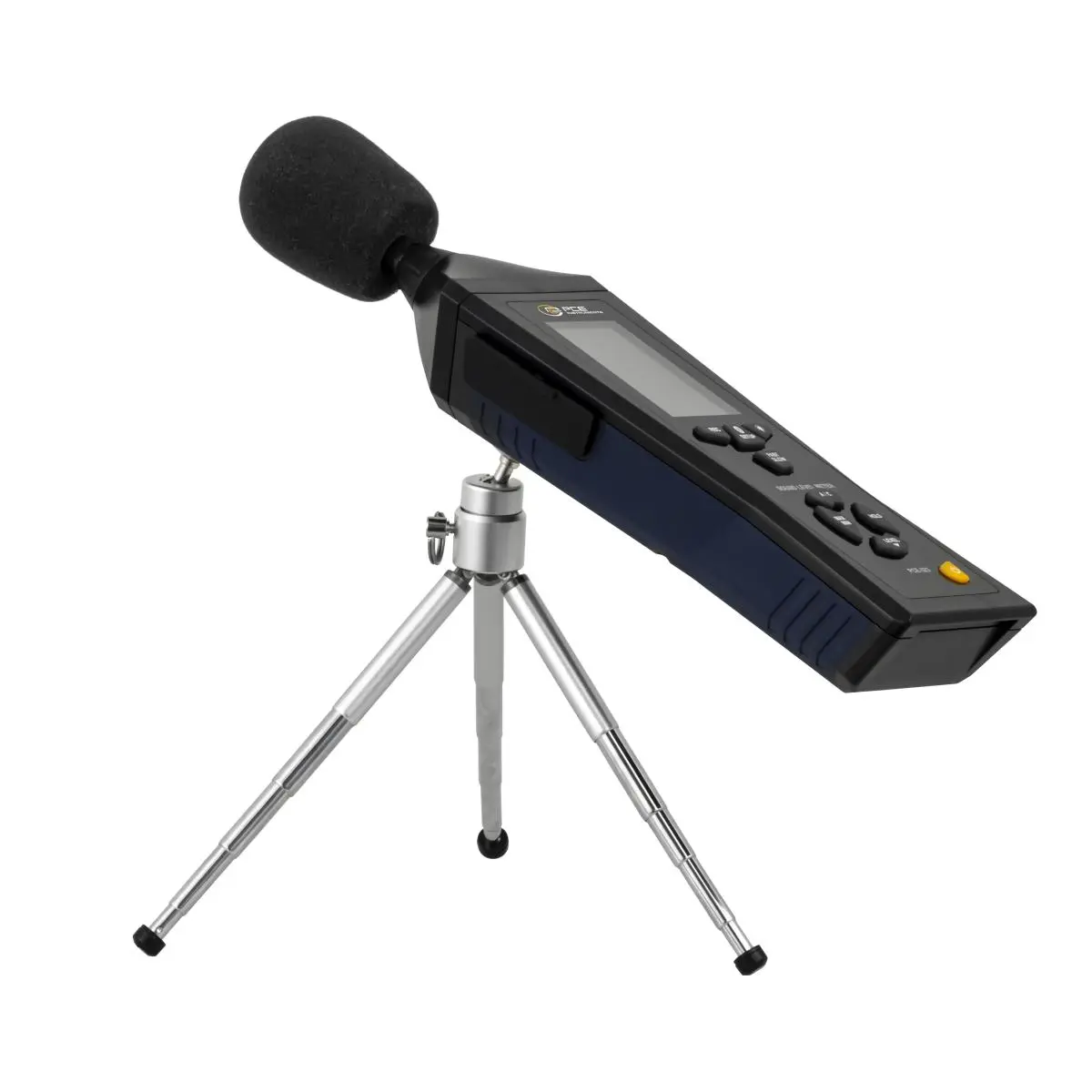

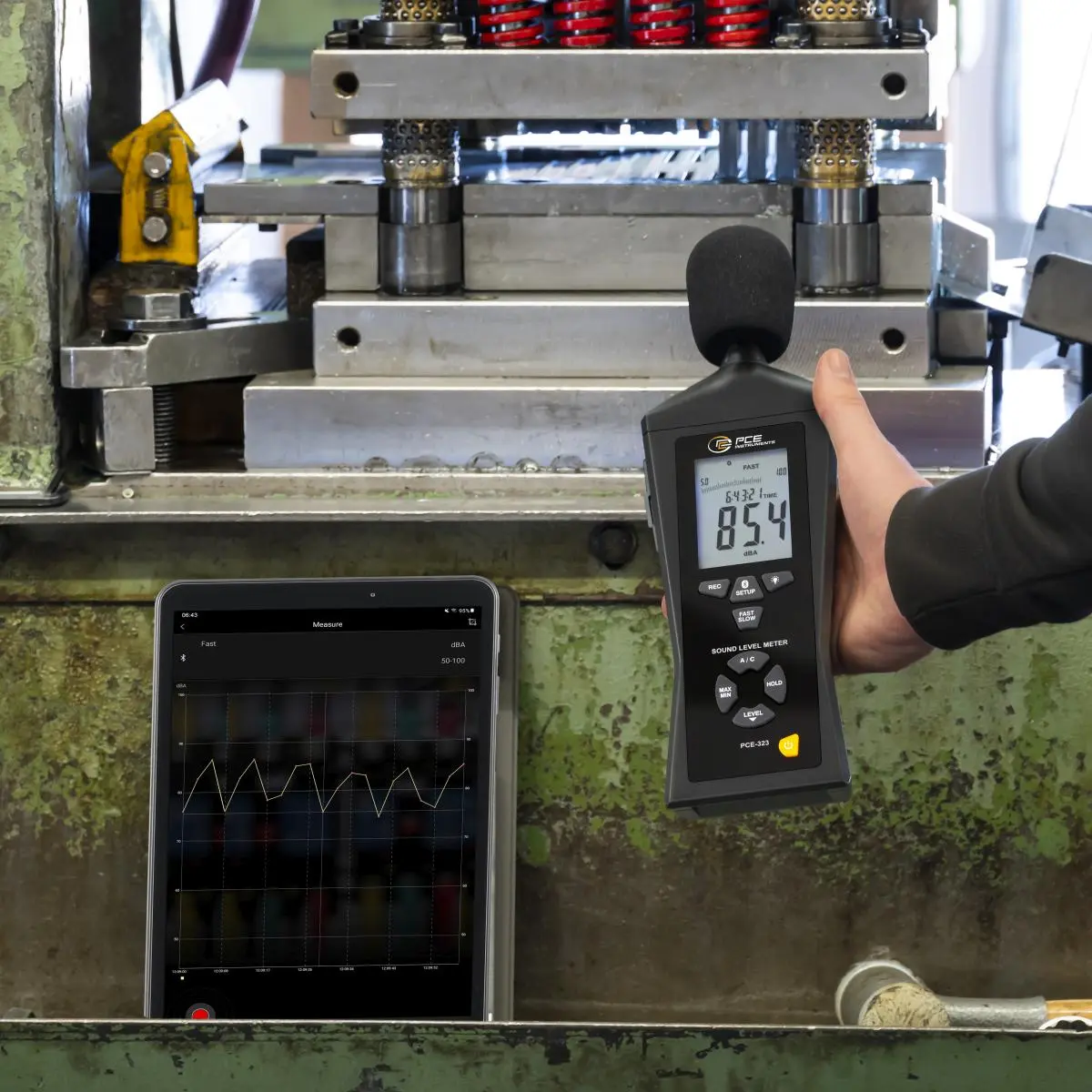

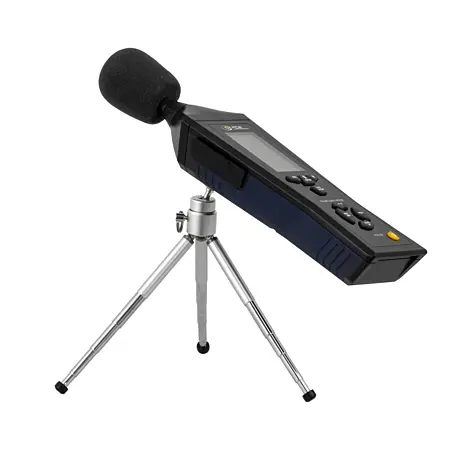

The environmental tester has a measuring range of 30 … 130 dB and can be used where sources of noise are to be recorded. For example, the sound level meter is used to control the noise level on stamping presses, ventilation systems or on busy roads. With the push of a button, you can switch between the frequency ratings A and C on the Bluetooth sound level meter. With the data logger function of the sound level meter, up to 32700 readings can be recorded. For optimal positioning of the microphone, the sound level meter can also be mounted on a tripod.

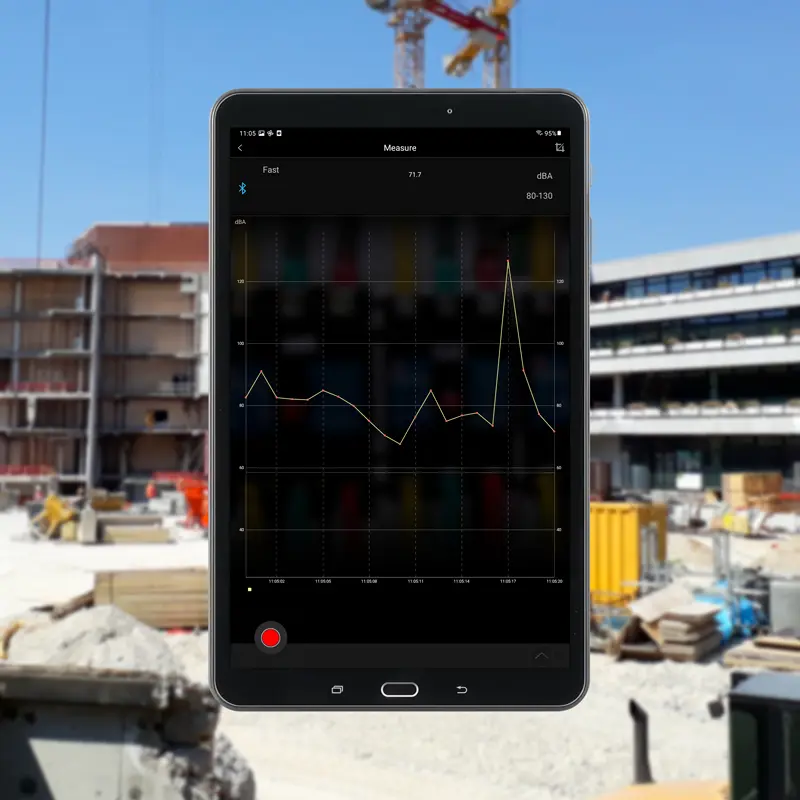

With the Bluetooth interface, the environmental tester can be set up with an Android or iOS device. The measured values ​​from the Bluetooth sound level meter live can be transmitted and saved via the free app. The values ​​measured by the sound level meter can then be exported in CSV file format for further processing.

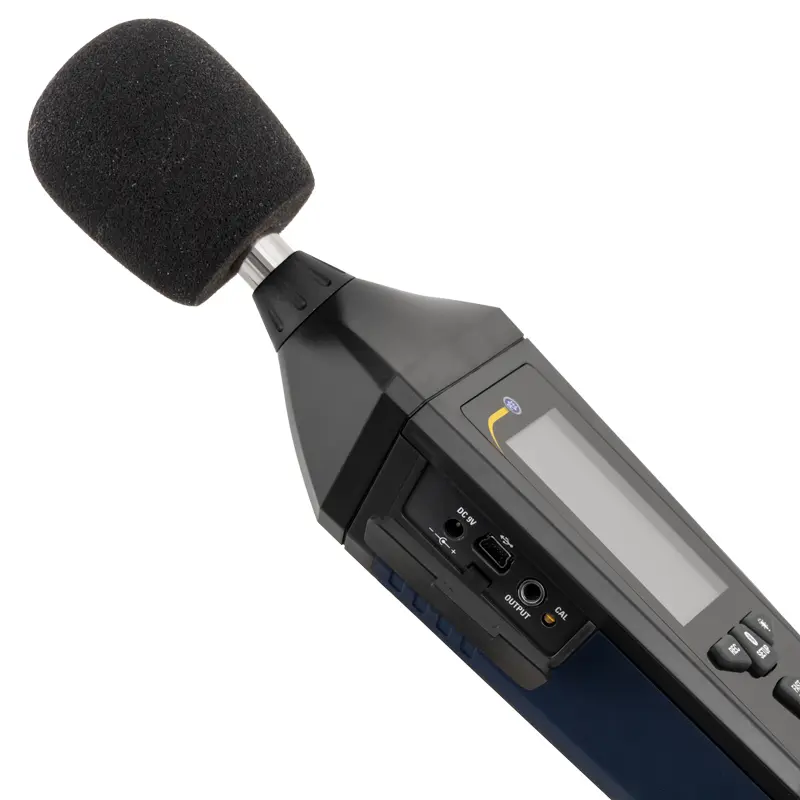

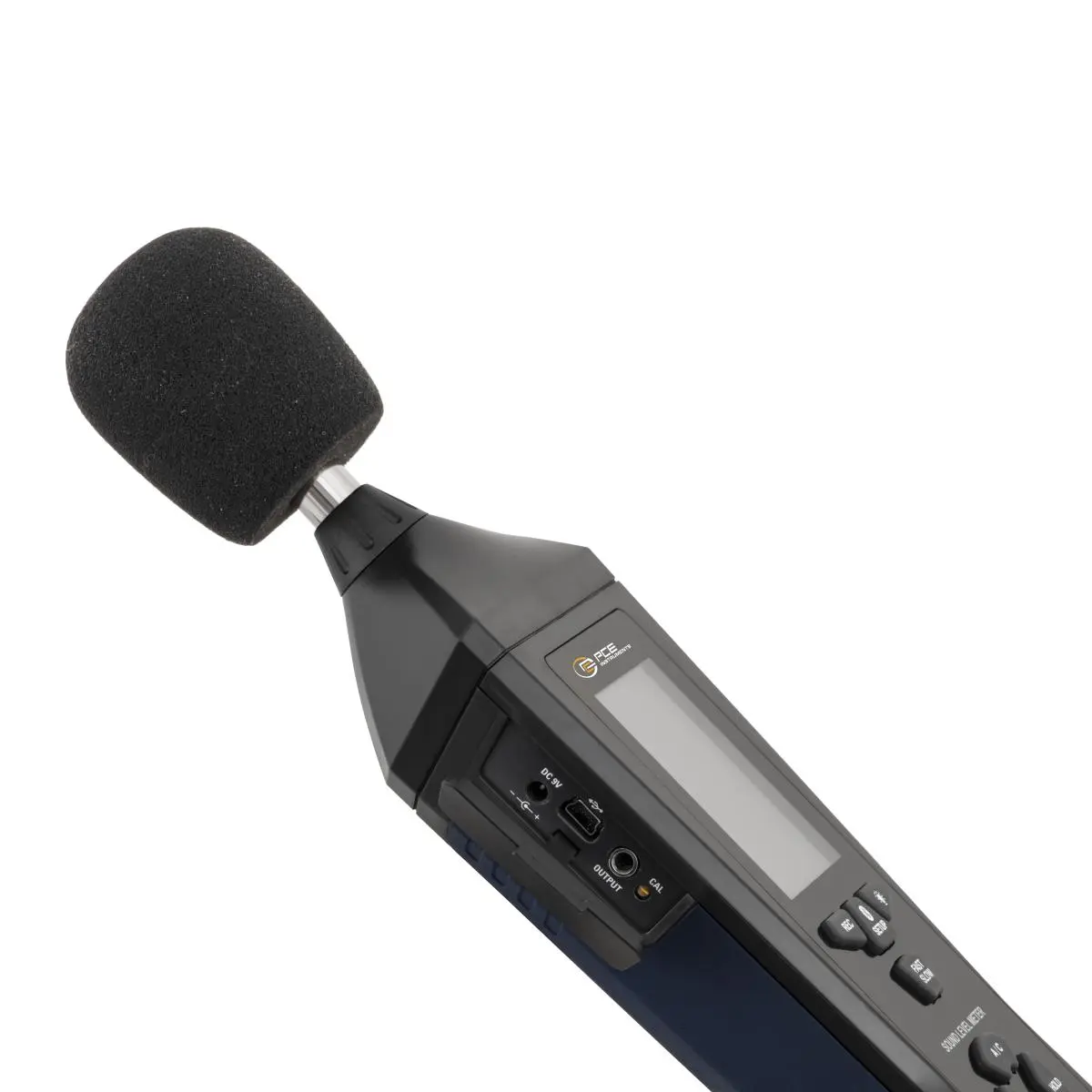

In addition to the Bluetooth interface, the environmental tester also has a mini USB interface. This allows the Bluetooth sound level meter to be connected to a computer. With the software for the Bluetooth sound level meter, the measured values ​​can then be transmitted live to the PC and, if necessary, exported as a CSV for further processing.

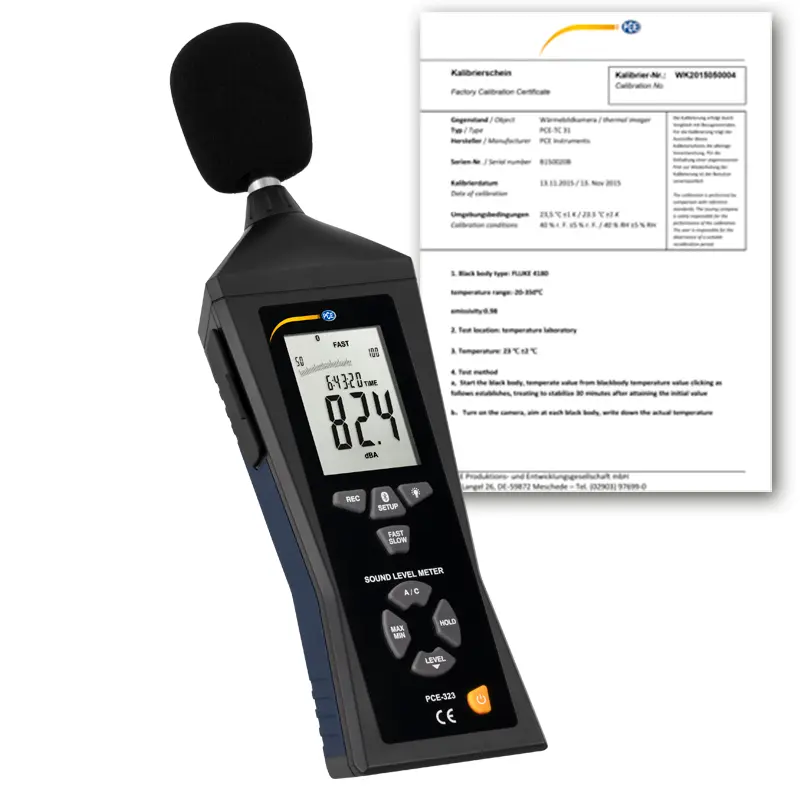

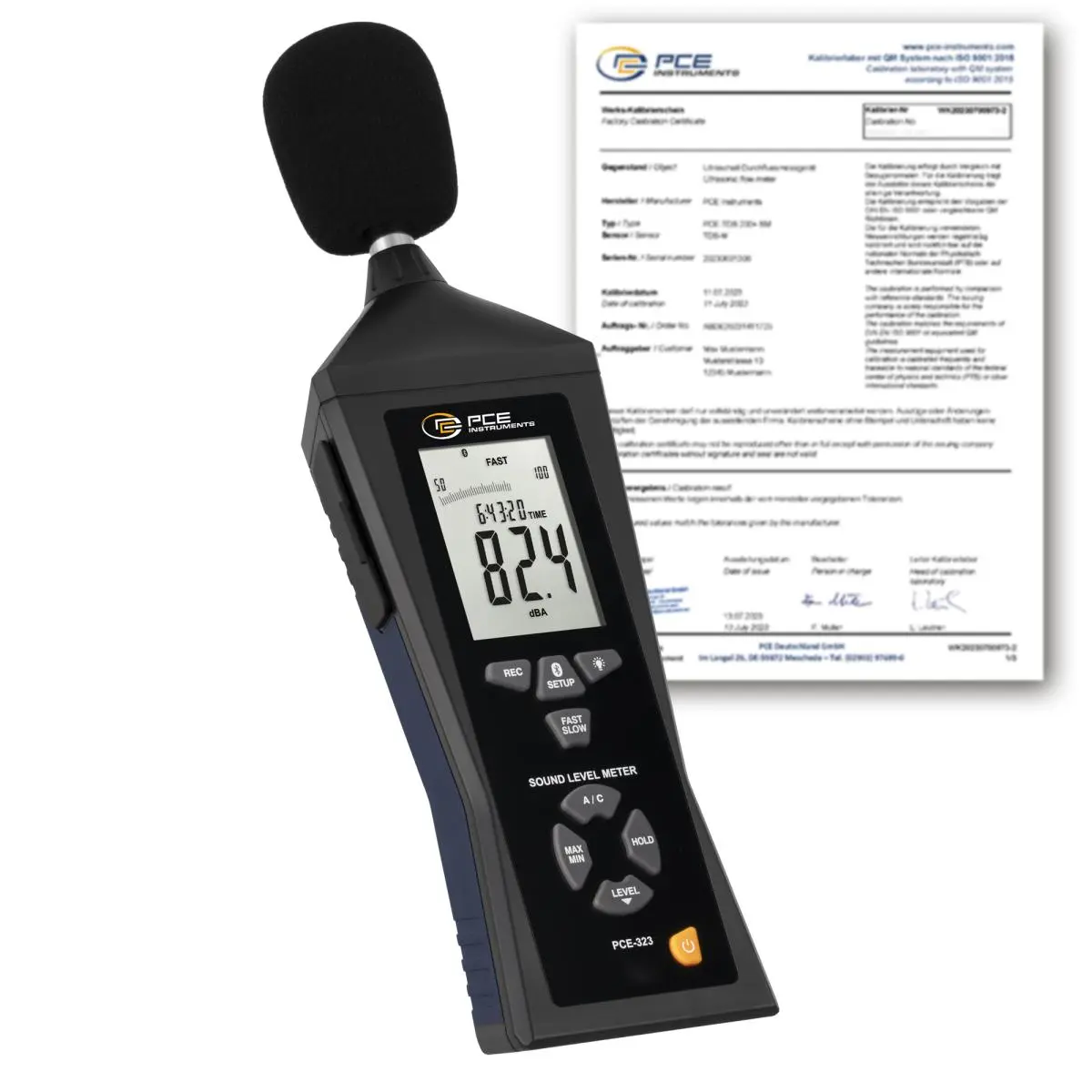

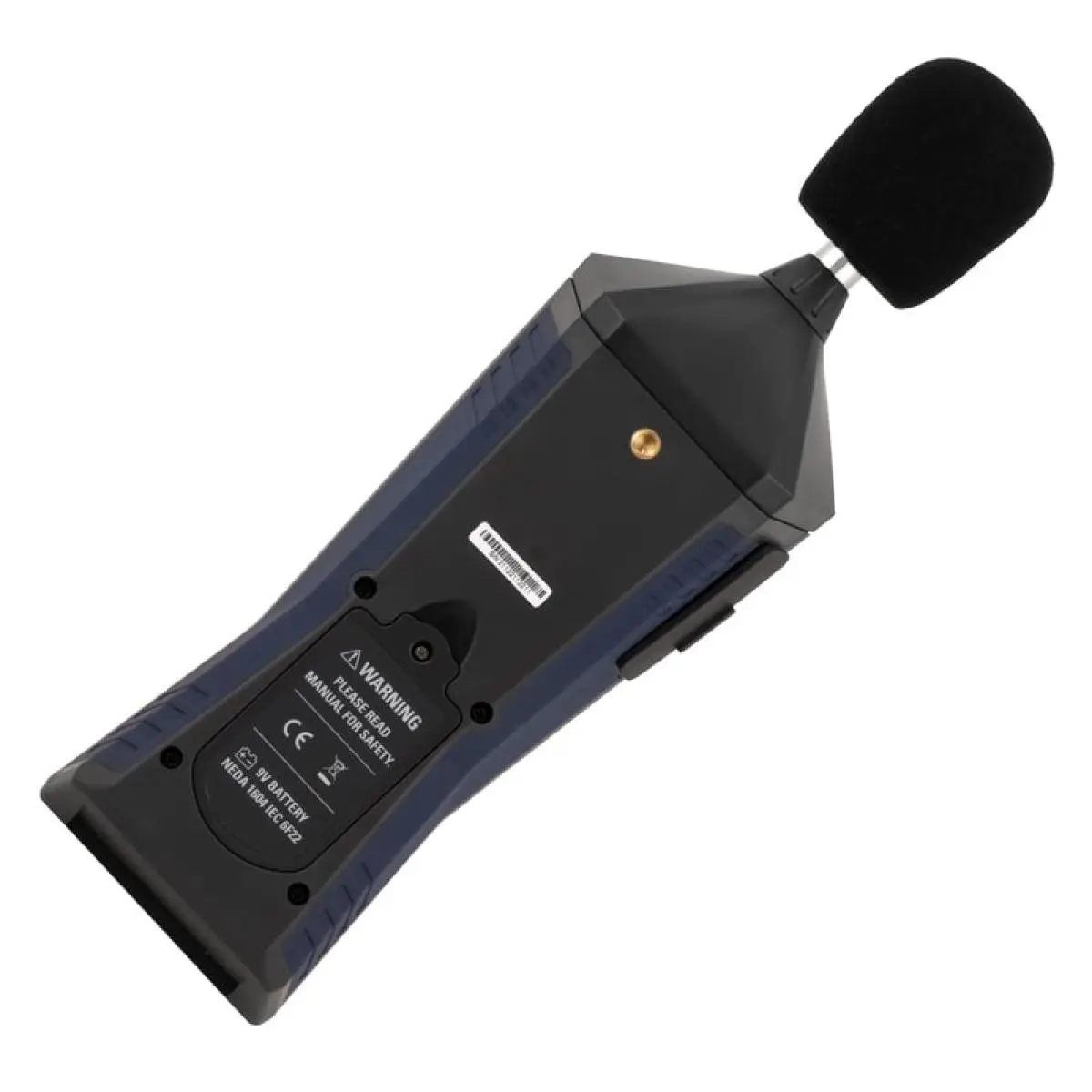

With the included 12V DC power supply, the Bluetooth environmental tester can be used stationary. For mobile use, the Bluetooth sound level meter can be operated with a 9V block battery. The transport case enables safe transport for the Bluetooth sound level meter for mobile use. The Bluetooth sound level meter is equipped with an ISO calibration certificate.

- Accuracy class 2
- Measuring range 30 ... 130 dB
- Different noise level ranges
- Bluetooth interface with free app
- Battery and power adapter
- Frequency weighting A and C
- incl. ISO Calibration Certificate
Noise level ranges Auto 30 ... 130 dB
  High 80 ... 130 dB
  Medium 50 ... 100 dB
  Low 30 ... 80 dB
Dynamic range 50 dB
Resolution 0.1 dB
Accuracy ±1.4 dB (under reference conditions @ 94 dB, 1 KHz)
Accuracy class IEC61672-1 Class 2


Frequency range 31.5 Hz...8 kHz
Time rating FAST (125 ms), SLOW (1 s)

Frequency weighting A and C
Microphone type 1/2" electret condenser

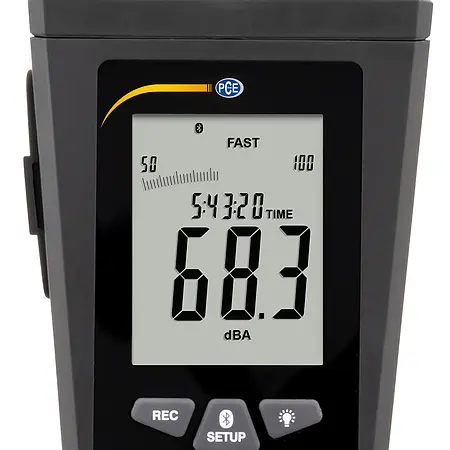

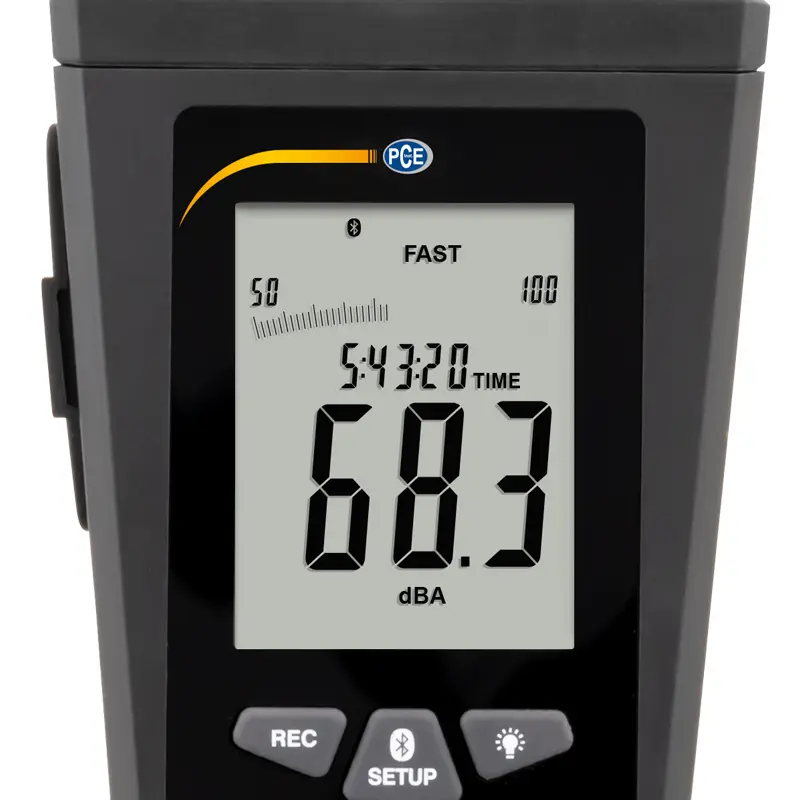

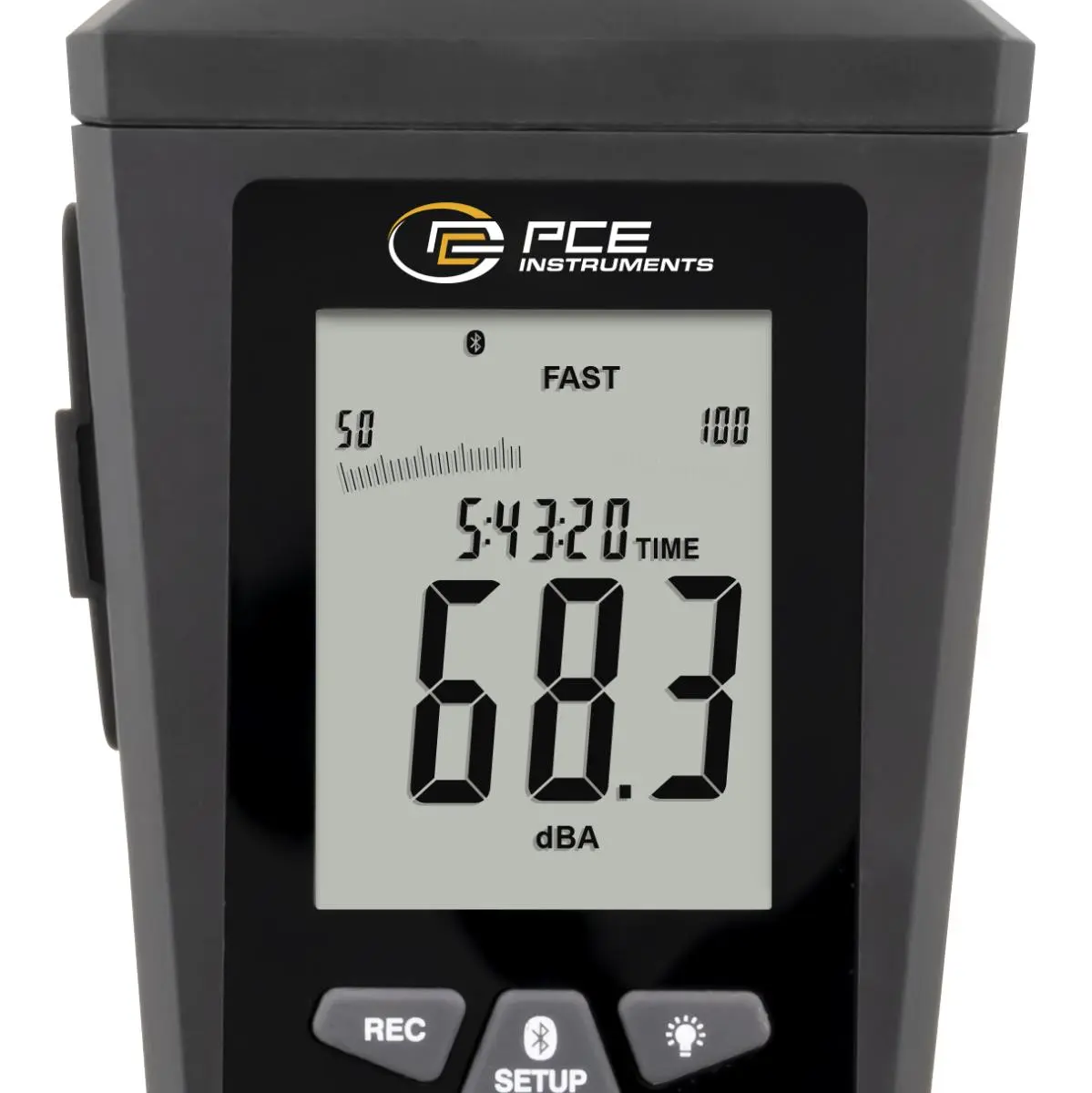

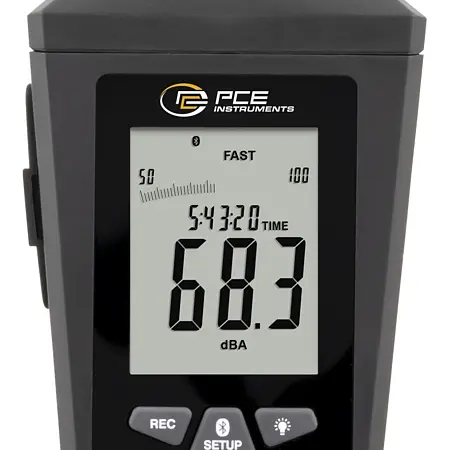

Display 4-digit LCD display with background lighting
Display update 2 Hz
Data storage 32700 readings
Storage interval 1 ... 59 seconds
Analog output over 1 Vrms/dB AC (impedance 100)
3.5 mm jack connection       10 mV/dB DC (impedance 1k)
Data interface USB, Bluetooth 4.0
Bracket
3/8" connection
Functions MIN, MAX, HOLD
  Indication when noise level exceeds or falls below threshold
Shutdown Automatically after ca. 15 minutes of inactivity
Power supply 9 V block battery
Mains adapter Primary: 100 ... 240 V AC, 50 / 60 Hz, 0.2 A
  Secondary: 9 V DC, 0.5 A
Operating conditions 0 ... +40 °C / 32 .. 104 °F, 10 ... 90 % RH, non-condensing
  Altitude <2000 m / 6561 ft
Storage conditions -10 ... +60 °C / 14 ... 140 °F, 10 ... 75 % RH, non-condensing
Dimensions 278 x 76 x 50 mm / 10.9 x 3.0 x 2"
Weight 350 g / 12.3 oz

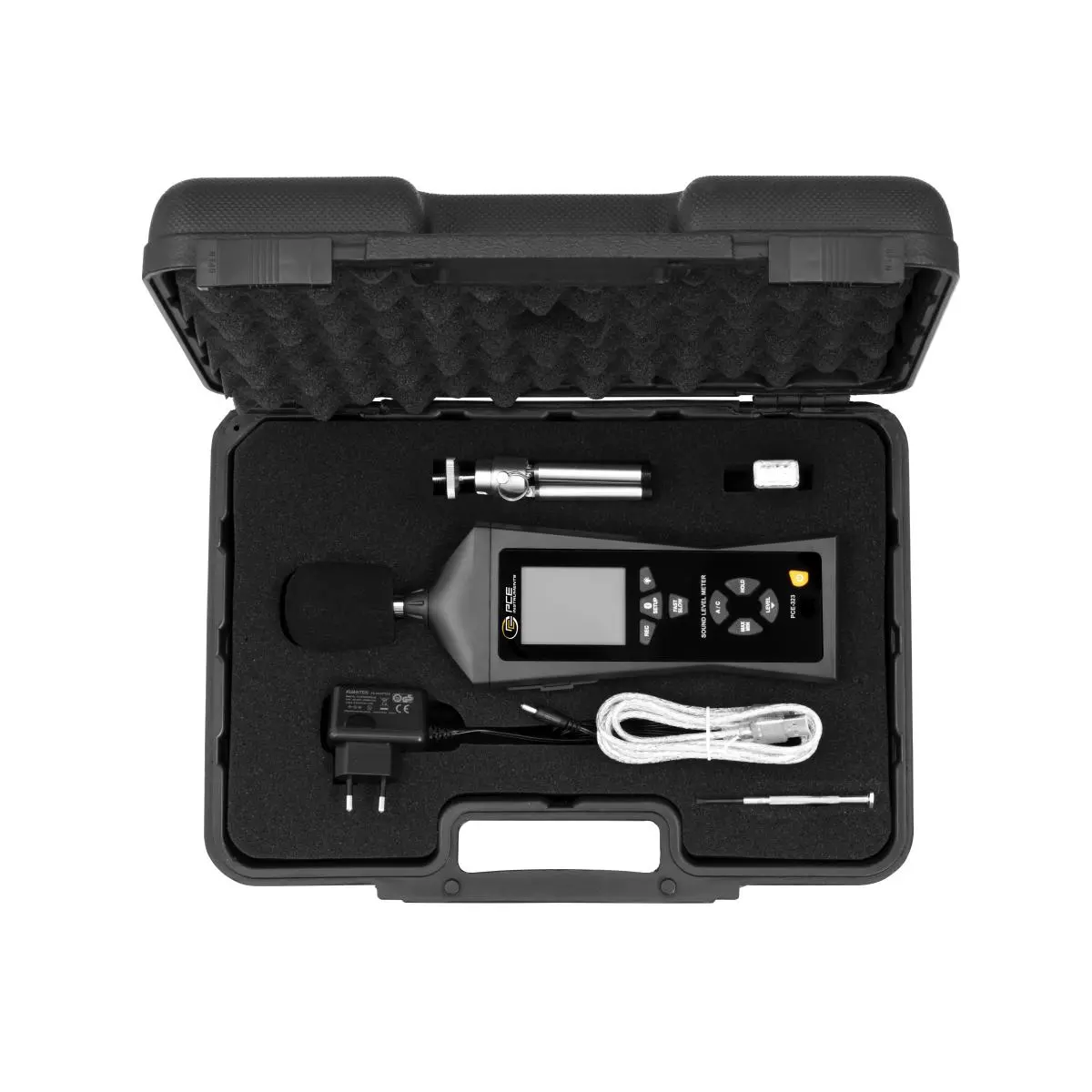

1 x Bluetooth Environmental Tester PCE-323-ICA
1 x Mini Tripod
1 x Screwdriver
1 x Software CD
1 x Carrying case
1 x 9V block battery
1 x Instruction Manual
1 x ISO Calibration Certificate


N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.

N.B. the free Apps are available at:
https://play.google.com/store/apps/details?id=com.cem.supermeterbox
https://apps.apple.com/de/app/meterbox-pro/id1231364276




Accessories

Order no.: PCE-SC 43
Class 2 Acoustic Calibrator PCE-SC 43
The calibration frequency for the class II acoustic calibrator is 1000 Hz and is a sinusoidal shape. Compared to other calibrators, this class II acoustic calibrator has three adjustable sound pressure levels. 94 dB, 104 dB and 114 dB are available and can be selected by pressing a button on the class II acoustic calibrator.

- Sound pressure level 94, 104, 114 db
- For weighting filters A, B, C and D
- 1/2 inch microphone connection
- Class II
Catalogue: Measuring Instruments / Test Meters / Calibrator
Manufacturer: PCE Instruments
£ 102.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-SC 09
Class I Acoustic Calibrator PCE-SC 09
The Class I Acoustic Calibrator is a battery powered sound source. With the Class I acoustic calibrator, direct and fast calibrations of sound level meters and other systems for noise measurement can be carried out.

- Sound pressure level: 94 dB, 114 dB
- Accuracy class: IEC 942, class 1
- Accuracy sound level: ± 0.3 dB (20°C / 68°C, 760 mm / 30 in Hg)
- Frequency: 1000 Hz for A, B, C and D frequency weighting
Catalogue: Measuring Instruments / Test Meters / Calibrator
Manufacturer: PCE Instruments
£ 441.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-LEQ-SOFT
Software for PCE-322ALEQ

Software for PCE-322ALEQ and PCE-322ALEQ-ICA. Software for sound level meters for reading the data and transmitting to a PC or laptop. The requirements are:


- Windows operating system from Windows XP SP3
- USB port (2.0 or higher).
- An installed .NET Framework 4.0
- A minimum resolution of 800x600 pixels
- Processor: at least 1 GHz
- 4 GB of RAM is recommended
- CD-ROM driver
- Optional: a printer
- Software license usable on 1 PC only


Important! The LEQ value is only calculated by the software after the data transfer from the device to the PC or laptop!

Catalogue: Measuring Instruments / Test Meters / Environmental Meter
Manufacturer: PCE Instruments
£ 236.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: MIC-4-322
Microphone extension cable MIC-4-322
Extension cable for the microphone of the sound level meter PCE-322A. Permits measurement in hard-to-reach places.

- 4 meter or 13 feet long cable.

- Not suitable for the PCE-999

Manufacturer: PCE Instruments
£ 27.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: STAT
Tripod STAT
A tripod is recommended to ensure the accurate collection of measurement data. This tripod:

- Features a 1/4" thread connection
- Offers a robust aluminum construction
- Includes 3 legs and a rotary adaptor plate
Manufacturer: Gottlieb Nestle GmbH
£ 46.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: MINI-STAT
Mini Tripod for Various Measuring Devices
The tripod is equipped with a 3/8" tripod thread and is suitable for many measuring devices. Ideal for precise and long-term measurements.

- Features a 3/8" thread connection
- Offers a robust aluminum construction
- Includes 3 legs and a rotary adaptor plate
Manufacturer: PCE Instruments
£ 14.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: SOFT-BALL
Wind noise suppressor for sound meters
Wind noise suppressor for sound meters
Catalogue: Measuring Instruments / Test Meters / Sound Level Meter / Noise Level Meter
Manufacturer: PCE Instruments
£ 9.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: CAL-SL
ISO Calibration Certificate for Noise Meter CAL-SL

ISO calibration certificate for a sound level meters PCE-322 A and PCE-4XX series. It is often required to comply with DIN ISO 9000 in companies. Normal lab test is 2 data points for sound meters.

**US calibration certificate is ISO 17025**

The calibration certificate is issued especially for the customer and therefore is exempt from the right of return.

Manufacturer: PCE Instruments
£ 100.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: CAL-SL-DAkkS
DAkkS calibration for sound level meter
DAkkS calibration certificate for sound level meters, certifies the traceability to national test standards. In this case for the DIN ISO 17025 standard.

- DAkkS calibration
- 2 point calibration 94 dB and 124 dB
- DIN ISO 17025 standard

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
£ 231.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
