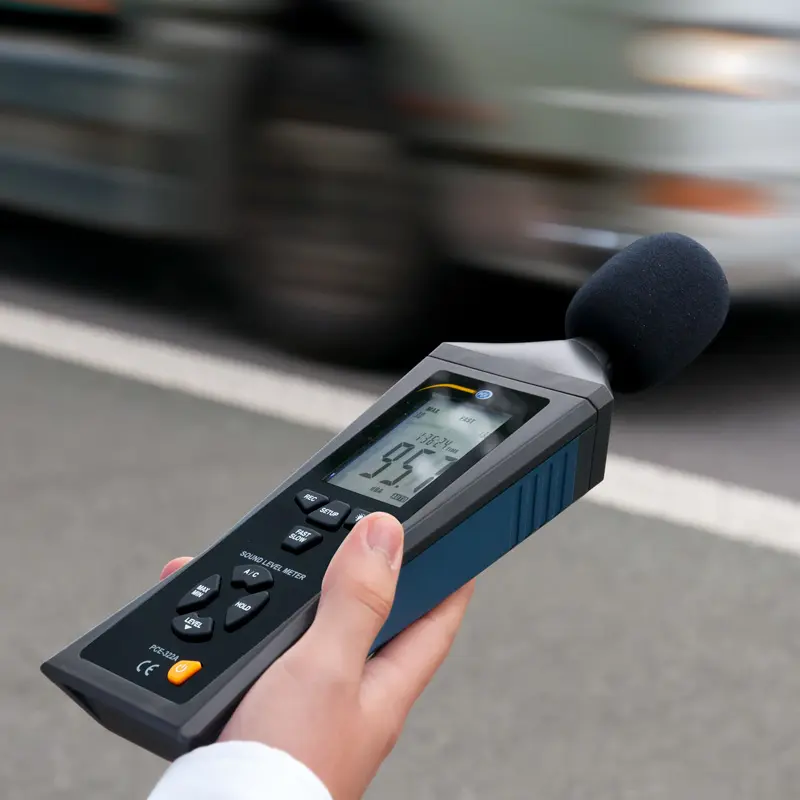

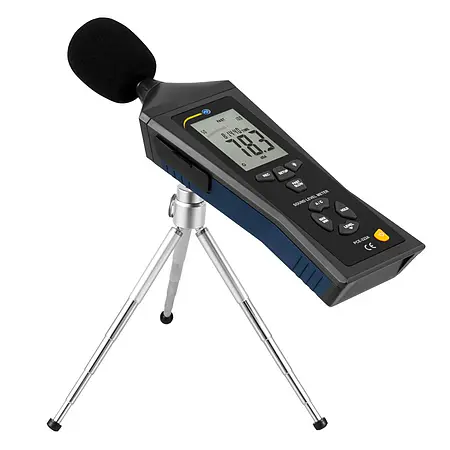

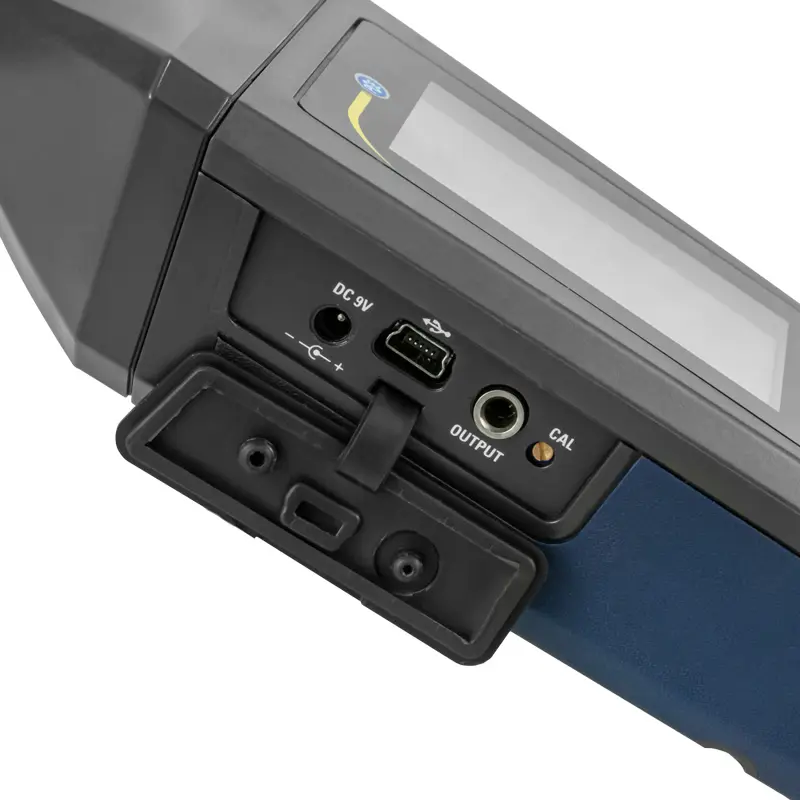

The environmental tester PCE-322A is particularly suitable for measuring noise in the field of industrial, health, safety and environmental monitoring. The PCE-322A environmental meter has a logger function, which allows storage of up to 32700 readings. This makes it ideal for long term monitoring. The environmental meter PCE-322A can be connected to the PC with a USB cable.

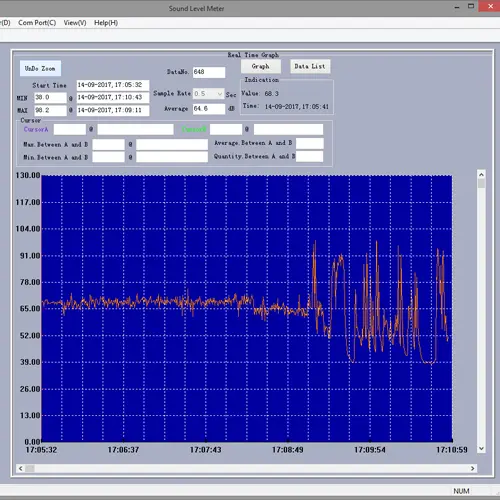

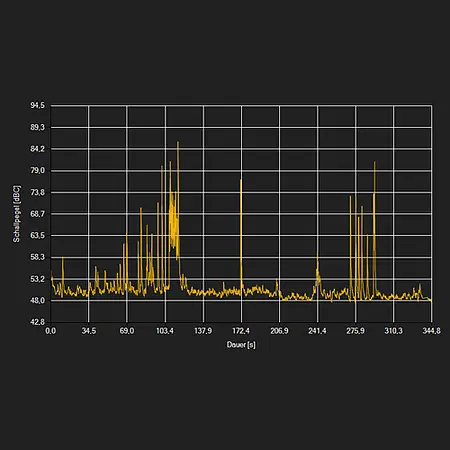

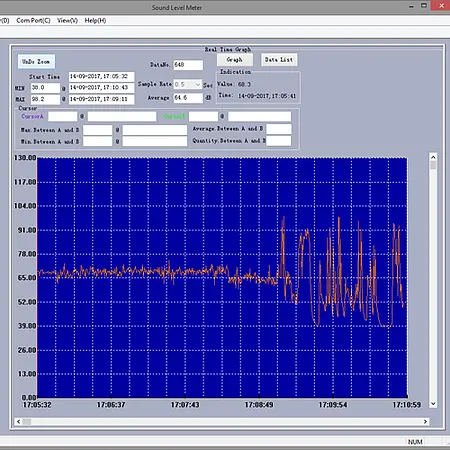

A live measurement is also possible with the environmental tester and the data can be viewed directly and can be evaluated. The software provides data representation in graphic formats and tables. This data can be transferred, for example, to MS Excel. The environmental meter has an analogue output and offers further features that are unique in its class.
|Noise levels||Low 30 ... 80 dB
Medium 50 ... 100 dB
High 80 ... 130 dB
Auto 30 ... 130 dB
|Dynamic range||50 dB|

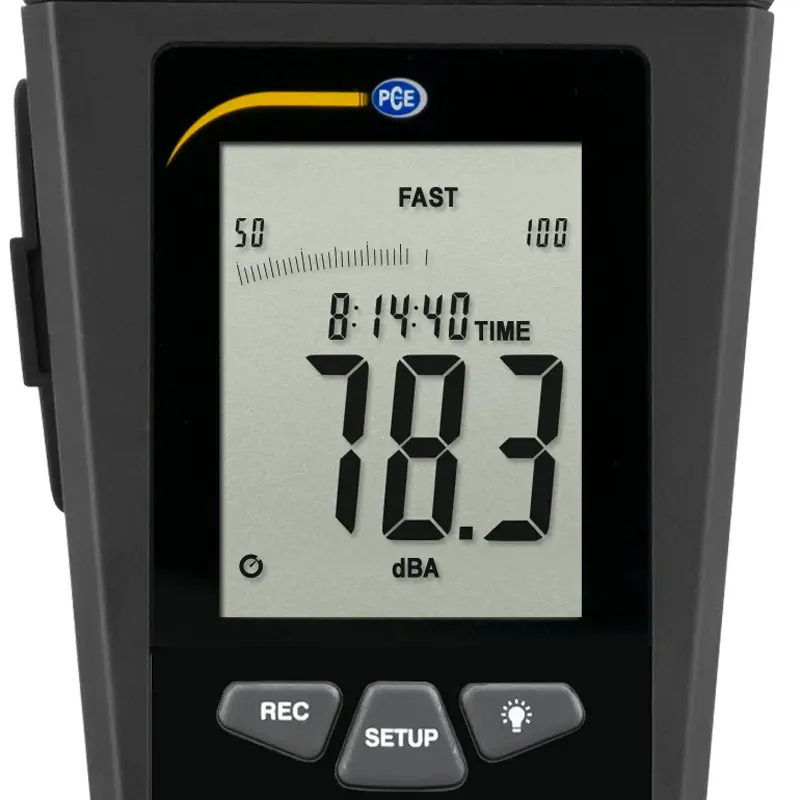

|Display update||2 x per second|
|Frequency||31.5 Hz ... 8 kHz|
|Storage capacity||32,700 readings (9 hours @ 1 second interval)|
|Frequency weighting||A and C|
|Time weighting||fast (125 ms)
slow (1 sec.)
|Microphone type||Electret condenser|
|Functions||MIN, MAX, HOLD, ALARM|
|Automatic shutdown||after 15 minutes inactivity|
|Operating conditions||0 ... +40 °C / +32 ... +104 °F, < 90 % RH|
|Storage conditions||-10 ... +60 °C / +14 ... +140 °F, 10 ... 75 % RH|
|Power supply||9 V block battery (for approx. 30 h continuous operation)
|Dimensions||280 x 95 x 45 mm / 11.02 x 3.74 x 1.77"|
|Weight||ca. 350 g / 0.78 lb|
|Standards||IEC 61672-1 (Class II)|

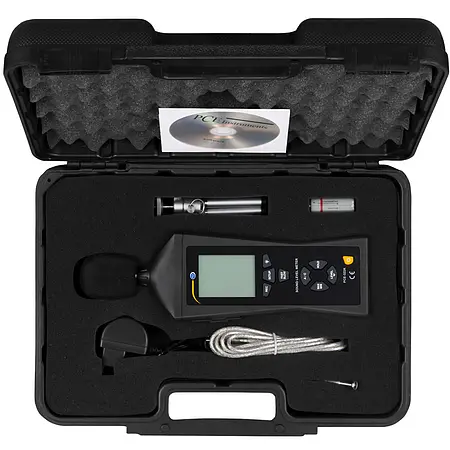

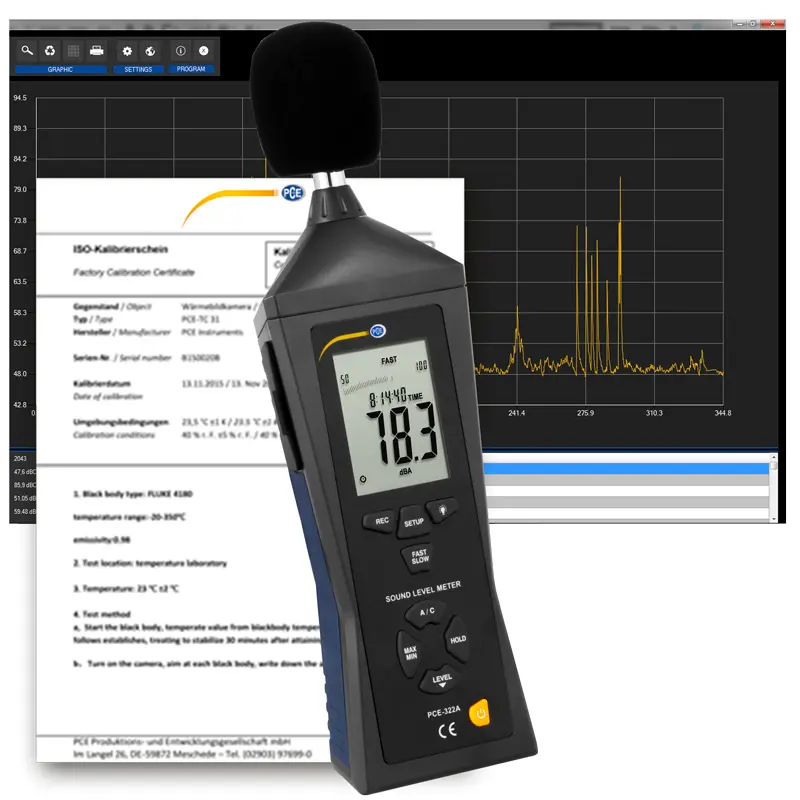

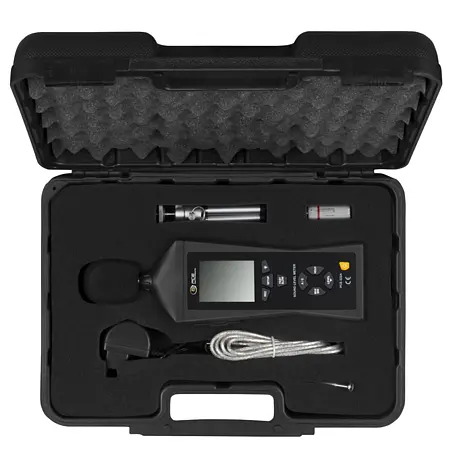

1 x ISO Calibration certificate
Important! The LEQ value is only calculated by the software after the data transfer from the device to the PC or laptop.
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
