Environmental Tester PCE-228

Order no.: PCE-228

Question / Callback

Delivery time: 1-2 working days

PCE-228 environmental tester for pH value, redox and temperature / Large, easy-to-read display /
SD card memory (1 ... 16 GB), saved data is saved as an Excel file /
RS-232 interface and optional software for direct transmission to the PC

The PCE-228 environmental tester is a very easy-to-use handheld pH / mV / °C meter. The pH value and the temperature can be saved directly on the SD card (Excel file) or transferred directly from the pH meter to a PC via the RS-232 interface. For this purpose, we optionally offer software and the appropriate RS-232 interface cable as accessories. The temperature compensation takes place either manually or automatically using the temperature sensor supplied.

All of this allows a quick and reliable pH measurement. The pH meter has a three-point calibration, which is carried out automatically. The combination measuring device can be used to determine the pH value, the temperature or the REDOX potential (ORP). For the latter measurement parameter, however, a REDOX electrode must be ordered additionally. Here we recommend the ORP electrode ORP-14. The pH meter is battery operated (6 x 1.5 V batteries are included).

- Optimal price / performance ratio
- SD card memory (1 ... 16 GB)
- The data is saved directly as an Excel file on the SD card
(no software is required for evaluation)
- RS-232 interface for online data transfer
- Measures pH value, redox and temperature
- High precision
- Large LCD display
- Robust housing
- Including pH electrode PE-03 and stainless steel temperature sensor
- Automatic calibration
- Manual or autom. temperature compensation
- BNC connector
- Suitable for laboratory and on-site pH measurement
- Additional REDOX electrode
- Adjustable measuring rate
- Easy to use

Measurement range pH	0.00 ... 14.00 pH
Resolution	0.01 pH
Accuracy	±(0.02 pH + 2 digits)

Measurement range redox	-1999 ... 0 ... 1999 mV (only with the optional Redox electrode)
Resolution	1 mV
Accuracy	±(0.5 % + 2 digits)

Measurement range temperature	0.0...65.0 °C / 32 ... 149 °F (only with the temperature sensor)
Resolution	0.1 °C
Accuracy (@20°C / 68°F)	±0.5 °C

Calibration	automatic three-point calibration
Temperature compensation	automatic from 0 to 65°C or manual between 0 and 100°C removing the temperature sensor
Electrode	PE-03 pH electrode, gel filled, 1m cable and BNC connector
Temperature range	0 ... 60 °C / 32 ... 140 °F
Measurement rate	adjustable from 1 second up to 8 hours 59 min 59 sec
Display	LC display 52 x 38 mm
Data memory	flexible via SD card memory 1 ... 16 GB
Interface	RS-232
Software	optional
Power supply	6 x 1.5 V AA batteries / 9 V mains adapter (optional)
Operating conditions	0...50 °C max. 85 % r.H
Dimensions	177 x 68 x 45 mm / 6.9 x 2.7 x 1.7"
Weight	490 g / 17 oz

1 x Environmental tester PCE-228
1 x Electrode PE-03
1 x SD memory card (2 GB)
1 x Temperature sensor
6 x Battery
1 x Instruction manual

Manual

Video

Accessories

ISO certificate CAL-PCE-PH for pH meters

Order no.: CAL-PCE-PH

ISO certificate CAL-PCE-PH for pH meters

ISO certificate for pH meters

Catalogue: Measuring Instruments / Test Meters / pH Meter / pH Tester

£ 64.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: TP-07

Temperature sensor TP-07

£ 30.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: CPC-OSH-12-01

Food pH-electrode CPC-OSH-12-01

£ 173.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PE-03

pH-Electrode PE-03

Replacement pH-electrode (BNC-connector).

£ 45.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-PH-LIQ

pH Electrode PCE-PH-LIQ

pH electrode especially for beer, blood and milk products

- pH measuring range: 0 ... 14 pH
- Temperature measuring range: 0 ... 80 °C / 32 ... 176 °F
- Material of measuring body: Glass
- Suitable for small liquid volumes

£ 128.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-PH-SLUR

pH Electrode PCE-PH-SLUR

pH electrode especially for soil, mud and slurry
- pH measuring range: 0 ... 14 pH
- Temperature measuring range: 0 ... 80 °C / 32 ... 176 °F
- Material of measuring body: Glass

£ 128.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-PH-HTE

pH Electrode PCE-PH-HTE

- Special pH electrode for higher temperatures up to 100°C / 212°F
- With BNC connection

Catalogue: Measuring Instruments / Test Meters / pH Meter / pH Tester

£ 82.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-PH-WINE

pH Electrode for Wine PCE-PH-WINE

pH electrode especially for wine, beer and other liquids with low conductivity

- pH measuring range: 0 ... 14 pH
- Temperature range: 0 ... 80 °C / 32 ... 176 °F
- Material measuring body: glass

Catalogue: Measuring Instruments / Test Meters / pH Meter / pH Tester

£ 333.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-PH4

Calibration Solution pH4

Calibration Solution pH4. pH electrodes drift over time, causing measurement errors. To ensure high accuracy, we recommend regular calibration of pH meters.

- pH 4.01
- Dosing with certificate
- Various sizes can be selected!

£ 10.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-PH7

Calibration Solution pH7

Calibration Solution pH7. pH electrodes drift over time, causing measurement errors. To ensure high accuracy, we recommend regular calibration of pH meters.

- pH 7.01
- Dosing with certificate
- Various sizes can be selected!

£ 10.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-PH10

Calibration Solution pH10

Calibration Solution pH10. pH electrodes drift over time, causing measurement errors. To ensure high accuracy, we recommend regular calibration of pH meters.

- pH 10.00
- Dosing with certificate
- Various sizes can be selected!

£ 12.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-PH47

Calibration Solution pH4 and pH7

Calibration Solution pH4 and pH7. pH electrodes drift over time, causing measurement errors. To ensure high accuracy, we recommend regular calibration of pH meters.

- 50ml pH 4.01 and pH 7.01
- Dosing with certificate
- Various sizes can be selected!

£ 15.00

Price excl. VAT &. delivery
2 year Warranty

Calibration Solution pH4 and pH7 and pH10

Order no.: PCE-PH4710

Calibration Solution pH4 and pH7 and pH10

Calibration Solution pH4, pH7 and pH10. pH electrodes drift over time, causing measurement errors. To ensure high accuracy, we recommend regular calibration of pH meters.

- pH 4, pH 7 and pH 10
- Dosing with certificate
- Various sizes can be selected!

£ 24.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: ORP-14

REDOX-Electrode ORP-14

Electrode for measuring the redox potential (ORP) - Range: ±2000 mV - Electrode structure is silver-silver/chloride gel - Measuring temp from 0 to 100 °C (32 to 212 °F) - Body length 150 mm

£ 71.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-RTS-220

Redox Solution +240 mV PCE-RTS-220

Redox solution 240 mV (250ml)

Against Pt-Ag / AgCl in 3 mol KCl

£ 28.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-RTS-468

Redox Solution +468 mV PCE-RTS-468

Redox solution 468 mV (500ml)

Against Pt-Ag / AgCl in 3 mol KCl

£ 28.00

Price excl. VAT &. delivery
2 year Warranty

Cleaning solution pepsin / hydrochloric acid PCE-GCS-500

Order no.: PCE-GCS-500

Cleaning solution pepsin / hydrochloric acid PCE-GCS-500

Cleaning solution pepsin / hydrochloric acid 500 ml

Catalogue: Measuring Instruments / Test Meters / pH Meter / pH Tester

£ 19.00

Price excl. VAT &. delivery
2 year Warranty

Diaphragm Cleaner with Thiourea PCE-DCS-250

Order no.: PCE-DCS-250

Diaphragm Cleaner with Thiourea PCE-DCS-250

Diaphragm cleaner made of thiourea with a volume of 250 ml. For cleaning the diaphragm of a pH electrode. The diaphragm cleaner for pH meters is particularly suitable if the pH meter measures oily and greasy media.

Catalogue: Measuring Instruments / Test Meters / pH Meter / pH Tester

£ 26.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-SSO

Electrode Storage Solution 3mol / l

Storage solution for pH electrodes 250ml or 500ml (selectable)

Potassium chloride 3 mol/l
Incl. certificate

£ 12.00

Price excl. VAT &. delivery
2 year Warranty

Safety Datasheet

Order no.: IJ-44A

pH Electrode IJ-44A

Special pH probe:

- pH range: 0.00 ... 14.00 pH
- Zero point: 7.0 ± 0.5 pH
- Temperature range: 0 ... 60 ° C (32 ... 140 ° C)
- Electrode type: Ag / AgCL / KCL
- Length: 150 mm (6")
- Diameter: 12 mm (0.5")
- Connection: BNC

Applications:

- Cosmetics
- Paint
- Wastewater
- And more

£ 132.00

Price excl. VAT &. delivery
2 year Warranty

USB Data Cable Incl. Software SOFT-LUT-USB

Order no.: SOFT-LUT-USB

USB Data Cable Incl. Software SOFT-LUT-USB

USB data cable incl. PC software for many different PCE instruments. This USB data cable connects the instrument via USB to the PC and allows a live visualisation on the PC using the software.

£ 76.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: RS232-USB

Adaptor RS-232 to USB

[more]

£ 29.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: NET-LUT

Power Supply 9 V / 1 A (UK / European)

Input voltage: 220 / 110 V AC, 50 / 60 Hz
Output voltage: DC 9 V
Output current: 1 A
Connector: Approx. Ø 2.5 mm, UK / European style plug

£ 22.00

Price excl. VAT &. delivery
2 year Warranty

Power Supply 9 V / 0.8 A (US / North American)

Order no.: NET-LUT-US

Power Supply 9 V / 0.8 A (US / North American)

Input voltage: 110 V AC, 60 Hz
Output voltage: DC 9 V
Output current: 0.8 A
Connector: US / North American style plug

£ 14.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: BOX-LT1

Carrying Case with hard foam insert

The BOX-LT1 carrying case offers protection when transporting and storing measuring devices and their accessories.

- Inlay partly pre-punched
- Foam in the lid
- Material: plastic
- Colour: black
- Exterior dimensions: 275x245x65mm / 10.8 x 9.6 x 2.5"

£ 23.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: CPC-OSH-12-00SP

Replacement Electrode CPC-OSH-12-00SP

£ 103.00

Price excl. VAT &. delivery
2 year Warranty

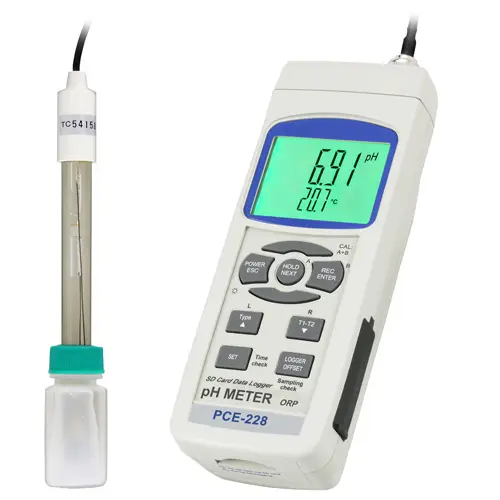

Environmental Tester PCE-228

Environmental Tester PCE-228 connections

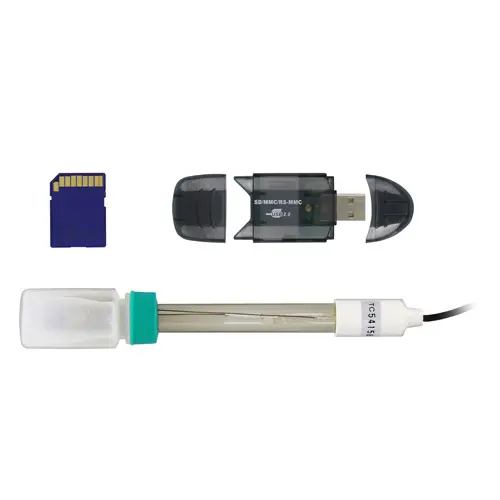

Environmental Tester PCE-228 SD card reader and electrode

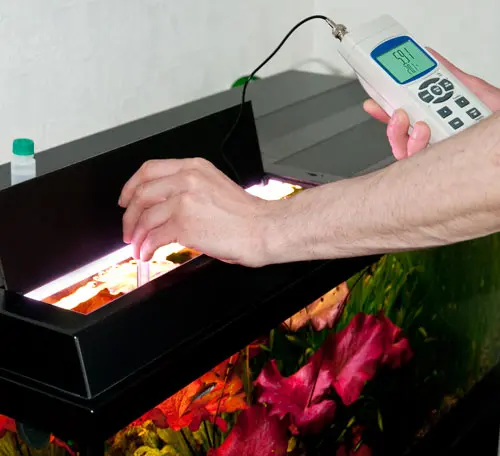

Environmental Tester PCE-228 application
