£ 30.00

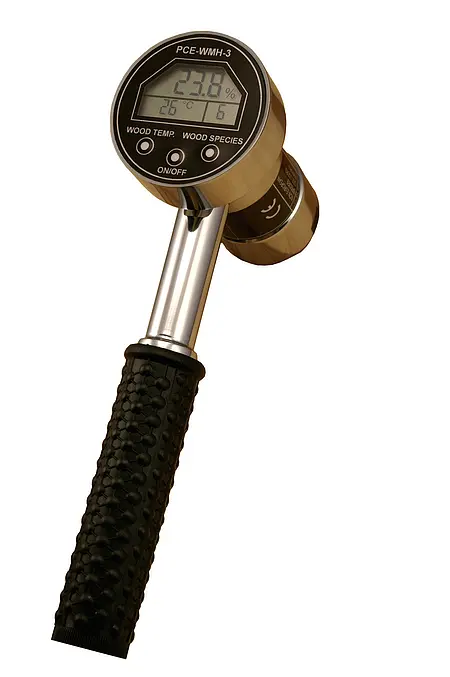

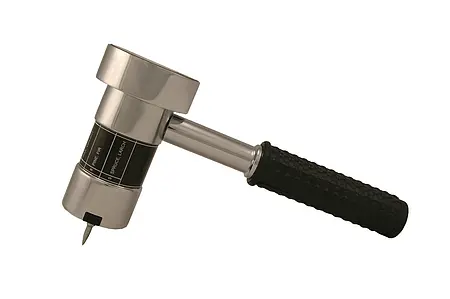

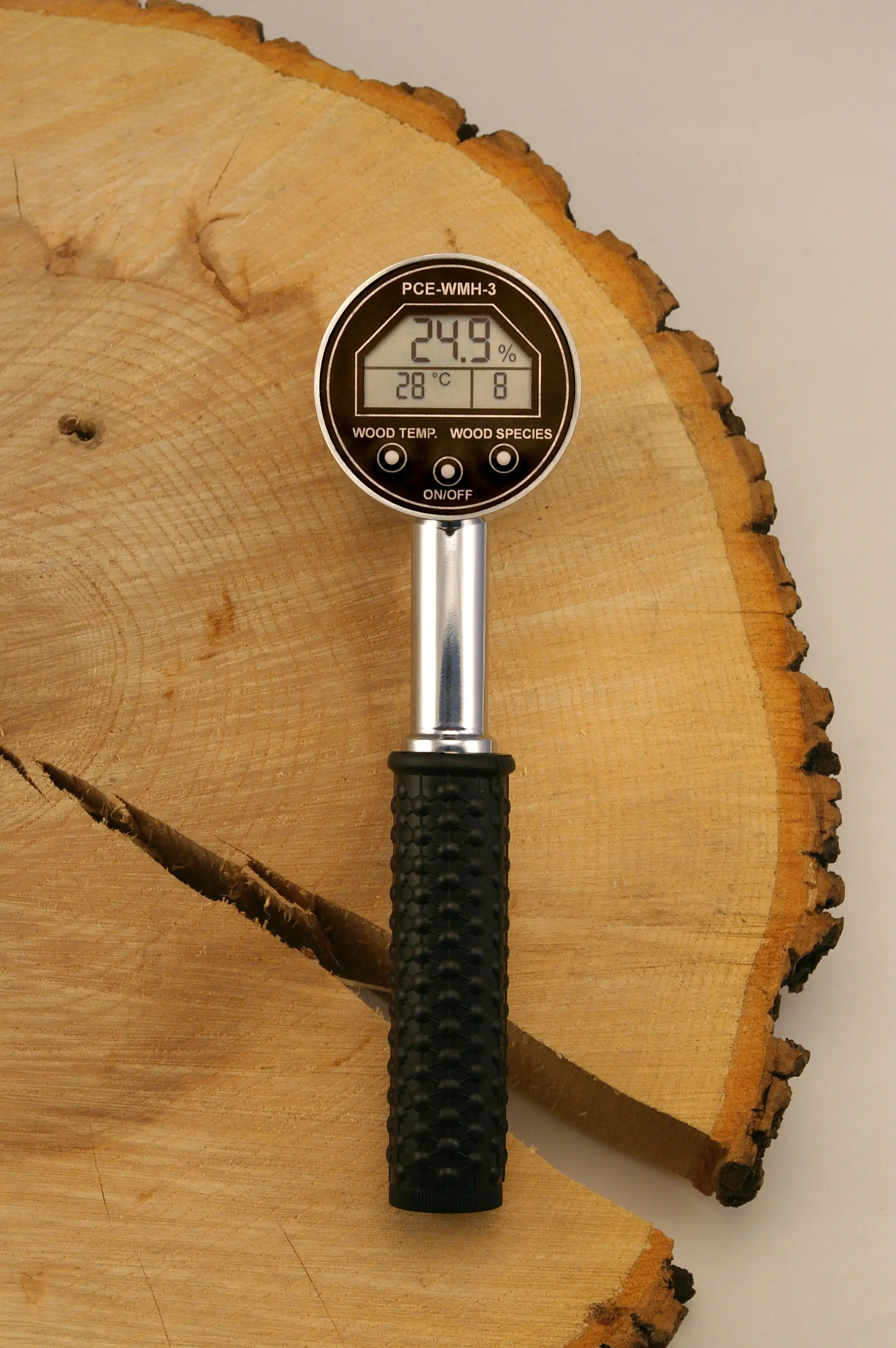

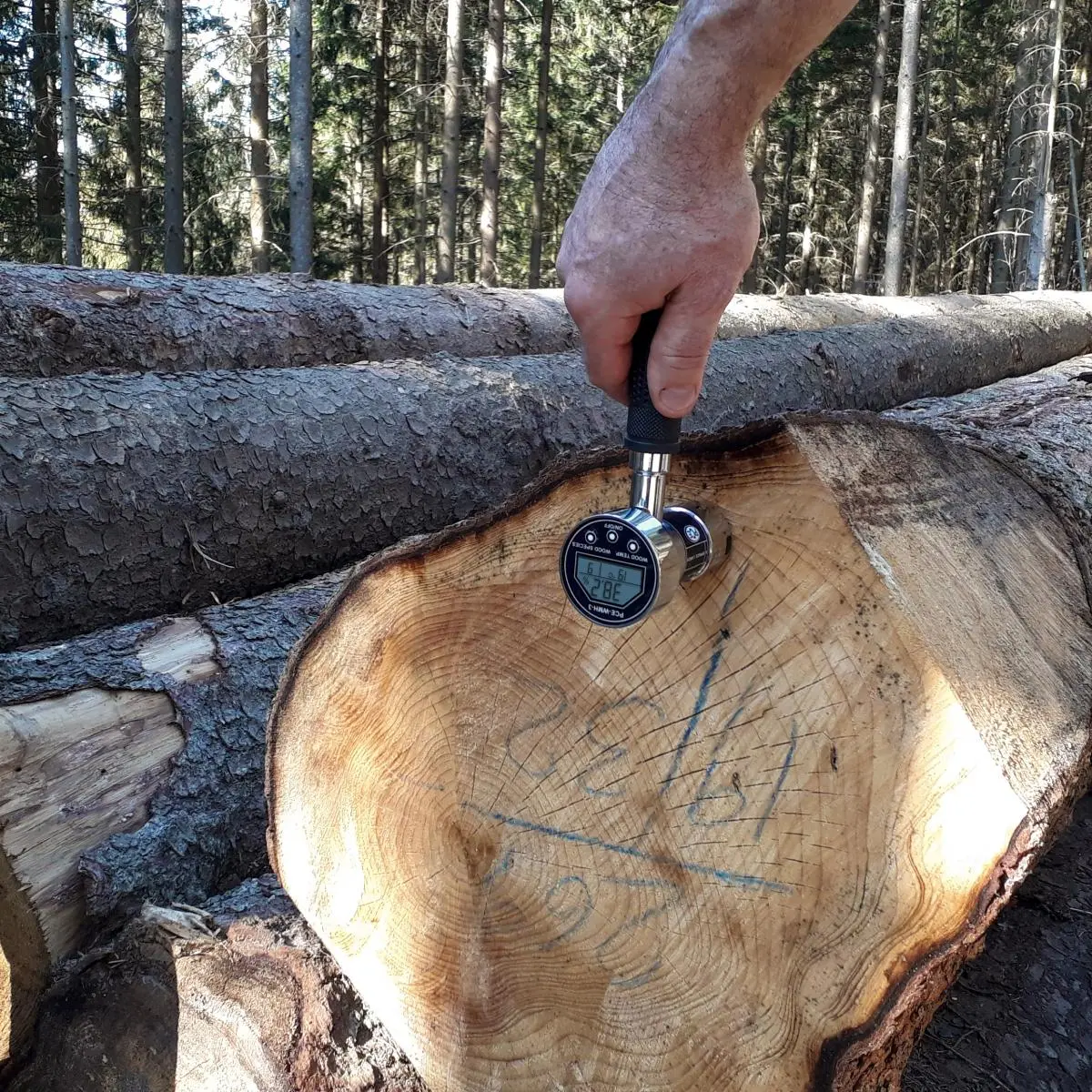

Environmental Tester for Wood PCE-WMH-3
Features preset characteristic curves for measuring 270 different wood types
PCE-WMH-3 is an environmental tester or analyzer used to measure the moisture content of wood. This hammer-style environmental tester features preset characteristic curves for measuring moisture in 270 different wood types.
A table of exotic wood type coefficient values is provided in the user manual to allow for proper calculation. The table lists coefficient values for exotic wood types including but not limited to Gonzales Alves, Pine, Brazilian-Rosewood, Chipboard, Cedar, Dogwood, European Aspen, Elm, Oak, Juniper, Maple, Ash, Quebracho Blanco and Colorado, Sandalwood, Mahagony, Olive, Umbrella, Pear, Persimmon, African Walnut, Teak, Willow and more.
| Humidity | |
| Material | Wood |
| Measuring range | 6 ... 15 % |
| Resolution | 0,1 % |
| Accuracy | ±1.0% |
| Humidity | |
| Material | Wood |
| Measuring range | 16 ... 28 % |
| Resolution | 0,1 % |
| Accuracy | ±2.0% |
| Humidity | |
| Material | Wood |
| Measuring range | 28 ... 60 % |
| Resolution | 0,1 % |
| Accuracy | approx. 10% |
| General technical data | |
| Display type | LCD |
| Operating time | 5000 Measurements |
| Automatic power-off | 5 min |
| Dimensions | - Electrodes: 3.5 x 12 mm, 2.5 x 8 mm, 2 x 6 mm dia. |
| Additional description | Wood species: 9 groups (12 + 270 overseas wood genera) |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | Battery |
| (Rechargeable) battery | 1 x 12 V 23A , Alkali-manganese |
| Capacity | 50 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 5 ... 40 °C , 20 ... 70 % RH |
| Dimensions ( L x W x H ) | 210 x 120 x 60 mm |
| Weight | 800 g |
