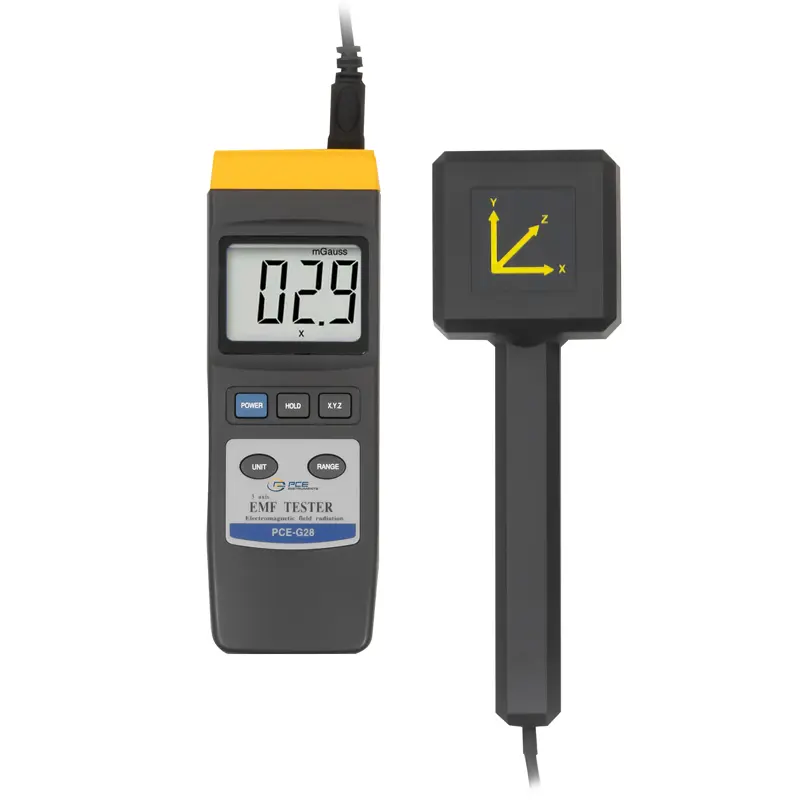

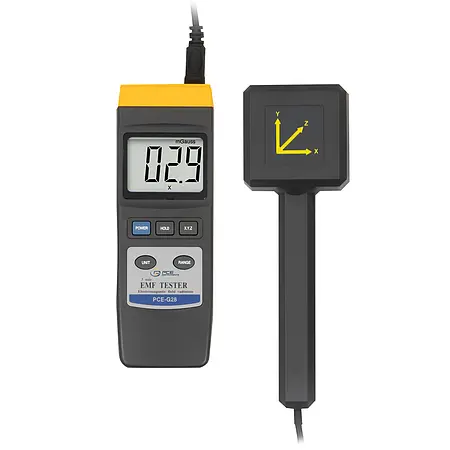

Environmental Tester PCE-G28

Environmental Tester PCE-G28 [zoom]

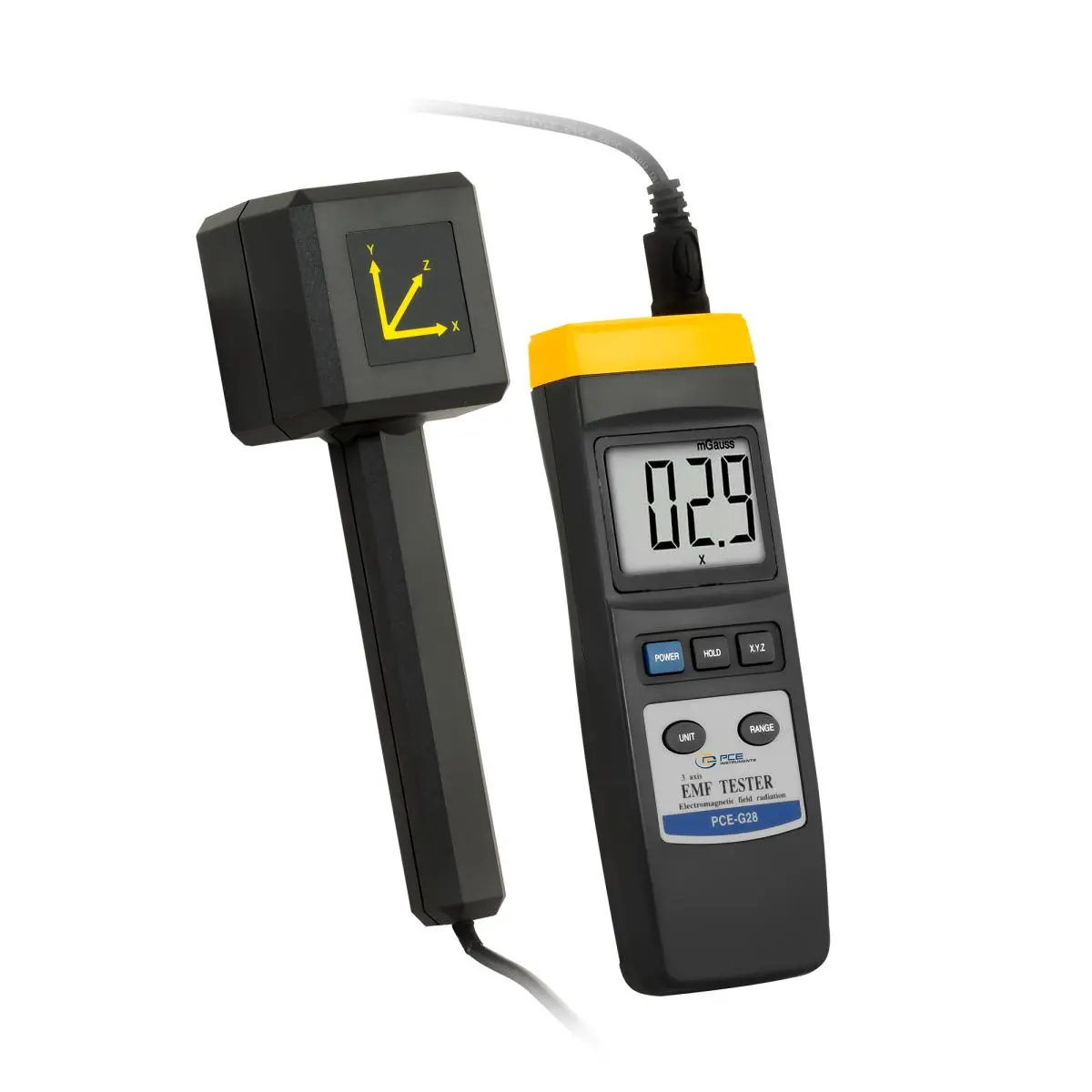

Environmental Tester PCE-G28

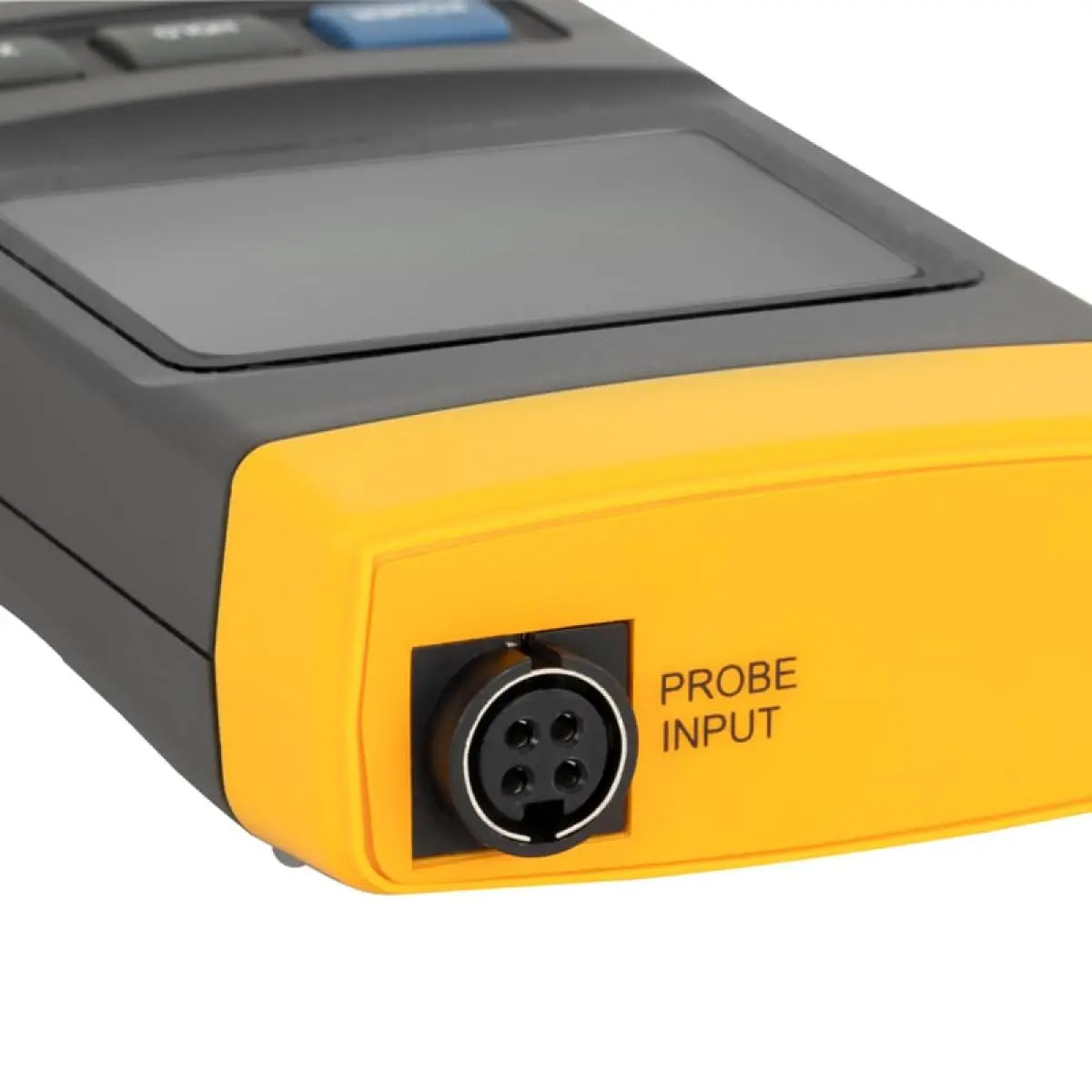

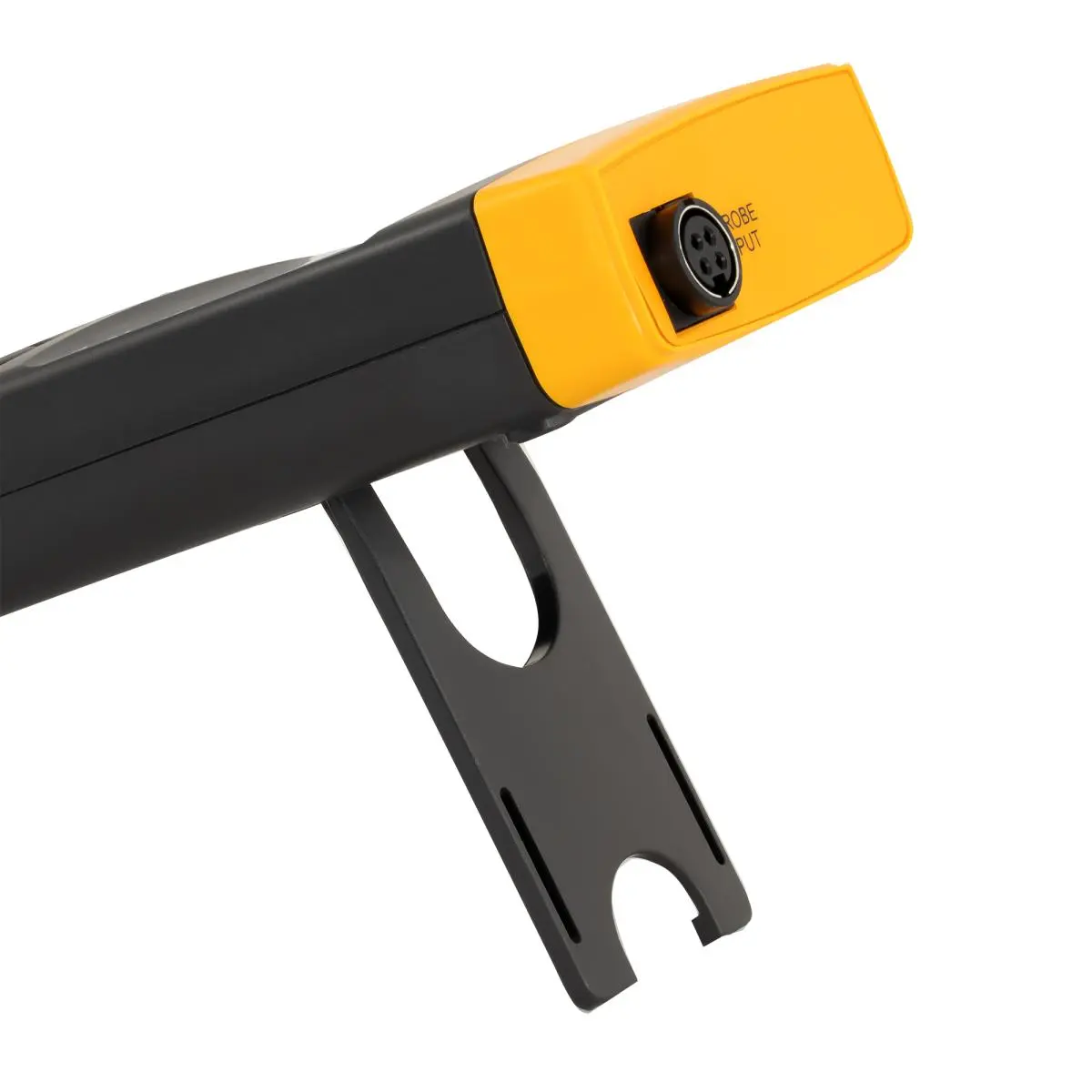

Environmental Tester Sensor connection

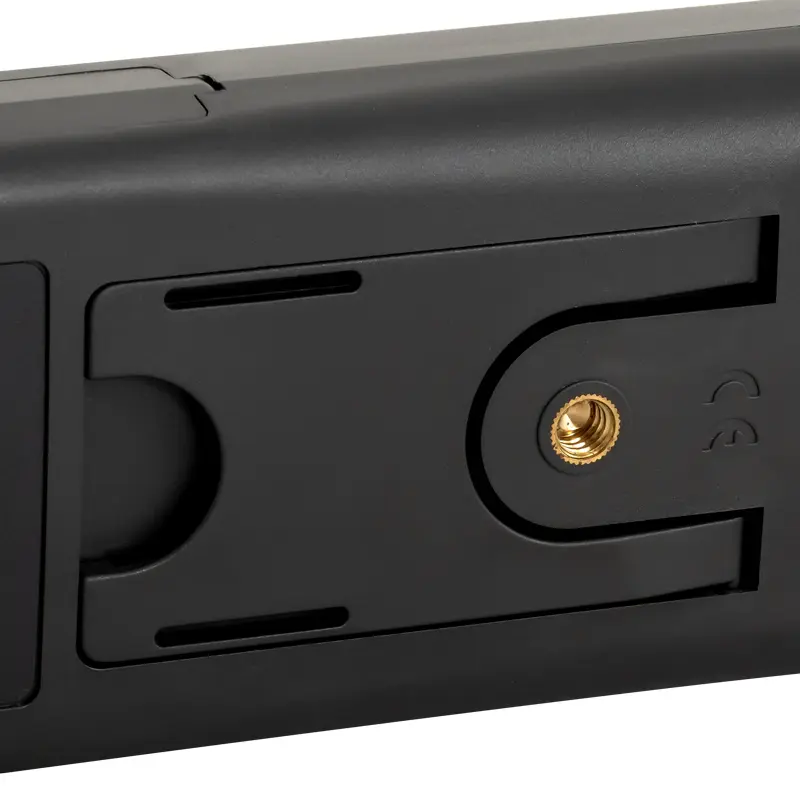

Environmental Tester Foot

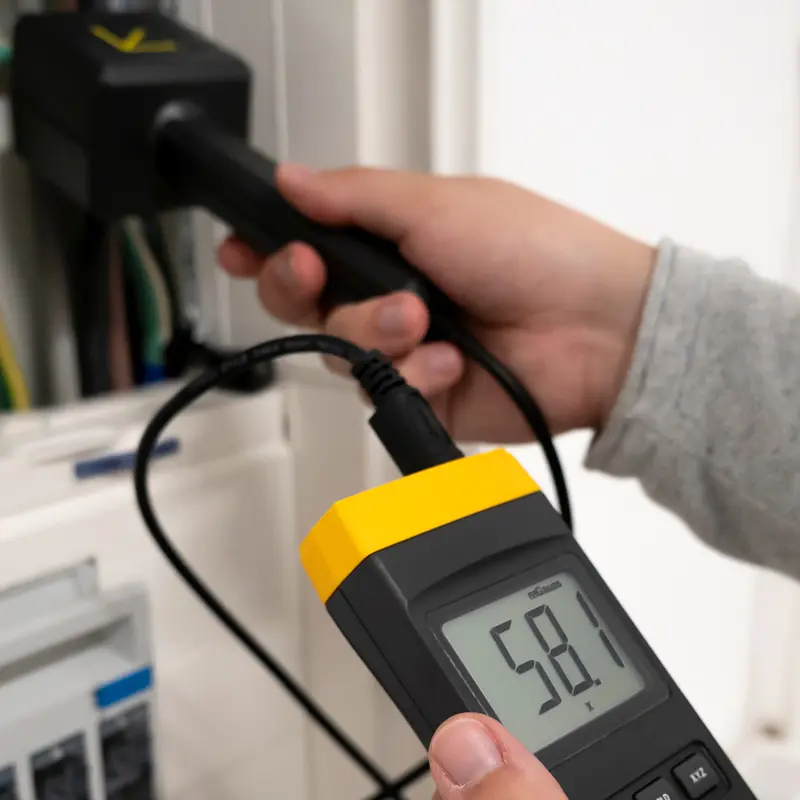

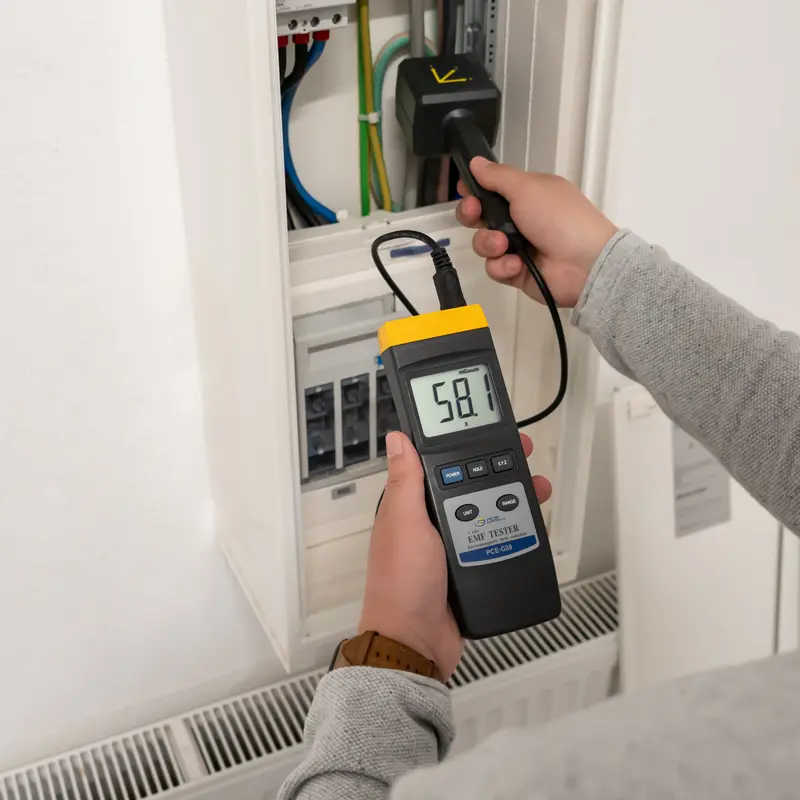

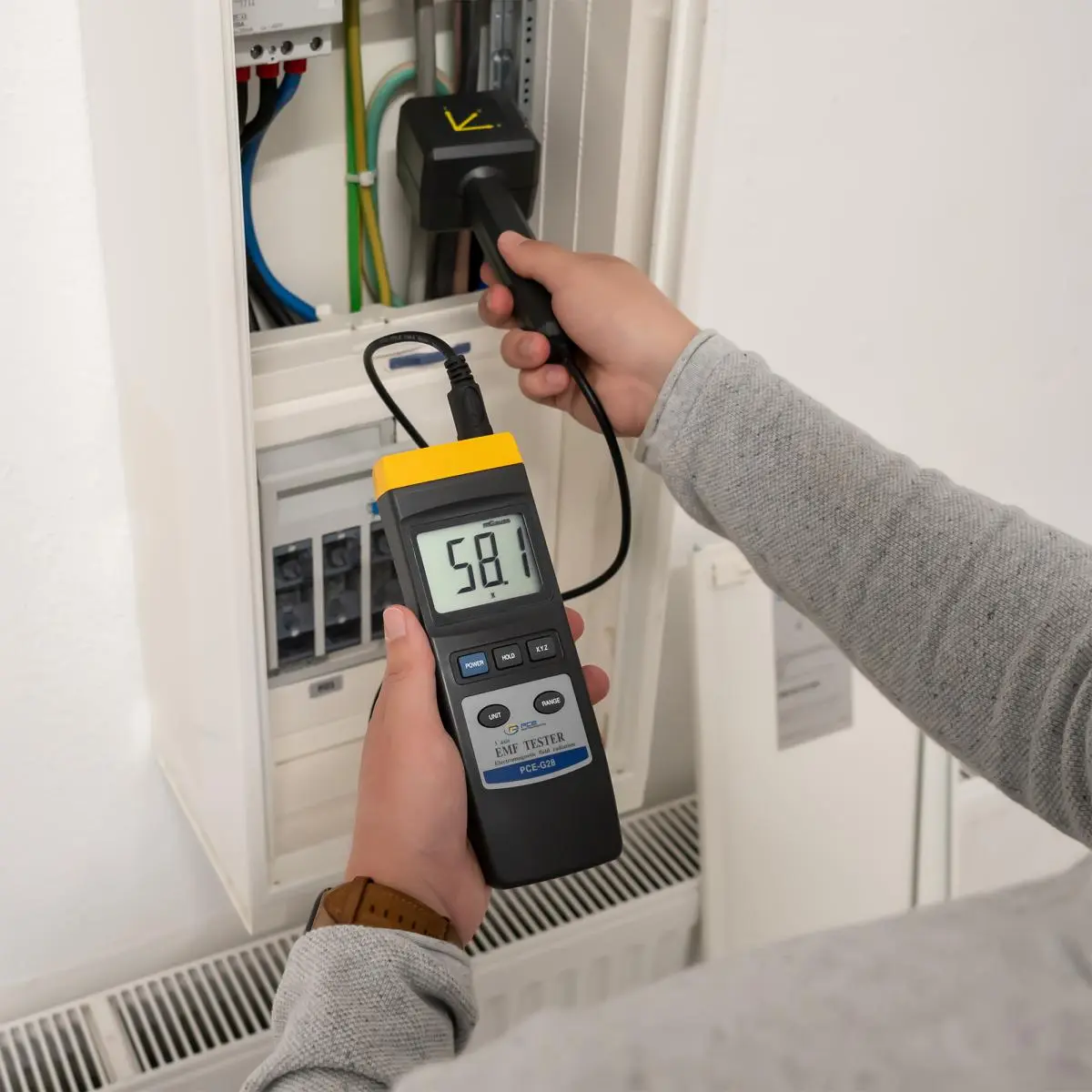

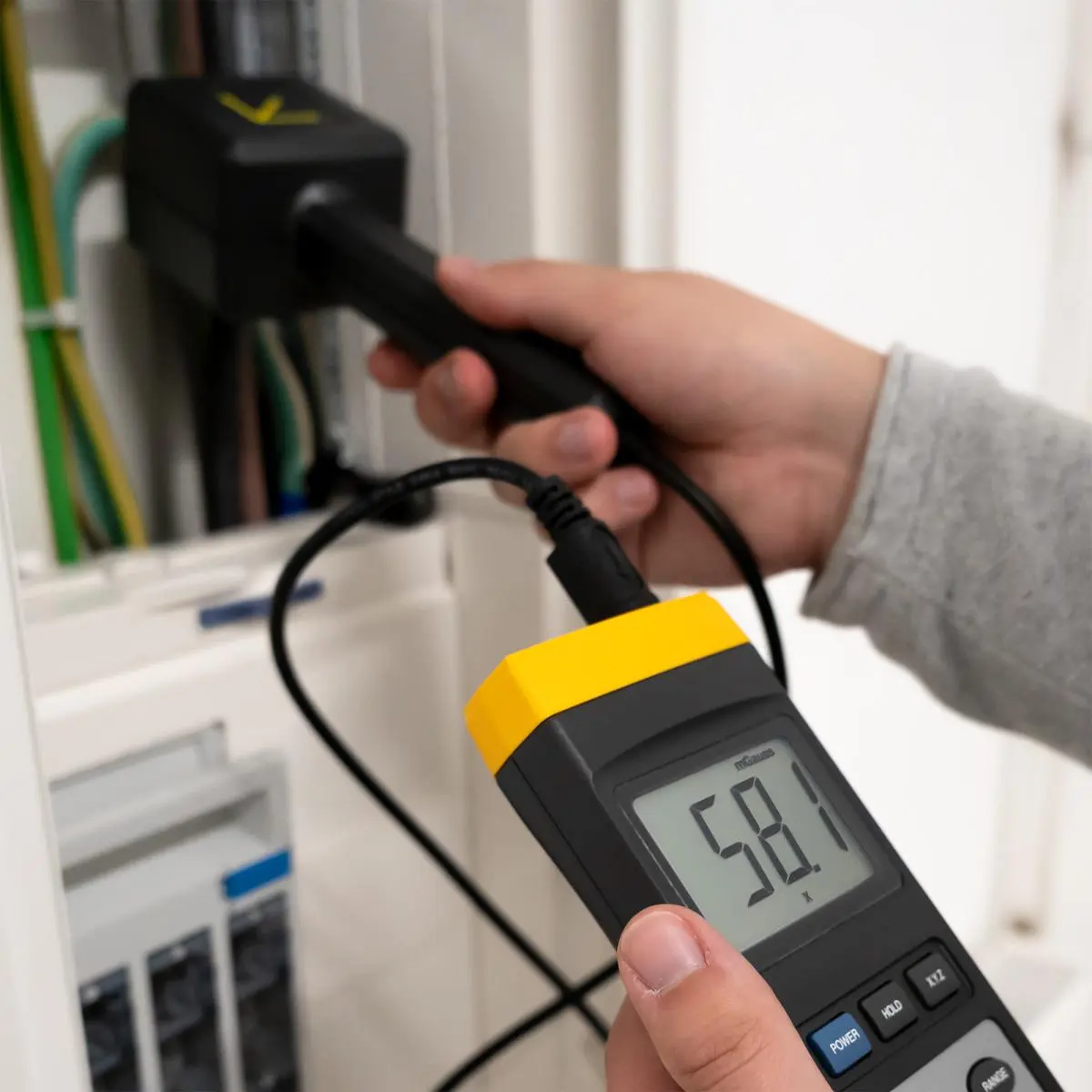

Environmental Tester Application picture
Environmental Tester Application picture
Environmental Tester Application picture

Environmental Electromagnetic Field Radiation Tester PCE-G28

Order no.: PCE-G28
GTIN (EAN): 4250348700865
£ 294.00
£ 352.80
price ex. (VAT / delivery)
:
4250348700865
PCE-G28
Delivery time:1-2 working days

Description

PCE-G28 is a portable, handheld environmental electromagnetic field radiation tester or gauss meter that detects electromagnetic fields (EMFs) and displays measurement results in milliGauss (mG) or microTesla (µT). This EMF radiation detector comes with an external 3-axis electromagnetic sensor (X, Y, Z direction).

Highlights

- Measurement range: 0 ... 20000 mG / 0 ... 2000 µT
- Accuracy: ± 4% + 3 digits / ± 5% + 3 digits / ± 10% + 5 digits
- Resolution: 0.1 mG / 0.01 µT
- Detects electromagnetic fields (EMFs) on three axes (X, Y, Z direction)
- Displays measurement results in milliGauss (mG) or microTesla (µT)
- Comes with an external 3-axis electromagnetic sensor
- Data hold functionality
- Ideal tool for checking transformers and measuring EMFs generated by power lines, computer monitors, electric motors and installations
- Meets IEC 801-1 (EN 50081-1) / IEC 204 (EN 60204) standards
- Measures EMFs through casings, coverings and housings, eliminating the need to dismantle parts for inspection

Specification

Magnetic field strength
Measuring range  0 ... 20 µT
Resolution  0,01 µT
Accuracy  ±4% +3 Digits / 50 - 60 Hz und < 3 V/m (RF)

Magnetic field strength
Measuring range  0 ... 200 µT
Resolution  0,1 µT
Accuracy  ±5% +3 Digits / 50 - 60 Hz und < 3 V/m (RF)

Magnetic field strength
Measuring range  0 ... 2000 µT
Resolution  1 µT
Accuracy  ±10% +5 Digits / 50 - 60 Hz und < 3 V/m (RF)

Magnetic field strength
Measuring range  0 ... 200 mGs
Resolution  0,1 mGs
Accuracy  ±4% +3 Digits / 50 - 60 Hz und < 3 V/m (RF)

Magnetic field strength
Measuring range  0 ... 2000 mGs
Resolution  1 mGs
Accuracy  ±5% +3 Digits / 50 - 60 Hz und < 3 V/m (RF)

Magnetic field strength
Measuring range  0 ... 20000 mGs
Resolution  10 mGs
Accuracy  ±10% +5 Digits / 50 - 60 Hz und < 3 V/m (RF)

General technical data
Frequency  30 ... 300 Hz
Display type  LCD
Dimensions  Probe 225 x 75 x 55 mm
Protection class (device)  IP20
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Operating conditions  0 ... 50 °C , 0 ... 85 % RH
Storage conditions  0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  195 x 68 x 30 mm
Weight  470 g

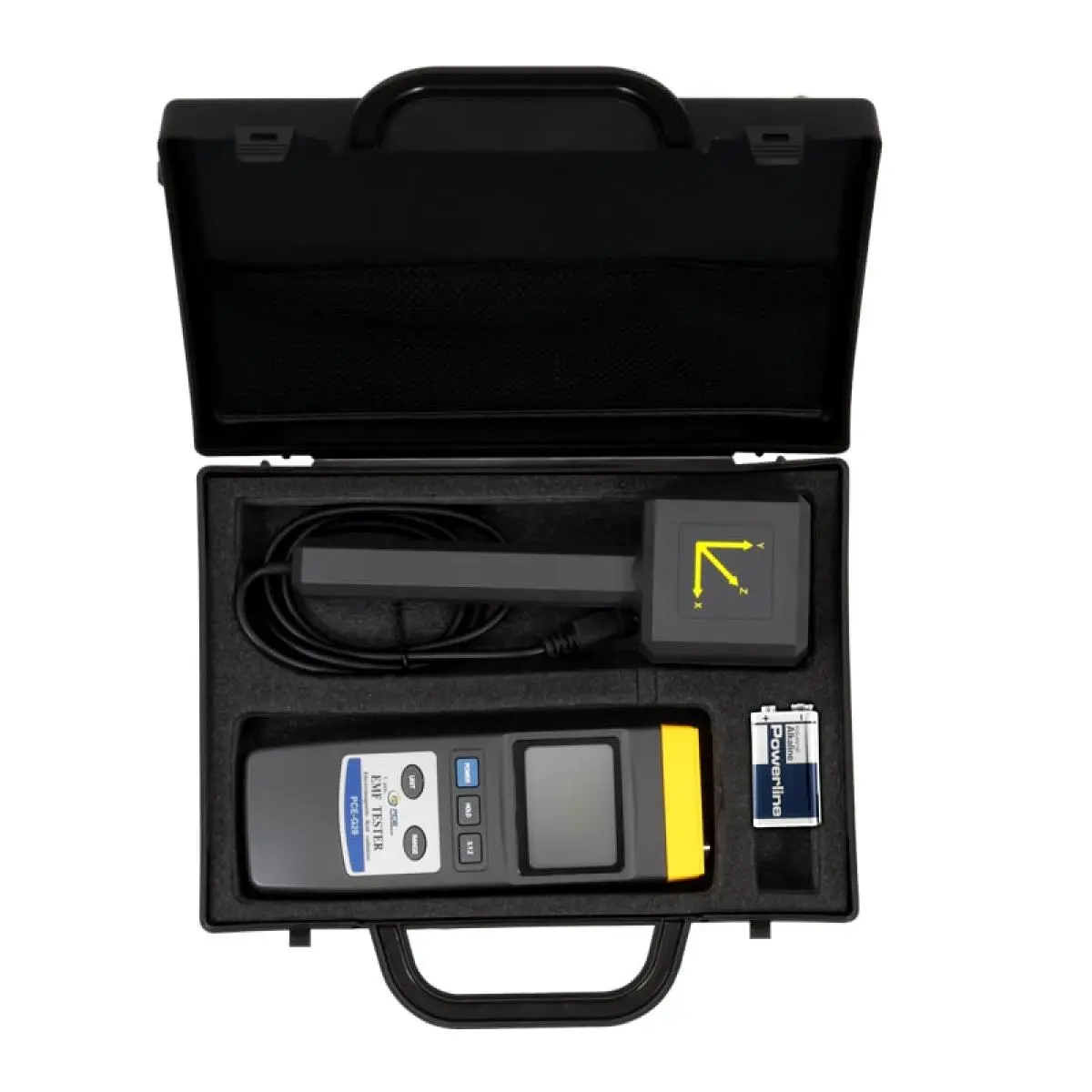

Delivery Scope

1 x Environmental Tester PCE-G28
1 x 3-axis electromagnetic sensor
1 x 9 V battery
1 x Carrying case
1 x User manual
