Environmental Meter PCE-HWA 30

Order no.: PCE-HWA 30
£ 218.00
£ 261.60
4250348723321
PCE-HWA 30
price ex. (VAT / delivery)
Delivery time: 1-2 working days
Environmental meter with data logger / Beaufort scale / Measuring range 0.3 ... 30.0 m/s / Battery operation / Transport case / Rechargeable via 5 V DC micro-USB interface / Telescopic arm / Swiveling head
The environmental meter measures the flow velocity according to the hot wire principle. This guarantees a particularly compact design. The measuring range of the hot wire anemometer is between 0.3 ... 30.0 m/s / 0.98 ... 98.4 ft/s. In addition to the flow velocity, the hot wire anemometer can measure the volume flow and the ambient temperature. For each measurement, a Beaufort scale is displayed next to the measured value. The current wind strength can be read from this scale.

With the integrated data memory, up to 960 measured values ​​can be recorded with the environmental meter. The data can be read directly on the hot wire anemometer. Also, the measured values ​​from the hot wire anemometer can be transferred to a PC via the micro USB interface. Suitable software for the hot wire anemometer is available in the PCE Instruments download portal for further processing of the data.

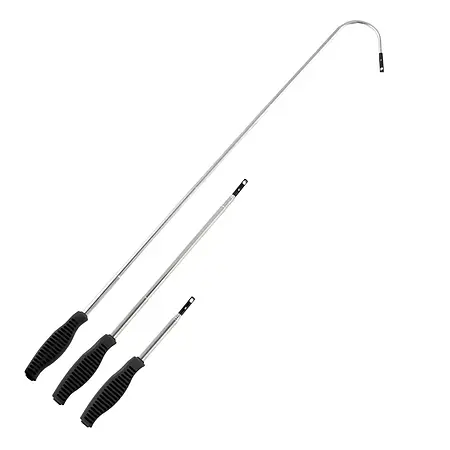

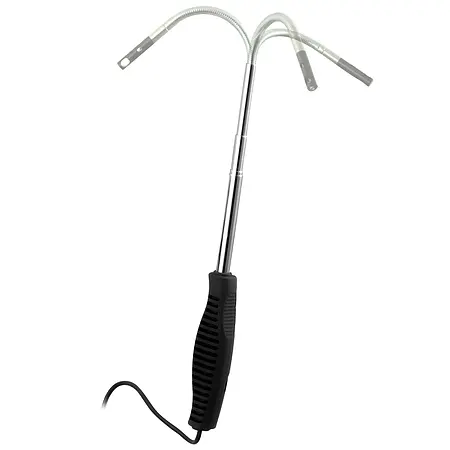

For optimal alignment, the telescopic arm of the environmental meter can be extended up to 740 mm / 29.1". In addition, the head of the hot wire anemometer is semi-rigid and can therefore be aligned in different ways. The battery of the hot wire anemometer with a capacity of 1000 mAh enables mobile use. To recharge the battery, the hot wire anemometer must be connected to a 5 V DC micro-USB power supply.

- Hot wire anemometer with data storage
- Software for reading out the measured values
- Swiveling telescopic arm
- Measuring range 0.3 ... 30.0 m/s / 0.98 ... 98.4 ft/s
- Data memory for 960 measured values
- Beaufort scale
Wind speed m/s
Measuring range 0.3 ... 30.0 m/s
Resolution 0.01 m/s
Accuracy ±3 % ±0.1 m/s of measured value

Wind speed ft/min
Measuring range 60 ... 5904 ft/min
Resolution 0.01, 0.1, 1 ft/min
Accuracy ±3 % ±20 ft/min of measured value

Wind speed knots
Measuring range 0.6 ... 58.3 knots
Resolution 0.01 knots
Accuracy ±3 % ±0.2 knots of measured value

Wind speed km/h
Measuring range 1.0 ... 108.0 km/h
Resolution 0.01 km/h
Accuracy ±3 % ±0.4 km/h of measured value

Wind speed mph
Measuring range 0.7 ... 67 mph
Resolution 0.01 mph
Accuracy ±3 % ±0.2 mph of measured value

Volume flow CMM (m³/min)
Measuring range 0 ... 999900 m³/min
Resolution 0.001 ... 100 m³/min
Adjustable area 0.001 ... 999 m²

Volume flow CFM (FT³/min)
Measuring range 0 ... 999900 ft³/min
Resolution 0.001 ... 100 m³/min
Adjustable area 0.001 ... 999 m³

Temperature measurement   °C
Measuring range 0 ... 45 °C
Resolution 0.1 °C
Accuracy ±1.0 °C

Temperature measurement °F
Measuring range 32 ... 113 °F
Resolution 0.18 °F
Accuracy ±1.8 °F

Further specifications
Probe length 740 mm / 29.1"
Probe diameter Ø0.8 ... 1.2 mm / 0.031 x 0.047"
Interface Micro USB
Data memory 960 measured values
Power supply 3.7 V, 1000 mAh battery
  5 V DC, 1 A Micro USB interface
Power consumption 15 ... 35 mA without background lighting
  70 ... 100 mA with background lighting
Battery discharged display
<3.4 V
Operating conditions 0 ... 50 °C / 32 ... 122 °F, 40 ... 80 % RH, non-condensing
Storage conditions -20 ... 60 °C / -4 ... 140 °F, < 80 % RH, non-condensing
Dimensions 70 x 194 x 35 mm / 2.7 x 7.6 x 1.3"
Weight 400 g / 14 oz

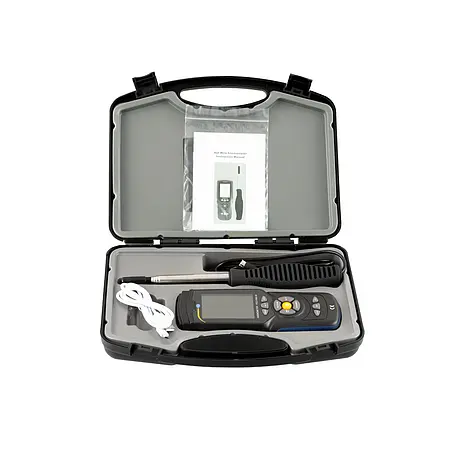

1 x Environmental Meter PCE-HWA 30
1 x Micro USB cable
1 x Transport case
1 x Instruction manual
