Environmental Meter PCE-322ALEQ

Order no.: PCE-322ALEQ
GTIN (EAN): 4250348719775

£ 403.00
£ 483.60
Topseller
price ex. (VAT / delivery)
:
4250348719775
PCE-322ALEQ
Delivery time: 1-2 working days
Sound
±1.4dB
Yes
Handheld
Internal
Yes
Yes

Description

Class II Environmental Meter PCE-322ALEQ with logger function / USB interface / Measuring range 30 ... 130 dB / LC display / incl. software for LEQ calculation / Memory for up to 32700 values

The environmental meter PCE-322ALEQ is particularly suitable for measuring noise in the field of industrial, health, safety and environmental monitoring. The PCE-322ALEQ environmental meter has a logger function, which allows storage of up to 32700 readings. This makes it ideal for long term monitoring. The environmental meter PCE-322A can be connected to the PC with a USB cable.

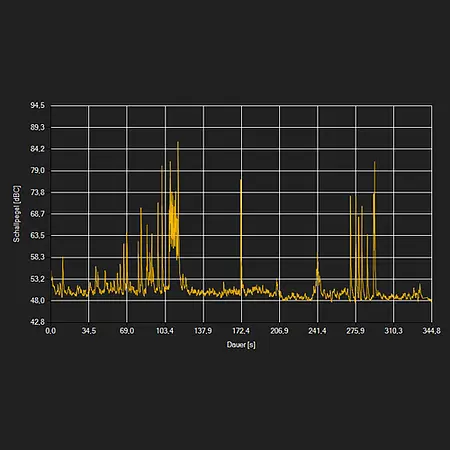

A live measurement is also possible with the environmental meter and the data can be viewed directly and can be evaluated. The software provides data representation in graphic formats and tables. This data can be transferred, for example, to MS Excel. The environmental meter has an analogue output and offers further features that are unique in its class.


Highlights

- Measuring range 30 ... 130 dB
- Resolution 0.1 dB
- USB port for data transfer
- 32700 value memory
- Fast and slow time weighting
- Date- and time-stamped measurements
- Robust ABS plastic housing

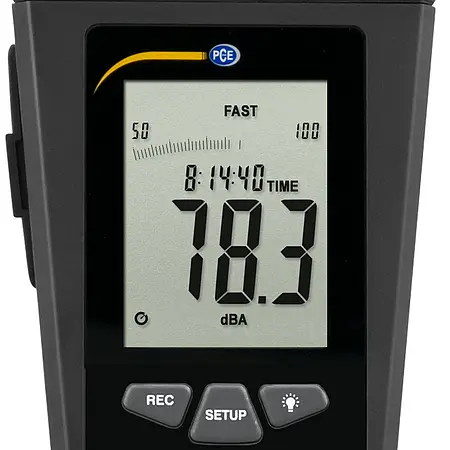

- Large LCD
- LEQ calculation via software

Specification

Noise levels Low 30 ... 80 dB
Medium 50 ... 100 dB
High 80 ... 130 dB
Auto 30 ... 130 dB
Dynamic range 50 dB
Display 4-digit LCD
Resolution 0.1 dB
Accuracy ±1.4 dB
Display update 2 x per second
Frequency 31.5 Hz ... 8 kHz
Storage capacity 32,700 readings (9 hours @ 1 second interval)
Frequency weighting A and C
Time weighting fast (125 ms)
slow (1 sec.)
Microphone type Electret condenser
Functions MIN, MAX, HOLD, ALARM
Analog output AC/DC
Headphone
Data interface USB
Automatic shutdown after 15 minutes inactivity
Operating conditions 0 ... +40 °C / +32 ... +104 °F, < 90 % RH
Storage conditions -10 ... +60 °C / +14 ... +140 °F, 10 ... 75 % RH
Power supply 9 V block battery (for approx. 30 h continuous operation)
AC power
Dimensions 280 x 95 x 45 mm / 11.02 x 3.74 x 1.77"
Weight ca. 350 g / 0.78 lb
Standards IEC 61672-1 (Class II)

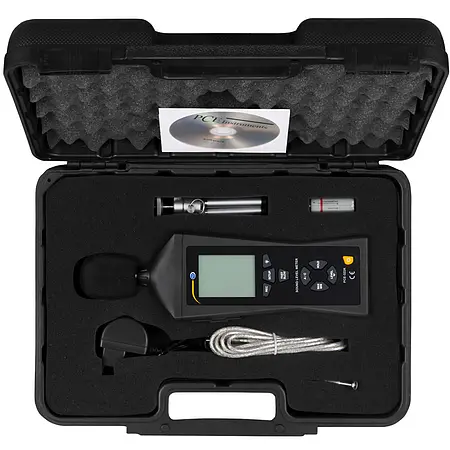

Delivery Scope

1 x Environmental Meter PCE-322ALEQ
1 x PCE-SOFT-LEQ software (LEQ calculation) + manual
1 x Wind noise suppressor
1 x Interface cable

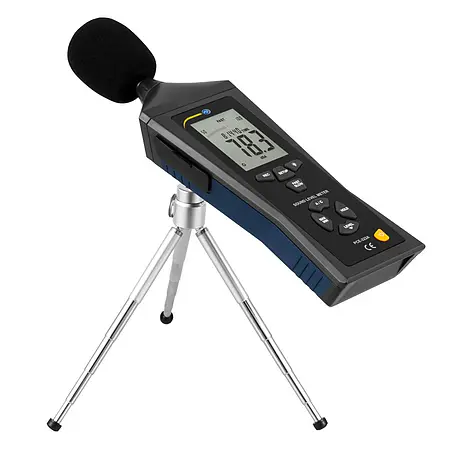

1 x Mini tripod
1 x Calibration screwdriver
1 x Battery
1 x Power adapter
1 x Carrying case
1 x Operation manual


Important! The LEQ value is only calculated by the software after the data transfer from the device to the PC or laptop.
