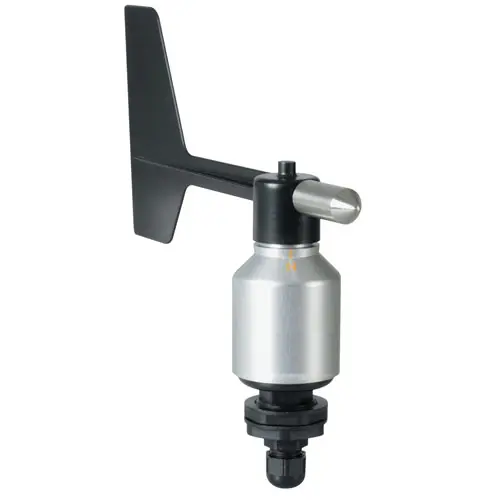

Environmental Meter CWR 1

Environmental Meter CWR 1 [zoom]

Environmental Meter CWR 1

Order no.: CWR 1
GTIN (EAN):
£ 424.00
£ 508.80
price ex. (VAT / delivery)
CWR 1
Delivery time: 1-2 working days
Direction
Vane
No
Yes (mA output)

Accessory

Description

Compact environmental meter with 4 … 20 mA output
Compact environmental meter for weather monitoring. Basic wind vane meter with 4 … 20 mA output. Wind sensor with 4 … 20 mA output. Measurement of the horizontal wind direction with an analogue output signal. The vanes of the wind sensor are manufactured from synthetic material and the housing is made of anodized aluminium. For mounting purposes, the device is supplied with a threaded spigot (Page 21) with two fixing nuts.

Highlights

- Simple wind transmitter
- 12 m / 39 ft connection cable
- Easy assembly
- 4 … 20 mA output

Specification

Technical Specification
Output4 … 20 mA
Measurement range0 … 360°
Accuracy11.25°
Loadmax. 80 m/s short-term
Load 500 Ohm at 15 V operating voltage
Power supply9 … 30 V AC / DC max. 50 mA
Assembly on mast tube
Heatingmax. 24 V DC/AC, max. 20 W
Ambient temperature  -25 … +60°C /  -13 ... 140 °F (in ice-free conditions)
Cable12 m; LiYY 6 x 0.25 mm²
Protection classIP54
Weightapprox. 500g / 17. 6 oz
ApprovalUL

Delivery Scope

1 x Environmental Meter CWR 1
1 x Data Sheet
