Endoscope with Telescoping Pole PCE-IVE 320

Order no.: PCE-IVE 320
£ 712.00
£ 854.40
4250348714329
PCE-IVE 320
price ex. (VAT / delivery)
No
Rechargeable Battery
32 mm
2.3 m
800 x 480 pixel
Digital
One Direction
Image, Video
Yes
No
Delivery time: 1-2 working days

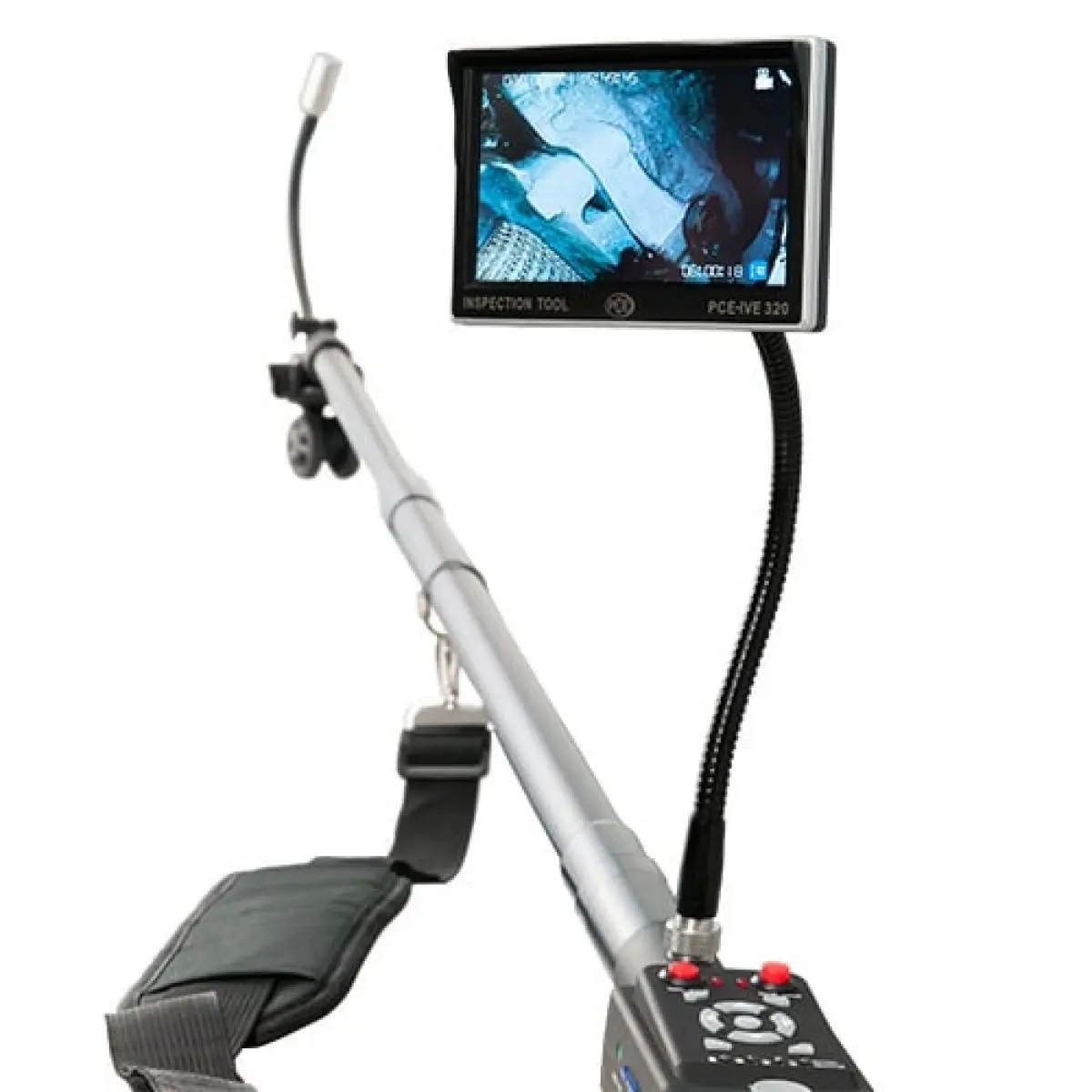

 PCE-IVE 320 Industrial Endoscope with Telescoping Pole
Industrial endoscope, videoscope or borescope on an extension rod / Ideal for gutter, chimney and home inspections as well as under-vehicle security and tactical use

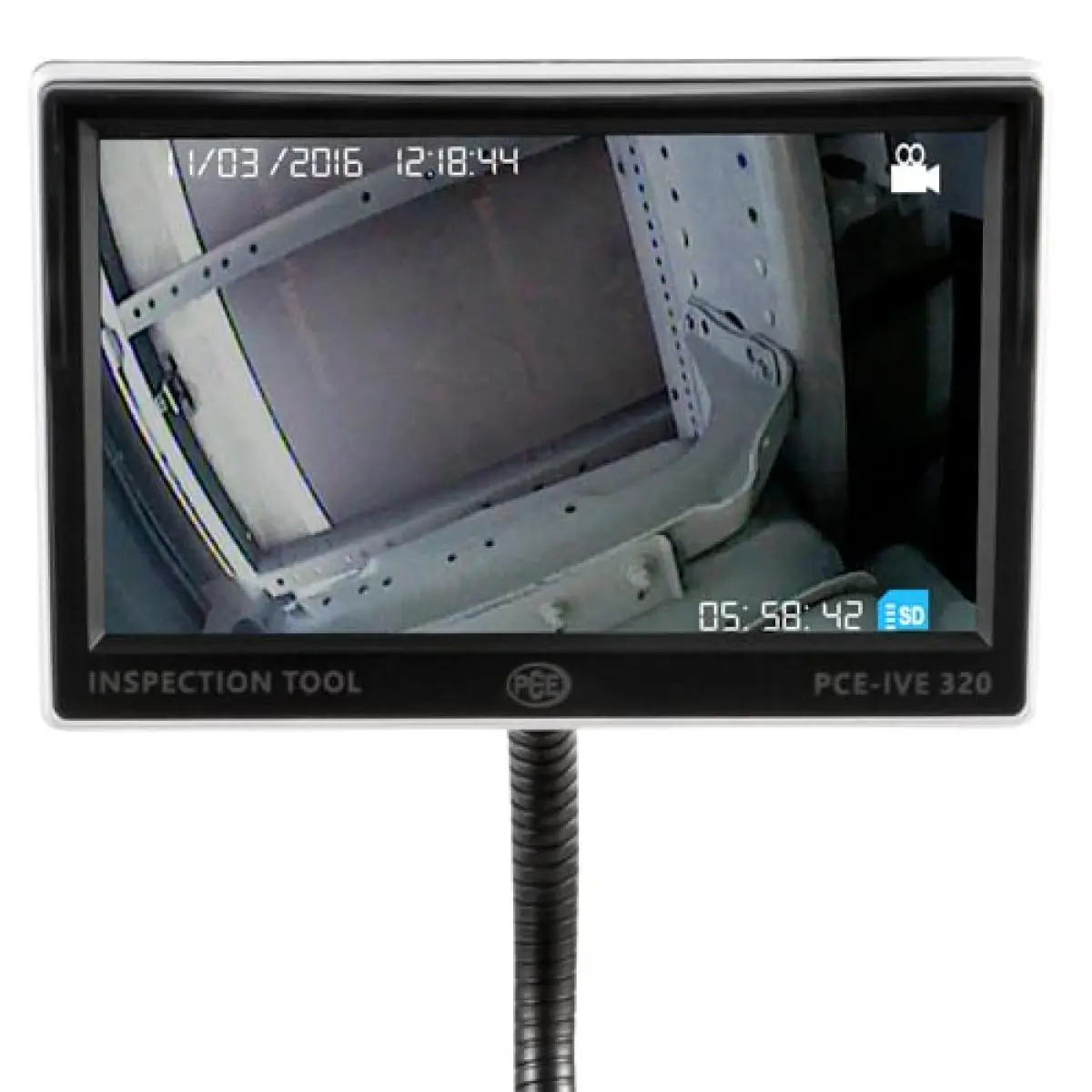

The industrial endoscope is the ideal solution for inspecting hard-to-reach places. This endoscope, inspection camera, videoscope or industrial borescope comes with a rigid telescoping pole that extends up to 2.3 m (7.55') in length (3 m long total with camera connection). Plus, the endoscope's 0.3 megapixel camera has a 23 mm (0.91") diameter flexible head with microphone and 12 white LEDs offering adjustable brightness. A 12.7 cm / 5 " LCD monitor with 800 x 480 pixel resolution allows for live viewing. For video recording, the PCE-IVE 320 accommodates SD memory cards from 2 ... 32 GB. An SD card reader is included in the delivery contents.

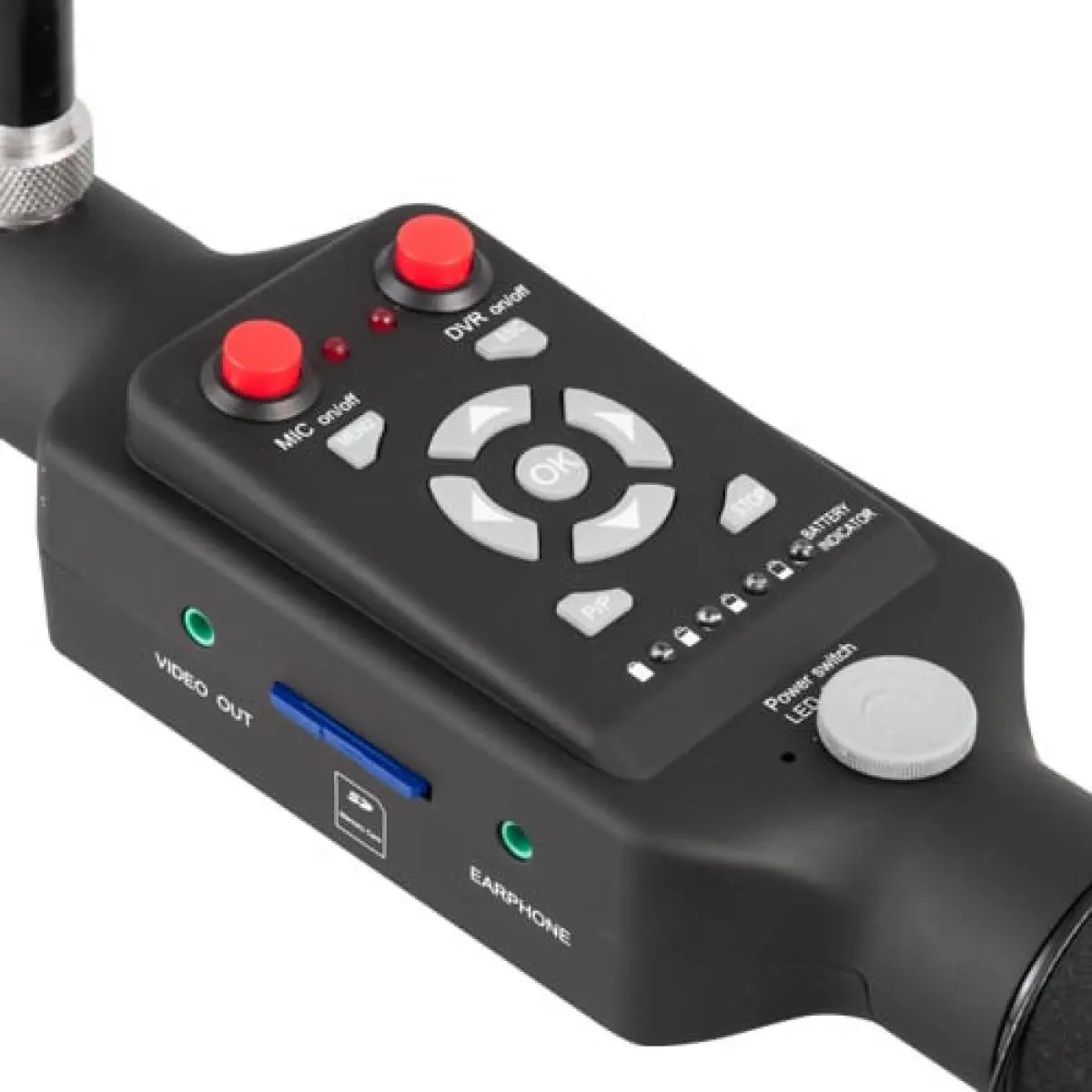

The industrial endoscope allows quick and easy viewing, monitoring and diagnosis of inaccessible areas of machines, engines and equipment. The endoscope is a useful tool for recognizing potential hazards or broken parts. The device's flexible camera head can be bent to capture images at any angle. Includes wheel attachment for under vehicle inspection. The brightness of the LEDs on the camera head can be conveniently adjusted by means of a thumb wheel located on the handle of the telescoping pole. The endoscope also features a microphone for obtaining audio (headphone included).

***Not for medical use***

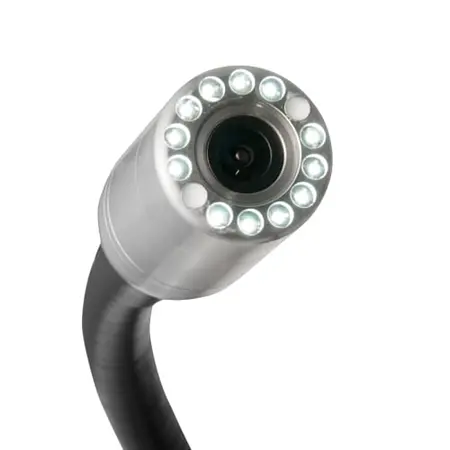

- 23 mm (0.91") diameter flexible camera head
- LCD monitor
- 12 LEDs offer adjustable brightness
- Telescopic pole extends up to 2.3 m (7.55') in length (3 m long total with camera connection)
- Video recording capability
- SD card memory
- Microphone for obtaining audio (headphone included)

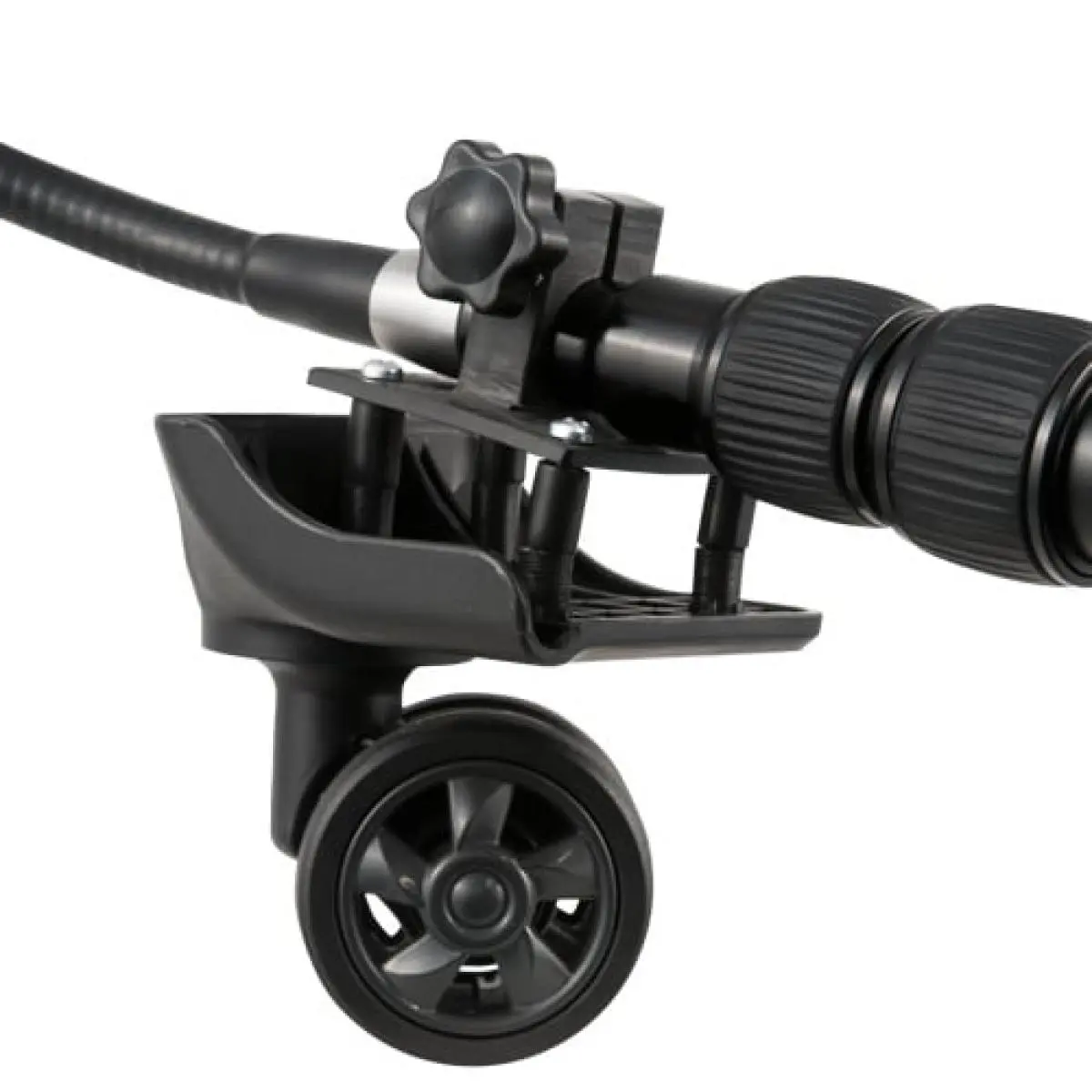

Includes wheel attachment for under vehicle inspection
- Spare battery to allow all day operation

Camera
Camera head1/4 CMOS
Pixel0.3 Megapixel
Lighting12 x LEDs (white)
Camera length320 mm / 12.60"
Camera diameter23 mm / 0.91"
Monitor
LCD12.7 cm / 5" screen
Full dimensions130 x 80 x 10 mm / 5.12 x 3.15 x 0.39"
Resolution800 x 480 pixels
Telescopic pole
Maximum length2.3 m / 7.55'
Minimal length0.9 m / 2.96'
Rechargeable battery
Battery capacity1500 mAh
Output voltage12 V DC, 500 mA, 5-hour runtime
Battery charger
Input voltage100 ... 240 V AC, 50 / 60 Hz
Output voltage12 V DC, 500 mA, 4-hour charge time
Video recording
Output704 x 576 (PAL)
Video formatMPEG-4
Recording formatASF
Memory2 ... 32 GB SD card
General specifications
Overall lengthMaximum 3 m / 9.84'

Operating conditions

Weight

-20 ... +50 °C / -4 ... +122 °F

 1.5 kg / 3.31 lbs


1 x Endoscope PCE-IVE 320
1 x Flexible camera head with microphone
1 x Telescoping pole
1 x Rotary coupling
1 x Handle
1 x Carrying strap
1 x Headphone
1 x Operating element
1 x Guide roller with mounting fixture
1 x LCD monitor
1 x SD card
1 x SD card reader
2 x Rechargeable battery
1 x Battery charger
1 x User manual
