Dynamometer PCE-CS 5000N

Order no.: PCE-CS 5000N

£ 307.00
£ 368.40
4250348712806
PCE-CS 5000N
price ex. (VAT / delivery)
Delivery time: 1-2 working days

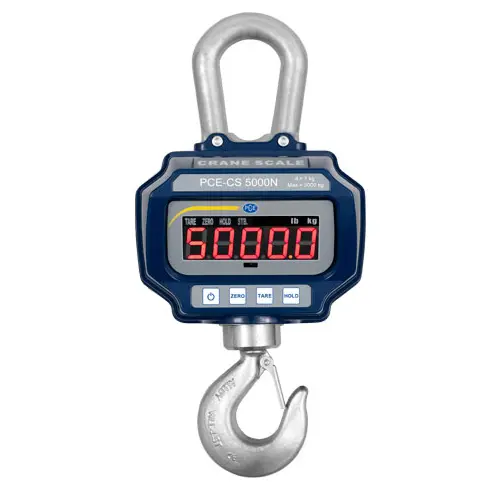

PCE-CS 5000N is a digital battery-powered Dynamometer that displays measurement values in kilograms (kg) or pounds (lbs). The Dynamometer comes factory calibrated and includes a hook, shackle and remote control. For an additional fee, the scale can be calibrated according to ISO standards.


  • Displays measurement values in kilograms (kg) or pounds (lbs)
  • Comes factory calibrated (see accessories for optional ISO calibration)
  • Includes hook, shackle and remote control
  • Features zero, tare, hold, sum, power-saving automatic shutdown and timed backlighting functions

Maximum weighing capacity 5000 kg / 11023 lbs ≈ 5 Tons
Resolution 1 kg / 2.2 lbs
Tare range 100 % full scale
Zero range 4 % full scale
Settling time ≥ 2 seconds
Units of weight kg / lbs
Overload 100 % full scale + 9 verification scale interval
Limit load 150 %
Display 2.2 cm x 1.1 cm / 0.87 in x 0.43 in
HTN LCD with backlight
Power supply 3 x 1.5 V AAA batteries
Operating conditions -10° C ... +40° C / +14° F ... +104° F
≤ 90 % RH
Weight (approx.) 14.5 kg / 32 lbs

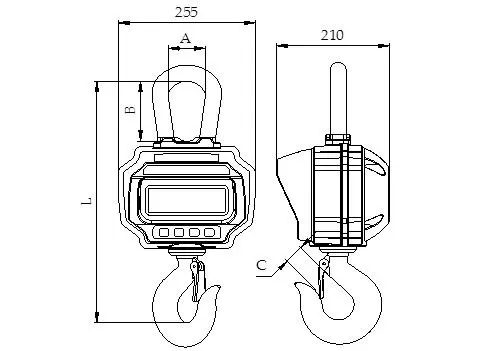

Dimensions See diagram below
A: 68 mm / 2.67 in
B: 112 mm / 4.40 in
C: 36 mm / 1.42 in
L: 450 mm / 17.72 in

1 x PCE-CS-5000N Dynamometer
1 x battery charger
1 x remote control with batteries
1 x user manual
