Durometer PCE-2000N

Order no.: PCE-2000N
£ 788.00
£ 945.60
4250348718402
PCE-2000N
price ex. (VAT / delivery)
Delivery time: 1-2 working days

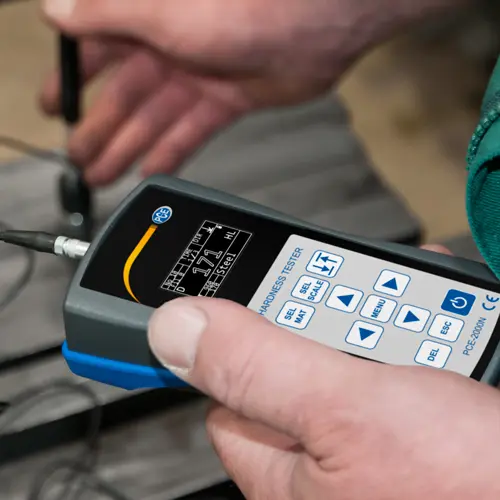

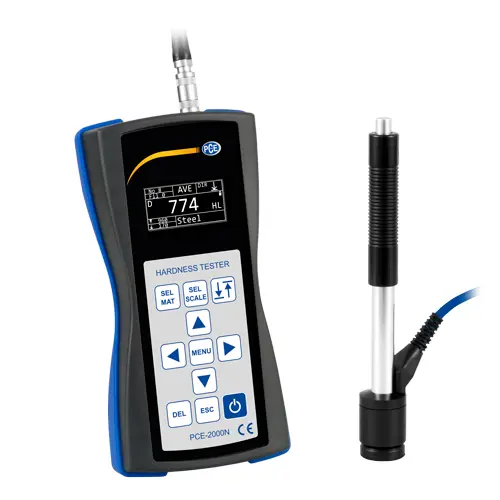

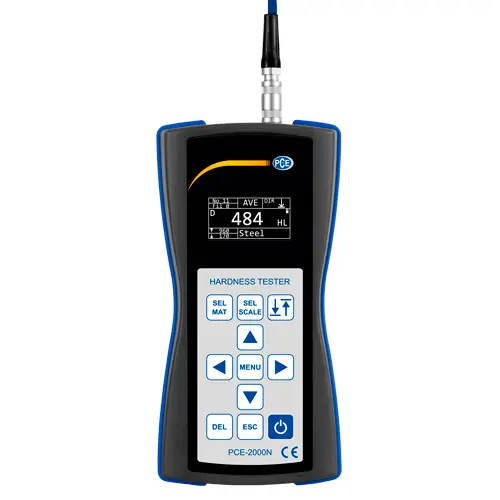

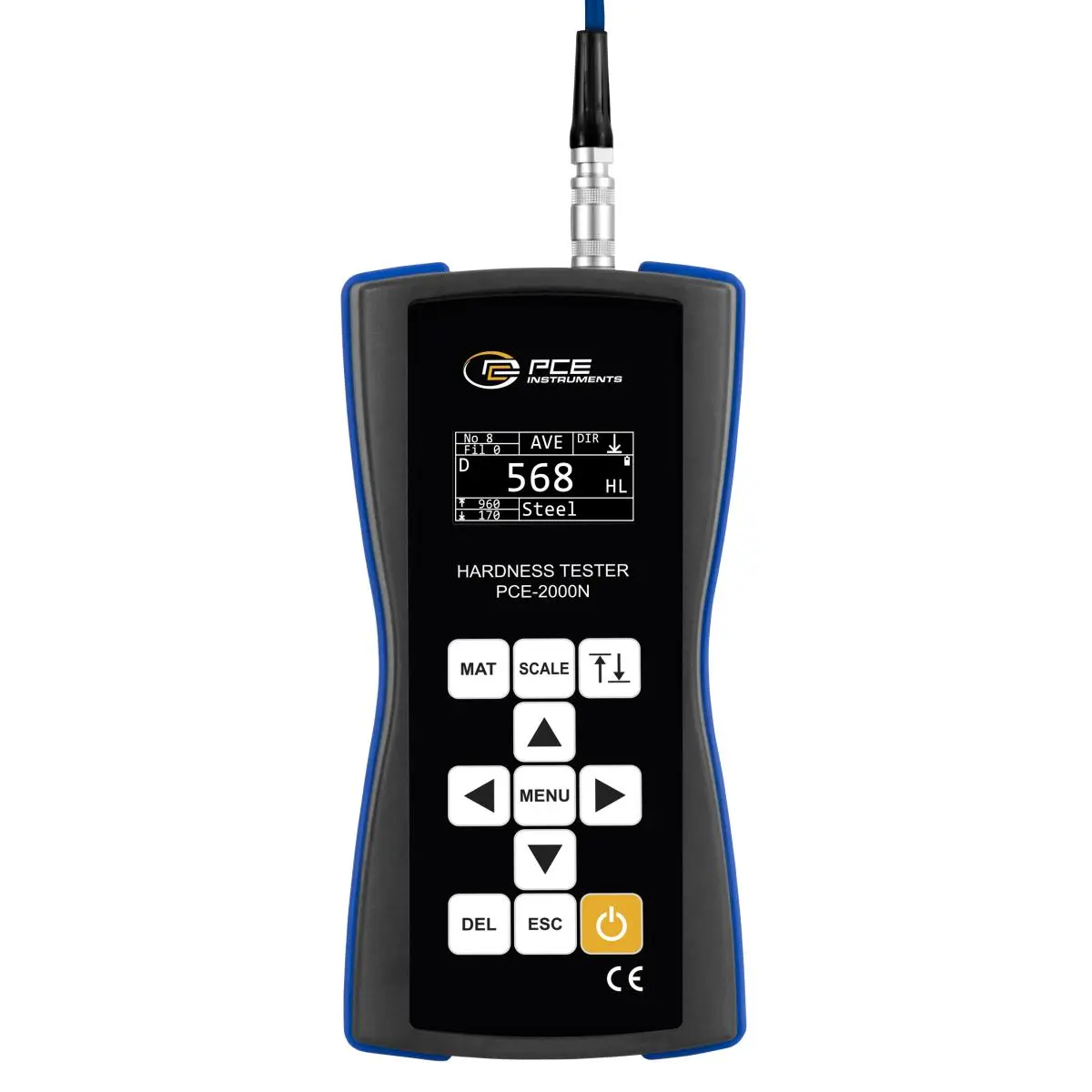

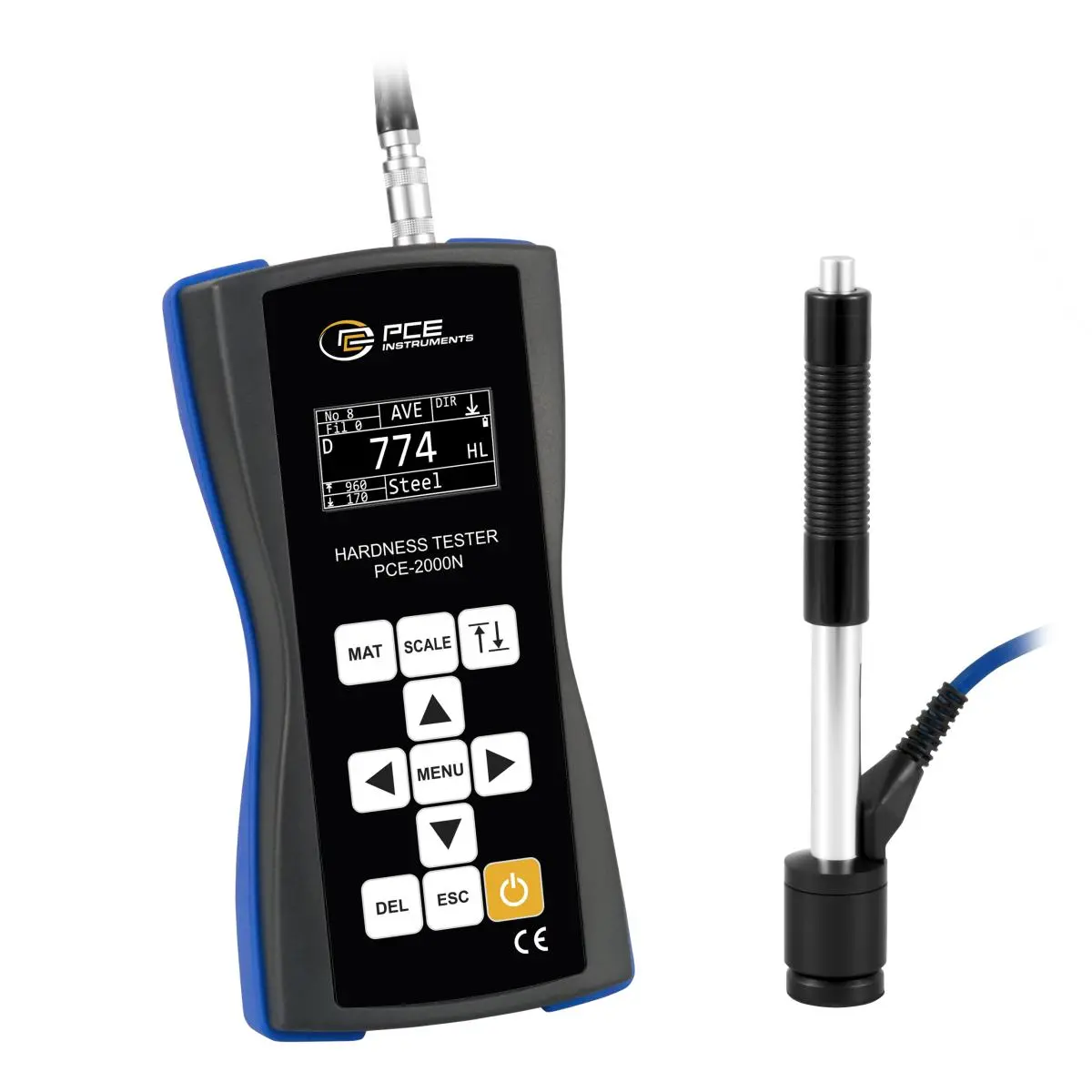

Durometer PCE-2000N
Hardness tester for metallic materials / Different impactors available / 7 different hardness scales / Save the data on USB stick

The PCE-Instruments PCE-2000N durometer uses the Leeb rebound method. This is a dynamic hardness test method in which a standardized test specimen, usually a hard metal ball, is hit with defined impact energy on a test surface. The impact of the hard metal ball on the test surface results in a plastic deformation of the surface at the point of impact. From this deformation results in an energy loss, which is proportional to the workpiece hardness and can be determined by the ratio of rebound to impact velocity of the specimen.

This technology enables a compact design, which makes it particularly suitable for the durometer. In contrast to static test methods with heavy hardness testing machines, a mobile durometer can be used very flexibly in the incoming or outgoing inspection, in production and generally in all areas where hardness has an influence on quality parameters. The durometer from PCE Instruments can be used to measure six different hardness scales (HL, HV, HRA, HRC, HB, HV, HS) as well as ten different materials.

As standard, the durometer is supplied with a striker D, but optional additional impactors (DC, DL, C, D + 15, E, G) can be connected for more specific applications. In addition, the data can be saved directly on a USB stick, which further extends the flexibility of this mobile hardness tester. With a highly readable OLED display, a long standby time, a handy housing and a symbol-based menu navigation, the handling of the mobile durometer is extremely user-friendly.

- Measures all common hardness parameters

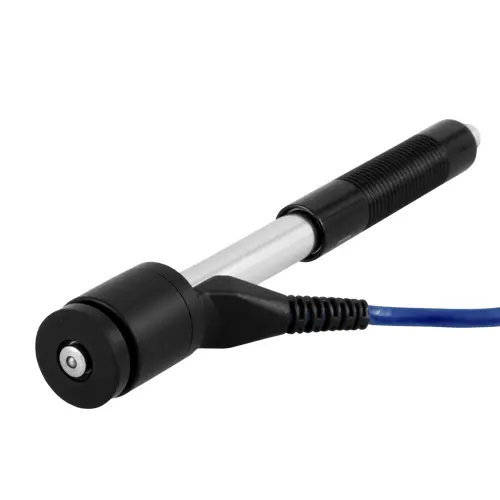

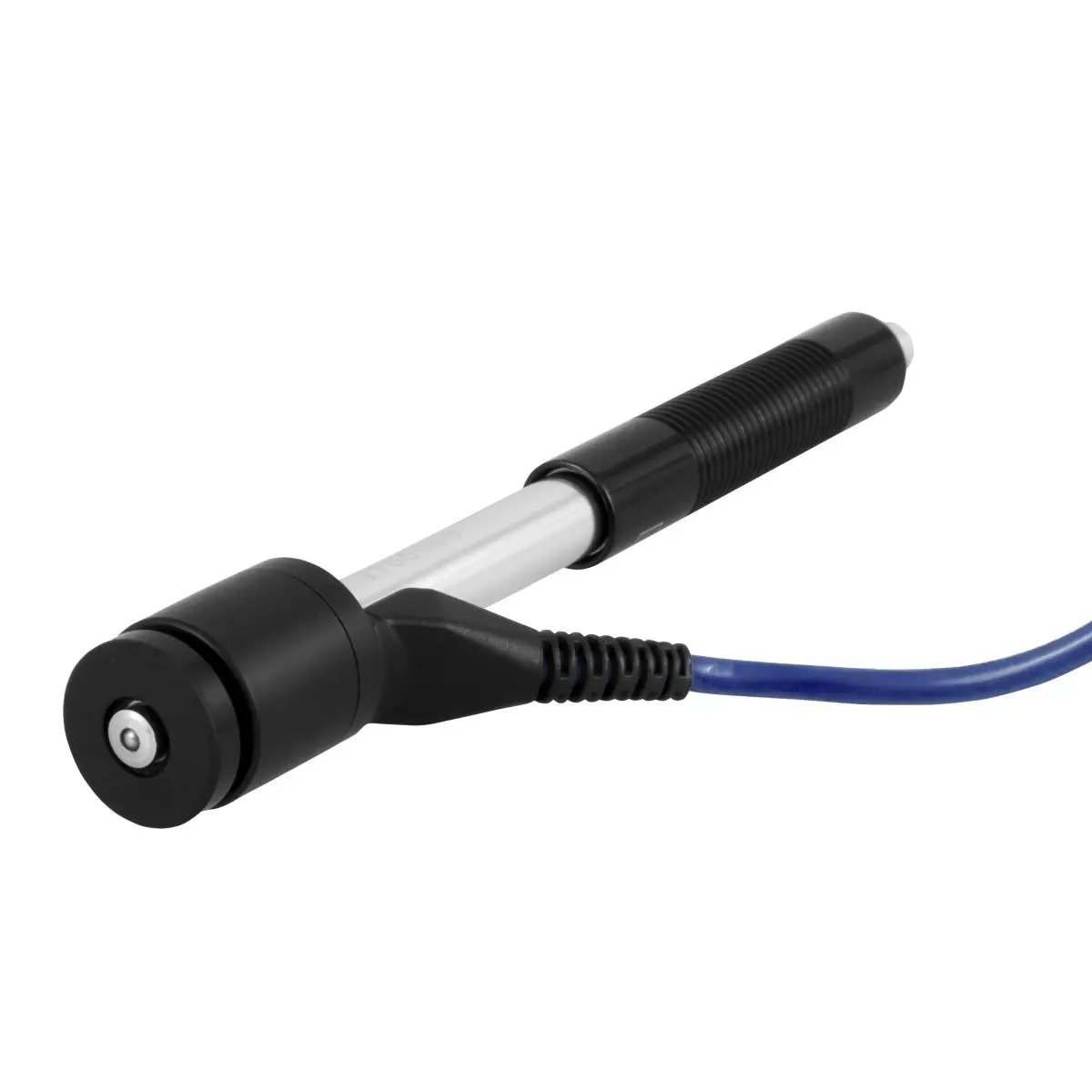

- External impact device on 1.5 m / 4.9 ft cable
- large measuring range
- High precision

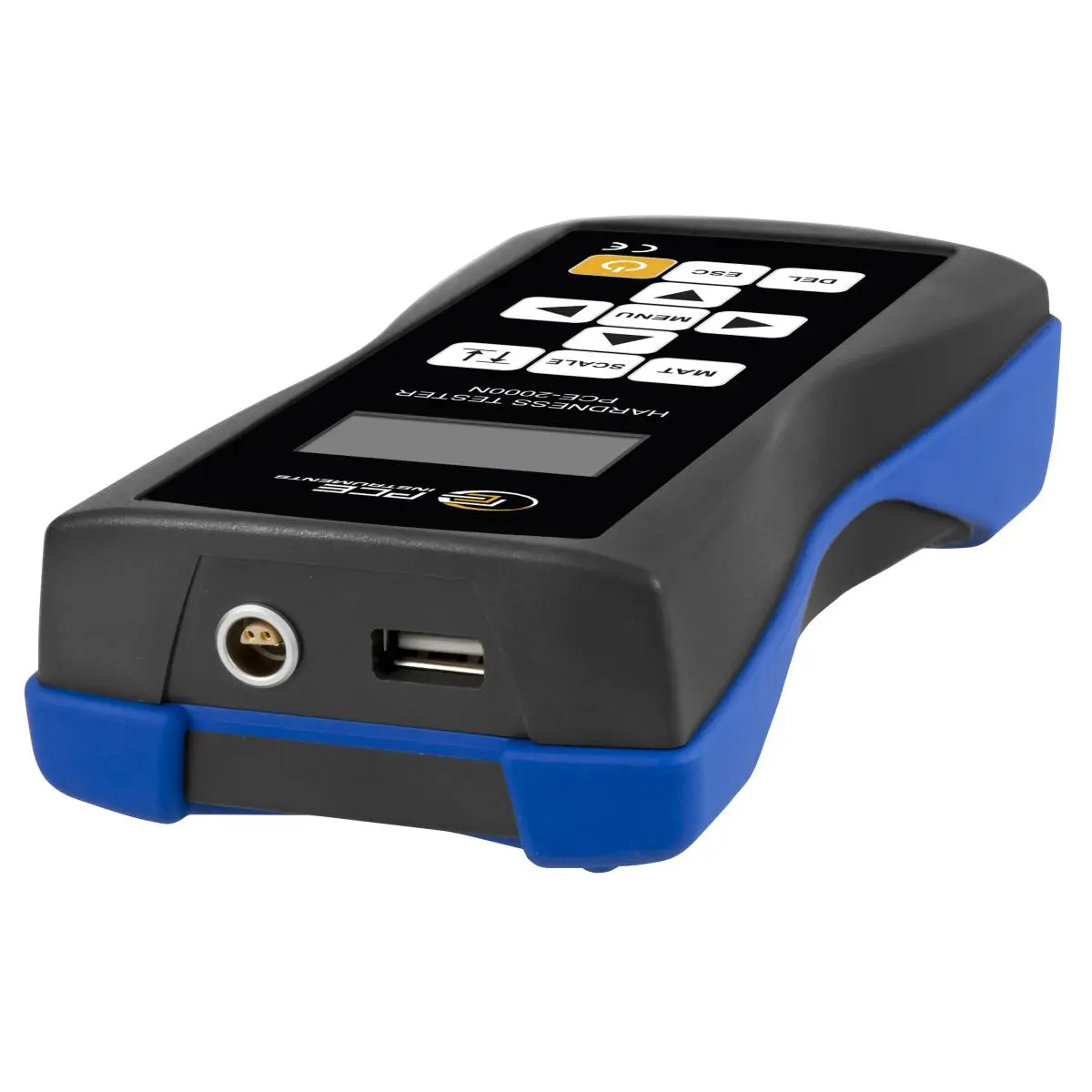

- Storage data measurements on USB stick
- Various other impactors as accessories
- Measurement in different angles possible

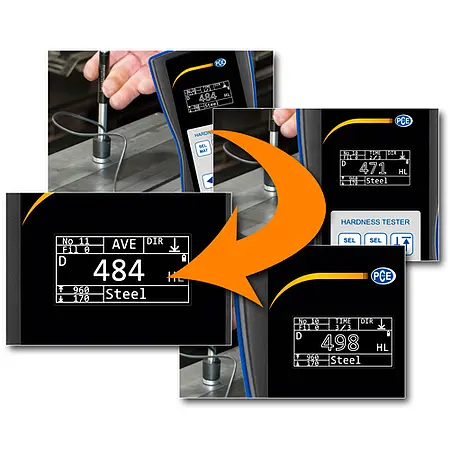

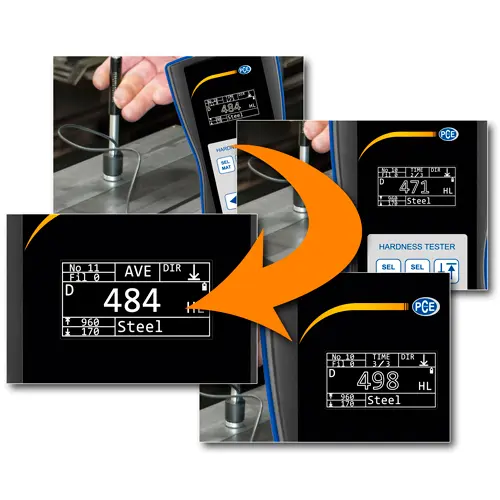

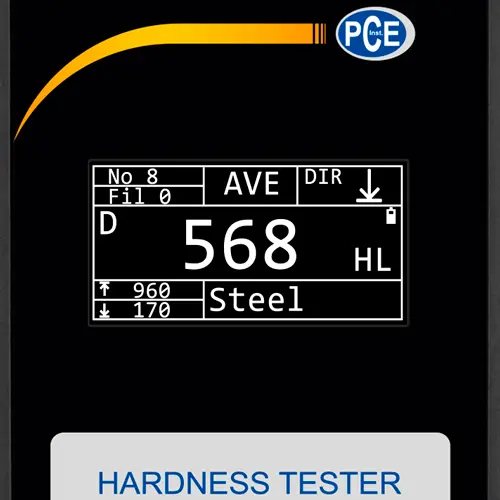

- Color display
Measuring ranges 170 ... 960 HLD
17.9 ... 69.5 HRC
19 ... 683 HB
80 ... 1042 HV
30.6 ... 102.6 HS
59.1 ... 88 HRA
13.5. .. 101.7 HRB

Impact device included
(optional impact devices) 		D
(DC, D + 15, C, G, DL)

Cable length impact device About 1.5 m / 4.9 ft
Accuracy ± 0.5% (@ 800 HLD)
Repeatability 0.8% (@ 800 HLD)

Hardness scales HL (Leeb)
HV (Vickers)
HB (Brinell)
HS (Shore)
HRA (Rockwell A)
HRB (Rockwell B)
HRC (Rockwell C)

Measurable materials Steel
Cast steel
Alloy steel
Stainless steel
Gray glacé
Ductile iron
Cast aluminum alloy
Cu-zinc (brass)
Copper-tin alloy,
Copper

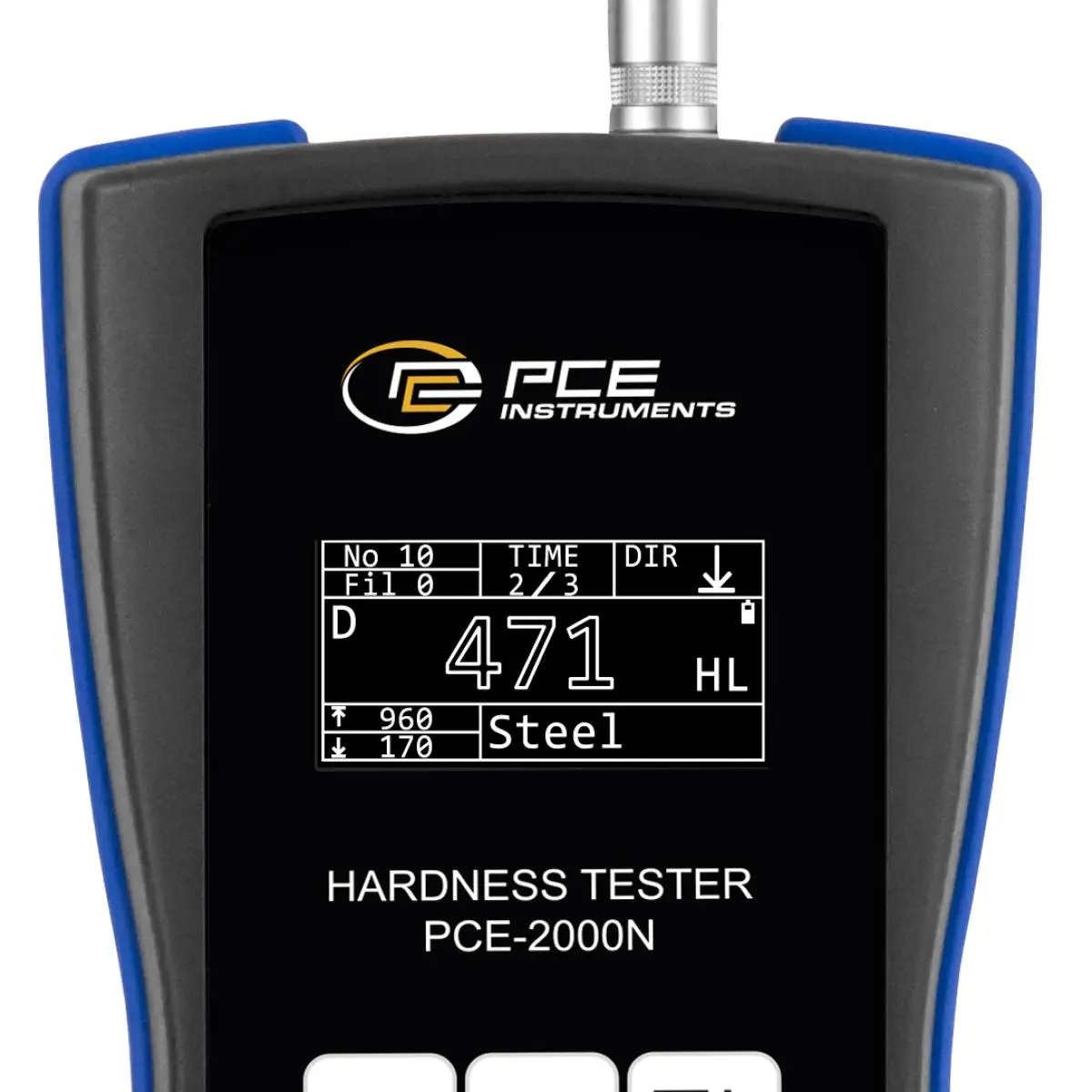

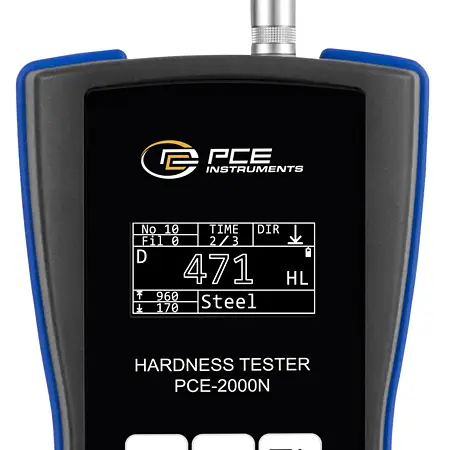

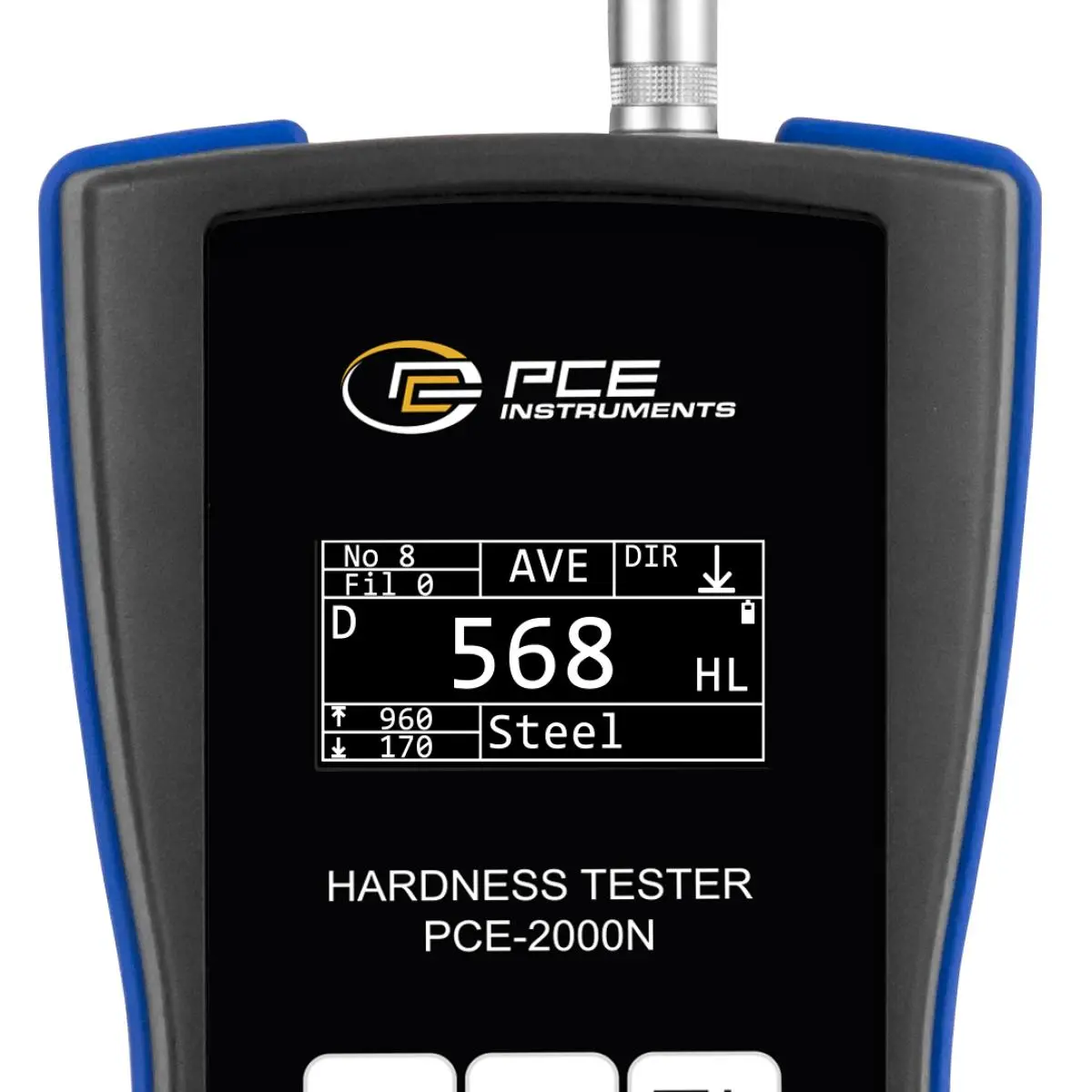

Display resolution 128 x 64 pixel OLED
Data storage 600 averages in 6 data groups
Data output USB stick
Power supply 3 x AA 1,5V-batteries
Auto Power-Off if not in use, the device shuts off automatically after 12 minutes
Operating conditions 10 ... 50°C / 50 ... 122°F, 20 ... 90% rh
Storage conditions -30 ... 60°C / -22 ... 140°F
Dimensions 160 x 80 x 40 mm / 6.3 x 3.1 x 1.6 in (H x W x D)
Weight Measuring device with batteries: approx. 300 g / < 1 lb
Impact device : approx. 75 g / < 1 lb

Material
Steel / cold rolled steel HRA 59.1 ... 85.8
HRC 20 ... 68.5
HRB 38.4 ... 99.6
HB 127 ... 651
HSD 32.2 ... 99.5
HV 83 ... 976

Alloyed tool steel HRC 20.4 ... 67.1
HV 80 ... 898

Stainless steel HRB 46.5 ... 101.7
HB 85 ... 655
HV 85 ... 802

Cast iron HB 93 ... 334

Ductile iron HB 131 ... 387

Cast aluminum HRB 23.8 ... 84.6
HB 19 ... 164

Brass HRB 13.5 ... 95.3
HB 40 ... 173

Bronze HB 60 ... 290

Copper HB 45 ... 315

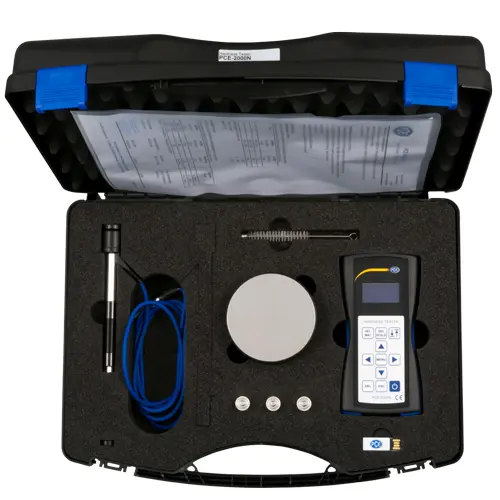

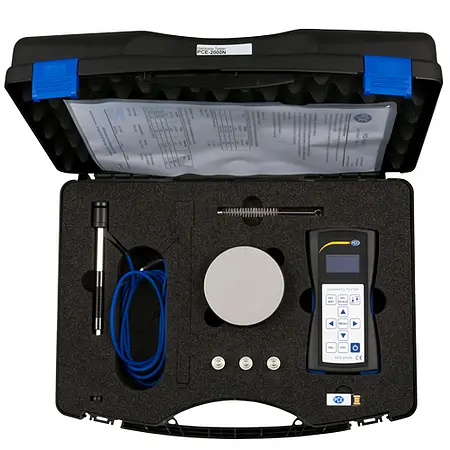

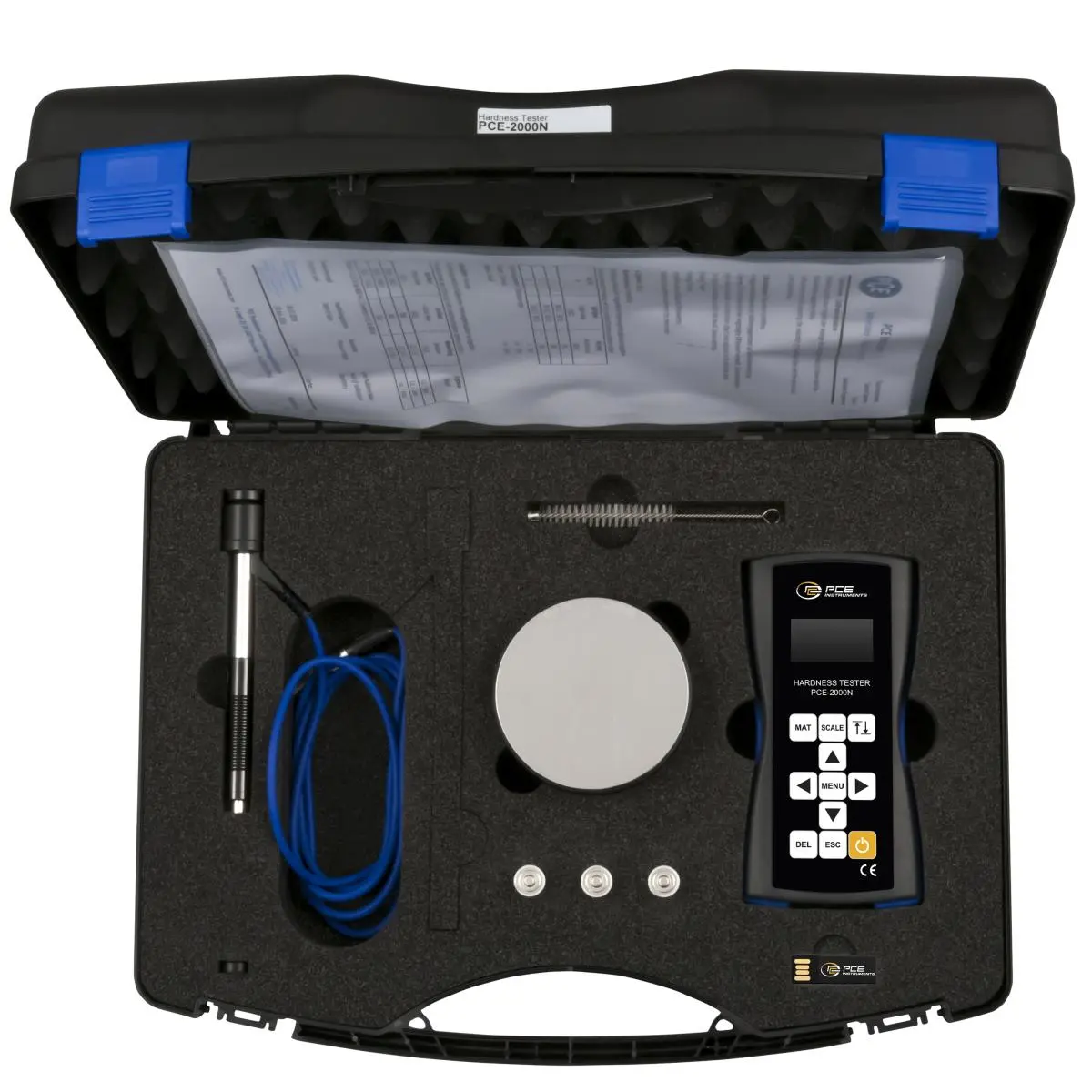

1 x Durometer PCE-2000N
1 x Hardness comparison block
1 x Striker type D
1 x Transport case
1 x Cleaning brush
1 x User manual
3 x AA 1,5V-batteries
2 x Stabilization ring
1 x 2 GB USB stick

Accessories

Order no.: CAL-HT-2
Calibration certificate CAL-HT-2
Calibration certificate for our hardness testers. This is often required to comply with DIN ISO 9000.

ISO calibration certificate for hardness testers with rebound hardness test according to Leeb / 3 measuring points (about 490 HLD, 660 HLD, 780 HLD)


N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
Manufacturer: PCE Instruments
£ 216.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-2000N Probe G
Impact Probe G
Special feature: Increased impact body with increased impact energy (about nine times the size of type D), eg. in the application of castings.

Technical Data
- Impact energy: 90 Nmm
- Mass of the impactor: 20g
- Max. sample hardness: 650 HB

Depth of impression
- At 300 HV: diameter 1.03 mm, depth 53 μm
- At 600 HV: diameter 0.90 mm, depth 41 μm
Catalogue: Measuring Instruments / Test Meters / Hardness Tester
Manufacturer: PCE Instruments
£ 601.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-2000N Probe DL
Impact Probe DL
Special feature: Diameter of the tube in the front part 2.78 mm, length 50mm. Measurements in inaccessible places and depressions.

Technical Data
- Impact energy: 11 Nmm
- Mass of the impactor: 7.3 g
- Max. sample hardness: 940 HV

Depth of impression
- At 300 HV: diameter 0.54 mm, depth 24 μm
- At 600 HV: diameter 0.45 mm, depth 17 μm
- At 800 HV: diameter 0.35 mm, depth 10 μm
Catalogue: Measuring Instruments / Test Meters / Hardness Tester
Manufacturer: PCE Instruments
£ 574.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-2000N Probe DC
Impact Probe DC
Special feature: Extremely short impact device e.g. in holes, cylinders or for internal measurements on machine parts. Suitable for limited accessibility.

Technical Data

- Impact energy: 11 Nmm
- Mass of the impactor: 5.5 g
- Max. sample hardness: 940 HV
- Height: 87 mm

Depth of impression
- At 300 HV: diameter 0.54 mm, depth 24 μm
- At 600 HV: diameter 0.45 mm, depth 17 μm
- At 800 HV: diameter 0.35 mm, depth 10 μm
Catalogue: Measuring Instruments / Test Meters / Hardness Tester
Manufacturer: PCE Instruments
£ 254.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-2000N Probe D+15
Impact Probe D+15
Special feature: Particularly narrow attachment with recessed coil, e.g. for hardness measurements in grooves and recesses.

Technical Data
- Impact energy: 11 Nmm
- Mass of the impactor: 7.8 g
- Max. sample hardness: 940 HV

Depth of impression
- At 300 HV: diameter 0.54 mm, depth 24 μm
- At 600 HV: diameter 0.45 mm, depth 17 μm
- At 800 HV: diameter 0.35 mm, depth 10 μm
Catalogue: Measuring Instruments / Test Meters / Hardness Tester
Manufacturer: PCE Instruments
£ 254.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-2000N Probe D
Impact Probe D
Special feature: standard impact device for most hardness testing applications e.g. on flanges, engine blocks, axles, gears, chassis, coil hardness tests, coils, rods, pipes and heat treatments.

Technical Data
- Impact energy: 11 Nmm
- Mass of the impactor: 5.5 g
- Max. sample hardness: 940 HV

Depth of impression
- At 300 HV: diameter 0.54 mm, depth 24 μm
- At 600 HV: diameter 0.45 mm, depth 17 μm
- At 800 HV: diameter 0.35 mm, depth 10 μm
Catalogue: Measuring Instruments / Test Meters / Hardness Tester
Manufacturer: PCE Instruments
£ 237.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-2000N Probe C
Impact Probe C
Special feature: reduced impact energy ca. 1/4 of type D e.g. for surface-hardened elements, sheaths, thin-coated or impact-sensitive parts, e.g. polished parts.

Technical Data
- Impact energy: 3 Nmm
- Mass of the impactor: 3.0 g
- Max. sample hardness: 1000 HV

Depth of impression
- At 300 HV: diameter 0.38 mm, depth 12 μm
- At 600 HV: diameter 0.32 mm, depth 8 μm
- At 800 HV: diameter 0.30 mm, depth 7 μm
Catalogue: Measuring Instruments / Test Meters / Hardness Tester
Manufacturer: PCE Instruments
£ 254.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: HK16.5-30
Adaptor spherical inside HK16.5-30
Adapter for measuring in spherical surfaces, e.g. in mold making. Allows centering and prevents slipping and thus measuring errors
  • Radius: 16.5 ... 30mm
  • Only for PCE-900, PCE-1000 and PCE-2000
Manufacturer: PCE Instruments
£ 32.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: HK12.5-17
Adaptor spherical inside HK12.5-17
Adapter for measuring in spherical surfaces, e.g. in mold making. Allows centering and prevents slipping and thus measuring errors
  • Radius: 12.5 ... 17mm
  • Only for PCE-900, PCE-1000 and PCE-2000
Manufacturer: PCE Instruments
£ 32.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: HK11-13
Adaptor spherical inside HK11-13
Adapter for measuring in spherical surfaces, e.g. in mold making. Allows centering and prevents slipping and thus measuring errors
  • Radius: 11 ... 13mm
  • Only for PCE-900, PCE-1000 and PCE-2000
Manufacturer: PCE Instruments
£ 32.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: HZ16.5-30
Adaptor concave inside HZ16.5-30

Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.

  • radius: 16.5 ... 30mm
  • only for PCE-900, PCE-1000, PCE-2000
Manufacturer: PCE Instruments
£ 32.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: HZ12.5-17
Adaptor concave inside HZ12.5-17

Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.

  • radius: 12.5 ... 17mm
  • only for PCE-900, PCE-1000, PCE-2000
Manufacturer: PCE Instruments
£ 36.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: HZ11-13
Adaptor concave inside HZ11-13
Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.
  • radius: 11 ... 13mm
  • only for PCE-900, PCE-1000, PCE-2000
Manufacturer: PCE Instruments
£ 32.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: Z25-50
Adaptor convex outside vZ25-50

Adapters for measuring with external radii, e.g. on round bars and pipes. Allows centering and prevents slipping and thus measuring errors
- radius: 25 ... 50mm
- only for PCE-900, PCE-1000 & PCE-2000

Manufacturer: PCE Instruments
£ 36.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: Z10-15
Adaptor convex outside Z10-15
Adapters for measuring with external radii, e.g. on round bars and pipes. Allows centering and prevents slipping and thus measuring errors
- radius: 10 ... 15mm
- only for PCE-900, PCE-1000 & PCE-2000
Manufacturer: PCE Instruments
£ 36.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-HAK
Adapter set for hardness measuring instruments with Impact D impactor

Consisting of:

HZ12.5-17 Mounting adapter concave, 12.5 ... 17 mm (inside)
HZ11-13 Mounting adapter concave, 11 ... 13 mm (inside)
HZ16.5-30 Mounting adapter concave, 16.5 ... 30 mm (inside)

Z10-15 Mounting adapter convex, 10 ... 15 mm (outside)
Z14.5-30 Mounting adapter convex, 14.5 ... 30 mm (outside)
Z25-50 Mounting adapter convex, 25 ... 50 mm (outside)

HK11-13 Ball mounting adapter ball, 11 ... 13 mm (inside)
HK12.5-17 Ball mounting adapter ball, 12.5 ... 17 mm (inside)
HK16.5-30 Ball mounting adapter ball, 16.5 ... 30 mm (inside)

K14.5-30 Mounting adapter ball, 14.5 ... 30 mm (outside)
K10-15 Mounting adapter ball, 10 ... 15 mm (outside)


UN Universal Holder
Catalogue: Measuring Instruments / Test Meters / Hardness Tester
Manufacturer: PCE Instruments
£ 290.00
