Durometer for Metals with ISO Certificate PCE-2500N-ICA

Order no.: PCE-2500N-ICA
ISO Calibration
£ 618.00
£ 741.60
PCE-2500N-ICA
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

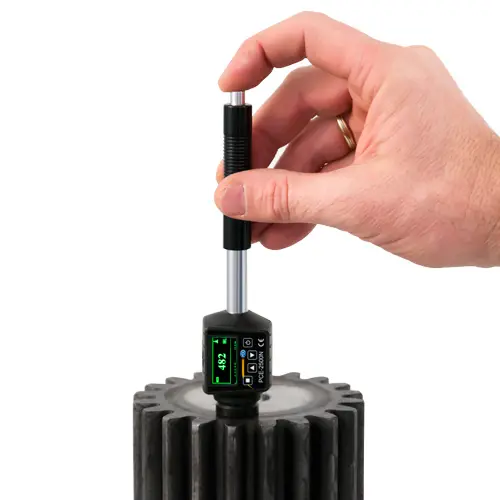

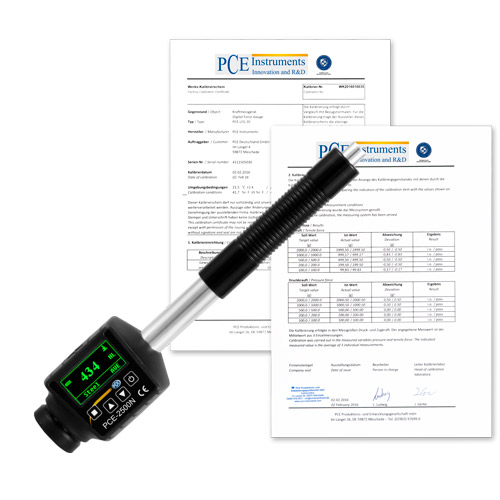

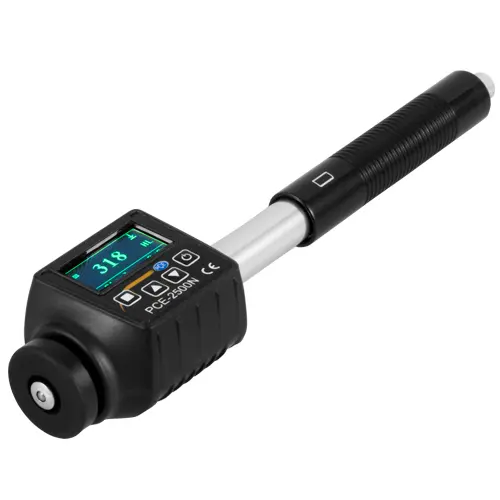

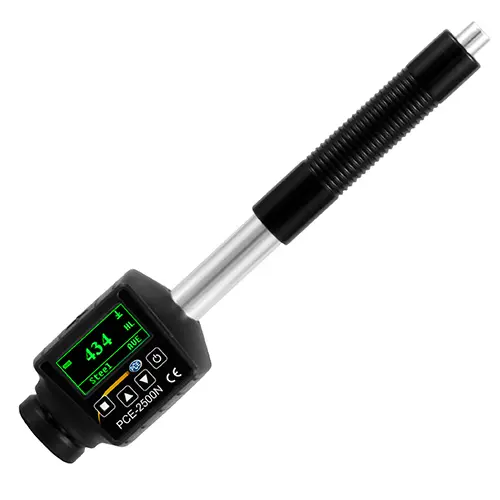

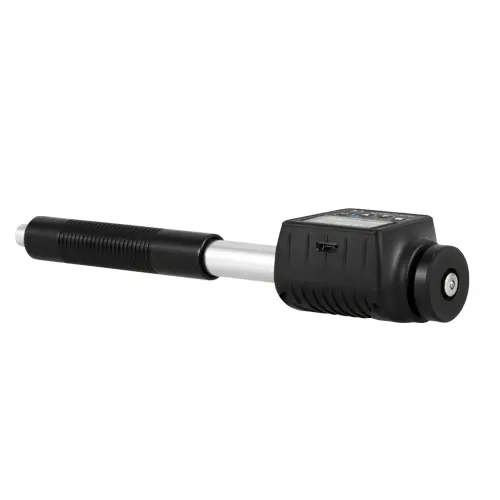

PCE-2500N-ICA Durometer for Metals with ISO Calibration Certificate
Portable handheld pen-sized hardness tester for use with steel, iron, aluminum, brass, bronze, copper and more

PCE-2500N-ICA is a portable handheld pen-sized digital material hardness tester, rebound hammer or durometer for use with metals. This high-accuracy hardness tester quickly and accurately measures the surface hardness of 10 common metal materials including steel, cast steel, alloy tool steel, stainless steel, cast iron, ductile iron, cast aluminum alloy, brass, bronze and copper. This device comes with an ISO calibration certificate.


- Displays measurements in Rockwell A, B or C (HRA, HRB or HRC), Brinell (HB), Vickers (HV), Shore (HS) or Leeb (HLD)
- Measurement ranges: 170 ... 960 HLD, 17.9 ... 69.5 HRC, 3.5 ... 101.7 HRB, HB 19 ... 683 HB,
   80 ... 1042 HV, 30.6 ... 102.6 HS, 59.1 ... 88 HRA
- Accuracy: ± 0.5 HLD
- Type D impact device
- Measuring principle: Rebound method
- For use with metal materials
- Pocket-sized design
- Rechargeable Li-ion battery
- Internal read-only memory
Measuring ranges HLD: 170 ... 960
HRC: 17.9 ... 69.5
HB: 19 ... 683
HV: 80 ... 1042
HS: 30.6 ... 102.6
HRA: 59.1 .. 88
HRB: 3.5 ... 101.7
Measurement accuracy        HLD: ± 0.5%
Measuring principle Rebound method
Impact device Type D striker

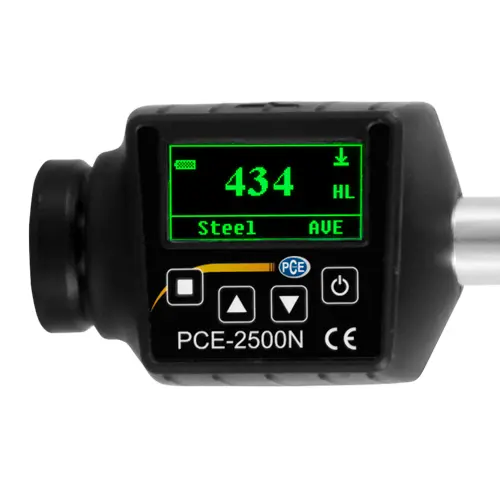

Display 128 x 64 OLED
Repeatability HLD: ± 0.8%
Hardness max. 1042 HV
Measurement units HLD, HRC, HB, HV, HS, HRA, HRB
Running time Approx. 10 hours of continuous use at full charge
Power supply Rechargeable Li-ion battery
Storage conditions -30 ... 60°C / -22 ... 140°F, <90% RH
Operating conditions -10 ... 50°C / 14 ... 122°F, <90% RH
Dimensions 148 x 32 x 25 mm / 5.83 x 1.26 x 0.99 in
Limit alarm Yes
Automatic shutdown    Yes
Weight 650 g / 1.44 lbs
Materials Steel
  Cast steel
  Alloyed tool steel
  Stainless steel
  Cast iron
  Ductile iron
  Cast aluminum alloy
  Brass
  Bronze
  Copper
Measuring ranges on various material surfaces
Steel  HRC: 17.9 ... 68.5
HRB: 59.6 ... 99.6
HRA: 59.1 ... 85.8
HB: 127 ... 651
HV: 83 ... 976
HS: 32 , 2 ... 99.5
Tool steel HRC: 17.9 ... 68.5
HRB: 59.6 ... 99.6
HRA: 59.1 ... 85.8
HB: 127 ... 651
HV: 83 ... 976
HS: 32 , 2 ... 99.5
Stainless steel HRB: 46.5 ... 101.7
HB: 85 ... 655
HV: 85 ... 802
Cast iron HB: 93 ... 334
Brass HRB: 13.5 ... 95.3
HB: 40 ... 173
Bronze HB: 60 ... 290
Copper HB: 45 ... 315

1 x PCE-2500N-ICA durometer for metals
1 x Charging cable
1 x Test block
1 x Cleaning brush
1 x ISO calibration certificate
1 x User manual
1 x Carrying case

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
