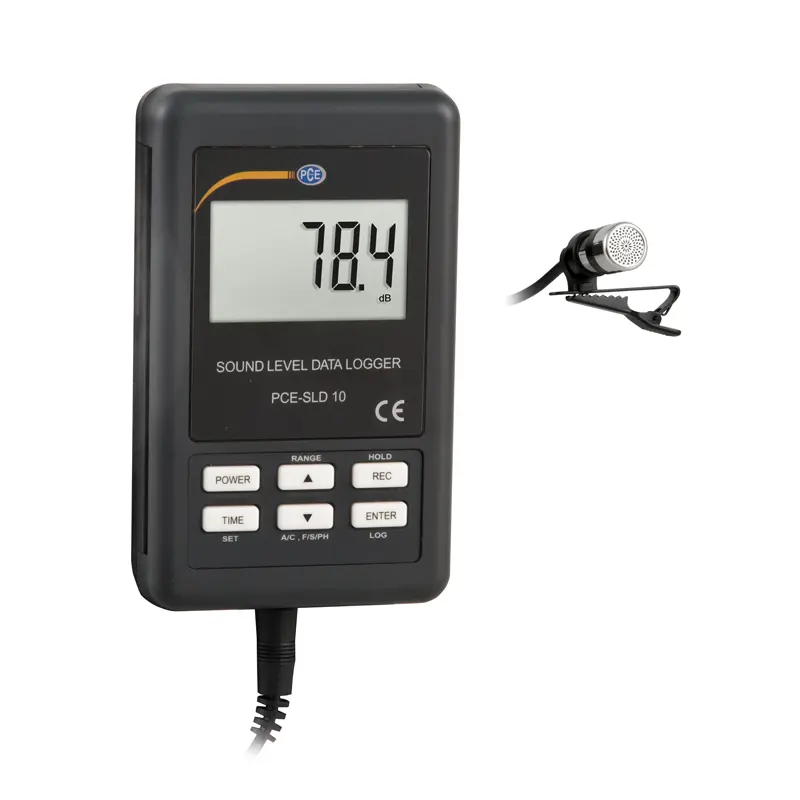

Decibel Meter PCE-SLD 10-ICA Incl. ISO Calibration Certificate

Order no.: PCE-SLD 10-ICA
ISO Calibration
£ 361.00
£ 433.20
price ex. (VAT / delivery)
Delivery time: 10 - 14 days
Decibel meter PCE-SLD 10-ICA incl. ISO calibration certificate
Sound level data logger with 4 ... 20-mA output / Memory on SD card / Excel data logger / A & C rating / Large LC display

The sound level data logger PCE-SLD 10 is used for permanent monitoring of the sound level. In addition to storing the measured values, the sound level data logger is able to display the measured values ​​on a display and output them as a 4 ... 20-mA analog value. The sound level data logger has a wide measuring range of 30 ... 130 dB. Frequency weighting is done in A or C depending on the selected measurement mode. Alternatively, the sound level data logger can measure the sound level in fast or slow mode.

The measured values ​​are stored by the sound level data logger as an Excel file on a memory card. This has the advantage that after a measurement, the SD memory card can be easily removed from the sound level data logger and the data can be evaluated without additional software. The PCE-SLD 10 sound level data logger is powered by 6 x 1.5V AAA batteries. For long-term operation, an external plug-in power supply is included in the sound level data logger.

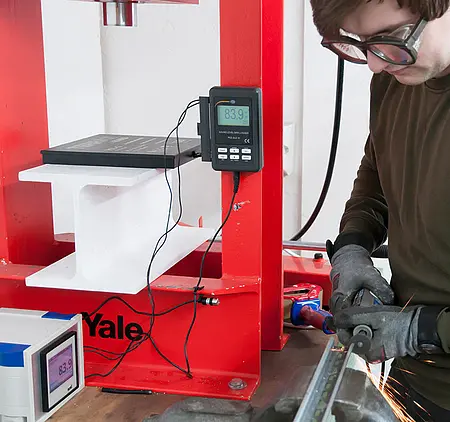

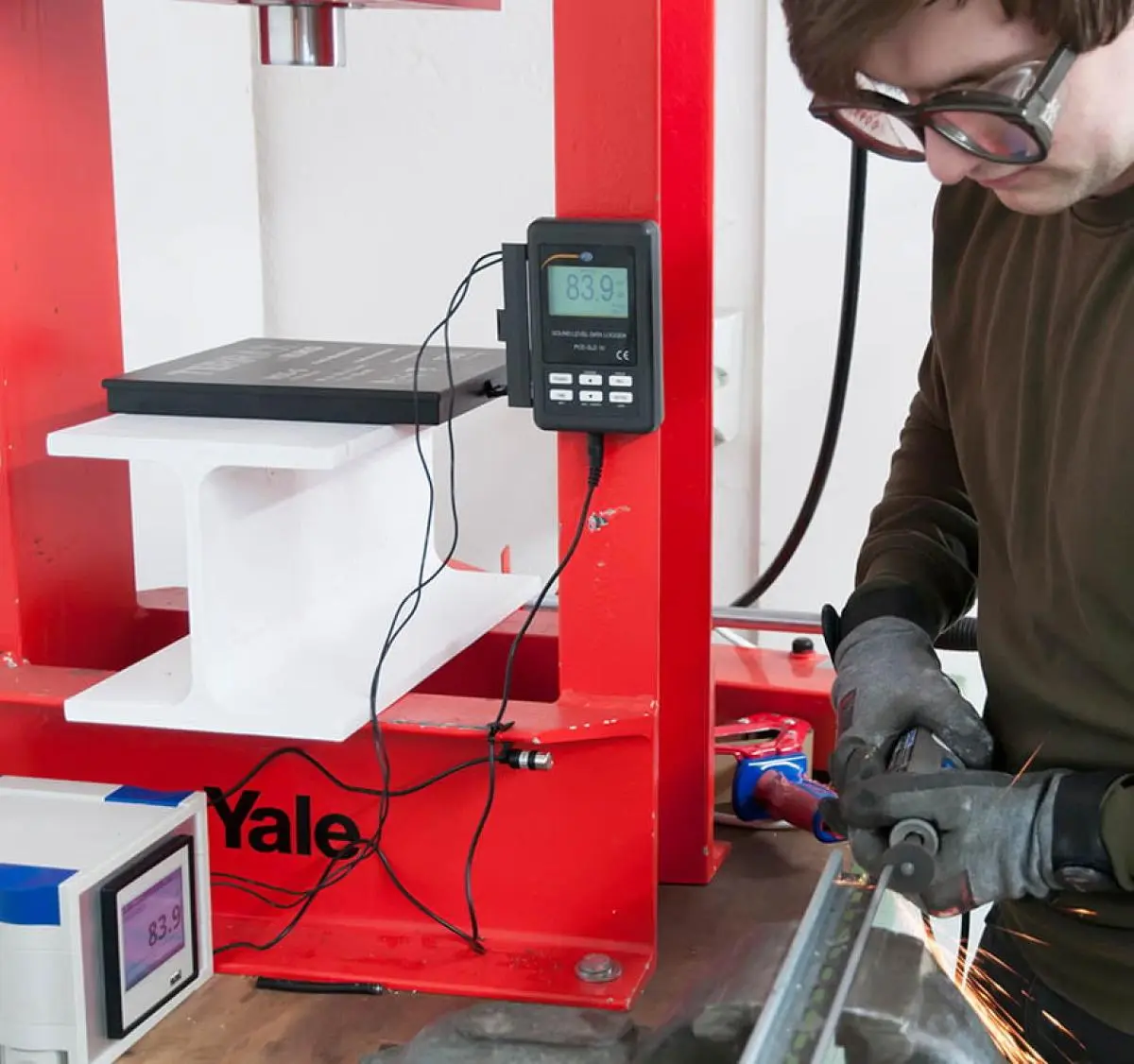

The sound level data logger PCE-SLD 10 is used wherever the noise level has to be permanently monitored and a controller is to carry out further actions. In a production hall, for example, this can be the visualization of the sound level on a large display. Or, in conjunction with switchgear, closing windows and doors when the sound level is exceeded.

- Wide measuring range up to 130 dB

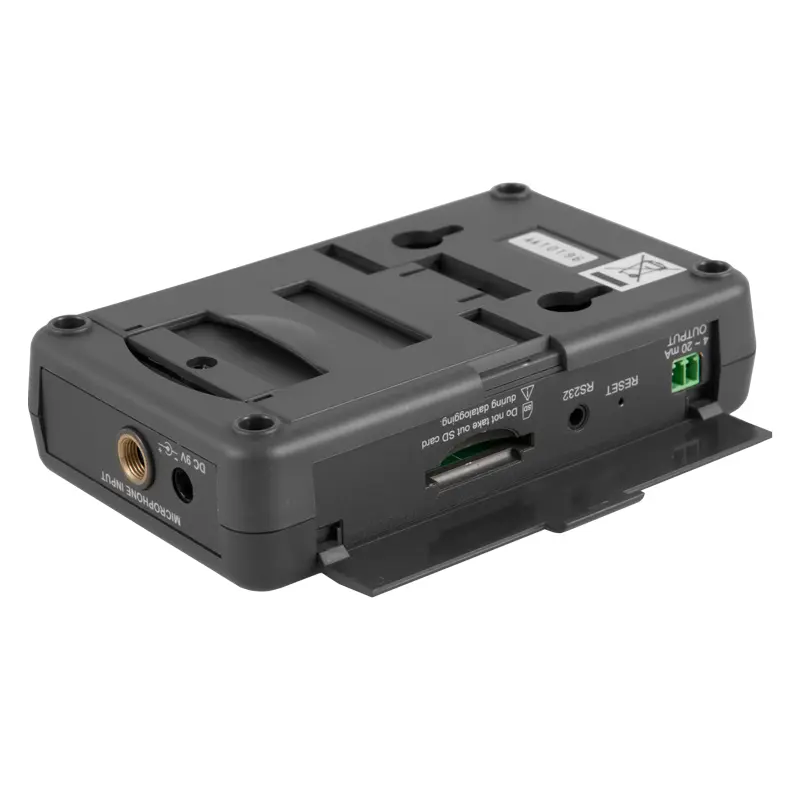

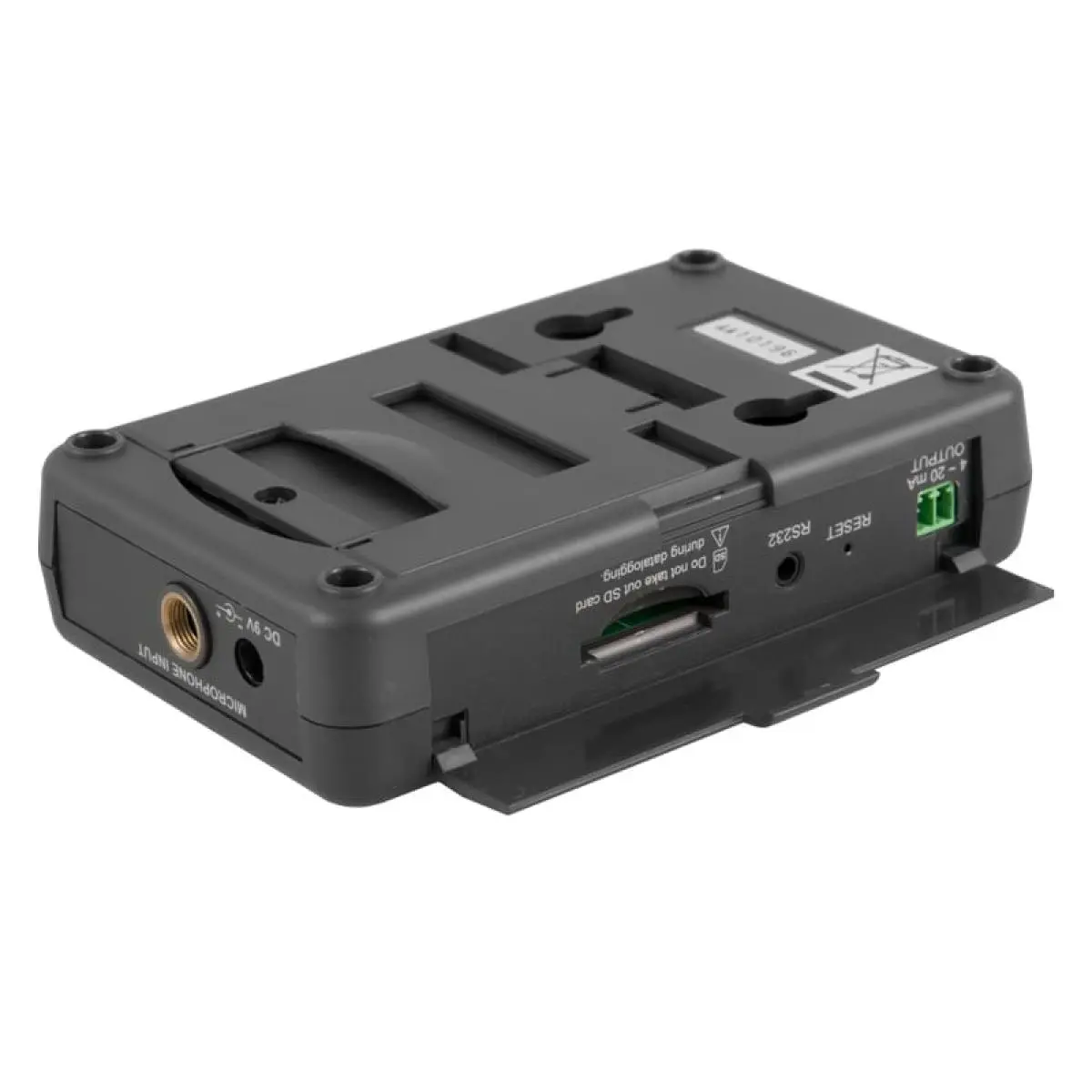

- Analog output with 4 ... 20-mA
- Data interface

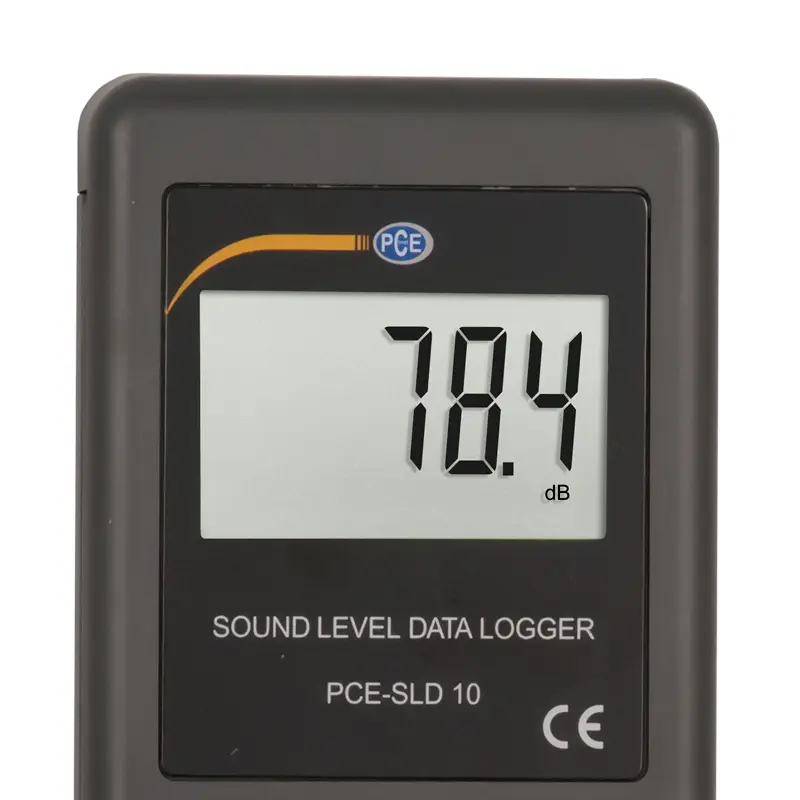

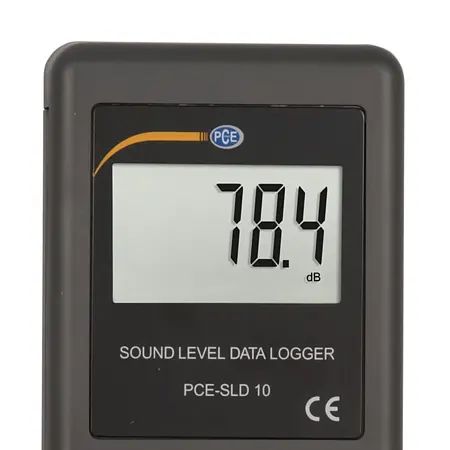

- LC display
- SD card memory up to 16 GB
- EXCEL storage
- External microphone
- Battery and mains operation
- Incl. ISO calibration certificate
Measuring range 30 ... 130 dB
Measurement accuracy Based on class 2 according to IEC61672
Resolution 0.1 dB
Frequency A & C
Term review Fast: 125 ms
  Slow: 1 s
Frequency range 31.5 Hz ... 8 kHz
Measuring range selection 30 ... 130 dB (auto)
  30 ... 80 dB
  50 ... 100 dB
  80 ... 130 dB
Measurement functions Hold by pressing a button
  Peak Hold
Analog output

4 ... 20-mA


Note: The scaling of the analog output depends on the selected measuring range.


Adjustment Via optional calibrator in an internal menu
Data storage SD card max 16 GB
Storage rate 5 s, 10 s, 30 s, 60 s, 120 s, 300 s, 600 s, 1800 s, 3600 s
Memory error <0.1% of the total stored data
Refresh rate from the display              About 1 s
Interface Serial, for live visualization on computers
  (Data cable SOFT-LUT-USB sold separately)
Power supply 6 x 1.5V AAA batteries
  9V / 1 A power adapter
Automatic shutdown After 10 minutes without operation
  Disabled when in power supply mode
Operating conditions 0 ... 50°C / 32 ... 122°F,  max. 85 rh
Weight About 230 g / < 1 lb
Dimensions Device: 132 x 90 x 32 mm / 5.2 x 3.5 x 1.3 in
  Microphone: 12.5 x 32 mm
  Cable length: approx. 120 cm

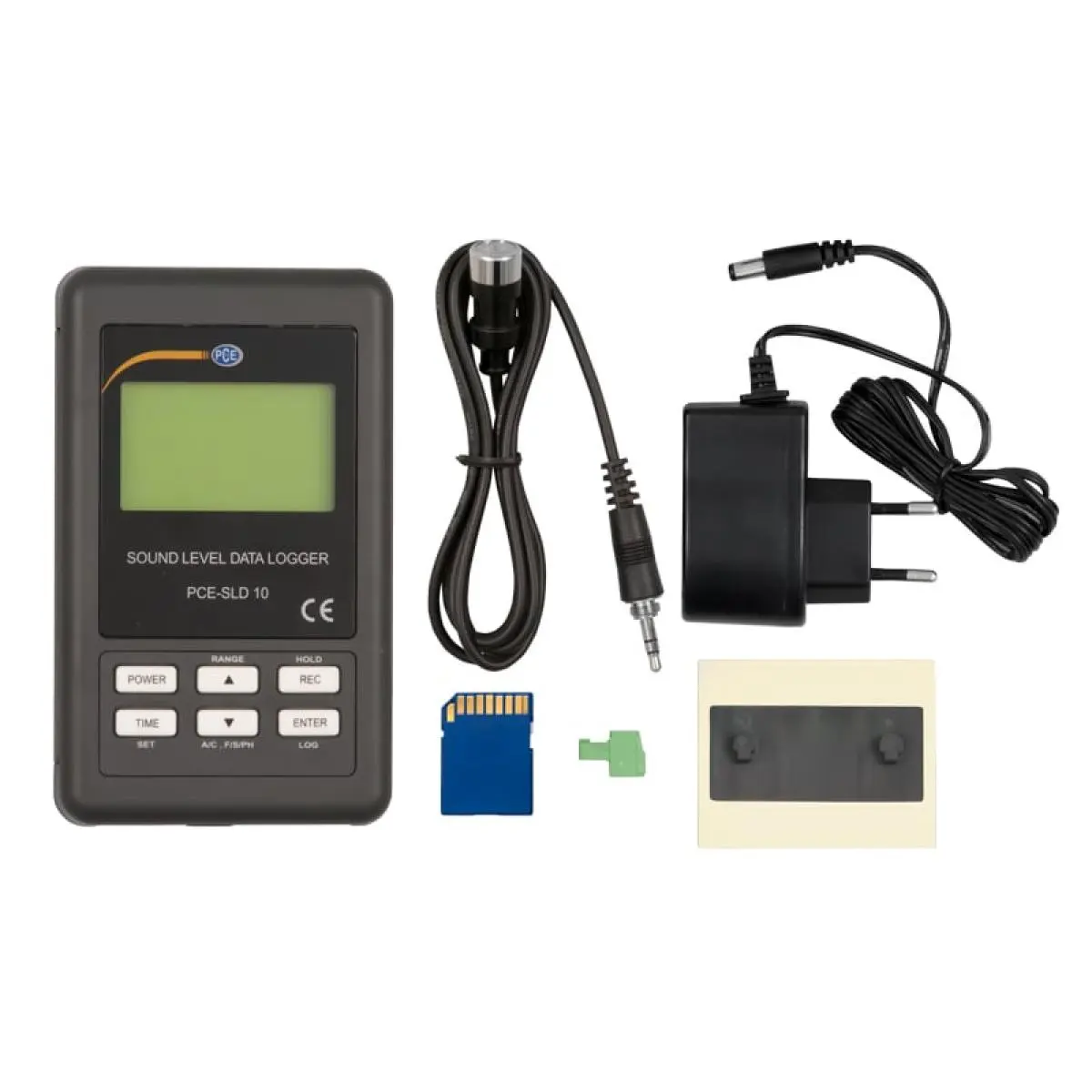

1 x Decibel meter PCE-SLD 10
1 x Microphone
1 x Wall holder
1 x Memory card
1 x 4 ... 20 screw connectors
1 x Power adapter 9V / 1 A
1 x User manual

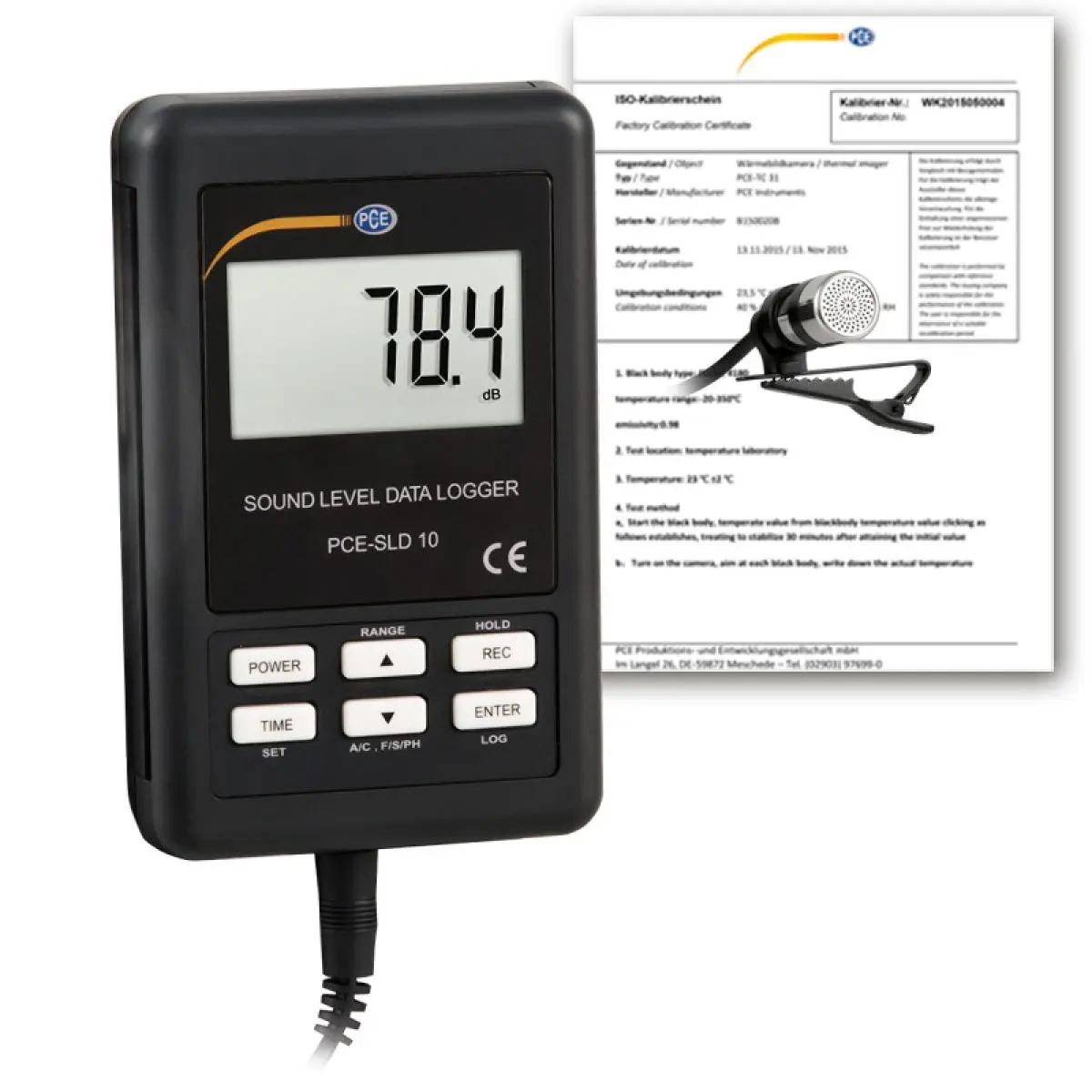

1 x ISO calibration certificate
