Damp Meter

Here you will can find a damp meter for different types of materials. Using a damp meter is a very simple and comfortable task to detect the moisture of the materials both resistively and capacitively. A damp meter is used to determine moisture of walls, concrete, attics and wood. A damp meter is also used to detect absolute moisture in the field of agriculture to ascertain the correct time to plant a crop to achieve the highest yield.

The damp meter will control the process of drying in grain and animal feed by means of telling the user when it is appropriate to move onto the next stage of the drying process. Different moisture probes can be connected to the damp meter corresponding to the materials which are to be measured. For most of the materials you will find calibration curves within the internal memory of the damp meter. You then only need to select the appropriate calibration curve for the material that you wish to measure.

If there is no deposit characteristic curve for a material, the user is able to program specific characteristic curves (only possible with the FMD). In order to do this, tests for the correlation must be done with the help of a drying cupboard. With the appropriate software the user is able to document measured results of the damp meter and to use these results for further purposes.

Also in the field of renewable energy the damp meter is needed as the absolute moisture of solid biomass and wood can be determined, with the drying completed with a solar kiln as to provide a zero carbon energy source. Especially during the manufacturing of wood pallets the damp meter can be used to ensure quality guidelines.

Catalog

Damp meter catalog

If you have any questions, please contact us at or +44 ( 0 ) 2380 987 03 0.

Damp Meter for Building Materials PCE-PMI 1

Order no.: PCE-PMI 1

Damp Meter for Building Materials PCE-PMI 1

PCE-PMI 1 is a nondestructive concrete moisture meter or dampness tester that measures the moisture content of concrete and other construction materials. Ideal for use with floors, ceilings and walls, this electronic moisture analyzer enables fast, reliable, noninvasive moisture measurement without damaging the surface.

- Offers high-frequency penetration up to 40 mm / 1.57 inches in depth
- Features an impact-resistant plastic housing
- Includes a metallic sphere or ball sensor

Manufacturer: PCE Instruments

Damp Meter for Building Materials PCE-PMI 2

Order no.: PCE-PMI 2

Damp Meter for Building Materials PCE-PMI 2

PCE-PMI 2 is a nondestructive concrete moisture meter or dampness instrument that measures the moisture content of concrete and other building materials. It offers many preset characteristic curves based on alternative material densities. This digital moisture device gives quick and accurate moisture measurement without causing any damage to the test material.

- Offers high-frequency penetration up to 50 mm / 1.96 inches in depth
- Features an alarm function when exceeding threshold levels
- Includes a metallic sphere or ball sensor

Manufacturer: PCE Instruments

Order no.: PCE-PMI 3

Damp Meter PCE-PMI 3

The PCE-PMI 3 damp meter is a small and reliable measuring instrument for the determination of existing moisture in, for example, concrete and wood. Corresponding scales for measuring moisture are already stored in the library of the damp meter.

- Relative scale: 0.0 ... 99.9%
- Accuracy: ± 0.5%
- Resolution: 0.1%
- For measurements on wood and concrete
- Individually adjustable alarm limits
- Setting in CM% possible
- Numerical and graphical view
- Results are delivered by Carbit method

Manufacturer: PCE Instruments

Order no.: PCE-SMM 1

Damp Meter for Soil PCE-SMM 1

PCE-SMM 1 is a damp meter for soil ideal for use in agriculture, crop science, horticulture, botany, landscaping, gardening and environmental testing applications. This portable handheld moisture meter or analyzer measures soil moisture or humidity quickly, easily and accurately.

- Moisture measurement range: 0 ... 50 %
- Resolution: 0.1 %
- Accuracy: ±5 % +5 digits
- 250 mm / 9.84" long probe

Manufacturer: PCE Instruments

Order no.: PCE-WP21

Damp Meter for Concrete PCE-WP21

PCE-WP21 is a concrete absolute moisture meter used to perform noninvasive, nondestructive moisture measurements of concrete construction and building materials. An ideal tool for assessing the drying and curing of concrete slabs, footings, foundations, floors and more, this moisture meter uses electromagnetic waves that penetrate approximately 50 mm / 1.96 inches deep to return a mean-value moisture content percentage.

- Moisture content measuring range: 1% ... 8%
- Resolution: 0.1%
- Accuracy: ±0.7%

Manufacturer: PCE Instruments

Order no.: PCE-PMI 4

Damp Meter PCE-PMI 4

The damp meter is a measuring device for nondestructive moisture measurement on concrete and screed. Here, the spring electrodes of the damp meter are pressed onto the surface to be tested. Within seconds, the damp meter will show the moisture content to the operator.

- Relative scale: 0 ... 100%
- Accuracy: ± 0.5%
- Resolution: 0.1%
- For measuring the moisture in concrete and screed
- Numeric and graphical view
- Eight spring electrodes are used for the measurement

Manufacturer: PCE Instruments

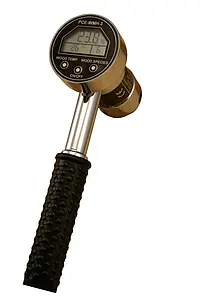

Order no.: PCE-WMH-3

Damp Meter for Wood PCE-WMH 3

PCE-WMH-3 is a portable handheld digital damp meter or analyzer used to measure the moisture content of wood. This hammer-style wood moisture analyzer features preset characteristic curves for measuring moisture in 270 different wood types.

- Measuring range: 6 ... 60 % moisture content
- Accuracy: ±1 % (within 6 ... 12 % range), ±2 % (13 ... 28 %), ±2 % (29 ... 60 %)
- Resolution: 0.1 %

Manufacturer: PCE Instruments

Order no.: PCE-HGP

Multifunction Damp Meter PCE-HGP

PCE-HGP is a multifunction moisture tester for wood that uses penetrating pins to measure the moisture content of wood and other construction or building materials. PCE-HGP also measures the relative humidity (RH) and ambient temperature and calculates the dew point temperature of the air.

- Material moisture measuring range: 6% ... 60%
- RH measuring range: 0% ... 100%
- Air temp. measuring range: -5 ... 50ºC / 23 ... 122ºF
- Dew point temp. measuring range: -9 ... 50ºC / 16 ... 122ºF
- Measures 3 wood groups (12 types + 270 exotic types)

Manufacturer: PCE Instruments

Order no.: PCE-W3

Damp Meter PCE-W 3

Absolute Moisture Meter PCE-W3 for waste paper. The Absolute Moisture Meter can detect absolute humidity in waste paper in order to determine the exact humidity content in the collection centre or in the paper-making factory. All test instruments come manufacturer calibrated. ISO certification can be ordered as an option.

- Test / Measurement range: 6 ... 30 %
- Resolution: 0.1 %
- Accuracy: ±10 % of the measurement value
- Long probes
- Accurate measurement

Manufacturer: PCE Instruments

Order no.: PCE-WP24

Damp Meter for Wood PCE-WP24

PCE-WP24 is a damp meter for wood used to perform noninvasive, nondestructive moisture measurements of wood, timber and other construction or building materials. An ideal tool for assessing everything from lumber to floors and more, this moisture meter uses electromagnetic waves that penetrate approximately 50 mm / 1.96 inches to 60 mm / 2.36 inches deep (depending on substrate) to return a mean-value moisture content percentage.

- Moisture content measuring range: 4% ... 60% wood, 0% ... 10% building
materials
- Resolution: 0.1%
- Accuracy: ±0.7%

Manufacturer: PCE Instruments

Order no.: HM-BP1

Damp Meter HM-BP1

This Damp Meter HM-BP1 has been developed to measure moisture in wood pellets quickly and accurately.

- Robust and stainless casing
- Automatic temperature compensation
- Sample material temperature measurement
- Temperature switchable between °C and °F
- Interference-free measurement method

Manufacturer: Messtechnik Schaller GmbH
