Order no.: PCE-PA 8300-1

Current Clamp PCE-PA 8300-1

£ 2,667.00
£ 3,200.40
:
4250348716750
PCE-PA 8300-1
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

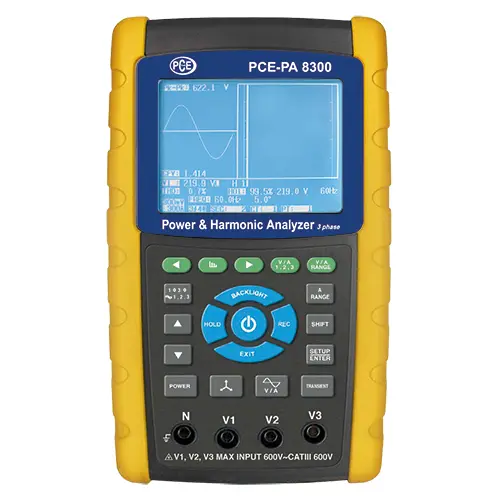

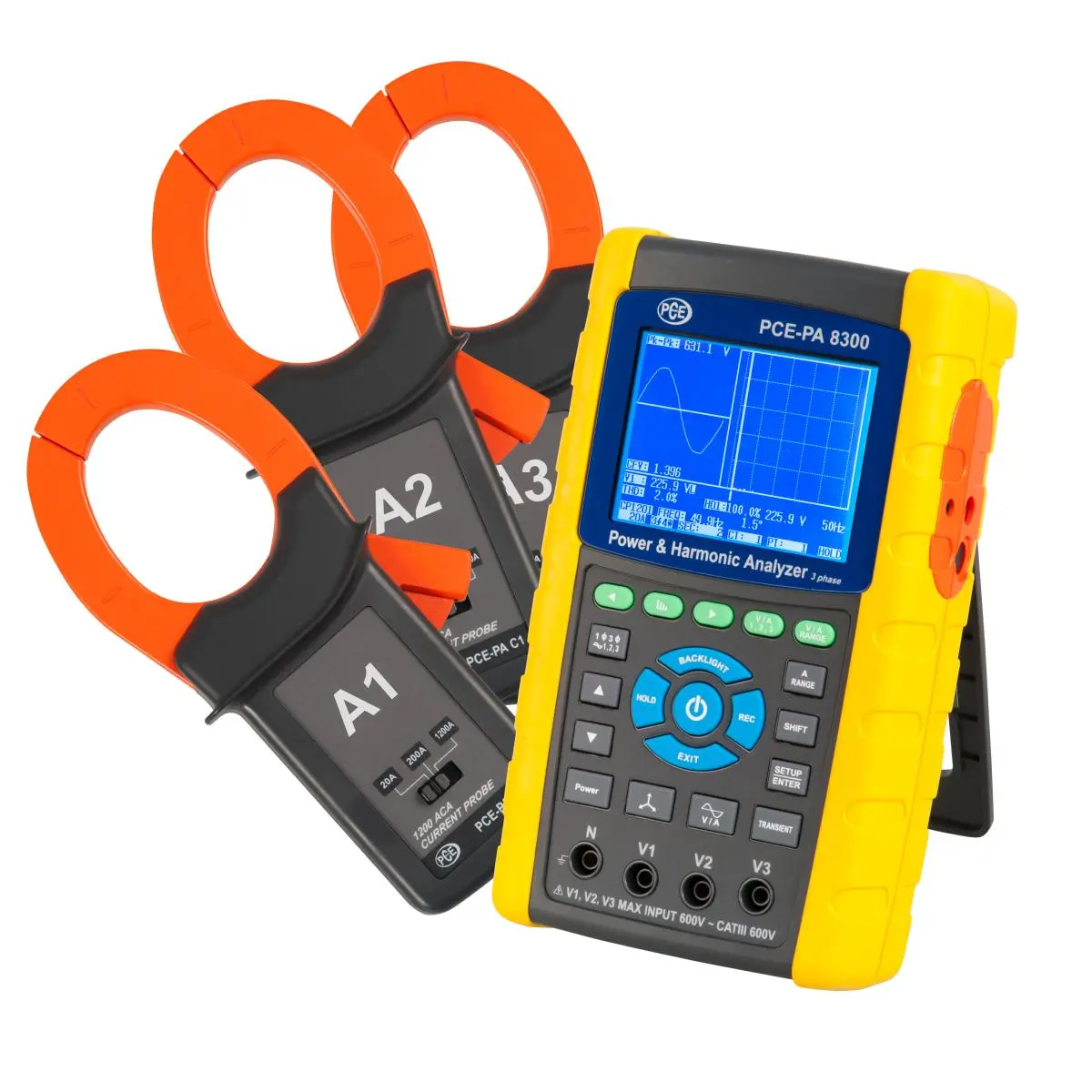

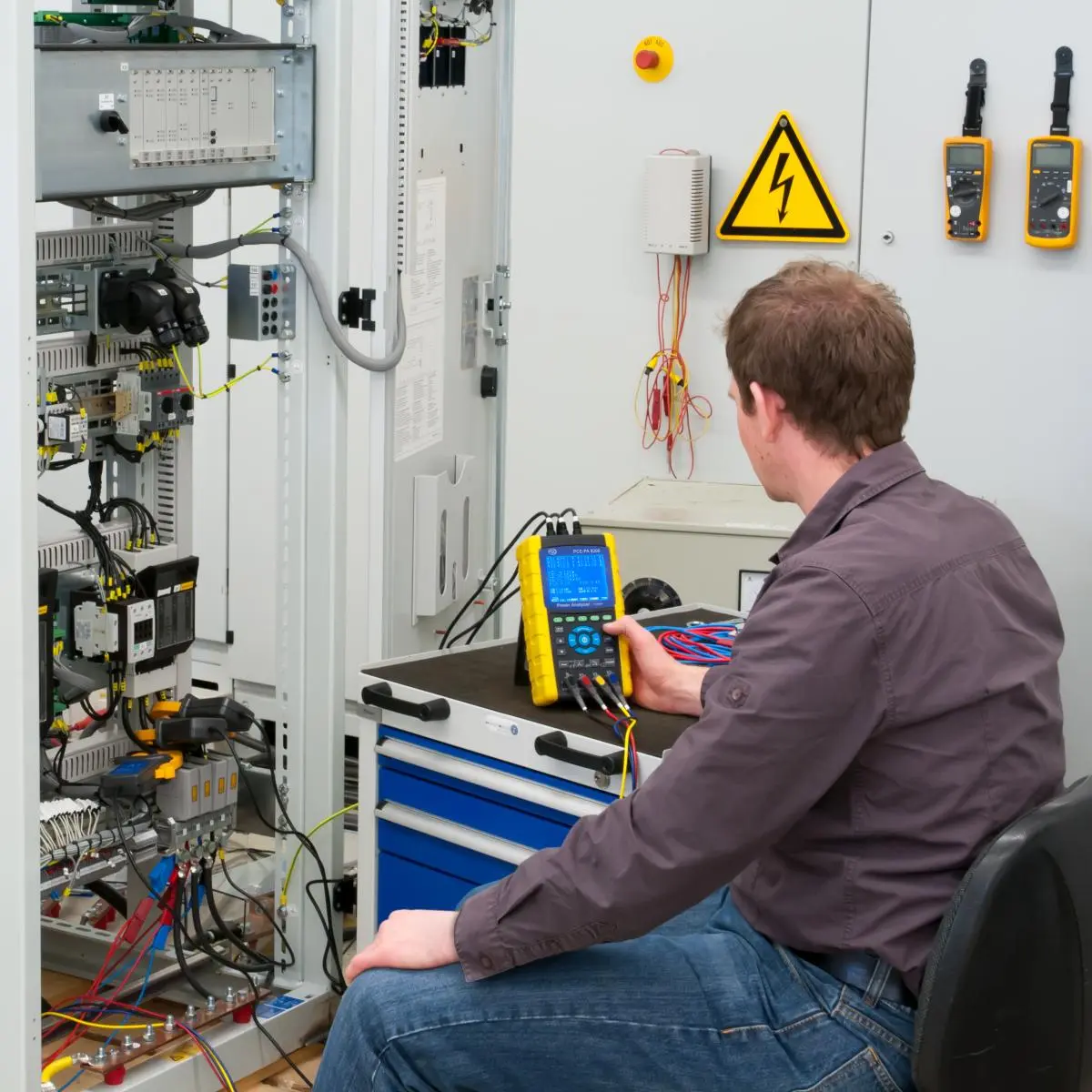

PCE-PA 8300 Current Clamp
3-phase / 3 current clamps / LCD graphic display / SD card memory

The PCE-PA 8300 is a Current Clamp that features a durable enclosure, SD card memory, a LCD graphic display, as well as apparent, effective, and reactive power measurement. The easy-to-use PCE-PA 8300 Current Clamp is the ideal tool for performing power and harmonics analysis as well as for measuring network capacity.

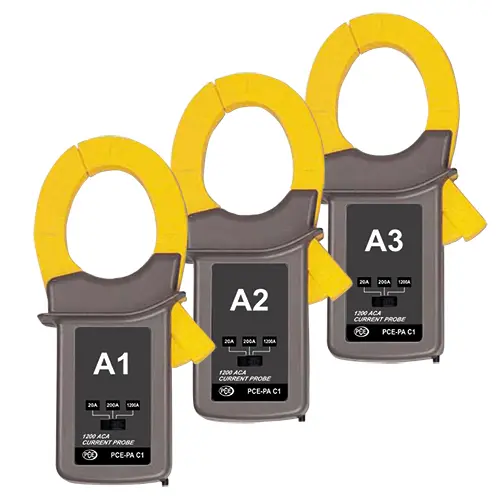

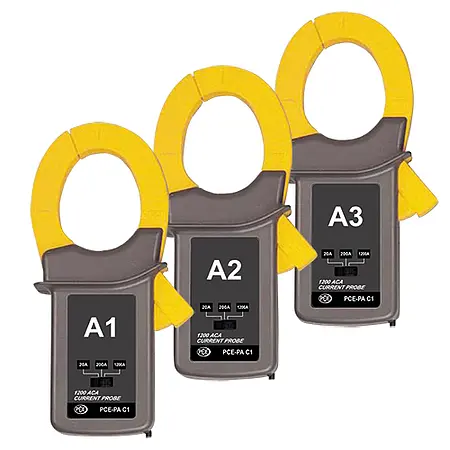

Set 1: Includes 3 current clamps for measurements up to 1200 A AC


Highlights

- Voltage measurement range of 10 V ... 600 V AC
- Current measurement range of 20 A ... 1200 A AC
- Performance measurement range of 0 kW ... 9.999 MW (VA/VAR)

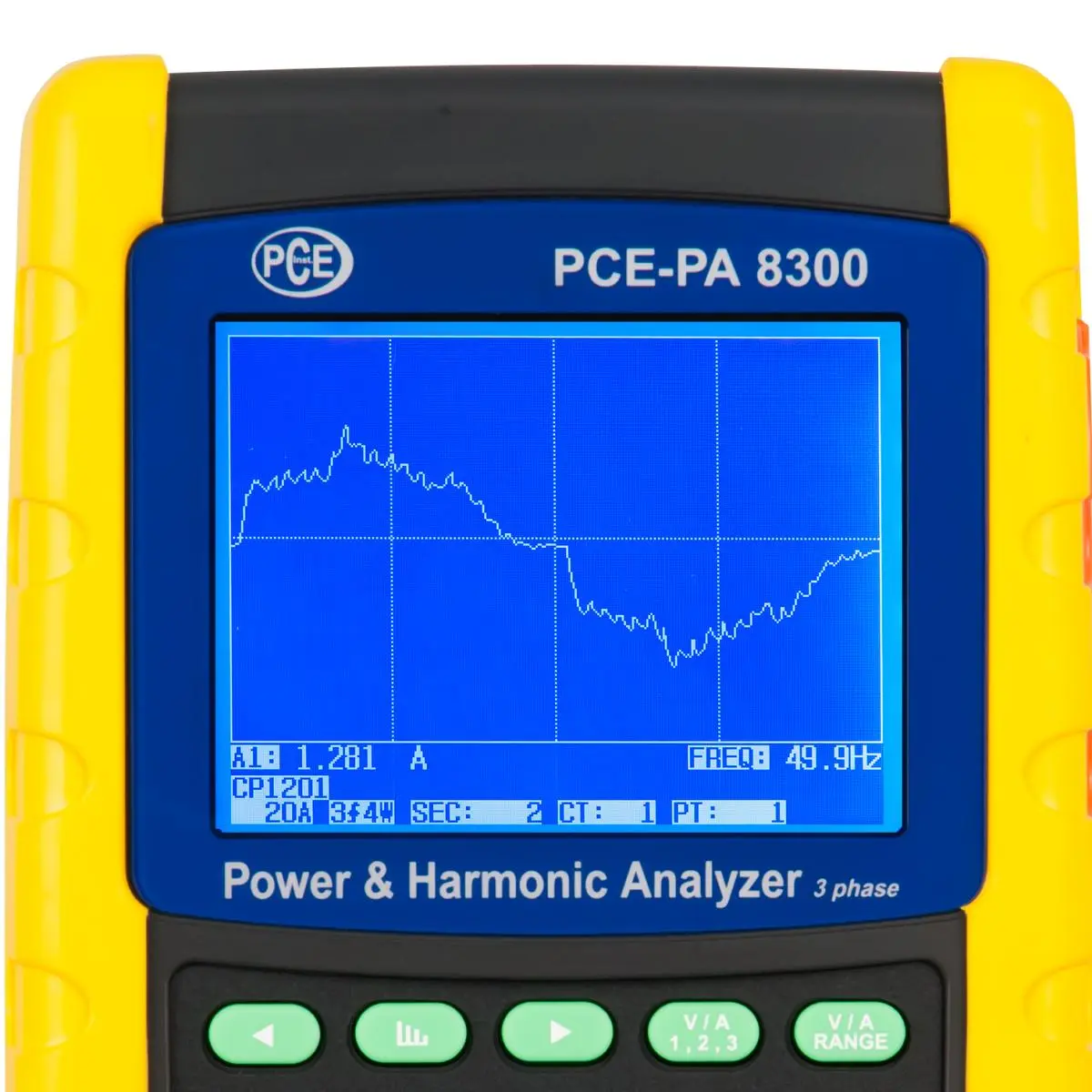

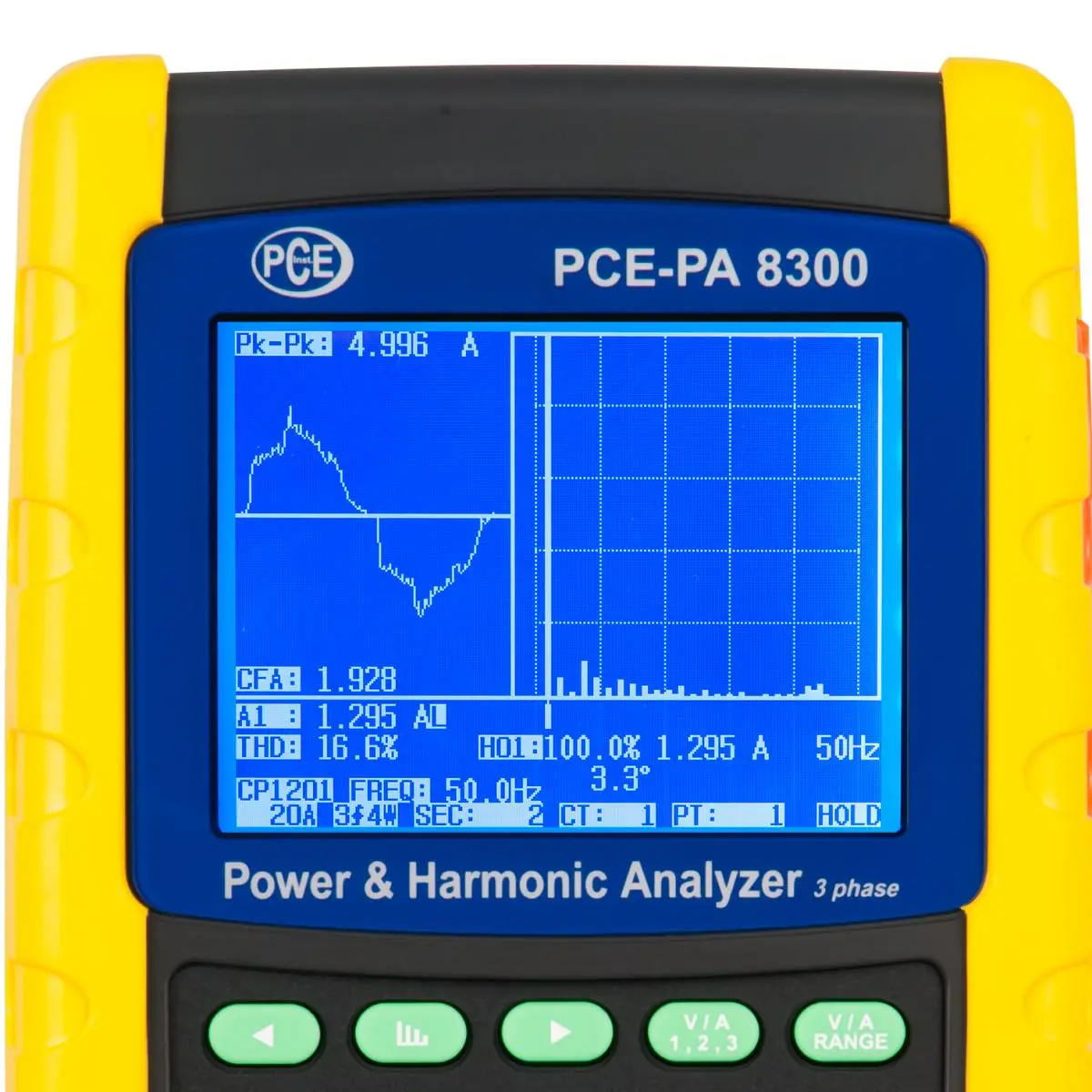

- Simultaneous display of harmonics and waveform
- Graphic Phasor diagram
- Captures transients including dip, swell, and outage
- SD card memory

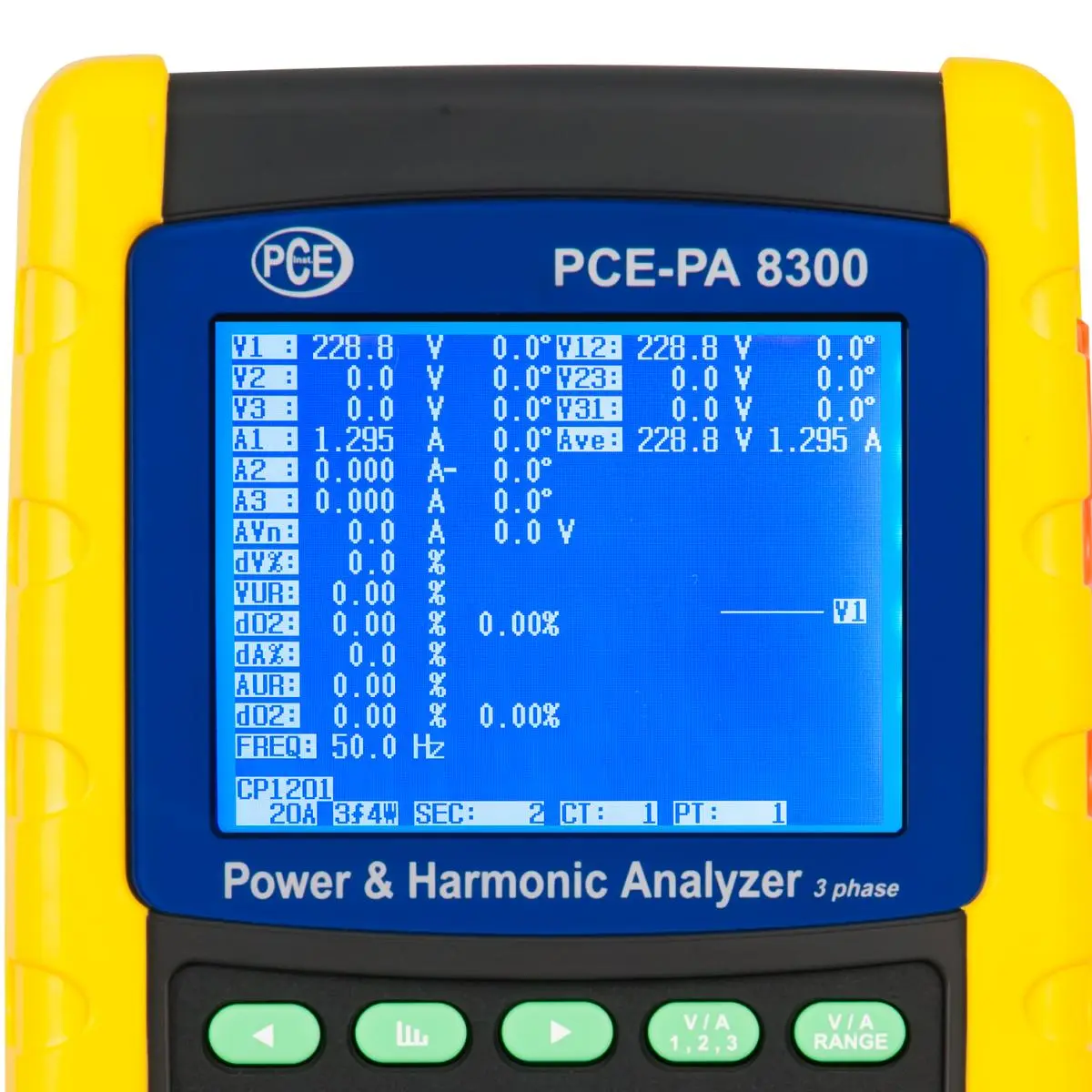

- LCD graphic display

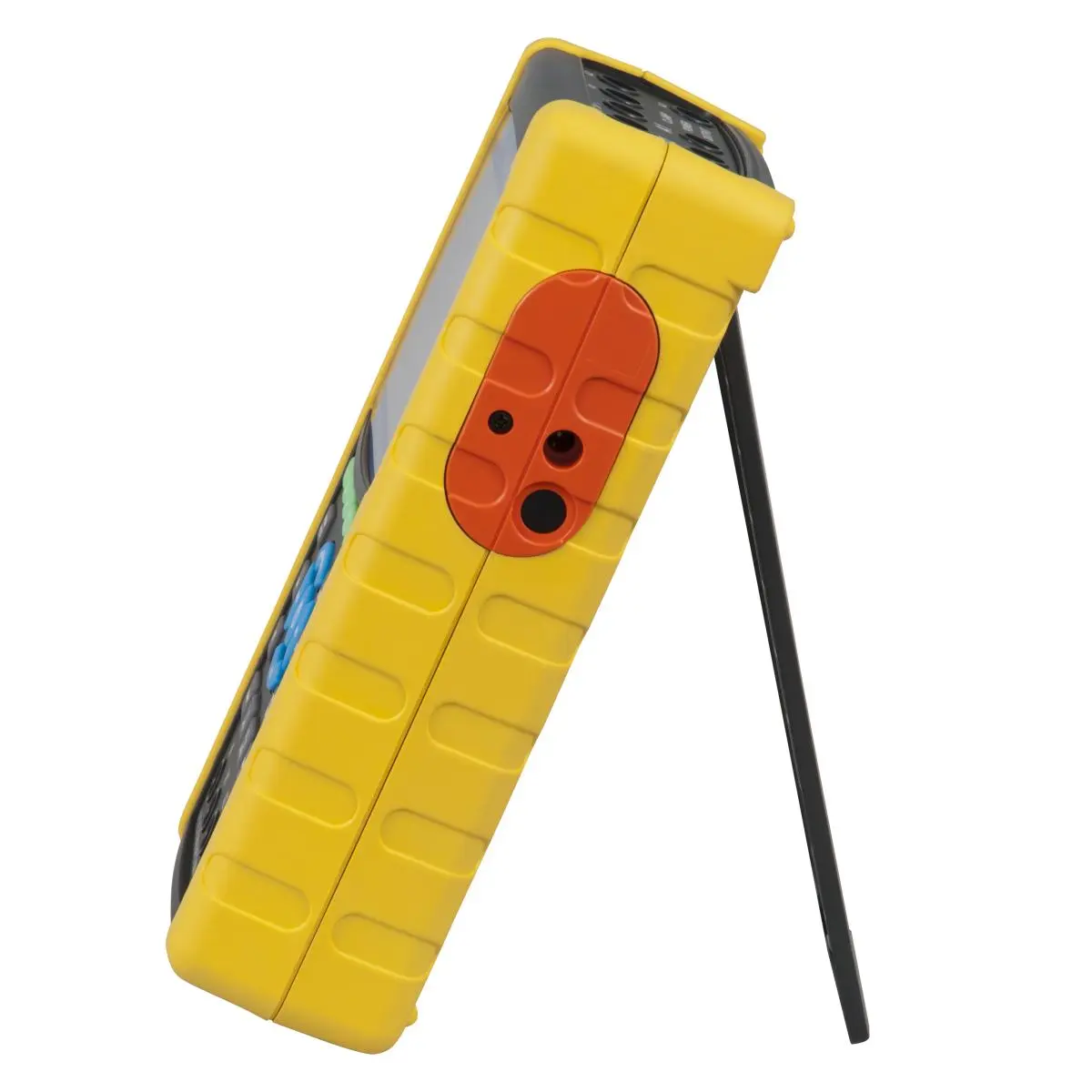

- Durable enclosure
- Compatibility with various manufacturers' power clamps
- Adjustable back-up interval, allowing for long-term data collection
- Auto-setting of measurement range (AC V)
- Power efficiency, delay angle, and frequency measurement
- Apparent, effective, and reactive power measurement
- Harmonic spectrum measurement up to the 50th order


Specification

Electrical specifications
Voltage Measurement (AC V)
Measurement Range Resolution Accuracy
10 V ... 600 V (phase to neutral) 0.1 V ±(0.5 % + 0.5 V)
10 V ... 600 V (phase to phase 0.1 V ±(0.5 % + 0.5 V)
Current Measurement (AC A) Set 1
Measurement Range Resolution Accuracy
20 A 0.001 A (< 10 A)
0.01 A (≥ 10 A)
± (0.5 % + 0.1 A)
200 A 0.01 A (< 100 A)
0.1 A (≥ 100 A)
± (0.5 % + 0.5 A)
1200 A 0.1 A (< 1000 A)
1 A (≥ 1000 A)
± (0.5 A + 5 A)

Effective power
Measurement range Resolution Accuracy
0 KW ... 9.999 KW 0.001 KW ±(1 % + 0.008 KW)
10 KW ... 99.99 KW 0.01 KW ±(1 % + 0.08 KW)
100 KW ... 999.9 KW 0.1 KW ±(1 % + 0.8 KW)
1 MW ... 9.999 MW 0.001 MW ±(1 % + 0.008 MW)
Apparent Power
Measurement range Resolution Accuracy
0 KVA ... 9.999 KVA 0.001 KVA ±(1 % + 0.008 KVA)
10 KVA ... 99.99 KVA 0.01 KVA ±(1 % + 0.08 KVA)
100 KVA ... 999.9 KVA 0.1 KVA ±(1 % + 0.8 KVA)
1 MVA ... 9.999 MVA 0.001 MVA ±(1 % + 0.008 MVA)
Reactive Power
Measurement range Resolution Accuracy
0 KVAR ... 9.999 KVAR 0.001 KVAR ±(1 % + 0.008 KVAR)
10 KVAR ... 99.99 KVAR 0.01 KVAR ±(1 % + 0.08 KVAR)
100 KVAR ... 999.9 KVAR 0.1 KVAR ±(1 % + 0.8 KVAR)
1 MVAR ... 9.999 MVAR 0.001 MVAR ±(1 % + 0.008 MVAR)
Active Energy
Measurement range Resolution Accuracy
0 KWH ... 9.999 KWH 0.001 KWh ±(2 % + 0.008 KWh)
10.00 KWH ... 99.99 KWH 0.01 KWh ±(2 % + 0.08 KWh)
100.0 KWH ... 999.9 KWH 0.01 KWh ±(2 % + 0.8 KWh)
1 MWH ... 9.999 MWH 0.001 MMh ±(2 % + 0.008 MWh)
Apparent Energy
Measurement range Resolution Accuracy
0 KVARH ... 9.999 KVARH 0.001 KVARh ± (2 % + 0.008 KVARh)
10.00 KVARH ... 99.99 KVARH 0.01 KVARh ± (2 % + 0.08 KVARh)
100.0 KVARH ... 999.9 KVARH 0.01 KVARh ± (2 % + 0.8 KVARh)
1 MVARH ... 9.999 MVARH 0.001 MVARh ± (2 % + 0.008 MVARh)
Power Factor
Measurement range Resolution Accuracy
0 ... 1 0.01 ± 0.04
Delay Angle
Measurement range Resolution Accuracy
-180° ... +180° 0.1° ±1°
Frequency
Measurement range Resolution Accuracy
45 Hz ... 65 Hz 0.1 Hz ± 0.1 Hz
Harmonic of AC Voltage at 50 / 60 Hz
Measurement range Resolution Accuracy
1 ... 20th order 0.001 ... 1 A
0.1 %
± (2 % + 0.5 A)
± (2 % + 10 Digit)
21 ... 30th order 0.001 ... 1 A
0.1 %
± (2 % + 0.5 A)
± (2 % + 10 Digit)
21 ... 50th order 0.001 ... 1 A
0.1 %
not specified
General specifications
Display 3.7 in / 94.0 mm point-matrix LCD (320 * 240 pixel) with LED background lights
Safety standards IEC1010CAT III 600V
Input resistance AC V 10 MOhm
Operating frequency of current clamp 40 Hz ... 1 kHz
Tested operating frequency of current clamp 45 Hz ... 65 Hz
Overload protection AC V
AC A
720 V RMS
1300 A with current clamp
Data Storage SD memory card
Refresh interval 1 second
Data logging function logging with real-time speed on SD memory card
Record interval 2 ... 7200 seconds
Data output (only for live display on computer) per USB or RS232, depending on connection cable
Operating temperature 0° C ... +50° C / 32° F ... 122° F
Surrounding humidity < 80 % RH
8 x 1.5 V AA batteries
Voltage Supply 9 V adapter
Current Drain Measurement Device: 300 mA DC
current clamp: 34 mA DC
Maximum Wire Diameter 50 mm / 1.9 in
Weight Measurement Device: 948 g / 33.4 oz (incl. battery)
Current clamp: 467 g / 16.4 oz (incl. cable)
Dimensions Device: 225 mm x 125 mm x 64 mm / 8.8 in x 4.9 in x 2.5 in
Current clamp: 210 mm x 64 mm x 33 mm / 8.2 in x 2.5 in x 1.2 in
Clamp jaw: 86 mm / 3.3 in (exterior)

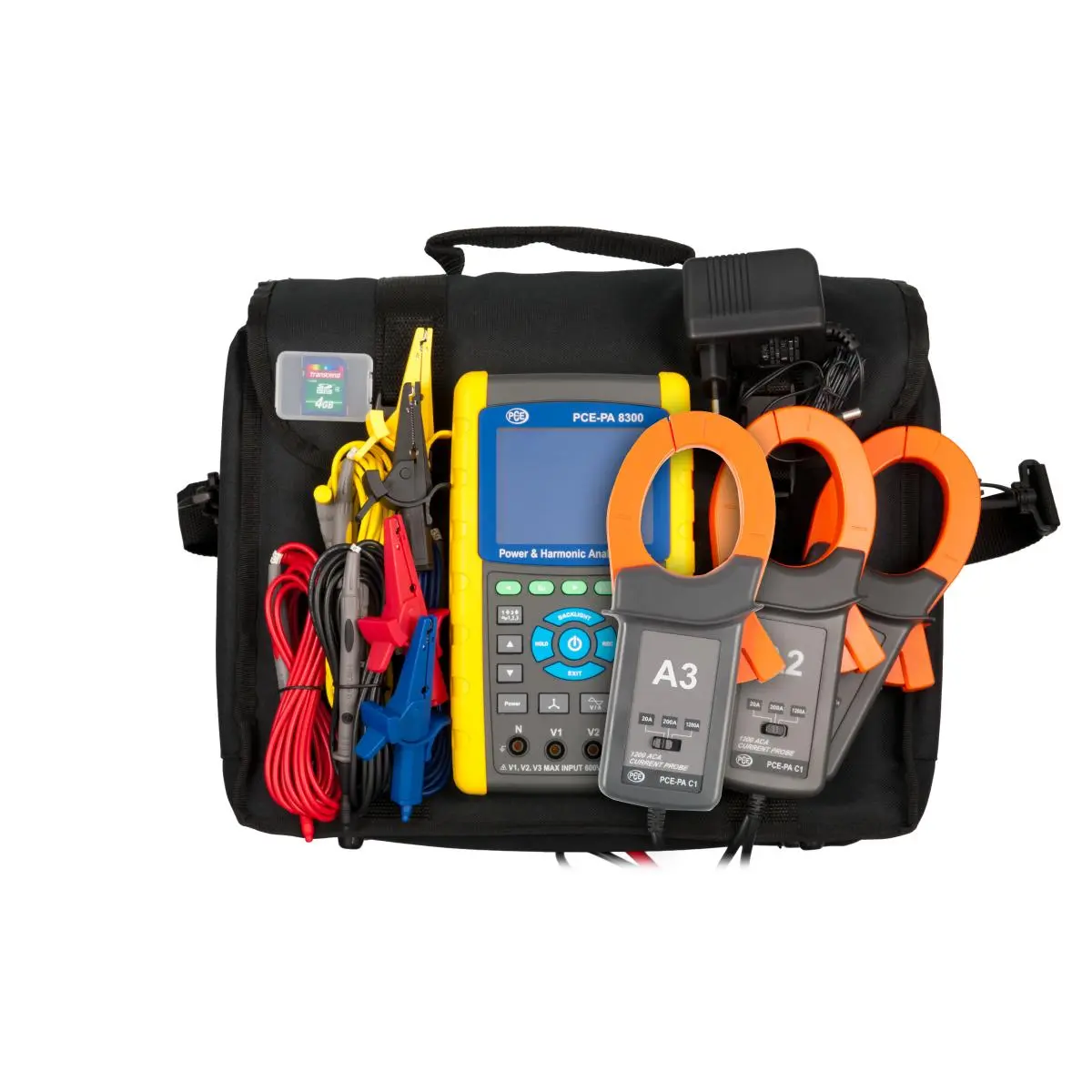

Delivery Scope

1 x PCE-PA 8300 Current Clamp
3 x Current clamps (Set 1)
4 x Insulated alligator clips
4 x Safety test lines
6 x 1.5 V AA batteries
1 x 9 V mains adapter
1 x SD memory card
1 x Carrying case
1 x User manual
