Current Clamp PCE-CM 40

Current Clamp PCE-CM 40 [zoom]

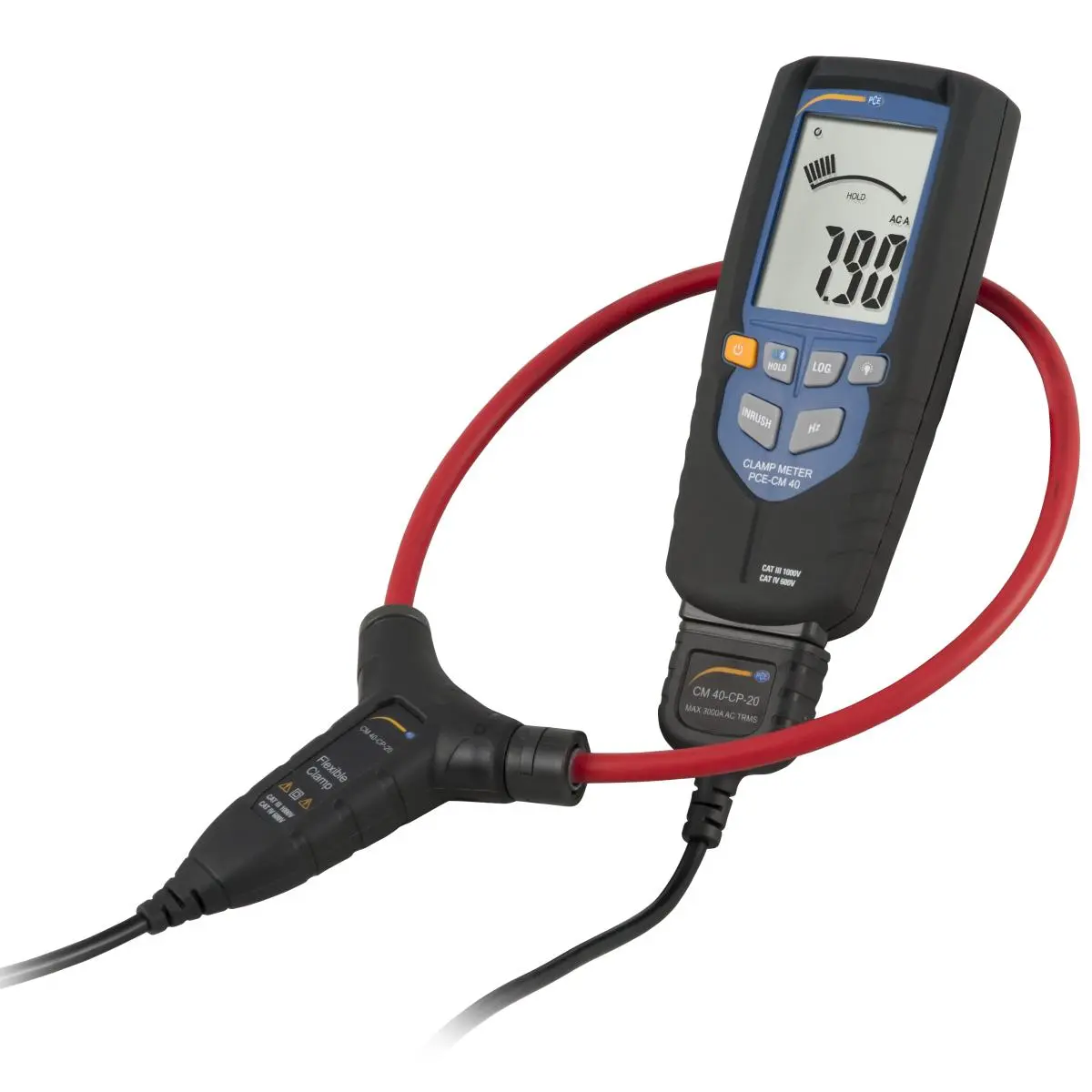

Current Clamp PCE-CM 40

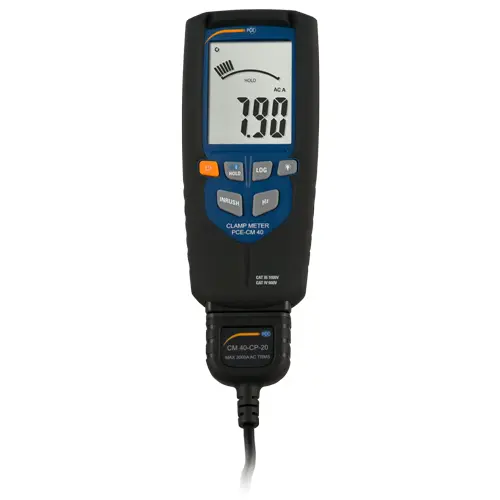

Current Clamp Frontal

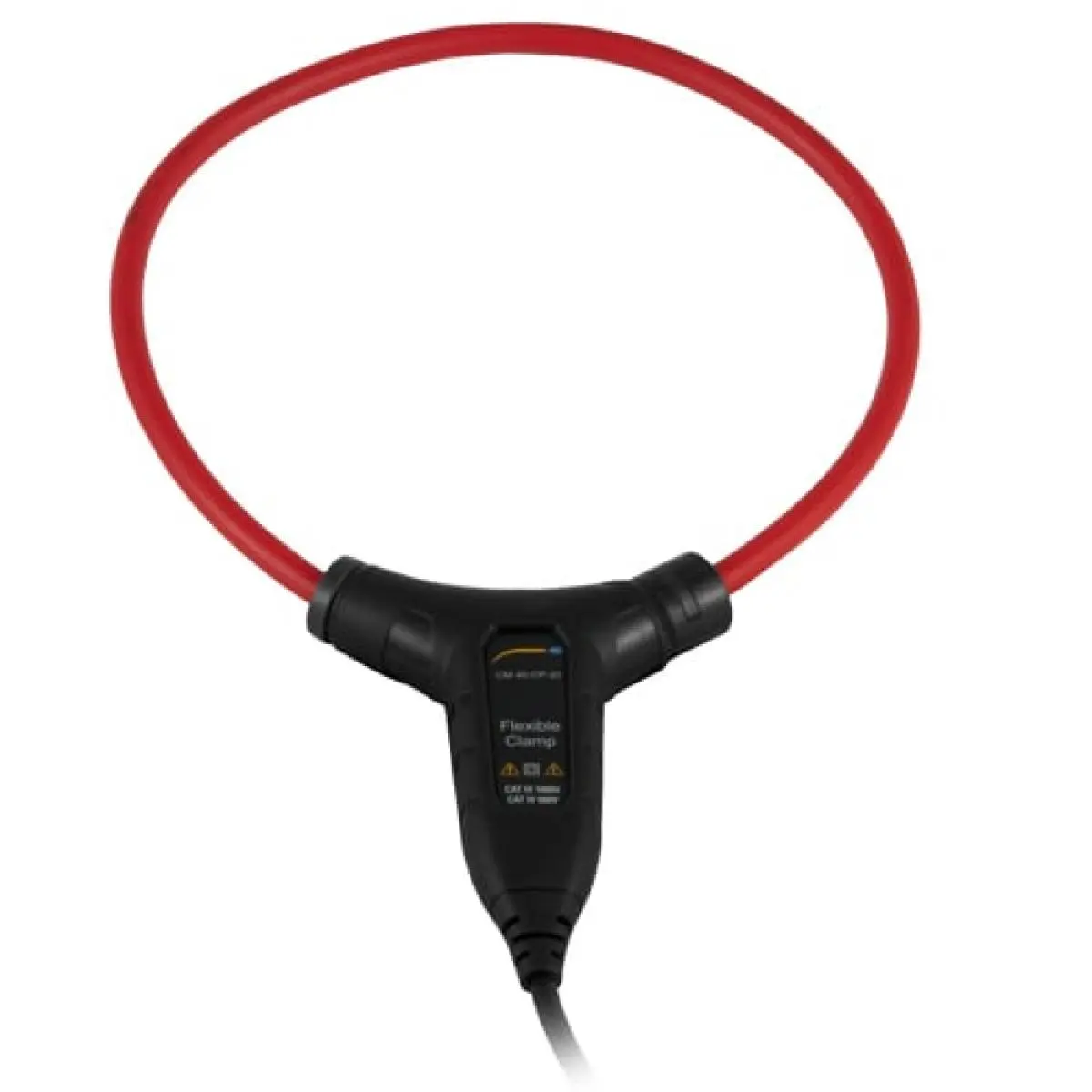

Current Clamp Sensor

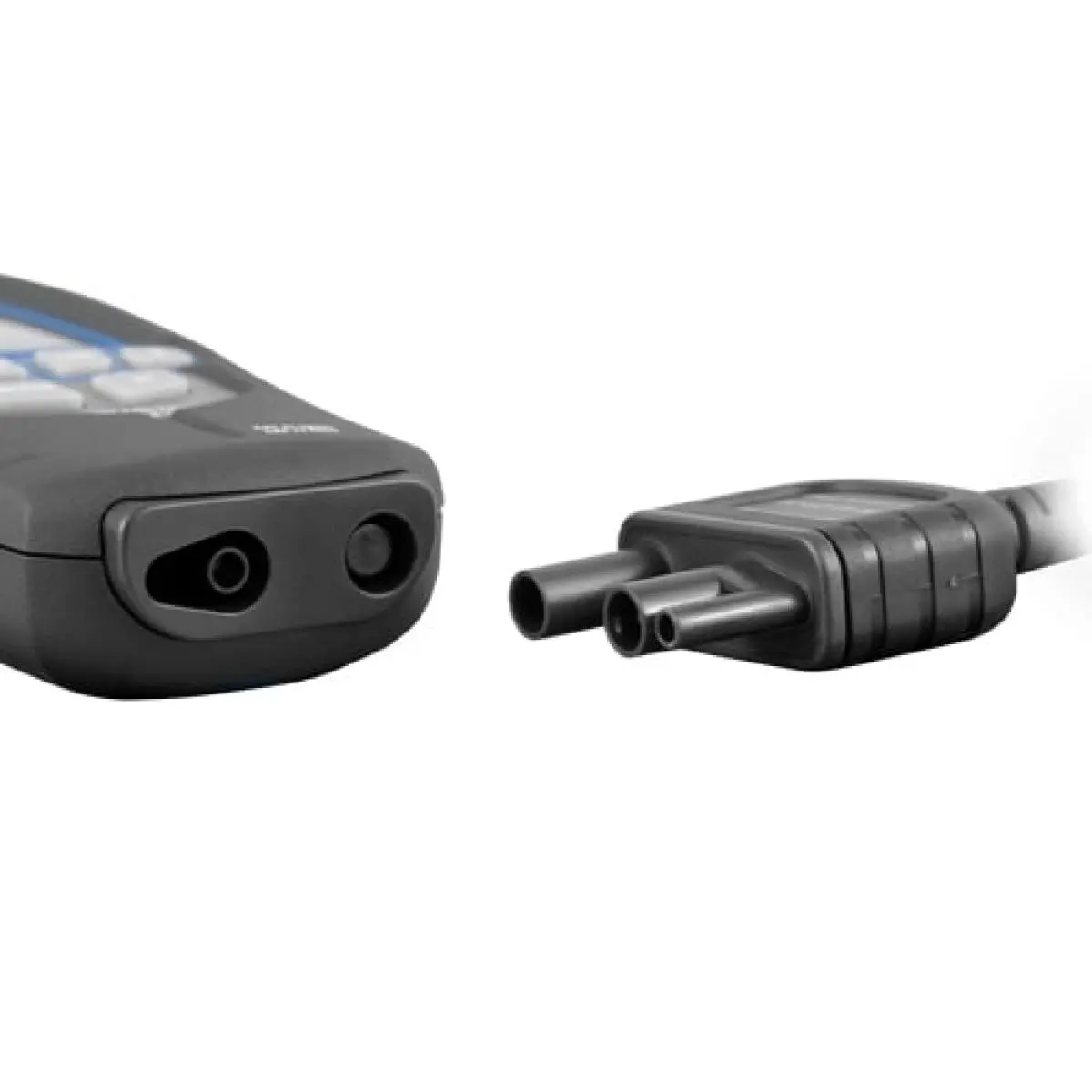

Current Clamp Connections

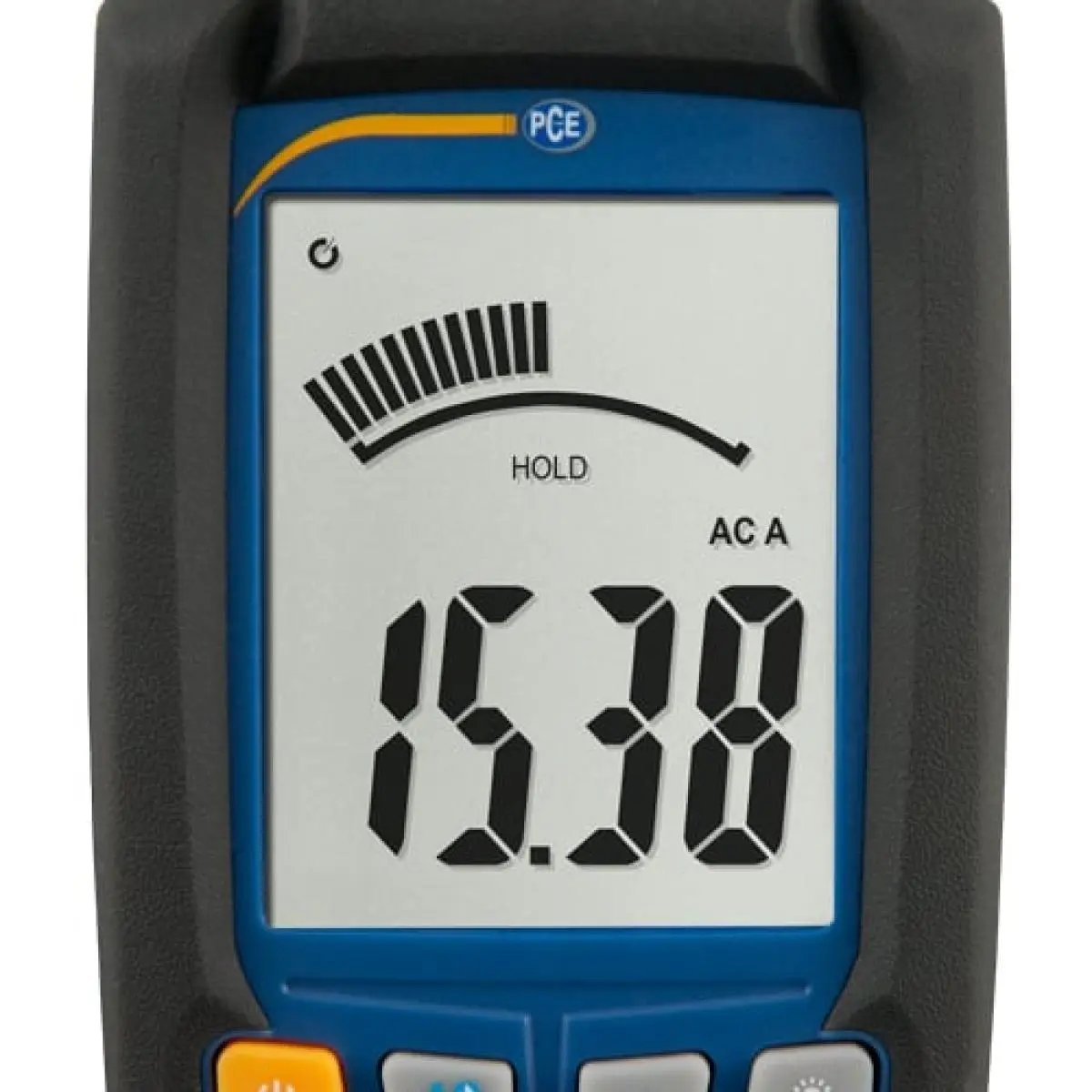

Current Clamp Display

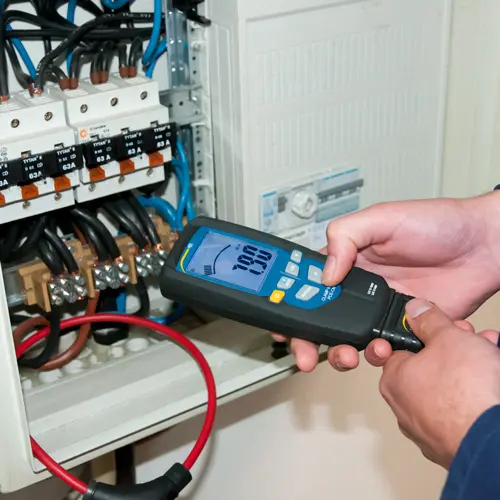

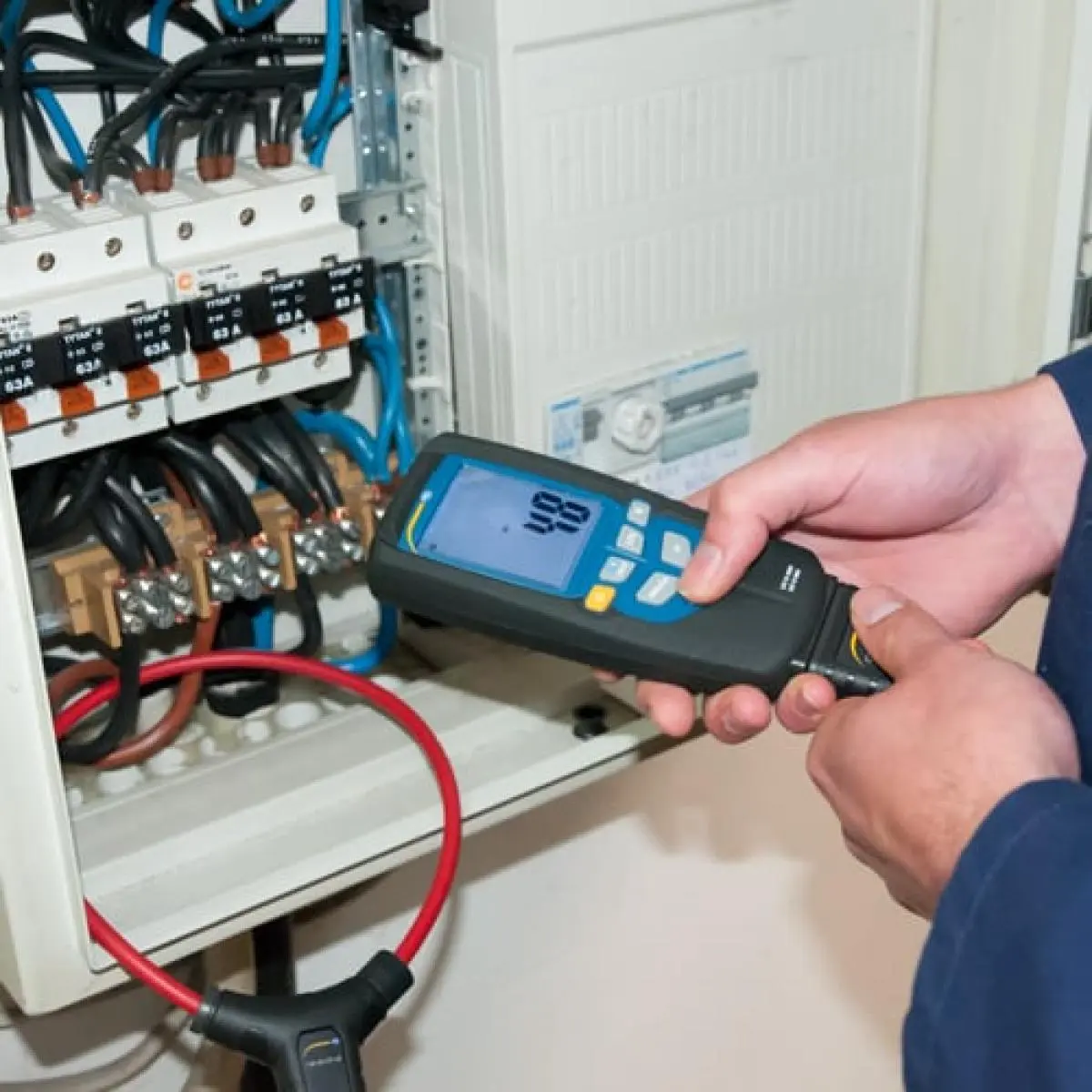

Current Clamp Application picture

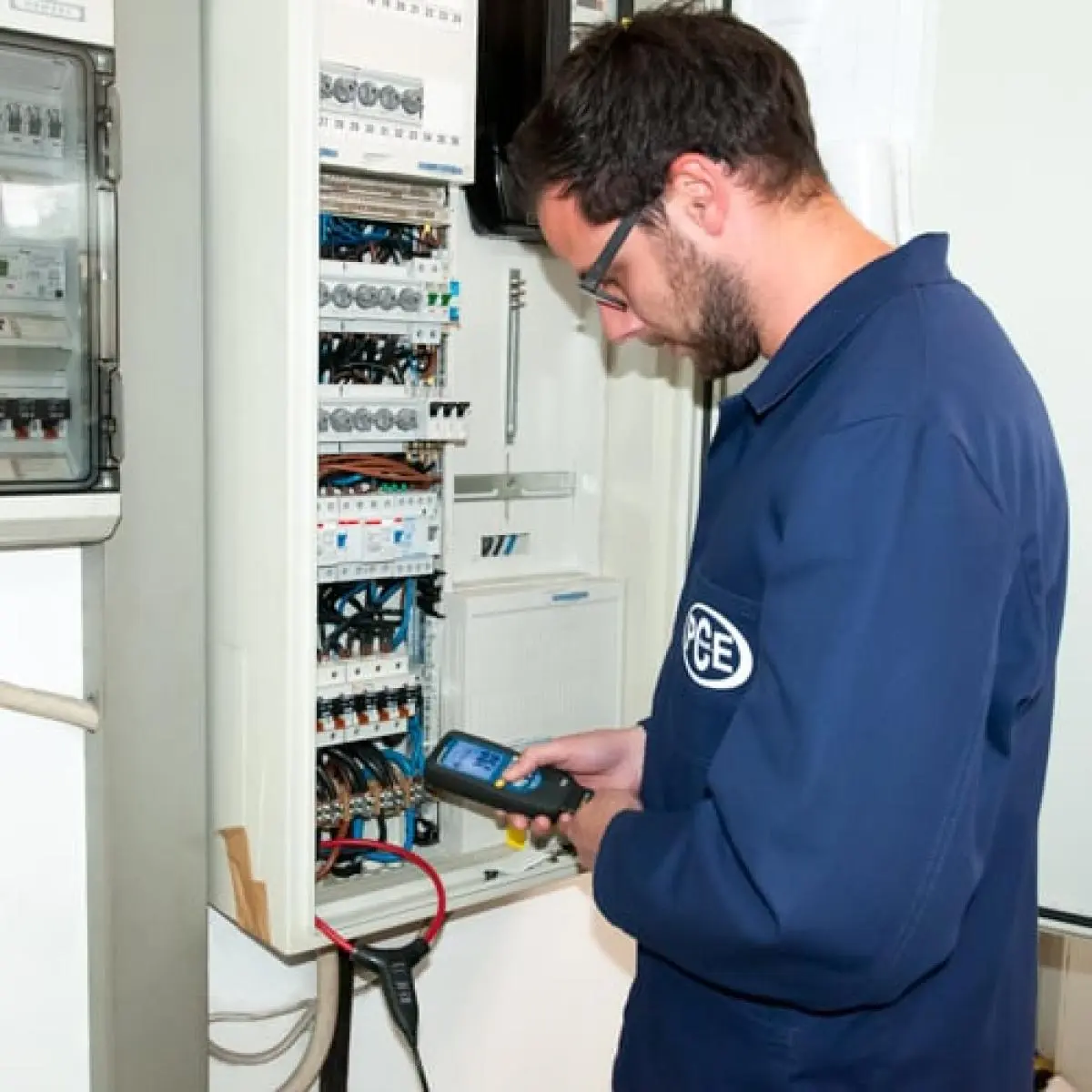

Current Clamp Application picture

Current Clamp PCE-CM 40

Order no.: PCE-CM 40
GTIN (EAN): 4250348718280
£ 176.00
£ 211.20
price ex. (VAT / delivery)
:
4250348718280
PCE-CM 40
Delivery time:1-2 working days

Accessory

Description

Current clamp PCE-CM 40
Flexible current clamp up to 3000 A / Rogowski coil with 170 mm (6.7 in) diameter / Inrush function / Frequency measurement / LC display

The flexible current clamp PCE-CM 40 is suitable for current measurements up to 3000 A AC. In addition to TRMS current measurement, the flexible current clamp can be used to measure inrush currents. The measurement of the current takes place via a flexible Rogowski coil. This means that the electrical conductor around which the flexible current clamp is placed induces a voltage in the ammeter. This voltage is proportional to the current flow through the electrical conductor. This makes it possible to measure very high currents with the flexible current clamp almost without risk. In addition to the current measurement, the flexible current clamp is able to measure frequencies in the range of 50 ... 400 Hz.

The PCE-CM 40 flexible current clamp is used to measure the AC current in machines, systems and electrical installations. Due to the flexible Rogowski coil, which has a diameter of 170 mm, the clamp can be used wherever conventional space clamps can not be used. The measured value of the alternating current is displayed on the illuminated LCD. Furthermore, the measured values ​​can be stored in a memory that can be read out via the Bluetooth interface.

Highlights

- Up to 3000 A AC
- LC display
- Inrush function
- Frequency measurement
- Easy handling
- Data storage

Specification

Alternating current AC
Measuring range  0 ... 29,99 A AC
Resolution  0,01 A
Accuracy  ±(3 % of Rd +8 digits)
Frequency range  50 ... 400 Hz

Alternating current AC
Measuring range  30 ... 299,9 A AC
Resolution  0,1 A
Accuracy  ±(3% of Mw +5 digit)

Alternating current AC
Measuring range  300 ... 3000 A AC
Resolution  1 A
Accuracy  ±(3% of Mw +5 digit)

General technical data
Measuring functions  HOLD
Display type  LCD with backlight
Display size  2,5 Inch
Storage medium  Internal memory
Interface  Bluetooth
Standard(s)  EN 61010-1, EN 61010-2-032, EN 61326-1
Maximum cable diameter  170 mm
Automatic power-off  15 min
Operating height  2000 m max. above sea level
Safety standard  CAT III 1000V, CAT IV 600V
Dimensions  Grinding diameter: approx. 170 mm x 5 mm
Menu language  English, English (GB)
Protection class (device)  IP31
(Rechargeable) battery  2 x 1,5 V AA battery , Alkali-manganese
Capacity  2500 mAh
Operating conditions  5 ... 40 °C , 0 ... 80 % RH
Storage conditions  -20 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  152 x 68 x 34 mm
Weight  188 g

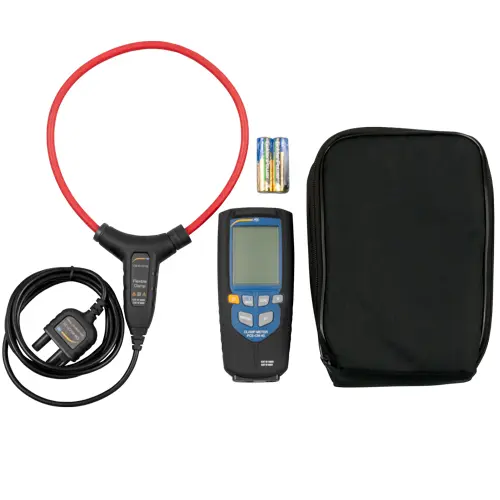

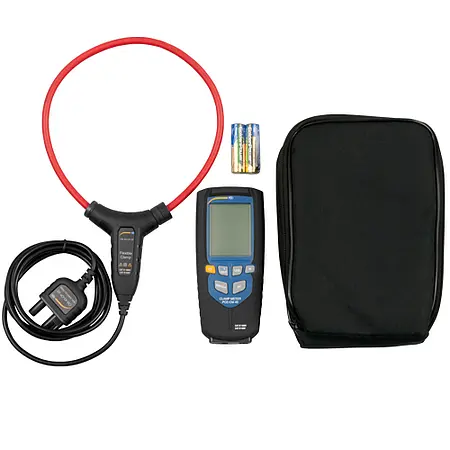

Delivery Scope

1 x Current Clamp PCE-CM 40
1 x Display device
1 x Rogowski coil
2 x 1.5V AAA batteries
1 x User manual
