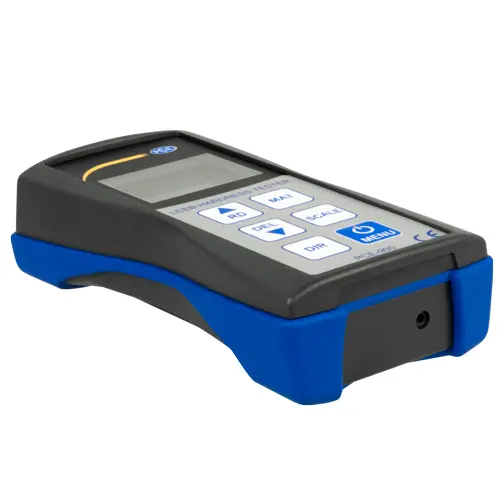

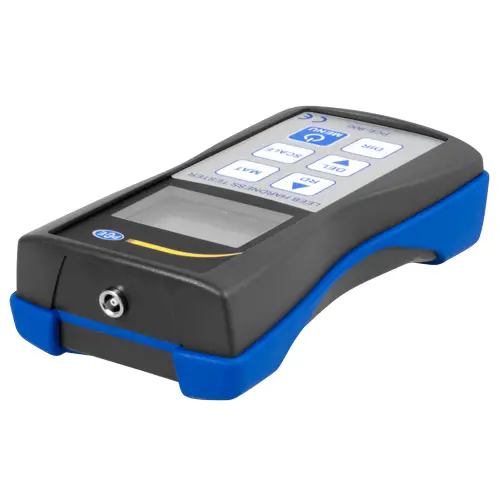

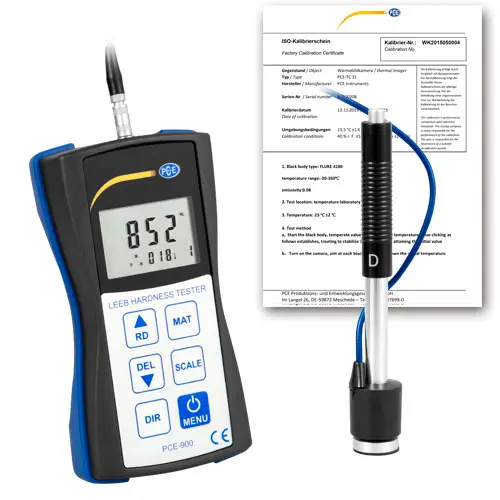

Metal Hardness Tester PCE-900-ICA incl. ISO Calibration Certificate

Order no.: PCE-900-ICA

Question / Callback

Delivery time: 10 - 14 days

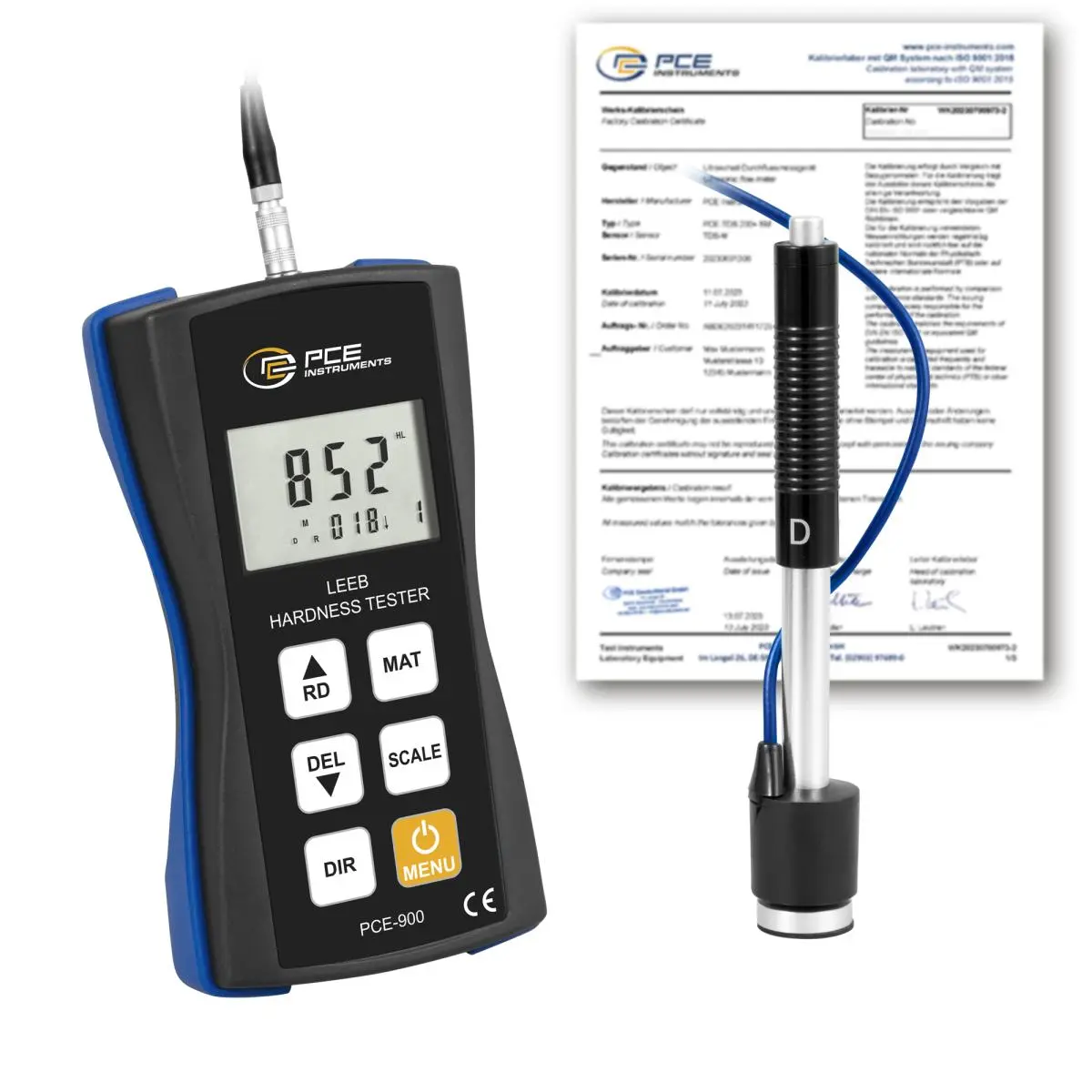

PCE-900-ICA Material hardness tester for metals incl. ISO Calibration Certificate
9 materials pre-calibrated / Conversion into 6 different hardness scales / Type D impact probe

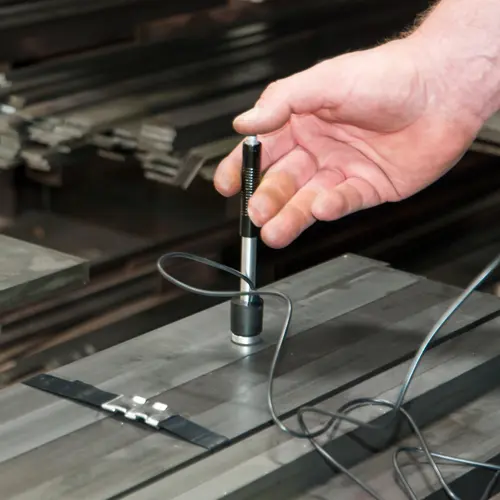

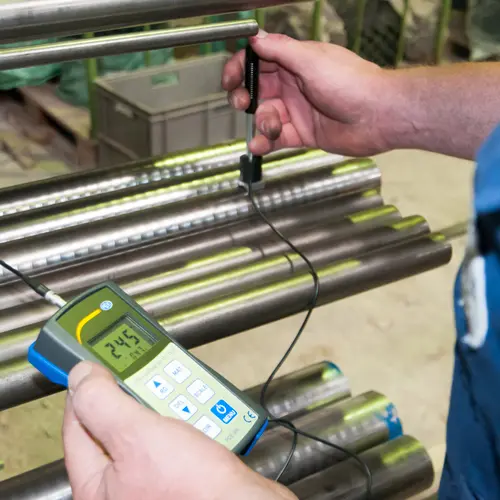

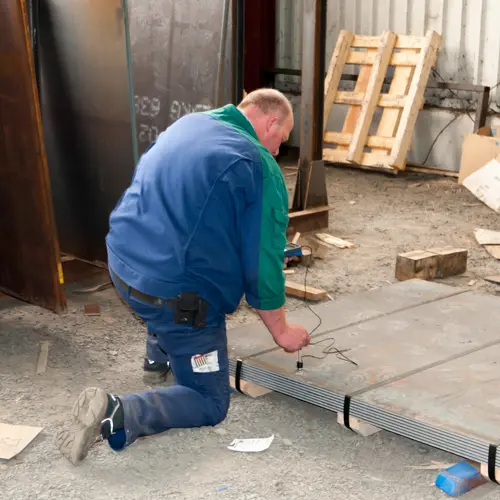

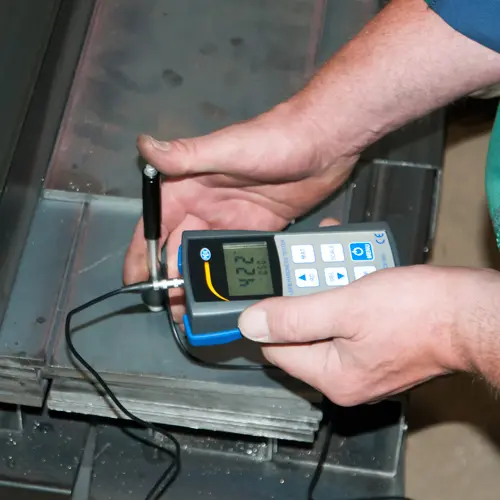

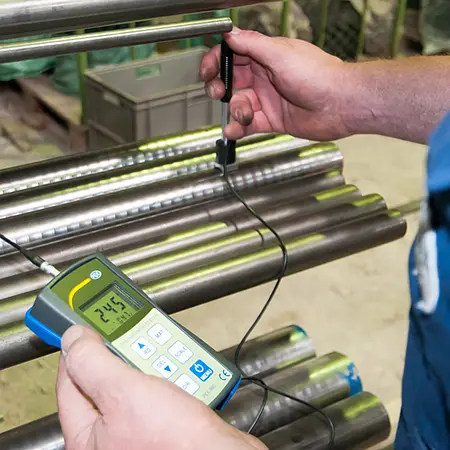

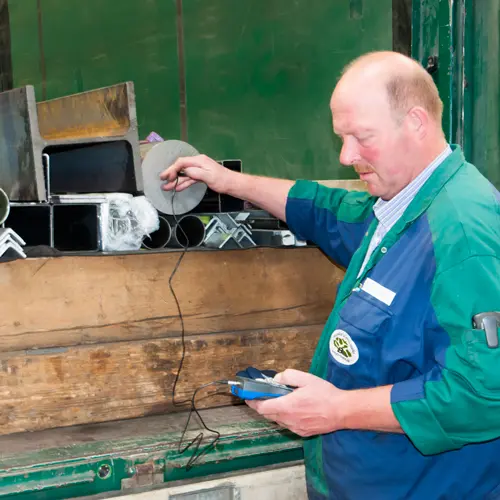

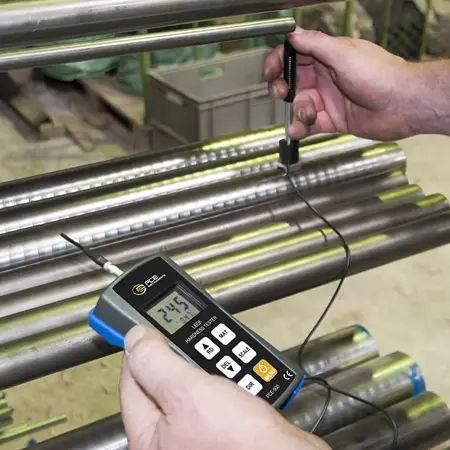

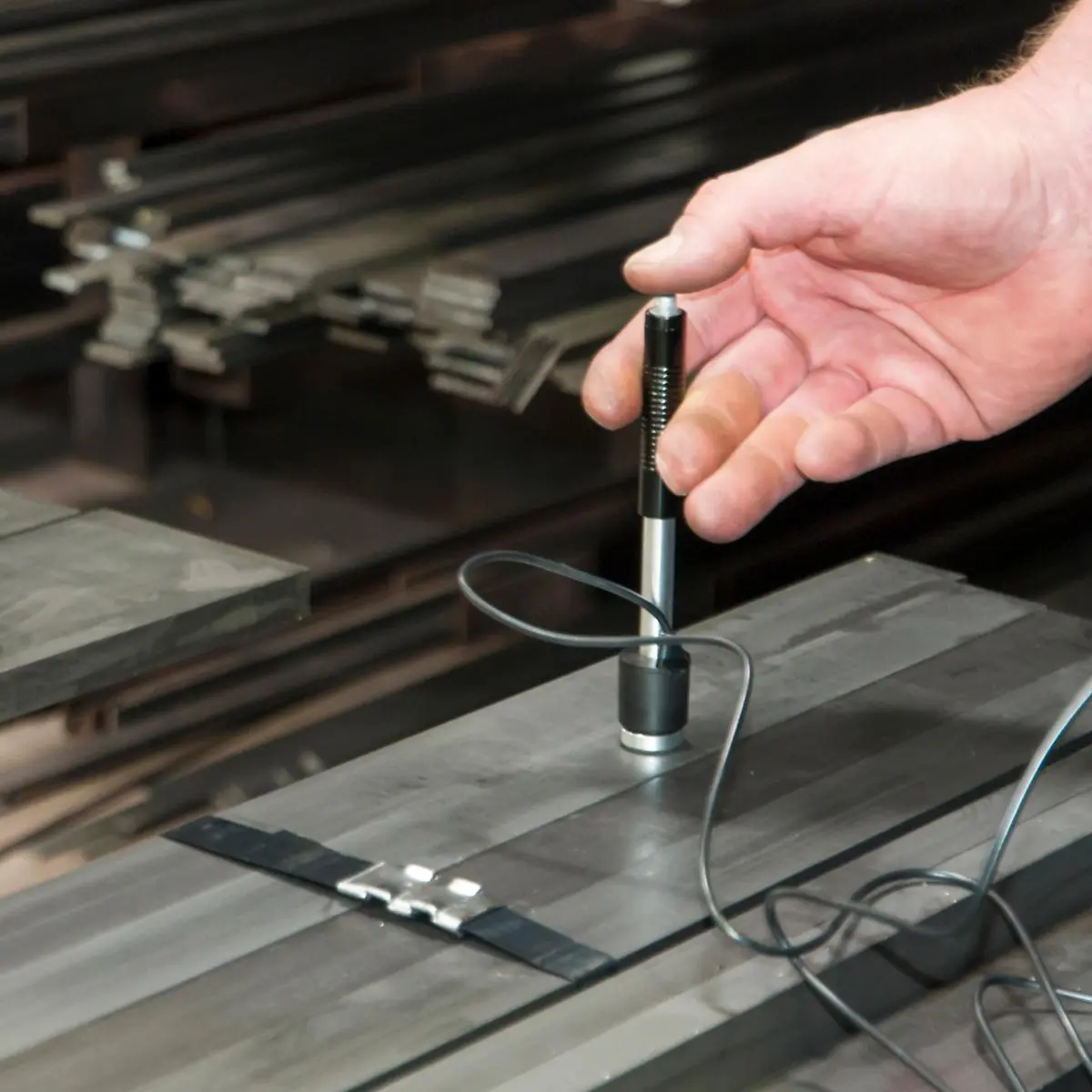

The Leeb Hardness Tester PCE-900 measures the hardness of nine different metals using the Leeb rebound method. This means that with the hardness tester a firing pin bounces on a metallic surface and the intensity of the rebound is used as an indicator of the material hardness. The hardness tester PCE-900 measures the metal hardness in 6 different hardness scales, including: Rockwell, Vickers, Leeb, Brinell and Shore. A distinction is made between Rockwell B and C when measuring in the Rockwell scale.

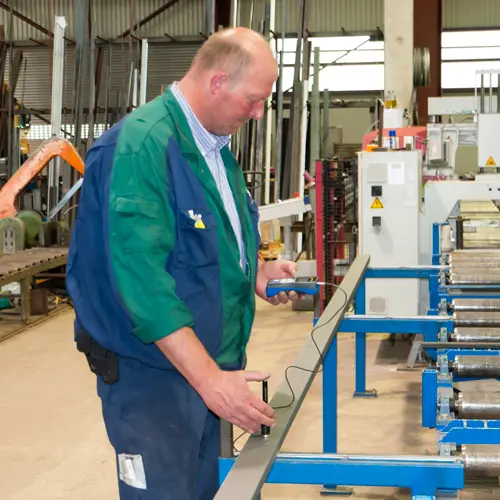

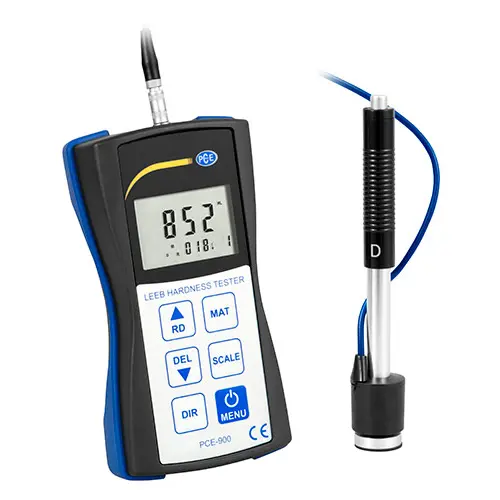

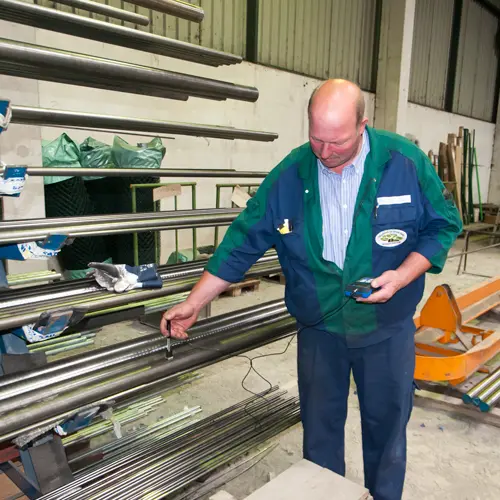

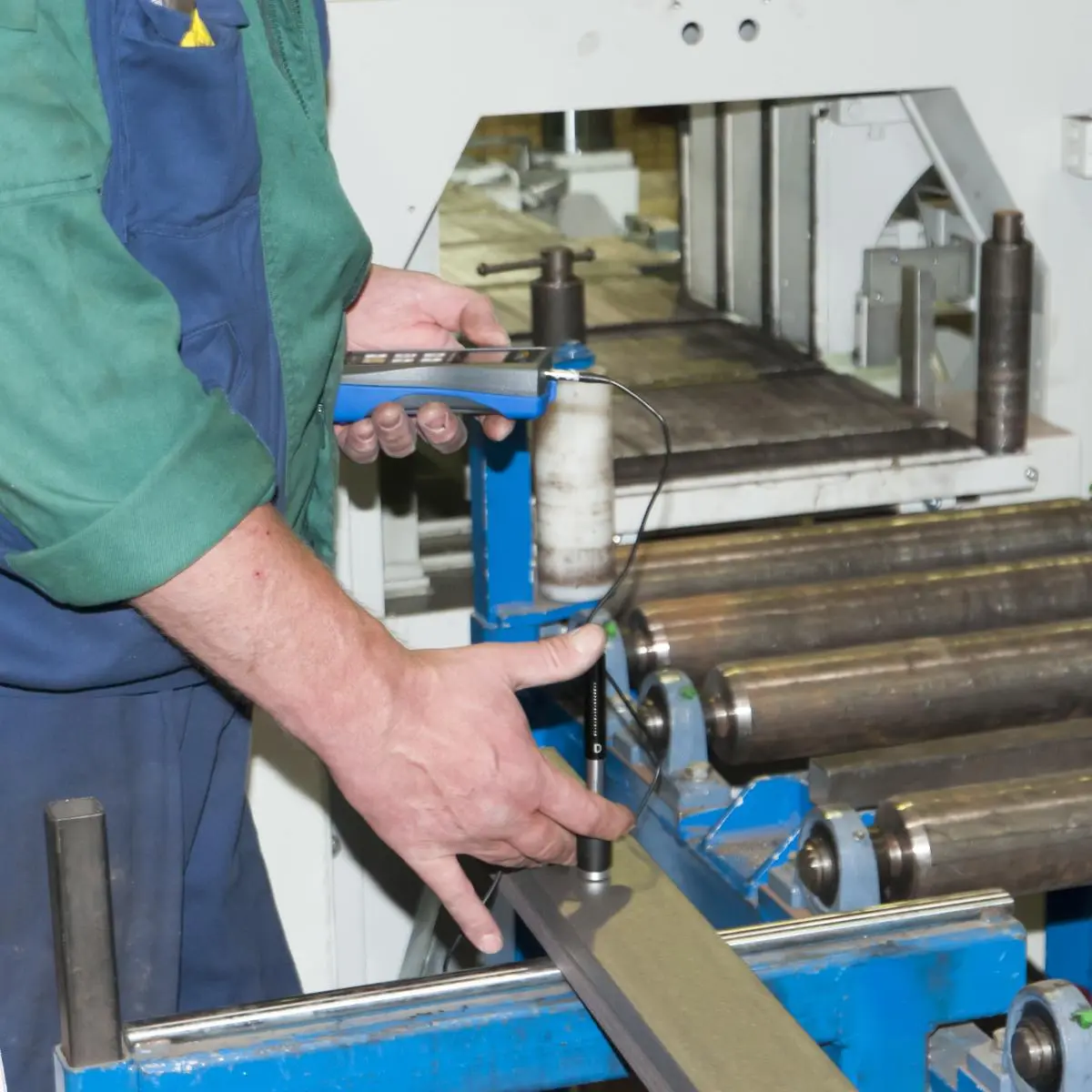

The Leeb hardness tester PCE-900 comes with a type D impact probe as standard. This probe can be used for many measurements. Via the optional software, the measured values can be transmitted live to the PC. This makes the PCE-900 Leeb hardness tester an important instrument in the field of material inspection in goods control.

- Hardness test by the rebound method
- 9 material presets
- Easy to handle
- Data interface
- Six different hardness scales
- incl. ISO Calibration Certificate

Measuring range	200 ... 900 HL
Measuring accuracy	± 0.8% at HLD=900
Materials	9 common material presets
Hardness scales	Leeb: HL Rockwell C: HRC Rockwell B: HRB Brinell: HB Vickers: HV Shore: HSD

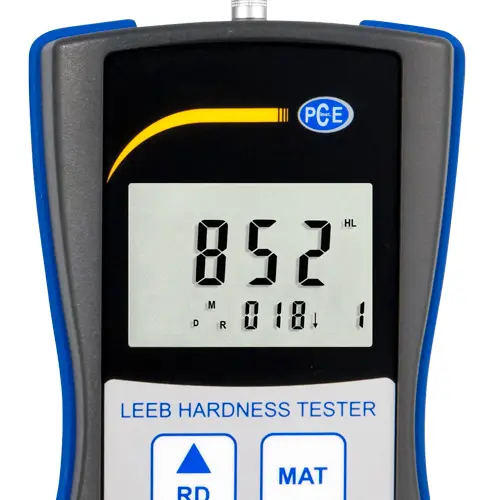

Display	12.5 mm / 0.5" LCD with backlight
Impact probe	Type D
Memory	50 data sets
Interface	RS-232
Power supply	4 x 1.5V AAA batteries
Environmental conditions	Operating temperature: -10 ... 50°C / 14 ... 122°F Storage temperature: -30 ... 60°C / -22 ... 140°F Relative humidity: < 90%
Dimensions	142 x 77 x 40 mm / 5.59 x 3.03 x 1.58 in
Weight	Device weight: ca. 130 g / < 1 lb Probe weight: 75 g / < 1 lb
Cable length	ca. 1.2 m / 3.9 ft

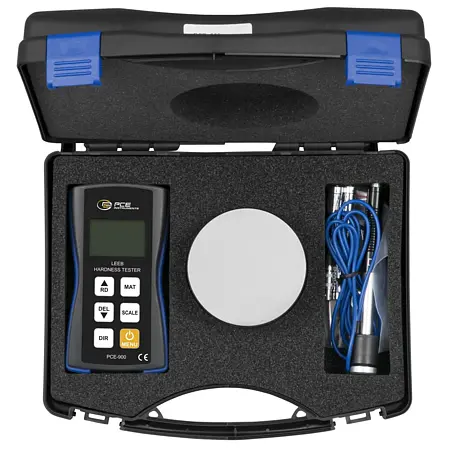

1 x Material Hardness Tester for Metal PCE-900-ICA

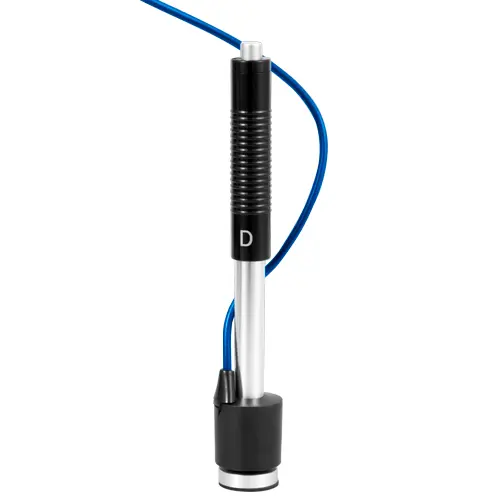

1 x Impact probe Type D
1 x Test block
1 x Support ring
1 x Cleaning brush
1 x Carrying case
1 x User manual
1 x ISO Calibration Certificate

Manual

Video

Accessories

Re-calibration certificate for hardness tester PCE-900

Order no.: CAL-PCE-900

Re-calibration certificate for hardness tester PCE-900

ISO recalibration for vibration meters is often required to comply with DIN ISO 9000.

If your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.

Manufacturer: PCE Instruments

£ 216.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-900 Probe D

Impact Body Type D for PCE-900

Replacement impact body type D probe for the PCE-900.

Catalogue: Measuring Instruments / Test Meters / Hardness Tester

Manufacturer: PCE Instruments

£ 178.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: PCE-900 SW

Software for PCE-900

PC-compatible software for PCE-900 devices. Data cable included.

Manufacturer: PCE Instruments

£ 71.00

Price excl. VAT &. delivery
2 year Warranty

Adapter set for hardness measuring instruments with Impact D impactor

Order no.: PCE-HAK

Adapter set for hardness measuring instruments with Impact D impactor

Consisting of:

HZ12.5-17 Mounting adapter concave, 12.5 ... 17 mm (inside)
HZ11-13 Mounting adapter concave, 11 ... 13 mm (inside)
HZ16.5-30 Mounting adapter concave, 16.5 ... 30 mm (inside)

Z10-15 Mounting adapter convex, 10 ... 15 mm (outside)
Z14.5-30 Mounting adapter convex, 14.5 ... 30 mm (outside)
Z25-50 Mounting adapter convex, 25 ... 50 mm (outside)

HK11-13 Ball mounting adapter ball, 11 ... 13 mm (inside)
HK12.5-17 Ball mounting adapter ball, 12.5 ... 17 mm (inside)
HK16.5-30 Ball mounting adapter ball, 16.5 ... 30 mm (inside)

K14.5-30 Mounting adapter ball, 14.5 ... 30 mm (outside)
K10-15 Mounting adapter ball, 10 ... 15 mm (outside)

UN Universal Holder

Catalogue: Measuring Instruments / Test Meters / Hardness Tester

Manufacturer: PCE Instruments

£ 290.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: HZ11-13

Adaptor concave inside HZ11-13

Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.

radius: 11 ... 13mm
only for PCE-900, PCE-1000, PCE-2000

Manufacturer: PCE Instruments

£ 32.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: HZ12.5-17

Adaptor concave inside HZ12.5-17

Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.

radius: 12.5 ... 17mm
only for PCE-900, PCE-1000, PCE-2000

Manufacturer: PCE Instruments

£ 36.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: HZ16.5-30

Adaptor concave inside HZ16.5-30

Adaptor for internal diameters in concave surfaces such as pipes and tubes. Allows centering and prevents slipping and thus measuring errors.

radius: 16.5 ... 30mm
only for PCE-900, PCE-1000, PCE-2000

Manufacturer: PCE Instruments

£ 32.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: Z10-15

Adaptor convex outside Z10-15

Adapters for measuring with external radii, e.g. on round bars and pipes. Allows centering and prevents slipping and thus measuring errors
- radius: 10 ... 15mm
- only for PCE-900, PCE-1000 & PCE-2000

Manufacturer: PCE Instruments

£ 36.00

Price excl. VAT &. delivery
2 year Warranty

Order no.: Z25-50

Adaptor convex outside vZ25-50

Adapters for measuring with external radii, e.g. on round bars and pipes. Allows centering and prevents slipping and thus measuring errors
- radius: 25 ... 50mm
- only for PCE-900, PCE-1000 & PCE-2000

Manufacturer: PCE Instruments

£ 36.00

Price excl. VAT &. delivery
2 year Warranty
