£ 238.00
Condition Monitoring Material Hardness Tester for metals
9 materials pre-calibrated / Conversion into 6 different hardness scales
/ Type D impact probe

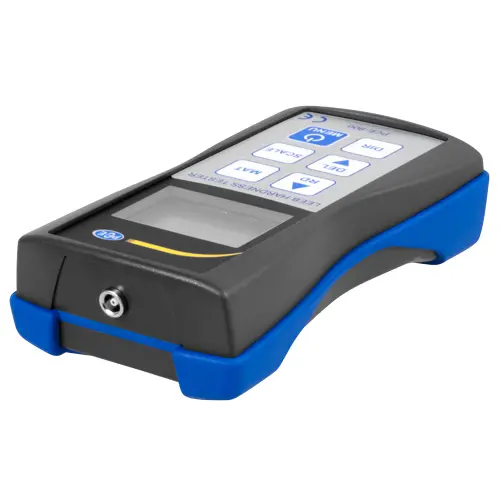

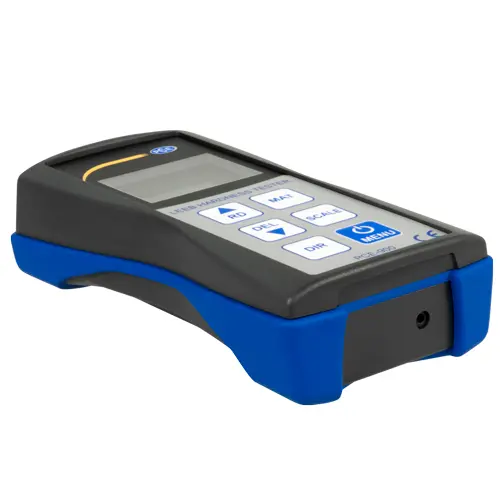

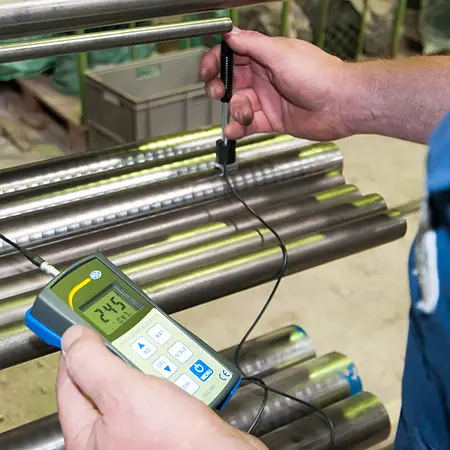

TheCondition Monitoring Material Hardness Tester measures the hardness of nine different metals using the Leeb rebound method.

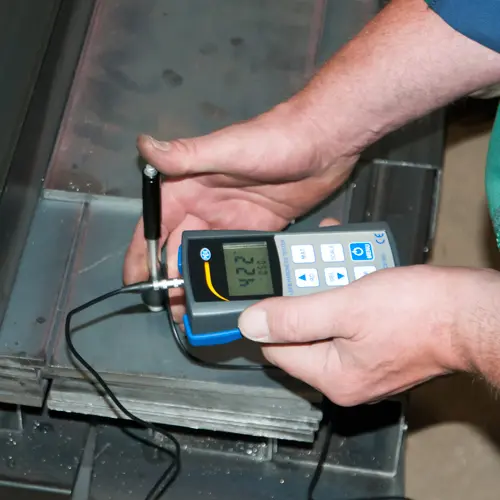

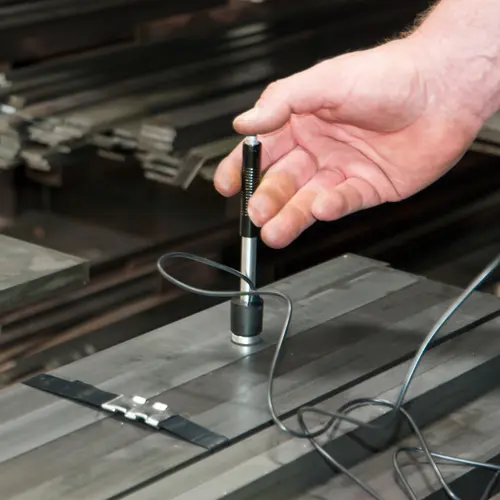

This means that with the Condition Monitoring Material Hardness Tester a firing pin bounces on a metallic surface and the intensity of the rebound is used as an indicator of the material hardness.
The Condition Monitoring Material Hardness Tester measures the metal hardness in 6 different hardness scales, including: Rockwell, Vickers, Leeb, Brinell and Shore.
A distinction is made between Rockwell B and C when measuring in the Rockwell scale.

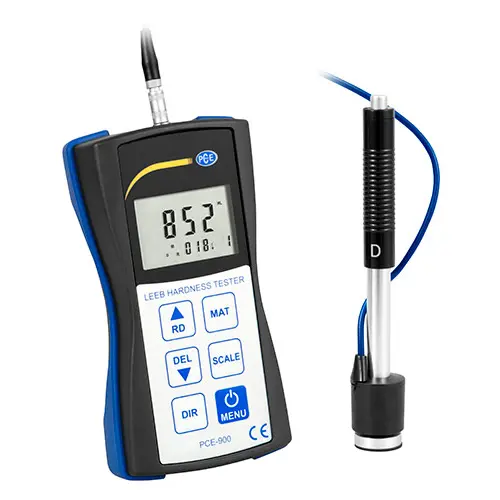

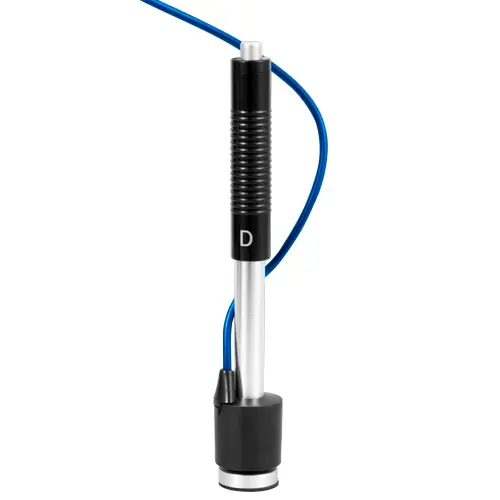

The Condition Monitoring Material Hardness Tester comes with a type D impact probe as standard. This probe can be used for many measurements. Via the optional software, the measured values can be transmitted live to the PC. This makes the Condition Monitoring Material Hardness Tester an important instrument in the field of material inspection in goods control.
| Measuring range | 200 ... 900 HL |
| Measuring accuracy | ± 0.8% at HLD=900 |
| Materials | 9 common material presets |
| Hardness scales | Leeb: HL Rockwell C: HRC Rockwell B: HRB Brinell: HB Vickers: HV Shore: HSD |

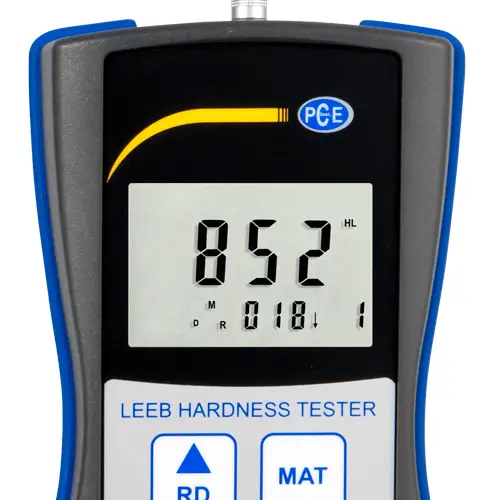

| Display | 12.5 mm / 0.5" LCD with backlight |
| Impact probe | Type D |
| Memory | 50 data sets |
| Interface | RS-232 |
| Power supply | 4 x 1.5V AAA batteries |
| Environmental conditions | Operating temperature: -10 ... 50°C / 14 ... 122°F Storage temperature: -30 ... 60°C / -22 ... 140°F Relative humidity: < 90% |
| Dimensions | 142 x 77 x 40 mm / 5.59 x 3.03 x 1.58 in |
| Weight | Device weight: ca. 130 g / < 1 lb Probe weight: 75 g / < 1 lb |
| Cable length | ca. 1.2 m / 3.9 ft |
