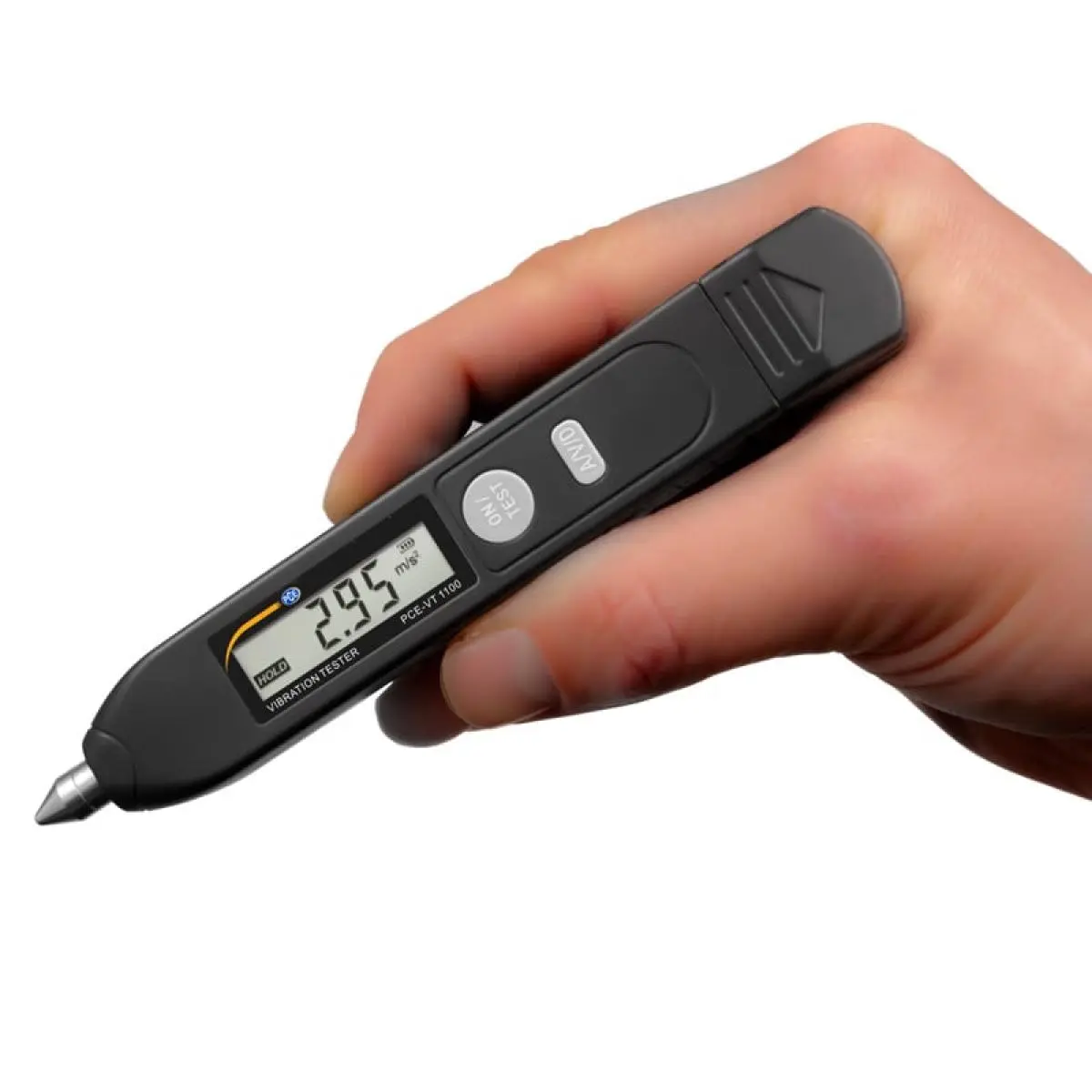

The condition monitoring vibration meter is used as a hand-held measuring device for the individual assessment of vibrations on machines and systems.
With the help of this condition monitoring vibration meter, the actual state can easily be determined on site.
Thus, corresponding changes can be made directly on site after the measurement.
Thereafter, the new condition can be assessed. Thus, the condition monitoring vibration meter serves as a measuring device for a relative measurement on different machines.
The condition monitoring vibration meter serves essentially as precautionary or preventive maintenance of production machines. The condition monitoring vibration meter serves essentially as precautionary or preventive maintenance of production machines. Very often, the condition monitoring vibration meter is used to assess the state of smaller electric motors.
|Parameter||Measuring Range||Frequency Range|
|Acceleration||0.01 ... 199.9 m/s² peak||10 Hz ... 1 kHz|
|Vibration speed||0.01 ... 199.9 mm/s rms||10 Hz ... 1 kHz|
|Displacement||0.001 ... 1.999 mm p-p||10 ... 500 Hz|
|Measurement accuracy||Acceleration: ≤ 3 %
Vibration speed: ±5 %, ±2 Digits
Displacement: +10/-20 % (10...20 Hz); ±5 % (20...1000 HZ)
|Display||LCD, Response time approx. 1 second|
|Power supply||2 x 6 V CR2032 button cell|
|Battery life||about 5 hours (in continuous operation)|
|Environmental conditions||0 ... +40 °C / 32 ... 104°F, 0 ... 84 % r.H.|
|Dimensions||155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7"|
|Weight||ca. 40 g / 1.4 oz (incl. batteries)|

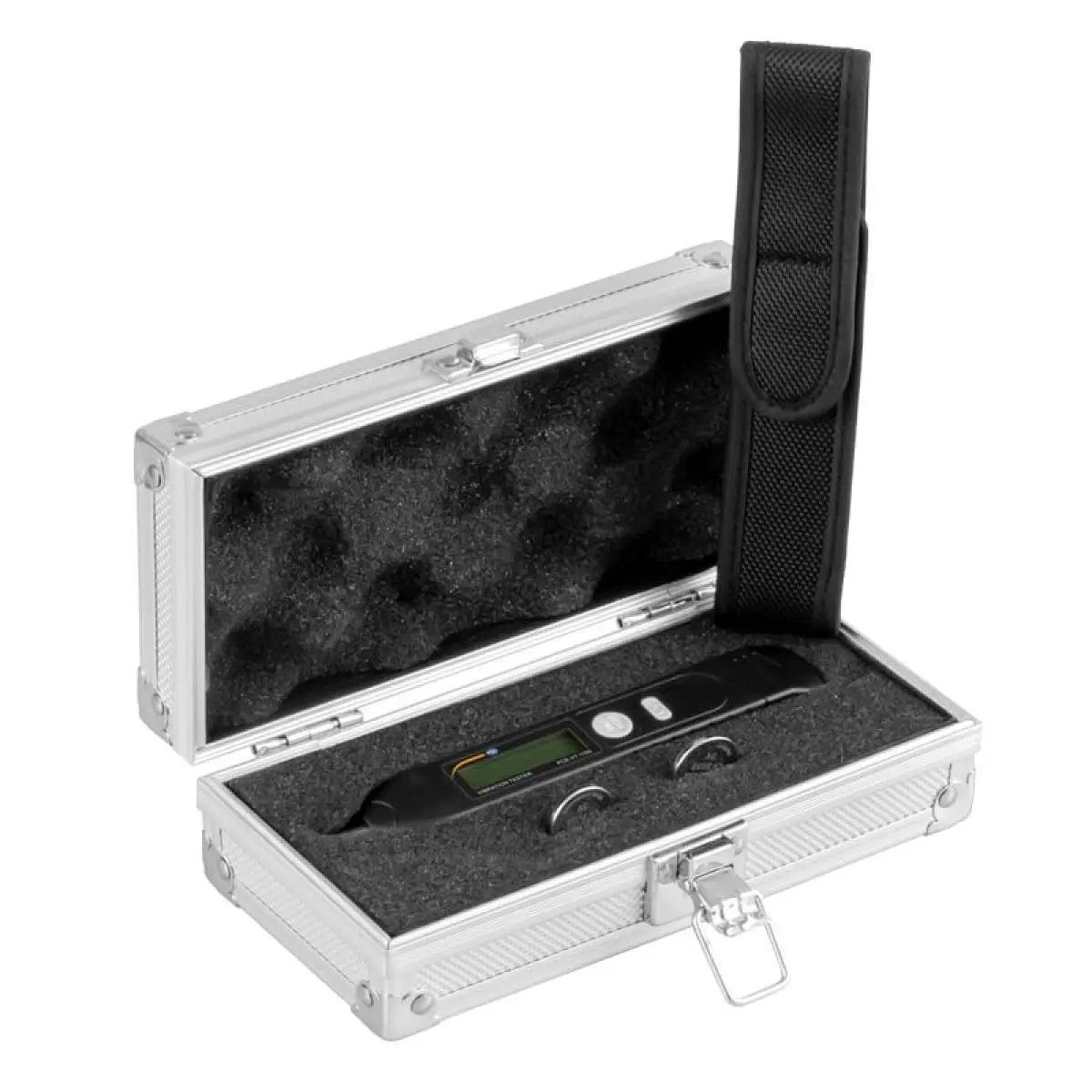

1 x Condition Monitoring Vibration Meter PCE-VT 1100
1 x PCE-VT-NF-10 standard probe (length 10mm)
2 x Batteries
1 x Carrying case
1 x Storage box
1 x User manual
