Condition Monitoring Temperature Meter PCE-IR 80-ICA Incl. ISO Calibration Certificate

Order no.: PCE-IR 80-ICA

GTIN (EAN): 4250348726209

Accessory

PCE-MS 25 Measuring Point Sticker

£ 13.00

ISO Calibration Certificate for Infrared Thermometer

£ 108.00

Description

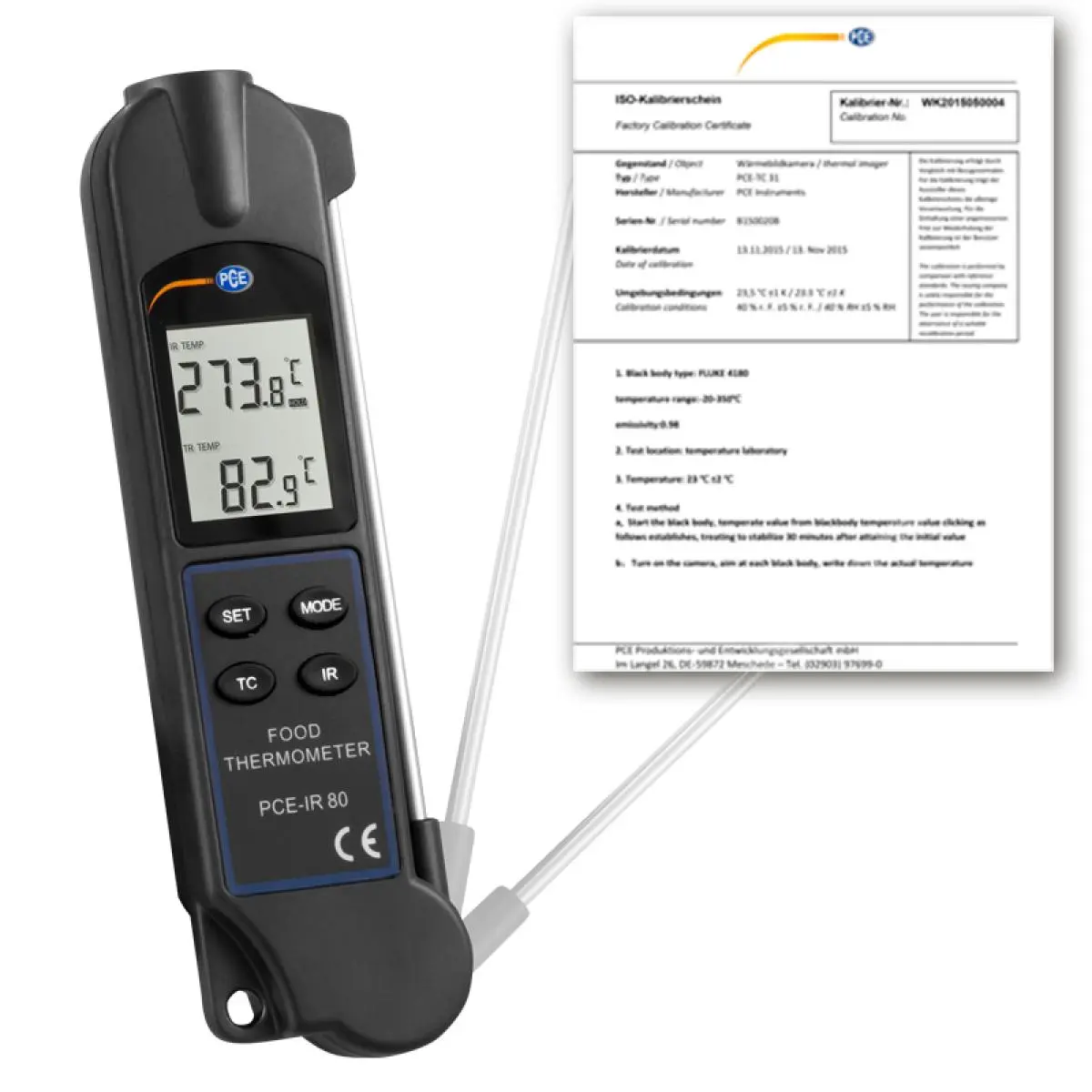

Condition Monitoring Temperature Meter incl. ISO calibration certificate

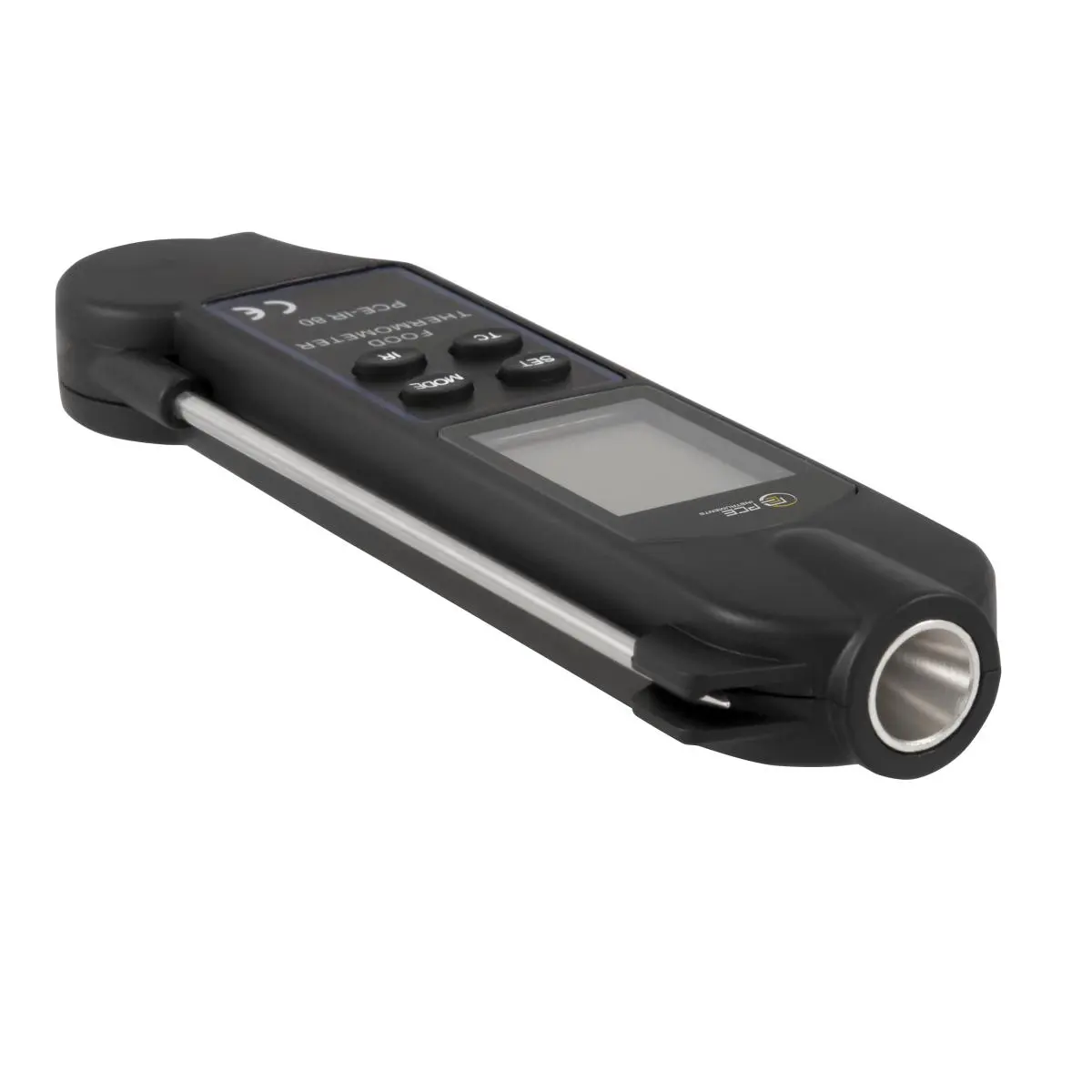

Food thermometer for non-contact and contact measurement / Up to 330°C (626°F) / Probe made of stainless steel / Simple operation

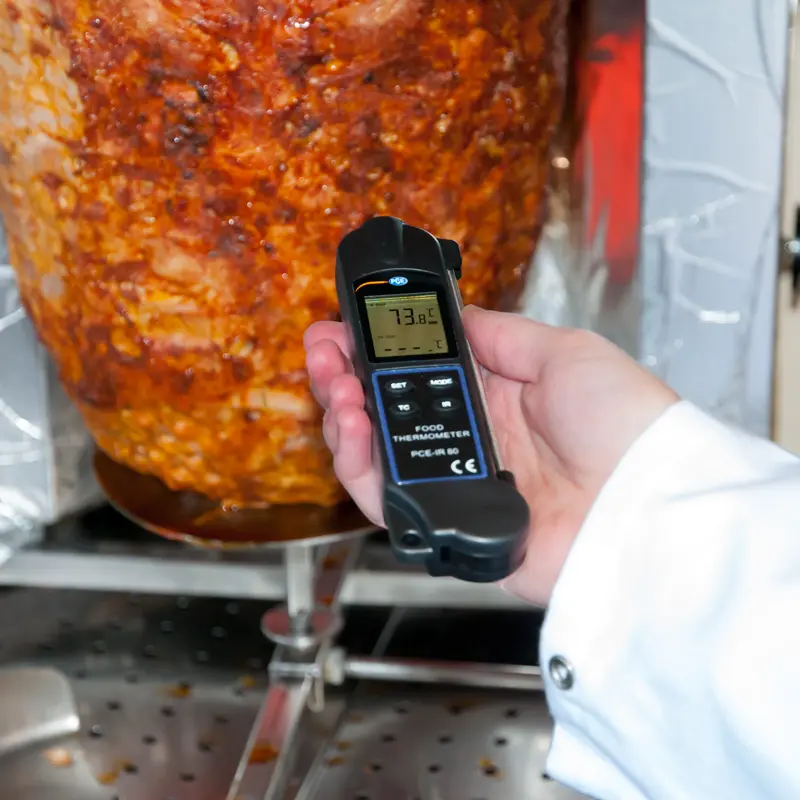

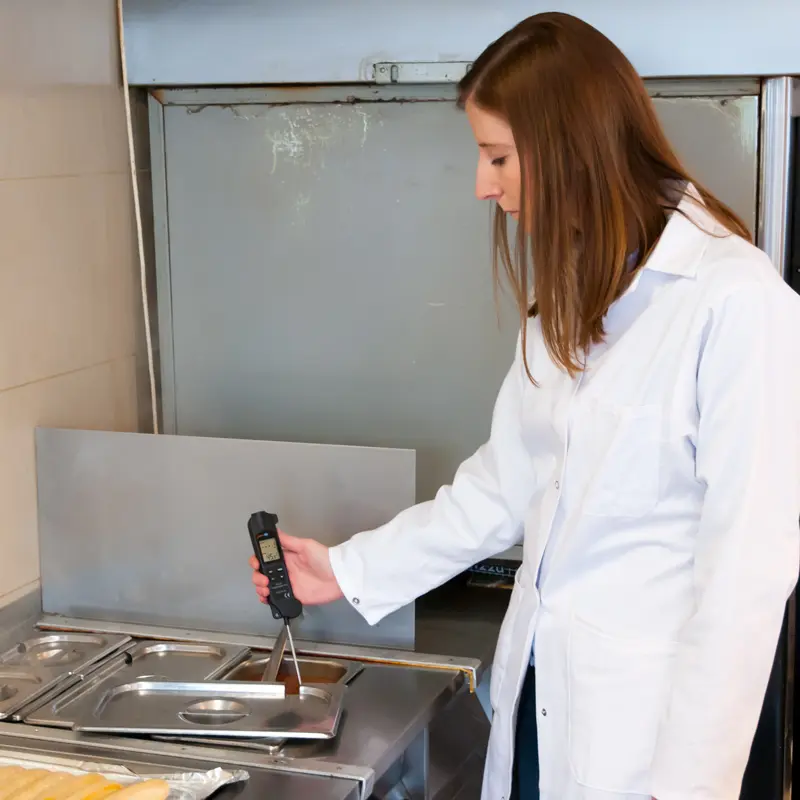

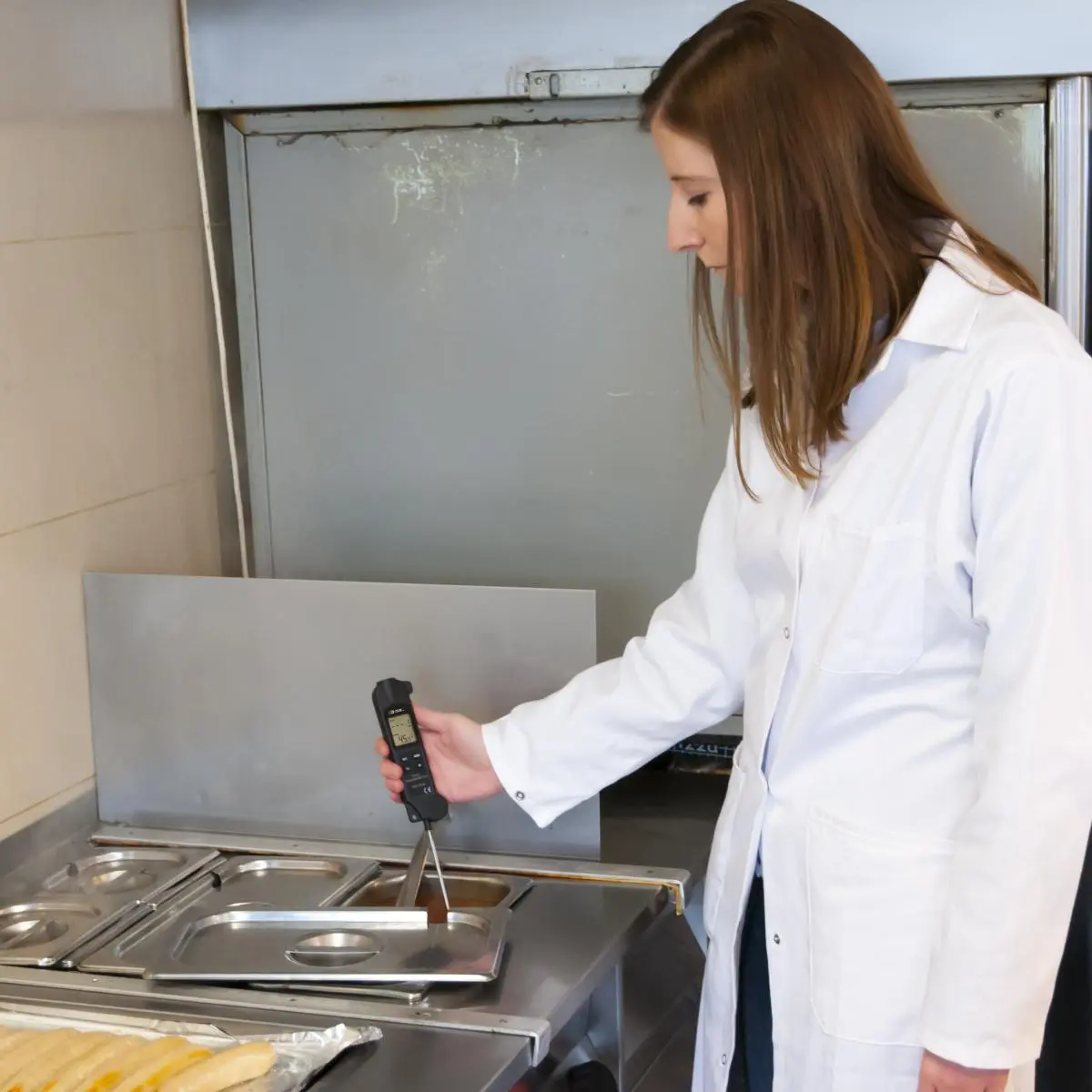

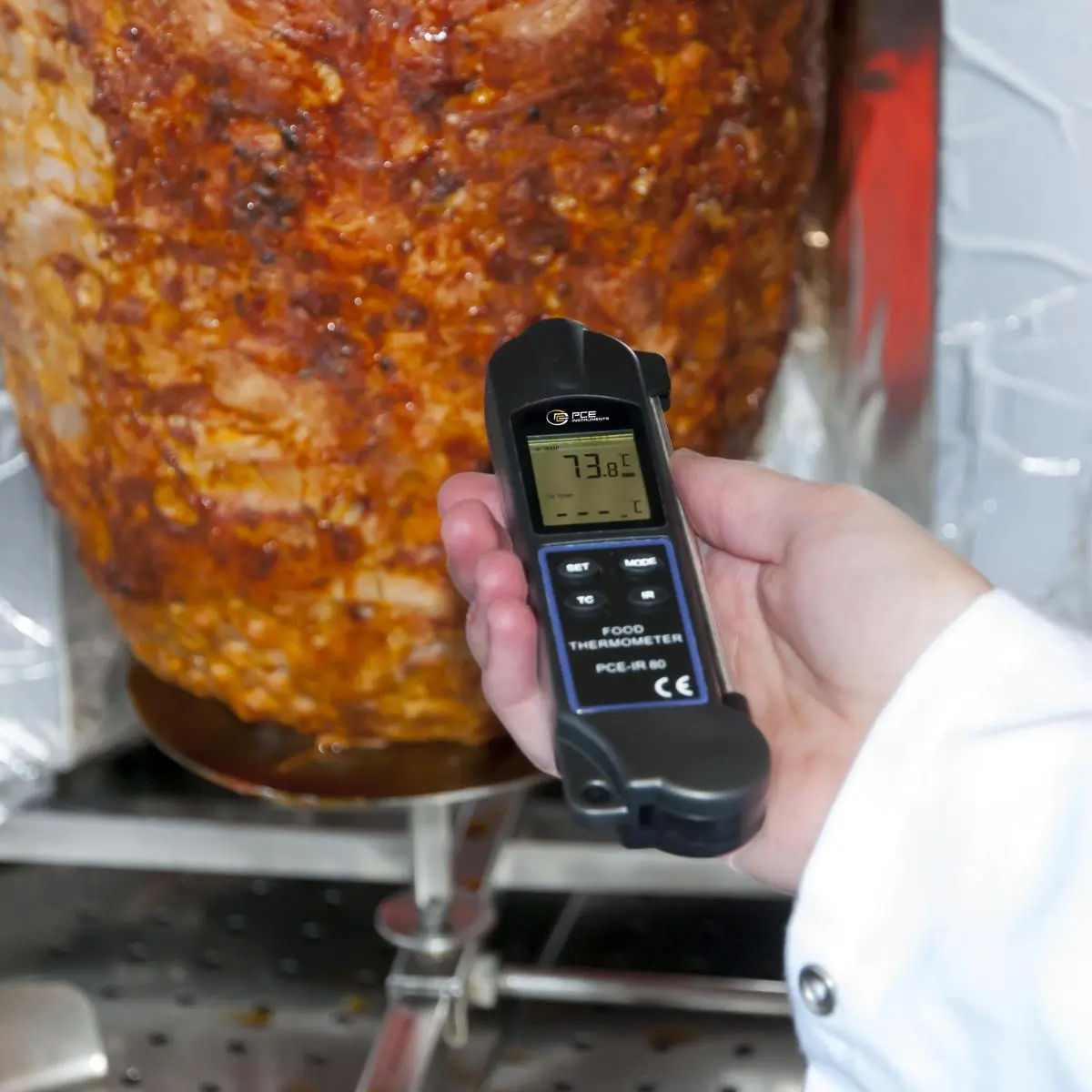

The condition monitoring temperature meter is used to quickly control the temperature of food. The condition monitoring temperature meter is used in the area of canteen kitchens, catering services, refrigerated warehouses and warehouses. The condition monitoring temperature meter has two types of measurement. On the one hand, the condition monitoring temperature meter can measure the temperature of the object without contact via infrared. Here the measuring range is -35 ... 330°C / -31 ... 626°F. The emissivity of the condition monitoring temperature meter is adjustable, so that always best measuring results can be achieved.

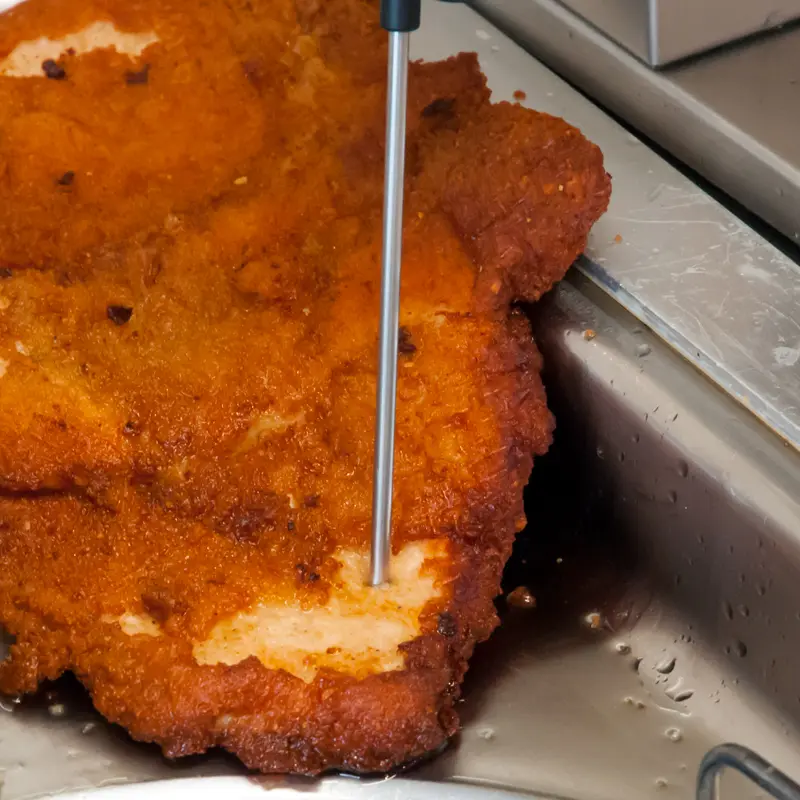

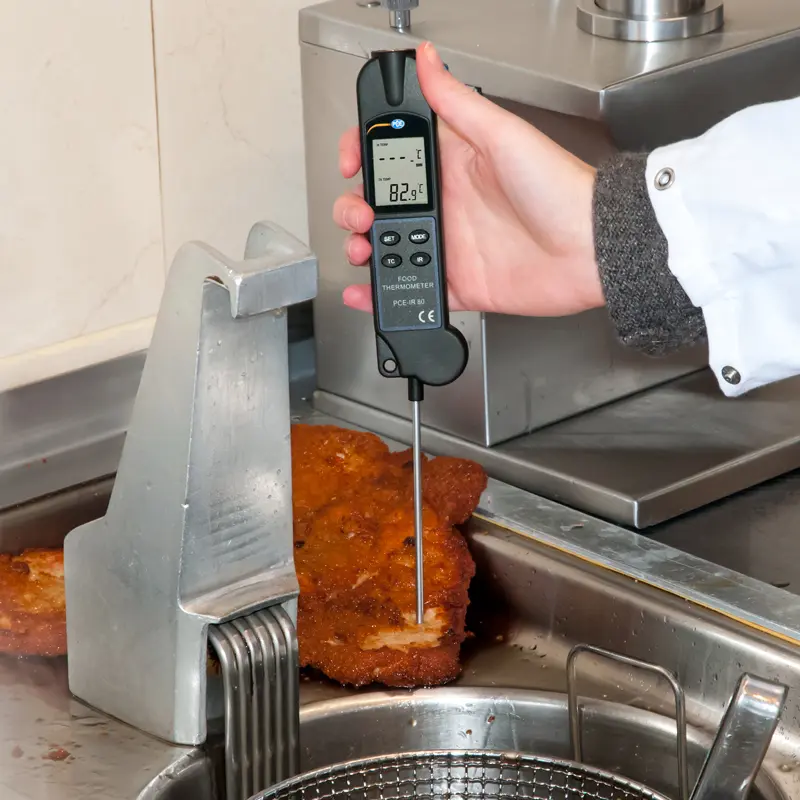

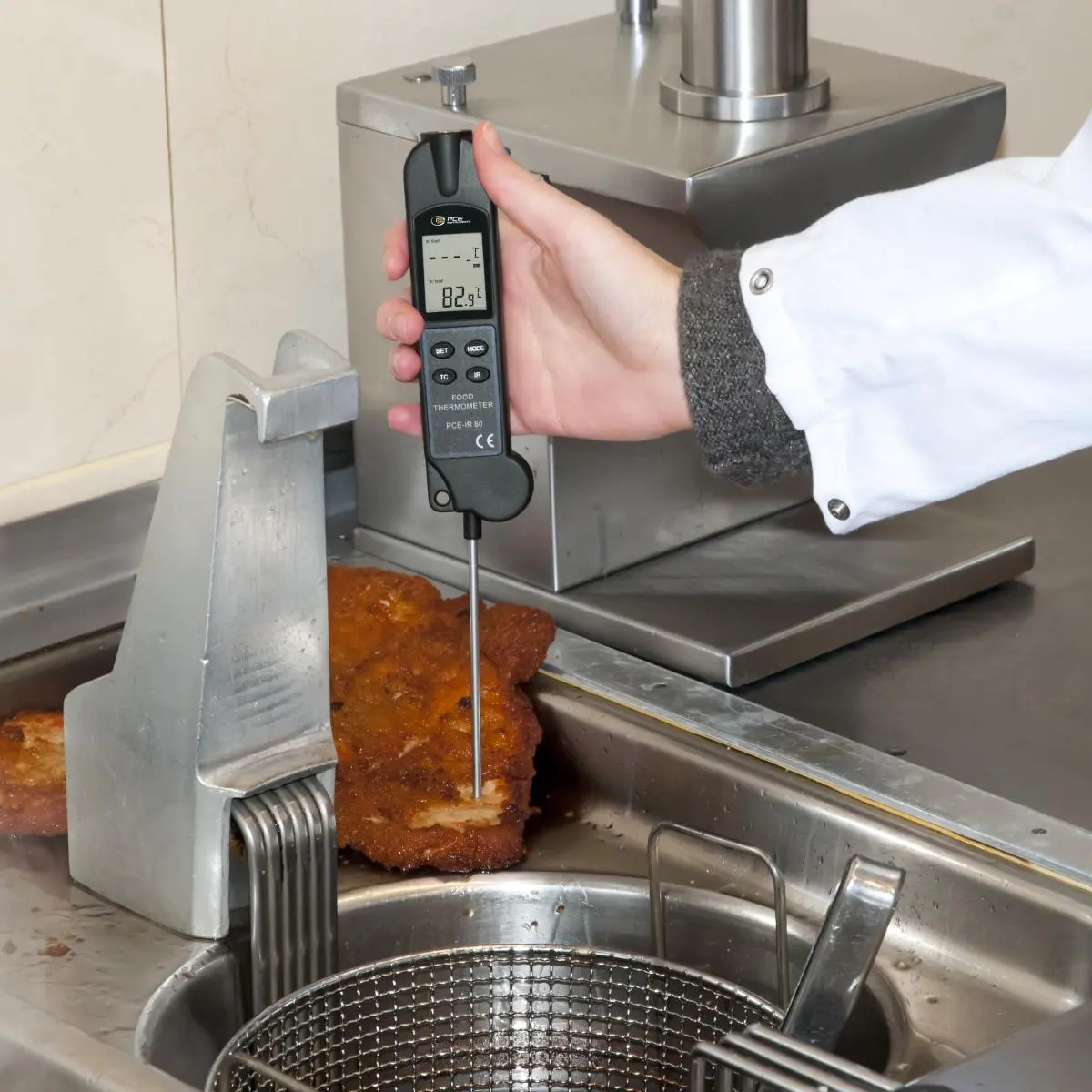

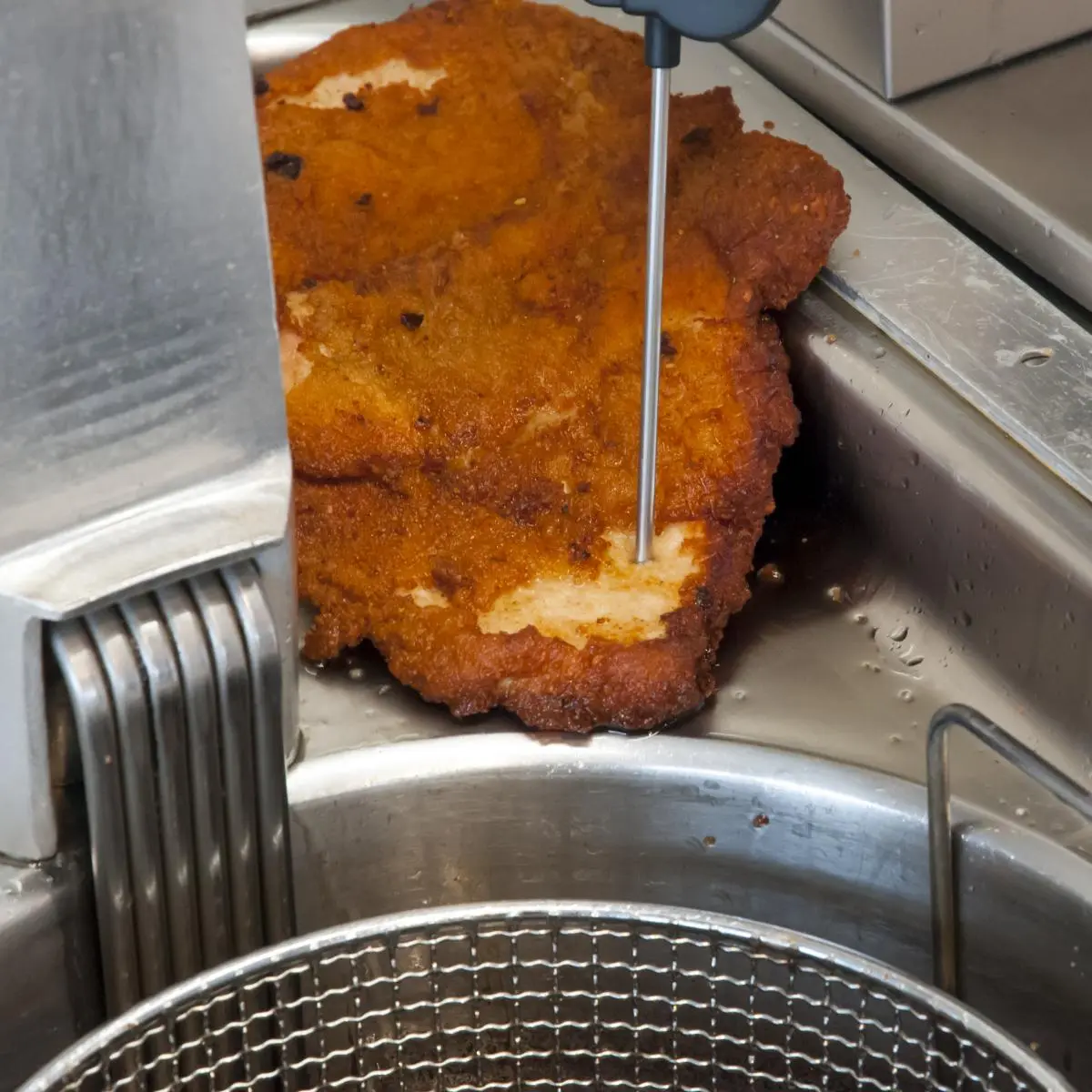

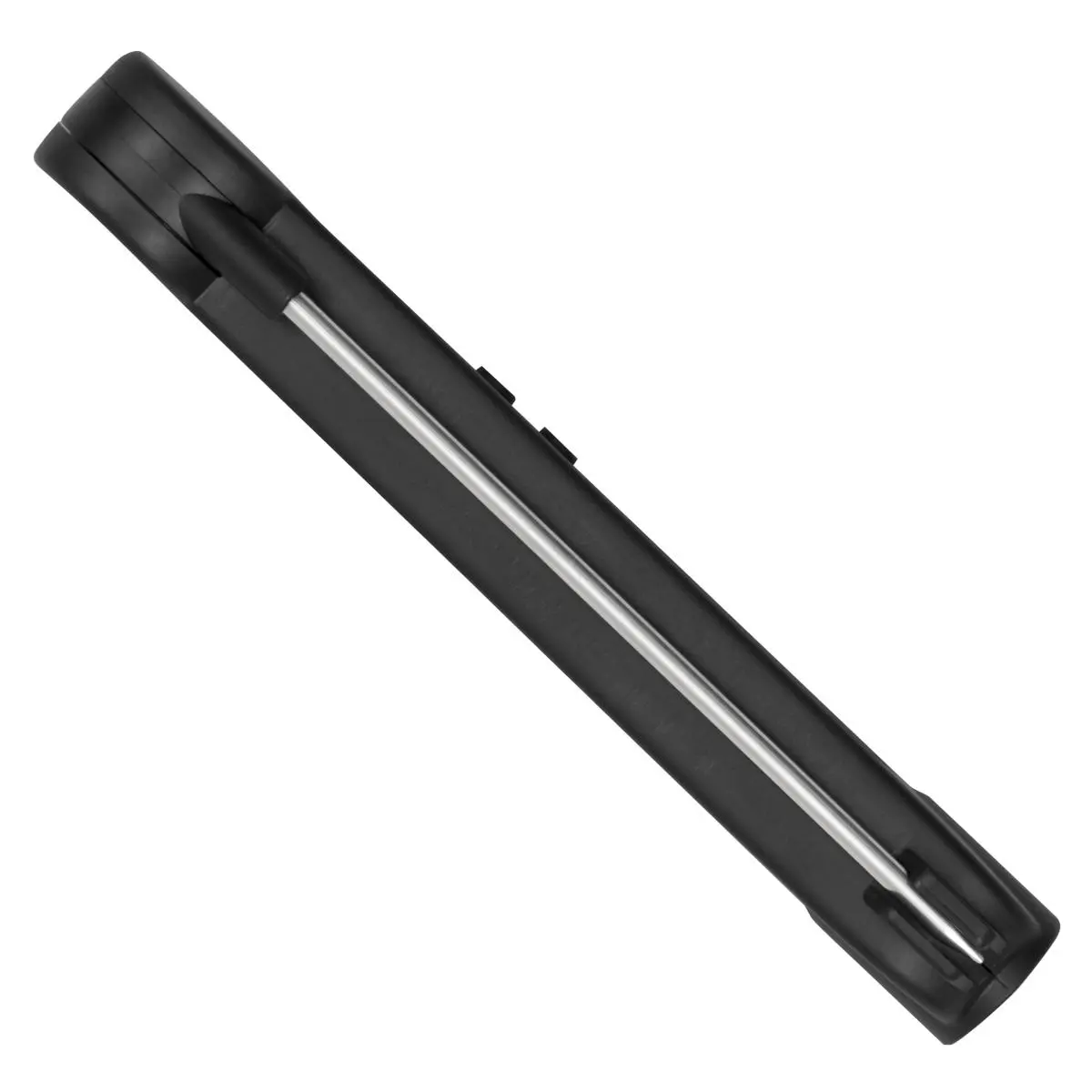

On the other hand, the condition monitoring temperature meter has a stainless steel needle sensor, so that the meter can also be used as a puncture temperature meter. If the core temperature is measured by this method, the condition monitoring temperature meter can measure in the range between -20 ... 260°C / -4 ... 500°F. The unit of the penetration thermometer can be switched between °C and °F. The fast response time of 10 ms and high resolution of 0.1°C / 1.8°F complete the scope of the condition monitoring temperature meter. The condition monitoring temperature meter is supplied with a CR2032 battery.

Highlights

- Non-contact and contacting temperature measurement combined in one measuring

device only

- Large measuring range

- Suitable for use in the food industry according to HACCP

- Emissivity adjustable (pre-set for food)

- Low response time

- Measurement hold function (Min./Max.)

- Continuous measurement function

- Waterproof, thus simple hygienic cleaning (flushable housing)

- incl. ISO-Calibration Certificate

Specification

Temperature K-type
Measuring range	-20 ... +260 °C
Resolution	0,1 °C
Accuracy	±1 % of Rd ±1.5 °C

Temperature K-type
Measuring range	-4 ... +500 °C
Resolution	0,18 °C
Accuracy	±1% v.Mw. ±2.7°F

Infrared temperature
Measuring range	-35 ... 0 °C
Resolution	0,1 °C
Accuracy	±4 °C

Infrared temperature
Measuring range	0 ... 330 °C
Resolution	0,1 °C
Accuracy	±2% v.Mw. ±2°C

Infrared temperature
Measuring range	-31 ... +626 °C
Resolution	0,18 °C
Accuracy	-31 ... 32°F: ±7.2°F >32°F: ±2% v.Mw. ±3.6°F

General technical data
Measuring functions	MAX, MIN, LOCK
Units	°C, °F

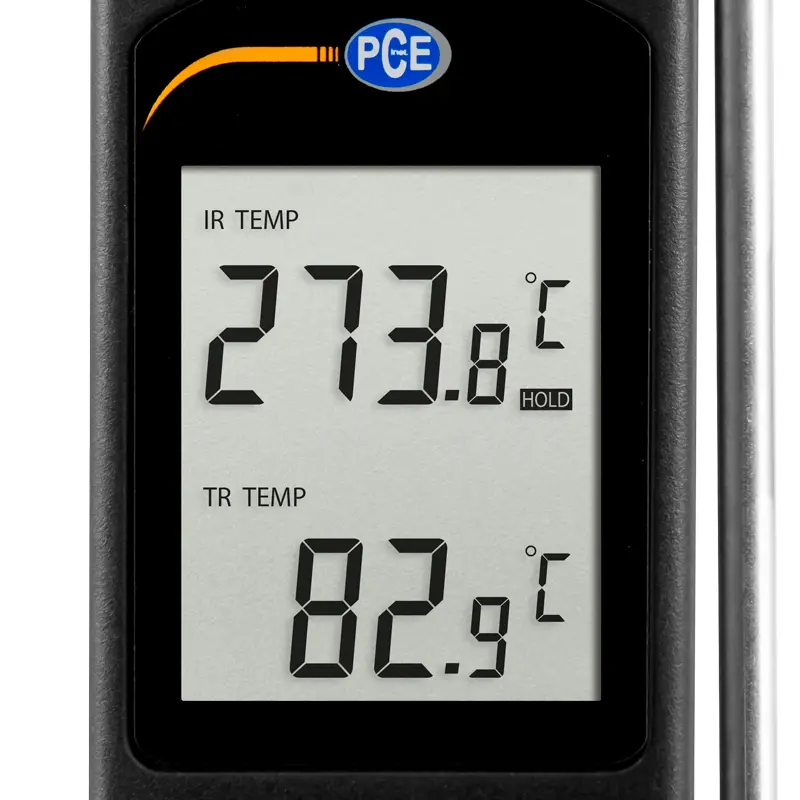

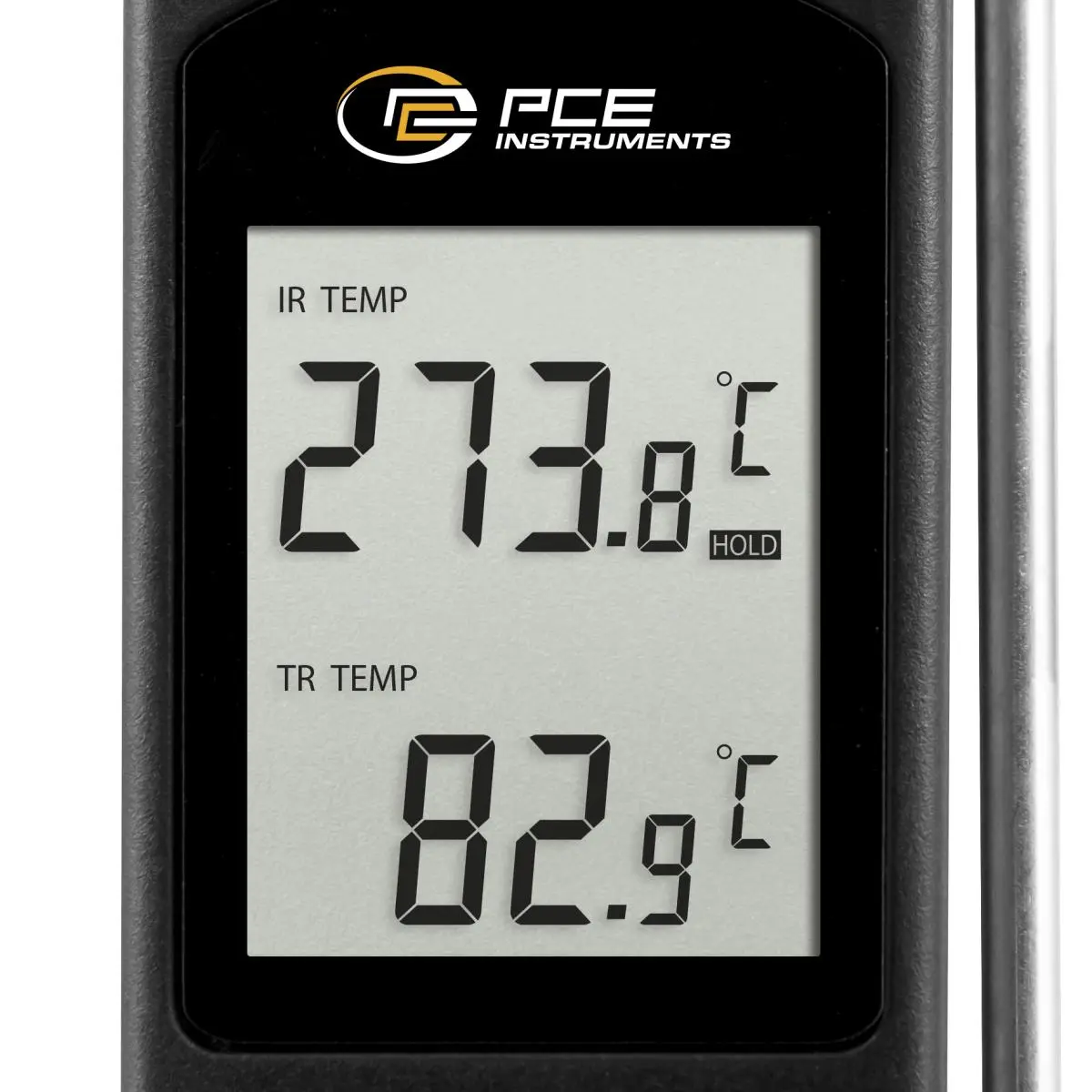

Display type	LCD
Display size	1,5 in
Response time	10 ms
Automatic power-off	3 min
Measurement spot	4:1
Emissivity from/to	0.1 ... 1
Emissivity	0
Spectral range	8 ... 14 µm
Menu language	English, English (GB)
Protection class (device)	IP43
(Rechargeable) battery	1 x 3 V CR 2032 (button cell 3V) , lithium
Capacity	220 mAh
Operating conditions	0 ... 50 °C , 10 ... 95 % RH
Storage conditions	-20 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	151 x 41 x 20 mm
Weight	100 g
