Condition Monitoring Temperature Meter PCE-HT 114-ICA Incl. ISO Calibration Certificate

Condition Monitoring Temperature Meter PCE-HT 114-ICA Incl. ISO Calibration Certificate

Order no.: PCE-HT 114-ICA
GTIN (EAN):
£ 262.00
£ 314.40
ISO Calibration
price ex. (VAT / delivery)
PCE-HT 114-ICA
Delivery time: 10 - 14 days

Description

Refrigerator Condition Monitoring Temperature Meter
Refrigerator data logger for temperature and humidity / LCD / 25,920 Data Storage /  Fast reading via USB / Adjustable alarm limits / External sensor

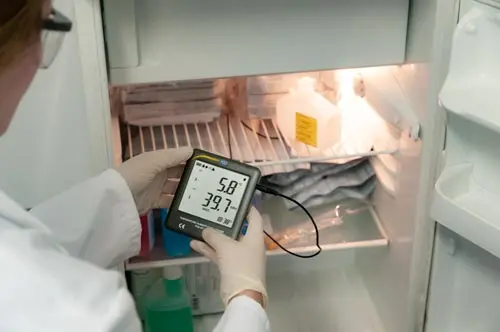

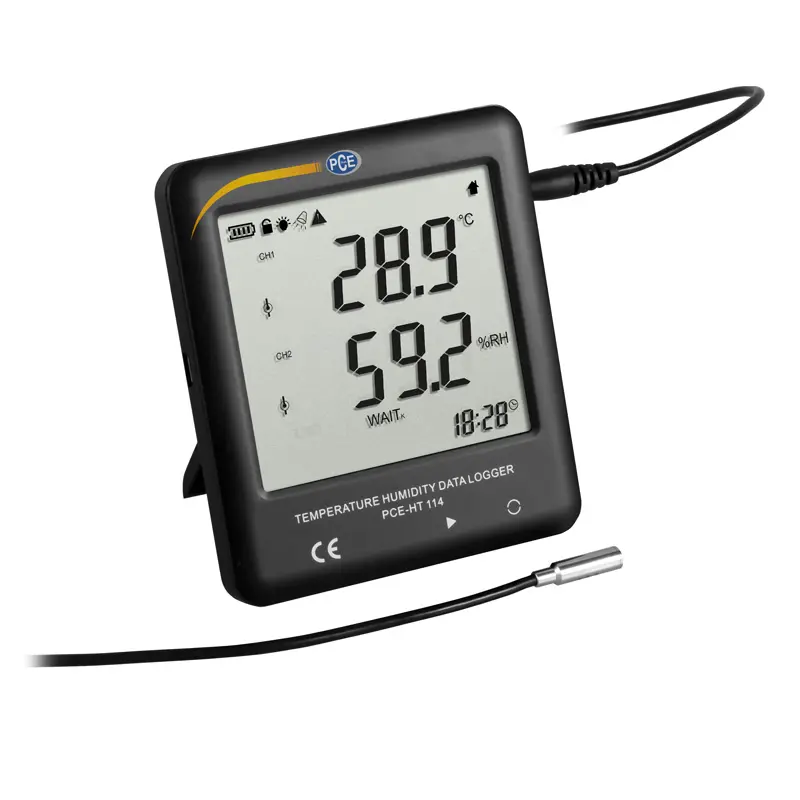

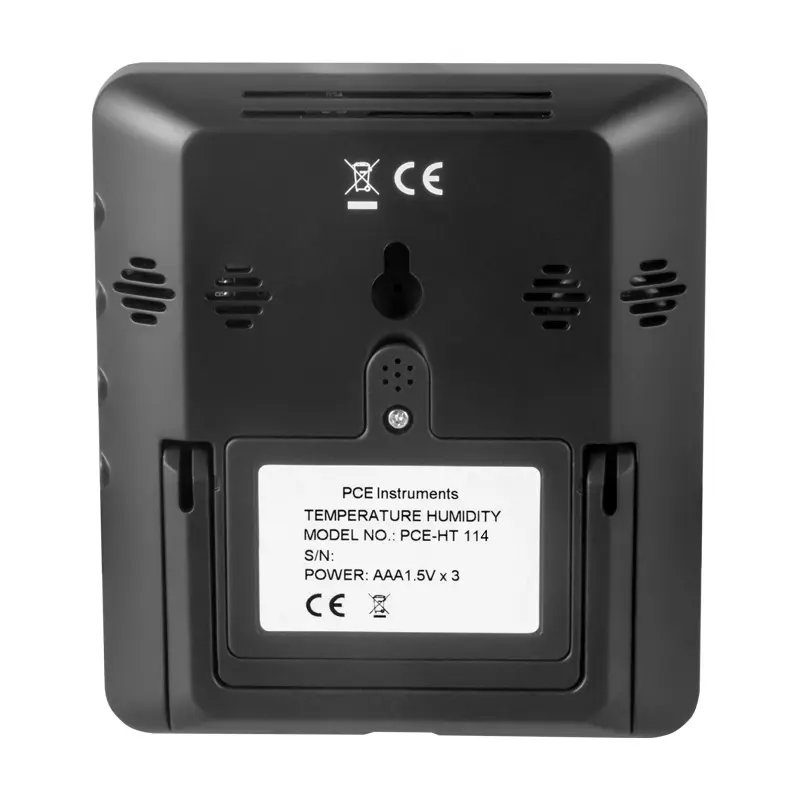

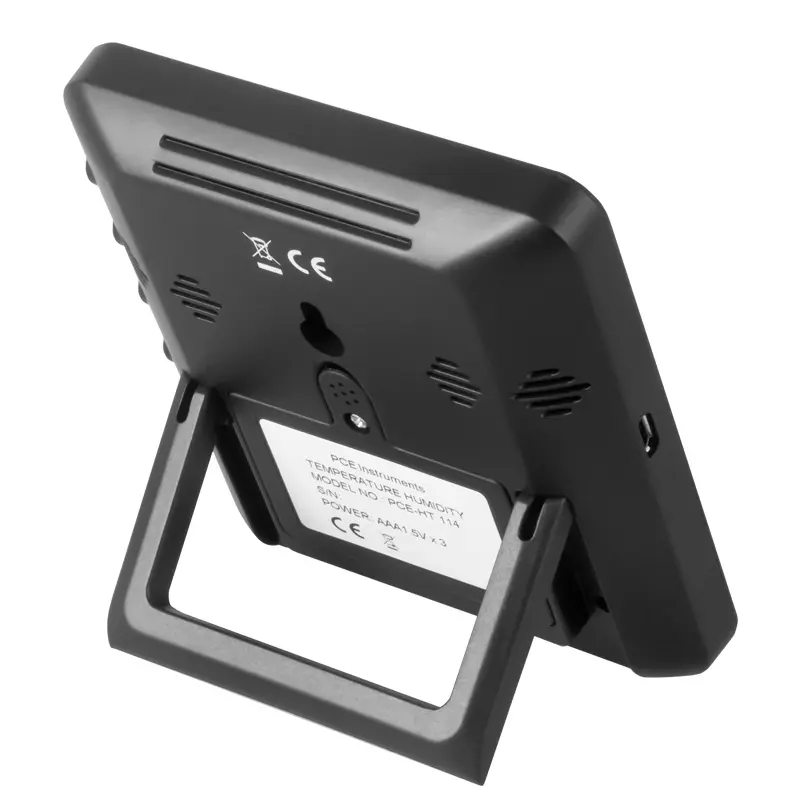

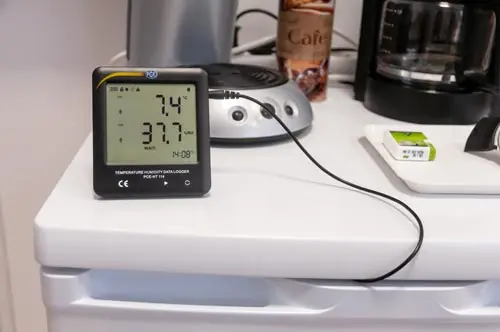

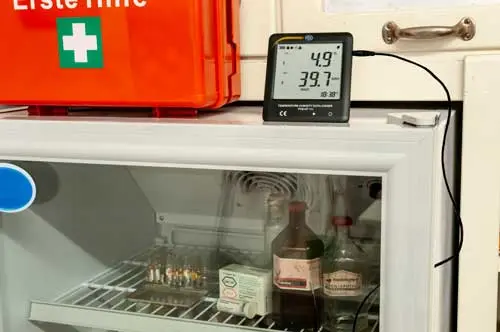

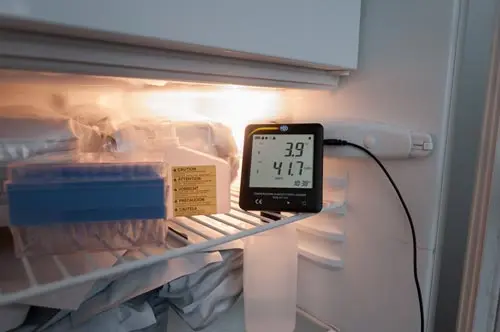

The Condition Monitoring Temperature Meter has a temperature and humidity sensor on 2 m / 6.6 ft cable. The Condition Monitoring Temperature Meter records the temperature and humidity in the interior of the refrigerator and simultaneously displays it via the LCD display. The Condition Monitoring Temperature Meter stores the measured values ​​in a format that is used by the software for analysis as well as in PDF format. In the PDF document that creates the Condition Monitoring Temperature Meter, a graph showing the course of the measurement is shown. Likewise, an overview of all measured values ​​is displayed directly in the measurement report. The Condition Monitoring Temperature Meter has a base and a mounting tab on the back. The display can be switched off for battery saver.

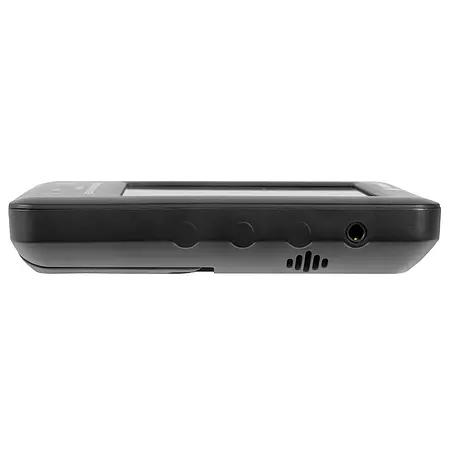

The Condition Monitoring Temperature Meter can store up to 25,920 readings, which can be evaluated using the software. To connect to a PC, the Condition Monitoring Temperature Meter has a USB port. The software can also set alarms for high or low temperatures. It is also possible to switch over to the optionally available external sensor via the software.

Highlights

- Temperature and humidity data logger
- LCD display
- Memory for 25,920 readings
- Fast reading via USB
- Adjustable alarm limits
- External sensor
- Incl. ISO calibration certificate

Specification

Measuring function Temperature
Measuring range -40 ... 125°C / -40 ... 257°F (external)
Resolution 0.1°C / 0.18°F
Accuracy ± 0.3°C / 0.54°F (-10 ... 65°C / 14 ... 149°F)
± 0.5°C / 0.9°F (remaining range)

Measuring function Humidity
Measuring range 0 ... 100% rh (external)
Resolution 0.1% RH
Accuracy ± 3% (10% ... 90%)
  ± 4% (remaining area)

Response time 5 min
Storage 25,920 readings
Storage rates 30s, 60s, 2 min, 5 min, 10 min, 15 min, 20 min, 25 min, 30 min, 1 h or individually adjustable
Measuring interval /
refresh rate Display
5 s
Alarm Adjustable audible alarm
Interface USB
Power supply      3 x 1.5V AAA batteries
5V USB
Battery life Approx. 1 year (without lighting / without alarm)
operating conditions                             -30 ... 65°C / -22 ... 149°F
Storage  conditions -30 ... 65°C / -22 ... 149°F (without battery)
Dimension 96 x 108 x 20 mm / 3.8 x 4.3 x 0.8 in
Weight 120 g / < 1 lb
Degree of protection IP20

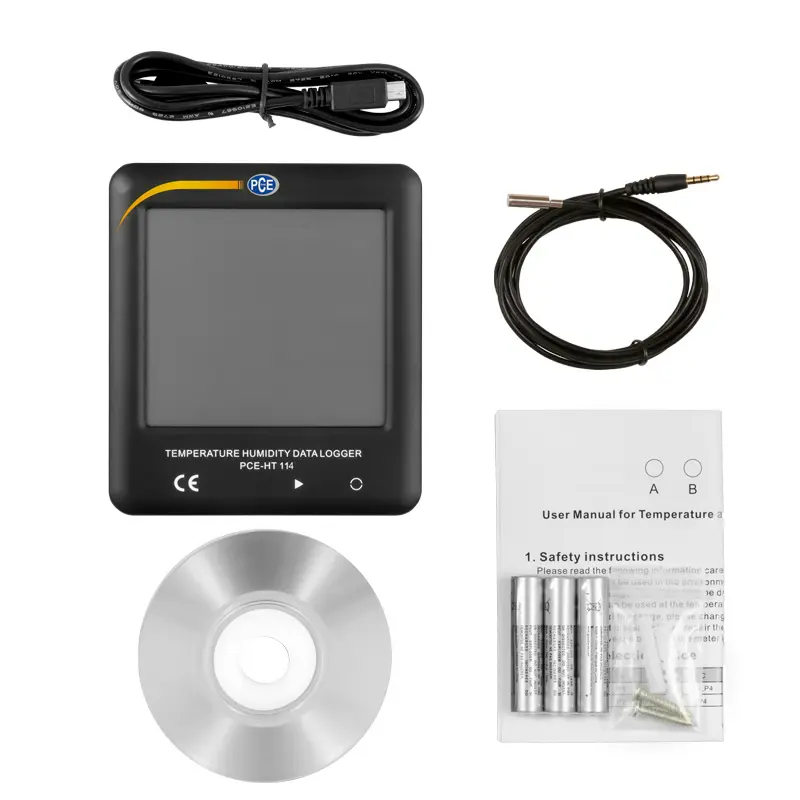

Delivery Scope

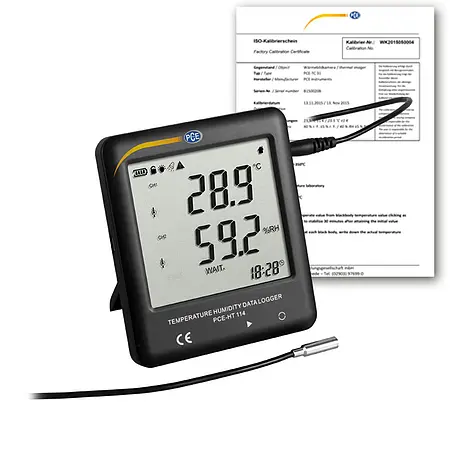

1 x Condition Monitoring Temperature Meter PCE-HT 114-ICA
1 x External sensor
3 x 1.5V AAA battery
1 x Micro USB cable
1 x Software on CD
1 x User manual

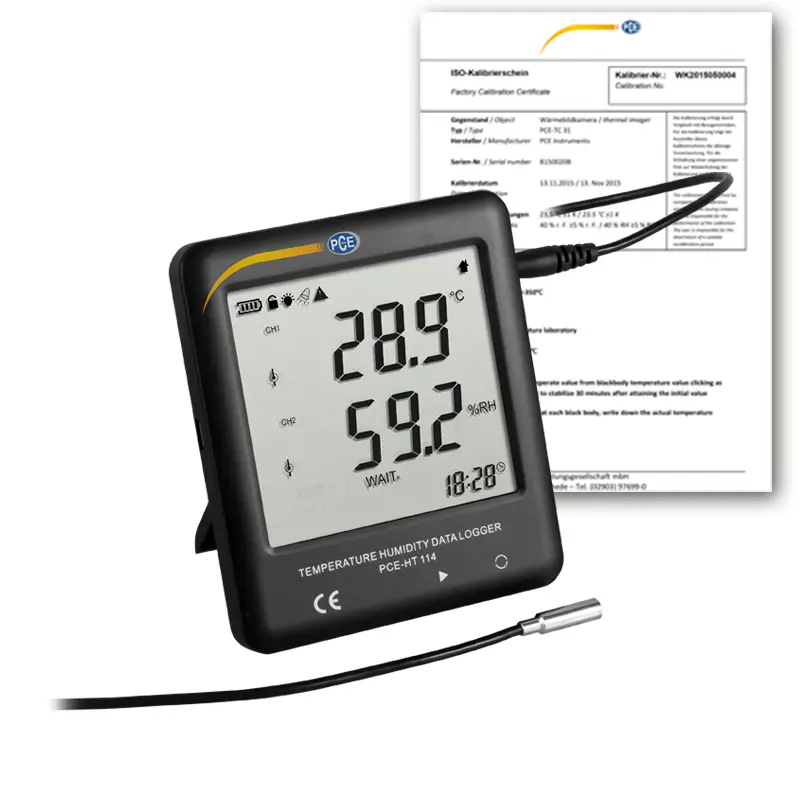

1 x ISO calibration certificate
