Condition Monitoring Pyrometer PCE-893

Order no.: PCE-893

GTIN (EAN): 4250348719133

Accessory

PCE-MS 25 Measuring Point Sticker

£ 13.00

ISO Calibration Certificate for Infrared Thermometer

£ 108.00

Description

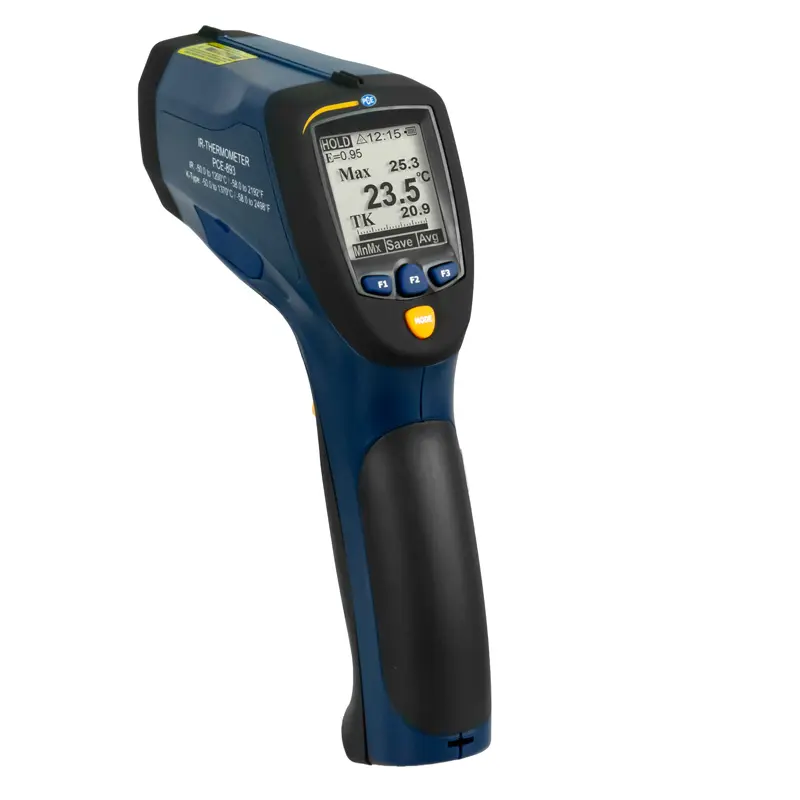

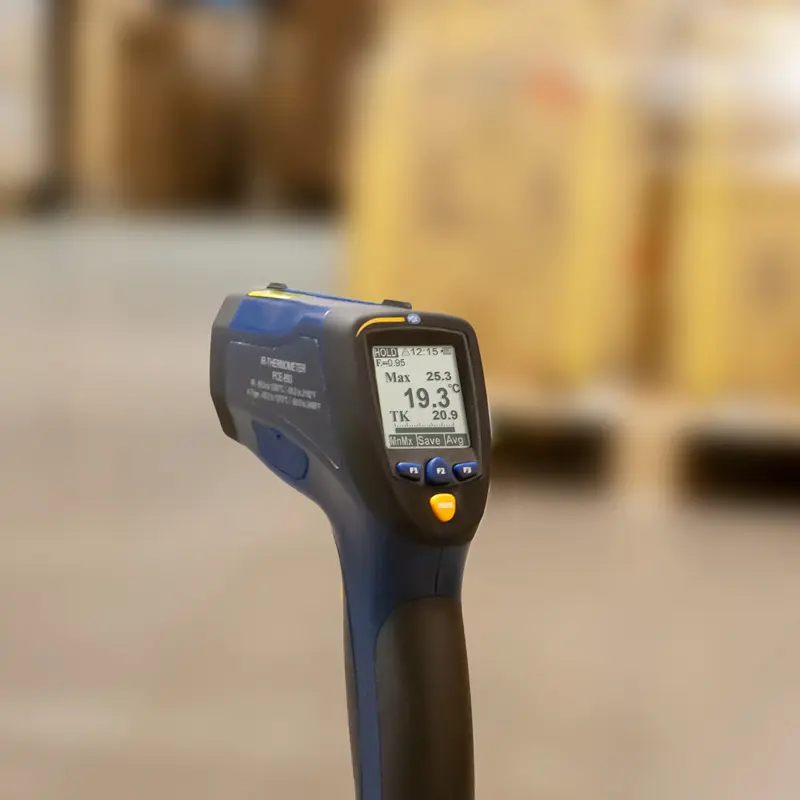

Condition Monitoring Pyrometer

Laser temperature meter for easy measurement of surface temperatures /

Fast response time / Adjustable emissivity / Max-Min function / Alarm function / Measuring range up to 1200 °C / 2192 °F / Thermocouples type K connectable / Software for PC connection

The condition monitoring pyrometer is suitable for simple temperature measurements. The emissivity of the surface can be adjusted on the condition monitoring pyrometer. Thus, the condition monitoring pyrometer is suitable for almost all surfaces. The dual laser of the condition monitoring pyrometer marks the exact center of the measurement spot. This helps the user considerably with non-contact temperature measurement. The condition monitoring pyrometer has a backlit display. In addition to the emissivity setting, the user can set limit value alarms over the entire measuring range of the condition monitoring pyrometer. The measuring range is from -50 °C to + 1200 °C / -58 ... 2192 °F. The measuring spot ratio of the condition monitoring pyrometer is 50:1.

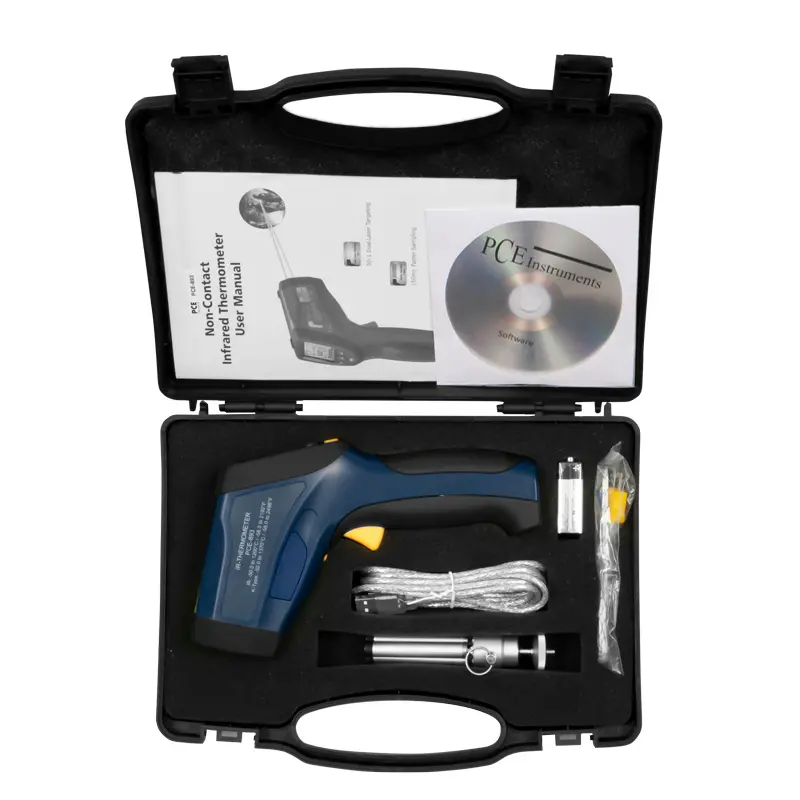

In addition to the infrared measurement, a variety of thermocouples Type-K can be connected to the condition monitoring pyrometer. Here measurements up to 1370 °C / 2498 °F are possible. The included software and the USB port on the condition monitoring pyrometer allow the operator to analyze and store all measurement data on the PC both graphically and in a table.

Highlights

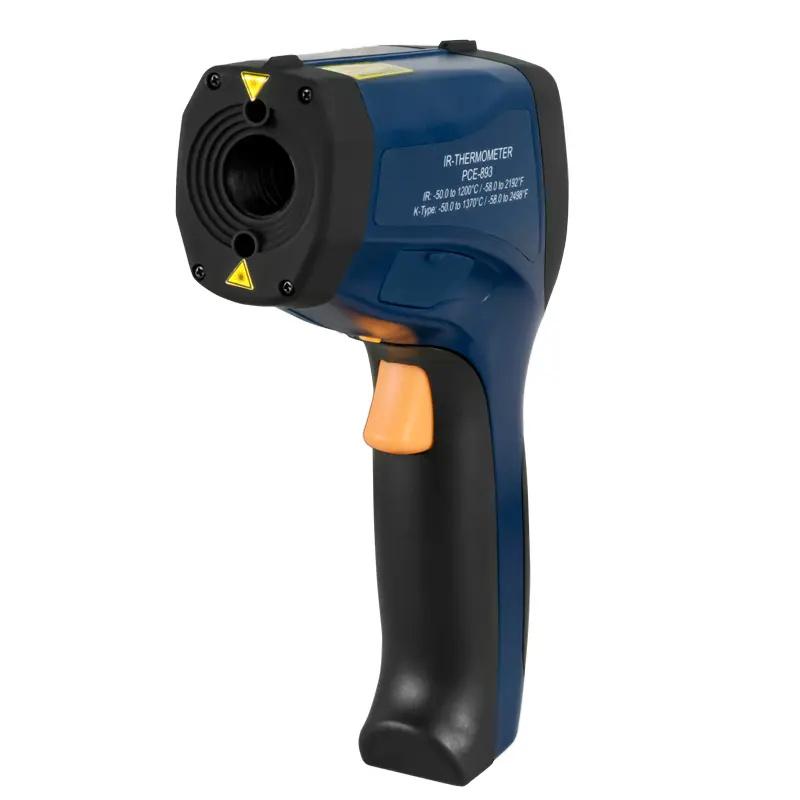

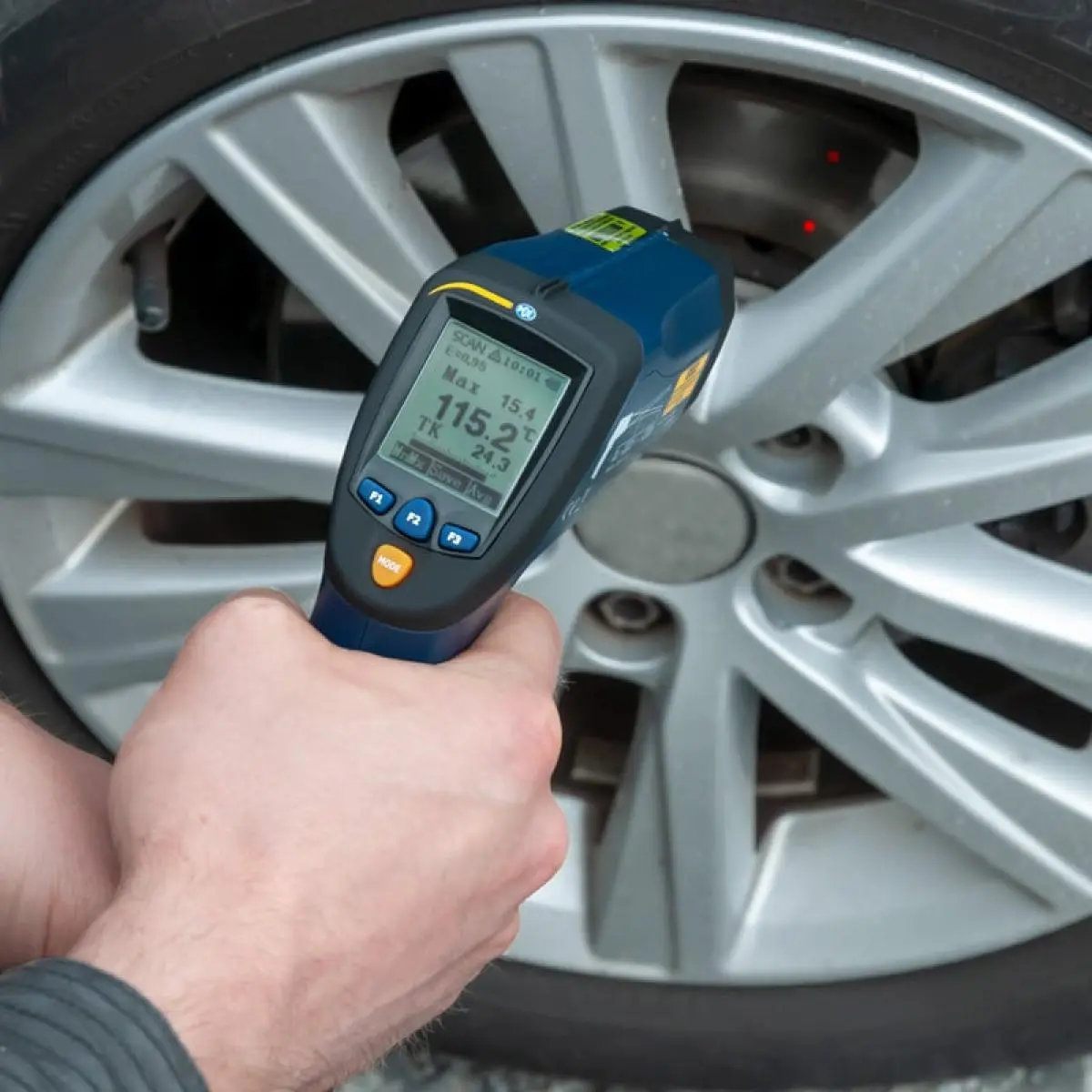

- Dual laser shows the spot center

- Adjustable emissivity

- Illuminated LCD

- Measured value transmission to a PC

- Non-contact temperature measurement

- Measurement spot ratio 50: 1 infrared optics

- Temperature measurement up to 1200 °C / 2192 °F

- Thermocouple type-K can be connected

Typical applications of the thermometer PCE-893

- Food monitoring

- Hygiene tests

- Road construction

- Control cabinet monitoring

- Heating and air conditioning technology

- Production monitoring

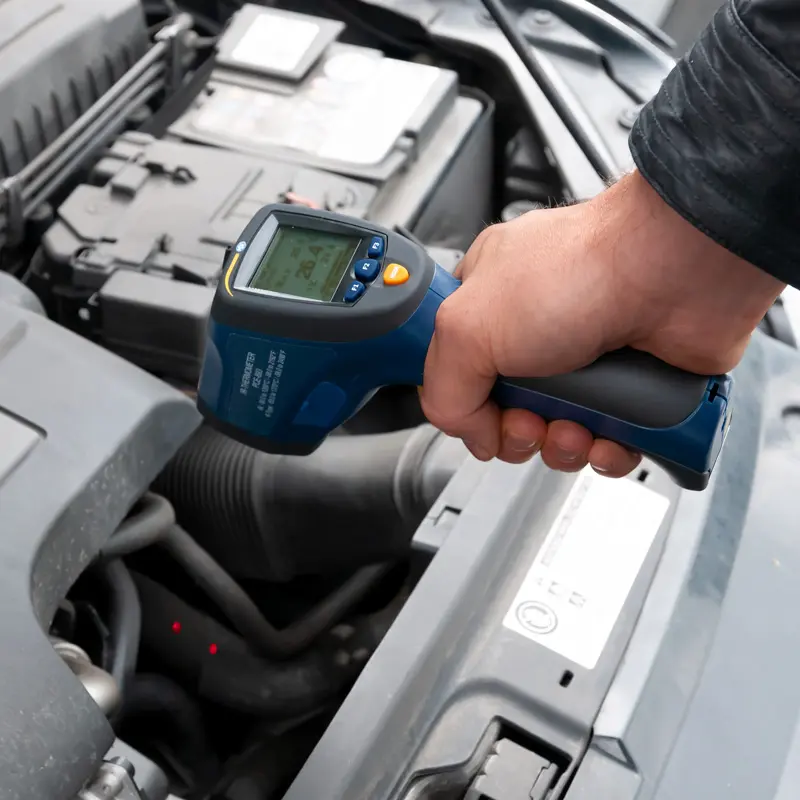

- Temperature measurement on motors

- Electronic components

- Fuse box

*ATTENTION* Our temperature sensors are designed for industrial and

laboratory surface temperature measurement ONLY. They are not designed or

certified for body temperature measurement or for medical use.

Specification

Temperature K-type
Measuring range	-50 ... +1370 °C
Resolution	1 °C
Accuracy	±2.5 °C (-50 ... 0 °C) / ±0.5 % ±1.5 °C (0 ... 1370 °C)

Infrared temperature
Measuring range	-50 ... +1200 °C
Accuracy	±3 °C (-50 ... 20 °C) / ±1 % ±1 °C (20 ... 500 °C) / ±1.5 % (500 ... 1000 °C) / ±2 % (1000 ... 1200 °C)

General technical data
Outputs	Interface for K-type sensor
Measuring functions	HOLD, MAX
Units	°C, °F

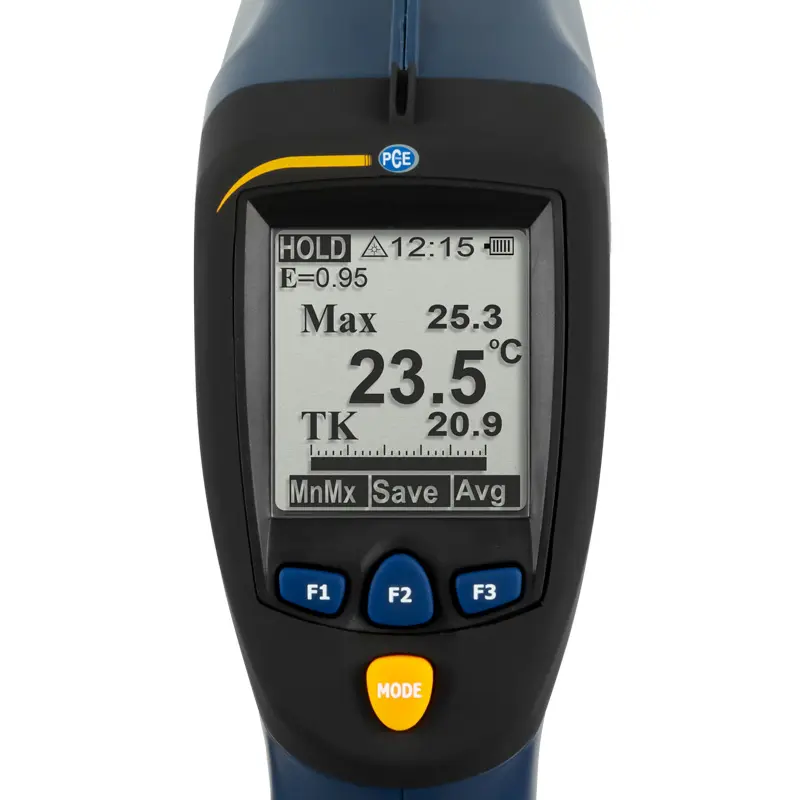

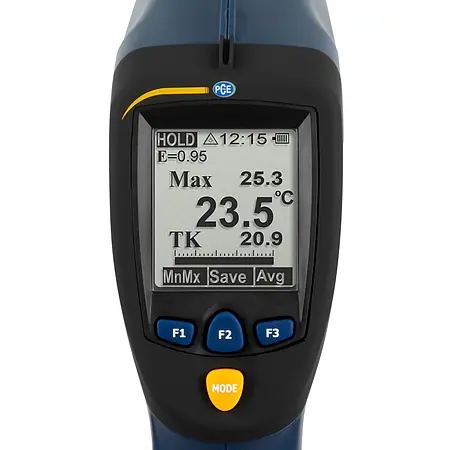

Display type	LCD with backlight
Display size	2 Inch
Storage medium	Internal memory

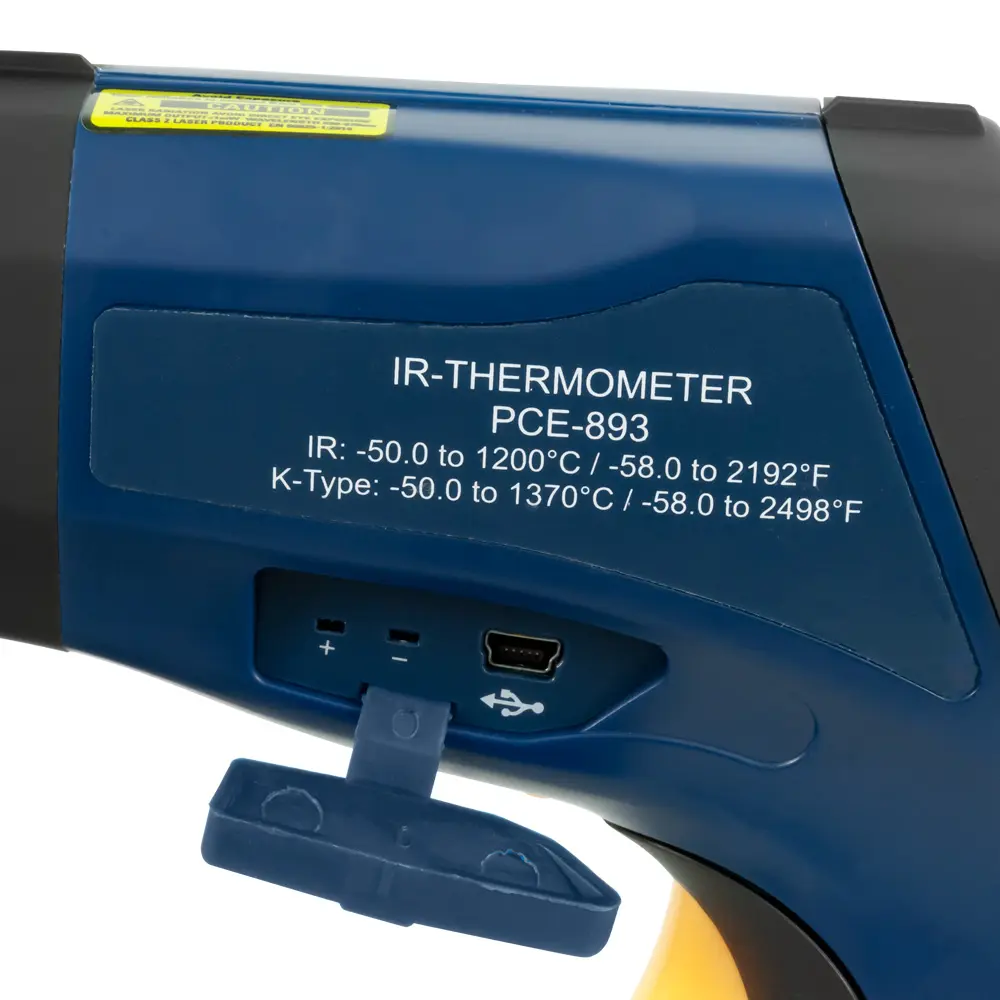

Interface	Mini-USB
Response time	150 mS
Automatic power-off	7 s
Automatic power-off from...to	7 ... 60 min.
Measurement spot	50:1
Laser	Class 2 <1mW
Emissivity from/to	0.1 ... 1
Emissivity	0,95
Spectral range	8 ... 14 µm
Menu language	English, English (GB)
Protection class (device)	IP20
(Rechargeable) battery	1 x 9 V 9V block , Alkali-manganese
Capacity	640 mAh
Operating conditions	0 ... 50 °C , 10 ... 90 % RH
Storage conditions	-10 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	200 x 150 x 50 mm
Weight	282 g
