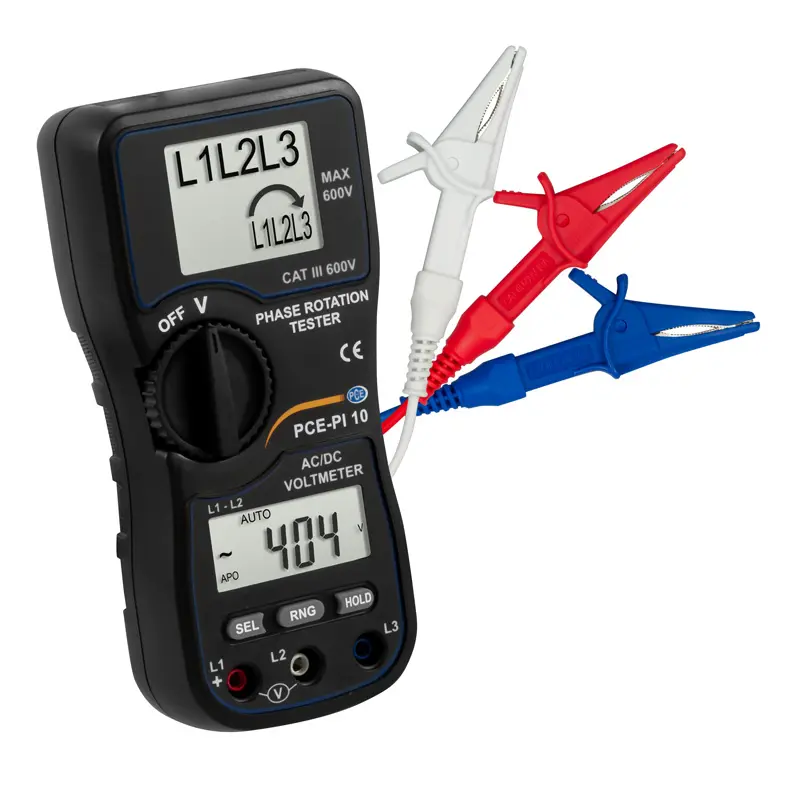

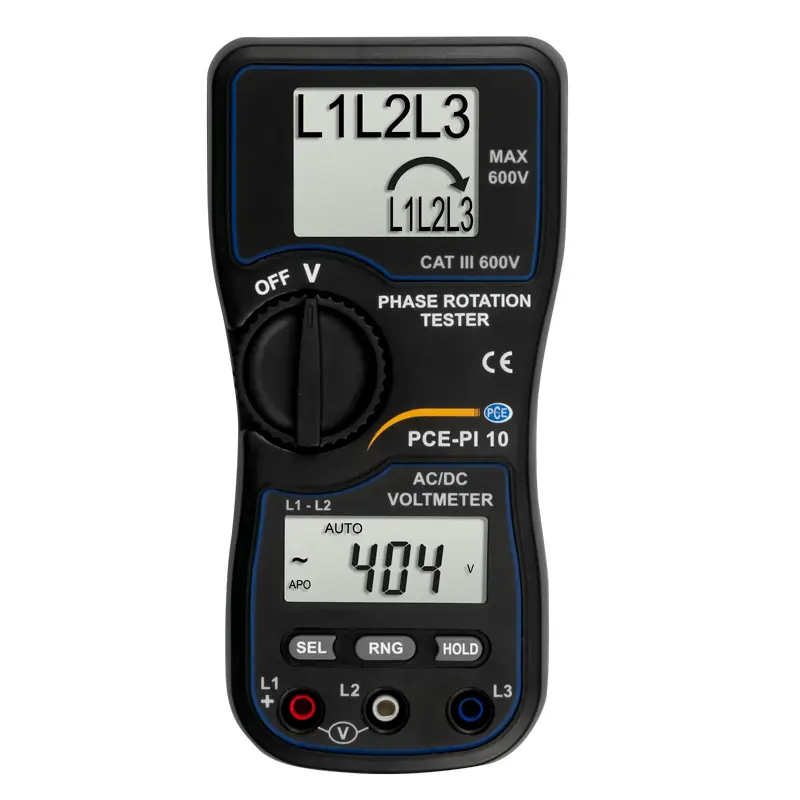

Condition Monitoring Digital Multimeter PCE-PI 10

Condition Monitoring Digital Multimeter PCE-PI 10 [zoom]
Condition Monitoring Digital Multimeter PCE-PI 10

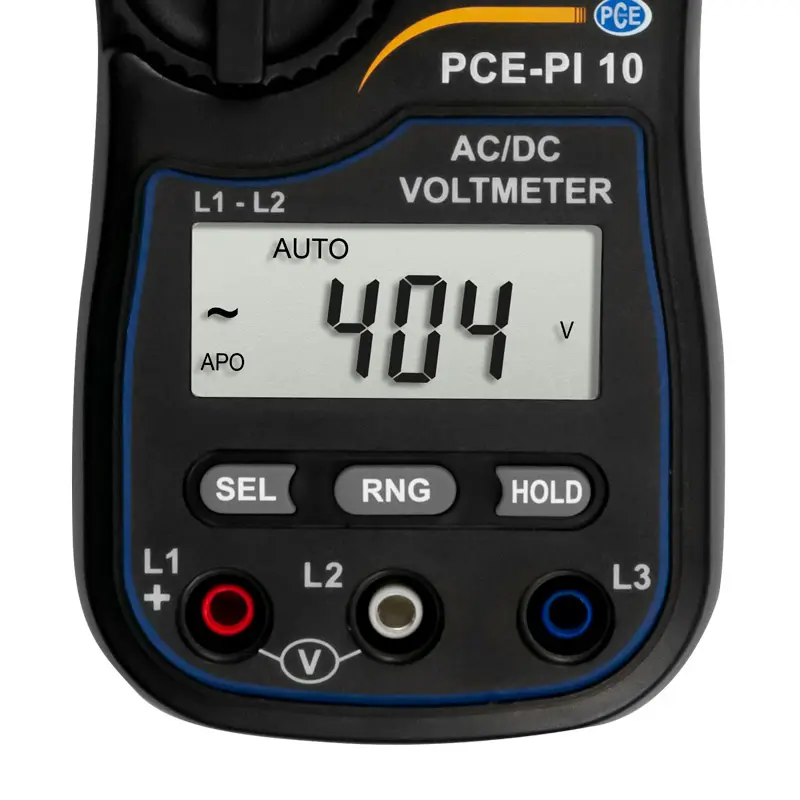

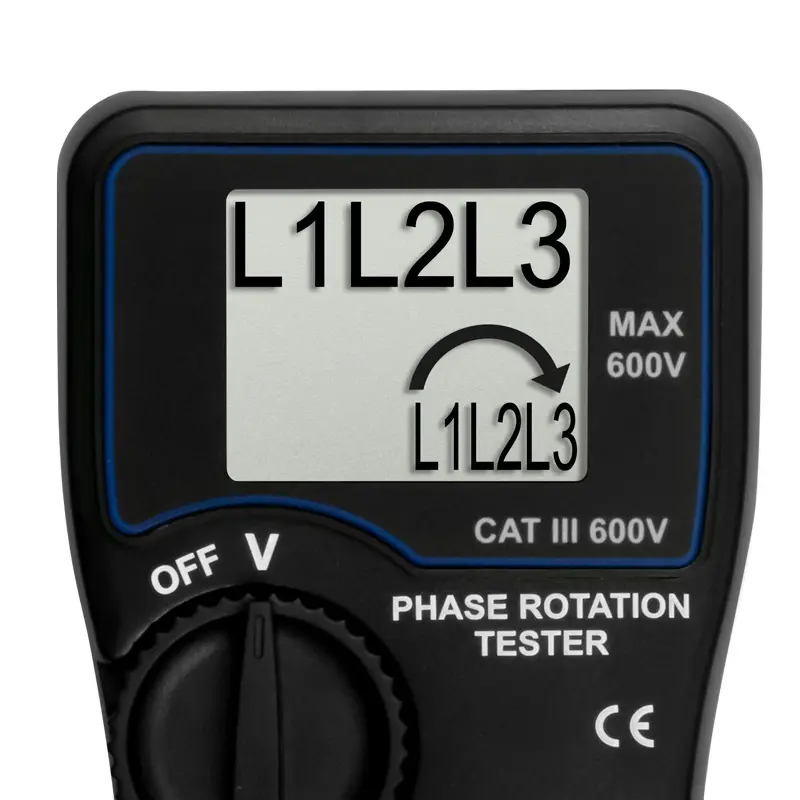

Condition Monitoring Digital Multimeter display
Condition Monitoring Digital Multimeter display

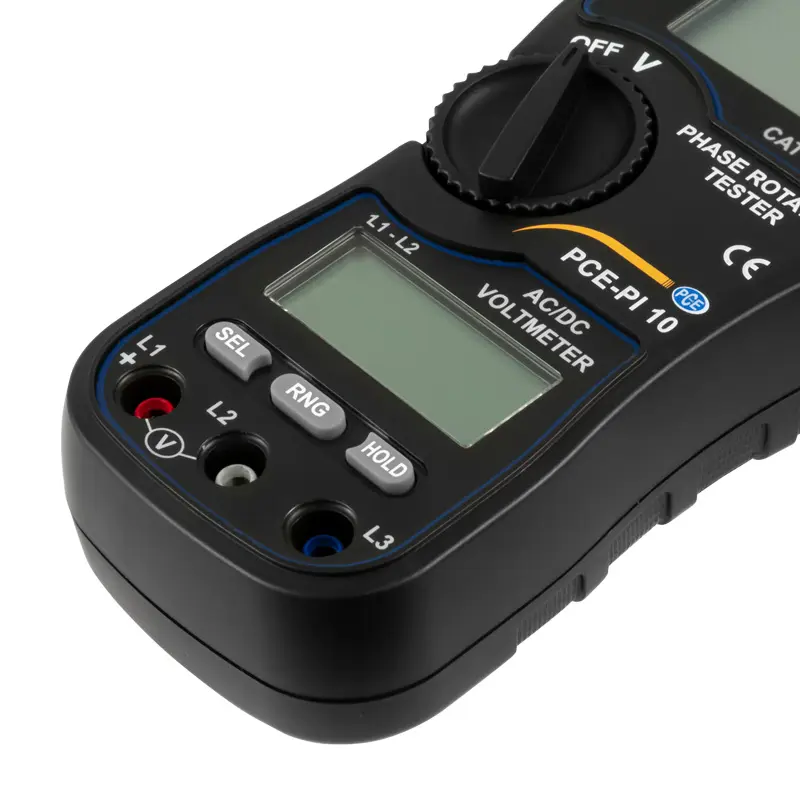

Condition Monitoring Digital Multimeter
Condition Monitoring Digital Multimeter

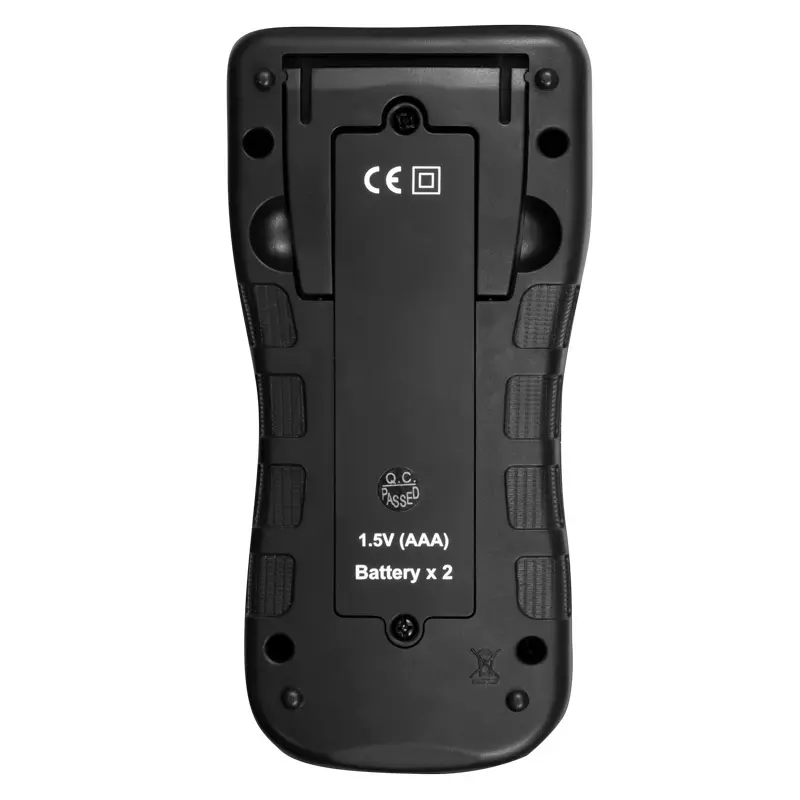

Condition Monitoring Digital Multimeter rear end

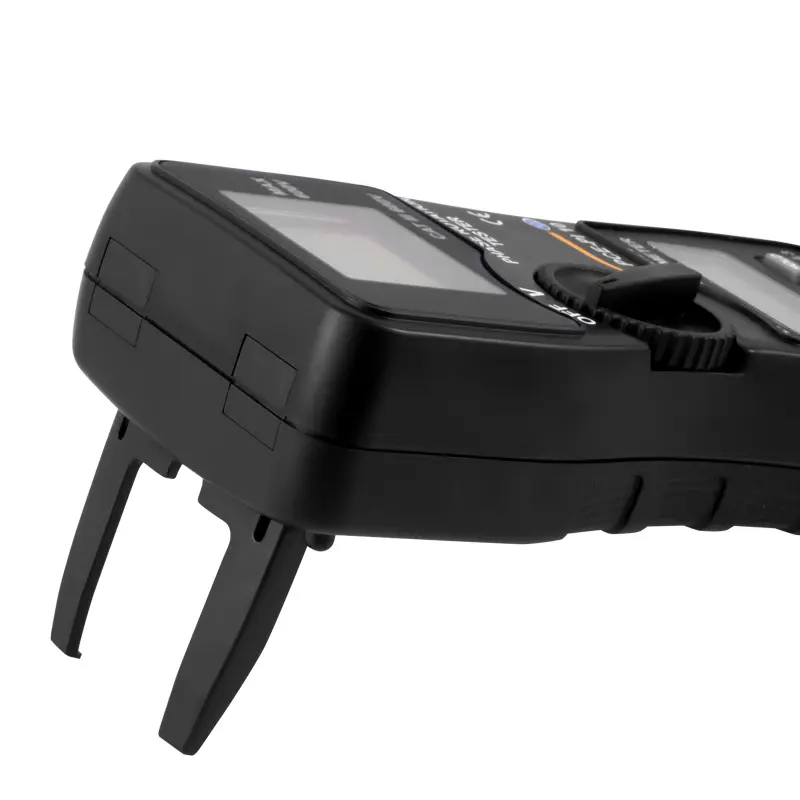

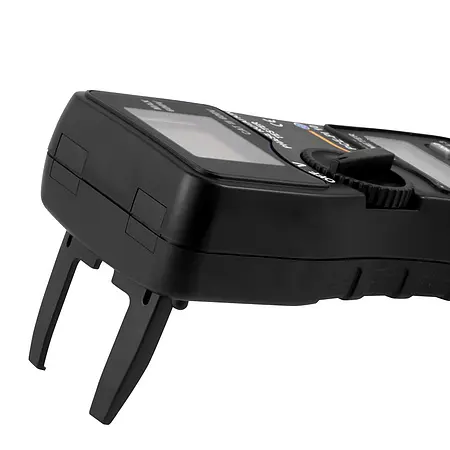

Condition Monitoring Digital Multimeter stand

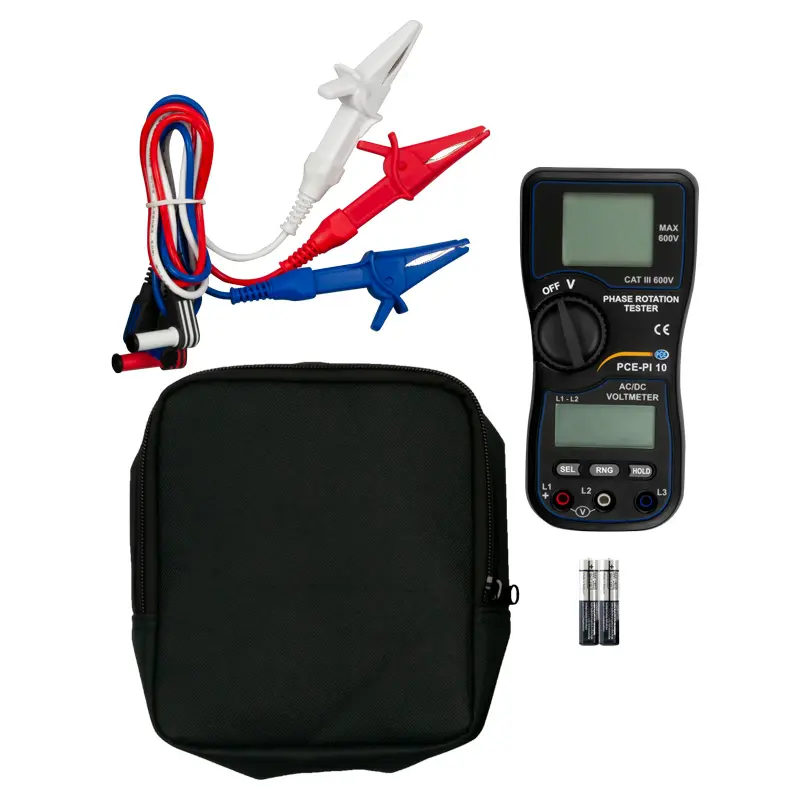

Condition Monitoring Digital Multimeter delivery scope

Condition Monitoring Digital Multimeter PCE-PI 10

Order no.: PCE-PI 10
GTIN (EAN): 4250348719065
£ 27.00
£ 32.40
price ex. (VAT / delivery)
:
4250348719065
PCE-PI 10
Delivery time: 1-2 working days

Description

Condition Monitoring Digital Multimeter PCE-PI 10
Rotary field indicator with voltage tester / Two LCD displays / Voltage measurement up to 600V / Test leads with crocodile clips

The condition monitoring digital multimeter is used to determine the direction of rotation of 3-phase voltage networks. Furthermore, the rotating field indicator is able to measure voltages up to 600V AC / DC. The condition monitoring digital multimeter is important for machines and plants. If the phases are not connected correctly, damage to connected motors and pumps can occur, for example.

The condition monitoring digital multimeter shows the direction of rotation on an LCD display. Furthermore, the display of the rotary field indicator shows whether a phase has been connected to the measuring lines or not. The measuring cables of the condition monitoring digital multimeter are equipped with crocodile clips so that the measuring device can be connected directly to cables or screw contacts.

Highlights

- 3-phase rotating field detection
- AC / DC voltage measurement
- Measuring range 75 ... 600V AC
- Test leads with crocodile clips
- CAT III 600V
- Easy handling

Specification

Measuring range of rotating field detection 75 ... 600V AC
Frequency range of rotary field recognition   40 ... 400 Hz

AC voltage AC Measuring range    Resolution    Accuracy
  600 mV 0.1 mV ± (2.3% of rdg. + 5 Dgt)
  6V 1 mV ± (2.3% of rdg. + 5 Dgt)
  60V 10 mV ± (2.3% of rdg. + 5 Dgt)
  600V 0.1V ± (2.3% of rdg. + 5 Dgt)

DC voltage DC 600 mV 0.1 mV ± (0.8% of rdg. + 8 Dgt)
  6V 1 mV ± (0.8% of rdg. + 8 Dgt)
  60V
 10 mV ± (0.8% of rdg. + 8 Dgt)
  600V 0.1V ± (0.8% of rdg. + 8 Dgt)

Power supply 2 x 1.5V AAA battery
Display 2 x LCD displays
Standards CAT III 600V
  EN61010-1
  EN61010-2-003
  EN61326-1

Dimensions 165 x 82 x 45 mm / 6.5 x 8.2 x 1.8 in
Weight About 245 g / < 1 lb



Delivery Scope

1 x Condition Monitoring Digital Multimeter PCE-PI 10
1 x Test lead set
2 x 1.5V AAA battery
1 x Carrying bag
1 x User manual
