Condition Monitoring Dew Point Thermometer with Flow Hoods PCE-VA 20-SET-ICA incl. ISO Calibration

Order no.: PCE-VA 20-SET-ICA

GTIN (EAN): 4250348728029

Accessory

Telescoping Pole for PCE-VA 20

£ 112.00

Set of 2 x Capture Flow Hoods for PCE-VA 20

£ 159.00

Description

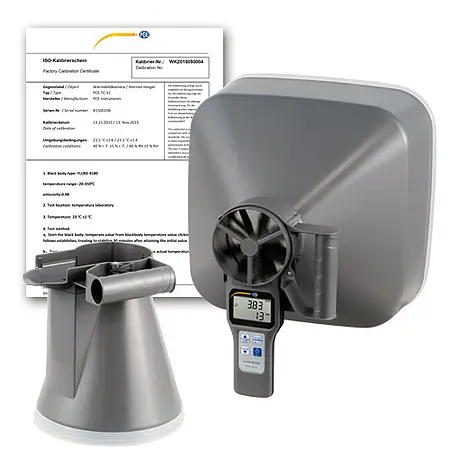

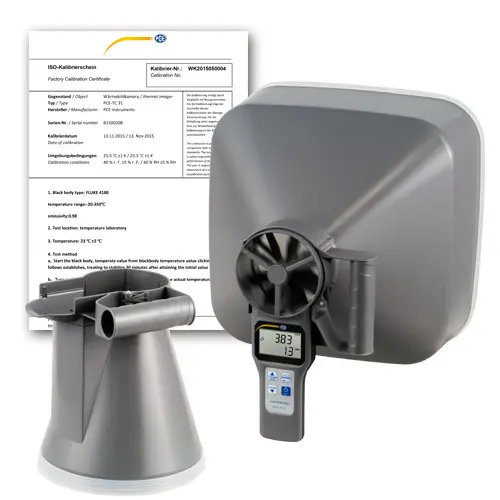

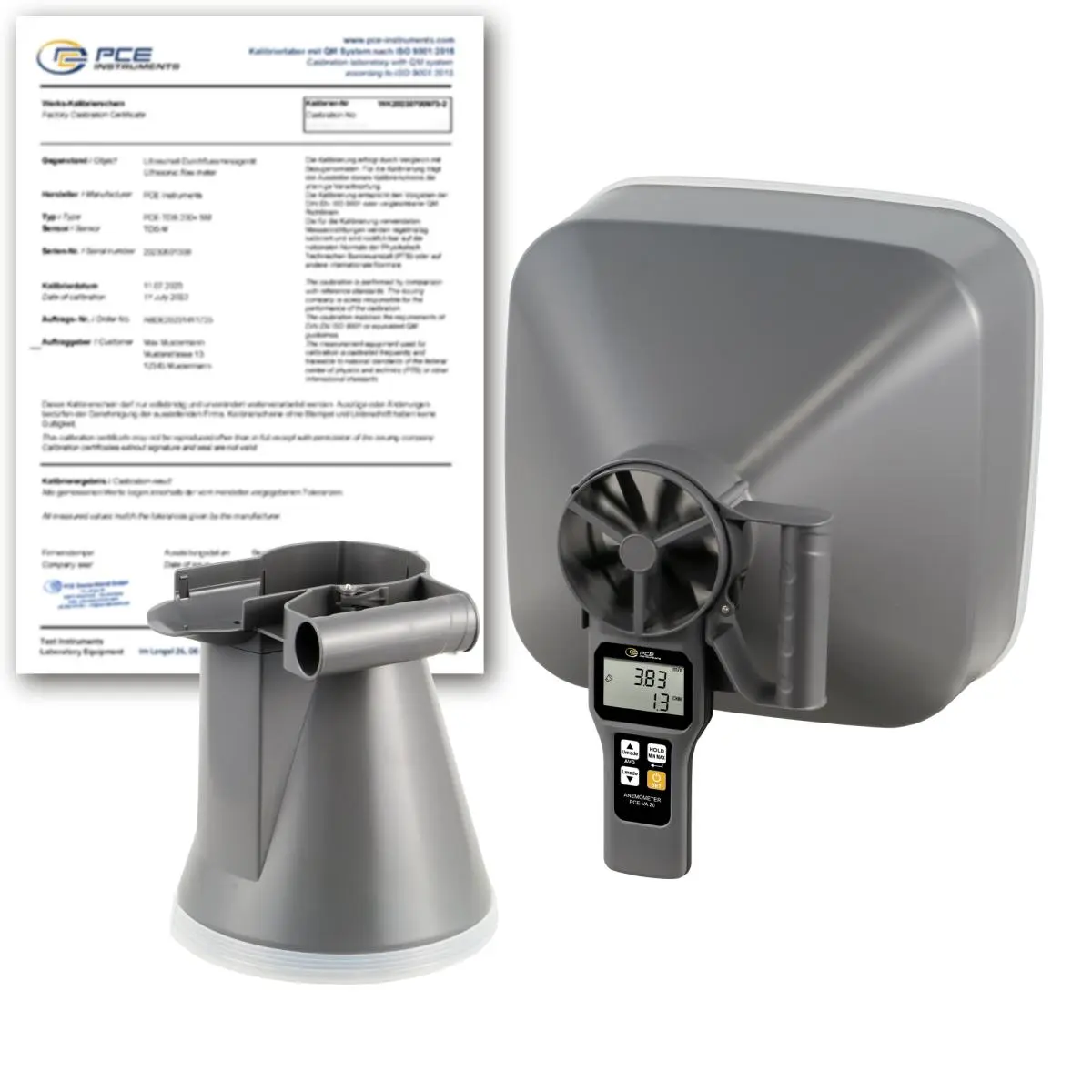

Condition Monitoring Dew Point Thermometer with Flow Hoods incl. ISO Calibration Certificate
Combination anemometer-hygrometer-thermometer for HVAC system balancing

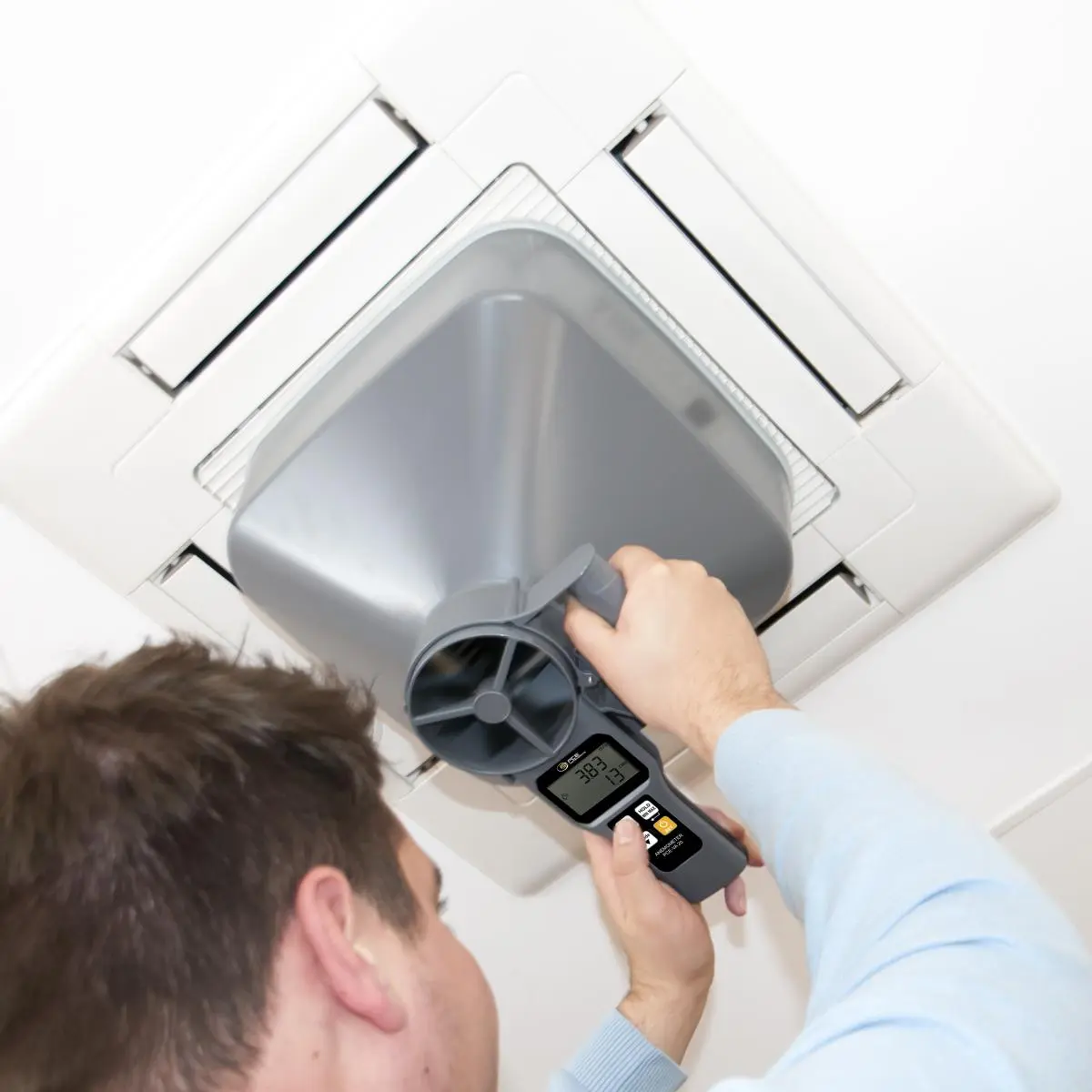

The PCE-VA 20-SET is a condition monitoring dew point thermometer with flow hoods for assessing and balancing heating, ventilation and air conditioning or cooling (HVAC) systems. In addition to measuring air flow velocity (i.e., wind speed), this multipurpose handheld condition monitoring dew point thermometer measures volume flow, relative humidity (RH), air temperature, dew point temperature and wet-bulb temperature. This condition monitoring dew point thermometer features a 10 cm / 3.9" Ø fan impeller, easy-to-read backlit LCD, and functions such as display hold, average value, maximum value, minimum value, battery-saving automatic power off, low-battery indicator, and metric or imperial unit selection.

Highlights

- Measures air flow velocity, volume flow, relative humidity, air temperature,

dew point temperature and wet-bulb temperature

- Air flow velocity range: 0.2 ... 30 m/s (39.4 ... 5905.5 fpm)

- Accuracy: ±(1.5% of measured value + 0.3 m/s) when less than 20 m/s, ±(3% of

measured value + 0.3 m/s) when more than 20 m/s

- Resolution: 0.1

- Includes 2 x capture hoods (1 x round 210 mm / 8.3 in Ø, 1 x square 346 x 346

mm / 13.6 x 13.6 in)

- 10 cm / 3.9 in Ø fan impeller

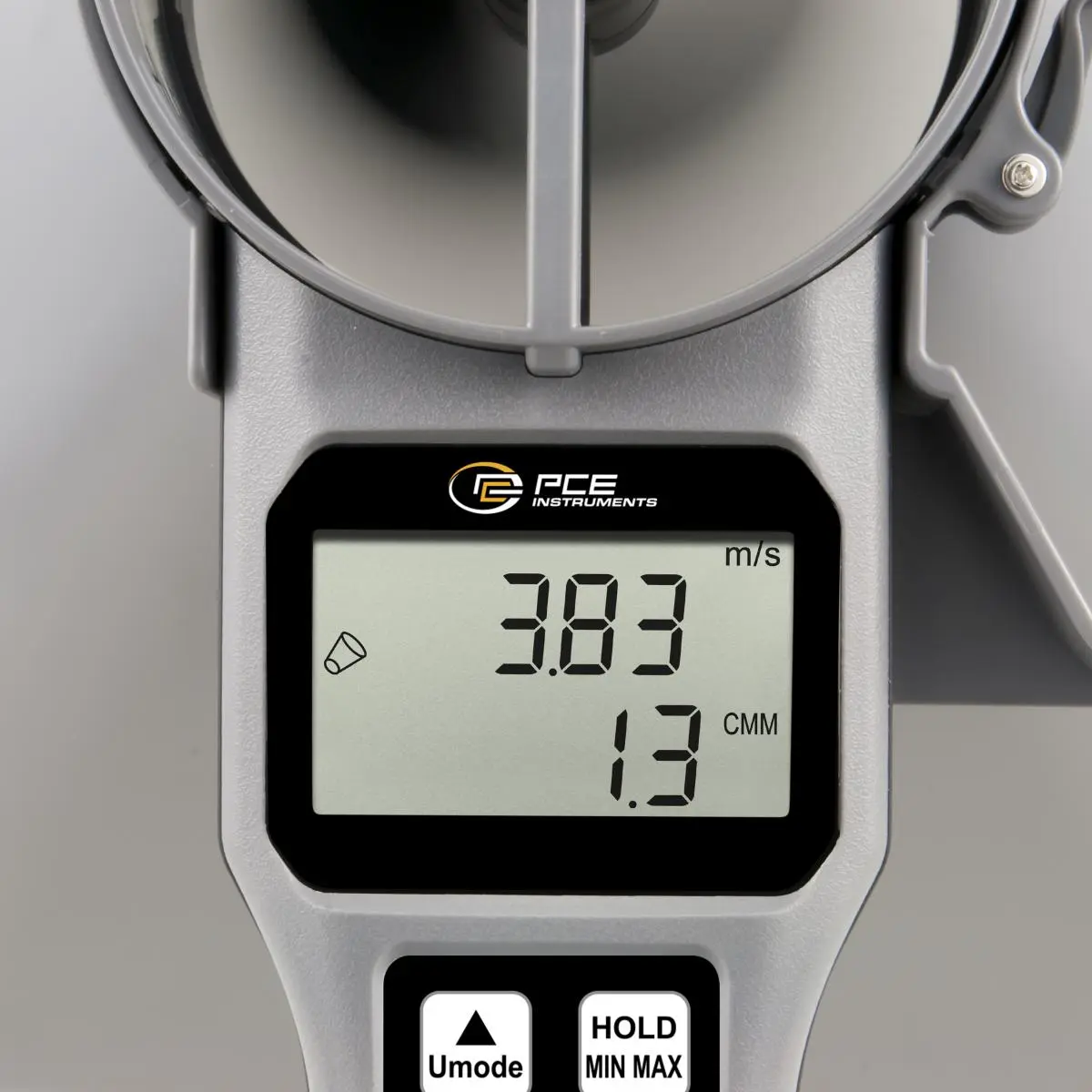

- Easy-to-read backlit LCD

- Display hold, average value, maximum value, minimum value, battery-saving

automatic power off, low-battery indicator, and metric or imperial unit

selection functions

- incl. ISO-Calibration Certificate

Specification

Wet bulb temperature
Measuring range	-20 ... +59,9 °C

Speed
Measuring range	0,2 ... 20 m/s
Resolution	0.1 m/s
Accuracy	±(1.5 % of Rd +0.3 m/s)

Speed
Measuring range	20 ... 30 m/s
Resolution	0.1 m/s
Accuracy	±(3 % of Rd +0.3 m/s)

Volume flow
Measuring range	0 ... 9999,9 m³/min
Resolution	0,1 m³/min

Volume flow
Measuring range	10000 ... 99999 m³/min
Resolution	1 m³/min

Dew point
Measuring range	-5 ... +59,9 °C

Relative humidity
Measuring range	0,1 ... 99,9 %
Resolution	0,1 %
Accuracy	±3% (at 25°C) otherwise ±5%

Temperature
Measuring range	-20 ... +60 °C
Resolution	0,1 °C
Accuracy	0.6°C

General technical data
Measuring functions	MIN, MAX, HOLD, AVG
Display type	LCD
Display size	2,5 in
Display refresh rate	1 x per second
Response time Additional information	Temperature: 60 s Humidity: 60 s
Automatic power-off	20 min
Dimensions	Impeller diameter: Ø 105 Flow hood, round: Ø 210 mm Flow hood, square: 346 x 346 mm
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	batteries
(Rechargeable) battery	4 x 1,5 V AAA battery , Zinc carbon
Capacity	600 mAh
Operating conditions	0 ... 50 °C , 0 ... 80 % RH
Storage conditions	-10 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )	269 x 106 x 51 mm
Weight	200 g
