The Condition Monitoring 3-Axis Vibration Meter enables fast and precise measurement of acceleration, vibration displacement and vibration velocity in three directions (X, Y, Z) or for a single axis. It is used in accordance with ISO 2954 for the detection of unbalance, misalignment and mechanical faults in rotating machinery and is ideal for quality control, commissioning and predictive maintenance on site.

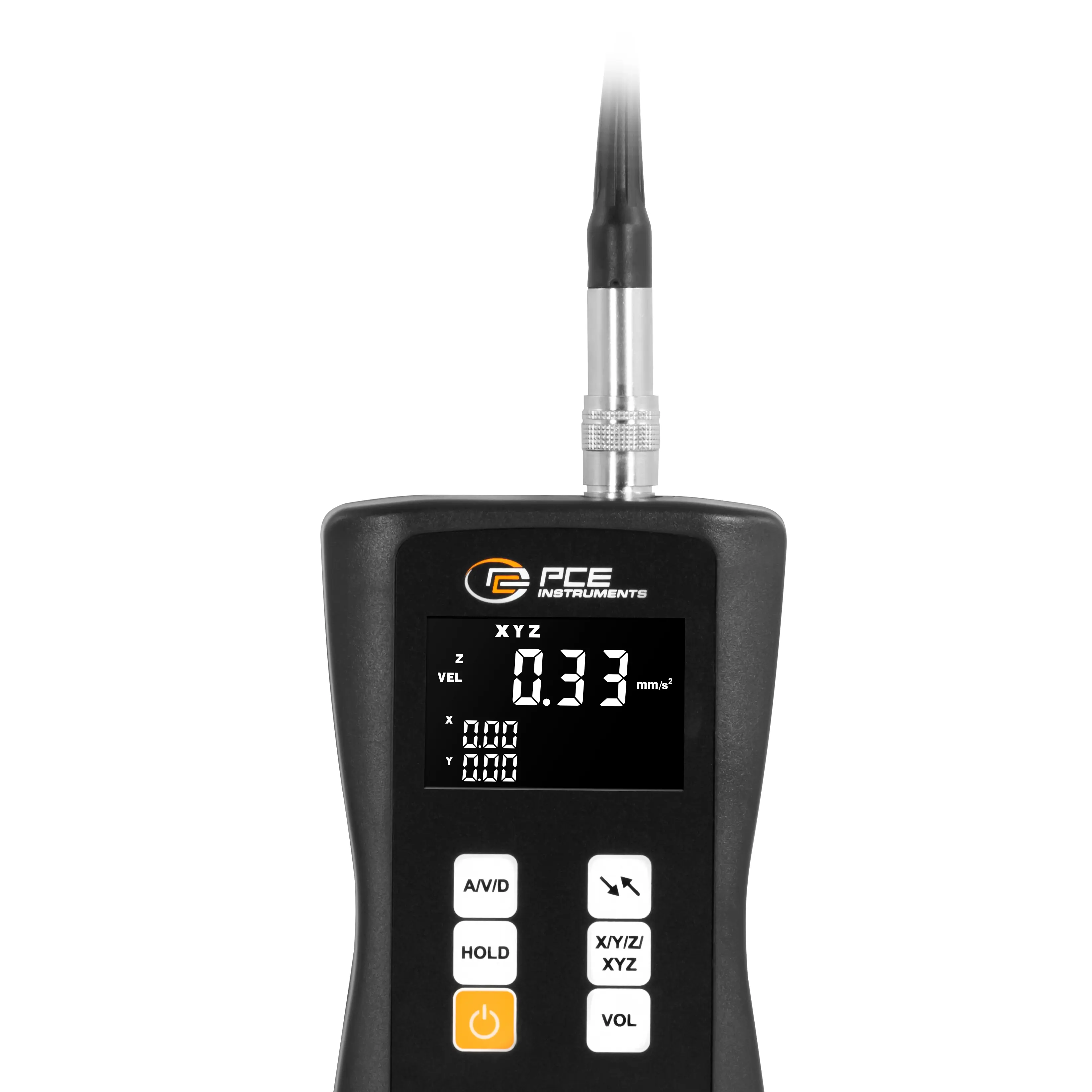

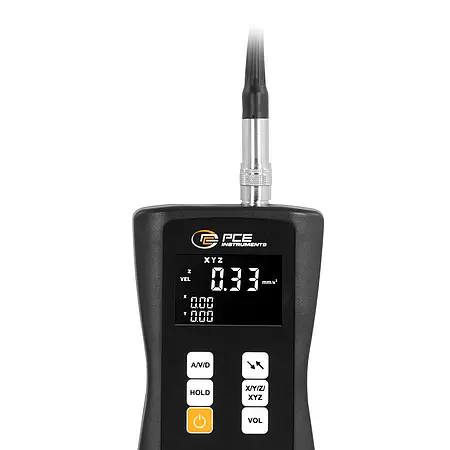

With a frequency range of 10 Hz to 10 kHz, it detects a wide range of vibrations, making it versatile for industrial applications. The Condition Monitoring 3-Axis Vibration Meter weighs just 163 g / 0.4 lbs and is easy to read even in difficult conditions thanks to the backlit 2-inch LCD display. In addition, the Condition Monitoring Vibration Meter switches off automatically after 30 minutes of inactivity to save energy.

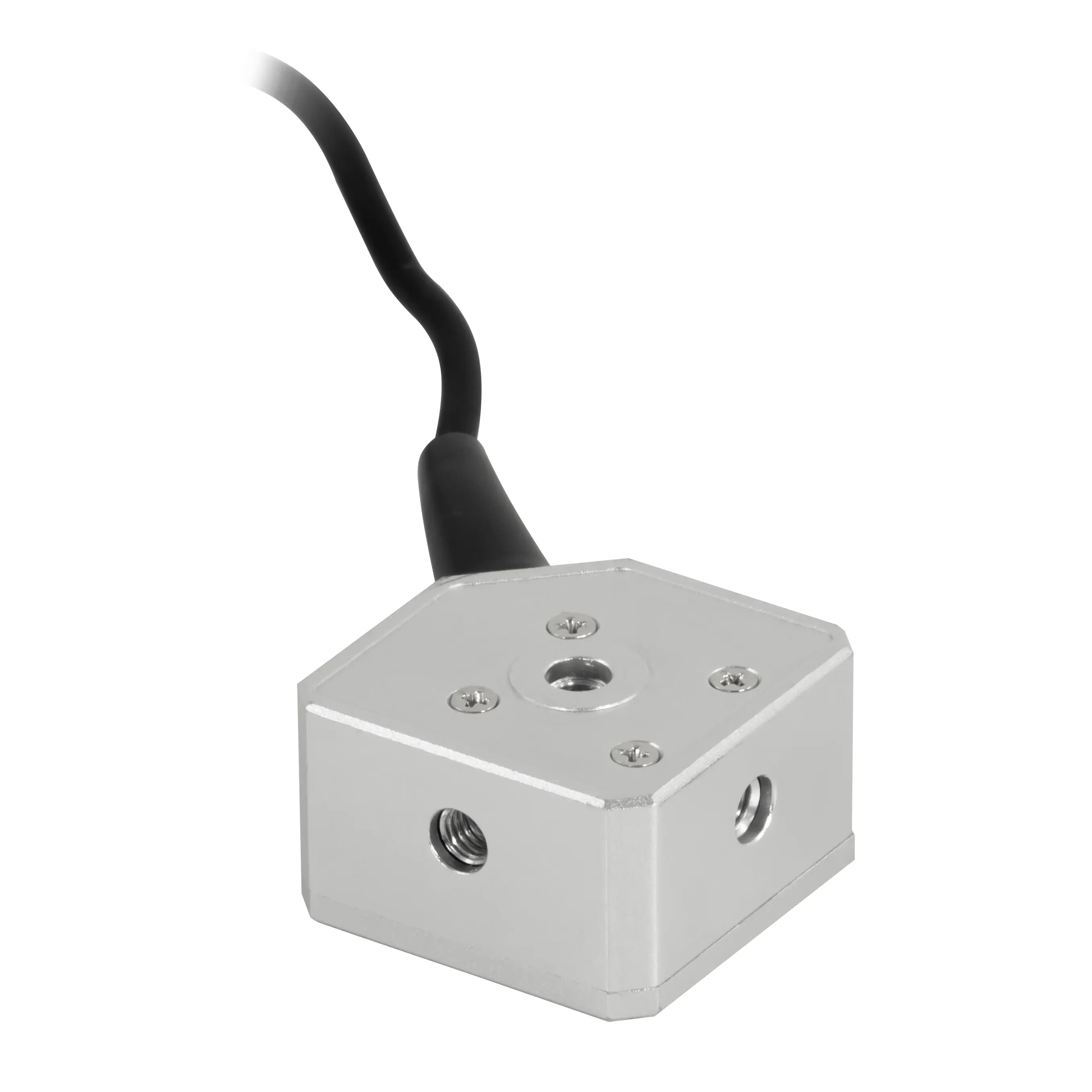

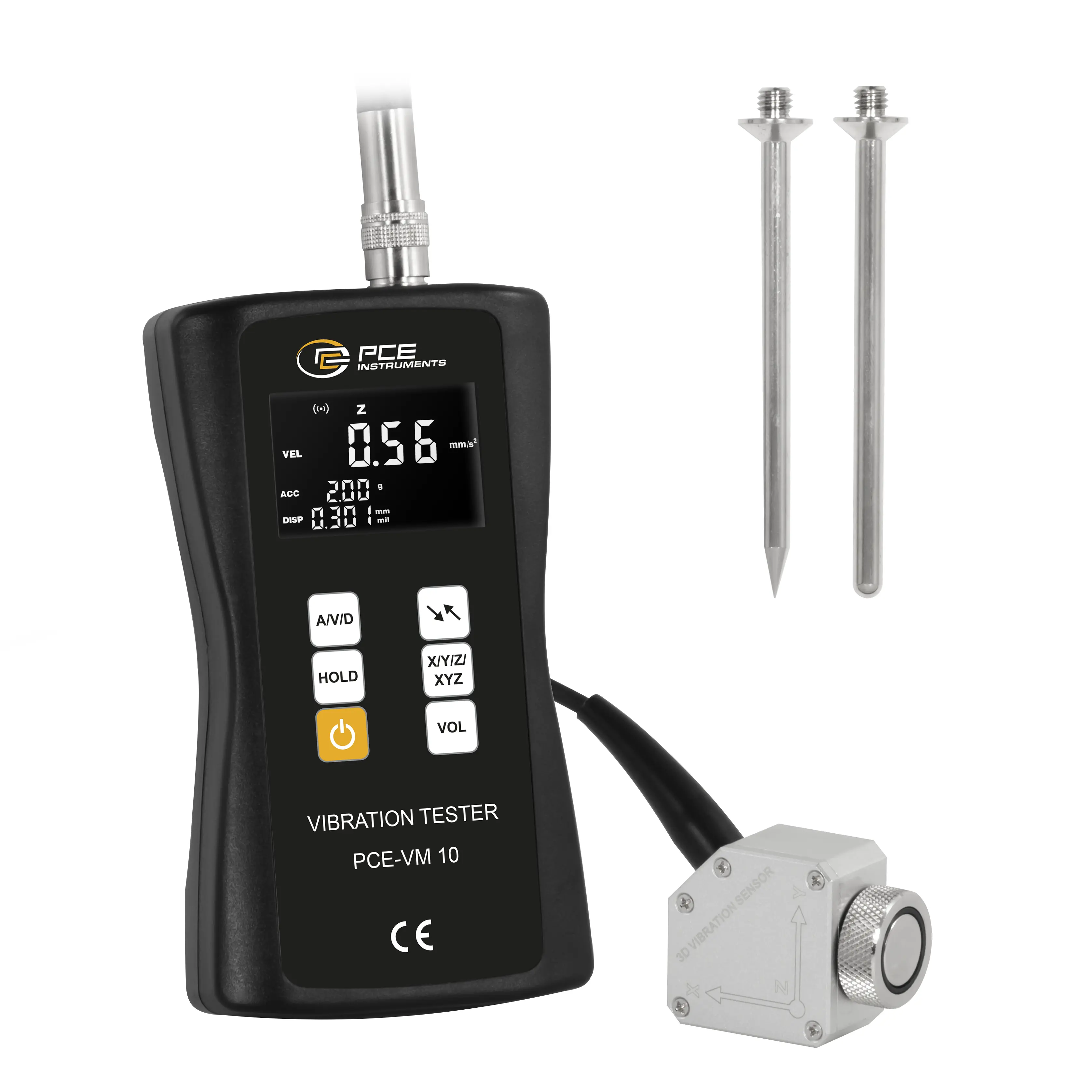

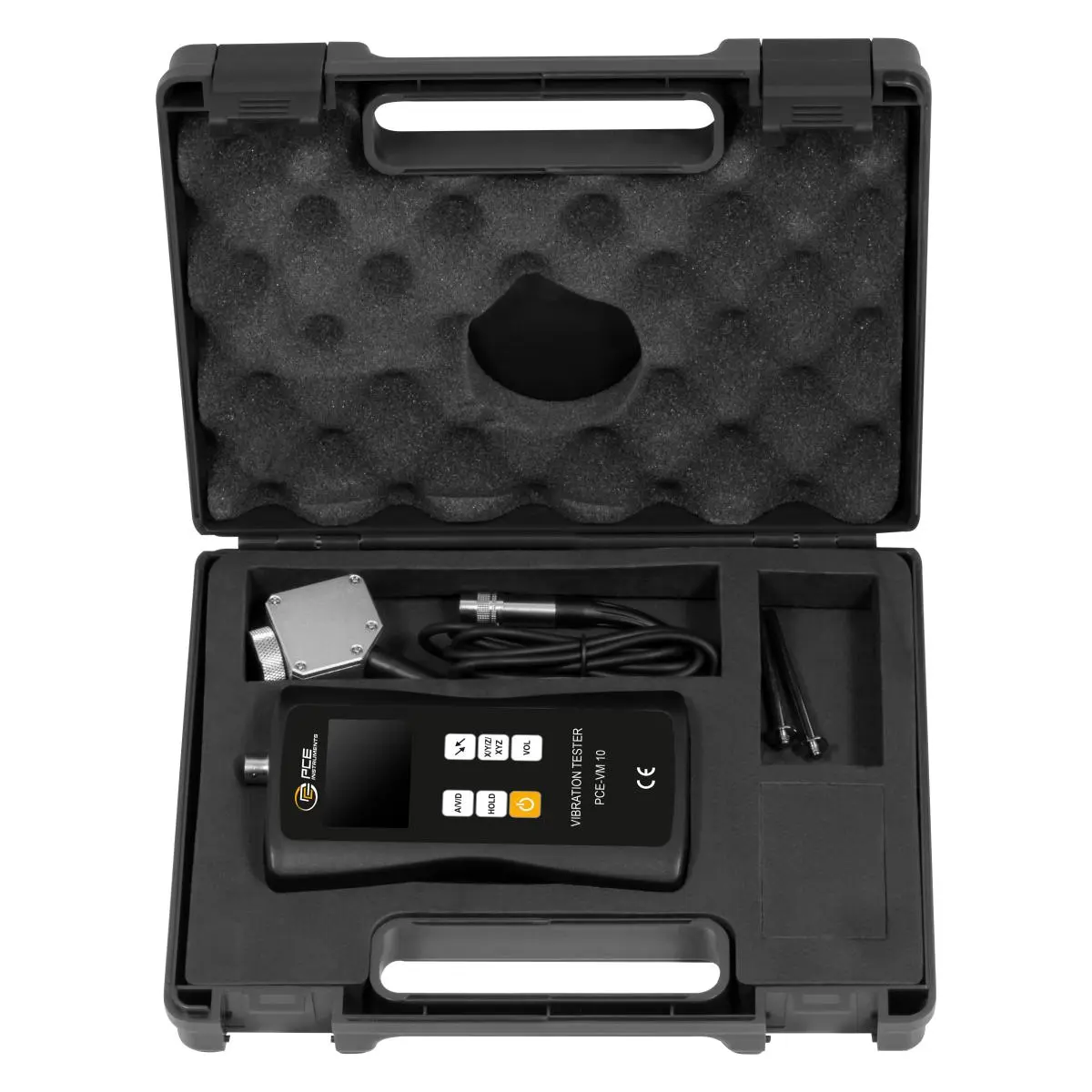

The Condition Monitoring 3-Axis Vibration Meter has a 3-axis piezoelectric accelerometer with three mounting options: a magnetic sensor and two measuring tips (one conical and one spherical) that can be attached to the sensor. These accessories enable precise and versatile vibration measurements on various machines and surfaces. This makes the device a handy and powerful tool for industrial vibration measurements. It supports various units such as mm/s, inch/s, m/s², g, ft/s², mm and mil and has a measurement function that displays the maximum measured values.
| Acceleration | |
| Measuring range | 0,1 ... 400 m/s² |
| Resolution | 0,1 m/s² |
| Accuracy | 5 % v.Mw. +2 Digits |
| Frequency range | 10 Hz ... 10 kHz |
| Acceleration | |
| Measuring range | 0,3 ... 1312 ft/s² |
| Resolution | 0,1 ft/s² |
| Accuracy | 5 % v.Mw. +2 Digits |
| Acceleration | |
| Measuring range | 0 ... 40 g |
| Resolution | 0,1 g |
| Accuracy | 5 % v.Mw. +2 Digits |
| Speed | |
| Measuring range | 0,01 ... 400 mm/s |
| Resolution | 0.01 mm/s |
| Accuracy | 5 % v.Mw. +2 Digits |
| Frequency range | 10 Hz ... 1 kHz |
| Speed | |
| Measuring range | 0,004 ... 16 inch/s |
| Resolution | 0.001 inch/s |
| Accuracy | 5 % v.Mw. +2 Digits |
| Displacement | |
| Measuring range | 0,001 ... 4 mm |
| Resolution | 0,001 mm |
| Accuracy | 5 % v.Mw. +2 Digits |
| Frequency range | 10 Hz ... 1 kHz |
| Displacement | |
| Measuring range | 0,04 ... 160 mil |
| Resolution | 0,01 mil |
| Accuracy | 5 % v.Mw. +2 Digits |
| Sensor | |
| Battery type | 3-axis piezoelectric acceleration sensor |
| Frequency | 10 ... 10000 Hz |
| Cable length | 130 cm |
| Dimension | L: 3.5 cm x W: 3.5 cm x H: 2 cm |
| General technical data | |

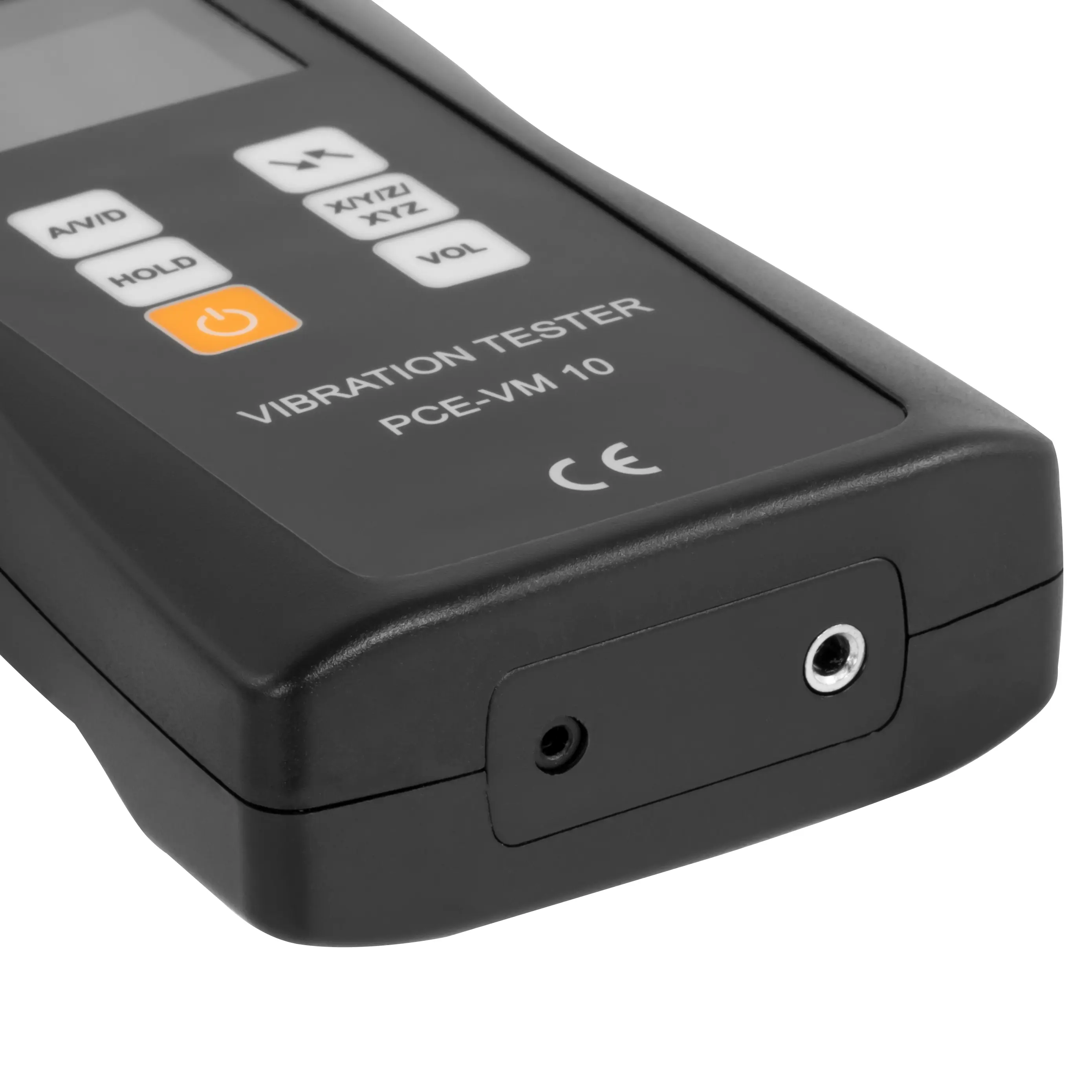

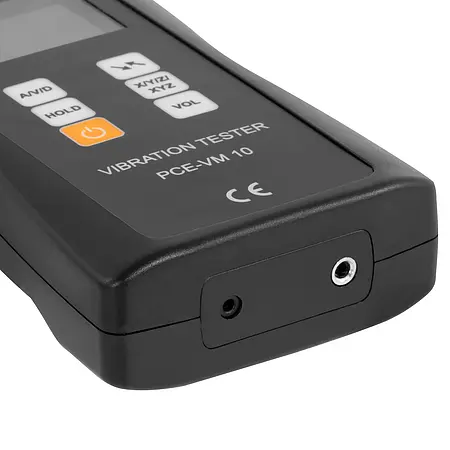

| Outputs | AC 0 ... 2V |
| Measuring functions | MAX |
| Display type | LCD with backlight |
| Display size | 2 Inch |
| Interface | RS232C |
| Standard(s) | ISO 2954, GB 13823.3 |
| Automatic power-off | 30 min |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |

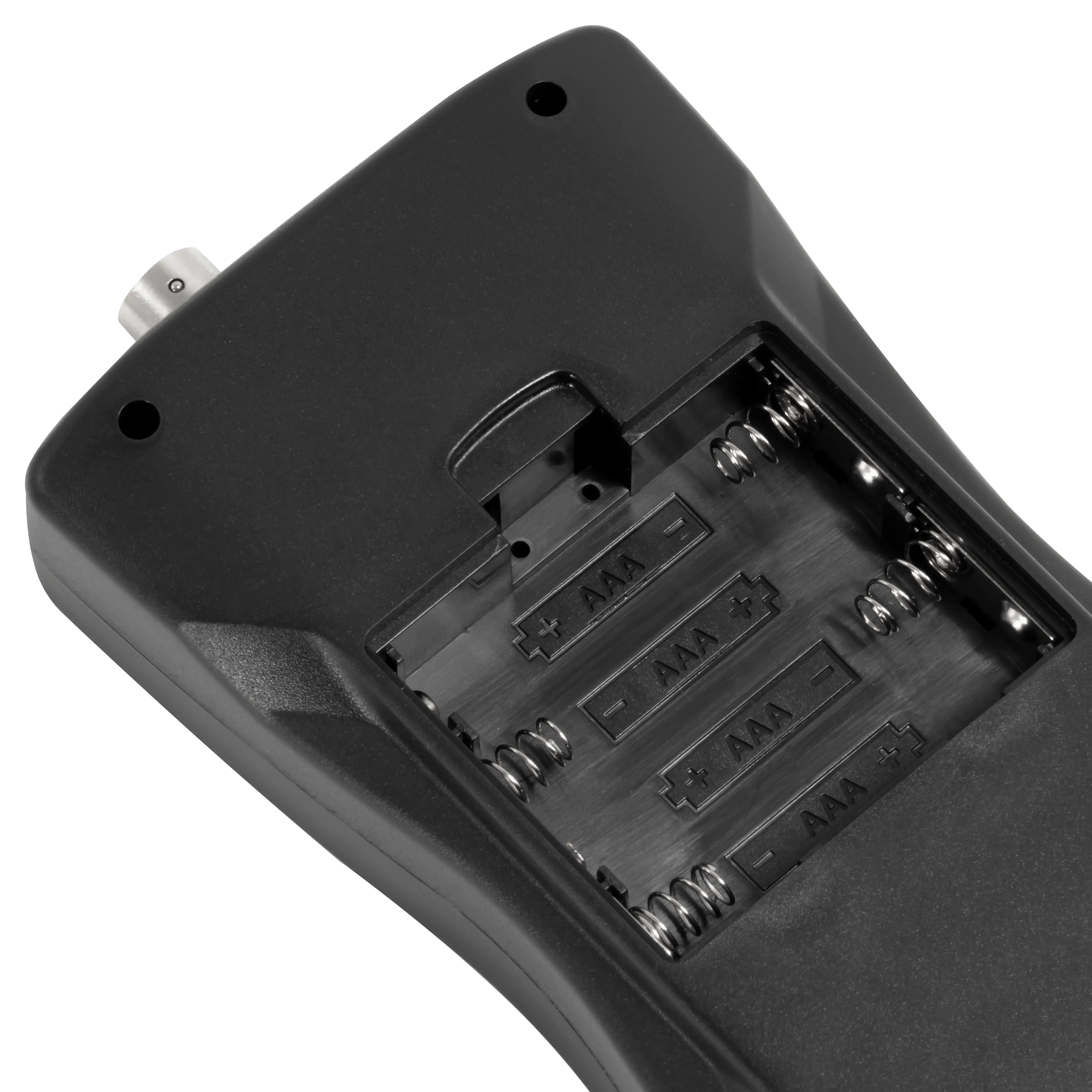

| (Rechargeable) battery | 4 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 150 x 78 x 30 mm |
| Weight | 163 g |
