Colorimeter PCE-CSM 25

Colorimeter PCE-CSM 25

Order no.: PCE-CSM 25
GTIN (EAN): 4250348736901
£ 263.00
£ 315.60
price ex. (VAT / delivery)
:
4250348736901
PCE-CSM 25
Delivery time:1-2 working days

Description

Colorimeter / Color determination and color comparison / Measurement in 1 s / USB-C and wireless / High reproducibility / Full spectrum LED light source

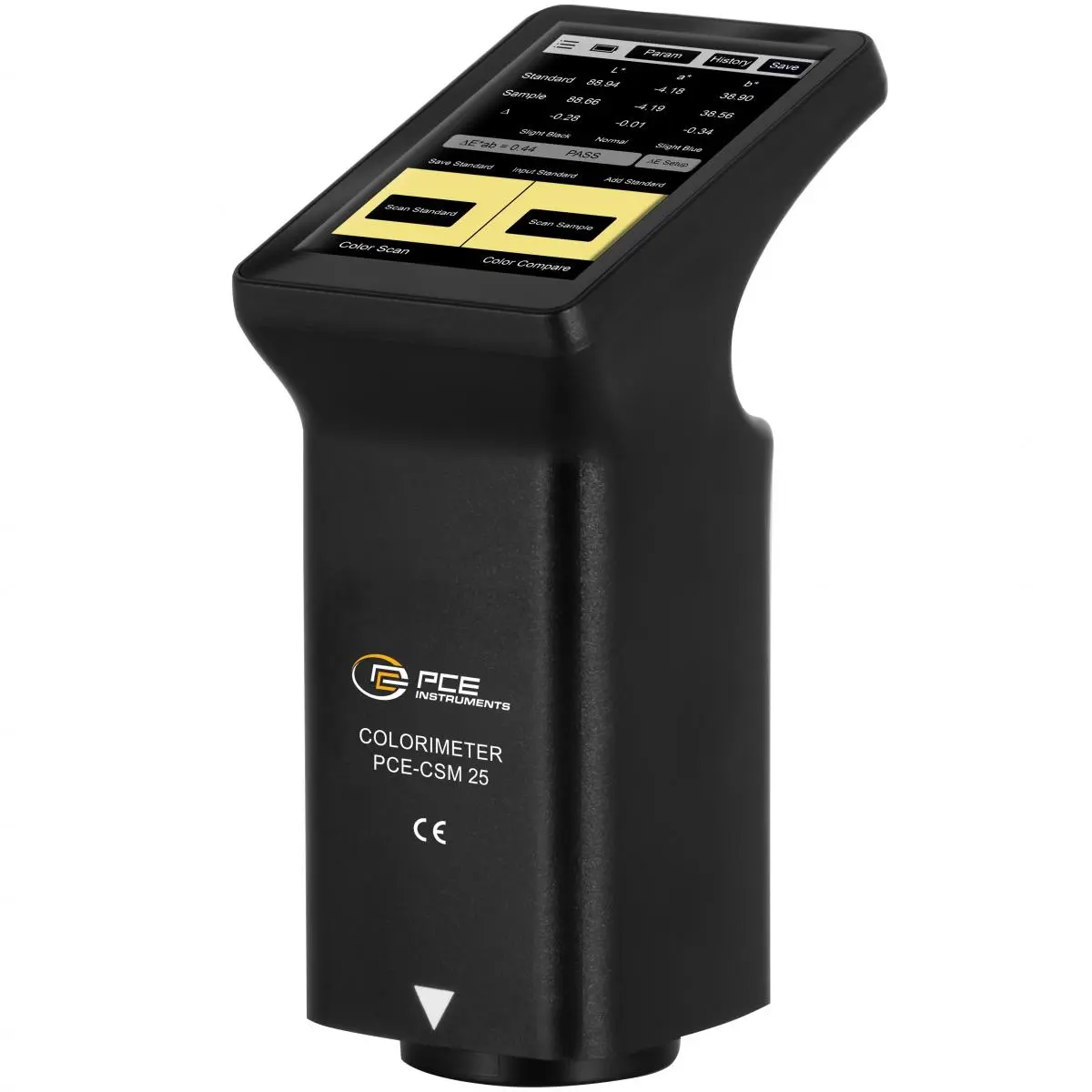

This Colorimeter is a high-precision, portable measuring instrument for determining and comparing colors in various industrial and craft applications. Thanks to the modern D/8° measuring geometry with integrated specular reflection (SCI), the device is ideal for color analysis of glossy, matt or textured surfaces. It is operated via a user-friendly 3.5-inch touch display, which is ergonomically tilted at a 20° angle and enables convenient use without physical buttons.

The color measurement device offers a high repeatability of ΔE* from ≤ 0.03 and delivers measurement results in less than a second. Numerous color spaces and color difference formulas are supported, including CIE Lab, LCh, RGB, CMYK as well as the white and yellow index - ideal for professional color matching in quality management, production or incoming goods inspection. The integrated memory function allows the storage of up to 1000 color values and 1000 comparison records, making the Colorimeter particularly suitable for recurring inspection tasks.

For data evaluation, the measured values can be transferred via USB or wirelessly to software on the PC or to mobile devices. The app and software also allow measurements to be carried out and saved. The Colorimeter is equipped with a long-life lithium-ion battery that enables up to 10,000 measurements per charge. With its compact dimensions, the device can easily be used on the move, for example in painting work, plastics processing, textile testing or in the printing sector.

Thanks to its combination of precise measurement technology, simple operation and versatile data connection, the Colorimeter is the ideal solution for professional color measurements in the laboratory, workshop or on site at the customer's premises.


Highlights

- D/8° measuring geometry with SCI

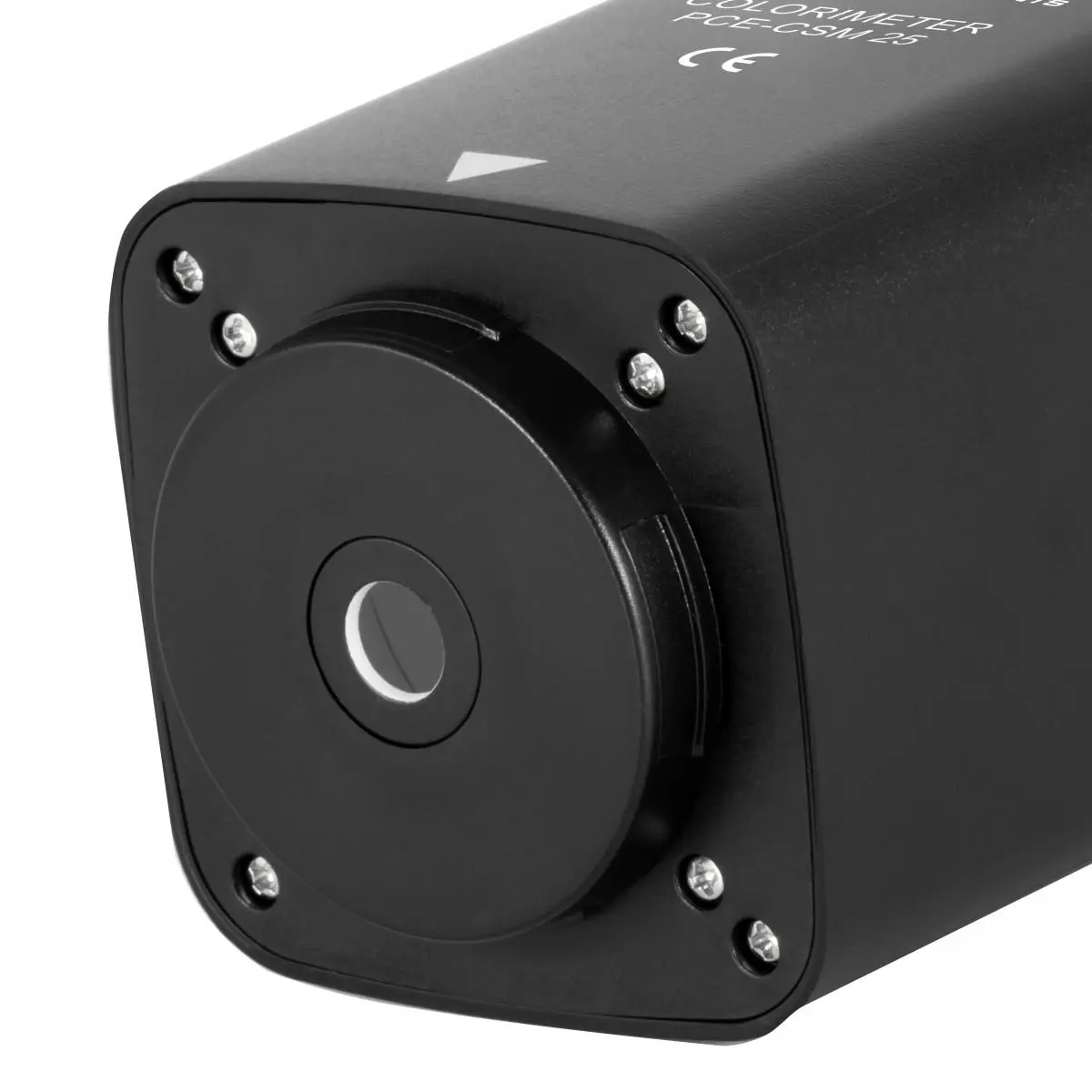

- Measuring aperture Ø 8 mm

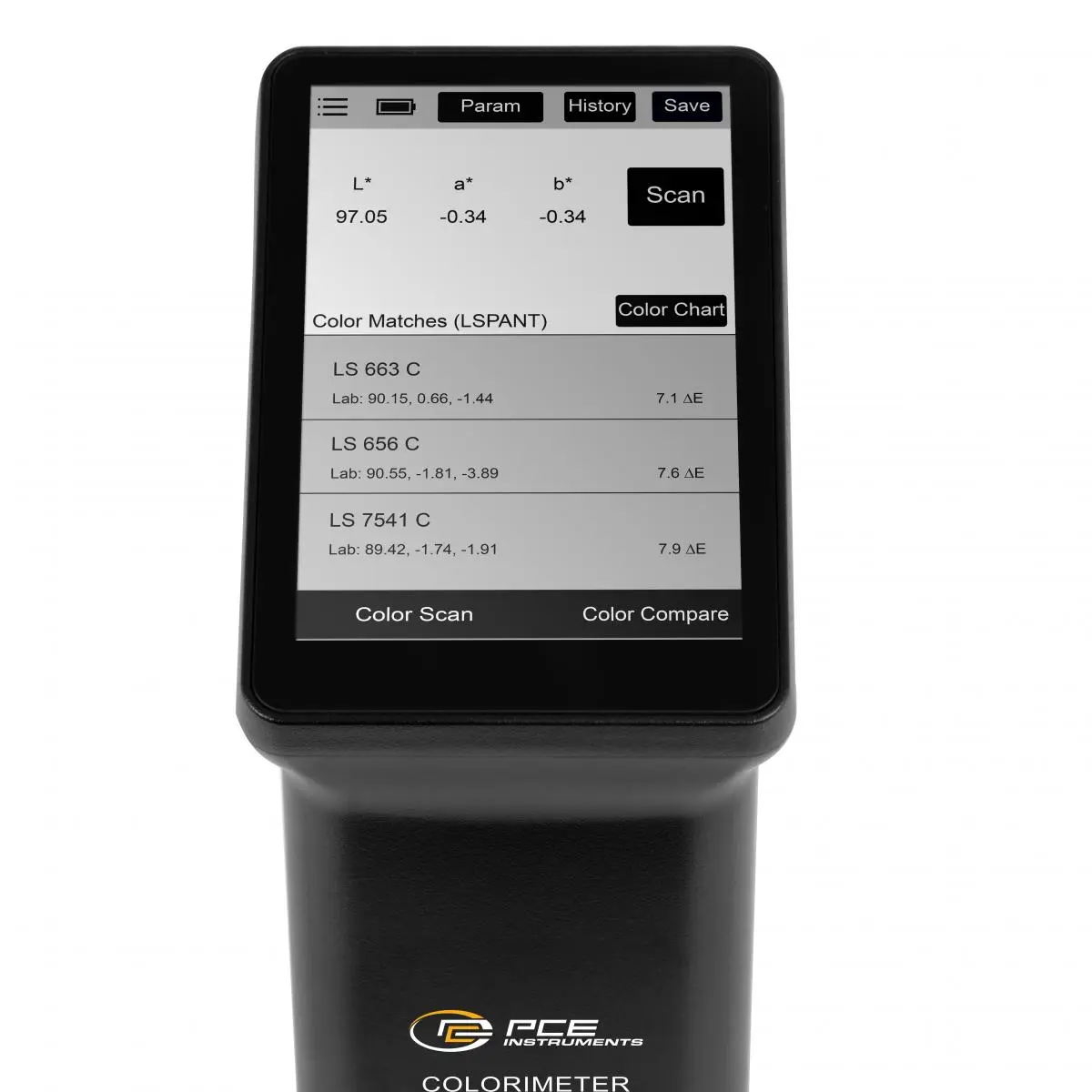

- 3.5 inch IPS touchscreen
- 15 color spaces - CIE Lab, Luv, LCh, Yxy and more
- 7 ΔE color difference formulas
- Memory for 1000 color values & 1000 standards
- App and PC software

Specification

General technical data
Display type  Touch screen
Display size  3,5 Inch
Storage medium  Internal memory
Storage capacity  2000 Data records
Memory information  1000 colours
1000 colour comparisons
Interface  USB-C, Wireless
Standard(s)  JJG 595-2002, GB/T 3978-2008, GB/T 7921-2008, GB/T 11186.1-1989, GB/T 11186.2-1989, GB/T 11186.3-1989
Operating time  10000 Measurements
Automatic power-off from...to  1 ... 30 min.
Automatic power-off can be deactivated  Yes
Repeatability  0,03 ΔE*ab
Light source  D65
Measurement time  1 s
Colour spaces  CIEL a* b*, CIEL u* v*, CIEL*C*h°, Yxy, CMYK, RGB, HSL, HSV, ITA, Spectra, YI-98, WI-98, WI-Gauz, WI-Hunter, WI-R457
Measuring aperature  8 mm
Measuring geometry  D/8
Gloss component  SCI (Specular Component Included)
Wavelength range  400 ... 700 Nm
Observer  10°
Calibration  White standard in the cover cap
Colour difference  ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1) , ΔE*cmc(1.4:1), ΔE*00
Menu language  English (GB), English, Chinese
Protection class (device)  IP20
Power supply  5V (USB-C)
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  4000 mAh
Operating conditions  0 ... 45 °C , 0 ... 85 % RH
Storage conditions  -25 ... 55 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  90 x 61 x 160 mm
Weight  252 g

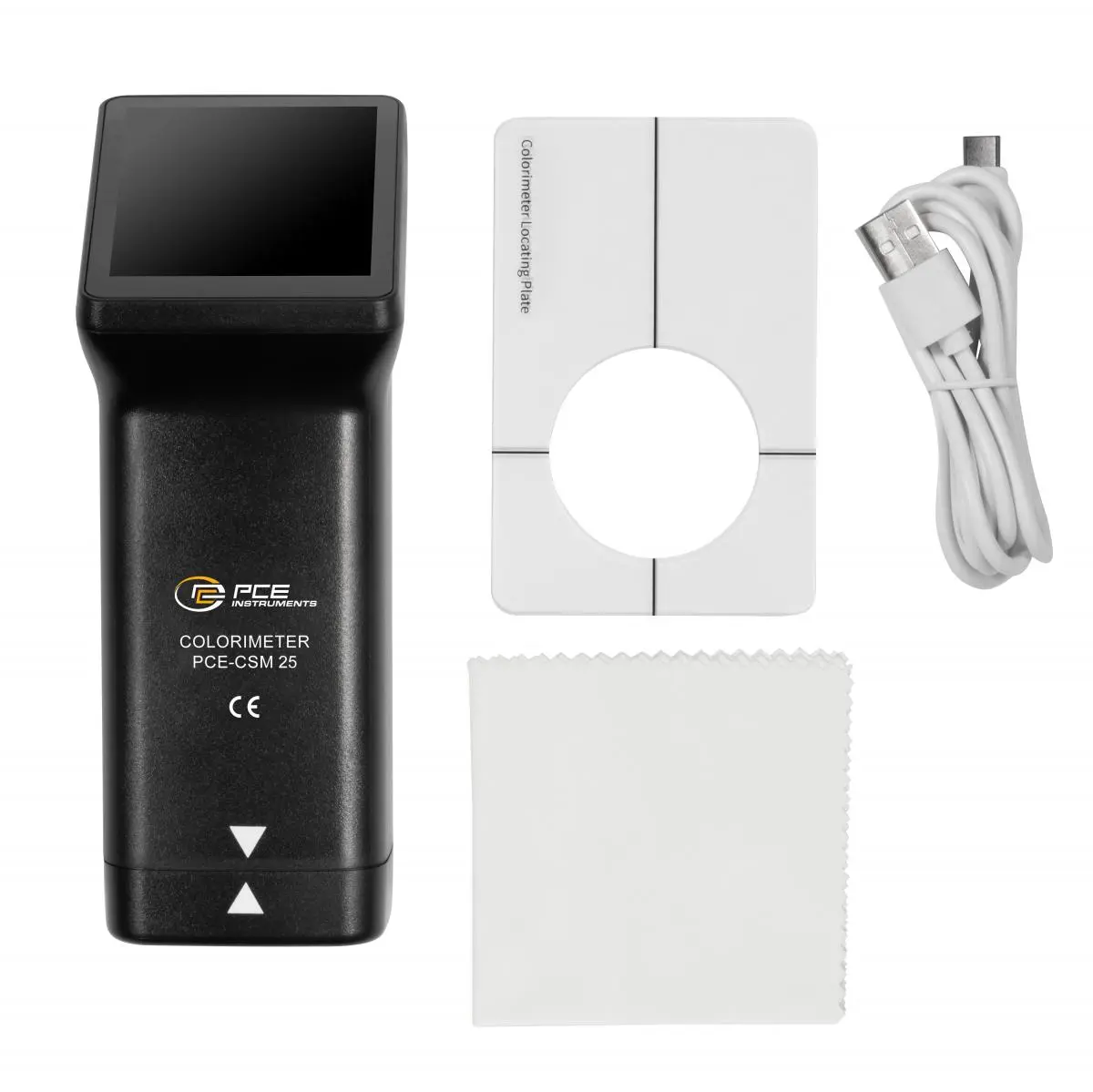

Delivery Scope

1 x PCE-CSM 25 Colorimeter
1 x USB-C cable
1 x Device bag
1 x Cleaning cloth

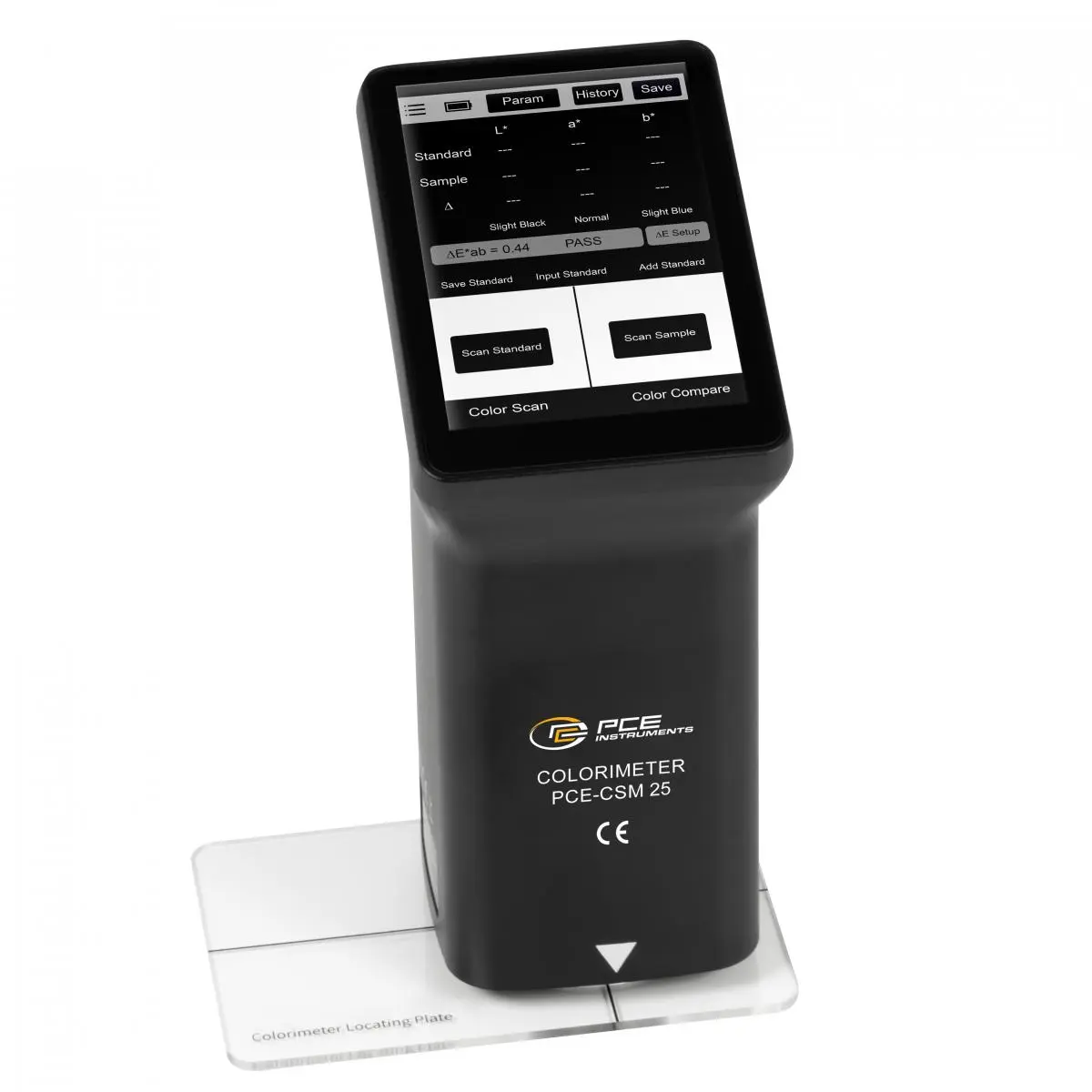

1 x Alignment plate
1 x Operating instructions
1 x PC software (in the download area)
You can find the "LScolor" app in the App Store
