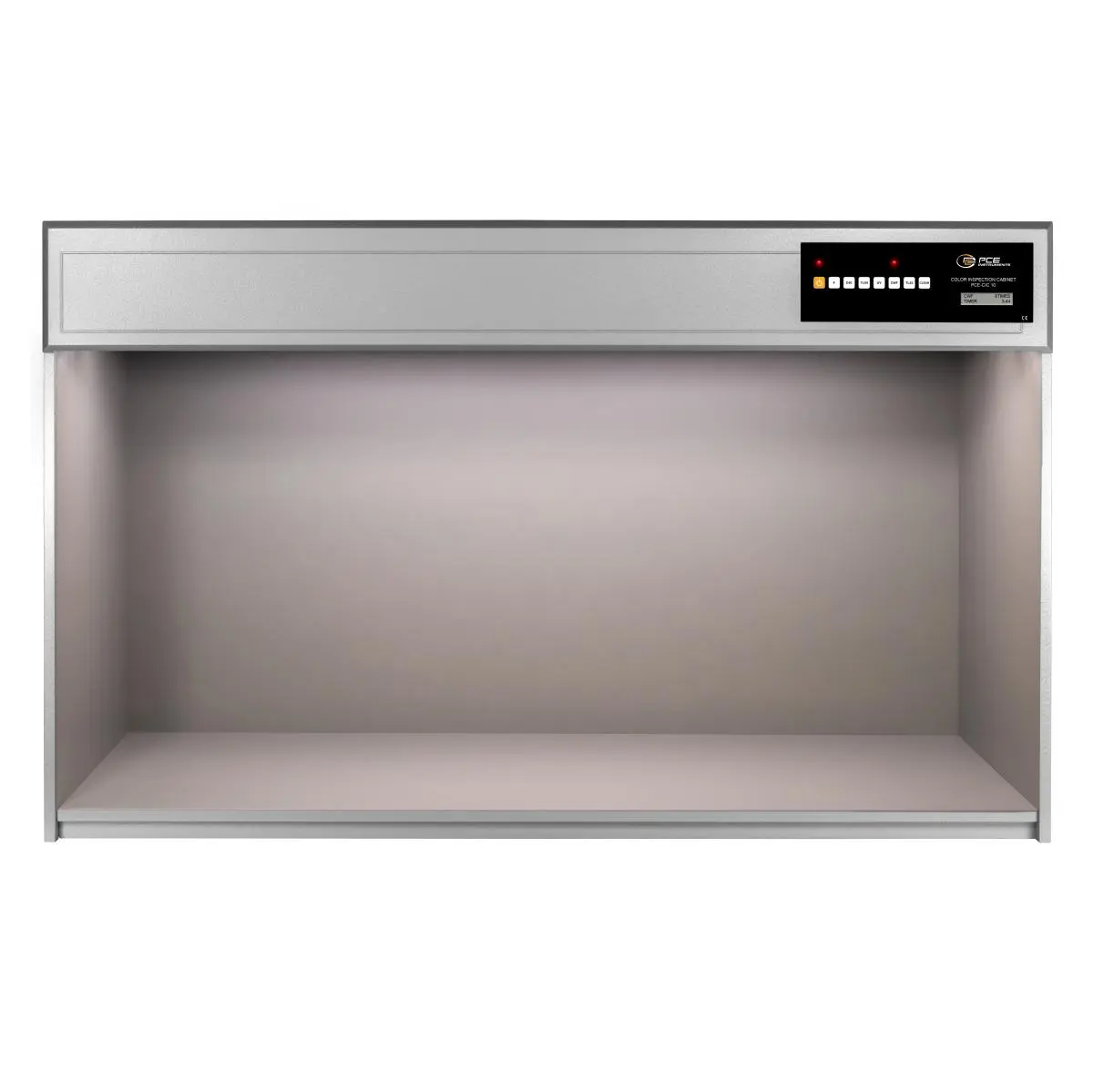

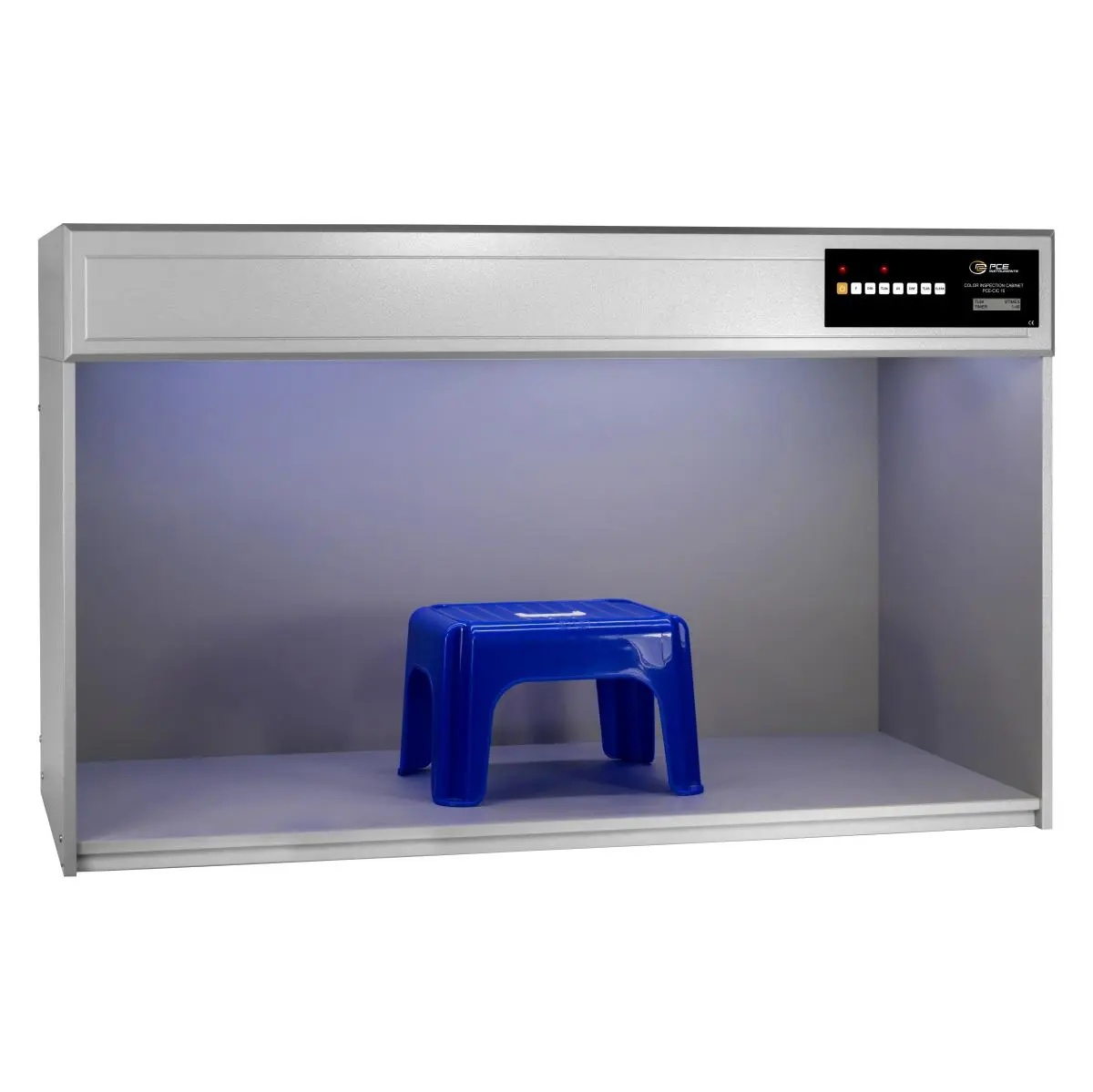

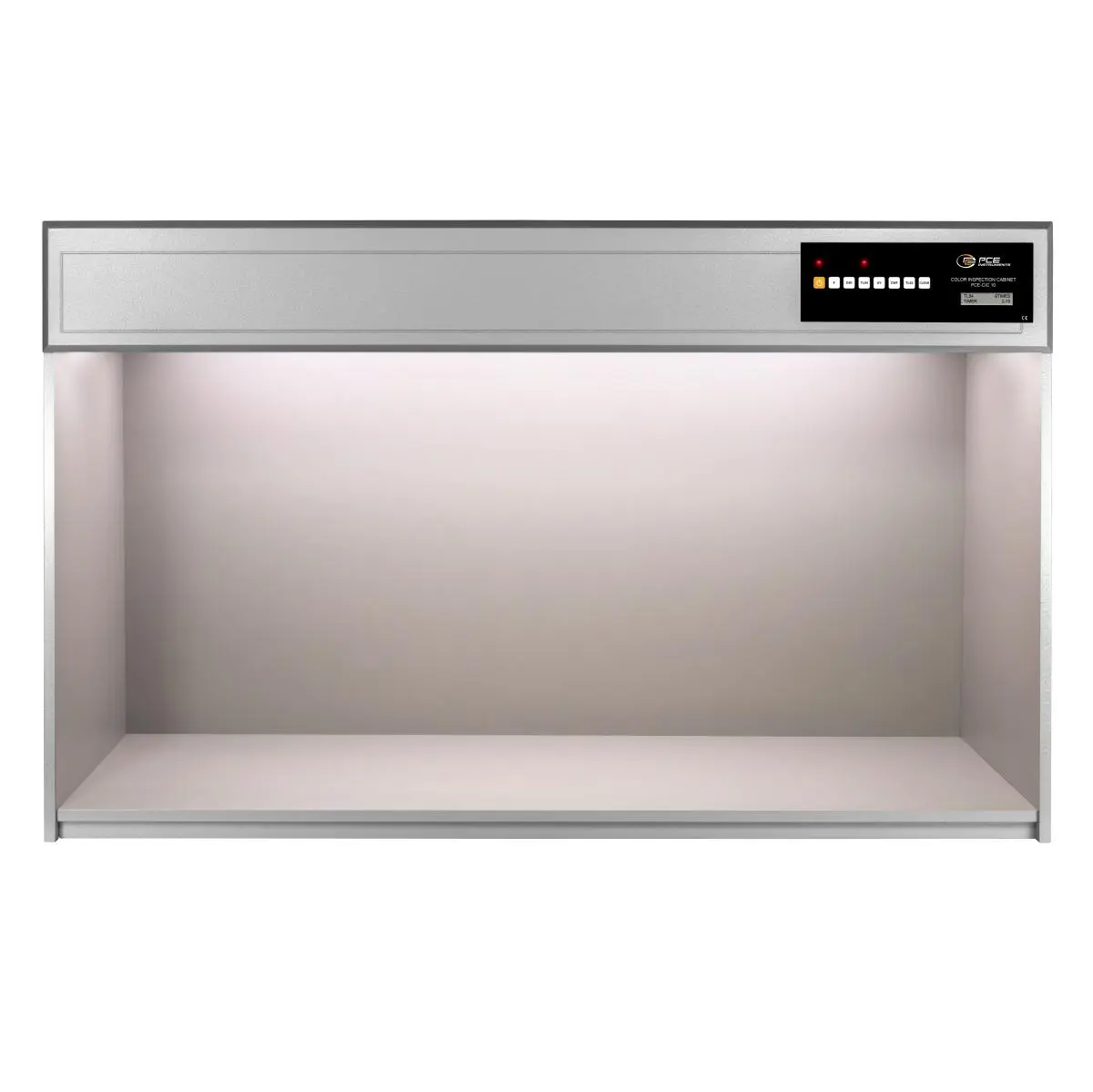

Color Viewing Box PCE-CIC 10

Order no.: PCE-CIC 10
£ 1,484.00
£ 1,780.80
4250348714510
PCE-CIC 10
price ex. (VAT / delivery)
Delivery time: 10 - 14 days
Color Viewing Box for color matching / For use in quality control / Hour counter / Large viewing area / Easy to clean interior / Simulation of six light types

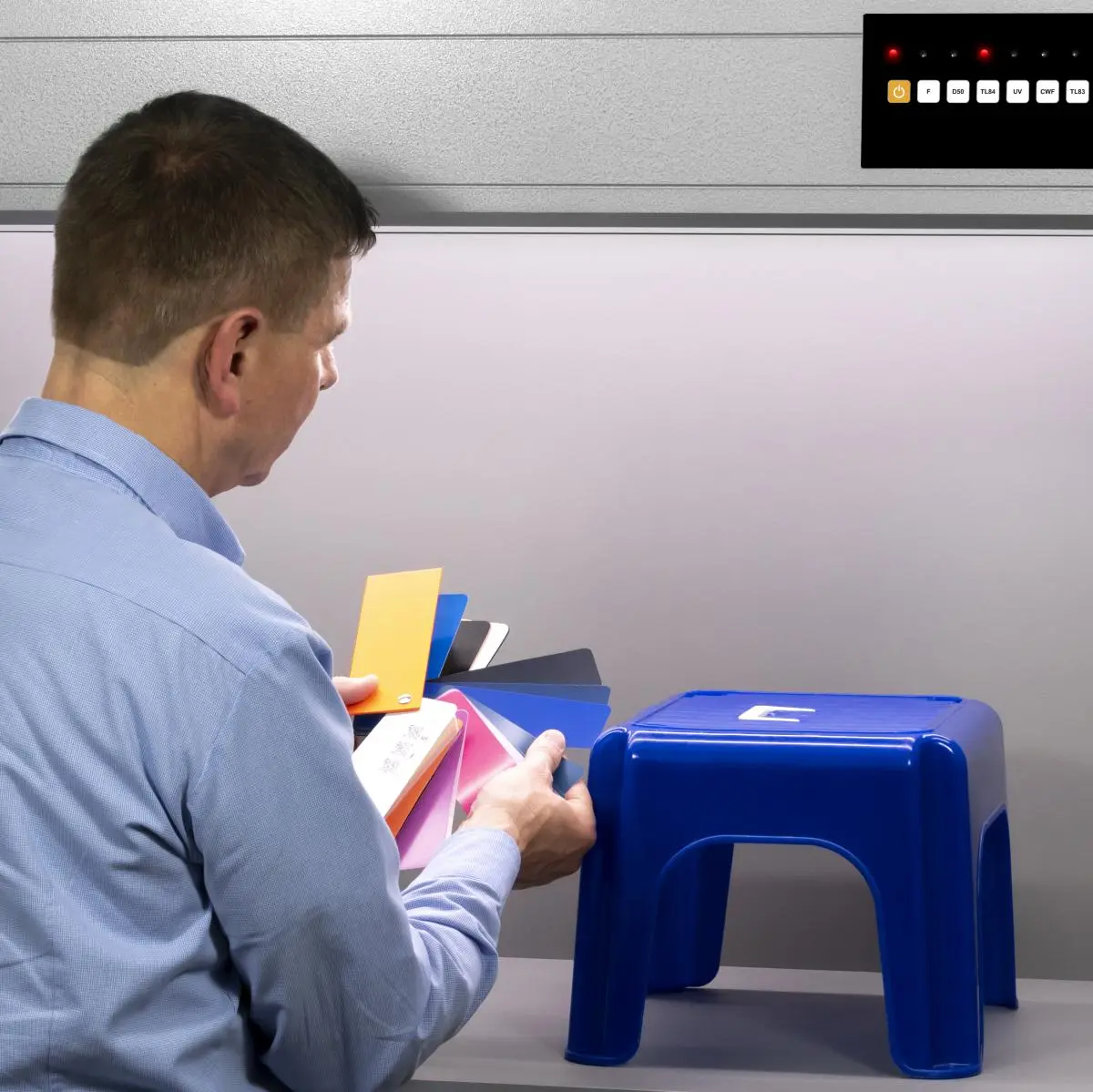

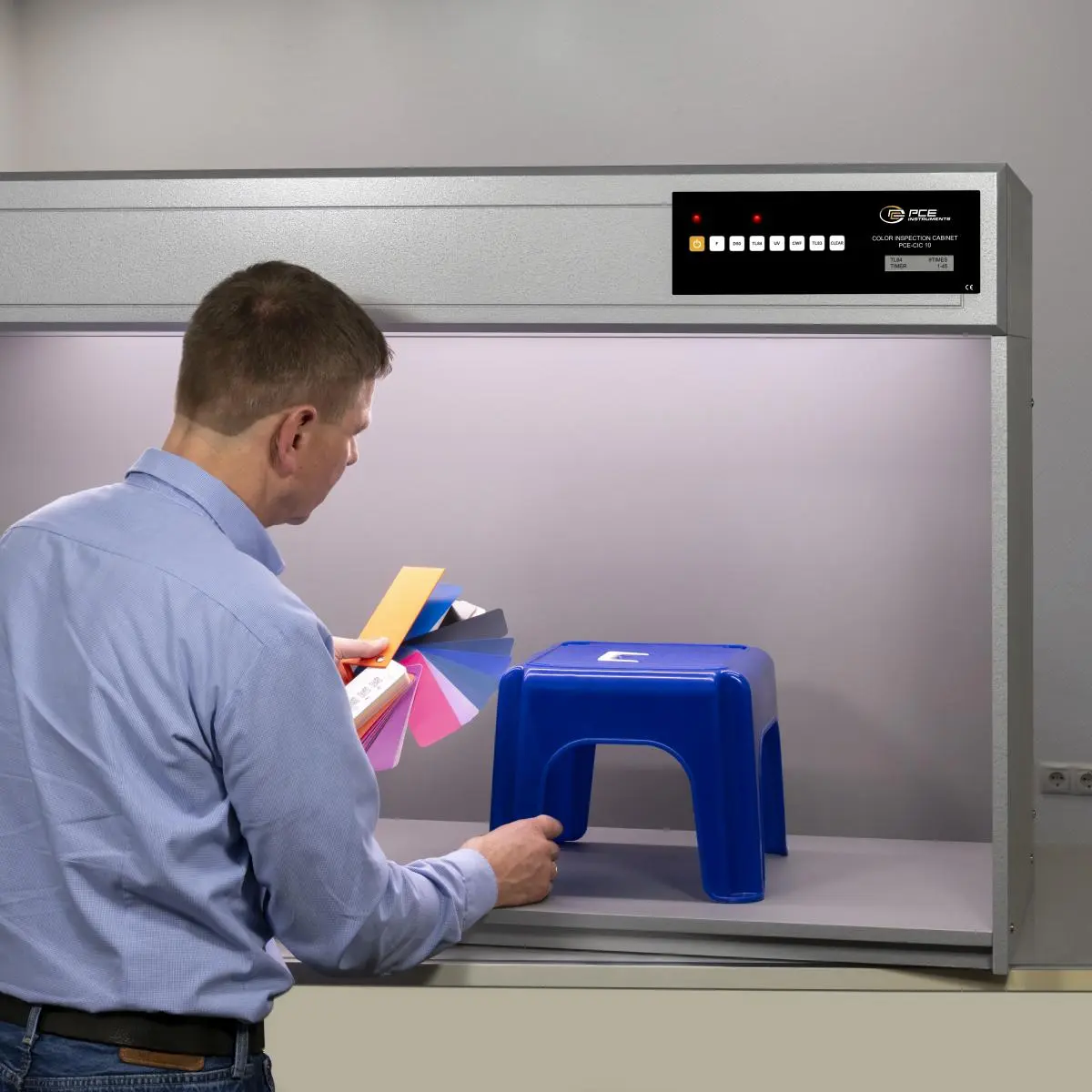

A color viewing box is used wherever products need to have the same color characteristics during production. Thus, a color viewing box contributes to quality control. The color viewing box is a simulation tool, which is capable of representing certain situations in order to analyze the color characteristics of individual samples. The color viewing box PCE-CIC 10 supports six possible lighting types. These colors are supplied as standard: "A/F", "D65", "TL84/F11", "UV", "CWF" and "TL83/U30".

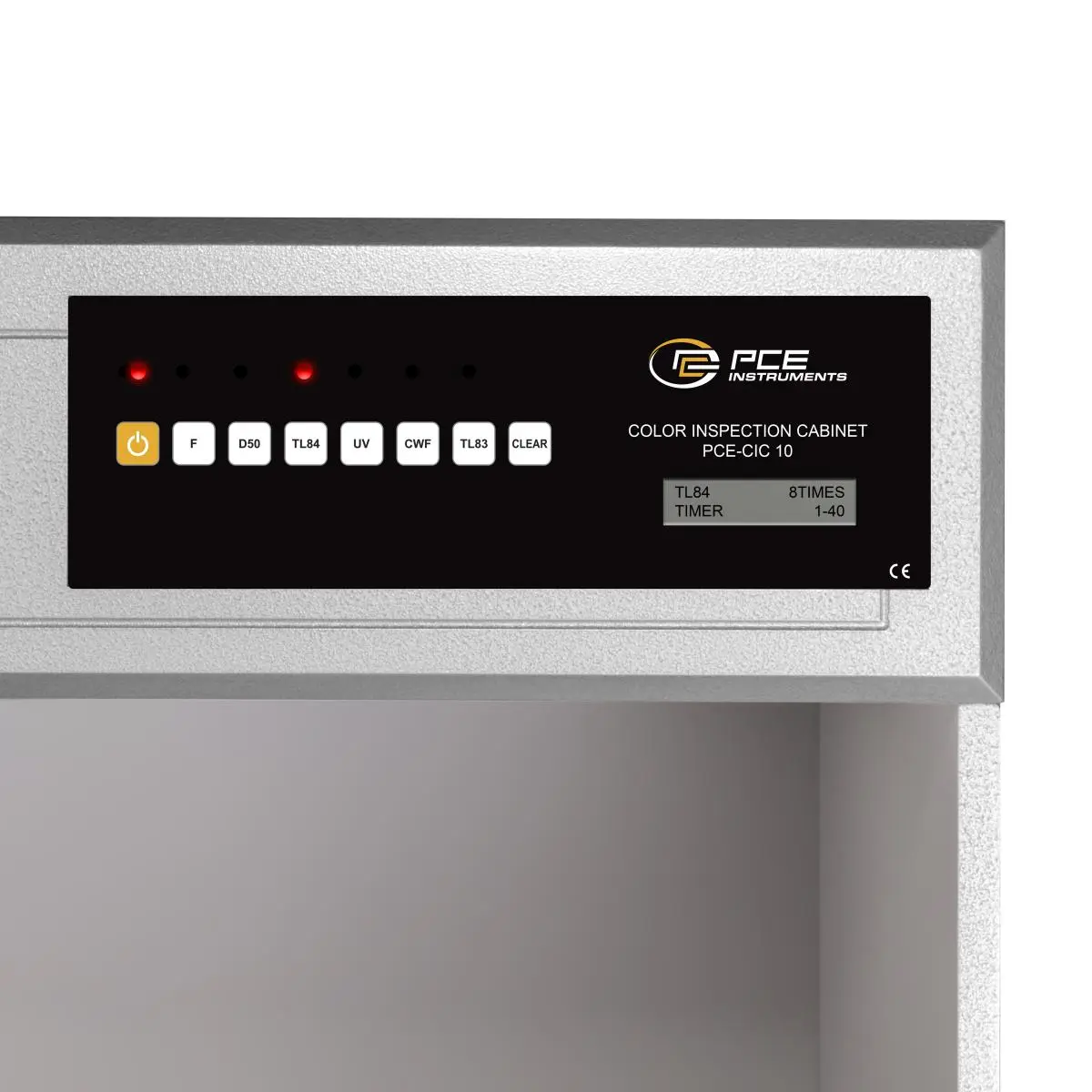

Metamerism can thus be avoided by using a color viewing box. As an aid to the measurement, the color viewing box has an hour counter installed, which makes it easier for the user to keep to the recommended running time of the lamps. The corresponding light type is selected by the user independently by the push of a button. The switch strip is located on the front side of the color viewing box. If desired, several light types can also be switched on simultaneously in the color sample box. This is done by pressing the respective keys simultaneously.


- color assessment under different light types
- with hour counter
- short warm-up time
- according to ASTM D1729, ISO3664, DIN, ANSI, BSI
- easy to clean housing
- large lighting area of the objects
Technical Specification

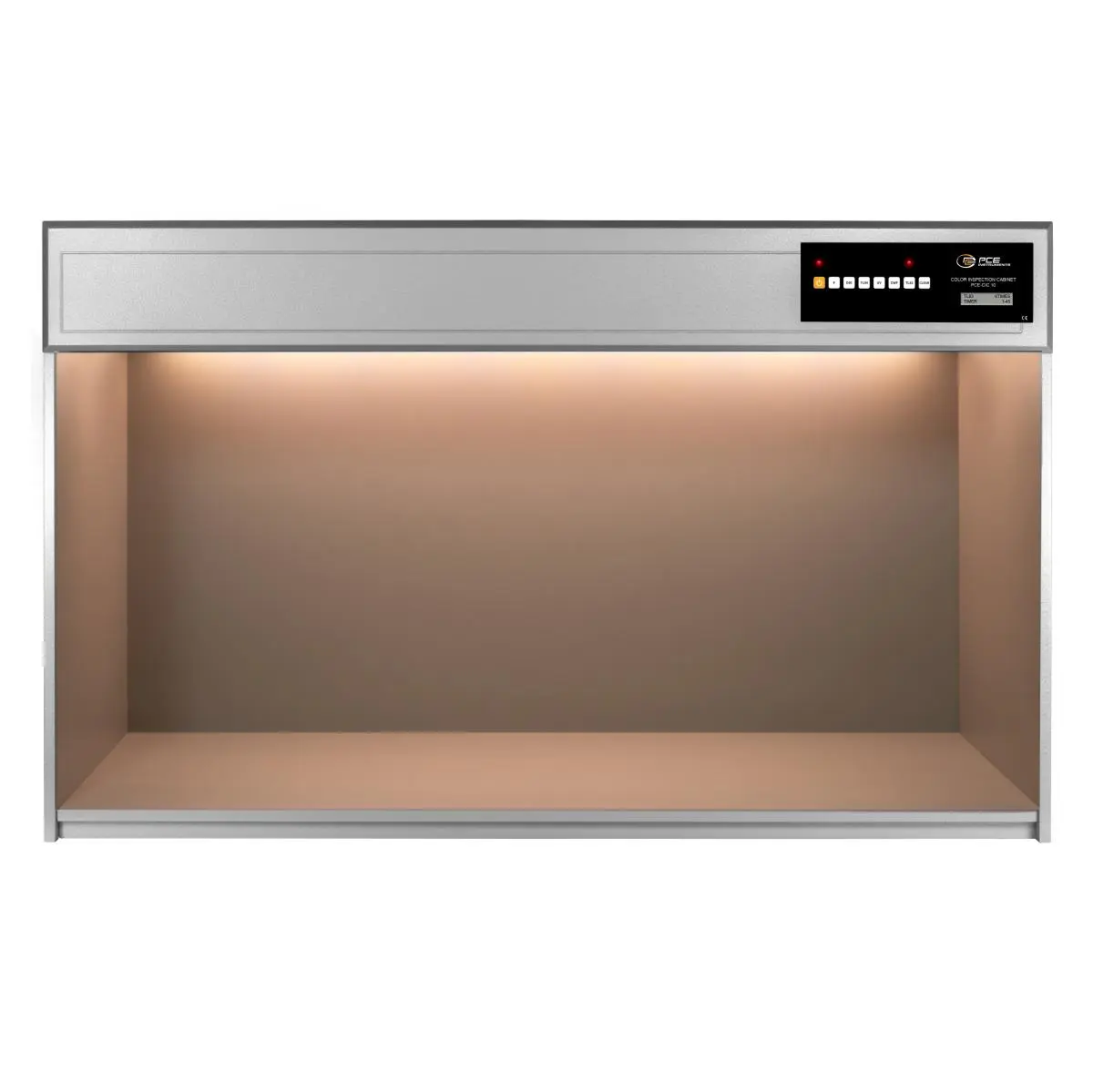

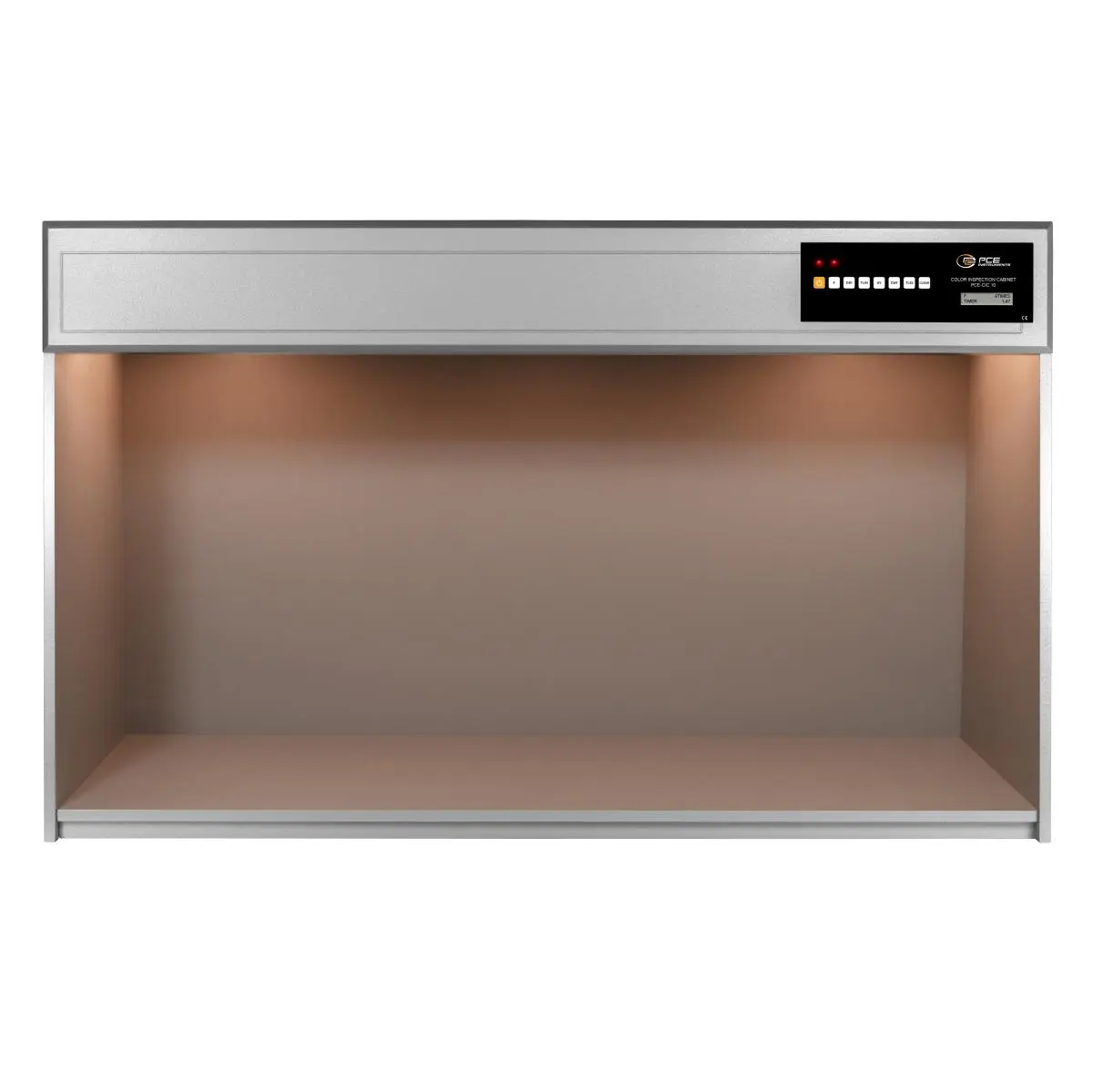

House light A / F

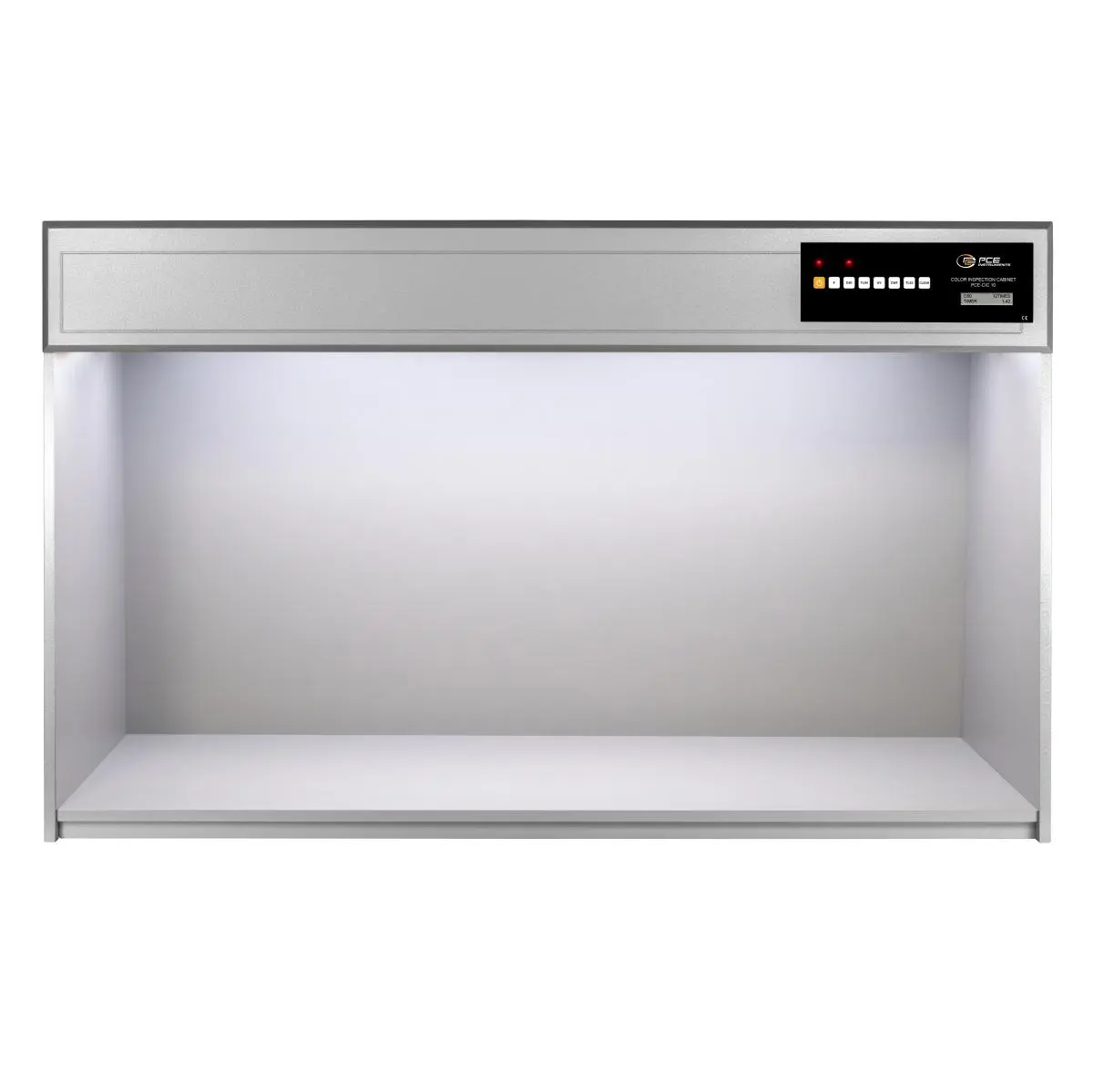

Artificial daylight D65
Fluorescent TL84 / F11

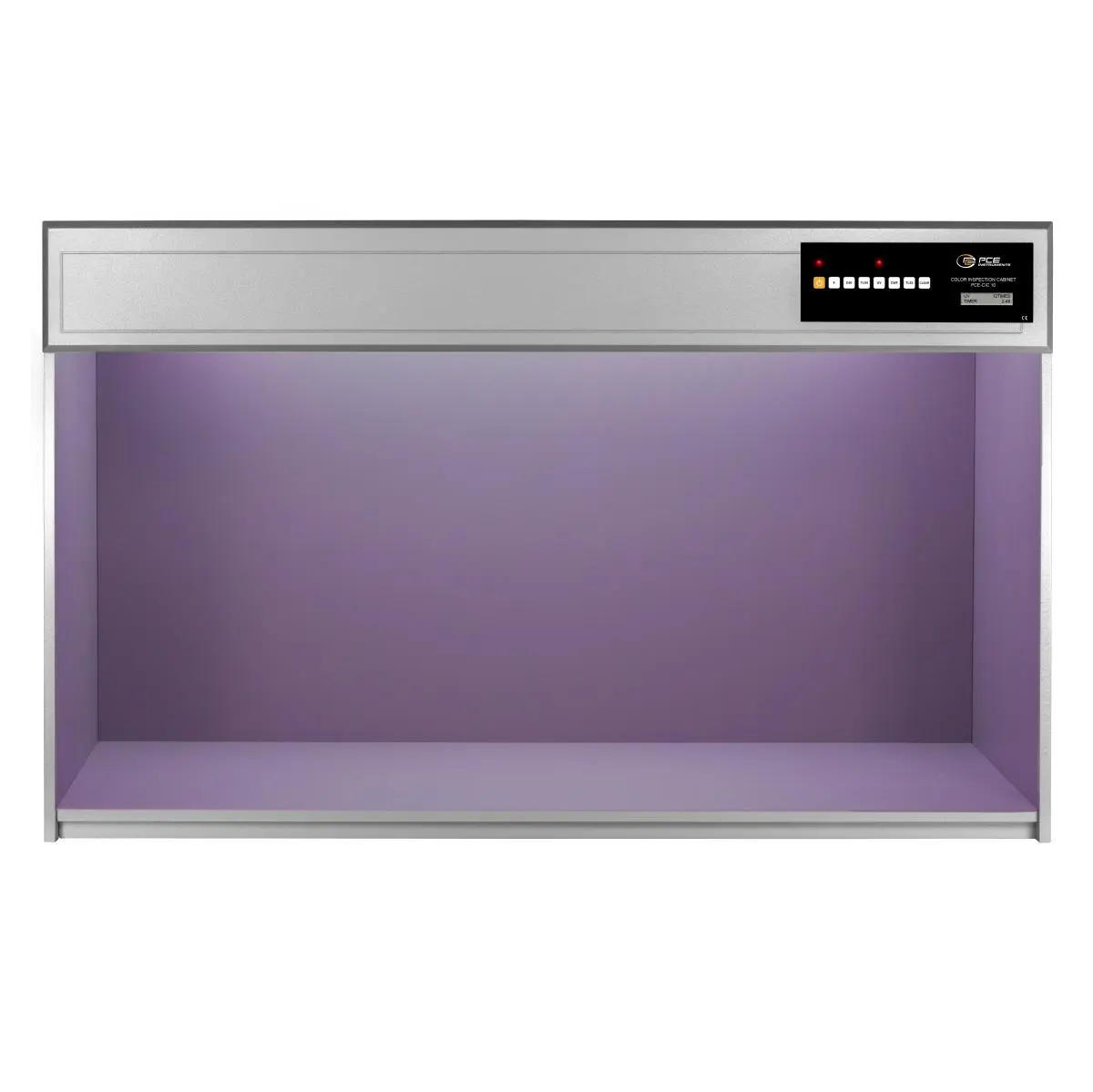

Ultraviolet UV
Office / business / storage room light CWF
Business / office lighting in the USA TL83 / U30
Measurements 1310 x 600 x 800 mm
Weight 65 kg
Standards ASTM D1729
ISO3664
DIN
ANSI
BSI

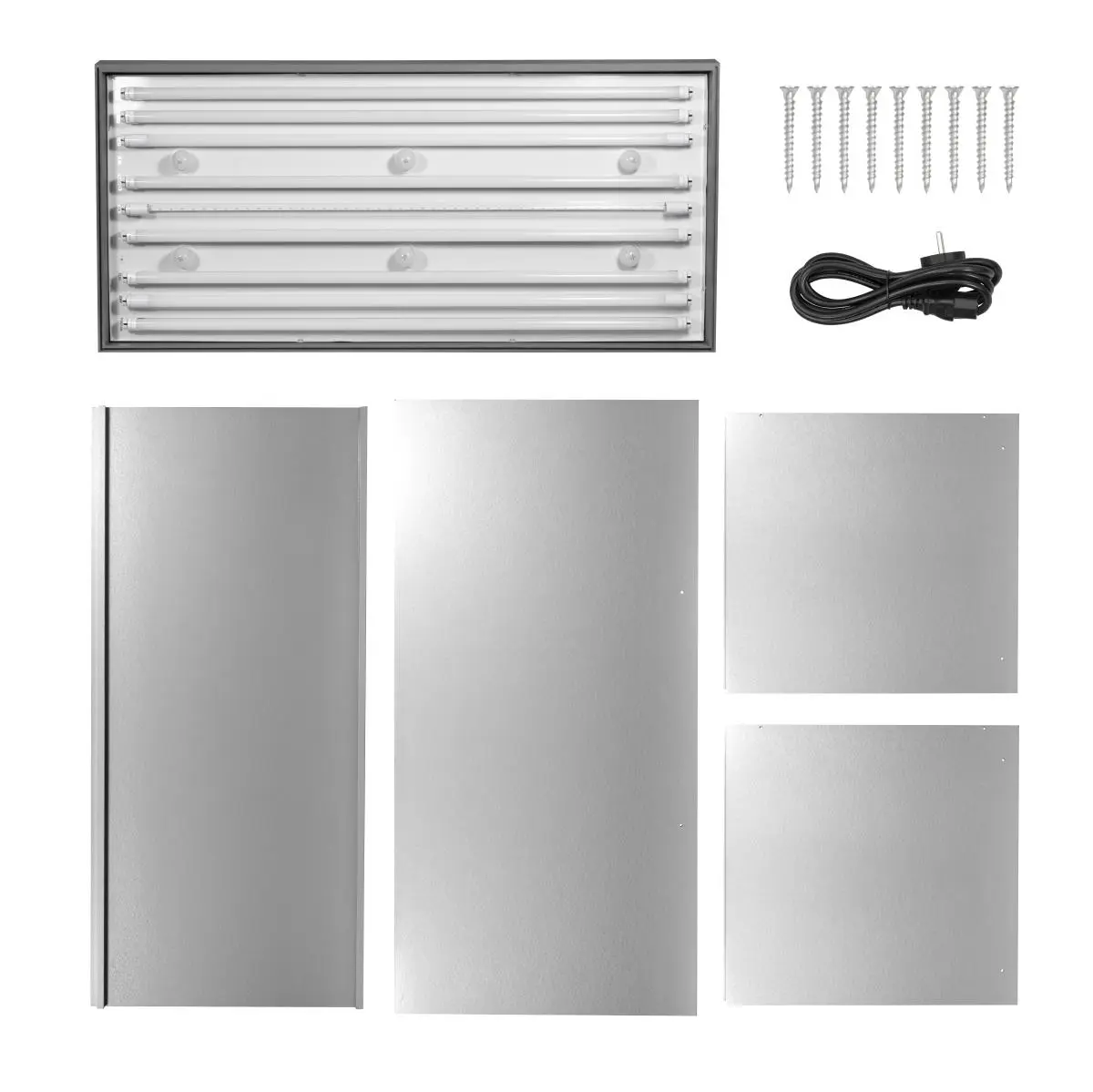

1 x Color Viewing Box PCE-CIC 10

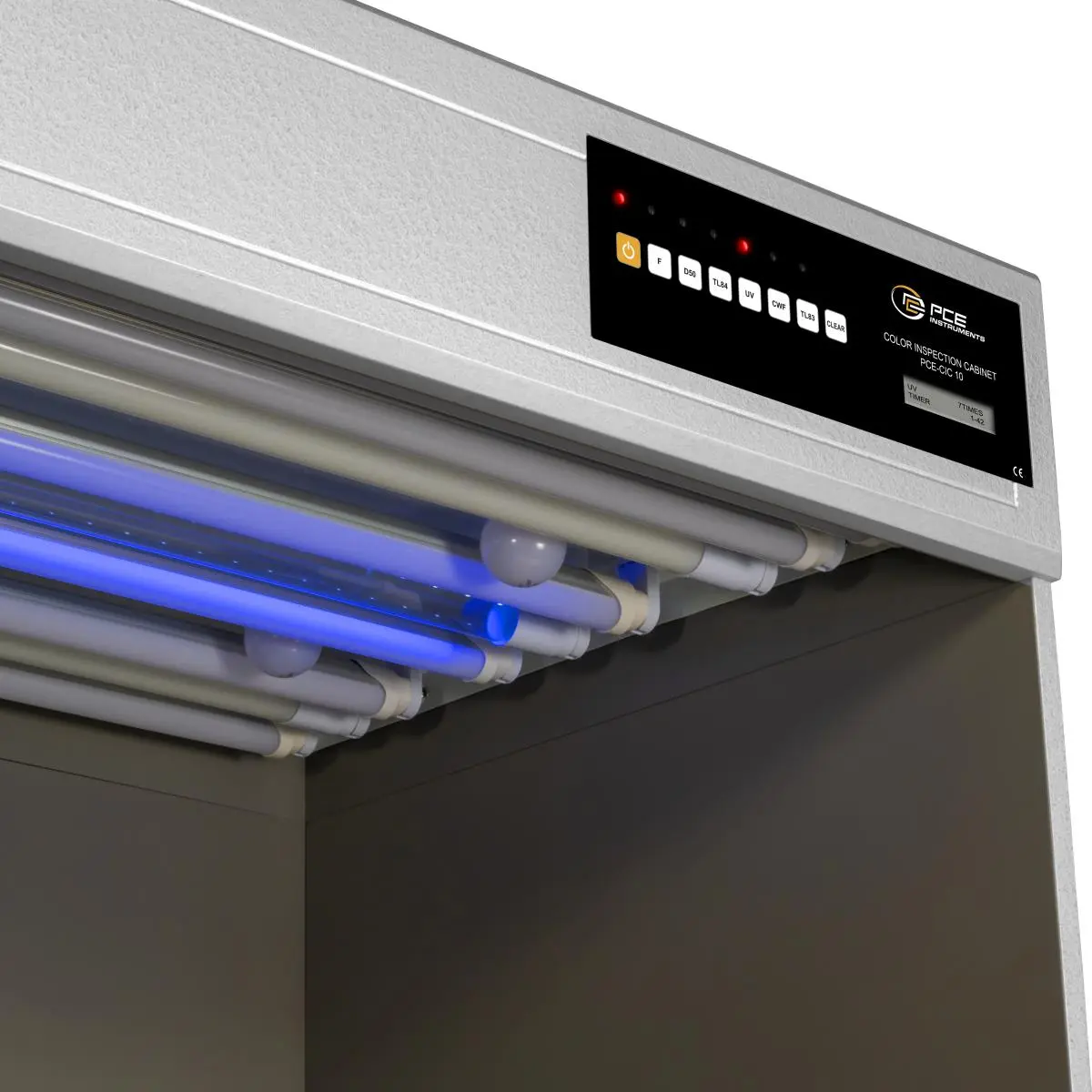

6 x bulbs Philips ZS 40 W
2 x fluorescent tube Philips Master TL-D90 De Luxe 36 W
2 x fluorescent tube Philips Lifemax TLD 36W / 840
2 x fluorescent tube Philips TLD 36W / 33-640
2 x fluorescent tubes Philips Lifemax TLD 36W / 830
1 x fluorescent tube TL-D 36W / 08 BLB
1 x instruction manual
