Order no.: PCE-313A-ICA

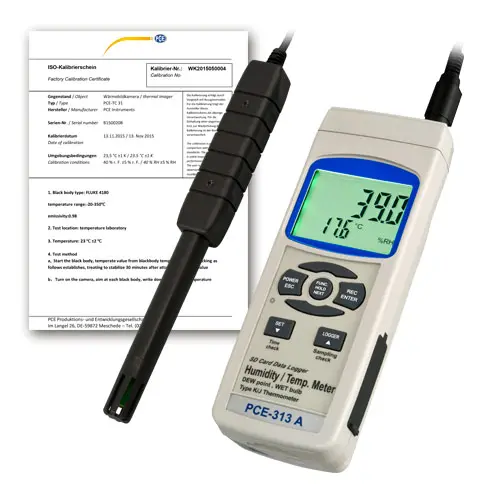

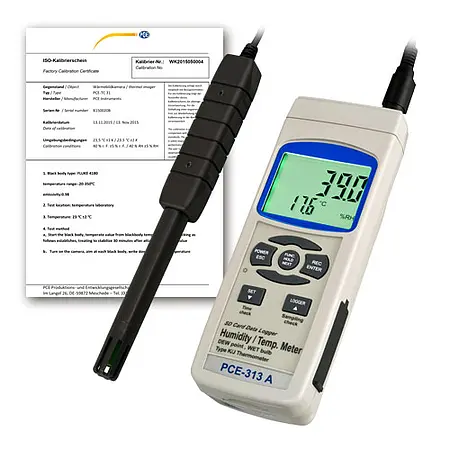

Climate Meter PCE-313A-ICA incl. ISO Calibration Certificate

ISO Calibration
£ 400.00
£ 480.00
price ex. (VAT / delivery)
Air Conditions
Delivery time: 10 - 14 days


Blimate meter for relative humidity and temperature / SD card (1 ... 16 GB) / Interface for online data transfer / Powered by batteries or alternatively mains component / Additional K type thermocouple connection

The PCE-313 A climate meter has been designed for professional applications in the air-conditioning and measurement technologies. In addition to the relative humidity, the climate meter determines the ambient temperature. You also have the possibility to measure the temperature of, for instance, a wall via the K type thermocouple connection and by using the optionally available surface probe. The SD card memory (1 … 16 GB) enables humidity and temperature readings to be recorded at an adjustable sampling rate in direct mode or permanently in data logging mode. To use these functions, you can previously program or preset the humidity meter by means of the keypad and then record permanently on site without having to observe the process all the time. For permanent recording we recommend to power the humidity meter via the power adapter which can be optionally purchased. The readings recorded in line with the data logging function can be transferred to a PC for further analysis (.xls file on the SD card). Additionally, you can check the columns of figures for outliers or create a graph in Excel.

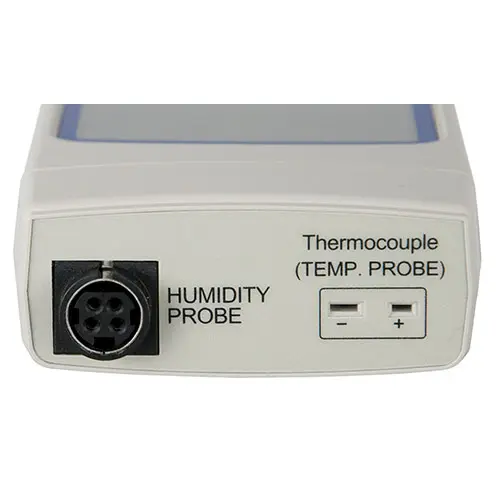

- Measures temperature, humidity, dew point and external temperature via the K type thermocouple connection
- Flexible real-time data memory by means of SD memory card (1 … 16 GB)

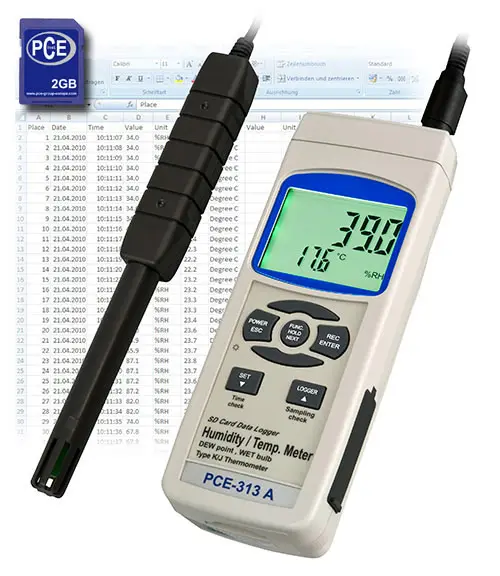

- The data can be saved to the SD card directly as an Excel file

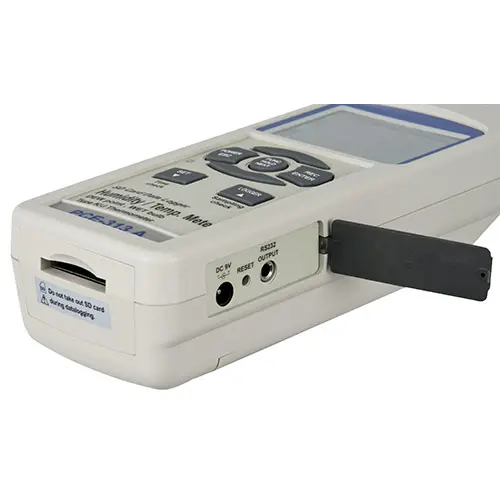

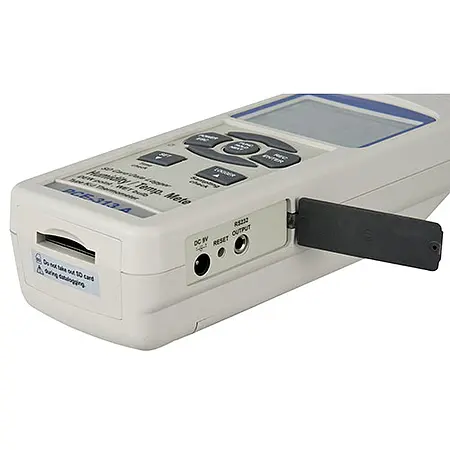

- The SD card can be formatted while it is inside the device
- Data hold function

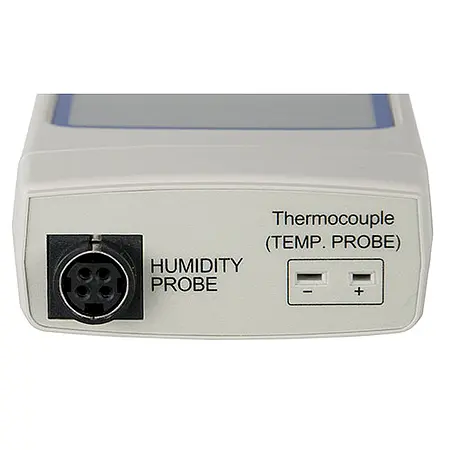

- External sensor for easy and flexible measurement of the environmental conditions
- Low battery indication
- Large LC display
- Tripod connection
- Adjustable sampling rate of 1 … 3600 seconds
- Easy to use

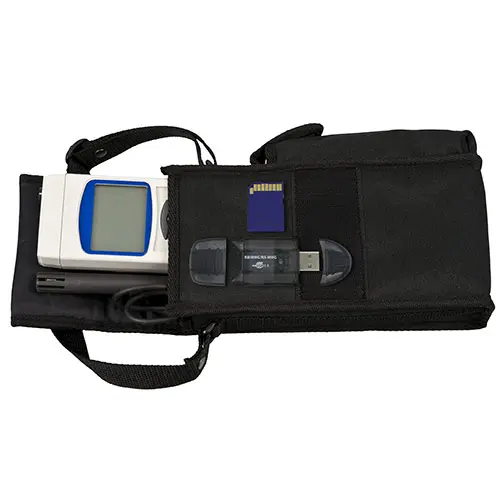

- Resilient case
- 2 GB SD card included in the delivery
- Optionally available software kit for online transfer to a PC or laptop (please note that no software is necessary to analyse the saved data)


 - Relative humidity5 ... 95% RH
 - Temperature0 ... 50°C / 32 ... 122°F
 - Type K-50 ... 1300ºC / -58 ... 2372°F
 - Calculated dew point-25.3 ... 48.9ºC / -13.5 ... 120°F
 - Wet bulb temperature  -21.6 ... 50ºC / -6.9 ... 122°F
 - Relative humidity0.1% RH
 - Temperature0.1°C / 0.18°F
 - Type K0.1°C / 0.18°F
 - Calculated dew point0.1°C / 0.18°F
 - Wet bulb temperature 0.1°C / 0.18°F
 - Temperature±0.8ºC / 1.4ºF
 - Relative humidity≥70% RH±3% of the measurement value ±1% RH
  <70% RH±3% RH
 - Type K± (0.4% + 0.5ºC / 32.9ºF)
MemorySD card (1 ... 16 GB)
Measurement rateAdjustable, 1 ... 3600 seconds
DisplayLCD 52 x 38 mm / 2 x 1.5 in, with backlight
Operating conditions0 ... 50°C / 32 ... 122ºF
< 85% RH
Power supply 6 x 1.5V batteries /
 9V mains adapter (optional)
Dimensions177 x 68 x 45 mm / 7 x 2.7 x 1.8 in
WeightApprox. 490 g / 1.1 lbs

Delivery Scope

1 x Climate meter PCE-313 A

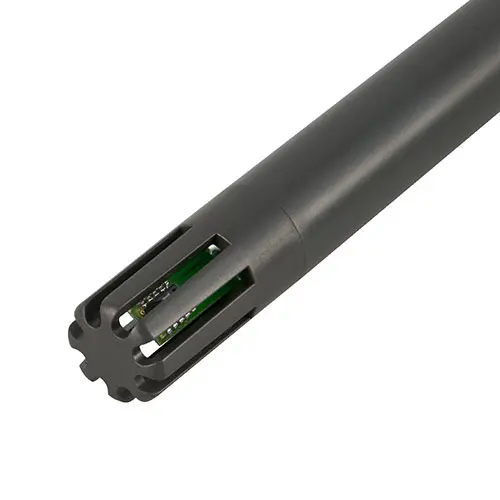

1 x Sensor for temperature and humidity
1 x SD card (2 GB)
6 x Batteries
1 x Manual
1 x ISO Calibration Certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
