Order no.: PCE-CLT 10

Cable Fault Meter PCE-CLT 10

£ 222.00
£ 266.40
:
4250348717993
PCE-CLT 10
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

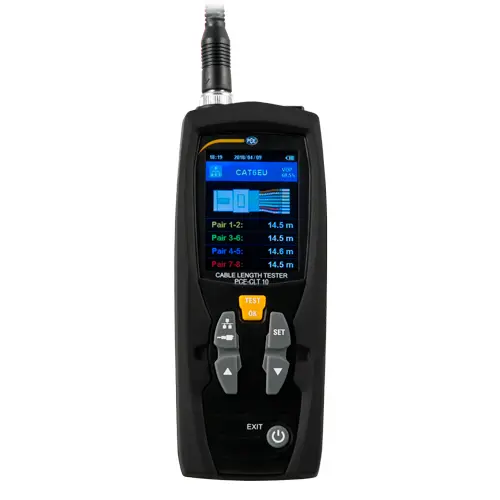

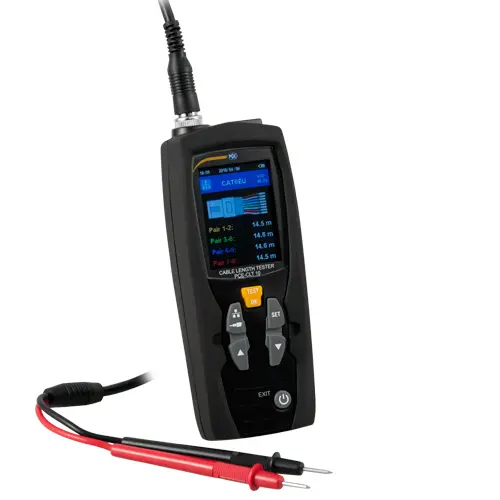

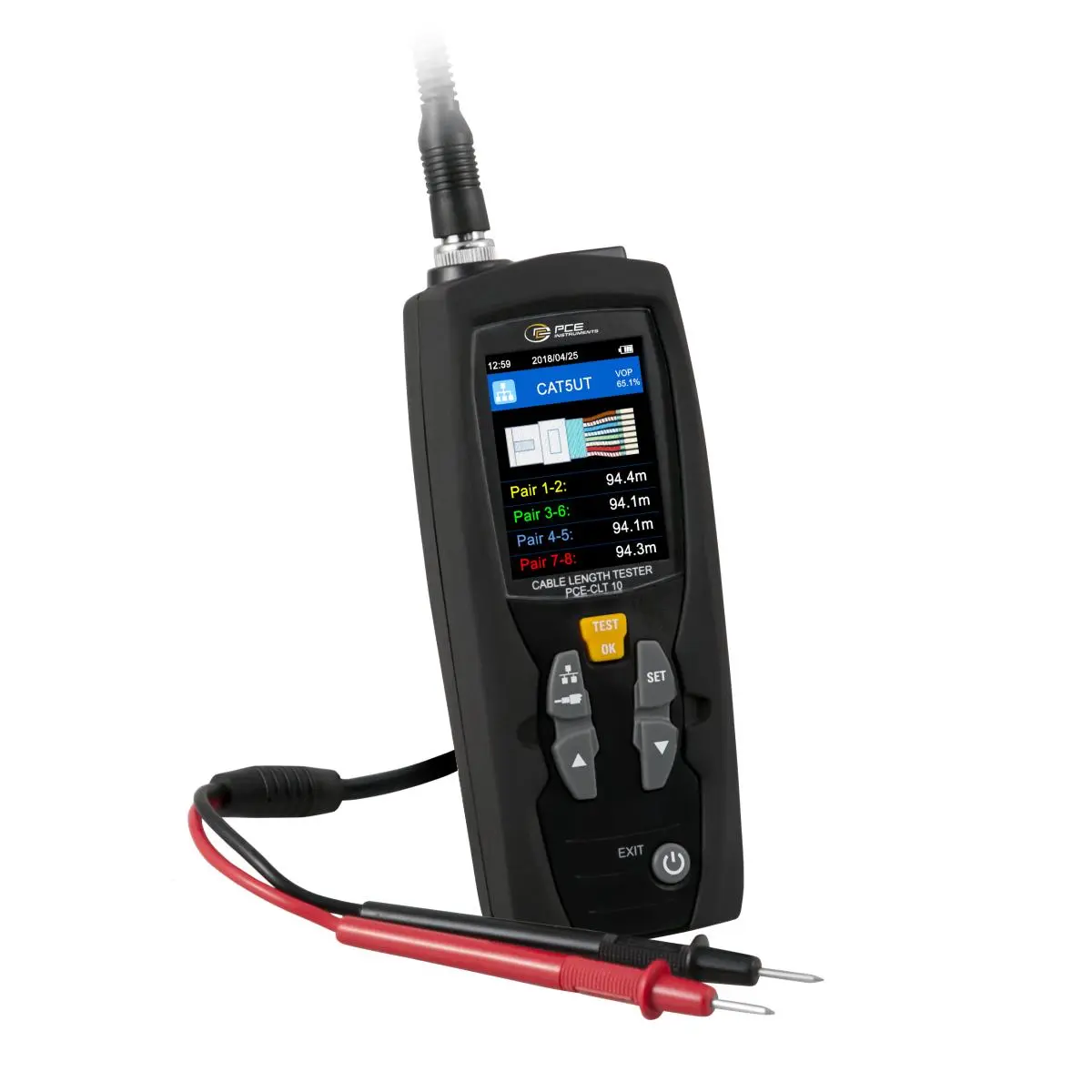

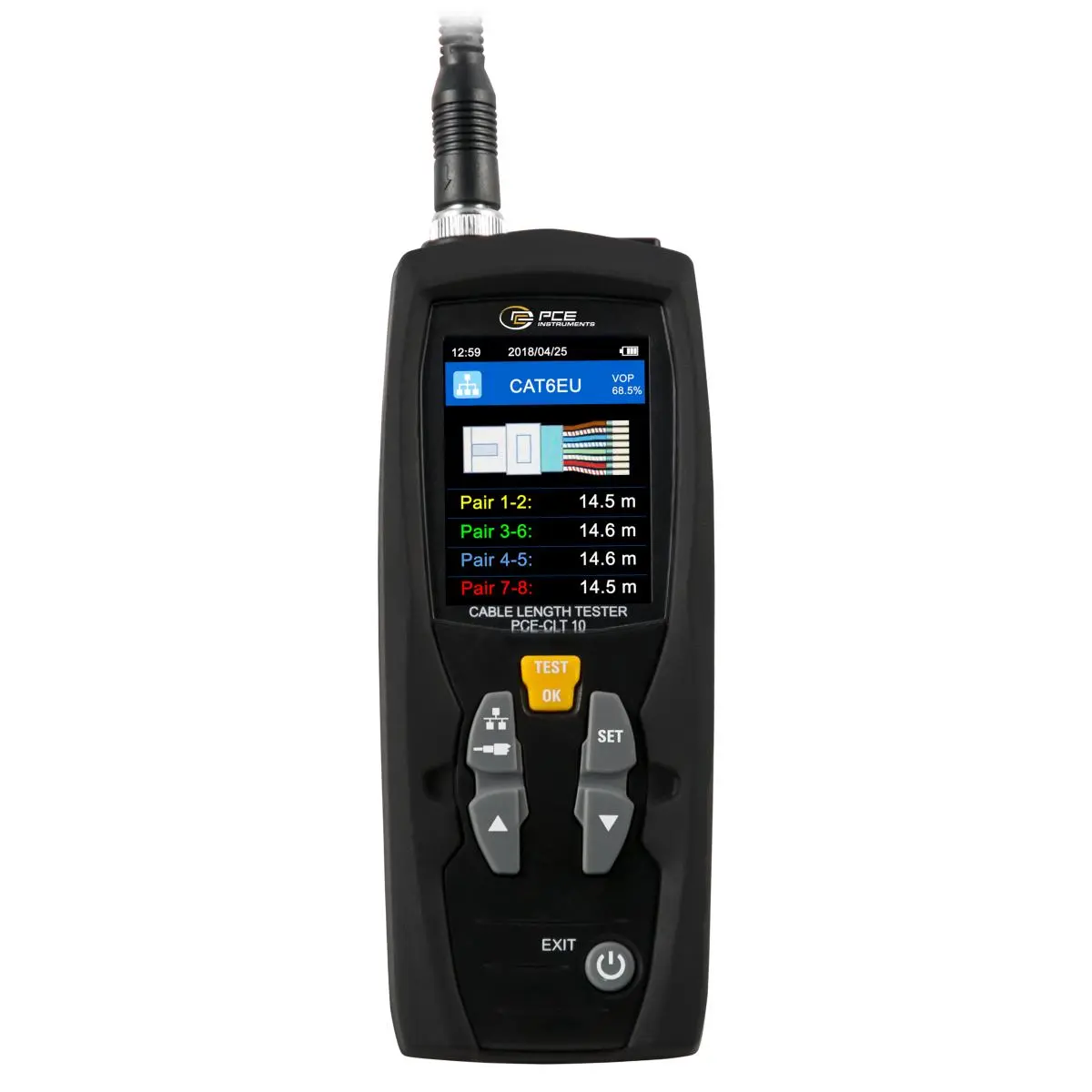

Cable Fault Meter PCE-CLT 10

Cable length measuring device with high measuring accuracy and fast measuring results / 2.4" TFT display / Measuring range up to 3000 meters (9842.5 ft) / 20 preset cable types / Compact design / additional storage option for up to 99 cable types

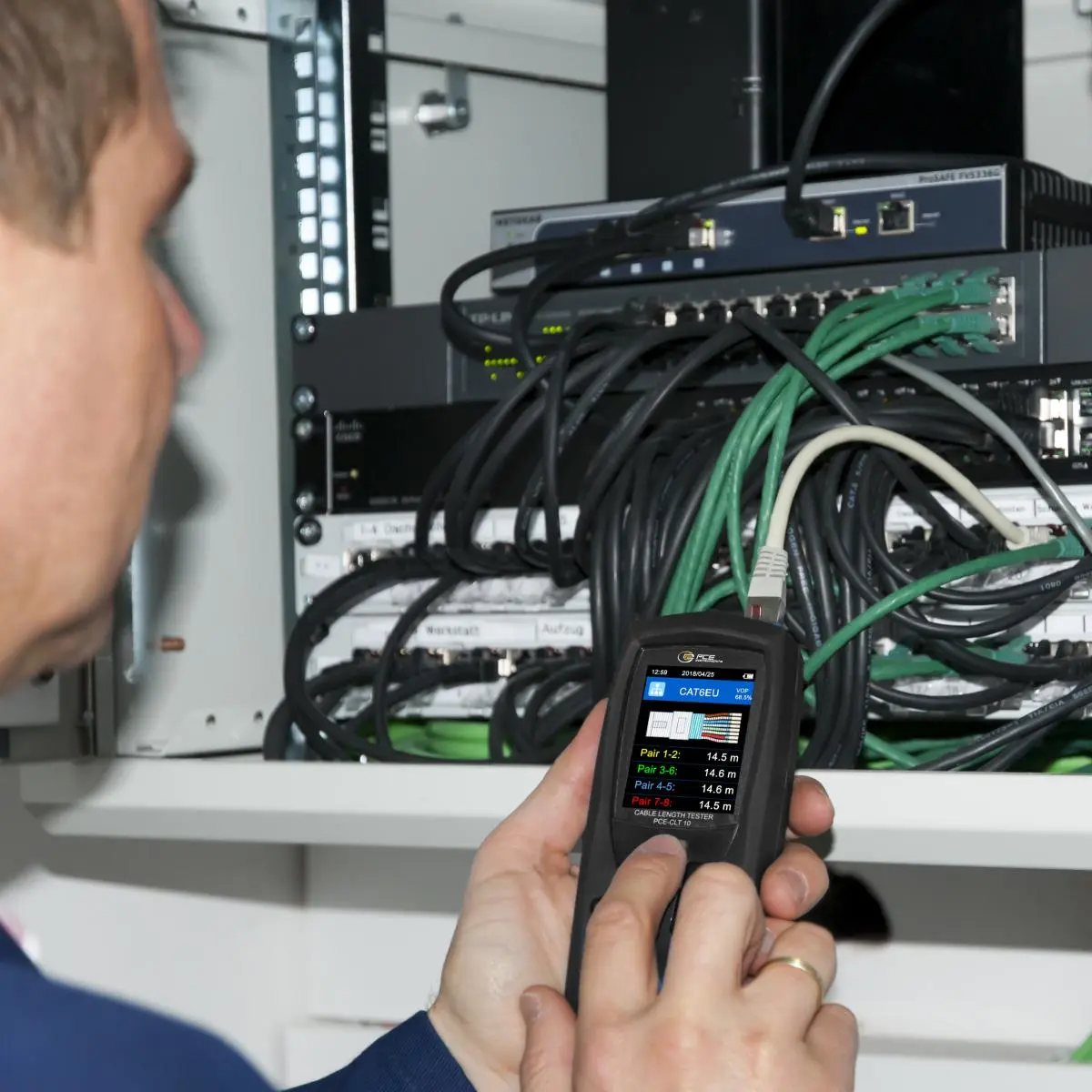

The cable length measuring device PCE-CLT 10 is a multifunctional device which enables high accuracy and fast measurement results. If used appropriately, the cable length meter can be used to measure cables that have already been installed and are still to be installed. The cable length measuring device can be used to determine cable lengths of up to three kilometers. This is done by a time domain reflectometer. On the cable length measuring device itself, 20 standard types of cables are pre-stored and further storage of up to 99 cable types is also possible on the device itself. The stored data can be viewed directly on the device and can be used as required. Due to the built-in technology comparatively short cables can already be tested. The minimum length that a cable must have, which should be examined with the Cable Length Gauge.

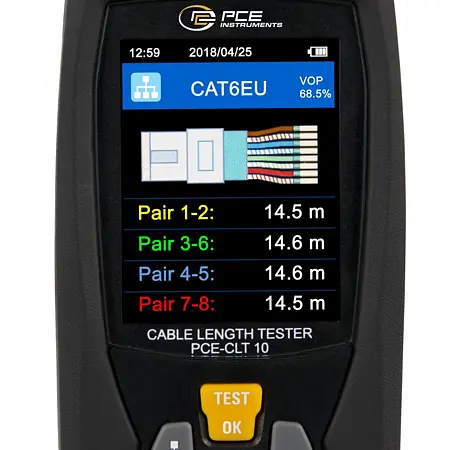

To increase battery life, the device automatically shuts off after 10 minutes of inactivity. This automatic shutdown can be set individually by the user at intervals of 10 minutes. In addition to the automatic shutdown, the device offers a bright TFT display, which makes a quick reading of the measurement results also possible due to its backlighting.




Highlights

- High measuring accuracy up to 3000 m / 9842.5 ft
- Results after a short measuring time

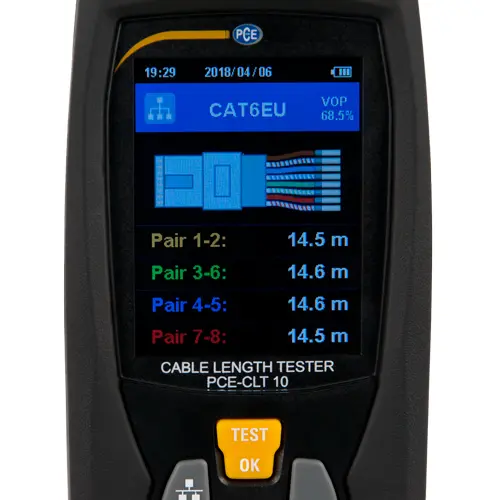

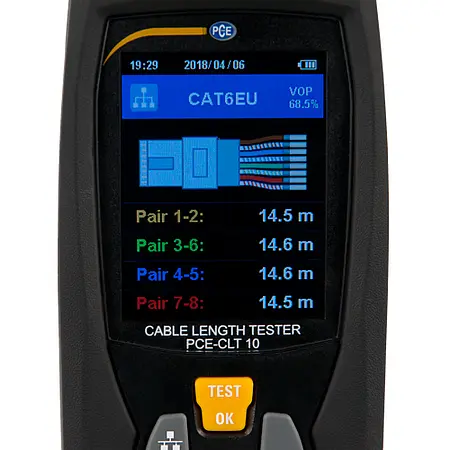

- 2.4" TFT color display
- Automatic shutdown adjustable
- Illuminated TFT display
 - 20 pre-set cable types

Specification

Measuring range cable length

Depending on the propagation speed of the tested cables
5 ... 3000 m / 16.4 ... 9842.5 ft with shortening factor ≤99.9%
5 ... 2400 m / 16.4 ... 7874.0 ft with shortening factor ≤80.0%
5 ... 2000 m / 16.4 ... 6561.7 ft with shortening factor ≤66.0%
5 ... 1500 m / 16.4 ... 4921.3 ft with shortening factor ≤50.0%
Measurement units m, ft
Resolution 0.1 m
Measuring principle Time domain reflectometer
Selection area Automatic control range
Measurement accuracy ± [2% of reading ± 0.2 m] <100 m
± [2% of reading ± 0.5 m] ≤100 m
Impedance selector Automatic output of the impedance control
Shortening factor / propagation speed   Adjustable from 1.0 ... 99.9%
Cable types 20 standard cables
Memory 99 memory slots for individual cables

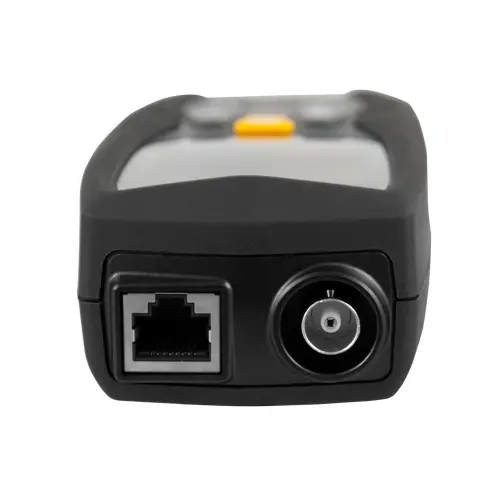

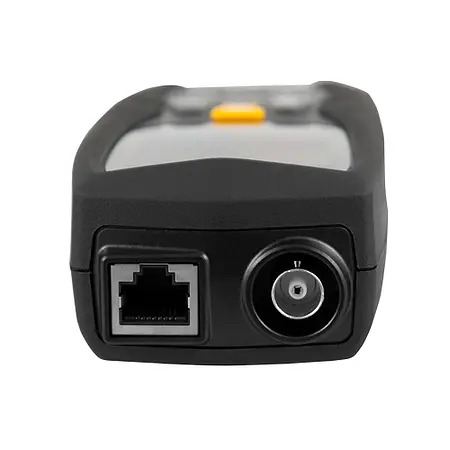

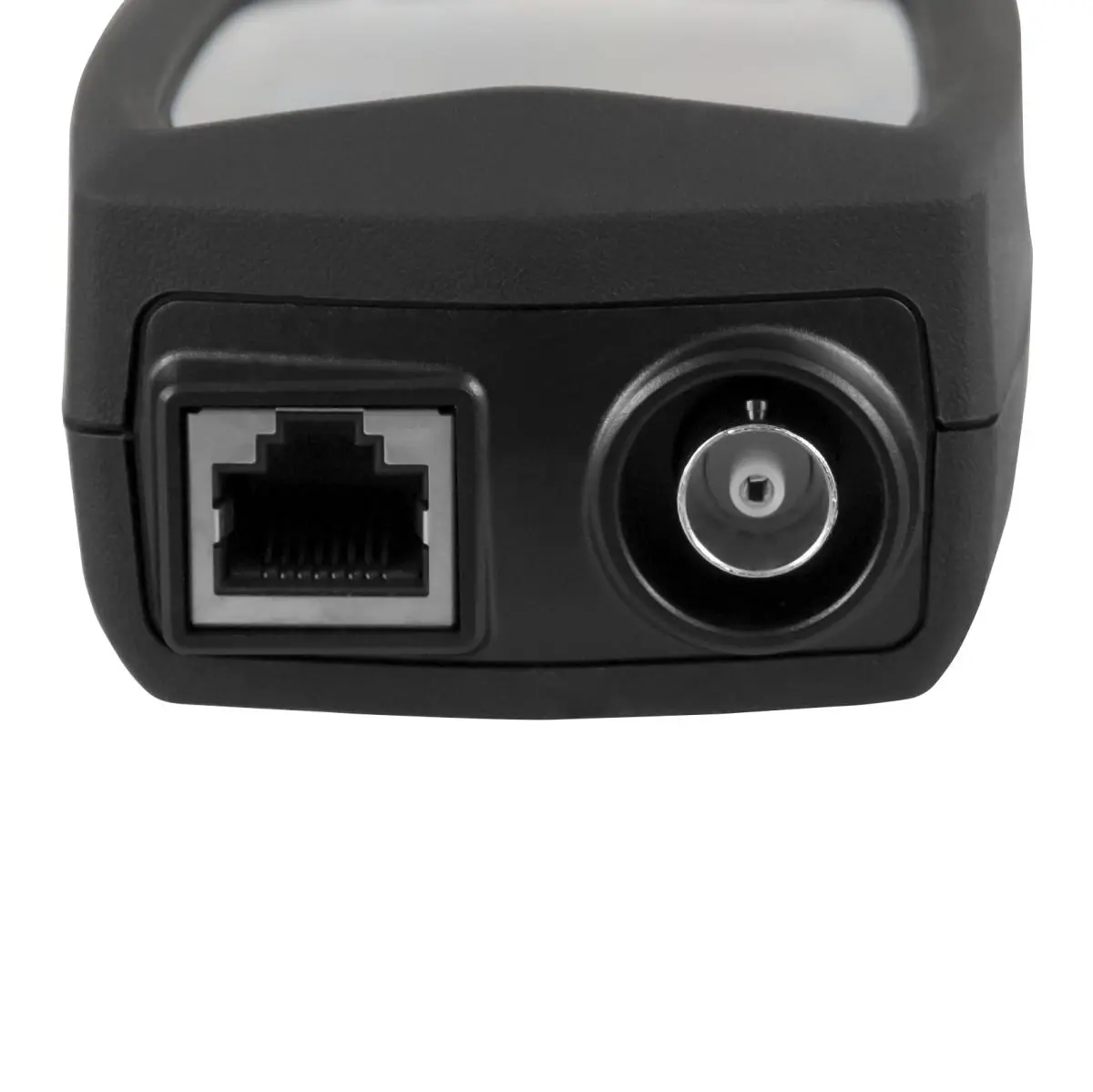

Connector type BNC, RJ45
Power supply 2 x 1.5V AA battery
Battery status indicator Yes
Automatic shutdown Adjustable between 10 and 60 minutes
Menu languages German, English
Operating temperatur 0 ... 40°C / 32 ... 104°F
Storage temperature -10 ... 50°C / 14 ... 122°F
Relative humidity 0 ... 80% rel. humidity

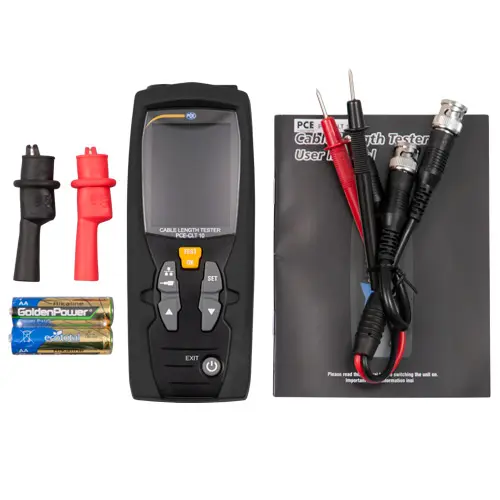

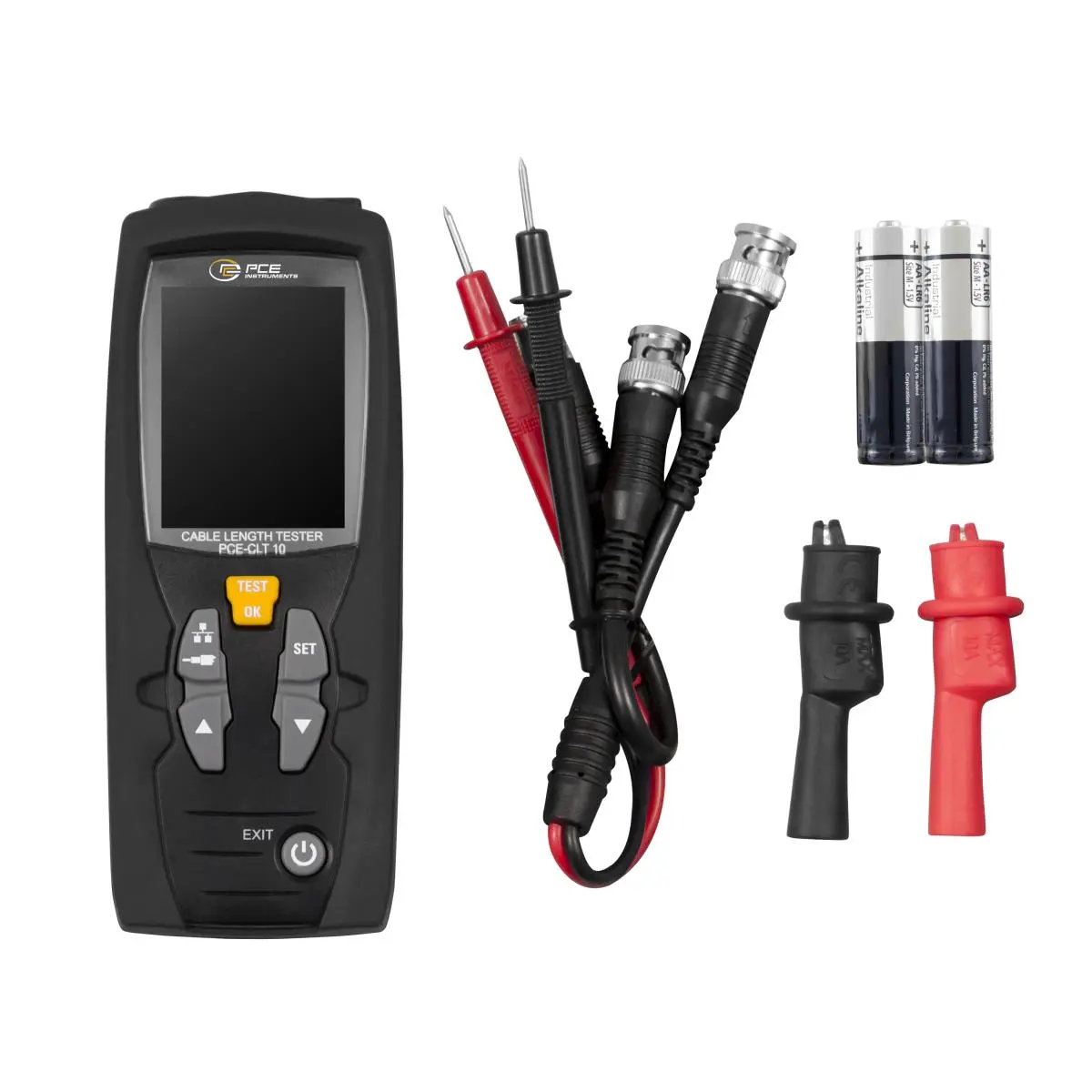

Delivery Scope

1 x Cable fault meter PCE-CLT 10
2 x Test leads
2 x Crocodile clip
2 x AA battery 1.5V
1 x Transport bag
1 x User manual
