Cable Fault Meter

- Sensitivity adjustment
- Headphone jack
- Different beeps
- Cable tracking in walls and cable channels
- For mobile use

- Voltage measurement AC / DC
- For detection of line interruptions
- Cable tracking in walls and cable duct
- Different beeps
- Resistance measurement

PCE-191 CB is a handheld, portable wire tracer, cable detector or cable fault meter used for locating wires and cables hidden behind walls and insulation.

- Power range: 220 to 240 V AC
- Frequency range: 50 / 60 Hz
- Acoustic alarm



PCE-180 CBN is a handheld, portable, battery-powered wire tracer or cable locator that consists of an amplifier probe and acoustic signal or tone generator. This locating device is designed to detect wires or cables hidden behind walls or insulation.

- Uses an acoustic signal to detect wires and cables, including
  network and coaxial cables
- Features a 3-position toggle switch (and 3-color LED) for line
  polarity, continuity and voltage testing
- Comes with red and black test leads with alligator clips



Measurement function:
- AC voltage
- DC voltage
- AC
- DC
- Resistance
- Diode measurement
- Continuity test

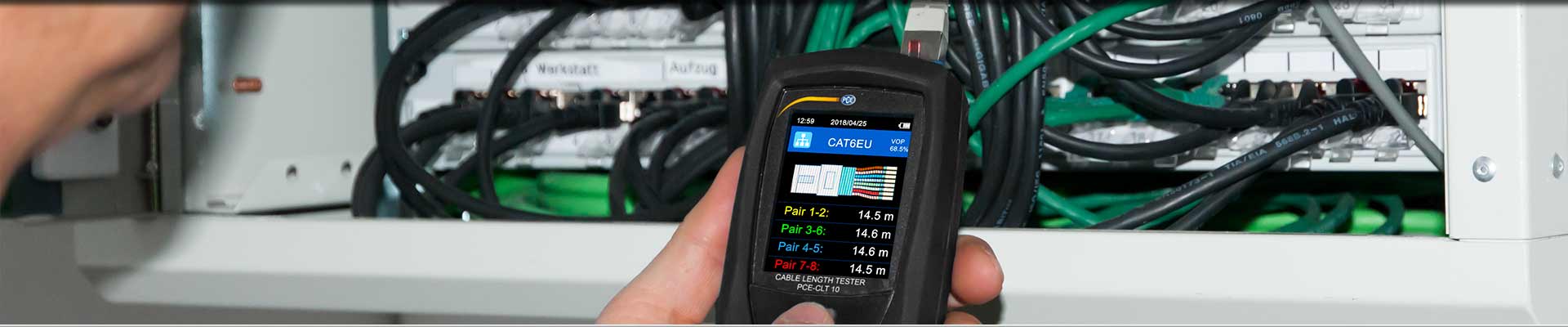

The cable fault meter PCE-CLT 10 is a multifunctional device which enables high accuracy and fast measurement results. If used appropriately, the cable fault meter can be used to measure cables that have already been installed and are still to be installed.

- Measuring range cable length: 5 ... 3000 m / 16.4 ... 9842.5 ft
- Measurement Units: m, ft
- Resolution: 0.1 m / 0.3 ft
- Measuring principle: time domain reflectometer
- 20 pre-set cable types

The PCE-CL 20 is a cable fault meter or locator used to detect live and voltage-free electrical wires. This cable fault meter also can be used to locate metallic and non-metallic gas or water pipes, identify short circuits, and follow lines inside walls or under flooring.

- Output signal: 125 kHz
- Compatible with one- or two-pole circuits
- Automatic, manual and UAC measuring modes
