PCE-VE 180 Automotive Tester
LED illumination / MicroSD memory / Detachable remote control display / Small 3.9 mm (.16 in) cable diameter / 1 m (3.28 ft) cable length

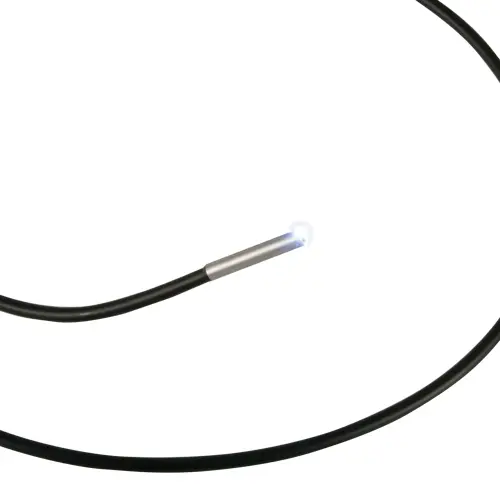

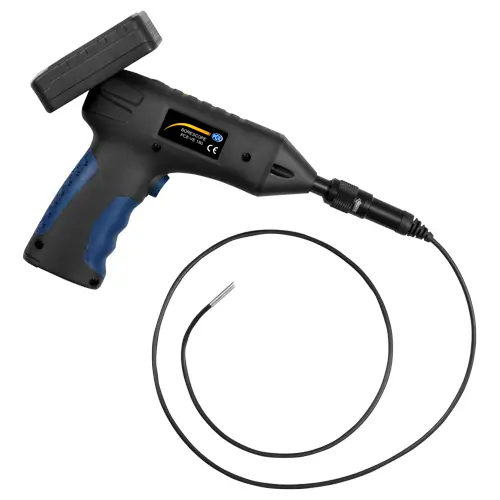

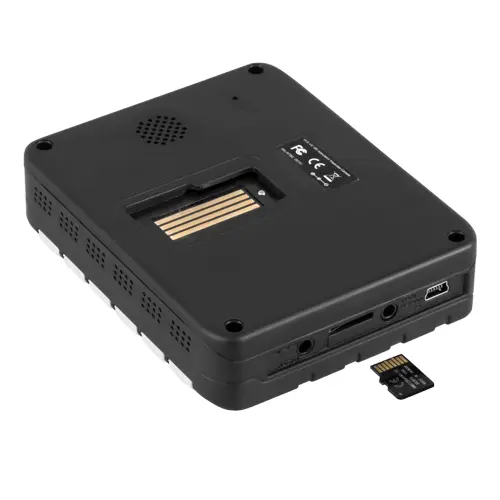

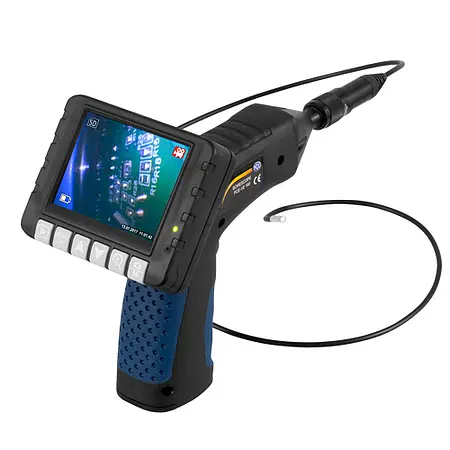

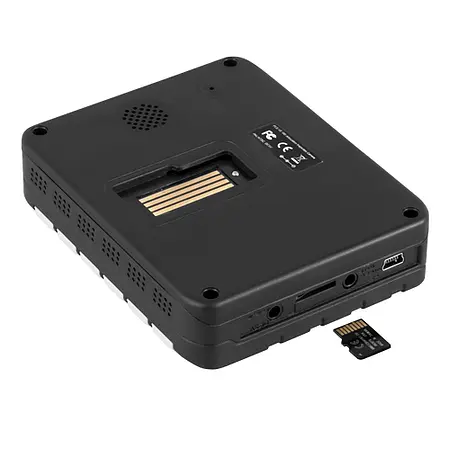

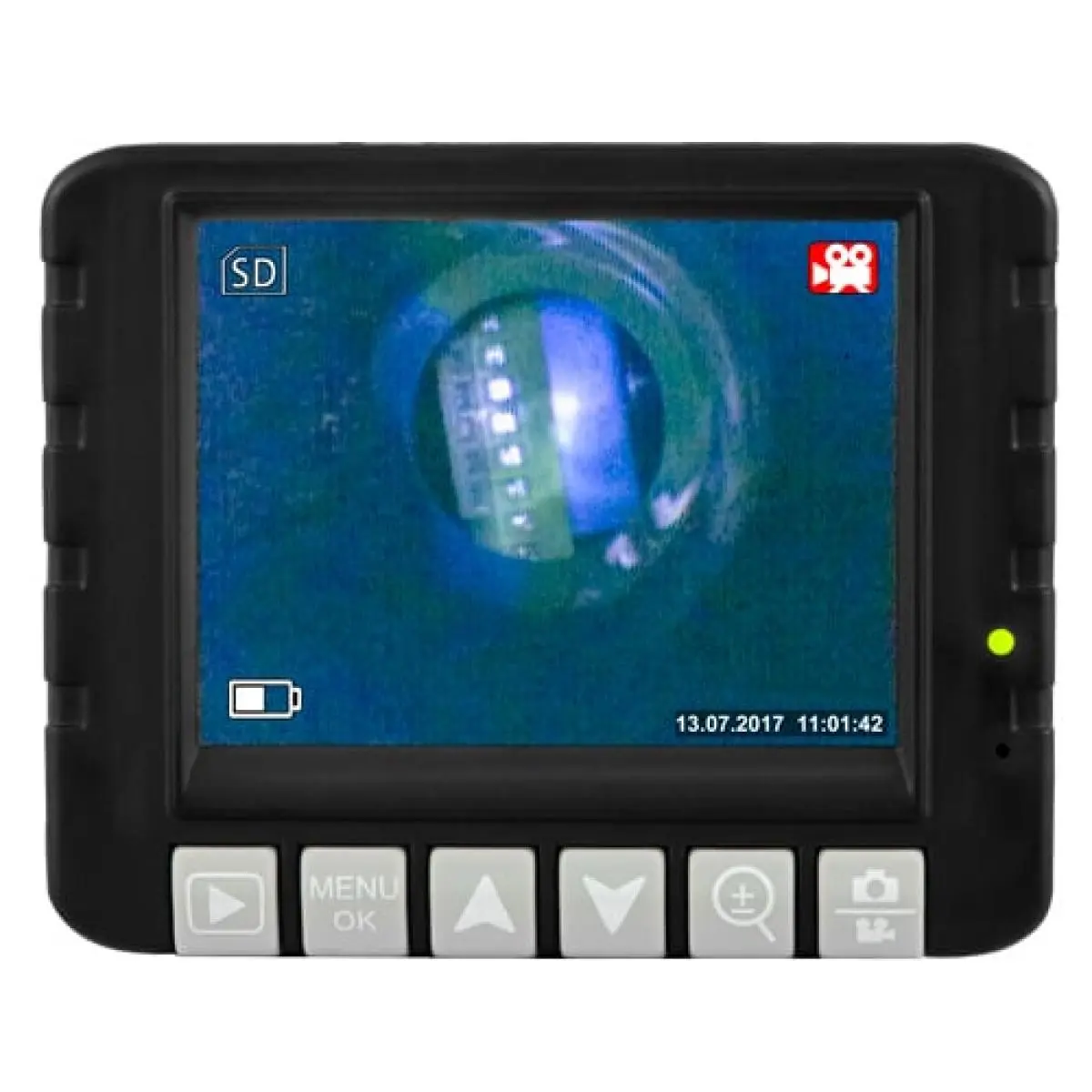

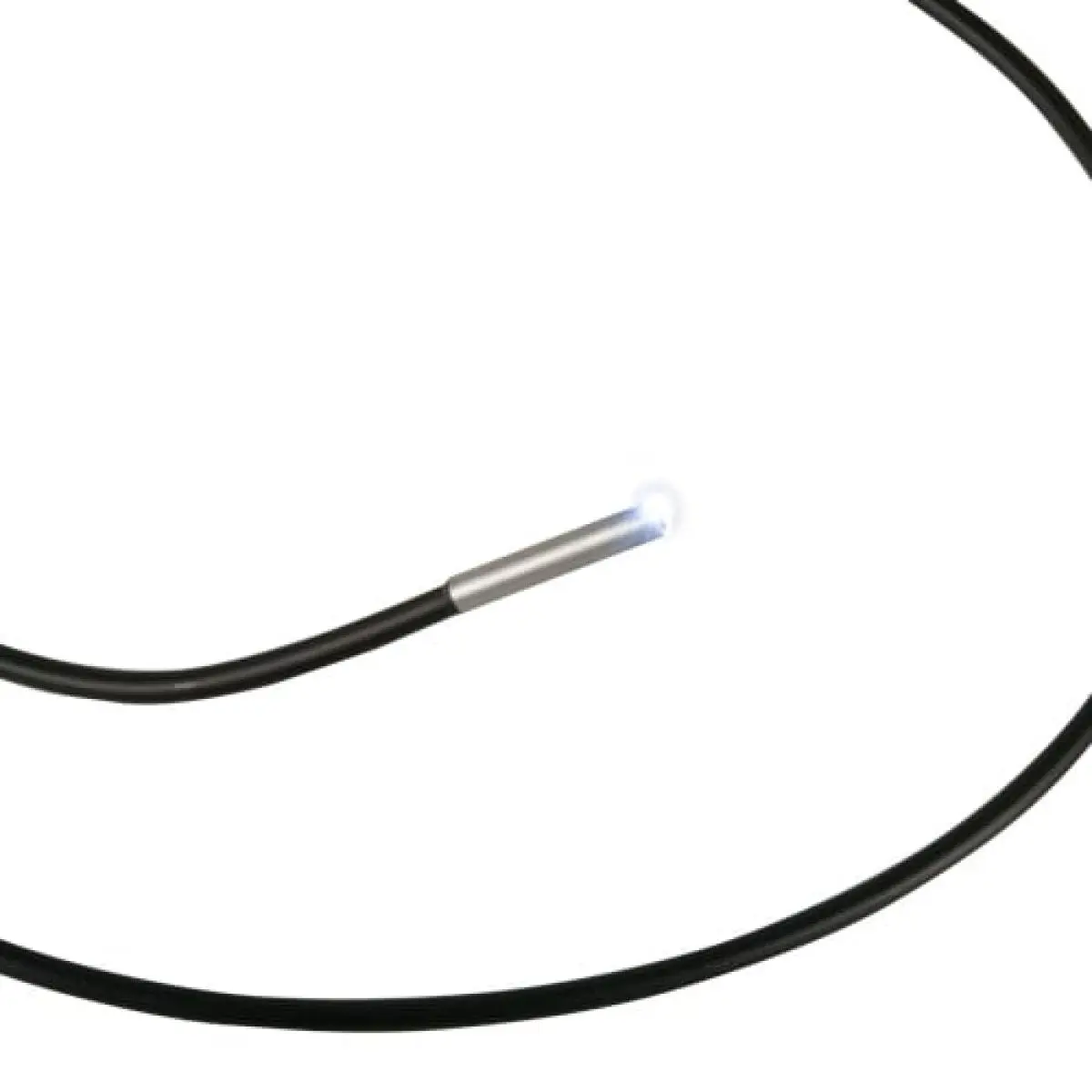

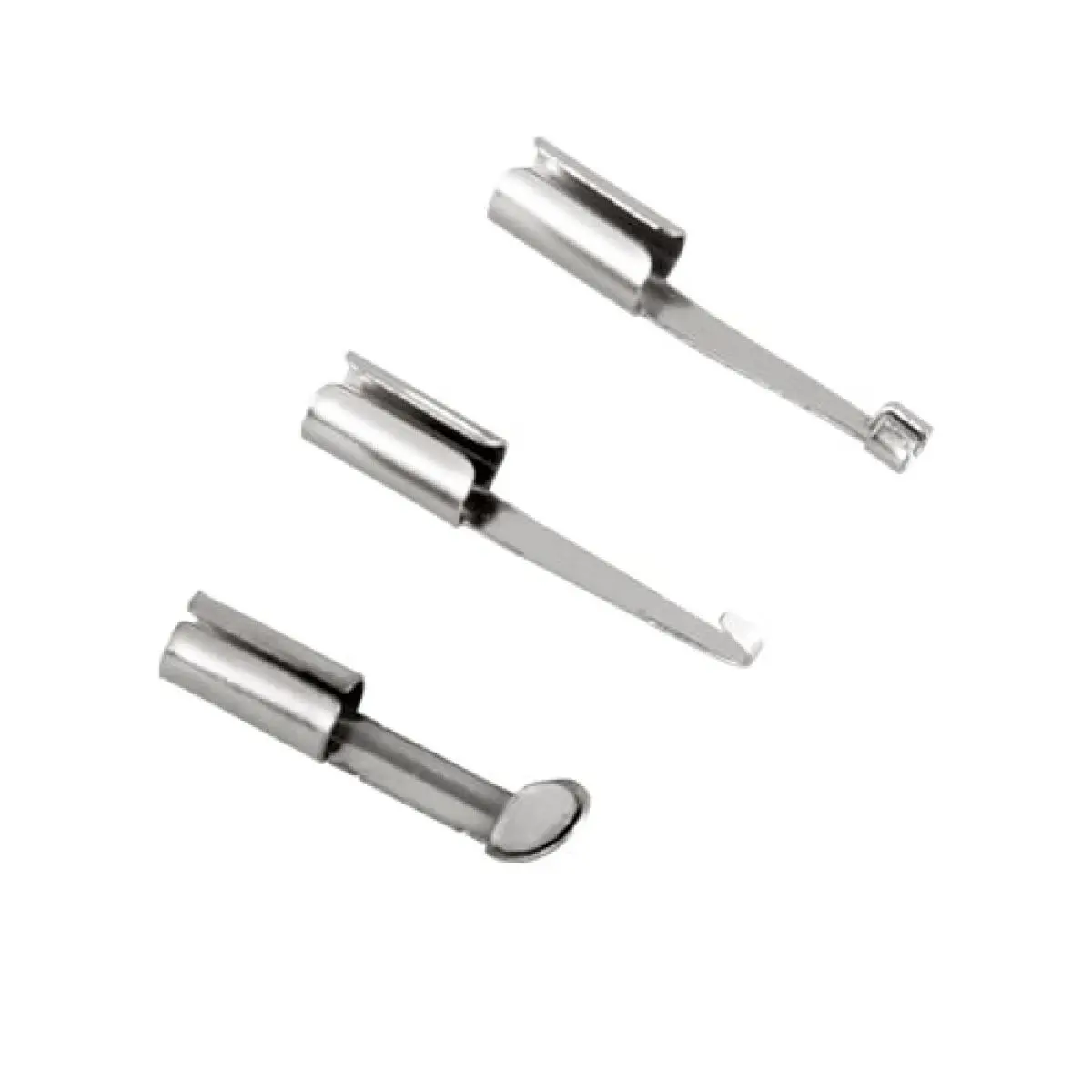

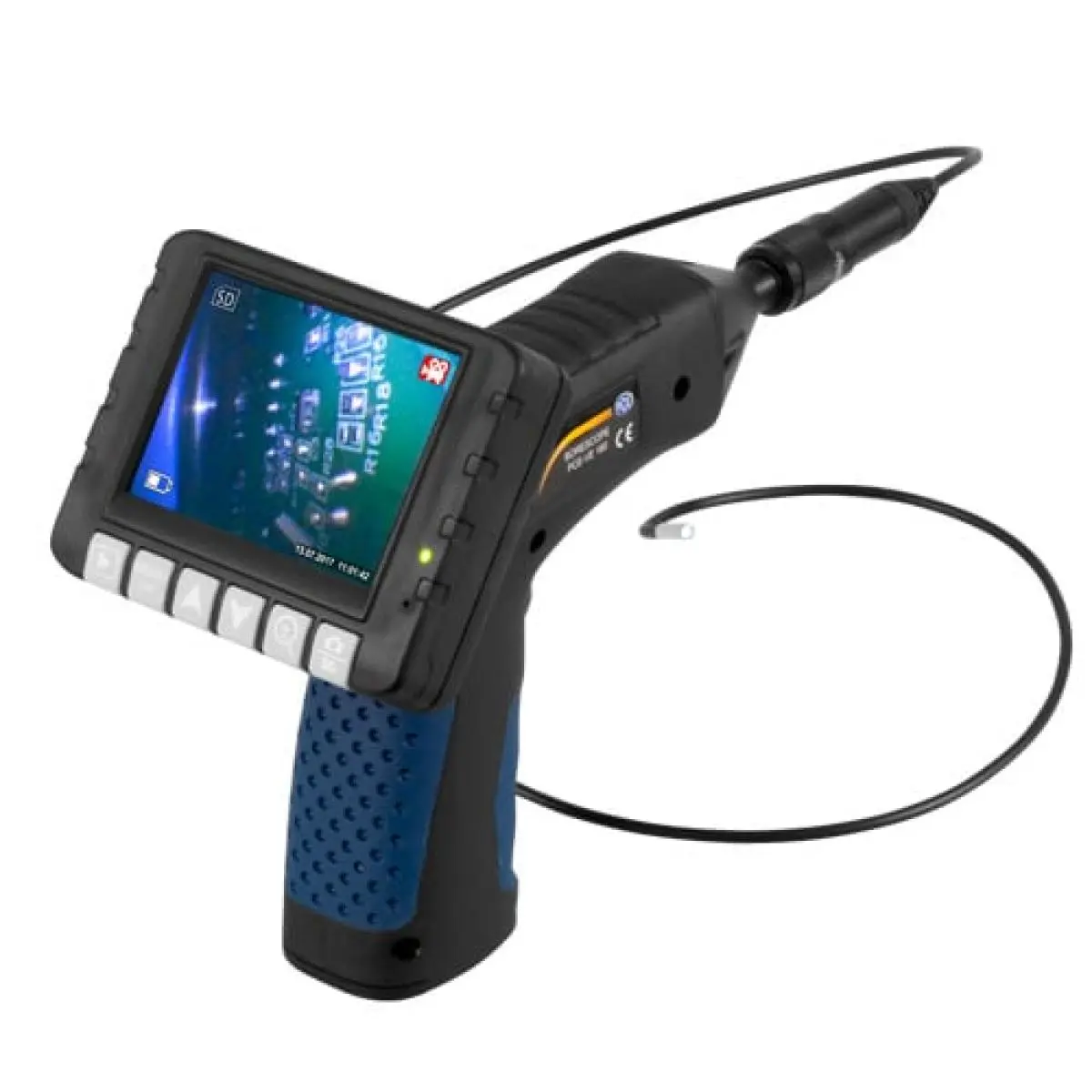

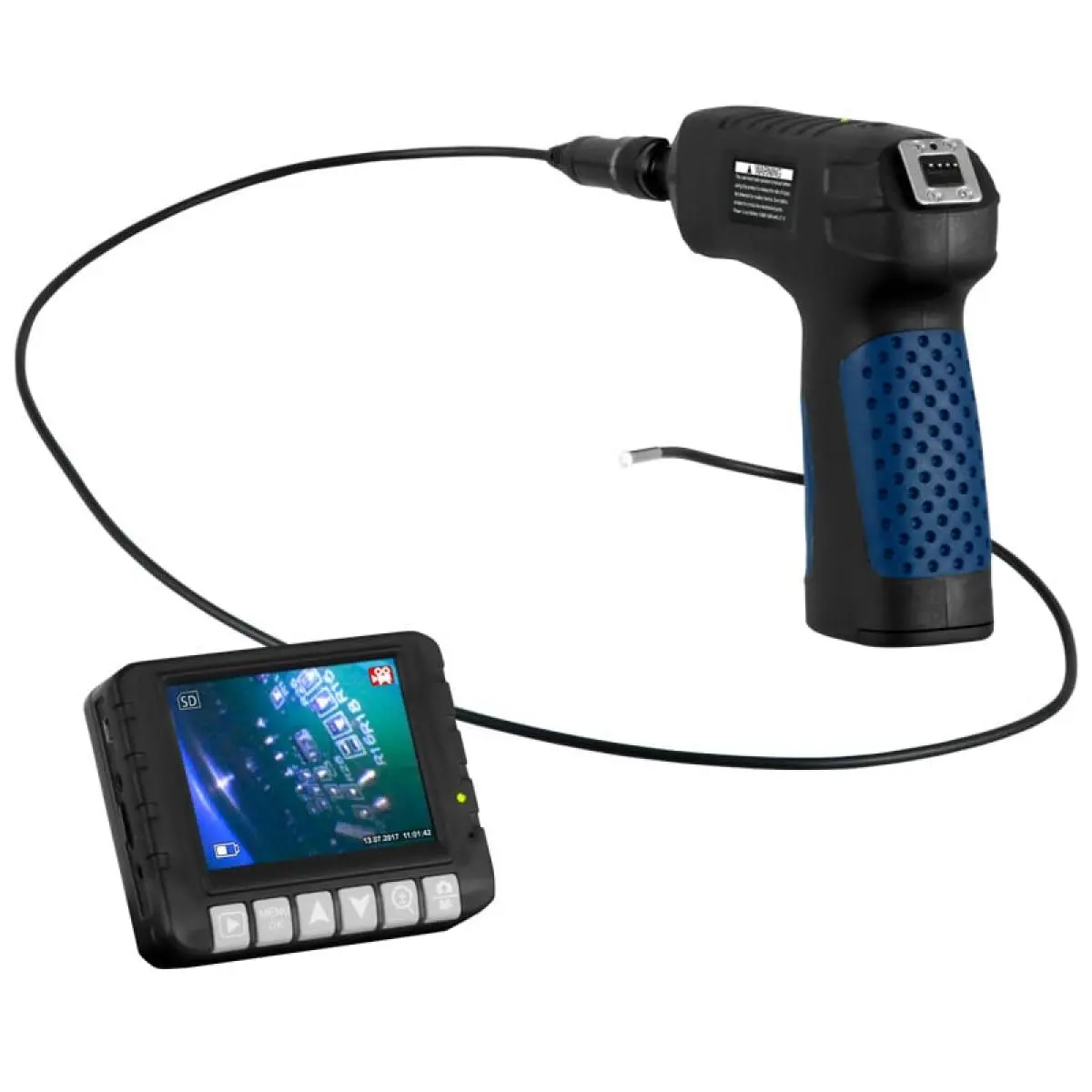

The automotive tester PCE-VE 180 is a rechargeable handheld pistol-grip videoscope or video borescope inspection camera with video recording and image capture functionality. Equipped with built-in LED lighting on the waterproof camera tip, the PCE-VE 180 borescope features a detachable remote control with integrated 3.5" LCD for easy viewing and navigation. The remote control communicates using radio transmission at 2.4 GHz. The borescope is powered by a rechargeable battery that allows for up to 3 hours of continuous use. Recorded images and videos are saved to a MicroSD memory card with a capacity of up to 32 GB. The semi-flexible gooseneck cable of the borescope has a small diameter of just 3.9 mm / .16 in for insertion into tiny cavities. An IP67 ingress protection rating protects the borescope against dust and water, allowing for use in adverse conditions. The borescope comes with three different attachments: a 90 ° angle mirror for viewing side walls and around corners, as well as a hook and a magnet for pulling parts out of cavities.
***Not for medical use***
| General technical data | |
| Resolution | 640 x 480 pixels (interpolated) |
| Cable length | 1 m |
| Display type | TFT colour display |
| Display size | 3,5 Inch |
| Display resolution | 640 x 480 pixels |
| Storage medium | Micro SD card |
| Storage capacity | 32 GB |
| Memory capacity (additional information) | 8 GB micro SD card included, SD card up to a maximum of 32 GB, memory formats: images: JPG / BMP / video format: AVI |
| Interface | Mini-USB, Micro SD card |
| Camera orientation | frontal 0° |
| Operating time | 3 h |
| Automatic power-off | 10 min |
| Camera head diameter | 3,9 mm |
| Camera probe movement | semi-rigid |
| Protection class camera probe | IP67 |
| Field of vision | 60 ° |
| Depth of field of vision | 30 ... 80 mm |
| Luminous intensity | 2 LEDs |
| Menu language | English, French, German, Italian, Spanish, Portuguese, Chinese, Japanese, Russian, Dutch, Danish, Polish, Czech, Hungarian, Swedish, Norwegian |
| Protection class (device) | IP20 |
| Power supply | AC 100 ... 240 V | Hz 50/60 |
| Connector type | Device-europlug |
| Capacity | 1600 mAh |
| Operating conditions | 0 ... 50 °C , 10 ... 90 % RH |
| Storage conditions | 0 ... 50 °C , 10 ... 90 % RH |
| Dimensions ( L x W x H ) | 88 x 100 x 25 mm |
| Other dimensions | Handheld: 140 L x 190 W x 40 H |
| Weight | 173 g |
| Other weights | Handheld with probe: 285 g |
