Order no.: PCE-CT 80-FN0D5

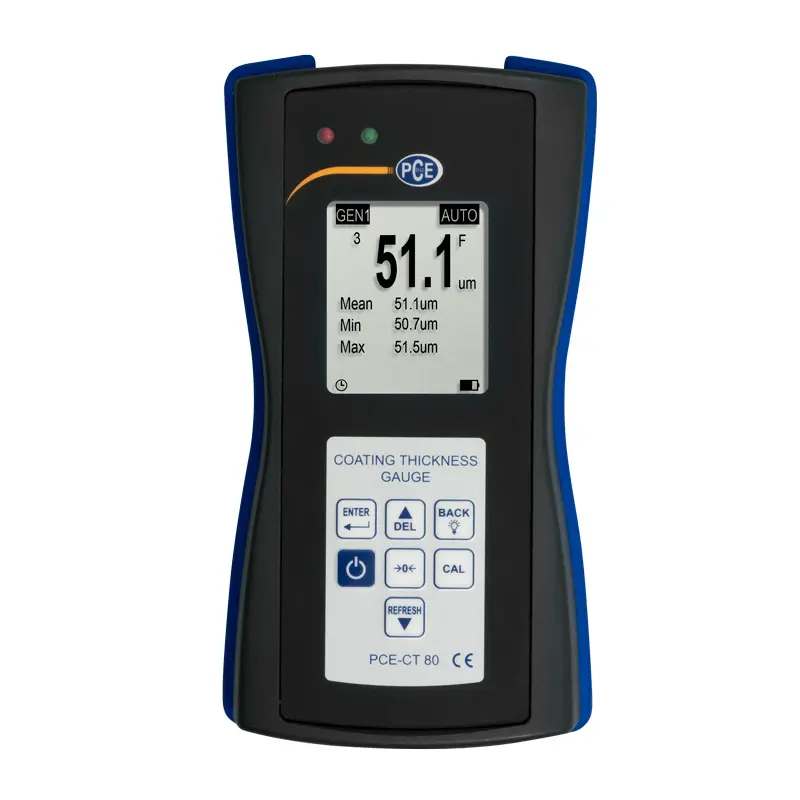

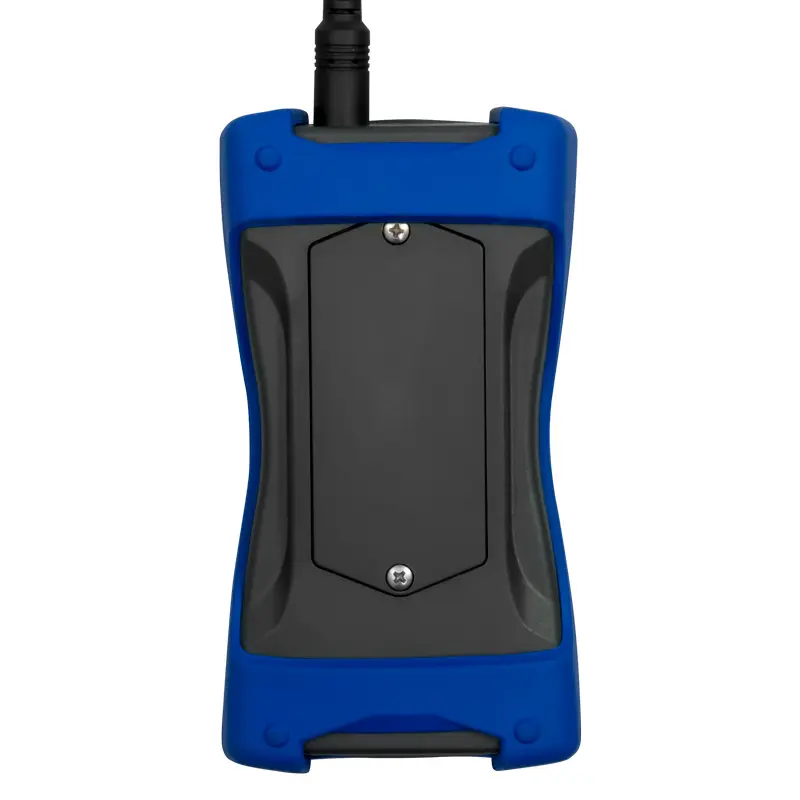

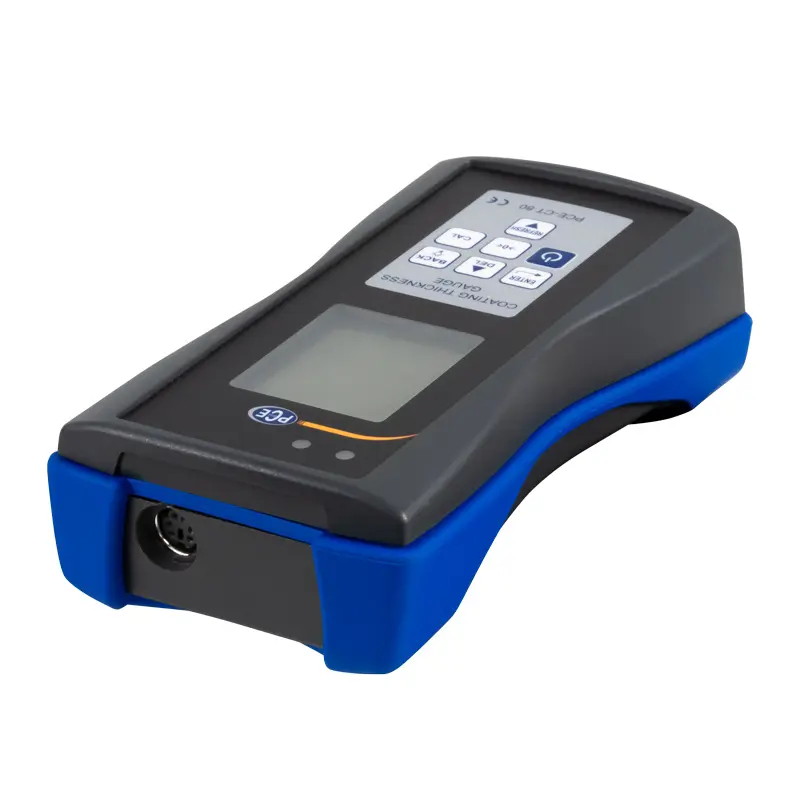

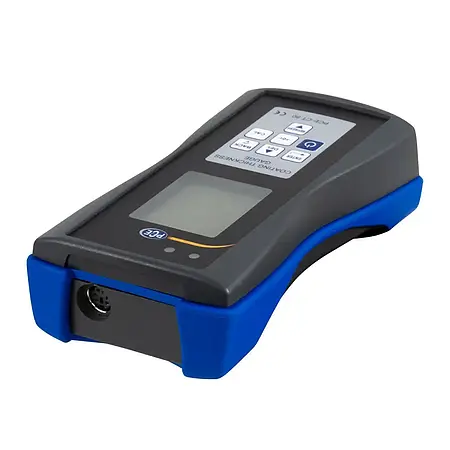

Automotive Tester PCE-CT 80-FN0D5

£ 616.00
£ 739.20
:
4250348732040
PCE-CT 80-FN0D5
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

Automotive tester for Fe and NFe / USB interface / Battery operation /
Integrated data storage

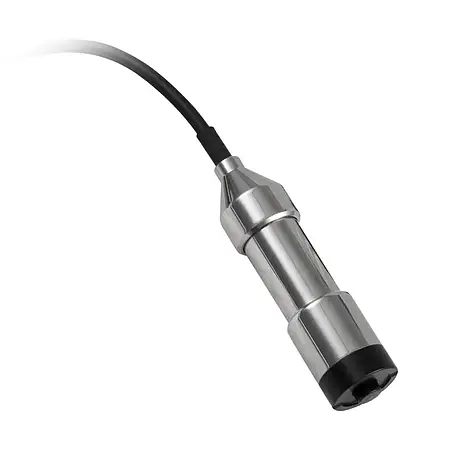

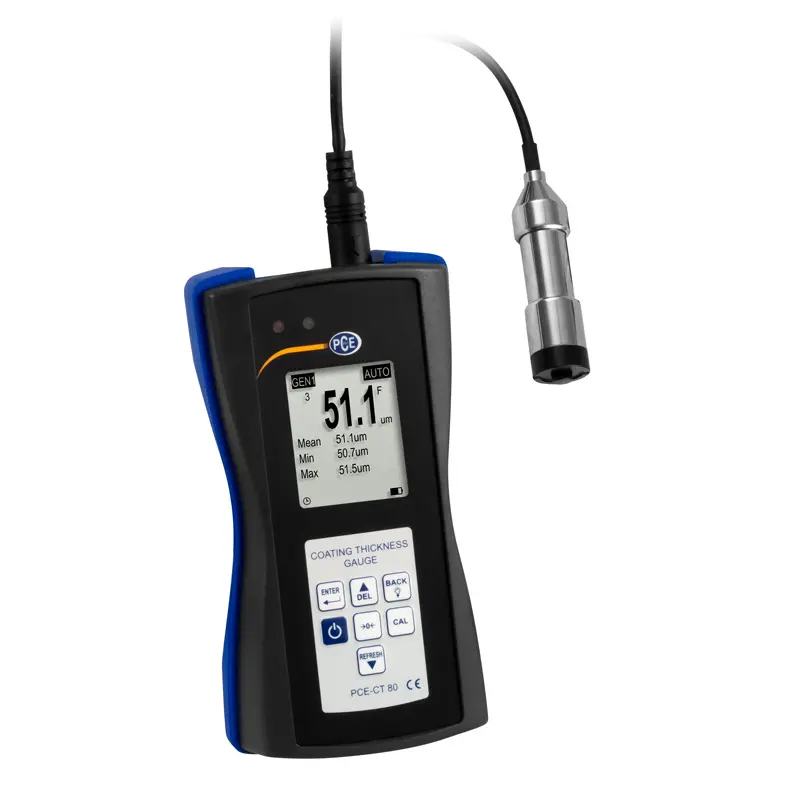

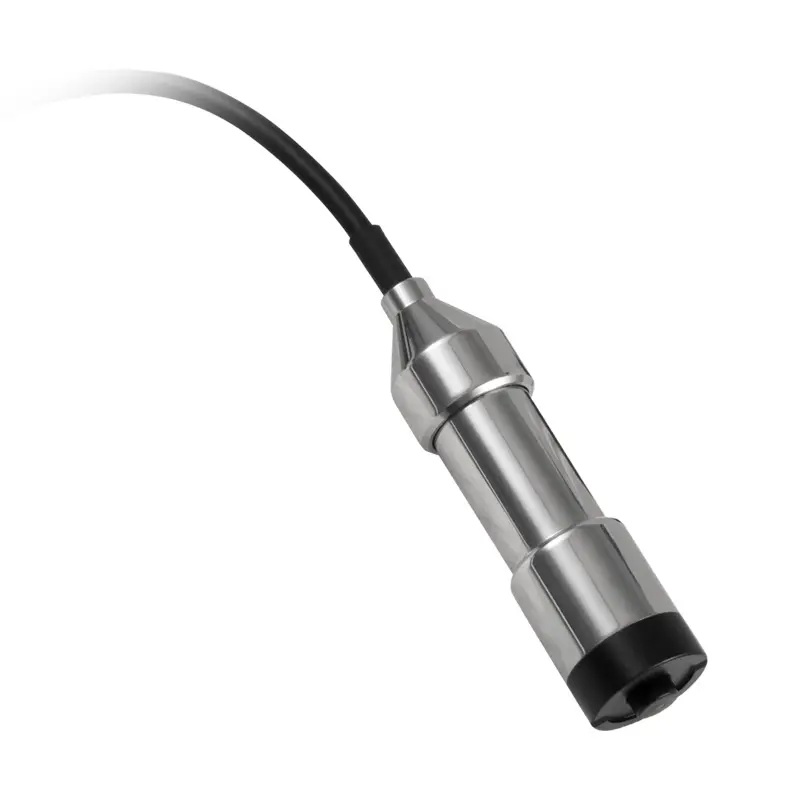

The automotive tester is a measuring device for the non-destructive measurement of coatings (varnishes, paints, plastics ...) on steel / iron and non-ferrous metals. Thanks to the externally connected sensor on the coating thickness gauge, measuring points that are difficult to access can also be easily reached. The menu navigation of the coating thickness gauge allows easy adjustment and setting to new parameters and makes this handy coating thickness gauge an indispensable measuring device for control measurements in production, workshop and quality assurance.

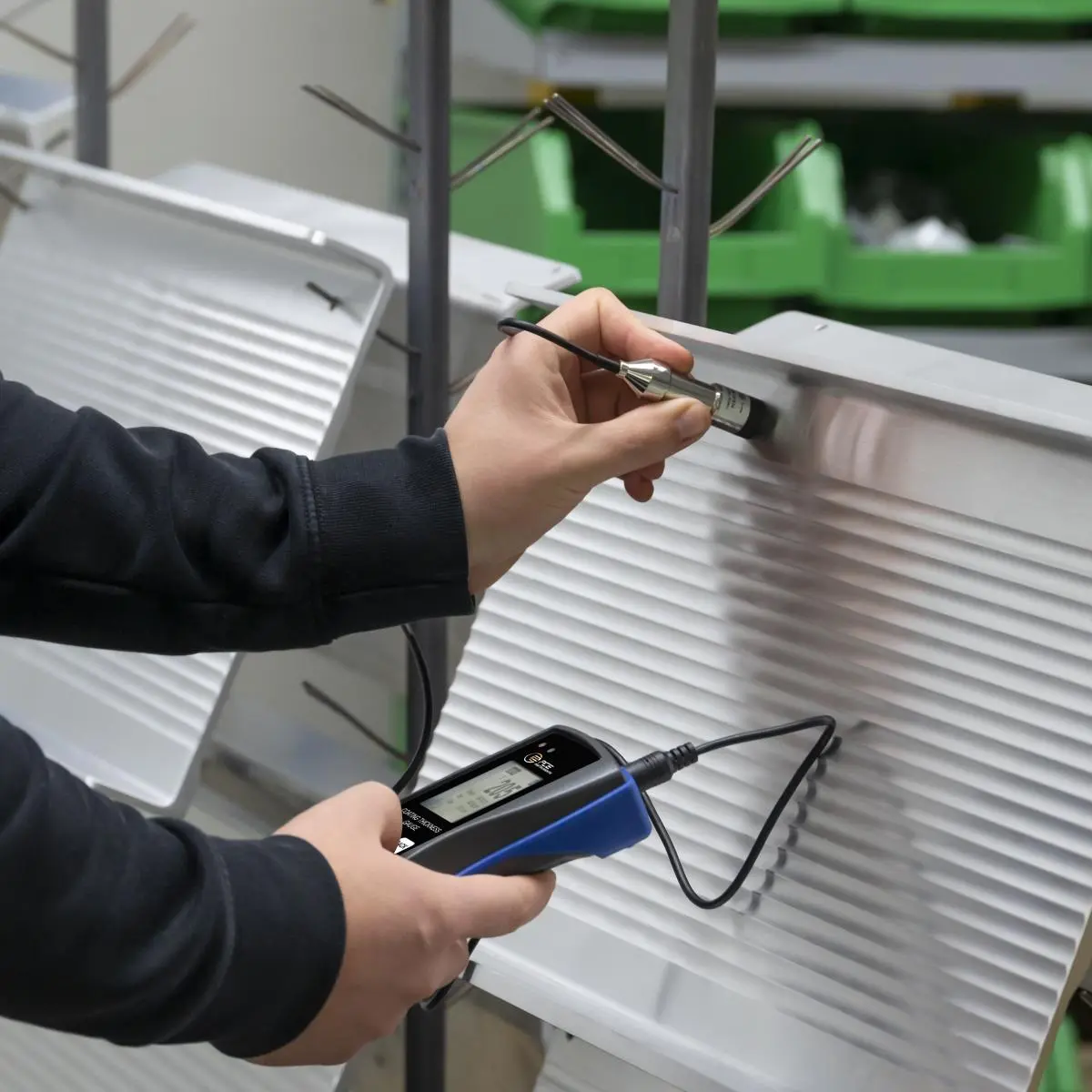

The automotive tester is also ideal for immediately determining and assessing accident damage to vehicles, for example, but the coating thickness gauge can also be used optimally in the industrial sector for incoming and outgoing inspection and material testing in production.

The ergonomically designed automotive tester with external sensor allows you to rapidly determine measurement results with high accuracy. The coating thickness gauge measures non-magnetic layers such as paint, plastic, chrome, copper, zinc, enamel, etc. on steel/iron, as well as non-conductive layers such as paint, plastic, enamel, paper, glass, rubber, etc. on copper, aluminum , brass and stainless steel, as well as anodized aluminum.

Highlights

- For measurements on iron/steel and non-ferrous metals
- Measurements cannot be influenced by vibrations
- Practical V-groove on the measuring heads
- Ergonomic design
- Warning message for measurements outside the maximum measuring range
- Wear-resistant, spring-mounted measuring head for precise measuring results

Specification

Measuring range Fe: 0 ... 500 µm
  NFe: 0 ... 500 µm
Accuracy ±(1 % of reading + 1 µm)
Resolution 0.1 µm (<100 µm)
  1 µm (>100 µm)
Measurable materials For measurements on iron/steel and non-ferrous metals
Min. radius of curvature convex 5 mm / 0.19"
Min. radius of curvature concave  25 mm / 0.98"
Min. measuring surface Ø17 mm / 0.67"
Min. substrate thickness 0.2 mm / 0.008" (on magnetic materials)
  0.05 mm / 0.002" (on non-magnetic materials)
Probe mode Autom. mode with material detection (Fe + NFe)
  Magnetic mode (Fe)
  Eddy current mode (NFe)


Calibration Multipoint calibration (1 ... 4 points for each group)
  Zero-point calibration
Units µm, mm, mils

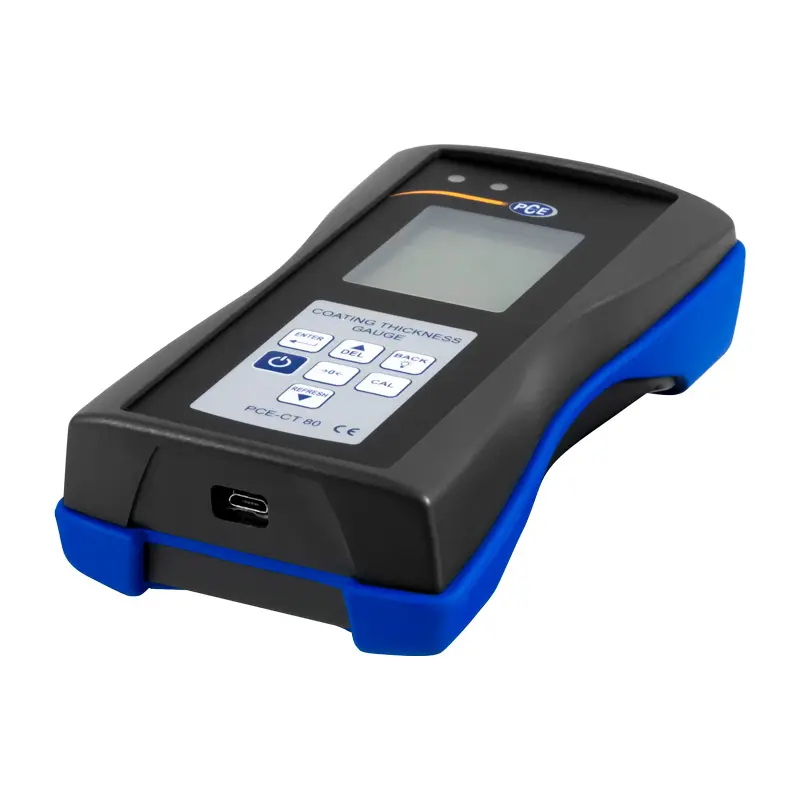

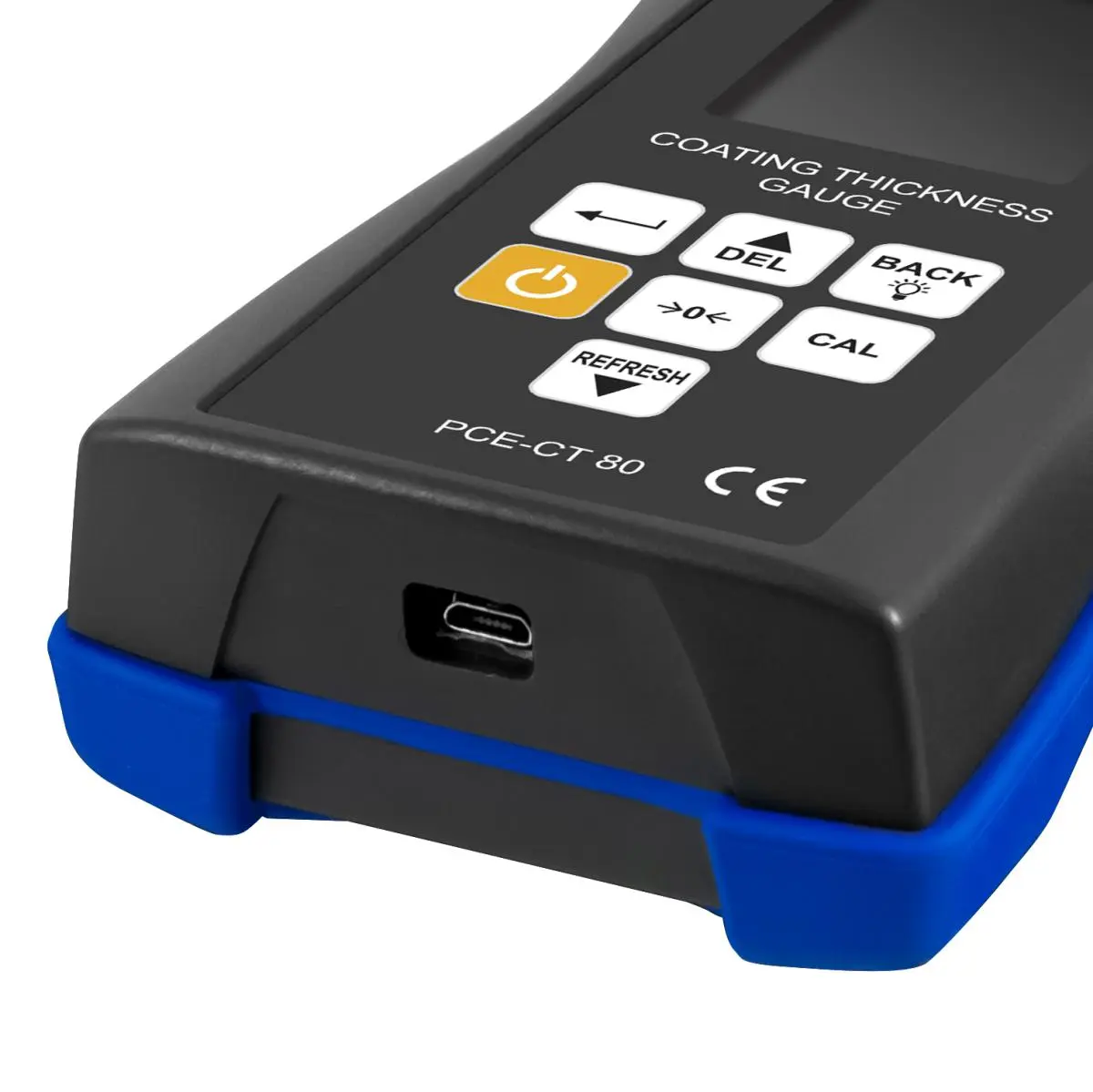

Data transfer USB 2.0
Memory A volatile measuring group (DIR mode)
  Four measuring groups with autom. storage and max. 2000 readings (GEN mode)

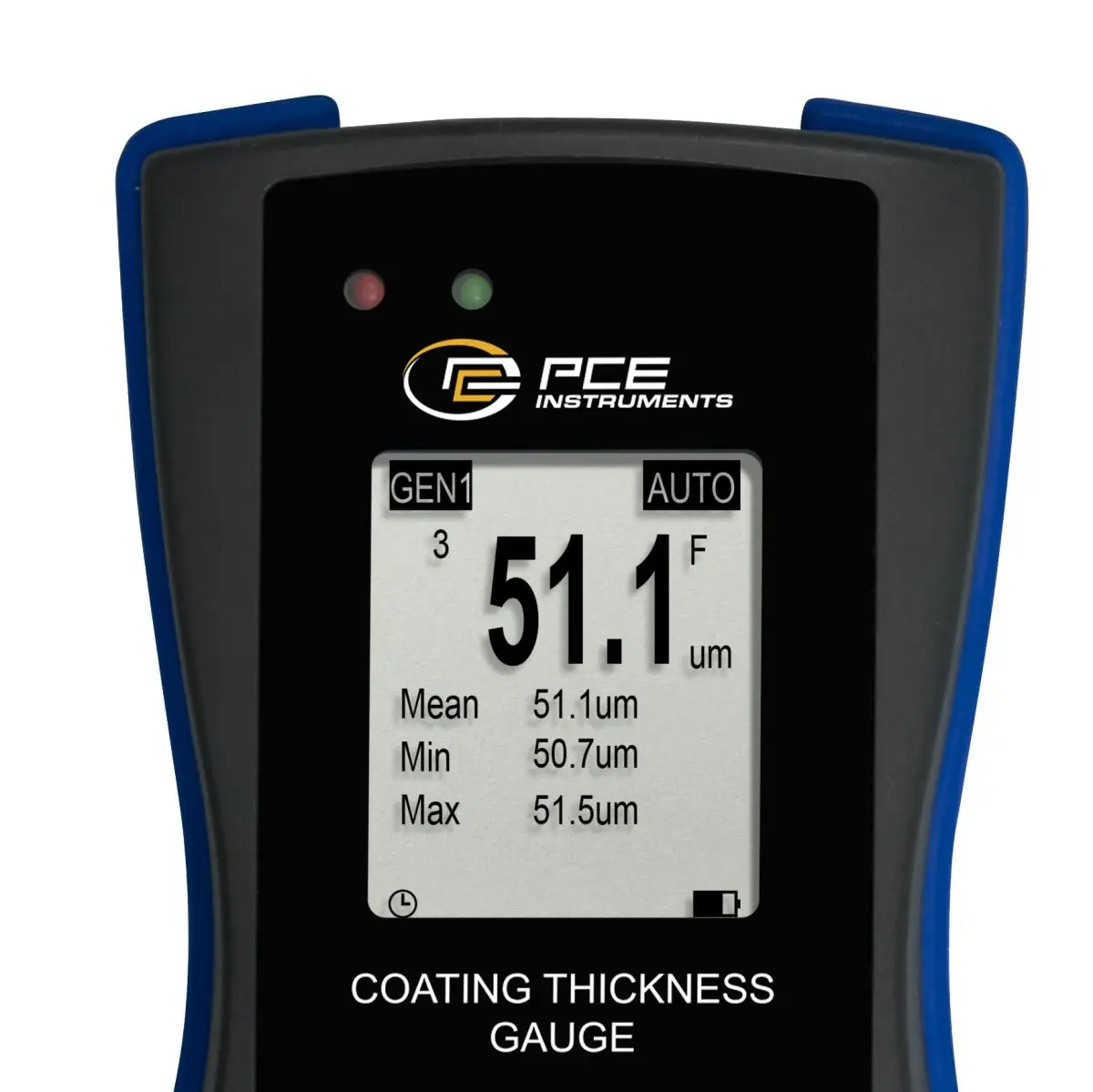

Statistical functions Number of measured values, mean, minimum, maximum, standard deviation
Alarm Display when the adjustable upper and lower alarm limits are exceeded
Operating time Autom. shutdown mode (3 min.)
Power supply 3 x 1.5 V AAA batteries
Display 128 x 128 px LCD display
Indicators Battery status
  Fault detection
Operating conditions 0 ... +50 °C / 32 ... 122 °F
  20 ... 90 % RH non-condensing
Storage conditions -10 ... +60 °C / 14 ... 140 °F
  20 ... 90 % RH non-condensing
Dimensions 143 x 71 x 37 mm / 5.6 x 2.8 x 1.5" (L x W x H)
Weight With sensor and batteries: ca. 271 g / 9.5 oz

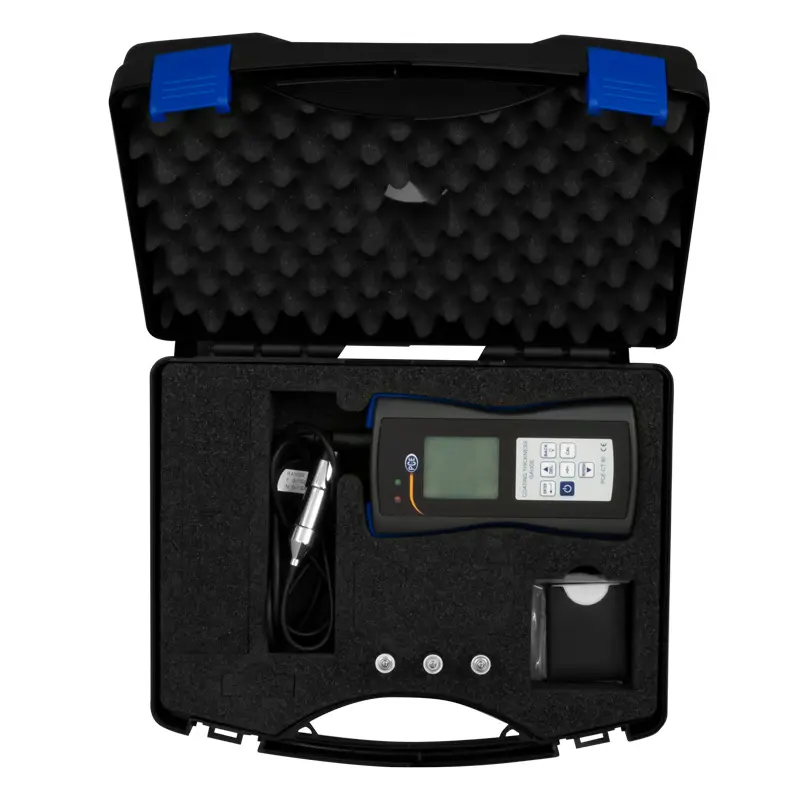

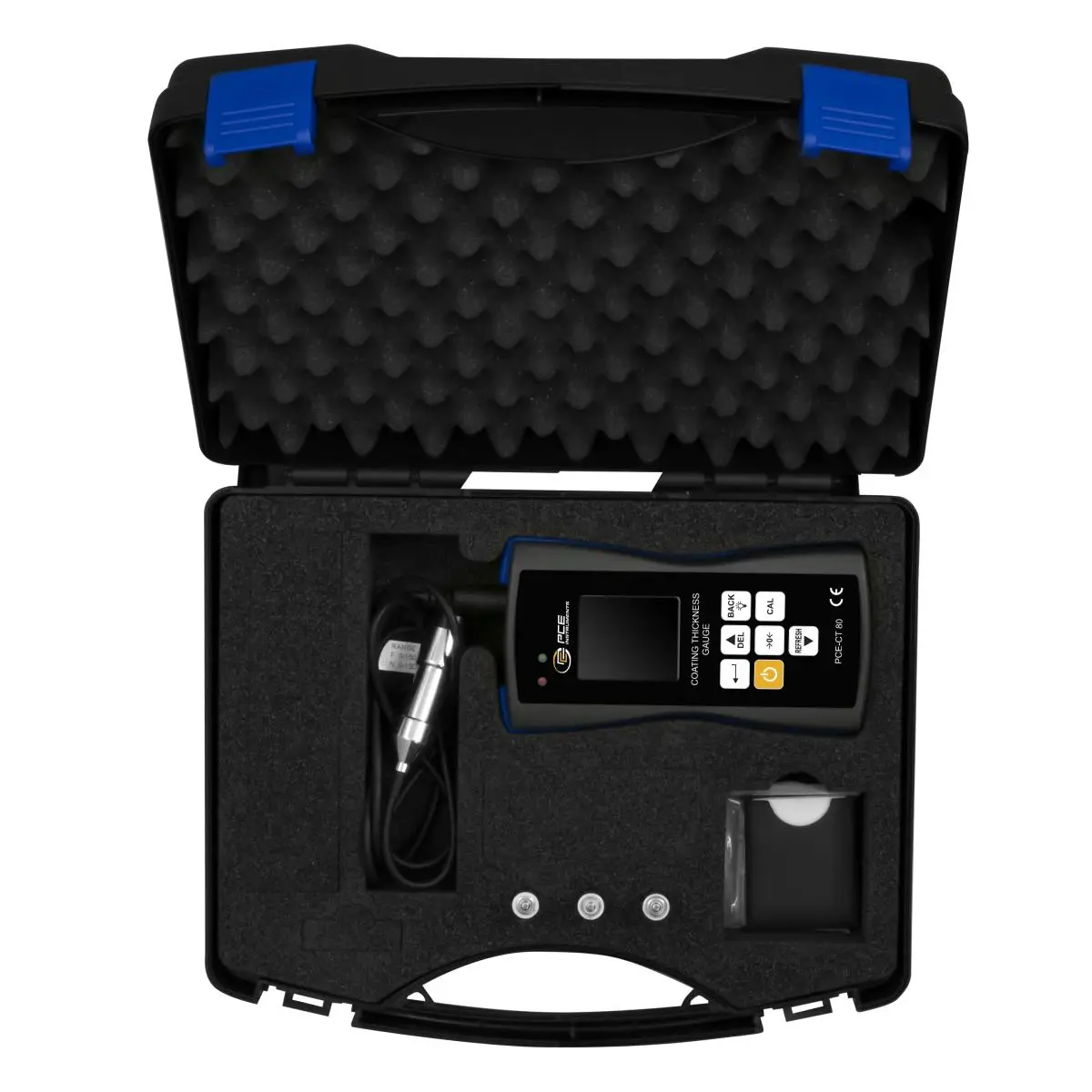

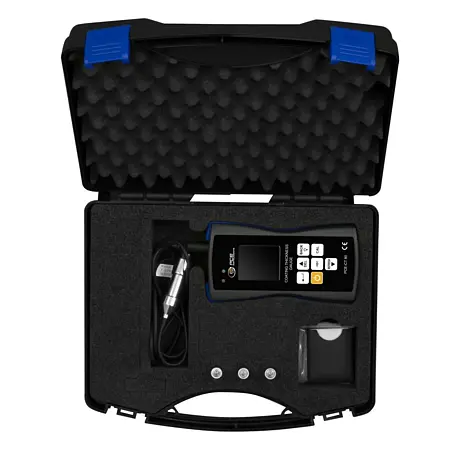

Delivery Scope

1 x Automotive tester PCE-CT 80-FN0D5
3 x AAA batteries
1 x Instruction manual
1 x Carrying case
1 x Set of standard foils
1 x Calibration plates (Fe and NFe)

Downloads

Accessories

Accessories

Thickness Gauge
Software for PCE-CT 80
£ 80.00

Price excl. VAT &. delivery
2 year Warranty

Software including Micro-USB data cable and USB stick for PCE-CT 80.

  • Import of measured data from the measuring device
  • Export of the measurements in Excel
  • Statistical evaluation of the measured values
  • Software on USB stick

Test Instruments manufacturer
Re-Calibration for Coating Thickness Meter
£ 154.00

Price excl. VAT &. delivery
2 year Warranty

ISO re-calibration incl. certificate for coating thickness meter. This is often required to comply with DIN ISO 9000.

If your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.

  • *US calibration certificate is ISO 17025** Calibration certificates are issued specifically for the customer and are excluded from the right of return

Test Instruments manufacturer
Coating Thickness Gauge
Calibration foils set PCE-CT Shims 50-1000µm
£ 26.00

Price excl. VAT &. delivery
2 year Warranty

Calibration foils for coating thickness gauge consisting of:

Thicknesses:
50µm
100µm
250µm
500µm
1000µm
Test Instruments manufacturer
Coating Thickness Gauge
Calibration foils set PCE-CT Shims 100-4000µm
£ 28.00

Price excl. VAT &. delivery
2 year Warranty

Calibration foils for coating thickness gauge consisting of:

Thicknesses:
100µm
500µm
1000µm
2000µm
4000µm
Test Instruments manufacturer
Coating Thickness Gauge
Calibration foils set PCE-CT Shims Fe-NFe Set 50-1000µm
£ 35.00

Price excl. VAT &. delivery
2 year Warranty

Calibration foils for coating thickness gauge consisting of:

Thicknesses:
50µm
100µm
250µm
500µm
1000µm
Test Instruments manufacturer
Thickness Gauge

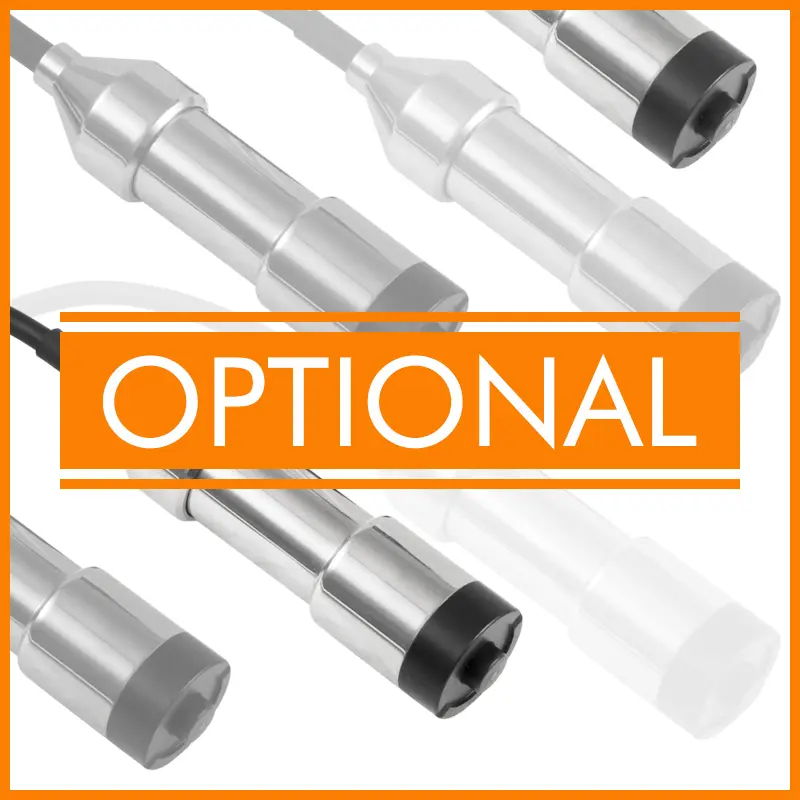

FN0.5 Sensor PCE-CT 80-0D5-PROBE
