PCE-VE 370HR Automotive Tester

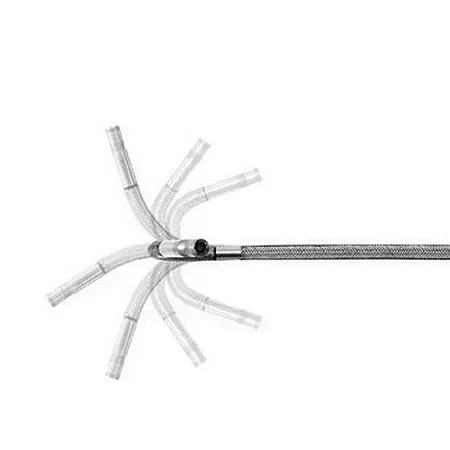

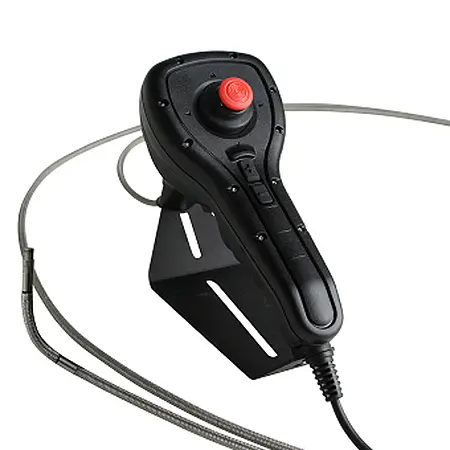

Four-way articulating inspection camera, borescope or industrial endoscope with IP67 ingress protection rating, boost functionality and 6 LED lights (4 front, 2 side) for optimal illumination

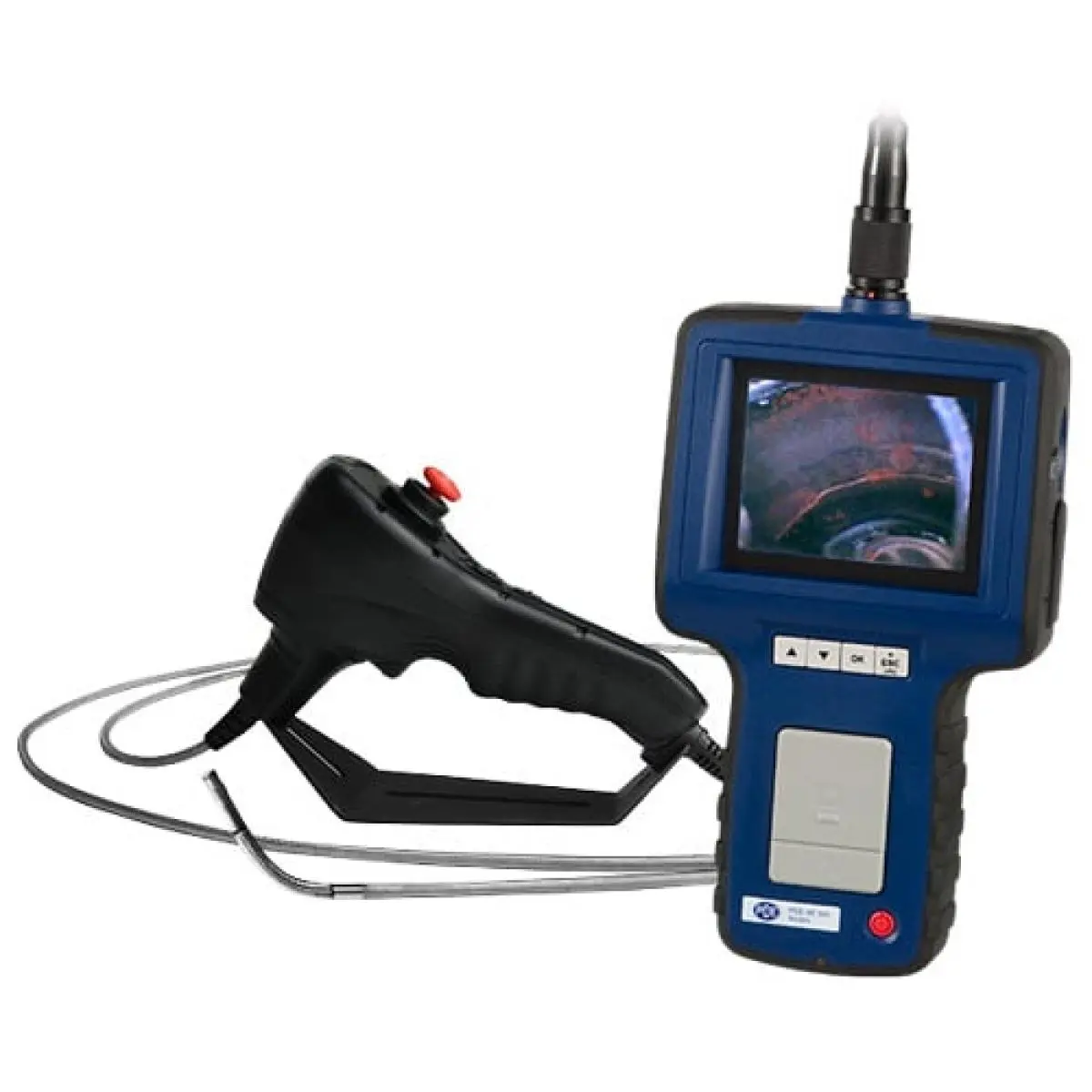

The automotive tester PCE-VE 370HR is a four-way articulating videoscope, industrial endoscope, inspection camera or borescope for the non-destructive inspection (NDI) of machines, equipment and more. This industrial borescope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 6 LED lights (4 front, 2 side) for optimal illumination. In addition, digital image magnification or zoom of up to 2 times is available, plus boost functionality for improved image quality in the dark.
The automotive tester stores the recorded images and videos directly to an SD card memory (included), allowing easy transfer to a PC. The 1 m / 3.28 ft cable length and 6.0 mm / 0.24 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.
***Not for medical use***
| General technical data | |
| Resolution | Image format: JPEG (640 x 480) Video format: ASF (320 x 240) |
| Cable length | 1 m |
| Display type | TFT colour display |
| Display size | 3,5 Inch |
| Display refresh rate | 30 x per second |
| Storage medium | SD card |
| Storage capacity | 32 GB |

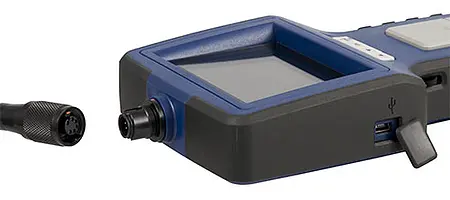

| Interface | Mini-USB, AV out, AV in, SD card |
| Sensor | CMOS |
| Camera resolution | 320 x 240 pixels |
| Camera orientation | pivoted |
| Operating time | 4 h |
| Camera head length | 23.5 mm |
| Camera head diameter | 6 mm |
| Camera probe movement | 4-way, 110° |
| Field of vision | 87,1 ° |
| Depth of field of vision | 10 ... 60 mm |
| Luminous intensity | 3 LEDs at the front, 2 LEDs at the side |
| Menu language | English, German, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese, Korean, Czech, Hungarian, Romanian, Swedish, Greek, Norwegian |
| Protection class (device) | IP52 |
| Power supply | AC 100 ... 240 V AC | 50/60 Hz |
| Connector type | Device-europlug |
| Capacity | 2300 mAh |
| Operating conditions | 0 ... 45 °C , 0 ... 95 % RH |
| Storage conditions | 0 ... 45 °C , 0 ... 95 % RH |
| Dimensions ( L x W x H ) | 207 x 118 x 37 mm |
| Weight | 390 g |
