Order no.: PCE-VE 350HR

Automotive Tester / Borescope PCE-VE 350HR

£ 1,450.00
£ 1,740.00
price ex. (VAT / delivery)
6 mm
1 m
320 x 240 / 640 x 480 pixels
Image, Video
Yes (SD card)
Yes (Mini USB, AV out)
Delivery time: 1-2 working days

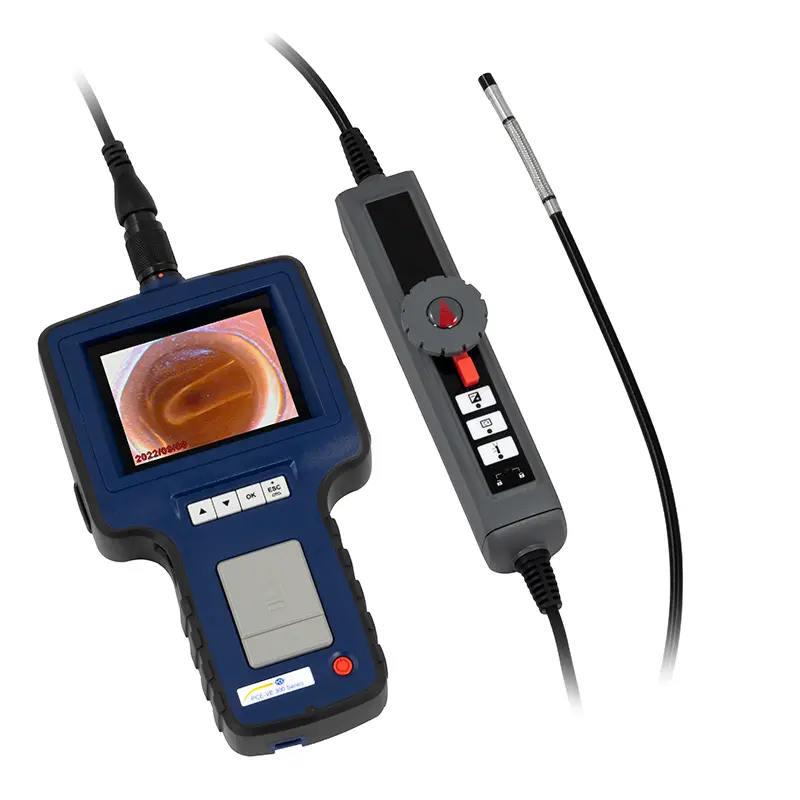

PCE-VE 350HR Automotive Tester
Two-way articulating industrial endoscope, inspection camera or borescope with IP67 ingress protection rating, boost functionality and 6 LED lights (4 front, 2 side) for optimal illumination

The automotive tester is a two-way articulating videoscope, industrial endoscope, inspection camera or borescope for the non-destructive inspection (NDI) of machines, equipment and more. This videoscope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 6 LED lights (4 front, 2 side) for optimal illumination. In addition, digital image magnification or zoom of up to 2 times is available, plus boost functionality for improved image quality in the dark.

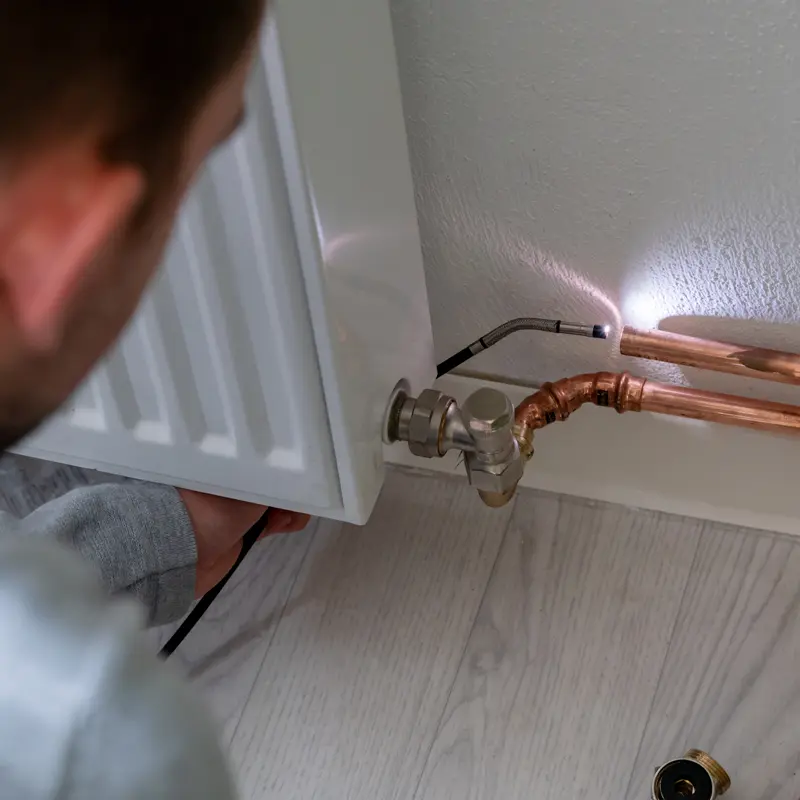

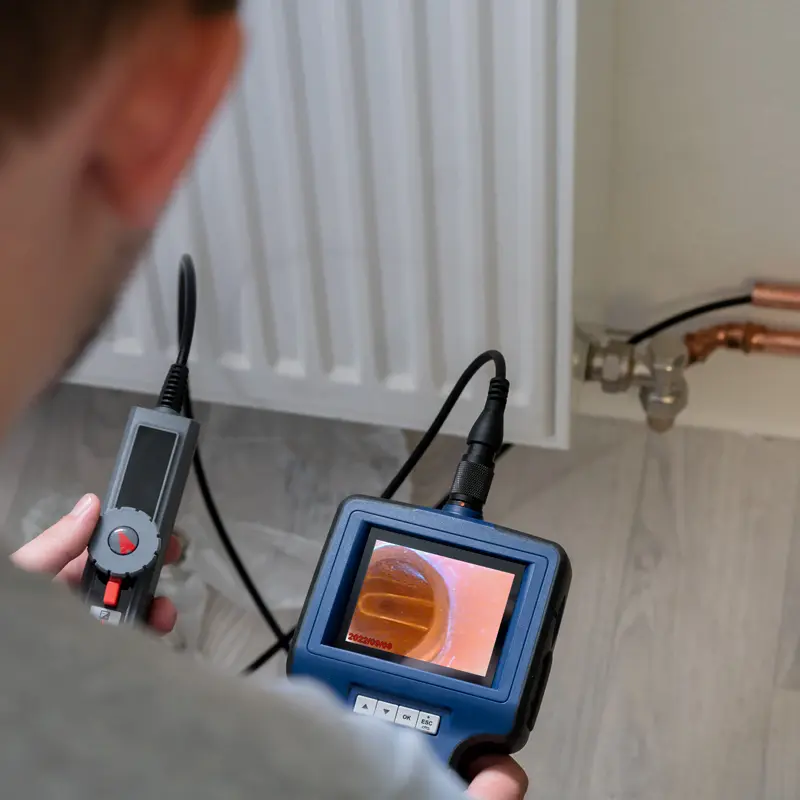

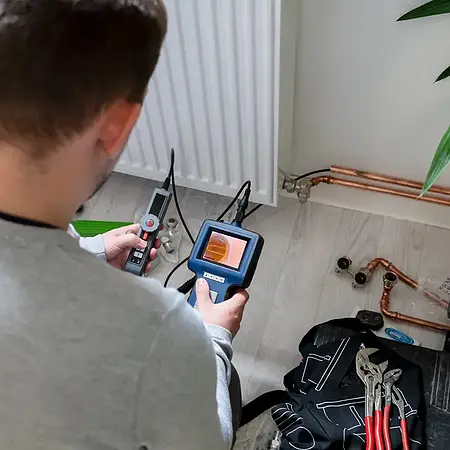

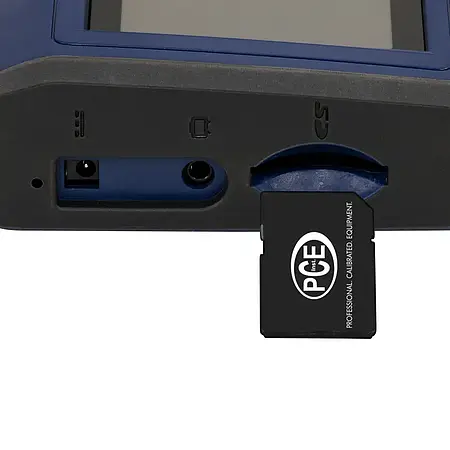

The automotive tester stores the recorded images and videos directly to an SD card memory (included), allowing easy transfer to a PC. The 1 m / 3.28' cable length and 6.0 mm / 0.24" diameter allow the videoscope unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this videoscope useful in a variety of applications.

***Not for medical use***


- With boost function: better images in dark surroundings
- Image rotation possible

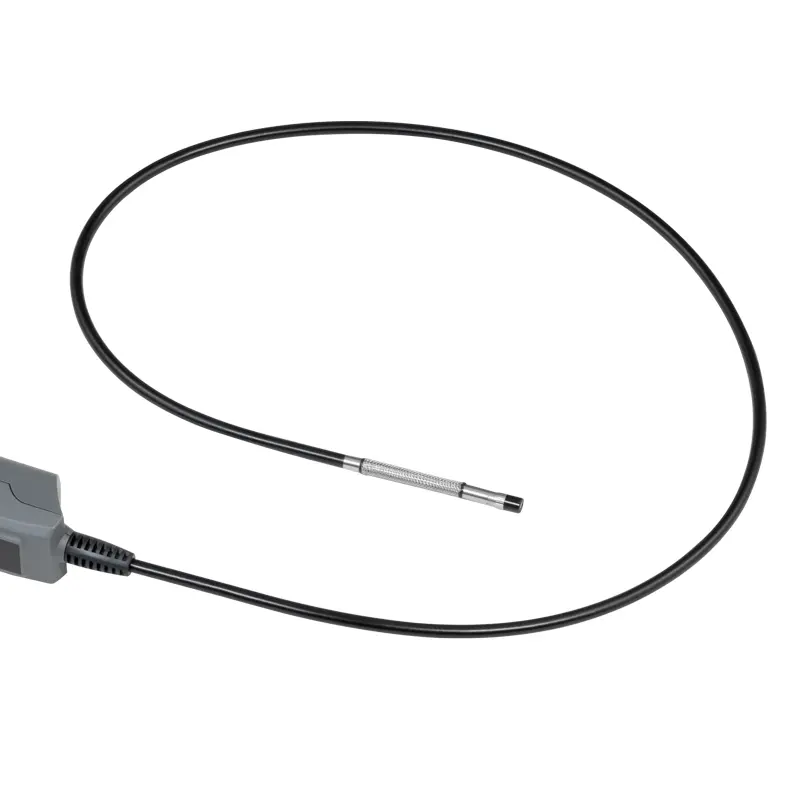

- Flexible 1 m / 3ft 3" cable
- Diameter camera head 6 mm / 0.24"
- Image capture / Photos und Videos
- LED lighting (2 additional side LEDs for better lighting)

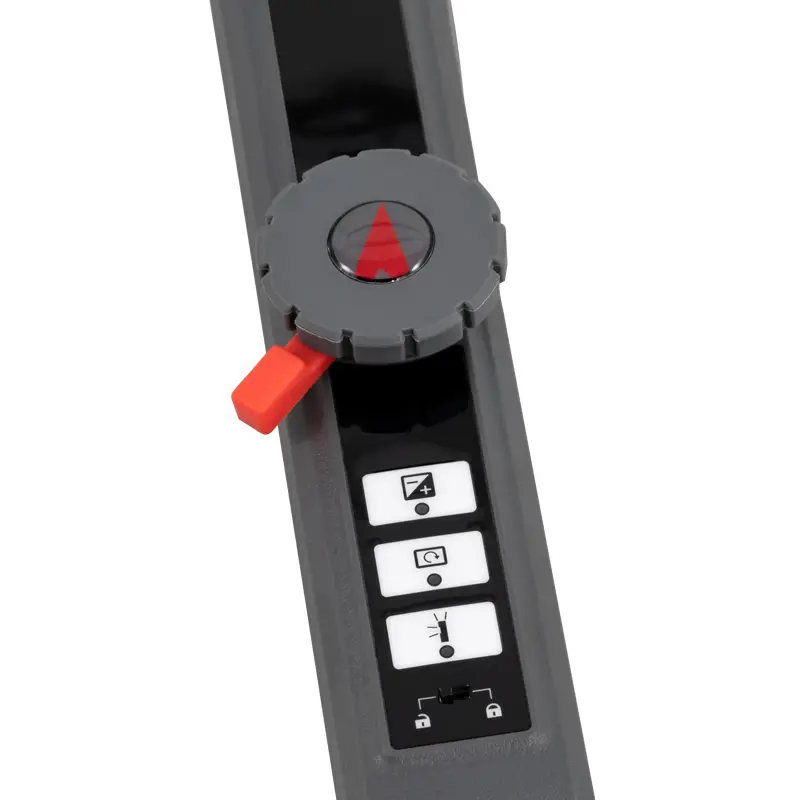

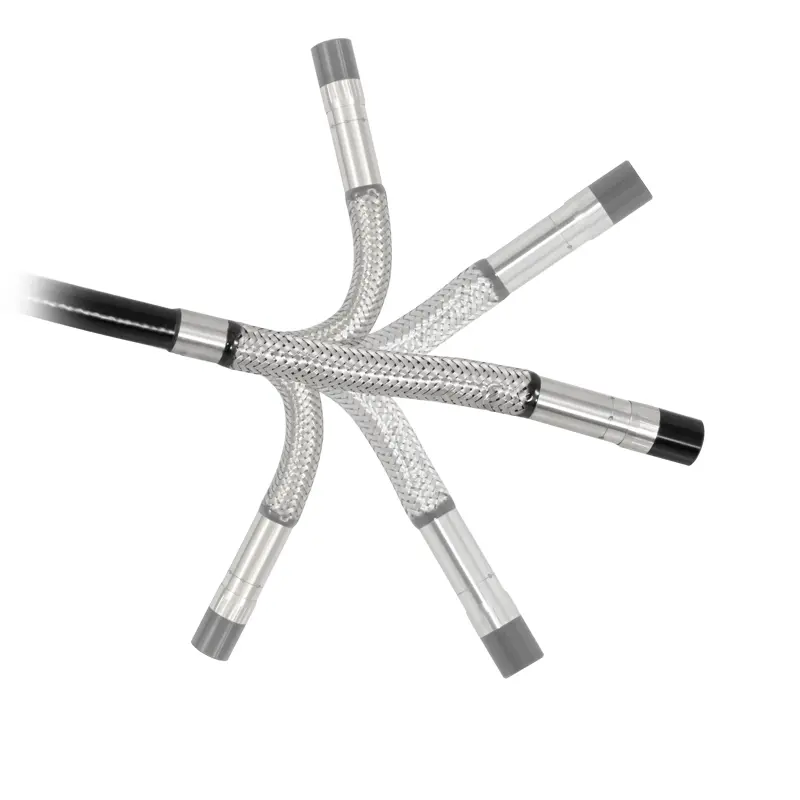

- 2-way optics
- 8 GB SD memory card (incl.)
- Robust carrying case included


Cable diameter

6.0 mm / 0.24 in.

Cable length

1 m / 3.28 ft

Depth of field

1.5 … 10 cm / 0.59 ... 3.94 in.

Field of view


Bending radius 90 mm / 3.54 in.
Illumination 6 LEDs (4 front, 2 side), automatic
Boost function For improved image quality in the dark
Image sensor CMOS
Picture rate 30 frames per second (fps)
88.9 mm / 3.5 in. TFT LCD monitor

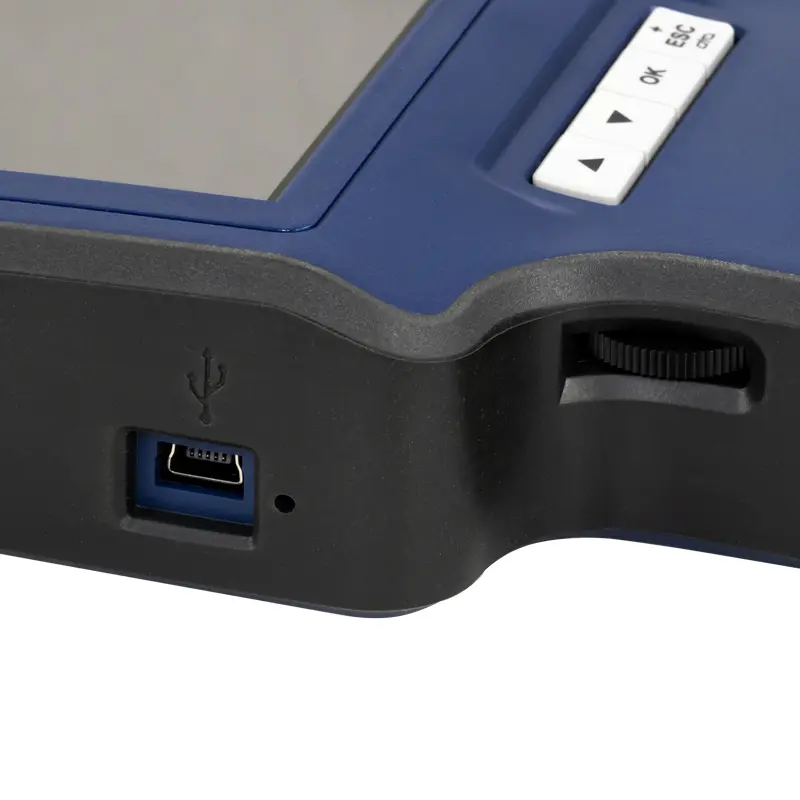

Interface Mini USB 1.1 / AV out
Storage options Image or video

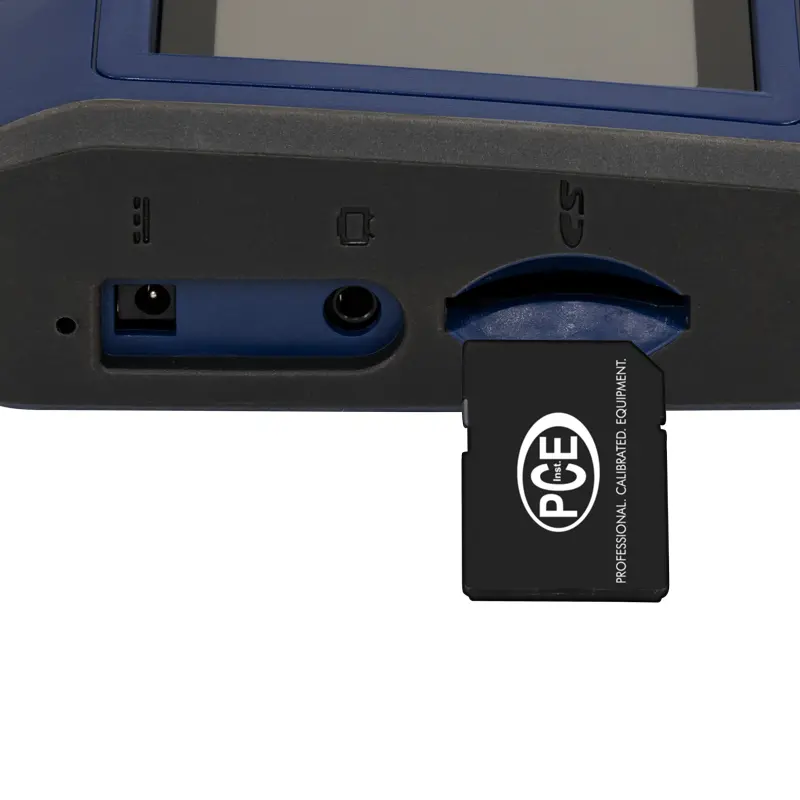

Storage 8 GB memory card (can be increased to 32 GB)
Compression format MPEG 4
Picture format JPEG (640 x 480 pixel resolution)
Video output format NTSC / PAL
Video format ASF (320 x 240)
Operation and storage temperature -10 ... +50 °C / +14 ... +122 °F
Voltage supply Rechargeable 3.7 V lithium-ion battery
Dimensions, handheld device 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in.
Weight, incl. carrying case 450 g / 1 lb
Protection type, camera IP 67 = Dust tight, no ingress of dust, complete protection against contact. Protected against liquid immersion up to 1 m / 3.28 ft, ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of press and time (up to 1 m / 3.28 ft of submersion).

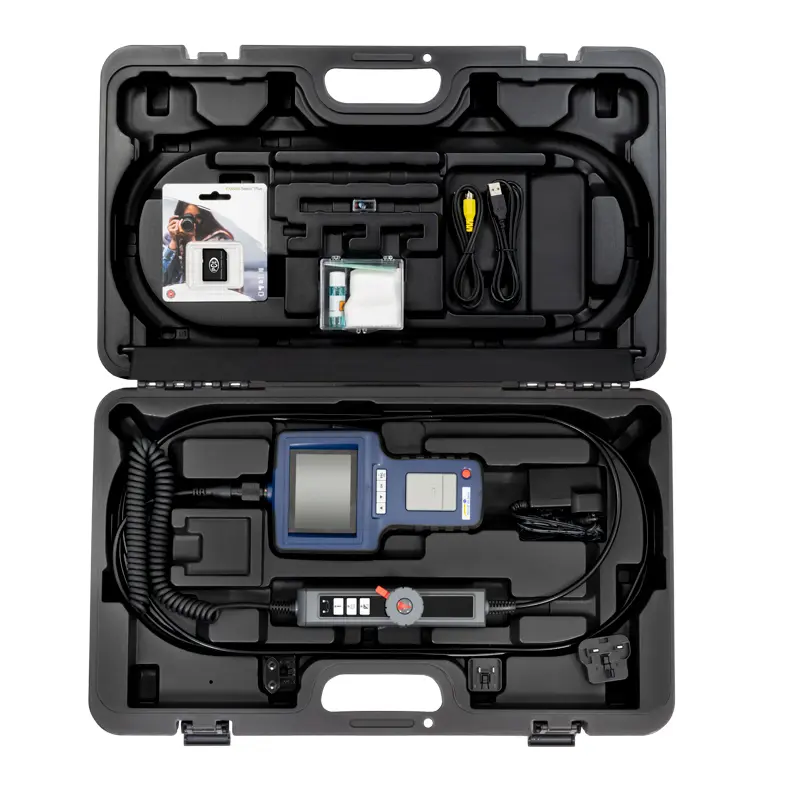

Delivery Scope

1 x Automotive Tester PCE-VE 350HR
1 x 8GB SD memory card
1 x USB cable
1 x Mains power adapter
1 x Carrying case
1 x  User manual


Please note: Not to be used for medical applications!
