Air Humidity Meter PCE-HT71N-5

Air Humidity Meter Set PCE-HT71N-5

Order no.: PCE-HT71N-5
GTIN (EAN):
£ 380.00
£ 456.00
price ex. (VAT / delivery)
PCE-HT71N-5
Delivery time:1-2 working days
±1°C
Non-contact
Handheld
-35 ... 80 °C / -31 ... 176 °F
Yes (integrated)
Yes (USB)

Description

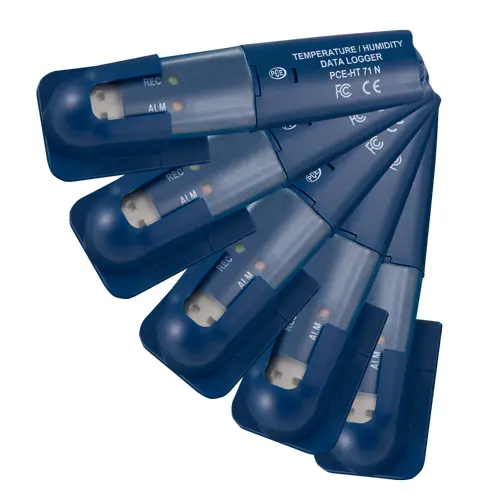

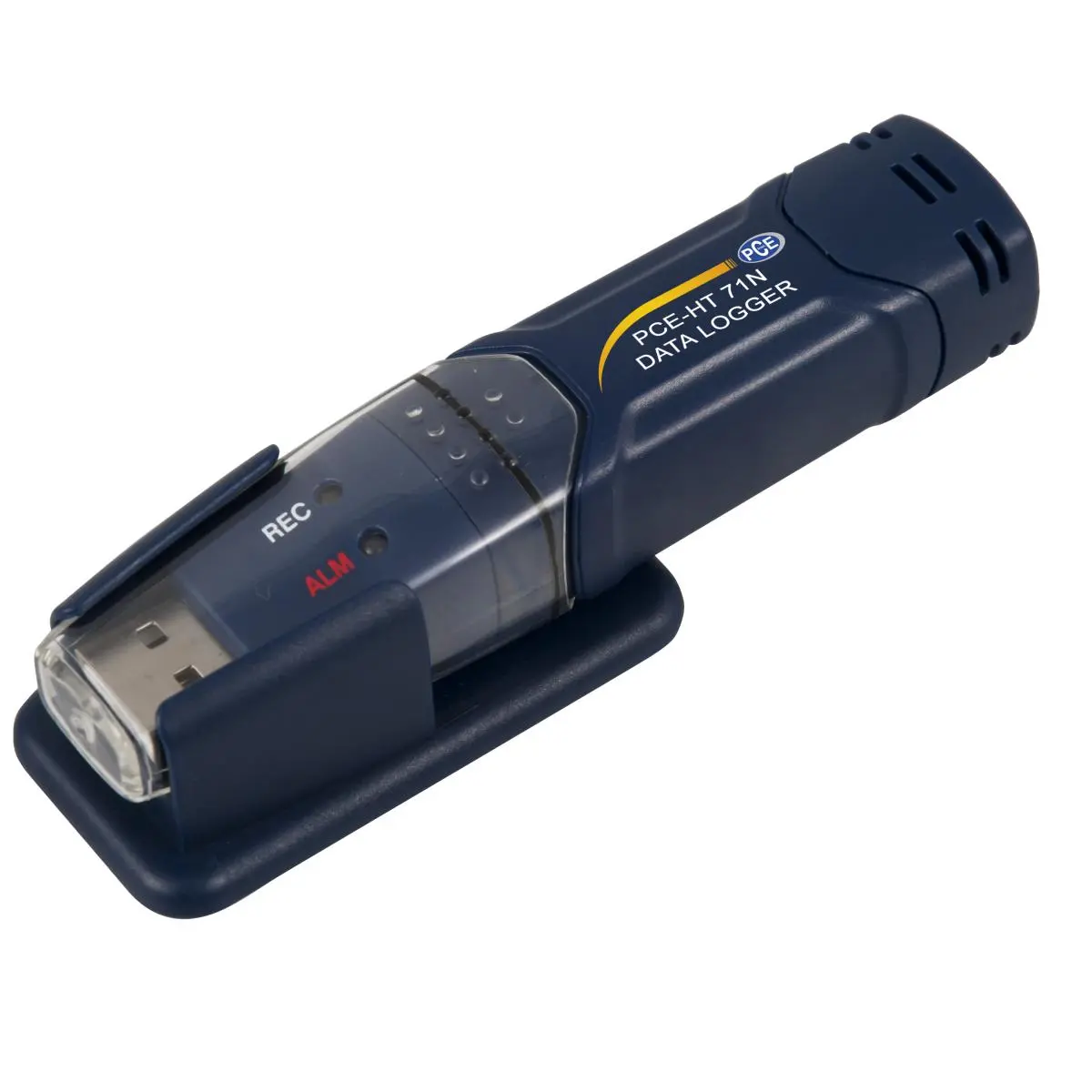

Air Humidity Meter PCE-HT 71N
Mini device for prolonged measurement of temperature and relative humidity / 32k memory/ USB port/ software to calculate dew point/ powered by a long-life lithium battery

The air humidity meter detects air temperature and humidity and stores readings in its internal memory. The air humidity meter has a compact format and a wide memory capacity (up to 32,000 values / 16,000 values for each parameter) and it is mainly used as a air humidity meter in fields such as supermarket refrigeration units, refrigerated transport, warehouses, and other temperature controlled environments. The air humidity meter works as a air humidity meter to record climatological data in spaces with controlled ambient conditions. Data can be transferred to a computer or a laptop via the USB port. The air humidity meter can be manually activated or can be programmed to start and stop on specific dates and times or to set the intervals at which measurements will be taken, allowing it to be left to record data in situ. Once transferred, data can be analysed on a computer. The software included in the delivery also calculates dew point. The internal clock allows the user to accurately assess the results. One special characteristic of the air humidity meter is that it is powered by a removable 3.6 V, long-life lithium battery. The battery life is approximately one year.


Highlights

- Storage capacity: 32K
- USB port
- A software for calculating dew point and analysing data in a computer is
included

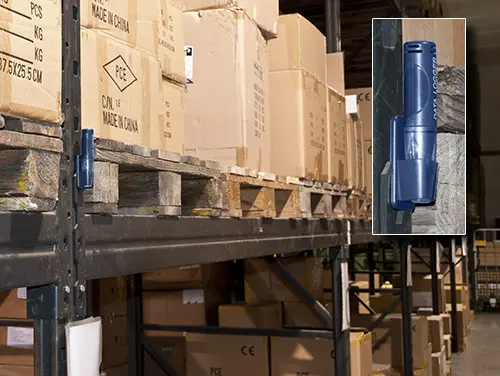

- Wall mount included in the delivery
- Adjustable date/time clock (it loses 3 s / month)
- Adjustable measurement quota (2s ... 24h)
- Long-life lithium battery
- Non-volatile EEPROM
- Staus indicated by 2 LEDs (including alarm)
- Programmable alarm limits across entire measurement range
- Replacement battery

Specification

Relative humidity
Measuring range  0 ... 100 % RH
Resolution  0,1 % RH
Accuracy  ±3 % RH

Temperature
Measuring range  -40 ... +70 °C
Resolution  0,1 °C
Accuracy  ±1 °C

General technical data
Display type  without display
Storage medium  Internal memory
Storage capacity  32000 Values
Memory capacity (additional information)  16000 per parameter
Storage interval from  2 s
Storage interval to  24 min.
Interface  USB
Operating time  1 Year(s)
Protection class (device)  IP20
(Rechargeable) battery  5 x 3,6 V 1/2 AA 3.6 V LI-SOCl₂ (LS 14250) , lithium
Capacity  1200 mAh
Operating conditions  -40 ... 70 °C , 0 ... 100 % RH
Storage conditions  -40 ... 70 °C , 0 ... 100 % RH
Dimensions ( L x W x H )  130 x 30 x 25 mm
Weight  20 g

Delivery Scope

5 x PCE-HT 71N Data Logger
5 x Adapter
5 x Battery
5 x Software
5 x User's manual
