| Measuring range | Acceleration |
| 0.0 ... 399.9 m/s² | |
| Resolution | 0.1 m/s² |
| Accuracy @ 160 Hz | ±2 % |
| Frequency range | 10 Hz ... 1 kHz |
| 10 Hz ... 10 kHz | |
| Measuring range | Velocity |
| 0.00 ... 399.9 mm/s | |
| Resolution | 0.1 mm/s |
| Accuracy @ 160 Hz | ±2 % |
| Frequency range | 10 Hz ... 1 kHz |
| Measuring range | Displacement |
| 0.000 ... 3.9 mm | |
| Resolution | 1 µm |
| Accuracy @ 160 Hz | ±2 % |
| Frequency range | 10 Hz ... 200 Hz |
| Measurement parameters | RMS, Peak, Peak-Peak |
| Crest factor | |
| Units | switchable metric / imperial |
| Display | 3.5" LC display |
| Menu languages | English, German, French |
| Spanish, Italian, Dutch | |
| Portuguese, Turkish, Polish | |
| Russian, Chinese, Japanese | |
| Power supply | 3 x 1.5 V AA batteries |
| Operating and storage conditions | -20 ... +65 °C / -4 ... 149 °F; 10 ... 95 % r.H. |
| Dimensions | 150 x 80 x 38 mm / 5.9 x 3.1 x 1.5" |
| Weight | 170 g / 6 oz |

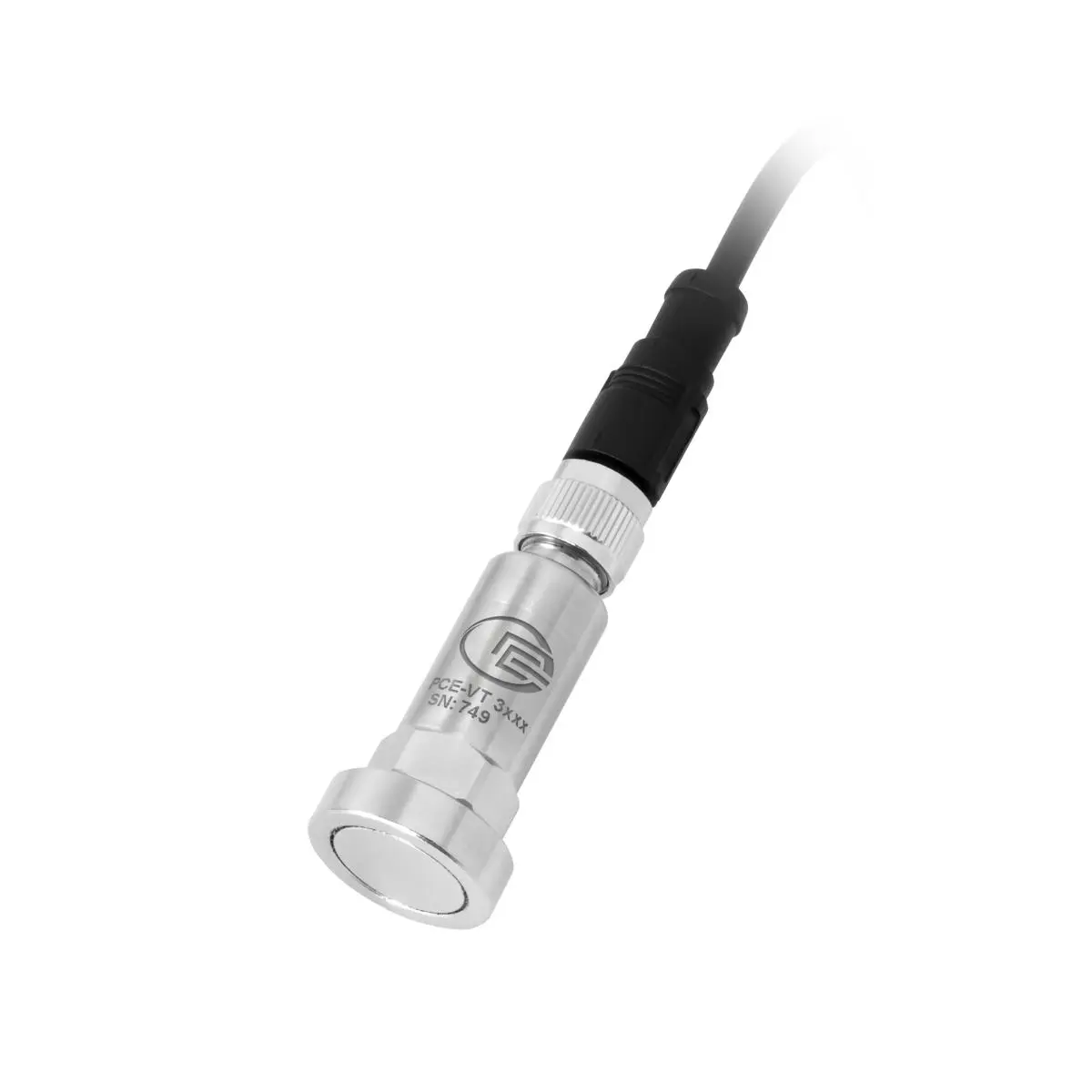

| Technical Data Vibration Sensor | |
| Resonance frequency | 30 kHz |
| Transverse sensitivity | ≤ 5% |
| Destruction limit | 5000 g (peak) |
| Operating and storage temperature | -20 ... +80 °C / -4 ... 176 °F; max. 95 % r.H. |
| Housing material | Stainless steel |
| Mounting thread | M5 |
| Dimensions | 16 x 36 mm / 0.6 x 1.4" |
| Weight (without cable) | 35 g / 1.2 oz |
PCE-VC21 is a vibration meter calibrator used to calibrate vibration sensors, meters, analyzers and testers. Suitable for calibrating equipment weighing up to 600 g (1.32 lb), this rechargeable-battery-powered vibration calibrator generates mechanical vibrations with adjustable quartz-stabilized vibration frequencies between 15.92 and 1280 Hz and adjustable vibration amplitudes between 1 m/s² and 20 m/s².
- Load-independent vibration magnitude
- 7 adjustable vibration frequencies
- 5 adjustable vibration amplitudes
PCE-VC20 is a vibration calibrator used to calibrate vibration sensors, meters, analyzers and testers. Suitable for calibrating equipment weighing up to 600 g (1.32 lb), this rechargeable-battery-powered vibration calibrator generates mechanical vibrations with a quartz-stabilized vibration frequency of 159.15 Hz (radian frequency 1000/s).
Load-independent vibration magnitude with an RMS of:
- 10 m/s² vibration acceleration
- 10 mm/s vibration velocity
- 10 µm vibration displacement
- Special handle for needle sensors from the vibration measuring device of the PCE-VT 3xxx series
This ergonomic handle which is attached to the sensor and spiral cable can be used in conjunction with the measuring tip to measure in inaccessible locations.
Price excl. VAT &. delivery
2 year Warranty
- Magnet adapter for vibration measuring device.

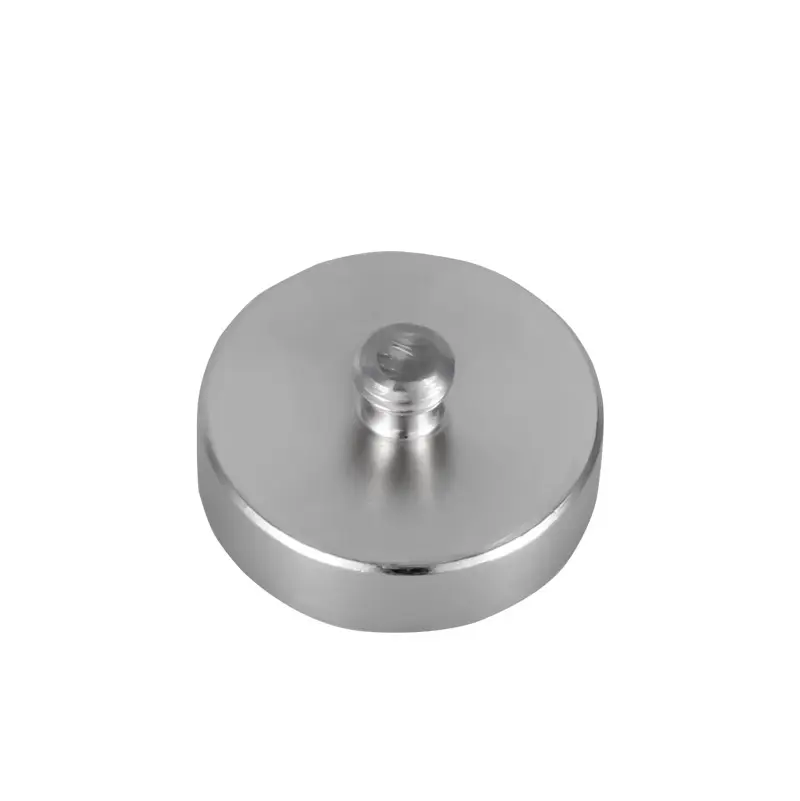

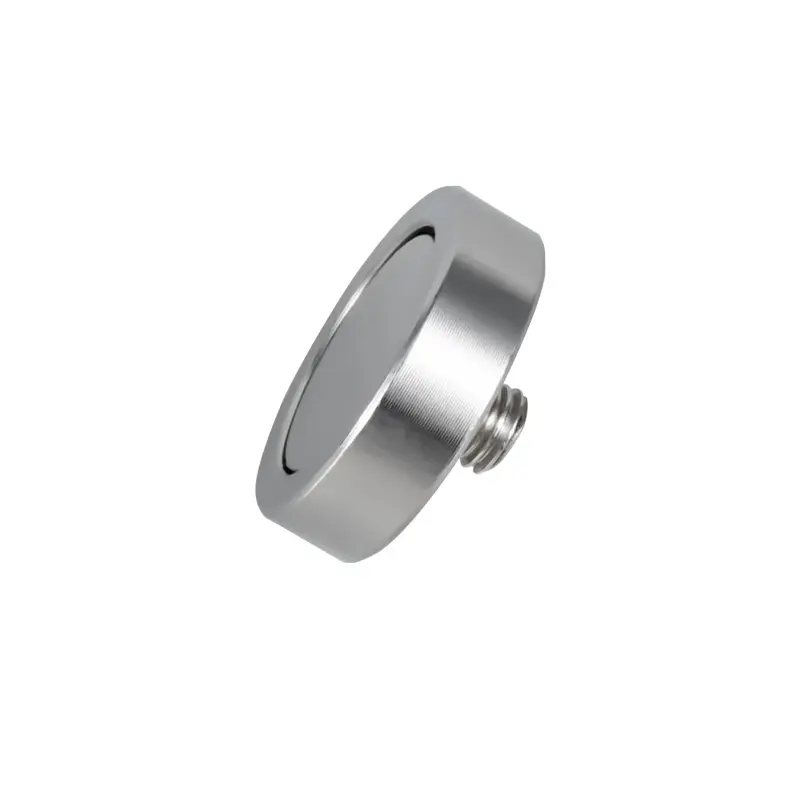

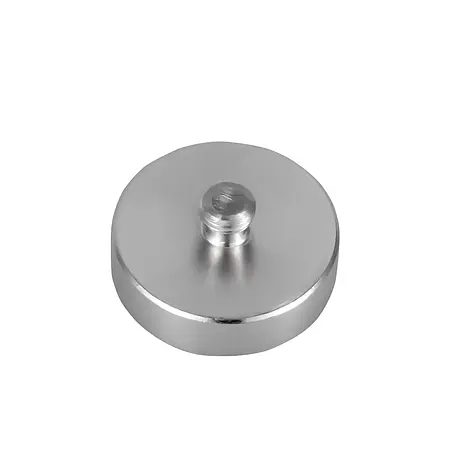

Instead of a stud bolt the magnet adapter PCE-VT-VMH can be used to attach the sensor to magnetic surfaces.
Price excl. VAT &. delivery
2 year Warranty
- Needle sensor PCE-VT-NP for vibration measuring device
For inaccessible measurement locations or if only a quick, temporary measurement is sufficient, the measuring tip PCE-VT-NP can be used to perform these measurements. The measuring tip should be placed as vertical as possible on the measurement surface in order to receive accurate measurements
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
ISO recalibration for vibration meters is often required to comply with DIN ISO 9000.
If your calibration certificate expires or has expired, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
Price excl. VAT &. delivery
2 year Warranty
