Accelerometer PCE-VT 1100M

Order no.: PCE-VT 1100M

GTIN (EAN): 4250348728852

Accessory

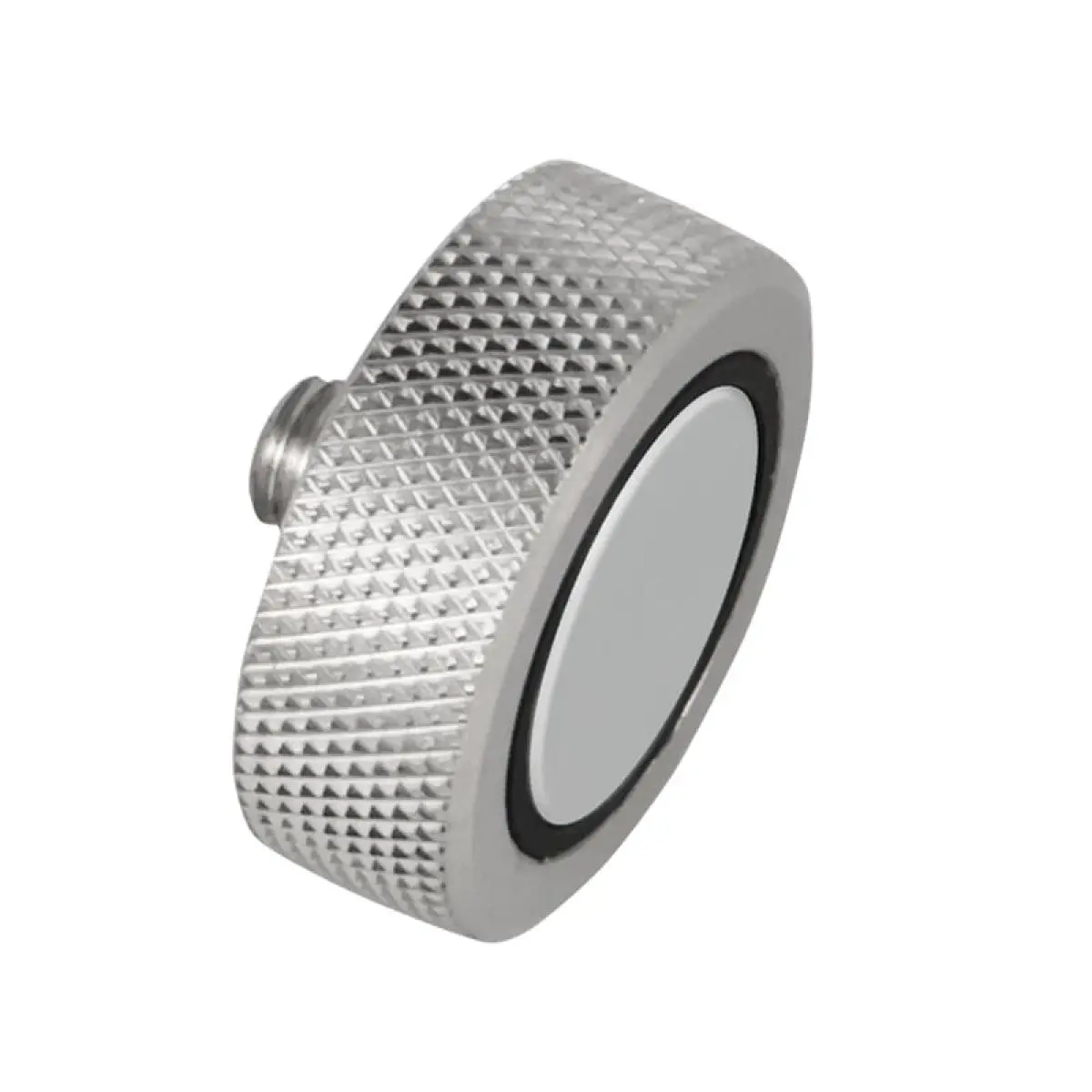

Vibration Sensor PCE-VT-NF-45

£ 35.00

ISO Calibration Certificate CAL-V-I for Vibration Meter

£ 193.00

Description

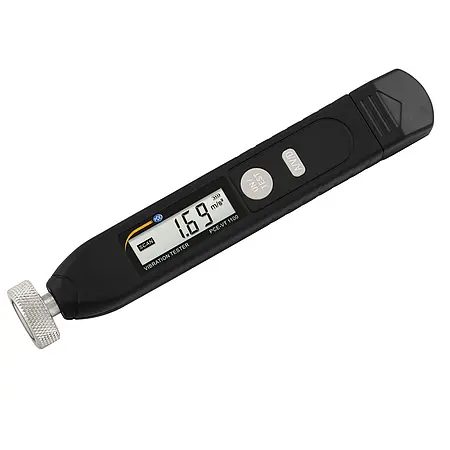

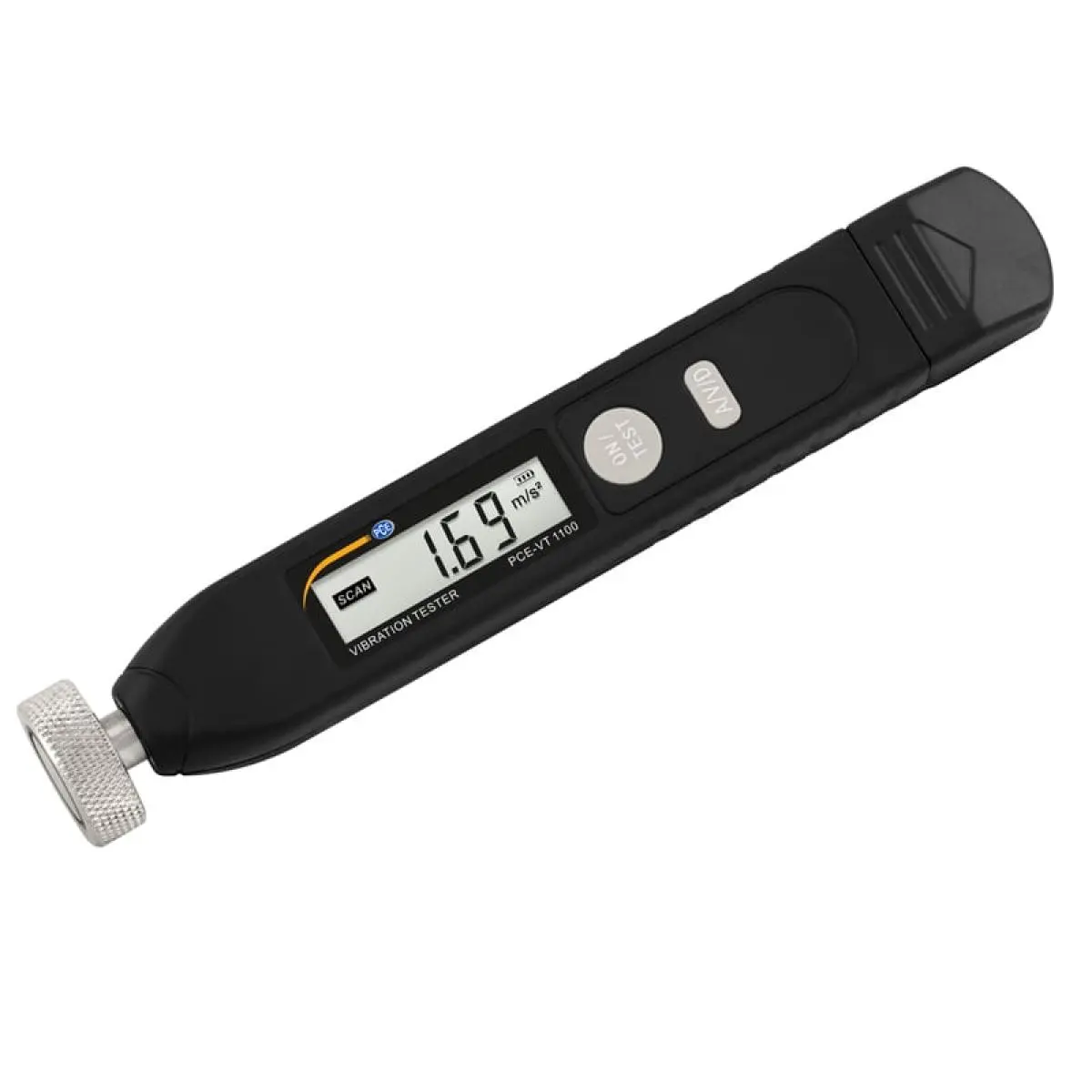

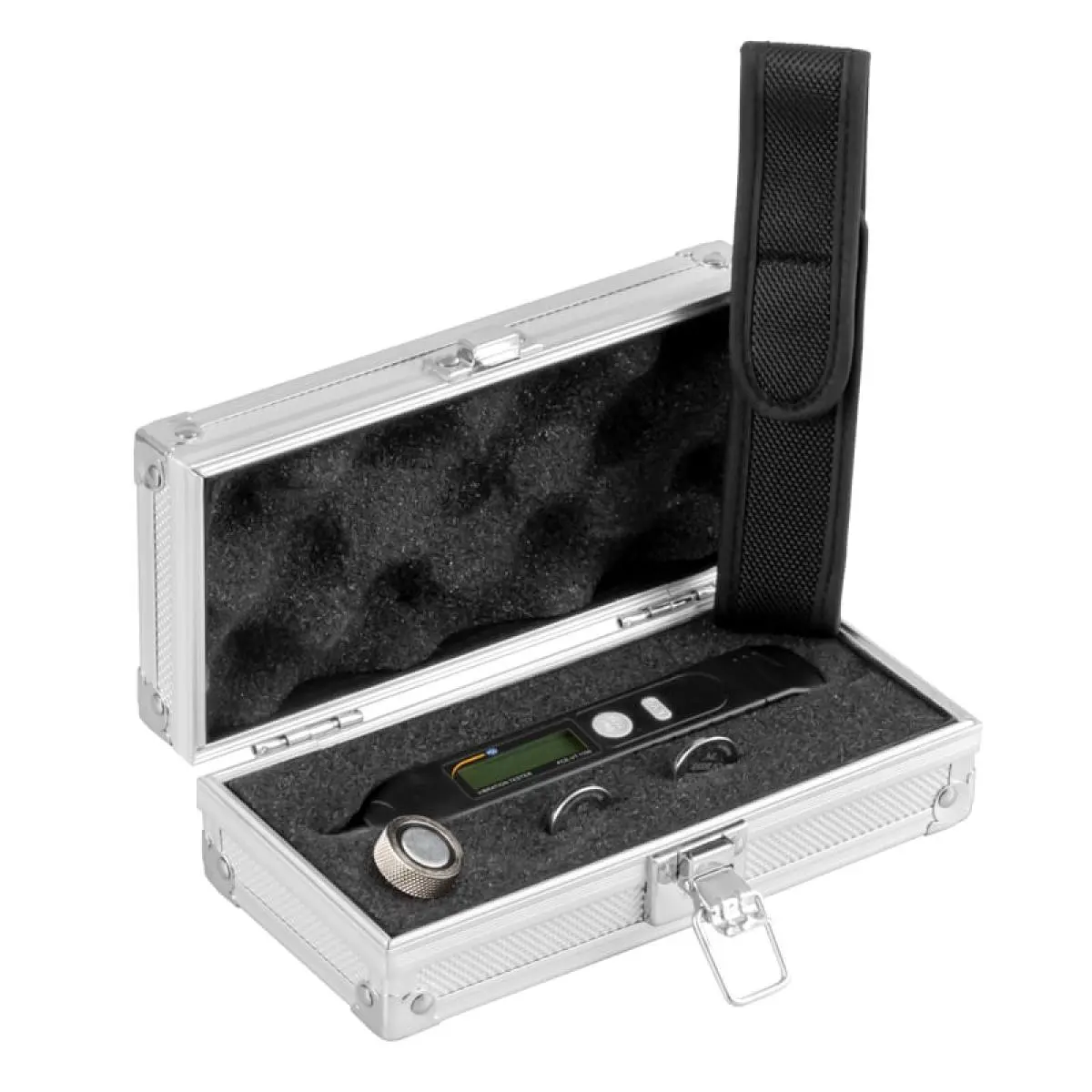

Accelerometer PCE-VT 1100M
Accelerometer for vibration measurement / Measurement memory for previous measurement / Measurement of acceleration, vibration velocity and displacement in metric only / Large frequency range / Battery-operated hand-held measuring device / Automatic shutdown

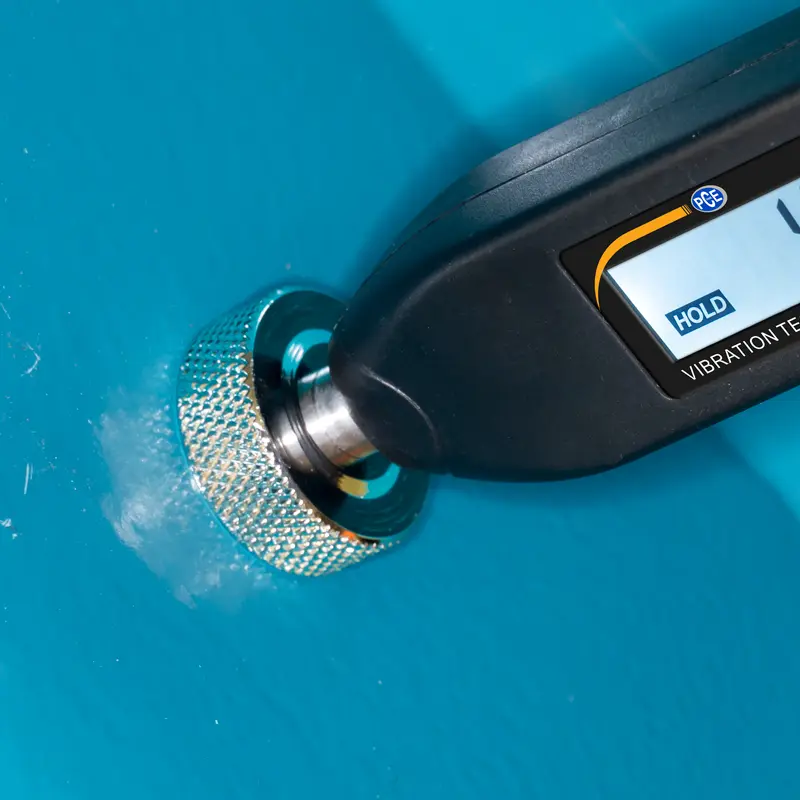

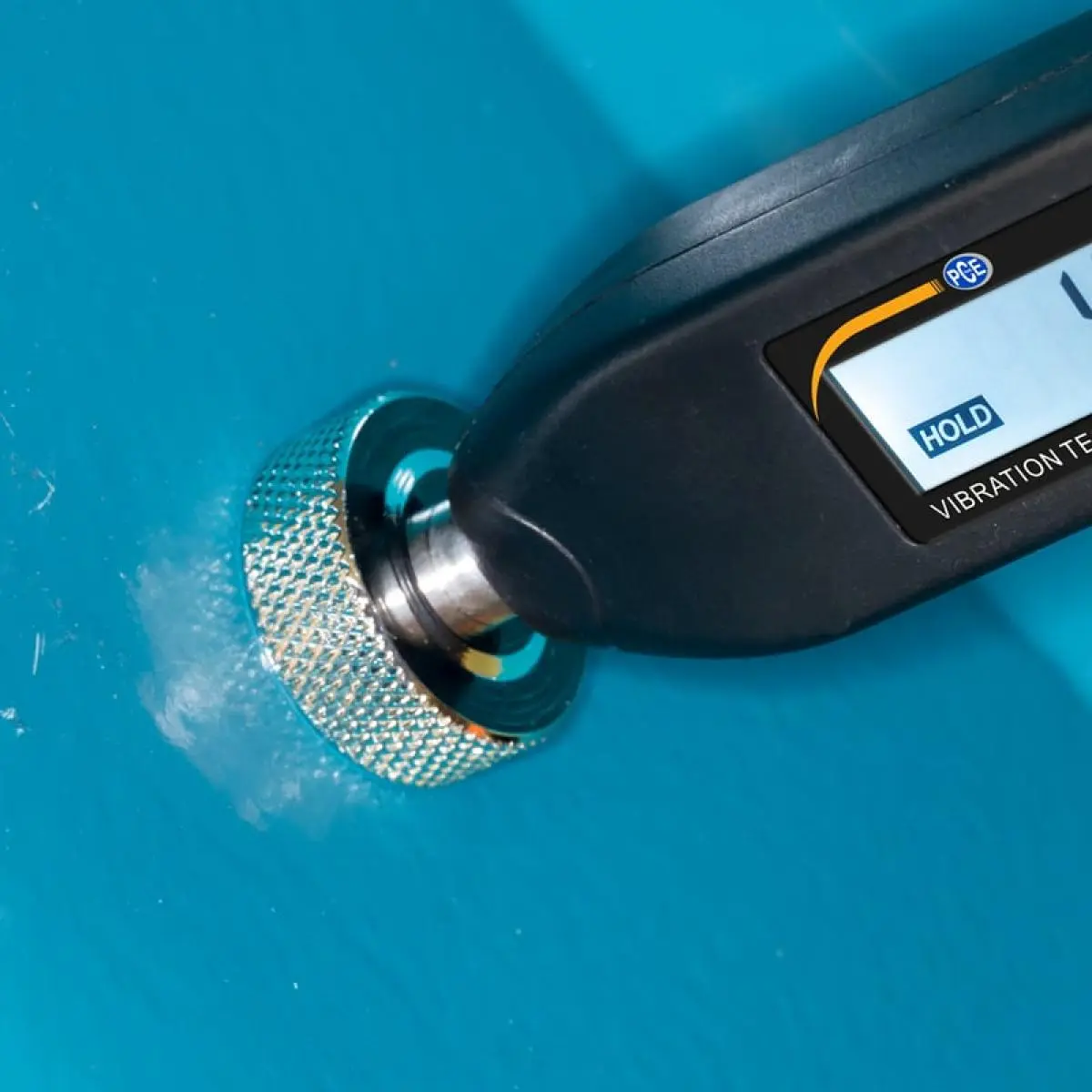

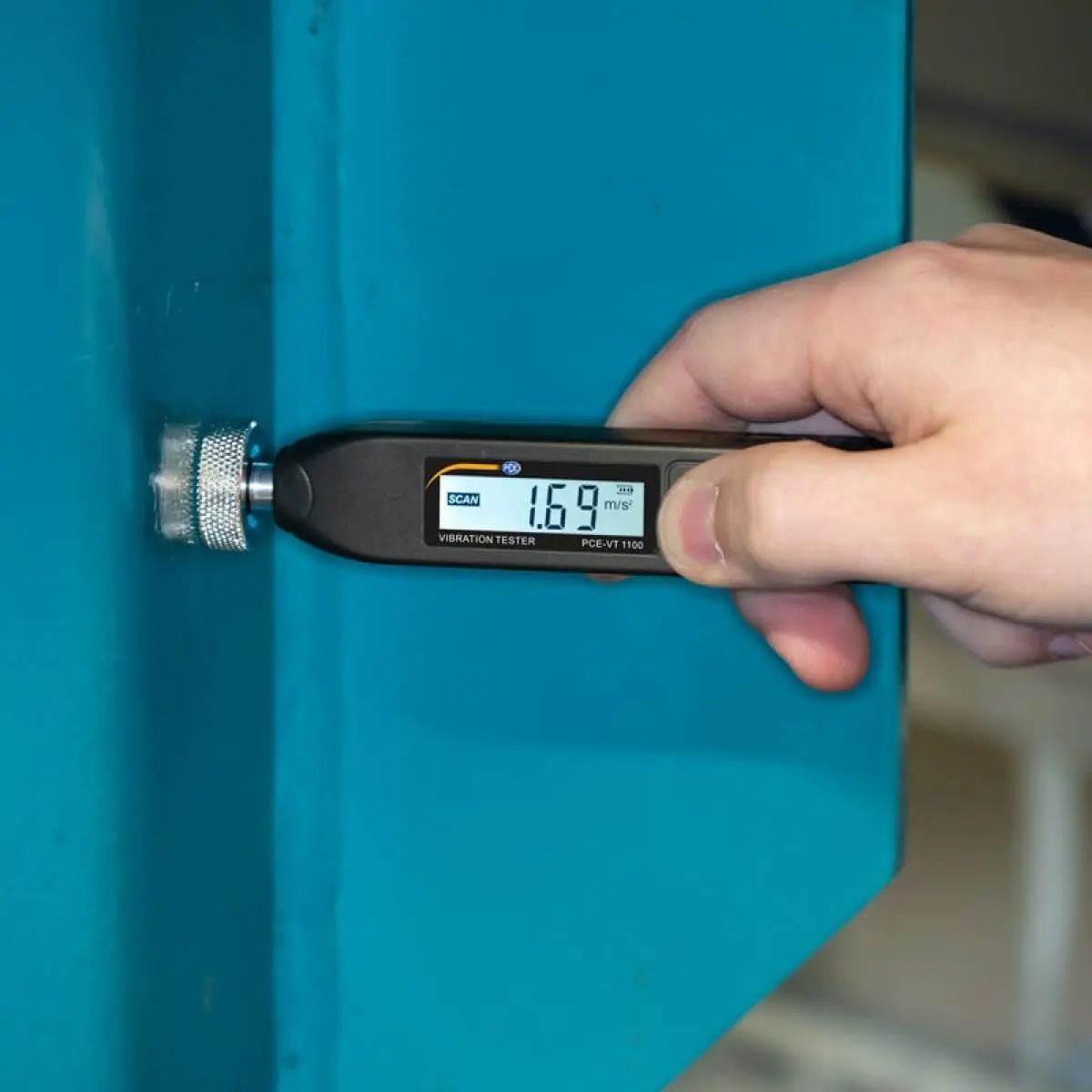

The accelerometer is used as a hand-held measuring device for the individual assessment of vibrations on machines and systems. With the help of this vibration meter, the actual state can easily be determined on site. Thus, corresponding changes can be made directly on site after the measurement. Thereafter, the new condition can be assessed. Thus, the vibration meter serves as a measuring device for a relative measurement on different machines.

The accelerometer serves essentially as precautionary or preventive maintenance of production machines. Very often, the vibration meter is used to assess the state of smaller electric motors.

Highlights

- Measures speed, distance, acceleration

- Keeps the value after every measurement

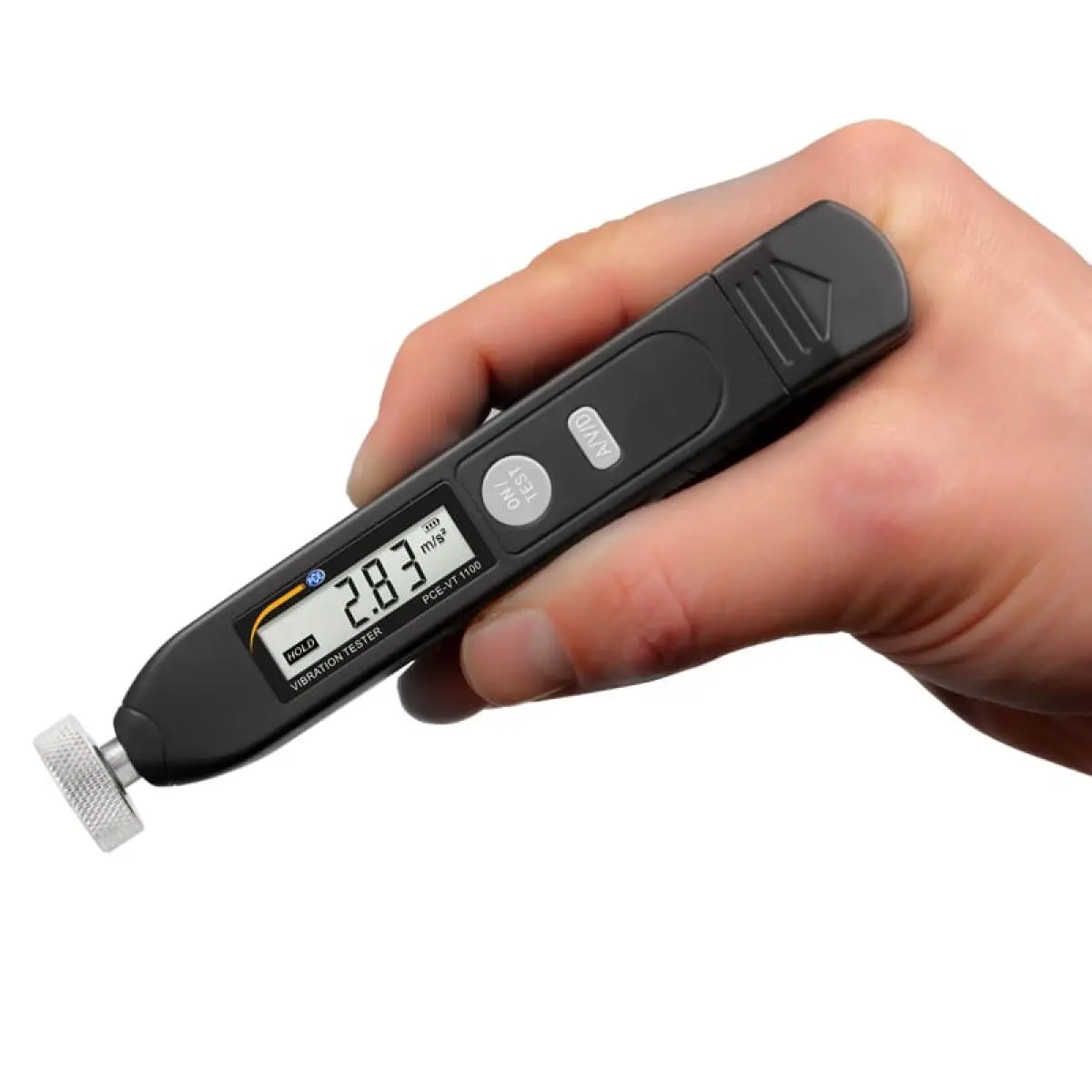

- Easy to handle, powered by batteries

- Wide frequency range

- Automatic shut-down after 20 seconds of inactivity to protect battery life

- Low battery indicator

Specification

Acceleration
Measuring range	0,01 ... 199,9 m/s² peak
Resolution	0,01 m/s² peak
Accuracy	≤3 % of Rd
Frequency range	10 Hz ... 1 kHz

Speed
Measuring range	0,01 ... 199,9
Resolution	0.01
Accuracy	±(5% of measured value +2 digits)
Frequency range	10 Hz ... 1 kHz

Displacement
Measuring range	0,001 mm p-p ... 1,999
Resolution	0,001 mm p-p
Accuracy	±(5% of reading +2 digits); frequency-dependent: 10 ... 20 Hz: +10 / -20% and 20 ... 1000 Hz: ±5%
Frequency range	10 ... 500 Hz

General technical data

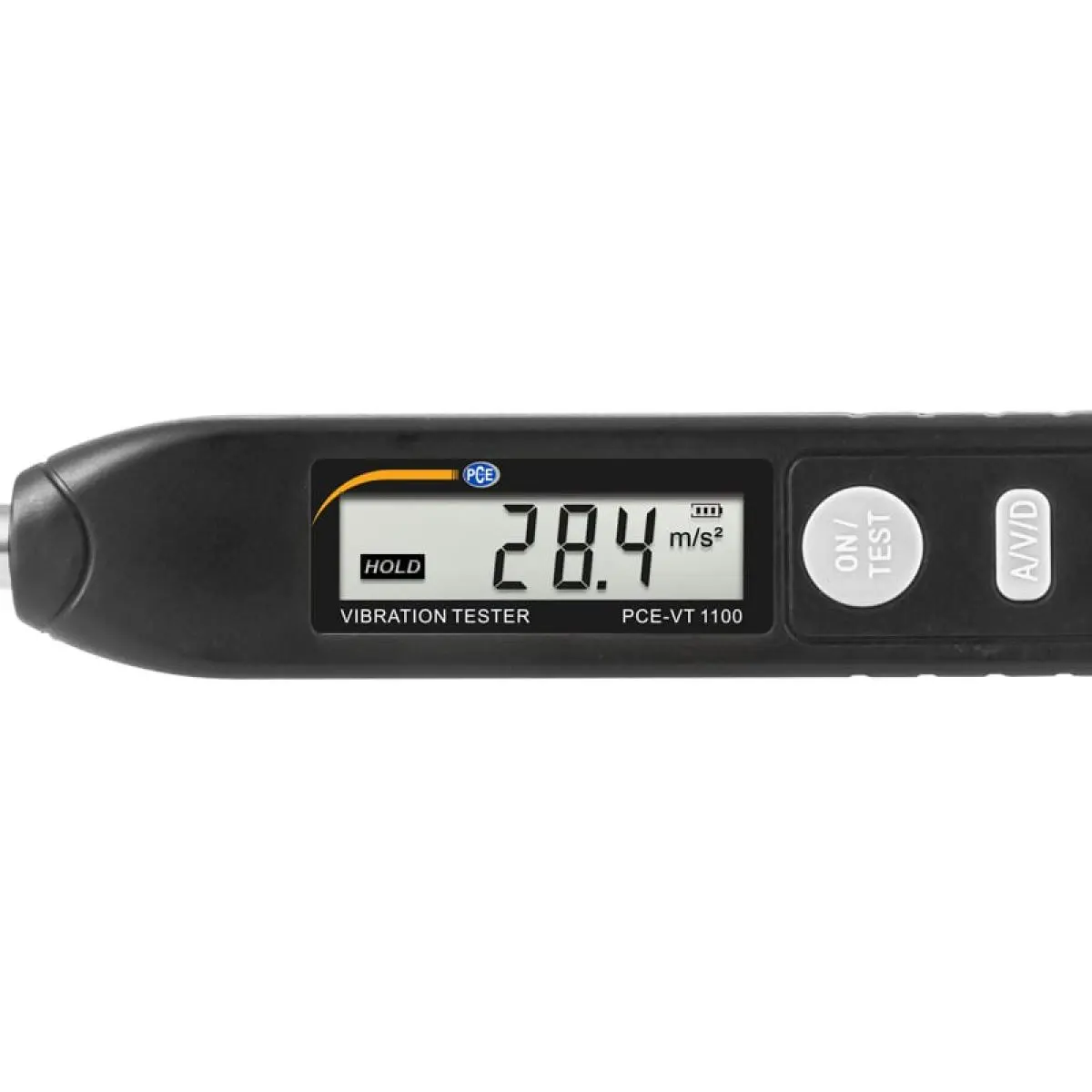

Measuring functions	HOLD
Display type	LCD with backlight
Response time	1 s
Operating time	5 h
Automatic power-off	20 s
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	batteries
(Rechargeable) battery	2 x 3 V CR 2032 (button cell 3V) , lithium
Capacity	230 mAh
Operating conditions	0 ... 40 °C , 0 ... 84 % RH
Storage conditions	0 ... 40 °C , 0 ... 84 % RH
Dimensions ( L x W x H )	155 x 24 x 18,7 mm
Weight	40 g
