£ 192.00
| Vibration acceleration | 0 ... 200 m/s², RMS and Peak-Peak |
| Vibration velocity | 0 ... 200 mm/s, RMS |
| Vibration displacement | 0 ... 2000 μm, Peak-Peak |
| Accuracy vibration | ± 5% |
| Operating modes | Vibration, temperature, speed |
| Representable measured variables | Frequency |
| Vibration acceleration | |
| Vibration velocity | |
| Vibration | |

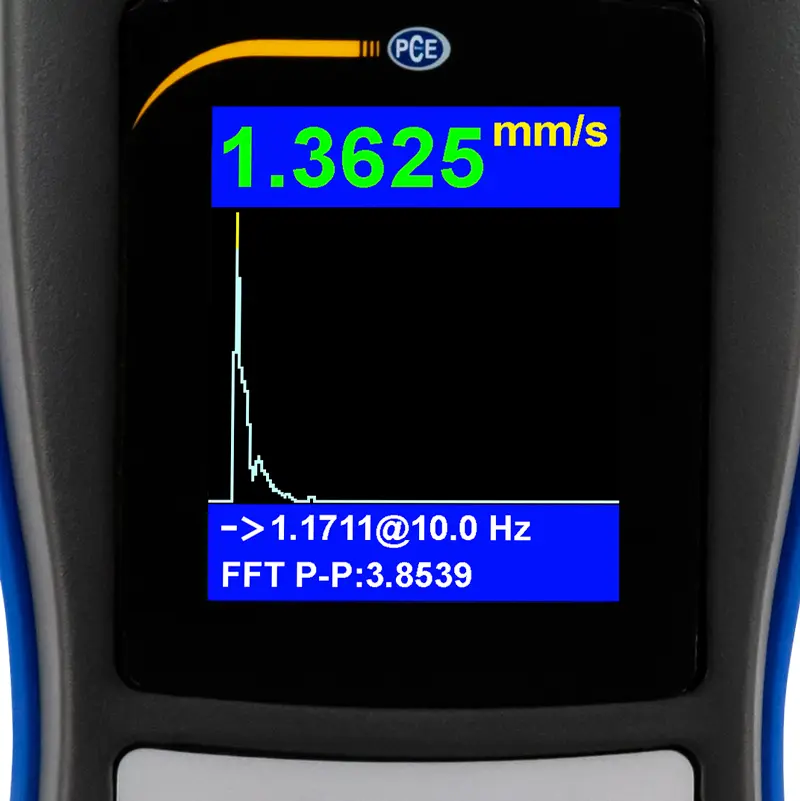

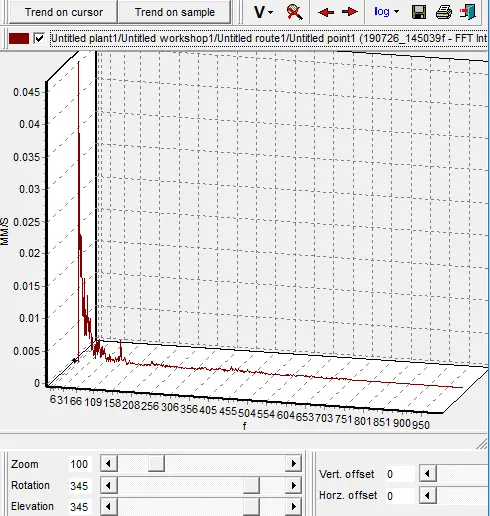

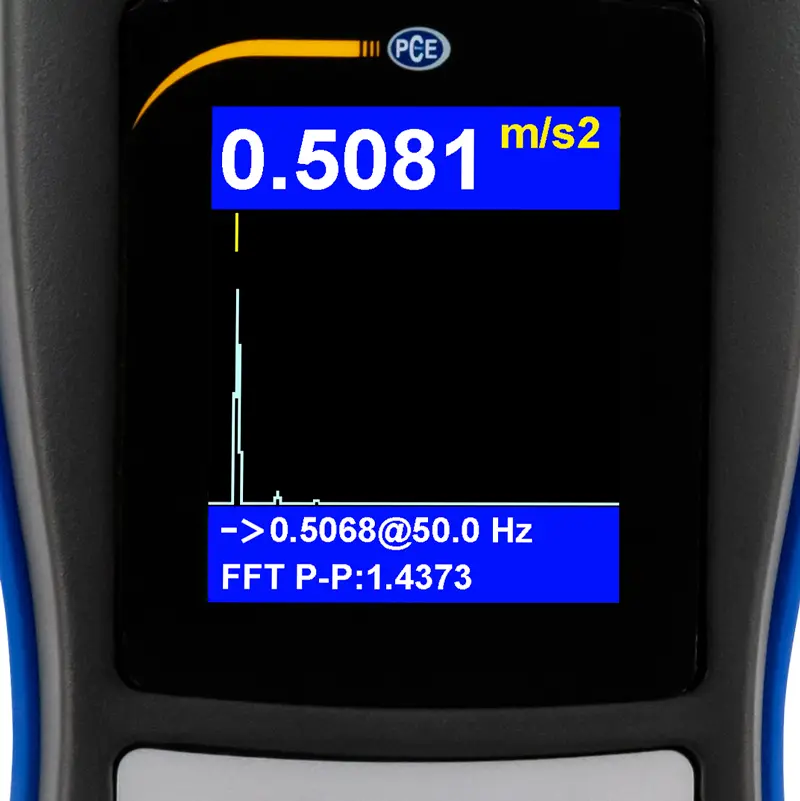

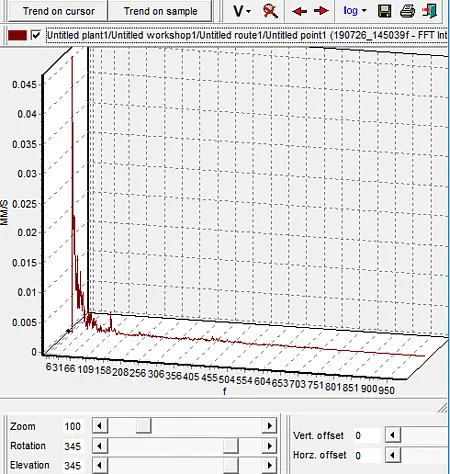

| FFT spectrum | |
| Units | Metric |
| Hz, mm/s², mm/s, μm, RPM, Hz | |

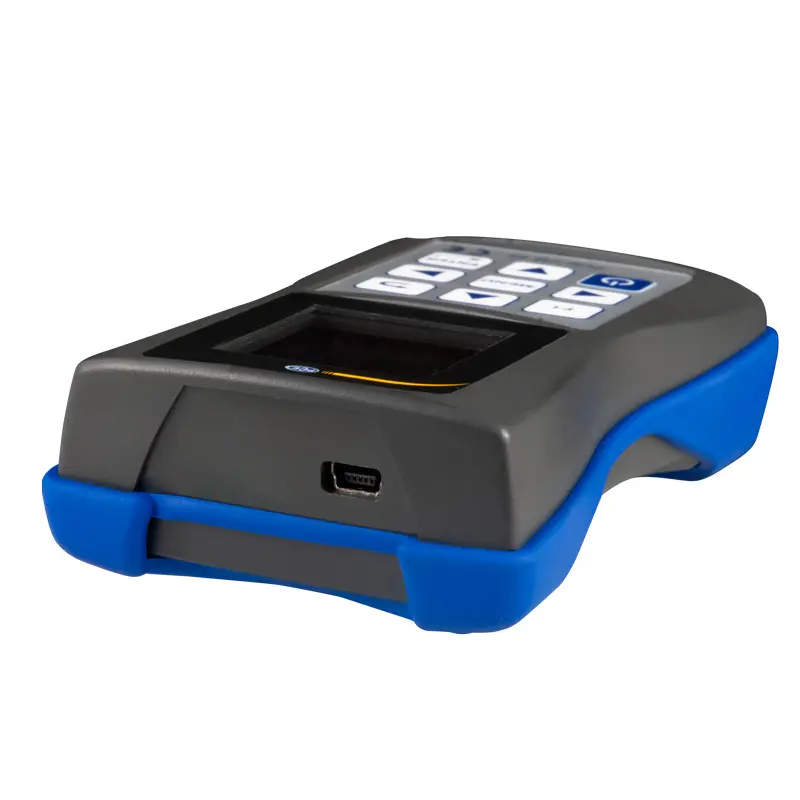

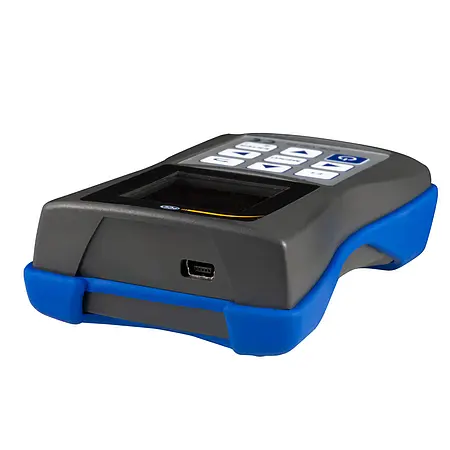

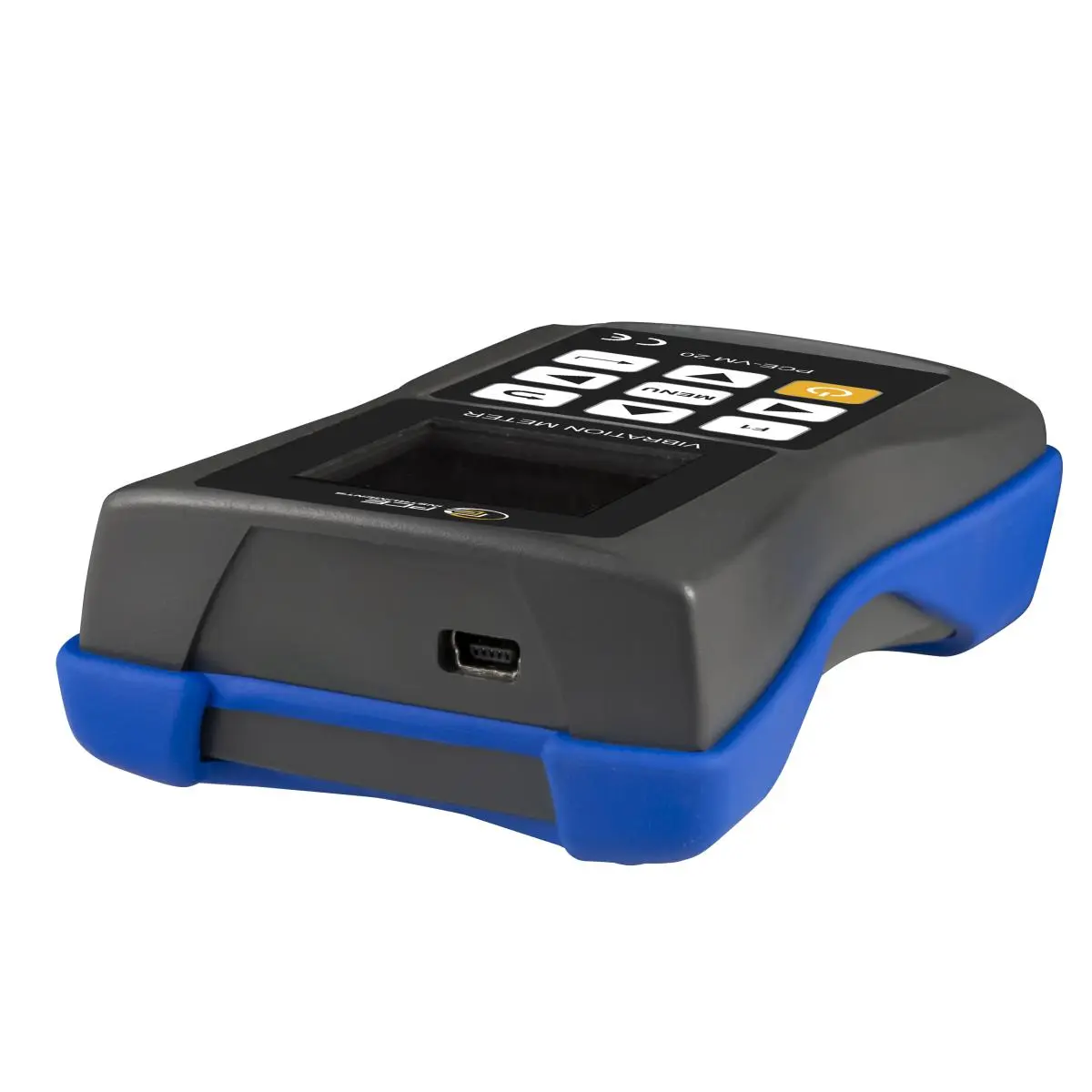

| Interface | USB 2.0 |
| Storage | 4GB micro SD card |
| Battery life | Up to 8 h continuous operation |
| Battery type | Lithium polymer |

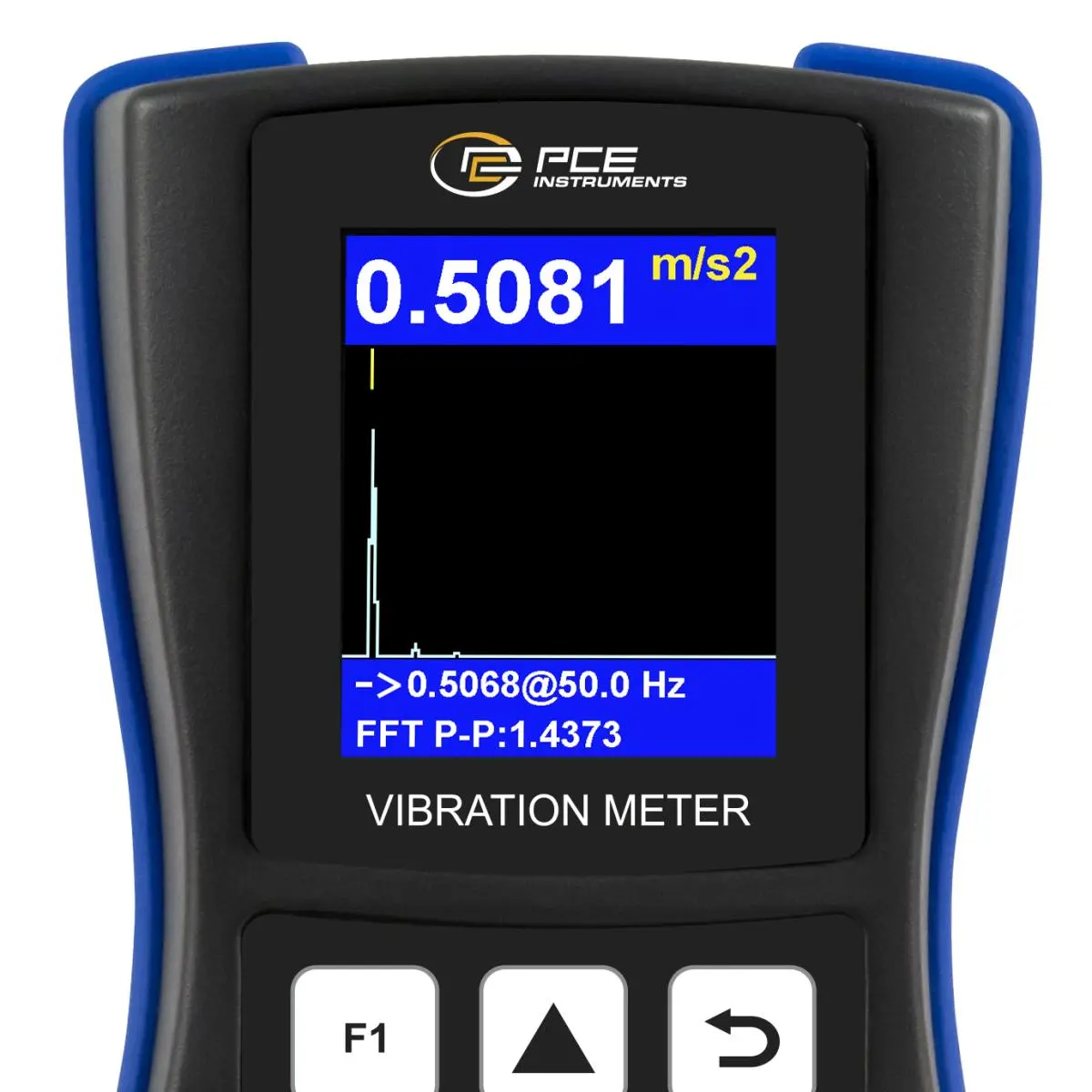

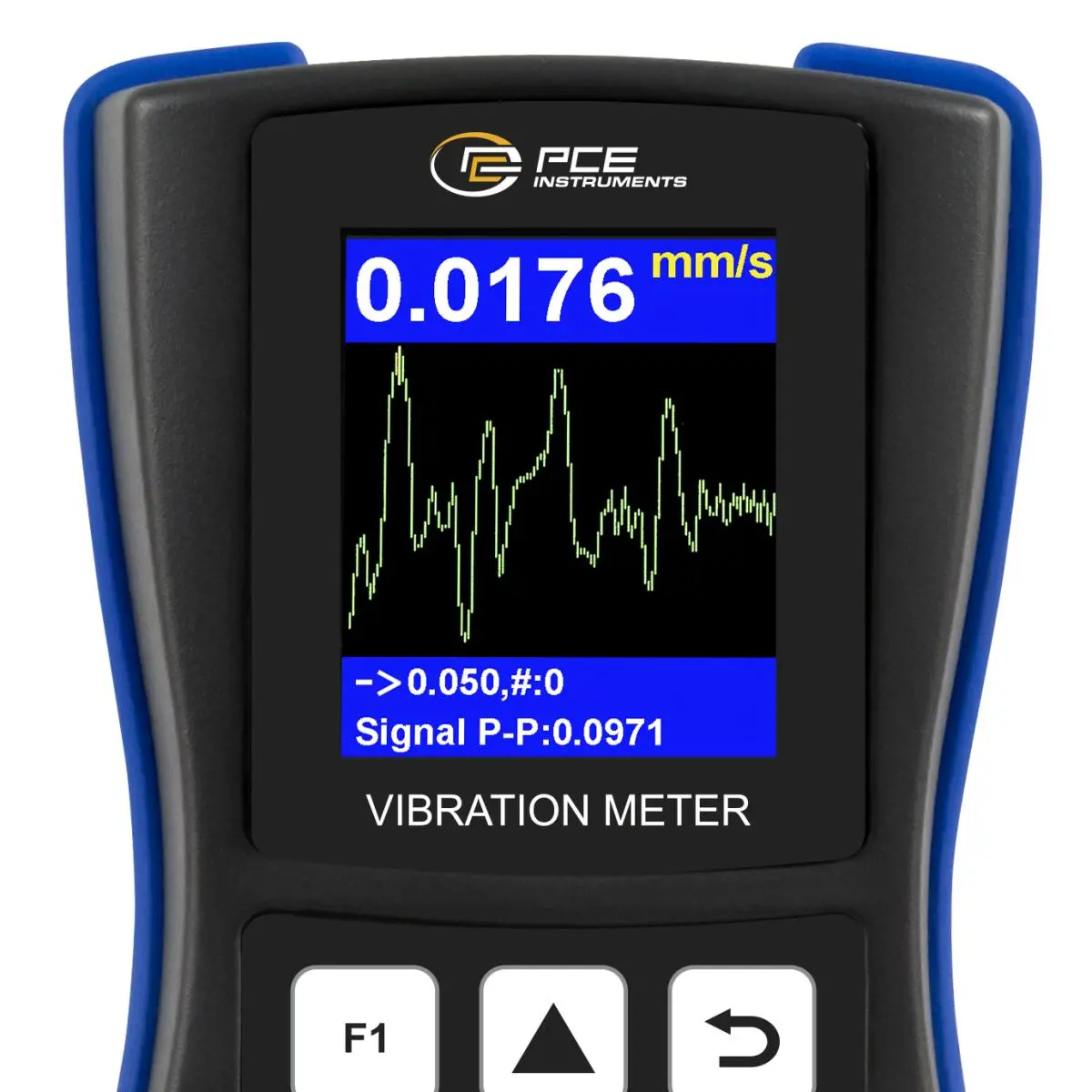

| Display | 128 x 160 pixel color LCD |
| Environmental conditions | -10 ... 55°C / 14 ... 131°F |
| ≤ 80% RH not condensing | |
| Dimensions | 132 x 70 x 33 mm / 5.2 x 2.8 x 1.3 in (L x W x D) |
| Weight | About 150 g / < 1 lb |
| Handset: must not be exposed to strong vibrations, magnetic fields, corrosive media or dust | |

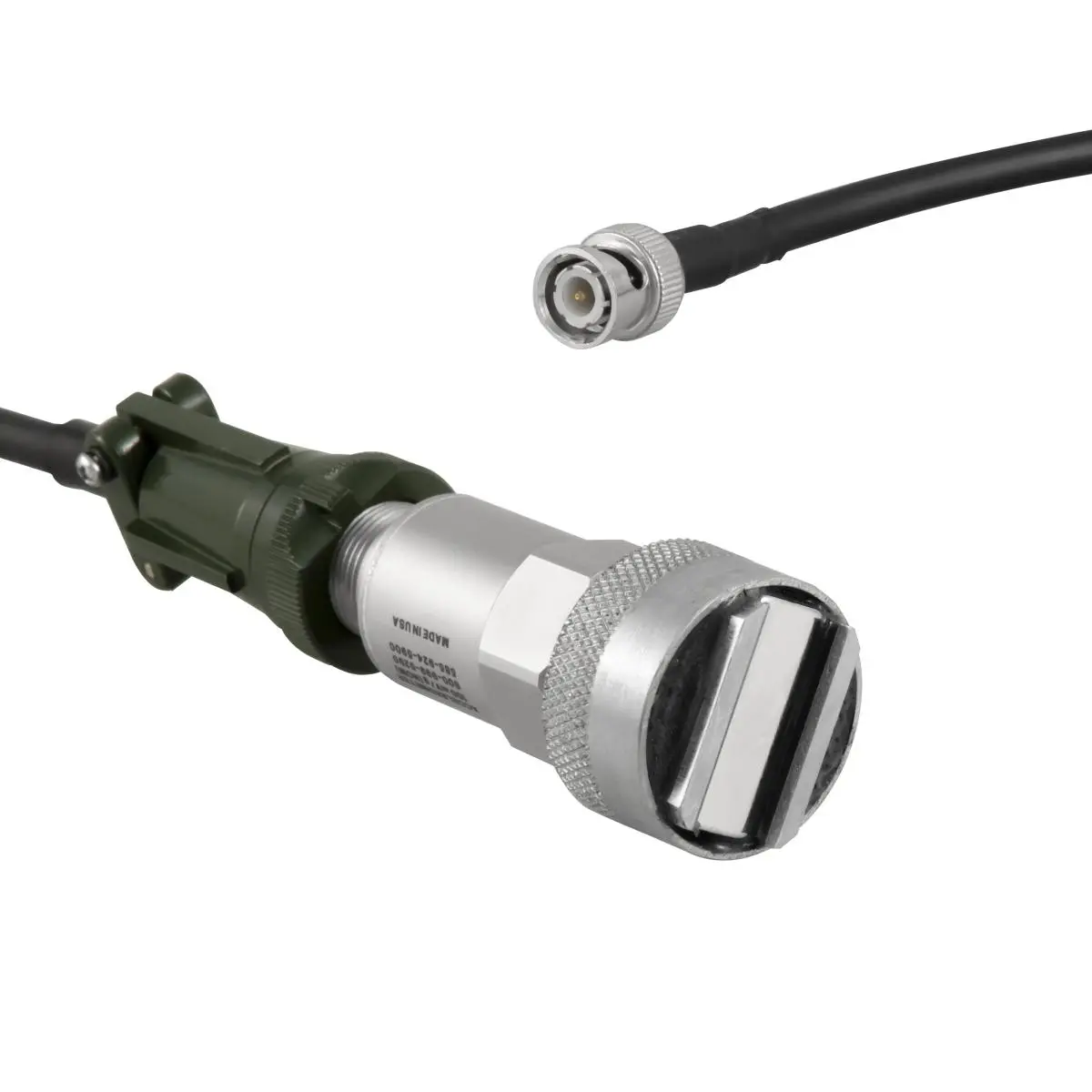

| Technical data for the vibration sensor | |
| Sensitivity | 100 mV / g |
| Frequency response (± 3 dB) | 0.5 ... 15,000 Hz |
| Frequency response (± 10%) | 2.0 ... 10,000 Hz |
| Dynamic range | ± 50 g, peak |
| Power supply (IEPE) | 18 ... 30V DC |
| Constant current source | 2 ... 10-mA |
| Spectral noise at 10 Hz | 14 μg / √Hz |
| Spectral noise at 100 Hz | 2.3 μg / √Hz |
| Spectral noise at 1000 Hz | 2 μg / √Hz |
| Output impedance | < 100 Ω |
| Bias voltage | 10 ... 14V DC |
| Housing insulation | > 100 MΩ |
| Environmental conditions | -50 ... 121 °C / -58 ... 249.8 °F |
| Maximum impact protection | 5000 g, peak |
| Resonant frequency | 23,000 Hz |
| Housing material | 316L stainless steel |
| Connection | 2 Pin MIL-C-5015 |
| Protection | IP68 |
| Weight | 90 g / < 1 lb |
